Sayfa 2-36C - Isuzu EPC

2-36C — MANUAL TRANSMISSION CONT LINK AND CABLE (#4339) — 334 parça

496 465 192 509 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
192	COVER 6WA1 TC-S(56L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5)	1-79907-081-0	01	1	9610-9903	●	●
192	COVER 6WA1 TC-S(56L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	9904-0001	●	●
192	COVER ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	0002-	●	●	●	●	●	●
192	COVER ENG CONTROL TICS<Q3P> EXC. ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	0002-	●	●	●	●	●	●
465	BRACKET; CONNECTOR 6WA1 TC-S(56L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5)	1-47477-823-1	01	1	9610-0001	●	●
465	BRACKET; CONNECTOR ELECTRONIC GOV RED3(KG5)	1-47477-823-2	01	1	0002-	●	●	●	●	●	●
465	BRACKET; CONNECTOR ENG CONTROL TICS<Q3P> EXC. ELECTRONIC GOV RED3(KG5)	1-47477-823-2	01	1	0002-	●	●	●	●	●	●
468	NUT; BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) M8 FLANGE	8-94279-517-0	02	1	9610-9611	●	●
468	NUT; BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9612-0001	●	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0002-	●	●	●	●	●	●
468	NUT; BRKT ENG CONTROL TICS<Q3P> EXC. ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0002-	●	●	●	●	●	●
496	FASTENER 6WA1 TC-S(56L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) ID=6X6 OD=8	1-09987-194-0	02	1	9610-9610	●	●
496	FASTENER 6WA1 TC-S(56L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	9611-0001	●	●
496	FASTENER ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	0002-	●	●	●	●	●	●
496	FASTENER ENG CONTROL TICS<Q3P> EXC. ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	0002-	●	●	●	●	●	●
509	SEAL; BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5)	1-47477-825-2	01	1	9610-0001	●	●
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5)	1-47477-825-2	01	1	0002-	●	●	●	●	●	●
509	SEAL; BRKT ENG CONTROL TICS<Q3P> EXC. ELECTRONIC GOV RED3(KG5)	1-47477-825-2	01	1	0002-	●	●	●	●	●	●

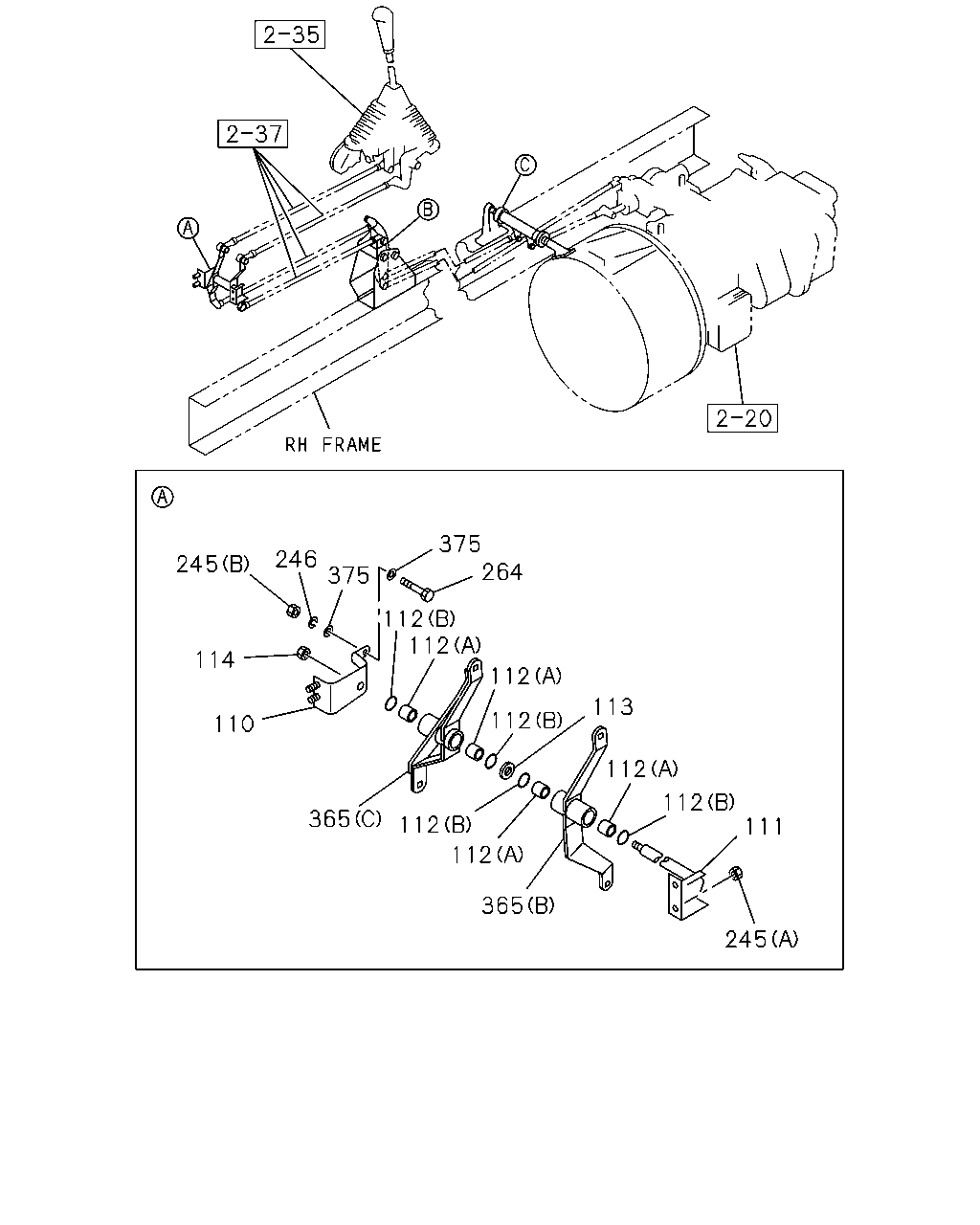

375 264 246 245 375 112 112 114 112 113 112 110 112 112 365 112 111 112 365 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	9603-	●	●	●	●	●	●
111	SHAFT; RELAY LEVER,1ST	1-33619-468-0	01	1	9603-	●	●	●	●	●	●
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	9603-	●	●	●	●	●	●
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	9603-	●	●	●	●	●	●
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	9603-	●	●	●	●	●	●
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	9603-	●	●	●	●	●	●
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	9603-	●	●	●	●	●	●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	9603-	●	●	●	●	●	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	9603-	●	●	●	●	●	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	01	1	9603-	●	●	●	●	●	●
365	LEVER; RELAY,SELECT 6WA1 TC-S(56L) (A)	1-33651-628-1	01	1	9603-9706	●
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9707-9904	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9905-			●	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9603-	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9603-	●	●	●	●	●	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9603-	●	●	●	●	●	●

460 387 501 441 366 385 366 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
366	TUBE; NYLON,FULLER CONT L=5250 RED	1-33619-358-0	01	1	9603-9607	●	●
366	TUBE; NYLON,FULLER CONT L=5250 BLACK	1-33619-368-0	01	1	9603-9607	●	●
366	TUBE; NYLON,FULLER CONT L=5800 BLUE	1-33619-376-0	01	1	9603-9607	●	●
366	TUBE; NYLON,FULLER CONT L=5250 GREEN	1-33619-385-0	01	1	9603-9607	●	●
366	TUBE; NYLON,FULLER CONT L=4850 YELLOW	1-33619-390-0	01	1	9603-9607	●	●
366	TUBE; NYLON,FULLER CONT L=5800 ORANGE	1-33619-398-0	01	1	9603-9607	●	●
385	TUBE; NYLON (B) L=4900 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	9608-9608	●	●
385	TUBE; NYLON (B) L=1530 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	9609-9708	●	●
385	TUBE; NYLON EXC. CAB UP +50MM<W60> (B) L=1530 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	9709-9904	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1530 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (B) L=5000 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9608-9608	●	●
385	TUBE; NYLON (B) L=1530 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9609-9708	●	●
385	TUBE; NYLON EXC. CAB UP +50MM<W60> (B) L=1530 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9709-9904	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1530 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (B) L=5350 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9608-9608	●	●
385	TUBE; NYLON (B) L=1530 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9609-9708	●	●
385	TUBE; NYLON EXC. CAB UP +50MM<W60> (B) L=1530 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9709-9904	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1530 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (B) L=5000 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9608-9608	●	●
385	TUBE; NYLON (B) L=1530 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9609-9708	●	●
385	TUBE; NYLON EXC. CAB UP +50MM<W60> (B) L=1530 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9709-9904	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1530 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (B) L=4500 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9608-9608	●	●
385	TUBE; NYLON (B) L=1530 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9609-9708	●	●
385	TUBE; NYLON EXC. CAB UP +50MM<W60> (B) L=1530 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9709-9904	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1530 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (B) L=5200 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9608-9608	●	●
385	TUBE; NYLON (B) L=1530 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9609-9708	●	●
385	TUBE; NYLON EXC. CAB UP +50MM<W60> (B) L=1530 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9709-9904	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1530 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (A) L=3000 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	9701-9904	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1640 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1790 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (A) L=3100 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9701-9904	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1640 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1790 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (A) L=3500 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9701-9904	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1640 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (A) L=3100 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9701-9904	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1640 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (A) L=2650 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9701-9904	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1640 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (A) L=3350 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9701-9904	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1640 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON CAB UP +50MM<W60> (B) L=1580 SERVICED BY L=5800 RED	1-33619-362-0	01	1	9709-9904	●	●
385	TUBE; NYLON (A) L=3000 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON (A) L=3100 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON CAB UP +50MM<W60> (B) L=1580 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9709-9904	●	●
385	TUBE; NYLON (A) L=3100 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON (A) L=3200 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON CAB UP +50MM<W60> (B) L=1580 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9709-9904	●	●
385	TUBE; NYLON (A) L=3500 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON (A) L=3600 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON CAB UP +50MM<W60> (B) L=1580 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9709-9904	●	●
385	TUBE; NYLON (A) L=3100 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON (A) L=3200 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON CAB UP +50MM<W60> (B) L=1580 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9709-9904	●	●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2650 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON CAB UP +50MM<W60> (B) L=1580 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9709-9904	●	●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3350 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0104-			●	●	●	●
387	GROMMET; CONT TUBE,FULLER	1-09332-135-0	01	1	9603-9904	●	●
387	GROMMET; CONT TUBE,FULLER	1-09332-135-0	01	1	9905-			●	●	●	●
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9603-9904	●	●
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9905-			●	●	●
441	CONNECTOR; NYLON TUBE (B)	1-09660-975-0	06	1	9609-9904	●	●
441	CONNECTOR; NYLON TUBE (B)	1-09660-975-0	06	1	9905-9910			●	●	●	●
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	06	1	9911-			●	●	●	●
441	CONNECTOR; NYLON TUBE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	9911-			●	●	●	●
460	TUBE; CORRUGATE L=2400 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	9905-9910			●	●	●	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2400 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	9911-0103			●	●	●	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0104-			●	●	●	●
460	TUBE; CORRUGATE CAB UP +110MM<TGG> L=1030 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	9905-0103			●	●	●	●
460	TUBE; CORRUGATE L=1190 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0104-			●	●	●
460	TUBE; CORRUGATE L=250 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	02	1	9604-9904	●	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> L=150 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9905-			●	●	●	●
460	TUBE; CORRUGATE L=750 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9608-9608	●	●
460	TUBE; CORRUGATE L=600 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9608-9608	●	●
460	TUBE; CORRUGATE L=150 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9608-9608	●	●
460	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9608-9608	●	●
460	TUBE; CORRUGATE L=750 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9701-9904	●	●
460	TUBE; CORRUGATE L=750 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9905-			●	●	●	●
460	TUBE; CORRUGATE L=600 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9701-9904	●	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> L=600 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9905-			●	●	●	●
460	TUBE; CORRUGATE L=150 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9701-9904	●	●
460	TUBE; CORRUGATE L=250 ID=7 SERVICED BY L=800 ID=7	1-83129-031-1	02	1	9905-			●	●	●
460	TUBE; CORRUGATE L=300 SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9701-9904	●	●
460	TUBE; CORRUGATE L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	9905-			●	●	●	●
460	TUBE; CORRUGATE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2400 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	9911-0103			●	●	●	●
460	TUBE; CORRUGATE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0104-			●	●	●	●
501	SEAL; HARNESS PROTECTOR 100X30	1-72498-014-1	04	1	9603-9903	●	●
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	9904-9904	●	●
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	9905-			●	●	●	●

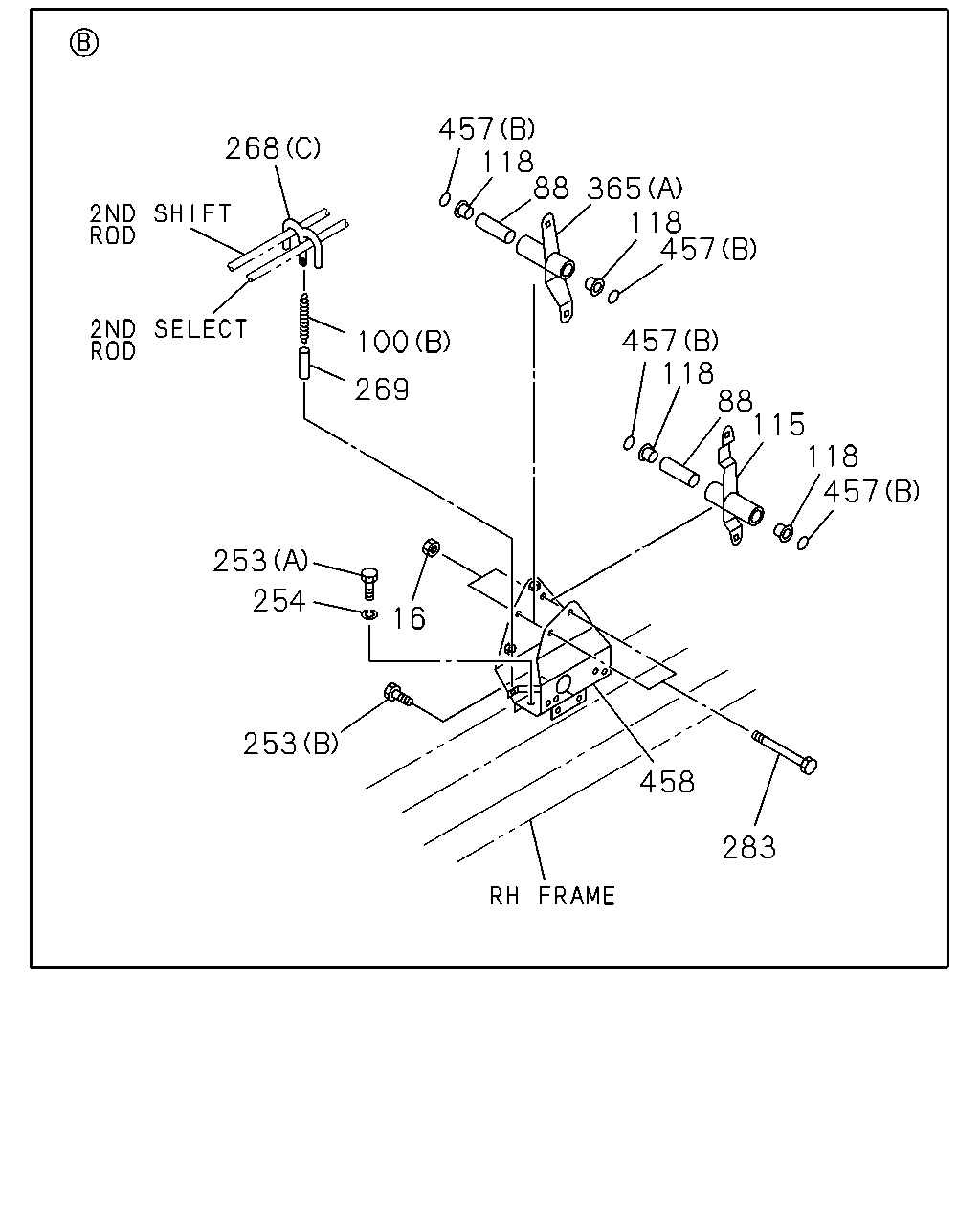

457 118 88 268 365 118 457 457 118 88 115 118 457 100 269 253 254 16 253 458 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9603-9904	●	●
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9905-			●	●	●	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9603-9904	●	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9905-			●	●	●	●
100	SPRING 6WA1 TC-S(56L) (B)	1-09583-218-0	01	1	9603-9904	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-351-0	01	1	9905-			●	●	●	●
100	SPRING 6WA1 TC-S(56L) (A)	1-09583-319-0	01	1	9603-9706	●
100	SPRING (A)	1-09583-319-0	01	1	9707-9904	●	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9905-			●	●	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9603-9904	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9905-			●	●	●	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9603-9904	●	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9905-			●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9603-	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9603-9606	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9607-	●	●	●	●	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9603-	●	●	●	●	●	●
268	BRACKET; LINK ROD 6WA1 TC-S(56L) (C)	1-33657-216-0	01	1	9603-9904	●
268	BRACKET; LINK ROD L TYPE ENG<90L> (C)	1-33657-216-0	01	1	9905-			●	●	●	●
269	COVER; SPR 6WA1 TC-S(56L)	1-15669-002-0	01	1	9603-9904	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9603-9904	●	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9905-			●	●	●	●
365	LEVER; RELAY,SELECT 6WA1 TC-S(56L) (A)	1-33651-628-1	01	1	9603-9706	●
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9707-9904	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9905-			●	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9603-	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9603-	●	●	●	●	●	●
457	GASKET (B)	1-09623-594-0	04	1	9603-9904	●	●
457	GASKET (B)	1-09623-594-0	04	1	9905-			●	●	●	●
458	BRACKET; 2ND RELAY LEVER L TYPE ENG<90L> EXC. CAB UP +110MM<TGG>	1-33657-583-1	01	1	9905-			●	●	●	●
458	BRACKET; 2ND RELAY LEVER 6WA1 TC-S(56L)	1-33657-573-2	01	1	9603-9706	●
458	BRACKET; 2ND RELAY LEVER	1-33657-573-2	01	1	9707-9904	●	●
458	BRACKET; 2ND RELAY LEVER L TYPE ENG<90L> CAB UP +110MM<TGG>	1-33657-664-1	01	1	9905-			●	●	●	●

466 507 103 35 34 162 46 33 34 71 100 46 242 34 34 71 298 316 298 311 317 386 474 475 303 309 313 315 312 300 314 308 302

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-S(56L) M10X30 W/LK WASHER	0-50041-030-0	03	1	9603-9606	●
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-S(56L) M10X30 FLANGE	0-28681-030-0	03	1	9607-9706	●
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	9707-9904	●	●
33	BOLT; BRKT,3RD RELAY LEVER L TYPE ENG<90L> M10X30 FLANGE	0-28681-030-0	03	1	9905-			●	●	●	●
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	9603-9706	●	●
34	SEAT; BALL,RELAY LEVER 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-33659-165-0	04	1	9707-9904	●
34	SEAT; BALL,RELAY LEVER 6WG1 TC-N(71L)	1-33659-165-0	04	1	9707-9904		●
34	SEAT; BALL,RELAY LEVER L TYPE ENG<90L>	1-33659-165-0	04	1	9905-			●	●	●	●
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	9603-9706	●	●
35	RING; SNAP,RELAY LEVER 6WA1 TC-S(56L),6WG1 TC-N(71L) OD=34.4	9-09180-132-0	01	1	9707-9904	●
35	RING; SNAP,RELAY LEVER 6WG1 TC-N(71L) OD=34.4	9-09180-132-0	01	1	9707-9904		●
35	RING; SNAP,RELAY LEVER L TYPE ENG<90L> OD=34.4	9-09180-132-0	01	1	9905-			●	●	●	●
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	9603-9706	●	●
46	SEAL; DUST,RELAY LEVER 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-33659-166-0	02	1	9707-9904	●
46	SEAL; DUST,RELAY LEVER 6WG1 TC-N(71L)	1-33659-166-0	02	1	9707-9904		●
46	SEAL; DUST,RELAY LEVER L TYPE ENG<90L>	1-33659-166-0	02	1	9905-			●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> CAB UP +110MM<TGG> (A)	1-33657-657-1	01	1	9905-			●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	9603-9706	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L),6WG1 TC-N(71L) (B)	1-33657-481-0	01	1	9707-9904	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WG1 TC-N(71L) (B)	1-33657-481-0	01	1	9707-9904		●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> (B)	1-33657-481-0	01	1	9905-			●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-512-0	01	1	9603-9702	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-512-0	01	1	9703-9706	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WG1 TC-N(71L) (A)	1-33657-512-0	01	1	9707-9904	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) EXC. MIXER TRUCK<RA2> (A)	1-33657-512-0	01	1	9707-9904	●
71	BRACKET; 3RD RELAY LEVER,FRAME EXC. CAB UP +110MM<TGG> (A)	1-33657-512-0	01	1	9905-			●	●	●	●
100	SPRING 6WA1 TC-S(56L) (B)	1-09583-218-0	01	1	9603-9904	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-351-0	01	1	9905-			●	●	●	●
100	SPRING 6WA1 TC-S(56L) (A)	1-09583-319-0	01	1	9603-9706	●
100	SPRING (A)	1-09583-319-0	01	1	9707-9904	●	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9905-			●	●	●	●
103	NUT L TYPE ENG<90L> CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9905-			●	●	●	●
162	LEVER; RELAY 6WA1 TC-S(56L)	1-33651-625-0	01	1	9603-9706	●
162	LEVER; RELAY 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-33651-625-0	01	1	9707-9904	●	●
162	LEVER; RELAY	1-33651-625-0	01	1	9905-			●	●	●	●
242	NUT; FLANGE 3RD RELAY LEVER 6WA1 TC-S(56L) M12 FLANGE	0-91150-212-0	03	1	9603-9706	●
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	9707-9904	●	●
242	NUT; FLANGE 3RD RELAY LEVER L TYPE ENG<90L> M12 FLANGE	0-91150-212-0	03	1	9905-			●	●	●	●
298	BRACKET (B)	1-82699-104-0	01	1	9607-9608	●
298	BRACKET (A)	1-46147-264-0	01	1	9603-9608	●	●
300	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9607-9608	●
302	CLIP; BAND ID=20 L=24	1-09700-730-1	01	1	9607-9608	●
303	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-9608	●	●
308	CLIP; PIPE (A) ID=18 L=28	1-09701-067-0	01	1	0104-			●	●	●
308	CLIP; PIPE (A) ID=20 L=24	1-09700-730-1	03	1	9603-9608	●	●
308	CLIP; PIPE (B) ID=12 & 16.5	8-94400-865-0	01	1	9609-9612	●	●
308	CLIP; PIPE (B) ID=12-16 & 12-16	1-09709-191-0	01	1	9701-9904	●	●
308	CLIP; PIPE (B) ID=12-16 & 12-16	1-09709-191-0	01	1	9905-			●	●	●	●
308	CLIP; PIPE (A) ID=20 L=24	1-09700-730-1	01	1	9607-9608	●	●
309	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0104-			●	●	●
309	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9603-9606	●	●
309	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9607-9608	●
309	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	9607-9608	●
311	BRACKET; CLIP,UNDER MBR	1-47477-580-1	01	1	9603-9608	●	●
311	BRACKET; CLIP,UNDER MBR L=90 B=25	1-47475-530-0	01	1	9607-9608	●	●
312	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
312	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	03	1	9607-9608	●	●
313	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	9607-9608	●	●
314	CLIP; PIPE,UNDER MBR ID=20 L=24	1-09700-730-1	01	1	9603-9608	●	●
315	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0104-			●	●	●
315	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	03	1	9603-9606	●	●
315	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	04	1	9607-9608	●	●
316	BRACKET; CLIP	1-46147-169-1	01	1	9603-9608	●	●
317	BOLT; BRKT,SIDE MBR M8X30 FLANGE	0-28080-830-0	01	1	9603-9606	●	●
317	BOLT; BRKT,SIDE MBR M8X30 FLANGE	0-28680-830-0	01	1	9607-9608	●	●
386	CLIP; CONT CABLE & TUBE L=250	1-09707-126-0	04	1	9603-9608	●	●
386	CLIP; CONT CABLE & TUBE L=250	1-09707-126-0	07	1	9609-9904	●	●
386	CLIP; CONT CABLE & TUBE L=250	1-09707-126-0	07	1	9905-9910			●	●	●	●
386	CLIP; CONT CABLE & TUBE L=250	1-09707-126-0	09	1	9911-0103			●	●	●
386	CLIP; CONT CABLE & TUBE L=250	1-09707-126-0	08	1	0104-			●	●	●
466	BOLT; FIX L TYPE ENG<90L> CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	9905-			●	●	●	●
474	BOLT; BRKT M10X16 FLANGE	0-28081-016-0	01	1	9603-9606	●	●
474	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	01	1	9607-9608	●	●
475	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9607-9608	●
507	PROTECTOR; HEAT L TYPE ENG<90L> CAB UP +110MM<TGG>	1-14181-315-0	01	1	9905-			●	●	●	●

385 385 385 385 385 385 325 441 308 444 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
308	CLIP; PIPE (A) ID=18 L=28	1-09701-067-0	01	1	0104-			●	●	●
308	CLIP; PIPE (A) ID=20 L=24	1-09700-730-1	03	1	9603-9608	●	●
308	CLIP; PIPE (B) ID=12 & 16.5	8-94400-865-0	01	1	9609-9612	●	●
308	CLIP; PIPE (B) ID=12-16 & 12-16	1-09709-191-0	01	1	9701-9904	●	●
308	CLIP; PIPE (B) ID=12-16 & 12-16	1-09709-191-0	01	1	9905-			●	●	●	●
308	CLIP; PIPE (A) ID=20 L=24	1-09700-730-1	01	1	9607-9608	●	●
325	CLIP; NYLON TUBE ID=9.5	5-09709-020-0	06	1	9609-9904	●	●
325	CLIP; NYLON TUBE ID=9.5	5-09709-020-0	06	1	9905-9910			●	●	●	●
325	CLIP; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> ID=9.5	5-09709-020-0	06	1	9911-			●	●	●	●
325	CLIP; NYLON TUBE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> ID=9.5	5-09709-020-0	04	1	9911-			●	●	●	●
385	TUBE; NYLON (B) L=4900 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	9608-9608	●	●
385	TUBE; NYLON (B) L=1530 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	9609-9708	●	●
385	TUBE; NYLON EXC. CAB UP +50MM<W60> (B) L=1530 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	9709-9904	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1530 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (B) L=5000 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9608-9608	●	●
385	TUBE; NYLON (B) L=1530 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9609-9708	●	●
385	TUBE; NYLON EXC. CAB UP +50MM<W60> (B) L=1530 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9709-9904	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1530 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (B) L=5350 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9608-9608	●	●
385	TUBE; NYLON (B) L=1530 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9609-9708	●	●
385	TUBE; NYLON EXC. CAB UP +50MM<W60> (B) L=1530 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9709-9904	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1530 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (B) L=5000 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9608-9608	●	●
385	TUBE; NYLON (B) L=1530 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9609-9708	●	●
385	TUBE; NYLON EXC. CAB UP +50MM<W60> (B) L=1530 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9709-9904	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1530 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (B) L=4500 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9608-9608	●	●
385	TUBE; NYLON (B) L=1530 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9609-9708	●	●
385	TUBE; NYLON EXC. CAB UP +50MM<W60> (B) L=1530 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9709-9904	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1530 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (B) L=5200 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9608-9608	●	●
385	TUBE; NYLON (B) L=1530 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9609-9708	●	●
385	TUBE; NYLON EXC. CAB UP +50MM<W60> (B) L=1530 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9709-9904	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1530 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON EXC. CAB UP +110MM<TGG> (B) L=1680 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (A) L=3000 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	9701-9904	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1640 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1790 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (A) L=3100 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9701-9904	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1640 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1790 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (A) L=3500 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9701-9904	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1640 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (A) L=3100 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9701-9904	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1640 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (A) L=2650 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9701-9904	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1640 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON (A) L=3350 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9701-9904	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1640 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON CAB UP +110MM<TGG> (B) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON CAB UP +50MM<W60> (B) L=1580 SERVICED BY L=5800 RED	1-33619-362-0	01	1	9709-9904	●	●
385	TUBE; NYLON (A) L=3000 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON (A) L=3100 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON CAB UP +50MM<W60> (B) L=1580 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9709-9904	●	●
385	TUBE; NYLON (A) L=3100 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON (A) L=3200 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON CAB UP +50MM<W60> (B) L=1580 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9709-9904	●	●
385	TUBE; NYLON (A) L=3500 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON (A) L=3600 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON CAB UP +50MM<W60> (B) L=1580 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9709-9904	●	●
385	TUBE; NYLON (A) L=3100 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON (A) L=3200 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON CAB UP +50MM<W60> (B) L=1580 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9709-9904	●	●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2650 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0104-			●	●	●	●
385	TUBE; NYLON CAB UP +50MM<W60> (B) L=1580 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9709-9904	●	●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3350 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9905-0103			●	●	●	●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0104-			●	●	●	●
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9603-9904	●	●
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9905-			●	●	●
441	CONNECTOR; NYLON TUBE (B)	1-09660-975-0	06	1	9609-9904	●	●
441	CONNECTOR; NYLON TUBE (B)	1-09660-975-0	06	1	9905-9910			●	●	●	●
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	06	1	9911-			●	●	●	●
441	CONNECTOR; NYLON TUBE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	9911-			●	●	●	●
444	BOLT; BRKT,NIPPLE M8X25 FLANGE	0-28680-825-0	01	1	9609-9904	●	●
444	BOLT; BRKT,NIPPLE M8X25 FLANGE	0-28680-825-0	01	1	9905-			●	●	●	●
445	NUT; BRKT,NIPPLE M8 FLANGE	0-91150-108-0	01	1	9609-9904	●	●
445	NUT; BRKT,NIPPLE M8 FLANGE	0-91150-108-0	01	1	9905-9905			●	●	●	●
445	NUT; BRKT,NIPPLE M8 FLANGE	0-91150-108-0	01	1	9905-			●	●	●	●
445	NUT; BRKT,NIPPLE M8 FLANGE	0-91150-108-0	01	1	0002-			●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
