Sayfa 8-74 - Isuzu EPC

8-74 — EVAPORATOR (#43389) — 125 parça

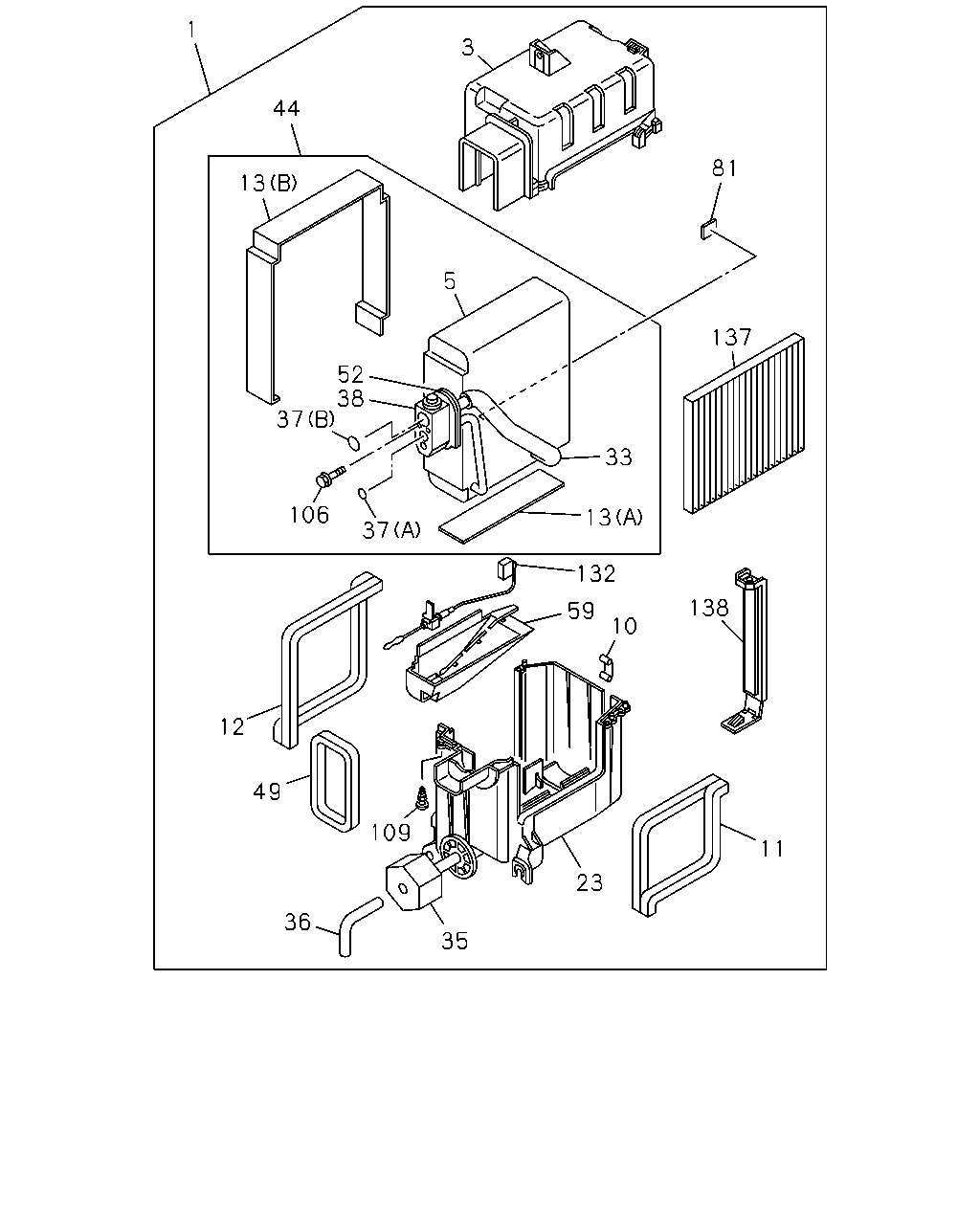

1 3 44 81 13 5 137 52 38 37 33 106 13 37 132 138 59 10 12 49 109 11 23 36 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97364-778-0	01	1	0307-0404	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97369-324-0	01	1	0405-0503	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98000-716-0	01	1	0504-0609	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98063-499-0	01	1	0610-0709	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98086-171-0	01	1	0710-	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-97364-777-0	01	1	0307-0404	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-97369-325-0	01	1	0405-0503	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-98000-717-0	01	1	0504-0609	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-98063-497-0	01	1	0610-0709	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-98086-169-0	01	1	0710-	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97364-779-0	01	1	0307-0404	●		●		●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97369-326-0	01	1	0405-0503	●		●		●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98000-718-0	01	1	0504-0609	●		●		●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98063-498-0	01	1	0610-0709	●		●		●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98086-170-0	01	1	0710-	●		●		●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-97364-780-0	01	1	0307-0404	●		●		●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-97369-327-0	01	1	0405-0503	●		●		●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-98000-719-0	01	1	0504-0609	●		●		●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-98063-496-0	01	1	0610-0709	●		●		●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-98086-168-0	01	1	0710-	●		●		●	●	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-98055-332-0	01	1	0610-	●	●	●	●	●	●	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-144-0	01	1	0307-0609	●	●	●	●	●	●	●	●
3	09.211 CASE; EVAP,UPR POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98055-333-0	01	1	0610-	●	●	●	●	●	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-148-0	01	1	0307-0609	●	●	●	●	●	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98063-687-0	01	1	0610-	●	●	●	●	●	●	●	●
10	09.211 CLIP; EVAP CASE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-166-0	01	1	0307-0709	●	●	●	●	●	●	●	●
10	09.211 CLIP; EVAP CASE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.262	8-98088-089-0	01	1	0710-	●	●	●	●	●	●	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-159-0	01	1	0307-	●	●	●	●	●	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-160-0	01	1	0307-0609	●	●	●	●	●	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98063-684-0	01	1	0610-	●	●	●	●	●	●	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-151-0	01	1	0307-0609	●	●	●	●	●	●	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98055-345-0	01	1	0610-	●	●	●	●	●	●	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97370-355-0	01	1	0307-0609	●	●	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-98055-336-0	01	1	0610-	●	●	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-145-0	01	1	0307-0609	●	●	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98055-337-0	01	1	0610-	●	●	●	●	●	●	●	●
33	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97368-626-0	01	1	0307-0609	●	●	●	●	●	●	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-157-0	01	1	0307-	●	●	●	●	●	●	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97370-352-0	01	1	0307-	●	●	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-154-0	01	1	0307-	●	●	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-155-0	01	1	0307-	●	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97370-353-0	01	1	0307-0609	●	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98063-690-0	01	1	0610-	●	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97370-354-0	01	1	0307-0503	●	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98004-444-0	01	1	0504-0609	●	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98063-685-0	01	1	0610-0709	●	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98090-235-0	01	1	0710-	●	●	●	●	●	●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-158-1	01	1	0307-	●	●	●	●	●	●	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-152-0	01	1	0307-	●	●	●	●	●	●	●	●
59	09.211 LINING; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-146-0	01	1	0307-	●	●	●	●	●	●	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-161-0	01	1	0307-	●	●	●	●	●	●	●	●
106	09.214 BOLT; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-153-0	02	1	0307-0609	●	●	●	●	●	●	●	●
106	09.214 BOLT; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98072-395-0	02	1	0610-	●	●	●	●	●	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-165-0	05	1	0307-0404	●	●	●	●	●	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-165-0	04	1	0405-0609	●	●	●	●	●	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.786	8-98071-323-0	04	1	0610-	●	●	●	●	●	●	●	●
132	09.210 AMPLIFIER; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97333-325-0	01	1	0307-	●	●	●	●	●	●	●	●
132	09.210 AMPLIFIER; EVAP COOLER WO/HEATER(C65)	8-97321-163-0	01	1	0307-	●		●		●	●	●	●
137	09.210 FILTER; EVAPORATOR POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97356-127-0	01	1	0307-0503	●	●	●	●	●	●	●	●
137	09.210 FILTER; EVAPORATOR POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98008-442-0	01	1	0504-	●	●	●	●	●	●	●	●
138	09.211 COVER; CASE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-156-0	01	1	0307-0609	●	●	●	●	●	●	●	●
138	09.211 COVER; CASE POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98063-694-0	01	1	0610-	●	●	●	●	●	●	●	●

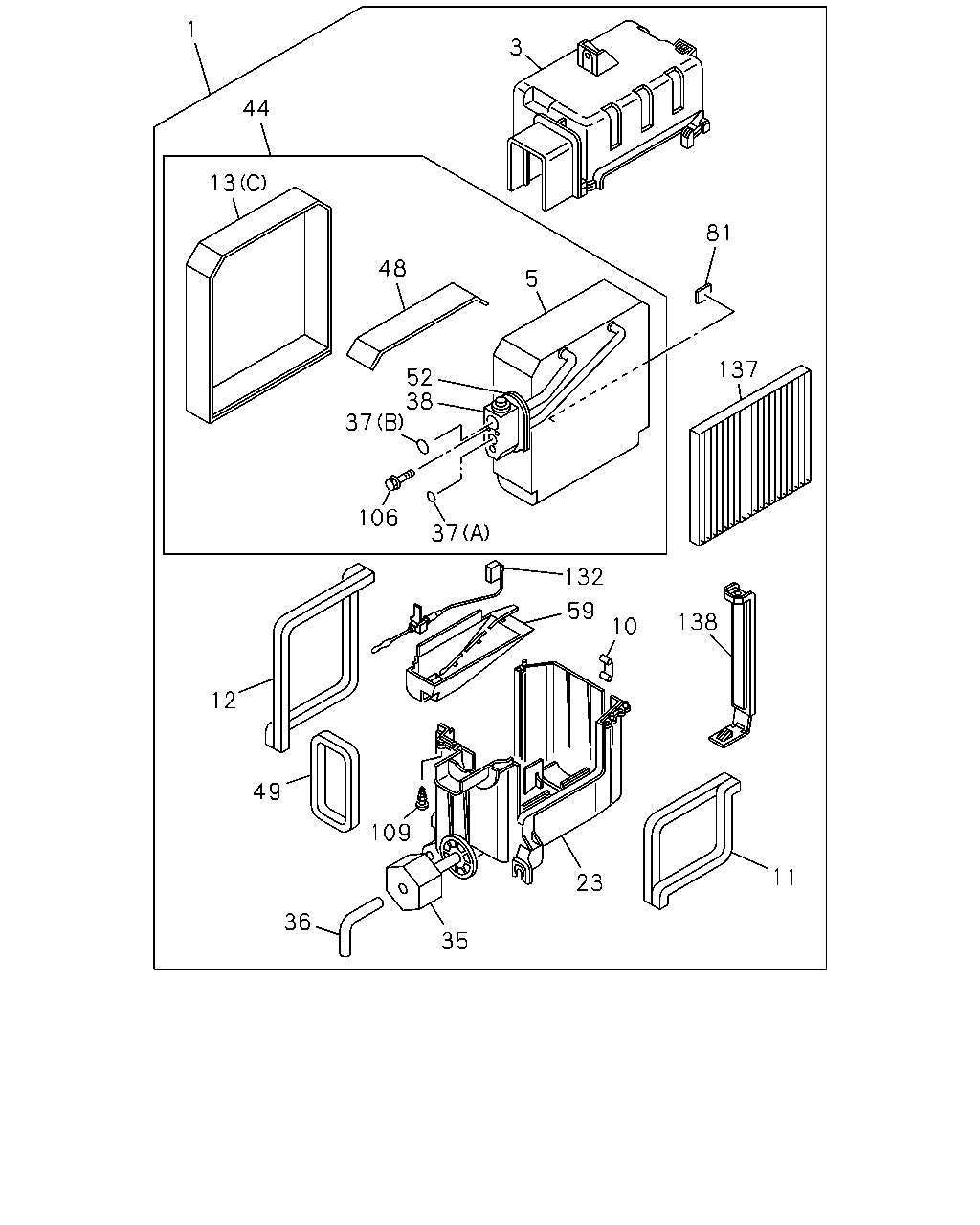

1 3 44 13 81 48 5 137 52 38 37 106 37 132 59 138 10 12 49 109 11 23 36 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97364-778-0	01	1	0307-0404	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97369-324-0	01	1	0405-0503	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98000-716-0	01	1	0504-0609	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98063-499-0	01	1	0610-0709	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98086-171-0	01	1	0710-	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-97364-777-0	01	1	0307-0404	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-97369-325-0	01	1	0405-0503	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-98000-717-0	01	1	0504-0609	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-98063-497-0	01	1	0610-0709	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-98086-169-0	01	1	0710-	●	●	●	●	●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97364-779-0	01	1	0307-0404	●		●		●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97369-326-0	01	1	0405-0503	●		●		●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98000-718-0	01	1	0504-0609	●		●		●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98063-498-0	01	1	0610-0709	●		●		●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98086-170-0	01	1	0710-	●		●		●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-97364-780-0	01	1	0307-0404	●		●		●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-97369-327-0	01	1	0405-0503	●		●		●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-98000-719-0	01	1	0504-0609	●		●		●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-98063-496-0	01	1	0610-0709	●		●		●	●	●	●
1	09.210 EVAPORATOR ASM COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-98086-168-0	01	1	0710-	●		●		●	●	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-98055-332-0	01	1	0610-	●	●	●	●	●	●	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-144-0	01	1	0307-0609	●	●	●	●	●	●	●	●
3	09.211 CASE; EVAP,UPR POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98055-333-0	01	1	0610-	●	●	●	●	●	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-148-0	01	1	0307-0609	●	●	●	●	●	●	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98063-687-0	01	1	0610-	●	●	●	●	●	●	●	●
10	09.211 CLIP; EVAP CASE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-166-0	01	1	0307-0709	●	●	●	●	●	●	●	●
10	09.211 CLIP; EVAP CASE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.262	8-98088-089-0	01	1	0710-	●	●	●	●	●	●	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-159-0	01	1	0307-	●	●	●	●	●	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-160-0	01	1	0307-0609	●	●	●	●	●	●	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98063-684-0	01	1	0610-	●	●	●	●	●	●	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-151-0	01	1	0307-0609	●	●	●	●	●	●	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (C)	8-98055-345-0	01	1	0610-	●	●	●	●	●	●	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97370-355-0	01	1	0307-0609	●	●	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIO NER<8CM>	8-98055-336-0	01	1	0610-	●	●	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-145-0	01	1	0307-0609	●	●	●	●	●	●	●	●
23	09.211 CASE; EVAP,LWR POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98055-337-0	01	1	0610-	●	●	●	●	●	●	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-157-0	01	1	0307-	●	●	●	●	●	●	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97370-352-0	01	1	0307-	●	●	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (A)	8-97321-154-0	01	1	0307-	●	●	●	●	●	●	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (B)	8-97321-155-0	01	1	0307-	●	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97370-353-0	01	1	0307-0609	●	●	●	●	●	●	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98063-690-0	01	1	0610-	●	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97370-354-0	01	1	0307-0503	●	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98004-444-0	01	1	0504-0609	●	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98063-685-0	01	1	0610-0709	●	●	●	●	●	●	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98090-235-0	01	1	0710-	●	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98055-347-0	01	1	0610-0709	●	●	●	●	●	●	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98090-228-0	01	1	0710-	●	●	●	●	●	●	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-158-1	01	1	0307-	●	●	●	●	●	●	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-152-0	01	1	0307-	●	●	●	●	●	●	●	●
59	09.211 LINING; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-146-0	01	1	0307-	●	●	●	●	●	●	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-161-0	01	1	0307-	●	●	●	●	●	●	●	●
106	09.214 BOLT; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-153-0	02	1	0307-0609	●	●	●	●	●	●	●	●
106	09.214 BOLT; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98072-395-0	02	1	0610-	●	●	●	●	●	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-165-0	05	1	0307-0404	●	●	●	●	●	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-165-0	04	1	0405-0609	●	●	●	●	●	●	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 09.786	8-98071-323-0	04	1	0610-	●	●	●	●	●	●	●	●
132	09.210 AMPLIFIER; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97333-325-0	01	1	0307-	●	●	●	●	●	●	●	●
132	09.210 AMPLIFIER; EVAP COOLER WO/HEATER(C65)	8-97321-163-0	01	1	0307-	●		●		●	●	●	●
137	09.210 FILTER; EVAPORATOR POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-97356-127-0	01	1	0307-0503	●	●	●	●	●	●	●	●
137	09.210 FILTER; EVAPORATOR POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98008-442-0	01	1	0504-	●	●	●	●	●	●	●	●
138	09.211 COVER; CASE AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97321-156-0	01	1	0307-0609	●	●	●	●	●	●	●	●
138	09.211 COVER; CASE POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98063-694-0	01	1	0610-	●	●	●	●	●	●	●	●
