8-71 — COMPRESSOR; AIR CONDITIONING (#43387) — 64 parça

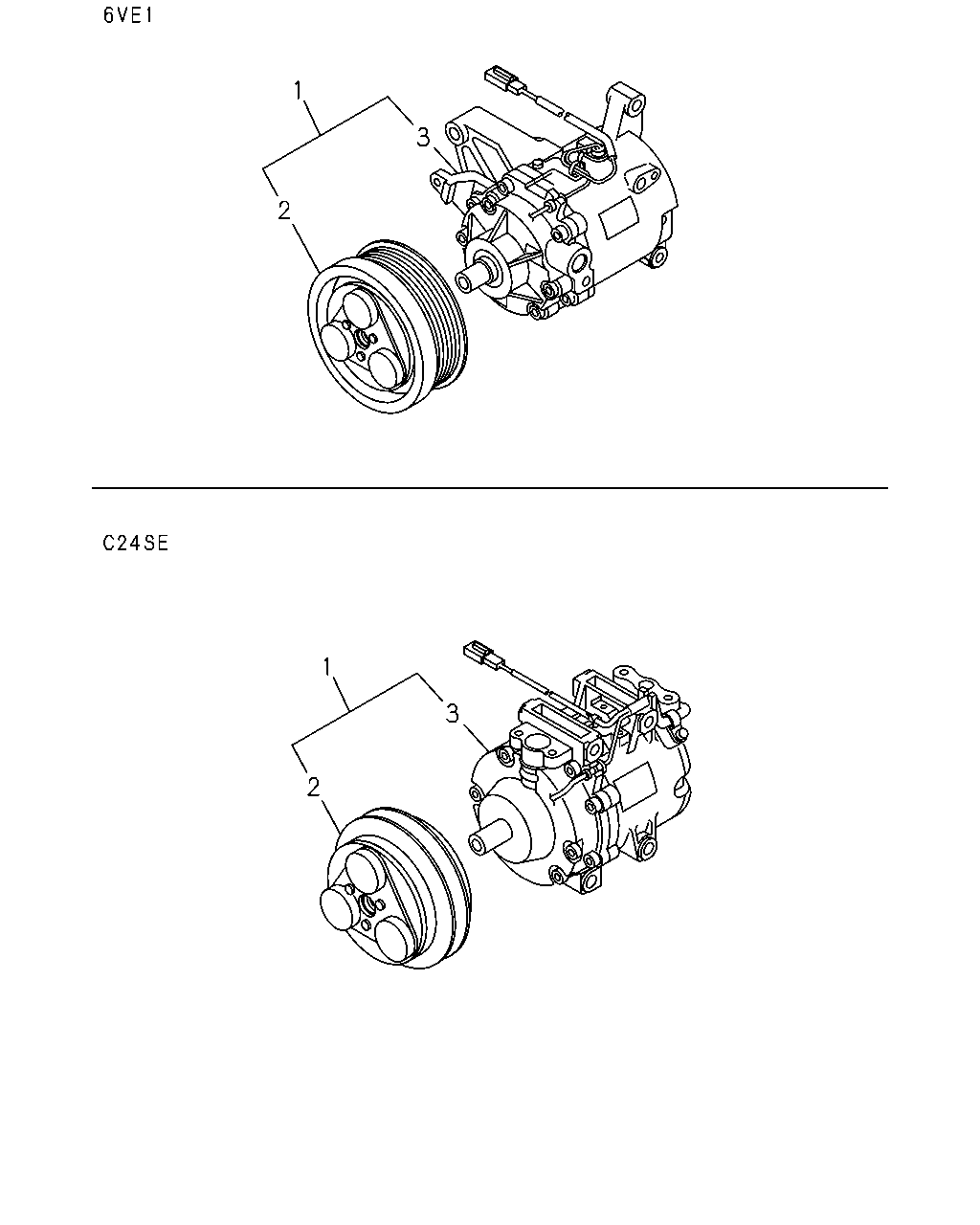

3 1 2 1 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97236-637-1	01	1	0307-0312	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97369-415-0	01	1	0401-0609	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97369-415-0	01	1	0610-	●		●		●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60)	8-97316-085-1	01	1	0307-0508	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97369-418-0	01	1	0509-0609								●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97370-661-3	01	1	0610-0612	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97370-661-3	01	1	0701-0912	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97370-661-3	01	1	1001-	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97236-638-1	01	1	0307-0508			●	●	●		●	●
1	09.170 COMPRESSOR ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97369-417-0	01	1	0509-			●	●	●		●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-324-0	01	1	0307-0312	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-580-0	01	1	0401-0609	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-580-0	01	1	0610-	●		●		●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60)	8-97356-380-0	01	1	0307-0402	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60)	8-98031-852-0	01	1	0403-0508	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-582-0	01	1	0509-0609								●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97372-920-0	01	1	0610-0612	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97372-920-0	01	1	0701-0912	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97372-920-0	01	1	1001-	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-377-0	01	1	0307-0508			●	●	●		●	●
2	09.188 CLUTCH; MAGNET,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-581-0	01	1	0509-			●	●	●		●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-322-0	01	1	0307-0312	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-576-0	01	1	0401-0609	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-576-0	01	1	0610-	●		●		●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98070-188-0	01	1	0610-0612	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98070-188-0	01	1	0701-0912	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98070-188-0	01	1	1001-	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60)	8-97356-381-0	01	1	0307-0402	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60)	8-98031-853-0	01	1	0403-0508	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-579-0	01	1	0509-0609								●
3	09.170 COMPRESSOR ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-378-0	01	1	0307-0508			●	●	●		●	●
3	09.170 COMPRESSOR ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-578-0	01	1	0509-			●	●	●		●	●

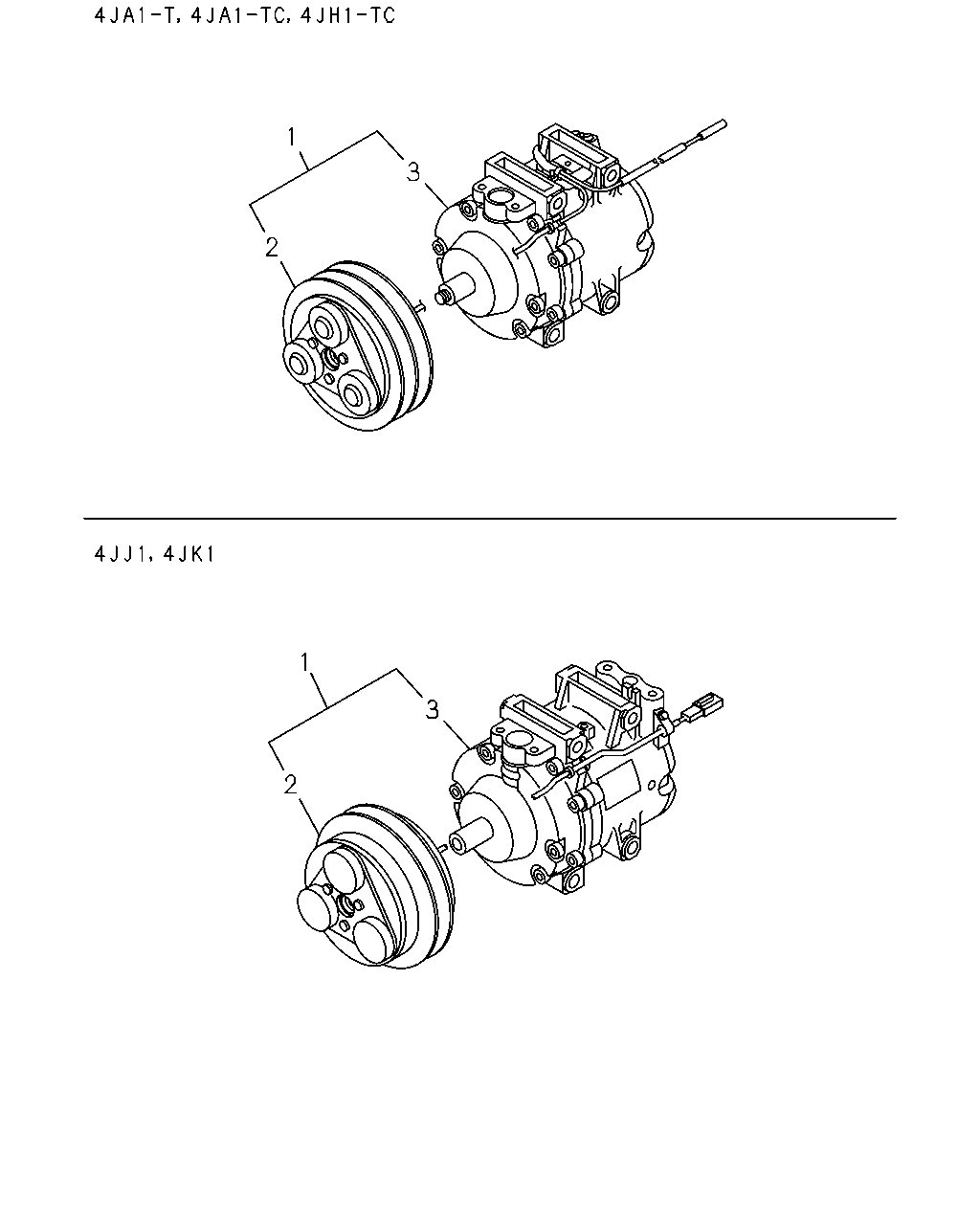

1 2 3 3 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97236-637-1	01	1	0307-0312	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97369-415-0	01	1	0401-0609	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97369-415-0	01	1	0610-	●		●		●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60)	8-97316-085-1	01	1	0307-0508	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97369-418-0	01	1	0509-0609								●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97370-661-3	01	1	0610-0612	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97370-661-3	01	1	0701-0912	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97370-661-3	01	1	1001-	●	●	●	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97236-638-1	01	1	0307-0508			●	●	●		●	●
1	09.170 COMPRESSOR ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97369-417-0	01	1	0509-			●	●	●		●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-324-0	01	1	0307-0312	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-580-0	01	1	0401-0609	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-580-0	01	1	0610-	●		●		●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60)	8-97356-380-0	01	1	0307-0402	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60)	8-98031-852-0	01	1	0403-0508	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-582-0	01	1	0509-0609								●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97372-920-0	01	1	0610-0612	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97372-920-0	01	1	0701-0912	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97372-920-0	01	1	1001-	●	●	●	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-377-0	01	1	0307-0508			●	●	●		●	●
2	09.188 CLUTCH; MAGNET,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-581-0	01	1	0509-			●	●	●		●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97333-322-0	01	1	0307-0312	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0),4JA1-TC ENG(L4Z), 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-576-0	01	1	0401-0609	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-576-0	01	1	0610-	●		●		●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98070-188-0	01	1	0610-0612	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCX ENG(LR0) ,4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98070-188-0	01	1	0701-0912	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JJ1-TCS ENG(LFB),4JK1-TCS ENG(LKZ) ,4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-98070-188-0	01	1	1001-	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60)	8-97356-381-0	01	1	0307-0402	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60)	8-98031-853-0	01	1	0403-0508	●	●	●	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 6VE1 ENG(LX5) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-579-0	01	1	0509-0609								●
3	09.170 COMPRESSOR ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97356-378-0	01	1	0307-0508			●	●	●		●	●
3	09.170 COMPRESSOR ASM; A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65)	8-97371-578-0	01	1	0509-			●	●	●		●	●
