8-65 — CONTROL LEVER; HEATER AND AIR CON (#43386) — 136 parça

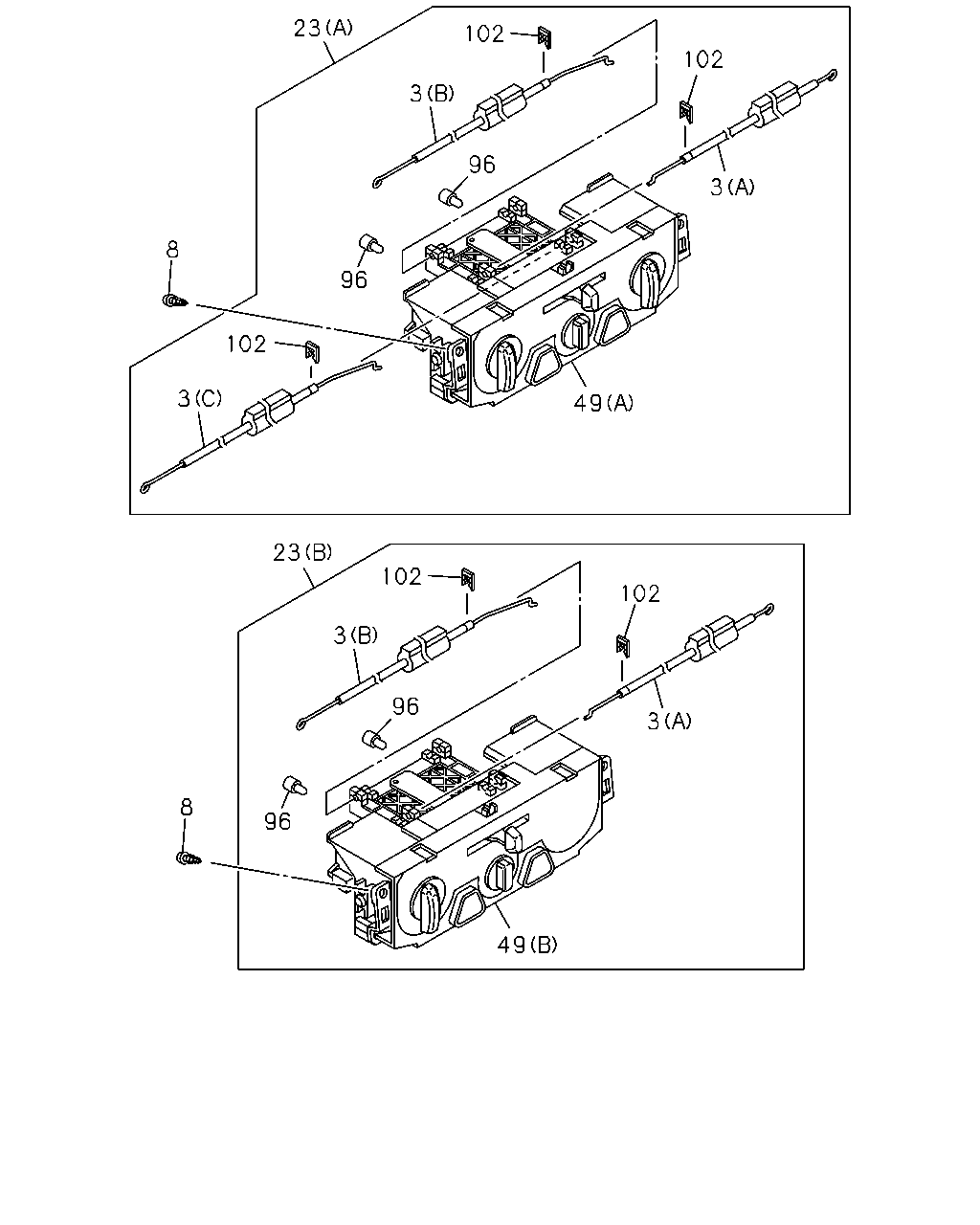

çizim 55946
102 3 49 96 3 102 23 96 8 102 3 23 3 102 96 96 8 49 3 102
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-97321-478-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MODE 		8-98029-143-0 01 1 0610- ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) INTAKE 		8-97321-479-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) INTAKE 		8-98029-145-0 01 1 0610- ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-97350-293-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-144-0 01 1 0610- ● ● ● ● ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0307-0702 ● ● ● ● ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0703-1004 ● ● ● ● ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98038-111-0 01 1 0610- ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98038-111-0 01 1 0610- ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>, REAR DEFOGGER<C49> (D) 		8-98038-112-0 01 1 0610- ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>, REAR DEFOGGER<C49> (D) 		8-98038-112-0 01 1 0610- ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-97234-568-1 01 1 0307-0501 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-97234-568-1 01 1 0307-0501 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
(A) 		8-97234-568-1 01 1 0307-0501 ●
23 08.852 BEZEL; CONT LEVER
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-98004-353-0 01 1 0502-0609 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-98004-353-0 01 1 0502-0609 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
(A) 		8-98004-353-0 01 1 0502-0609 ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98038-113-0 01 1 0610- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9>, REAR DEFOGGER<C49> (C) 		8-98038-114-0 01 1 0610- ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-97234-572-4 01 1 0307-0501 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-98006-170-0 01 1 0502-0508 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-98004-357-0 01 1 0509-0609 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13) (D) 		8-98038-109-0 01 1 0610- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) EXC. REAR DEFOGGER<C49> (B) 		8-97234-570-0 01 1 0307-0501 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) EXC. REAR DEFOGGER<C49> (B) 		8-98004-355-0 01 1 0502-0609 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. AUSTRALIA EQUIPMENT(B13) (D) 		8-98038-127-0 01 1 0610- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. AUSTRALIA EQUIPMENT(B13),REAR DEFOGGER<C49> (A) 		8-97234-566-1 01 1 0307-0501 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. AUSTRALIA EQUIPMENT(B13),REAR DEFOGGER<C49> (A) 		8-98004-351-0 01 1 0502-0609 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (C) 		8-98038-131-0 01 1 0610- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (D) 		8-98038-130-0 01 1 0610- ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (D) 		8-98038-130-0 01 1 0610- ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-97234-567-1 01 1 0307-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97234-567-1 01 1 0307-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
(A) 		8-97234-567-1 01 1 0307-0501 ●
23 08.852 BEZEL; CONT LEVER
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-98004-352-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98004-352-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
(A) 		8-98004-352-0 01 1 0502-0609 ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13),REAR DEFOGGER <C49> (D) 		8-98038-110-0 01 1 0610- ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) REAR DEFOGGER<C49> (B) 		8-97234-569-0 01 1 0307-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) REAR DEFOGGER<C49> (B) 		8-98004-354-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (D) 		8-98038-129-0 01 1 0610- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98038-129-0 01 1 0610- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-97234-565-1 01 1 0307-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98004-350-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. AUSTRALIA EQUIPMENT(B13),REAR DEFOGGER<C49> (D) 		8-98038-128-0 01 1 0610- ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-97234-571-4 01 1 0307-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-98006-169-0 01 1 0502-0508 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-98004-356-0 01 1 0509-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (C) 		8-98038-132-0 01 1 0610- ● ● ● ● ● ●
49 08.849 PANEL; CONT
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-97350-285-0 01 1 0307-0501 ● ● ● ● ● ●
49 08.849 PANEL; CONT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-97350-285-0 01 1 0307-0501 ● ● ● ● ● ●
49 08.849 PANEL; CONT
(A) 		8-97350-285-0 01 1 0307-0501 ●
49 08.849 PANEL; CONT
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-98013-435-0 01 1 0502-0609 ● ● ● ● ● ●
49 08.849 PANEL; CONT
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-98013-435-0 01 1 0502-0609 ● ● ● ● ● ●
49 08.849 PANEL; CONT
(A) 		8-98013-435-0 01 1 0502-0609 ●
49 08.849 PANEL; CONT
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-97321-469-0 01 1 0307-0501 ● ● ● ● ● ●
49 08.849 PANEL; CONT
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-98013-439-0 01 1 0502-0508 ● ● ● ● ● ●
49 08.849 PANEL; CONT
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-98013-380-0 01 1 0509-0609 ● ● ● ● ● ●
49 08.849 PANEL; CONT
FORGED AIR VENTILATION(C39) EXC. REAR DEFOGGER<C49> (B) 		8-97365-426-0 01 1 0307-0501 ● ● ● ● ● ●
49 08.849 PANEL; CONT
FORGED AIR VENTILATION(C39) EXC. REAR DEFOGGER<C49> (B) 		8-98013-437-0 01 1 0502-0609 ● ● ● ● ● ●
49 08.849 PANEL; CONT
HEATER & DEFROSTER(C42) EXC. AUSTRALIA EQUIPMENT(B13),REAR DEFOGGER<C49> (A) 		8-97350-283-0 01 1 0307-0501 ● ● ● ● ● ●
49 08.849 PANEL; CONT
HEATER & DEFROSTER(C42) EXC. AUSTRALIA EQUIPMENT(B13),REAR DEFOGGER<C49> (A) 		8-98013-433-0 01 1 0502-0609 ● ● ● ● ● ●
49 08.849 PANEL; CONT
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-97350-284-0 01 1 0307-0501 ● ● ● ●
49 08.849 PANEL; CONT
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97350-284-0 01 1 0307-0501 ● ● ● ●
49 08.849 PANEL; CONT
(A) 		8-97350-284-0 01 1 0307-0501 ●
49 08.849 PANEL; CONT
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-98013-434-0 01 1 0502-0609 ● ● ● ●
49 08.849 PANEL; CONT
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98013-434-0 01 1 0502-0609 ● ● ● ●
49 08.849 PANEL; CONT
(A) 		8-98013-434-0 01 1 0502-0609 ●
49 08.849 PANEL; CONT
FORGED AIR VENTILATION(C39) REAR DEFOGGER<C49> (B) 		8-97365-425-0 01 1 0307-0501 ● ● ● ●
49 08.849 PANEL; CONT
FORGED AIR VENTILATION(C39) REAR DEFOGGER<C49> (B) 		8-98013-436-0 01 1 0502-0609 ● ● ● ●
49 08.849 PANEL; CONT
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-97350-282-0 01 1 0307-0501 ● ● ● ●
49 08.849 PANEL; CONT
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98013-432-0 01 1 0502-0609 ● ● ● ●
49 08.849 PANEL; CONT
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-97321-468-0 01 1 0307-0501 ● ● ● ●
49 08.849 PANEL; CONT
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-98013-438-0 01 1 0502-0508 ● ● ● ●
49 08.849 PANEL; CONT
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-98013-379-0 01 1 0509-0609 ● ● ● ●
96 08.852 BULB ASM; BEZEL 8-97332-276-0 02 1 0307-0501 ● ● ● ● ● ● ● ●
96 08.852 BULB ASM; BEZEL 8-98006-462-0 02 1 0502-0609 ● ● ● ● ● ● ● ●
96 08.852 BULB ASM; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98029-142-0 02 1 0610- ● ● ● ● ● ● ● ●
102 08.852 RING; SNAP,CABLE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-97321-480-0 03 1 0307-0609 ● ● ● ● ● ● ● ●
102 08.852 RING; SNAP,CABLE
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 		8-97321-480-0 02 1 0307-0609 ● ● ● ● ● ●

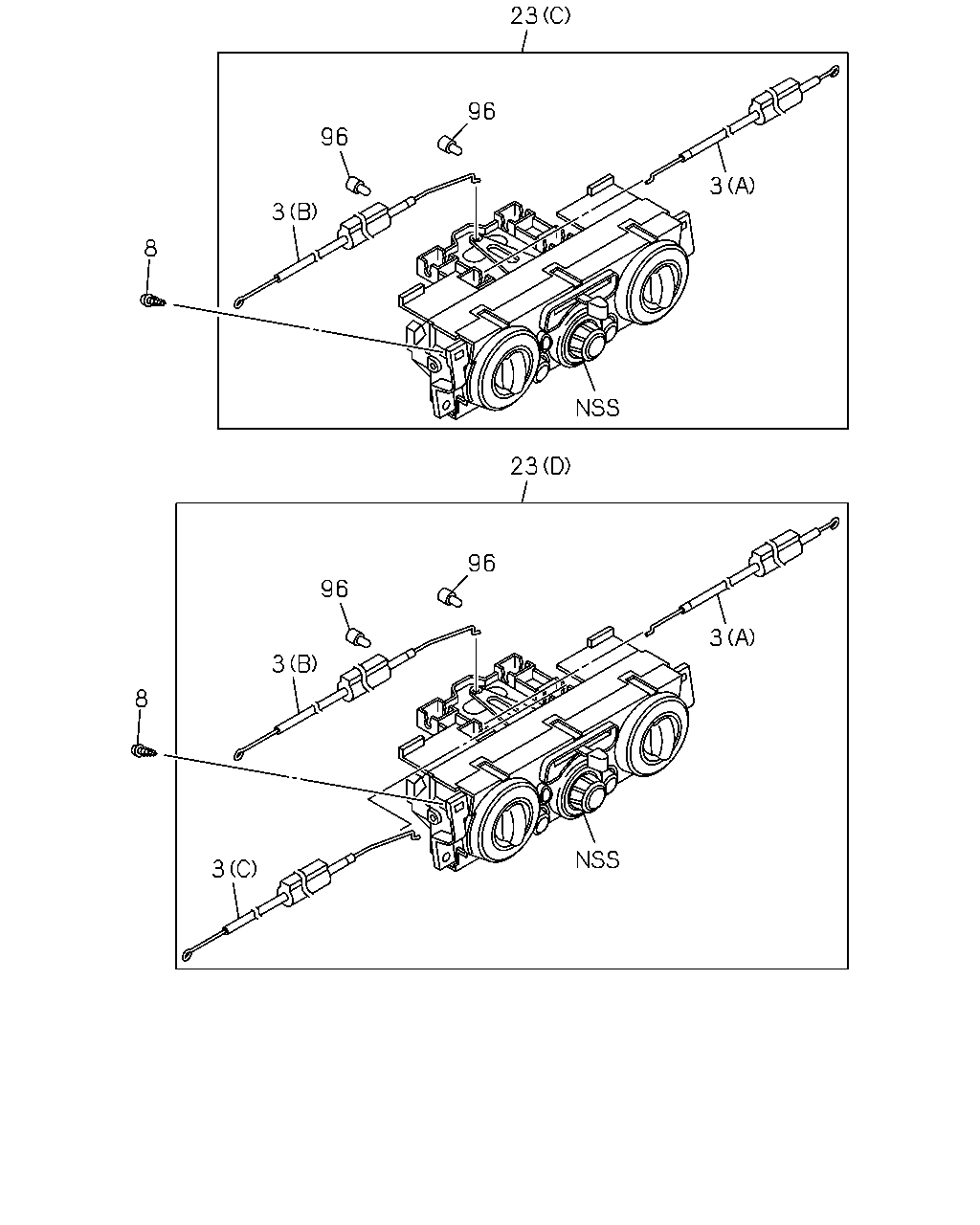

çizim 56234
23 96 96 3 8 3 23 96 96 3 8 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-97321-478-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MODE 		8-98029-143-0 01 1 0610- ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) INTAKE 		8-97321-479-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) INTAKE 		8-98029-145-0 01 1 0610- ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-97350-293-0 01 1 0307-0609 ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-144-0 01 1 0610- ● ● ● ● ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0307-0702 ● ● ● ● ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98061-685-0 02 1 0703-1004 ● ● ● ● ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
08.083 M5X16 TAPPING 		8-98167-449-0 02 1 1005- ● ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98038-111-0 01 1 0610- ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9> (D) 		8-98038-111-0 01 1 0610- ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>, REAR DEFOGGER<C49> (D) 		8-98038-112-0 01 1 0610- ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. INTERIOR SILVER BEZEL<BY9>, REAR DEFOGGER<C49> (D) 		8-98038-112-0 01 1 0610- ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-97234-568-1 01 1 0307-0501 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-97234-568-1 01 1 0307-0501 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
(A) 		8-97234-568-1 01 1 0307-0501 ●
23 08.852 BEZEL; CONT LEVER
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (A) 		8-98004-353-0 01 1 0502-0609 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (A) 		8-98004-353-0 01 1 0502-0609 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
(A) 		8-98004-353-0 01 1 0502-0609 ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9> (C) 		8-98038-113-0 01 1 0610- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. INTERIOR SILVER BEZEL<BY9>, REAR DEFOGGER<C49> (C) 		8-98038-114-0 01 1 0610- ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-97234-572-4 01 1 0307-0501 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-98006-170-0 01 1 0502-0508 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (A) 		8-98004-357-0 01 1 0509-0609 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13) (D) 		8-98038-109-0 01 1 0610- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) EXC. REAR DEFOGGER<C49> (B) 		8-97234-570-0 01 1 0307-0501 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) EXC. REAR DEFOGGER<C49> (B) 		8-98004-355-0 01 1 0502-0609 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. AUSTRALIA EQUIPMENT(B13) (D) 		8-98038-127-0 01 1 0610- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. AUSTRALIA EQUIPMENT(B13),REAR DEFOGGER<C49> (A) 		8-97234-566-1 01 1 0307-0501 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. AUSTRALIA EQUIPMENT(B13),REAR DEFOGGER<C49> (A) 		8-98004-351-0 01 1 0502-0609 ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (C) 		8-98038-131-0 01 1 0610- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) EXC. REAR DEFOGGER<C49> (D) 		8-98038-130-0 01 1 0610- ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AIR CONDITIONER MANUAL CONT(C60) EXC. REAR DEFOGGER<C49> (D) 		8-98038-130-0 01 1 0610- ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-97234-567-1 01 1 0307-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97234-567-1 01 1 0307-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
(A) 		8-97234-567-1 01 1 0307-0501 ●
23 08.852 BEZEL; CONT LEVER
AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (A) 		8-98004-352-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98004-352-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
(A) 		8-98004-352-0 01 1 0502-0609 ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) EXC. INTERIOR SILVER BEZEL<BY9>, AUSTRALIA EQUIPMENT(B13),REAR DEFOGGER <C49> (D) 		8-98038-110-0 01 1 0610- ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) REAR DEFOGGER<C49> (B) 		8-97234-569-0 01 1 0307-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
FORGED AIR VENTILATION(C39) REAR DEFOGGER<C49> (B) 		8-98004-354-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> AUSTRALIA EQUIPMENT(B13) HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> (D) 		8-98038-129-0 01 1 0610- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> REAR DEFOGGER<C49> AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98038-129-0 01 1 0610- ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-97234-565-1 01 1 0307-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) REAR DEFOGGER<C49> EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98004-350-0 01 1 0502-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> HEATER & DEFROSTER(C42) EXC. AUSTRALIA EQUIPMENT(B13),REAR DEFOGGER<C49> (D) 		8-98038-128-0 01 1 0610- ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-97234-571-4 01 1 0307-0501 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-98006-169-0 01 1 0502-0508 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> COOLER WO/HEATER(C65) (A) 		8-98004-356-0 01 1 0509-0609 ● ● ● ●
23 08.852 BEZEL; CONT LEVER
INTERIOR SILVER BEZEL<BY9> COOLER WO/HEATER(C65) EXC. REAR DEFOGGER<C49> (C) 		8-98038-132-0 01 1 0610- ● ● ● ● ● ●
96 08.852 BULB ASM; BEZEL 8-97332-276-0 02 1 0307-0501 ● ● ● ● ● ● ● ●
96 08.852 BULB ASM; BEZEL 8-98006-462-0 02 1 0502-0609 ● ● ● ● ● ● ● ●
96 08.852 BULB ASM; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98029-142-0 02 1 0610- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
