Sayfa 8-60 - Isuzu EPC

8-60 — HEATER UNIT; FRONT (#43385) — 197 parça

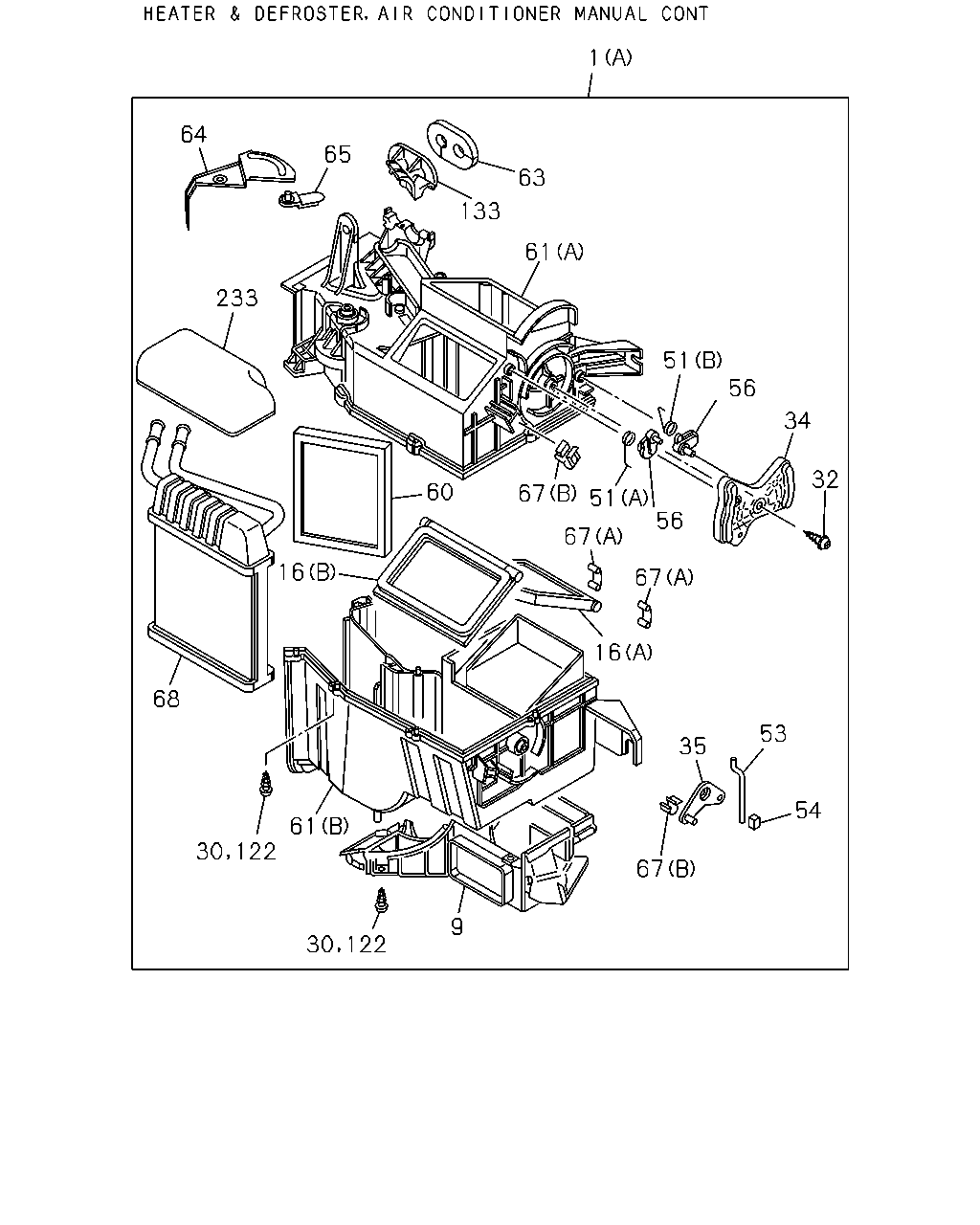

1 64 65 233 133 63 61 51 56 34 32 56 51 67 60 67 67 16 35 53 54 67 9 122 30 122 30 61 68 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> (A)	8-97234-552-2	01	1	0307-0309	●	●	●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> (A)	8-97369-309-0	01	1	0310-0612	●	●	●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> (A)	8-98071-331-0	01	1	0701-0709	●	●	●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> (A)	8-98086-150-0	01	1	0710-	●	●	●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> (A)	8-97307-354-2	01	1	0307-0309	●		●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> (A)	8-97369-311-0	01	1	0310-0612	●		●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> (A)	8-98071-332-0	01	1	0701-0709	●		●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> (A)	8-98086-151-0	01	1	0710-	●		●	●	●	●	●	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B)	8-97234-555-1	01	1	0307-0309	●		●		●	●	●	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B)	8-97369-312-0	01	1	0310-0510	●		●		●	●	●	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B)	8-98021-930-0	01	1	0511-0609	●		●		●	●	●	●
1	08.845 HEATER UNIT COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B)	8-98021-930-0	01	1	0610-0703	●		●		●	●	●	●
1	08.845 HEATER UNIT COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B)	8-98071-335-0	01	1	0704-0709	●		●		●	●	●	●
1	08.845 HEATER UNIT COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B)	8-98086-154-0	01	1	0710-	●		●		●	●	●	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B)	8-97301-796-1	01	1	0307-0309	●		●		●	●	●	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B)	8-97369-313-0	01	1	0310-0510	●		●		●	●	●	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B)	8-98021-931-0	01	1	0511-0609	●		●		●	●	●	●
1	08.845 HEATER UNIT COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B)	8-98021-931-0	01	1	0610-0703	●		●		●	●	●	●
1	08.845 HEATER UNIT COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B)	8-98071-336-0	01	1	0704-0709	●		●		●	●	●	●
1	08.845 HEATER UNIT COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B)	8-98086-155-0	01	1	0710-	●		●		●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> (A)	8-97234-551-0	01	1	0307-0309					●			●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> (A)	8-97369-308-0	01	1	0310-0612					●			●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> (A)	8-98071-333-0	01	1	0701-0709					●			●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> (A)	8-98086-152-0	01	1	0710-					●			●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> (A)	8-97307-353-0	01	1	0307-0309					●			●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> (A)	8-97369-310-0	01	1	0310-0612					●			●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> (A)	8-98071-334-0	01	1	0701-0709					●			●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> (A)	8-98086-153-0	01	1	0710-					●			●
9	08.854 DUCT; HTR UNIT	8-97321-338-0	01	1	0307-	●	●	●	●		●	●
9	08.854 DUCT; HTR UNIT EXC. REAR HEATER DUCT<S8C>	8-97321-338-0	01	1	0307-					●			●
9	08.854 DUCT; HTR UNIT REAR HEATER DUCT<S8C>	8-97364-987-0	01	1	0307-					●			●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR 08.845 (B)	8-97321-340-0	01	1	0307-0609	●	●	●	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.845 (B)	8-97321-340-0	01	1	0610-	●	●	●	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR (A)	8-97321-342-0	01	1	0307-0609	●	●	●	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97321-342-0	01	1	0610-	●	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 09.211	8-97321-165-0	08	1	0307-0309	●	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 09.786	8-98071-323-0	08	1	0701-0703	●	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.786	8-98071-323-0	08	1	0704-	●	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 09.211	8-97321-165-0	11	1	0307-0309	●		●		●	●	●	●
30	08.845 SCREW; HTR UNIT 09.211	8-97321-165-0	08	1	0310-0609	●	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.211	8-97321-165-0	08	1	0610-0612	●	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT COOLER WO/HEATER(C65) 09.211	8-97321-165-0	08	1	0701-0703	●		●		●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> 08.856	8-97321-276-0	02	1	0307-0609	●	●	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 08.856	8-97321-276-0	02	1	0307-0609	●		●		●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> 08.856	8-97321-276-0	02	1	0610-0612	●	●	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 08.856	8-97321-276-0	02	1	0610-0612	●		●		●	●	●	●
32	08.852 SCREW; HTR UNIT COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 08.856	8-97321-276-0	02	1	0701-0703	●		●		●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> 08.845	8-98071-324-0	02	1	0701-0703	●	●	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> 08.845	8-98071-324-0	02	1	0704-	●	●	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 08.845	8-98071-324-0	02	1	0704-	●		●		●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. PARKING BRAKE FLOOR<7XW> 08.856	8-97321-276-0	03	1	0307-0612	●		●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. PARKING BRAKE FLOOR<7XW> 08.845	8-98071-324-0	03	1	0701-	●		●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> 08.856	8-97321-276-0	01	1	0307-0609	●		●		●	●	●	●
32	08.852 SCREW; HTR UNIT COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> 08.856	8-97321-276-0	01	1	0610-0703	●		●		●	●	●	●
32	08.852 SCREW; HTR UNIT COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> 08.845	8-98071-324-0	01	1	0704-	●		●		●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT	8-97321-343-0	01	1	0307-0609	●	●	●	●	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97321-343-0	01	1	0610-	●	●	●	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT EXC. PARKING BRAKE FLOOR<7XW>	8-97321-344-0	01	1	0307-0609	●		●	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW>	8-97321-344-0	01	1	0610-	●		●	●	●	●	●	●
51	08.846 SPRING; HTR UNIT (A)	8-97321-368-0	01	1	0307-0609	●	●	●	●	●	●	●	●
51	08.846 SPRING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97321-368-0	01	1	0610-	●	●	●	●	●	●	●	●
51	08.846 SPRING; HTR UNIT (B)	8-97321-369-0	01	1	0307-0609	●	●	●	●	●	●	●	●
51	08.846 SPRING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97321-369-0	01	1	0610-	●	●	●	●	●	●	●	●
53	08.866 ROD; SHUTTER LEVER EXC. PARKING BRAKE FLOOR<7XW>	8-97321-345-0	01	1	0307-0609	●		●	●	●	●	●	●
53	08.866 ROD; SHUTTER LEVER HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW>	8-97321-345-0	01	1	0610-	●		●	●	●	●	●	●
54	08.854 CLIP; SHUTTER LEVER EXC. PARKING BRAKE FLOOR<7XW>	8-97321-371-0	01	1	0307-0609	●		●	●	●	●	●	●
54	08.854 CLIP; SHUTTER LEVER HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW>	8-97321-371-0	01	1	0610-	●		●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97321-341-0	02	1	0307-0309	●	●	●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65)	8-97321-341-0	01	1	0307-0309	●		●		●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-97321-341-0	02	1	0310-0609	●	●	●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97321-341-0	02	1	0610-	●	●	●	●	●	●	●	●
60	08.854 DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97333-330-0	01	1	0307-	●	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97333-326-0	01	1	0307-	●	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97333-327-0	01	1	0307-	●	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C)	8-97321-336-0	01	1	0307-0609	●		●		●	●	●	●
61	08.854 CASE; HTR UNIT COOLER WO/HEATER(C65) (C)	8-97321-336-0	01	1	0610-	●		●		●	●	●	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D)	8-97321-337-0	01	1	0307-0609	●		●		●	●	●	●
61	08.854 CASE; HTR UNIT COOLER WO/HEATER(C65) (D)	8-97321-337-0	01	1	0610-	●		●		●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97333-328-0	01	1	0307-0309	●	●	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97364-996-0	01	1	0310-0402	●	●	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97333-328-0	01	1	0403-	●	●	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65)	8-97321-370-0	01	1	0307-0609	●		●		●	●	●	●
63	08.856 LINING; HTR UNIT COOLER WO/HEATER(C65)	8-97321-370-0	01	1	0610-	●		●		●	●	●	●
64	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97333-332-0	01	1	0307-0612	●	●	●	●	●	●	●	●
64	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98072-806-0	01	1	0701-	●	●	●	●	●	●	●	●
65	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97333-331-0	01	1	0307-	●	●	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT 09.211 (A)	8-97321-166-0	02	1	0307-0309	●	●	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT 09.211 (A)	8-97321-166-0	01	1	0310-0609	●	●	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.211 (A)	8-97321-166-0	01	1	0610-0709	●	●	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.262 (A)	8-98088-089-0	01	1	0710-	●	●	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 09.787 (B)	8-97321-274-0	02	1	0307-	●	●	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 09.787 (B)	8-97321-274-0	01	1	0307-0609	●		●		●	●	●	●
67	08.854 CLIP; HTR UNIT COOLER WO/HEATER(C65) 09.787 (B)	8-97321-274-0	01	1	0610-	●		●		●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97333-329-0	01	1	0307-	●	●	●	●	●	●	●	●
122	08.845 SCREW; DUCT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 09.211	8-97321-165-0	03	1	0307-0309	●	●	●	●	●	●	●	●
122	08.845 SCREW; DUCT 09.211	8-97321-165-0	02	1	0310-0510	●	●	●	●	●	●	●	●
122	08.845 SCREW; DUCT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 09.211	8-97321-165-0	02	1	0511-0612	●	●	●	●	●	●	●	●
122	08.845 SCREW; DUCT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 09.786	8-98071-323-0	02	1	0701-	●	●	●	●	●	●	●	●
133	08.845 CLIP; PIPE	8-97321-366-0	01	1	0307-0609	●	●	●	●	●	●	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97321-366-0	01	1	0610-	●	●	●	●	●	●	●	●
233	08.845 COVER; CORE,HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97352-950-0	01	1	0307-0402	●	●	●	●	●	●	●	●

1 63 133 61 51 48 34 32 56 51 67 67 67 16 35 53 54 67 9 122 30 61 122 30 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> (A)	8-97234-552-2	01	1	0307-0309	●	●	●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> (A)	8-97369-309-0	01	1	0310-0612	●	●	●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> (A)	8-98071-331-0	01	1	0701-0709	●	●	●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> (A)	8-98086-150-0	01	1	0710-	●	●	●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> (A)	8-97307-354-2	01	1	0307-0309	●		●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> (A)	8-97369-311-0	01	1	0310-0612	●		●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> (A)	8-98071-332-0	01	1	0701-0709	●		●	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> (A)	8-98086-151-0	01	1	0710-	●		●	●	●	●	●	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B)	8-97234-555-1	01	1	0307-0309	●		●		●	●	●	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B)	8-97369-312-0	01	1	0310-0510	●		●		●	●	●	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B)	8-98021-930-0	01	1	0511-0609	●		●		●	●	●	●
1	08.845 HEATER UNIT COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B)	8-98021-930-0	01	1	0610-0703	●		●		●	●	●	●
1	08.845 HEATER UNIT COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B)	8-98071-335-0	01	1	0704-0709	●		●		●	●	●	●
1	08.845 HEATER UNIT COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> (B)	8-98086-154-0	01	1	0710-	●		●		●	●	●	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B)	8-97301-796-1	01	1	0307-0309	●		●		●	●	●	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B)	8-97369-313-0	01	1	0310-0510	●		●		●	●	●	●
1	08.845 HEATER UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B)	8-98021-931-0	01	1	0511-0609	●		●		●	●	●	●
1	08.845 HEATER UNIT COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B)	8-98021-931-0	01	1	0610-0703	●		●		●	●	●	●
1	08.845 HEATER UNIT COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B)	8-98071-336-0	01	1	0704-0709	●		●		●	●	●	●
1	08.845 HEATER UNIT COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> (B)	8-98086-155-0	01	1	0710-	●		●		●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> (A)	8-97234-551-0	01	1	0307-0309					●			●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> (A)	8-97369-308-0	01	1	0310-0612					●			●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> (A)	8-98071-333-0	01	1	0701-0709					●			●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> (A)	8-98086-152-0	01	1	0710-					●			●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> (A)	8-97307-353-0	01	1	0307-0309					●			●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> (A)	8-97369-310-0	01	1	0310-0612					●			●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> (A)	8-98071-334-0	01	1	0701-0709					●			●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> (A)	8-98086-153-0	01	1	0710-					●			●
9	08.854 DUCT; HTR UNIT	8-97321-338-0	01	1	0307-	●	●	●	●		●	●
9	08.854 DUCT; HTR UNIT EXC. REAR HEATER DUCT<S8C>	8-97321-338-0	01	1	0307-					●			●
9	08.854 DUCT; HTR UNIT REAR HEATER DUCT<S8C>	8-97364-987-0	01	1	0307-					●			●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR 08.845 (B)	8-97321-340-0	01	1	0307-0609	●	●	●	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.845 (B)	8-97321-340-0	01	1	0610-	●	●	●	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR (A)	8-97321-342-0	01	1	0307-0609	●	●	●	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97321-342-0	01	1	0610-	●	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 09.211	8-97321-165-0	08	1	0307-0309	●	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 09.786	8-98071-323-0	08	1	0701-0703	●	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.786	8-98071-323-0	08	1	0704-	●	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 09.211	8-97321-165-0	11	1	0307-0309	●		●		●	●	●	●
30	08.845 SCREW; HTR UNIT 09.211	8-97321-165-0	08	1	0310-0609	●	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.211	8-97321-165-0	08	1	0610-0612	●	●	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT COOLER WO/HEATER(C65) 09.211	8-97321-165-0	08	1	0701-0703	●		●		●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> 08.856	8-97321-276-0	02	1	0307-0609	●	●	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 08.856	8-97321-276-0	02	1	0307-0609	●		●		●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> 08.856	8-97321-276-0	02	1	0610-0612	●	●	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 08.856	8-97321-276-0	02	1	0610-0612	●		●		●	●	●	●
32	08.852 SCREW; HTR UNIT COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 08.856	8-97321-276-0	02	1	0701-0703	●		●		●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> 08.845	8-98071-324-0	02	1	0701-0703	●	●	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> 08.845	8-98071-324-0	02	1	0704-	●	●	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW> 08.845	8-98071-324-0	02	1	0704-	●		●		●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. PARKING BRAKE FLOOR<7XW> 08.856	8-97321-276-0	03	1	0307-0612	●		●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. PARKING BRAKE FLOOR<7XW> 08.845	8-98071-324-0	03	1	0701-	●		●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> 08.856	8-97321-276-0	01	1	0307-0609	●		●		●	●	●	●
32	08.852 SCREW; HTR UNIT COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> 08.856	8-97321-276-0	01	1	0610-0703	●		●		●	●	●	●
32	08.852 SCREW; HTR UNIT COOLER WO/HEATER(C65) PARKING BRAKE FLOOR<7XW> 08.845	8-98071-324-0	01	1	0704-	●		●		●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT	8-97321-343-0	01	1	0307-0609	●	●	●	●	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97321-343-0	01	1	0610-	●	●	●	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT EXC. PARKING BRAKE FLOOR<7XW>	8-97321-344-0	01	1	0307-0609	●		●	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW>	8-97321-344-0	01	1	0610-	●		●	●	●	●	●	●
48	09.786 LEVER; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65)	8-97321-341-0	01	1	0307-0309	●		●		●	●	●	●
51	08.846 SPRING; HTR UNIT (A)	8-97321-368-0	01	1	0307-0609	●	●	●	●	●	●	●	●
51	08.846 SPRING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97321-368-0	01	1	0610-	●	●	●	●	●	●	●	●
51	08.846 SPRING; HTR UNIT (B)	8-97321-369-0	01	1	0307-0609	●	●	●	●	●	●	●	●
51	08.846 SPRING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-97321-369-0	01	1	0610-	●	●	●	●	●	●	●	●
53	08.866 ROD; SHUTTER LEVER EXC. PARKING BRAKE FLOOR<7XW>	8-97321-345-0	01	1	0307-0609	●		●	●	●	●	●	●
53	08.866 ROD; SHUTTER LEVER HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW>	8-97321-345-0	01	1	0610-	●		●	●	●	●	●	●
54	08.854 CLIP; SHUTTER LEVER EXC. PARKING BRAKE FLOOR<7XW>	8-97321-371-0	01	1	0307-0609	●		●	●	●	●	●	●
54	08.854 CLIP; SHUTTER LEVER HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. PARKING BRAKE FLOOR<7XW>	8-97321-371-0	01	1	0610-	●		●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97321-341-0	02	1	0307-0309	●	●	●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65)	8-97321-341-0	01	1	0307-0309	●		●		●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-97321-341-0	02	1	0310-0609	●	●	●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97321-341-0	02	1	0610-	●	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97333-326-0	01	1	0307-	●	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97333-327-0	01	1	0307-	●	●	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C)	8-97321-336-0	01	1	0307-0609	●		●		●	●	●	●
61	08.854 CASE; HTR UNIT COOLER WO/HEATER(C65) (C)	8-97321-336-0	01	1	0610-	●		●		●	●	●	●
61	08.854 CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D)	8-97321-337-0	01	1	0307-0609	●		●		●	●	●	●
61	08.854 CASE; HTR UNIT COOLER WO/HEATER(C65) (D)	8-97321-337-0	01	1	0610-	●		●		●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97333-328-0	01	1	0307-0309	●	●	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97364-996-0	01	1	0310-0402	●	●	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-97333-328-0	01	1	0403-	●	●	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65)	8-97321-370-0	01	1	0307-0609	●		●		●	●	●	●
63	08.856 LINING; HTR UNIT COOLER WO/HEATER(C65)	8-97321-370-0	01	1	0610-	●		●		●	●	●	●
67	08.854 CLIP; HTR UNIT 09.211 (A)	8-97321-166-0	02	1	0307-0309	●	●	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT 09.211 (A)	8-97321-166-0	01	1	0310-0609	●	●	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.211 (A)	8-97321-166-0	01	1	0610-0709	●	●	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.262 (A)	8-98088-089-0	01	1	0710-	●	●	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 09.787 (B)	8-97321-274-0	02	1	0307-	●	●	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 09.787 (B)	8-97321-274-0	01	1	0307-0609	●		●		●	●	●	●
67	08.854 CLIP; HTR UNIT COOLER WO/HEATER(C65) 09.787 (B)	8-97321-274-0	01	1	0610-	●		●		●	●	●	●
122	08.845 SCREW; DUCT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 09.211	8-97321-165-0	03	1	0307-0309	●	●	●	●	●	●	●	●
122	08.845 SCREW; DUCT 09.211	8-97321-165-0	02	1	0310-0510	●	●	●	●	●	●	●	●
122	08.845 SCREW; DUCT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 09.211	8-97321-165-0	02	1	0511-0612	●	●	●	●	●	●	●	●
122	08.845 SCREW; DUCT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 09.786	8-98071-323-0	02	1	0701-	●	●	●	●	●	●	●	●
133	08.845 CLIP; PIPE	8-97321-366-0	01	1	0307-0609	●	●	●	●	●	●	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-97321-366-0	01	1	0610-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
