Sayfa 0-66 - Isuzu EPC

0-66 — GENERATOR (#43384) — 329 parça

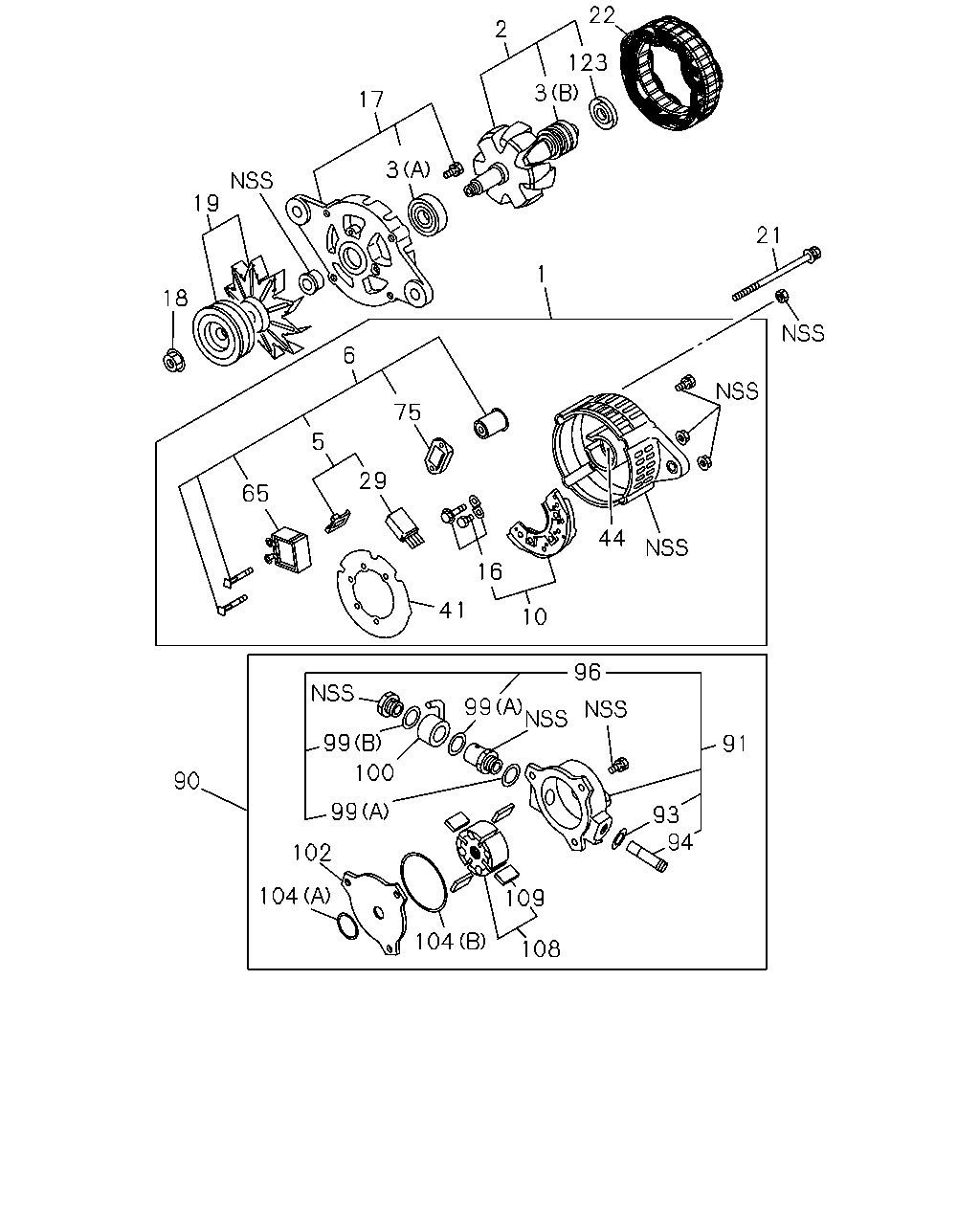

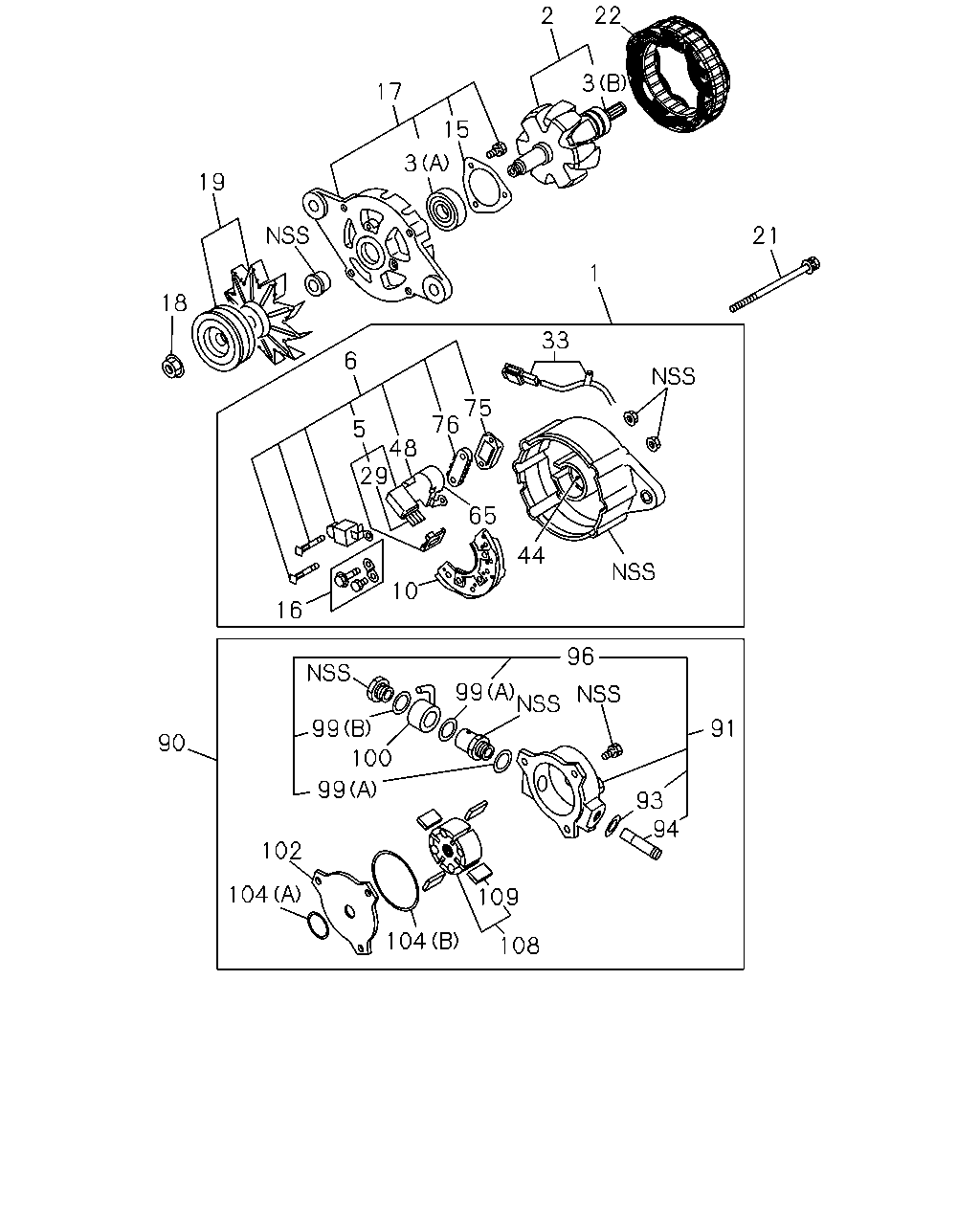

22 2 3 17 15 3 19 21 1 18 33 6 75 76 5 48 29 65 44 10 16 96 99 91 99 90 100 99 93 94 102 104 109 104 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97147-851-0, 97147851	8-94381-023-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-247-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97145-386-3, 97145386	8-97182-726-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97187-655-0, 97187655	8-97188-853-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97184-531-0, 97184531	8-97189-226-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97219-253-0, 97219253	8-97225-347-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97215-992-3, 97215992	8-97231-513-0	01	1	-0405
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-97233-824-1, 97233824	8-97237-702-0	01	1	-0405
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97215-992-3, 97215992	8-97374-504-0	01	1	0406-
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-97233-824-1, 97233824	8-97374-505-0	01	1	0406-
2	02.279 ROTOR; GEN ASM PART: G = 8-97210-373-0, 97210373	8-97032-306-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97078-572-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-245-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97187-304-0, 97187304	8-97171-371-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, I = 8-97219-253-0, 97219253	8-97182-711-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97215-992-3, 97215992	8-97231-512-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-97233-824-1, 97233824	8-97237-700-0	01	1	-0405
2	02.279 ROTOR; GEN ASM PART: J = 8-97233-824-1, 97233824	8-97374-849-0	01	1	0406-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: G = 8-97210-373-0, 97210373	1-81229-742-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: G = 8-97210-373-0, 97210373	1-81229-743-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: F = 8-97187-655-0, 97187655	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97133-854-0, 97133854	8-97142-259-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-97187-304-0, 97187304	8-97171-369-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-97187-304-0, 97187304	8-97171-370-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, H = 8-97215-992-3, 97215992, I = 8-97219-253-0, 97219253, J = 8-97233-824-1, 97233824	8-97182-740-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97147-851-0, 97147851	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: F = 8-97187-655-0, 97187655	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: G = 8-97210-373-0, 97210373	8-97032-308-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: E = 8-97187-304-0, 97187304	8-97040-494-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-251-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: C = 8-97147-851-0, 97147851	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-97187-655-0, 97187655	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-250-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-97187-304-0, 97187304, G = 8-97210-373-0, 97210373	8-97183-613-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-255-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97187-304-0, 97187304	8-97171-368-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97210-373-0, 97210373	8-97211-427-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: E = 8-97187-304-0, 97187304	8-94406-982-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: G = 8-97210-373-0, 97210373	8-97032-304-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN 02.313 ASM PART: C = 8-97147-851-0, 97147851	8-94156-597-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: F = 8-97187-655-0, 97187655	8-97111-390-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-256-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97171-005-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97187-304-0, 97187304	8-97171-376-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, I = 8-97219-253-0, 97219253	8-97182-727-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97210-373-0, 97210373	8-97211-424-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97215-992-3, 97215992, J = 8-97233-824-1, 97233824	8-97231-514-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: E = 8-97187-304-0, 97187304, G = 8-97210-373-0, 97210373	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851	8-97016-301-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: F = 8-97187-655-0, 97187655	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-97210-373-0, 97210373	8-97032-301-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-260-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97187-304-0, 97187304	8-97171-380-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, I = 8-97219-253-0, 97219253	8-97182-728-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: H = 8-97215-992-3, 97215992, J = 8-97233-824-1, 97233824	8-97231-515-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-97133-854-0, 97133854	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97078-574-0	04	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97187-655-0, 97187655	8-94408-494-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97147-851-0, 97147851	8-97078-573-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-246-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: E = 8-97187-304-0, 97187304	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: G = 8-97210-373-0, 97210373	8-97032-310-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-252-0	02	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97071-213-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94156-589-0	01	1	-
48	02.319 DIODE; GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94237-727-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-253-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-254-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94156-591-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97134-763-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-262-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97062-660-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	5-19679-004-2	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	5-19619-034-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97018-875-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	5-19679-003-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94311-470-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97133-854-0, 97133854	8-97142-263-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97134-764-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94462-877-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97062-658-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94462-883-0	04	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

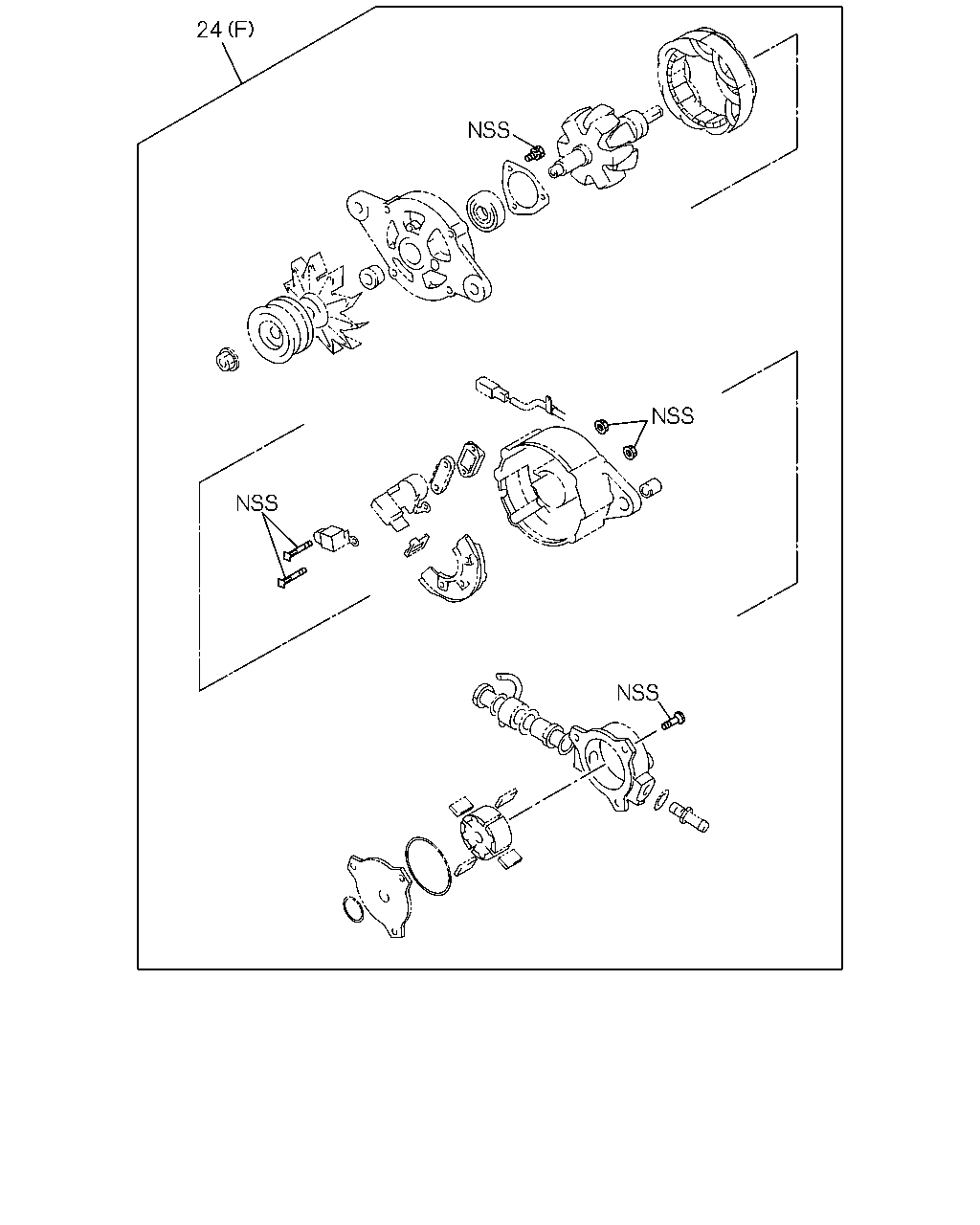

24	02.307 SCREW; RECTIFIER,GEN (F) ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: E = 8-97187-304-0, 97187304	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: G = 8-97210-373-0, 97210373	8-97032-313-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: E = 8-97187-304-0, 97187304, G = 8-97210-373-0, 97210373	8-97032-314-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN (E) ASM PART: G = 8-97210-373-0, 97210373	8-97070-810-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (G) ASM PART: H = 8-97215-992-3, 97215992	8-97130-577-0	01	1	0406-
24	02.307 SCREW; RECTIFIER,GEN (G) ASM PART: J = 8-97233-824-1, 97233824	8-97130-577-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (F) ASM PART: A = 8-97133-854-0, 97133854	8-97142-261-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: E = 8-97187-304-0, 97187304	8-97142-568-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: E = 8-97187-304-0, 97187304	8-97142-569-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (G) ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, I = 8-97219-253-0, 97219253	8-97182-729-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (G) ASM PART: H = 8-97215-992-3, 97215992	8-97231-516-0	01	1	-0405

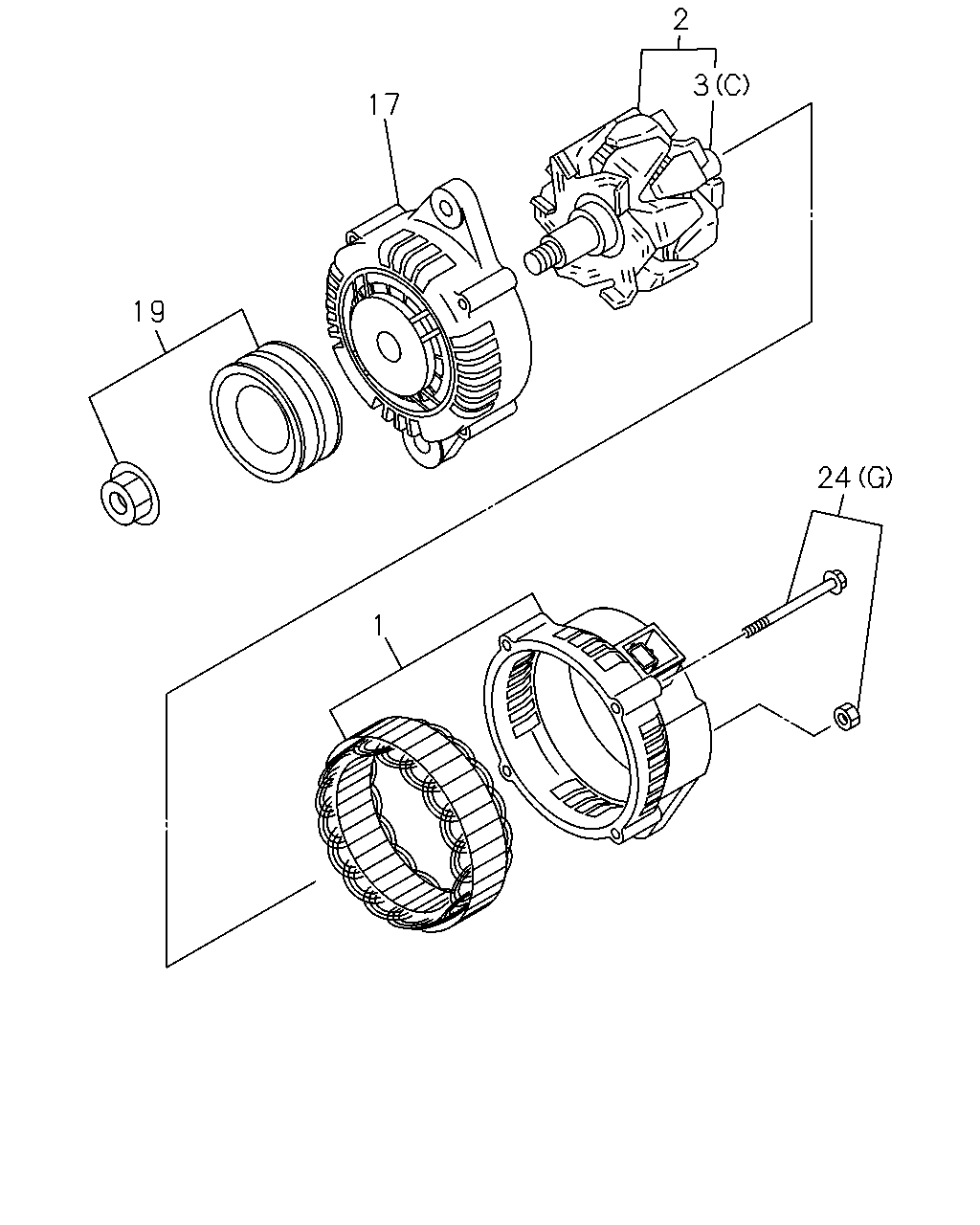

2 3 17 19 24 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97147-851-0, 97147851	8-94381-023-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-247-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97145-386-3, 97145386	8-97182-726-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97187-655-0, 97187655	8-97188-853-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97184-531-0, 97184531	8-97189-226-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97219-253-0, 97219253	8-97225-347-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97215-992-3, 97215992	8-97231-513-0	01	1	-0405
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-97233-824-1, 97233824	8-97237-702-0	01	1	-0405
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97215-992-3, 97215992	8-97374-504-0	01	1	0406-
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-97233-824-1, 97233824	8-97374-505-0	01	1	0406-
2	02.279 ROTOR; GEN ASM PART: G = 8-97210-373-0, 97210373	8-97032-306-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97078-572-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-245-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97187-304-0, 97187304	8-97171-371-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, I = 8-97219-253-0, 97219253	8-97182-711-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97215-992-3, 97215992	8-97231-512-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-97233-824-1, 97233824	8-97237-700-0	01	1	-0405
2	02.279 ROTOR; GEN ASM PART: J = 8-97233-824-1, 97233824	8-97374-849-0	01	1	0406-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: G = 8-97210-373-0, 97210373	1-81229-742-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: G = 8-97210-373-0, 97210373	1-81229-743-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: F = 8-97187-655-0, 97187655	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97133-854-0, 97133854	8-97142-259-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-97187-304-0, 97187304	8-97171-369-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-97187-304-0, 97187304	8-97171-370-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, H = 8-97215-992-3, 97215992, I = 8-97219-253-0, 97219253, J = 8-97233-824-1, 97233824	8-97182-740-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97171-005-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97187-304-0, 97187304	8-97171-376-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, I = 8-97219-253-0, 97219253	8-97182-727-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97210-373-0, 97210373	8-97211-424-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97215-992-3, 97215992, J = 8-97233-824-1, 97233824	8-97231-514-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-97210-373-0, 97210373	8-97032-301-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-260-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97187-304-0, 97187304	8-97171-380-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, I = 8-97219-253-0, 97219253	8-97182-728-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: H = 8-97215-992-3, 97215992, J = 8-97233-824-1, 97233824	8-97231-515-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (F) ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: E = 8-97187-304-0, 97187304	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: G = 8-97210-373-0, 97210373	8-97032-313-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: E = 8-97187-304-0, 97187304, G = 8-97210-373-0, 97210373	8-97032-314-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN (E) ASM PART: G = 8-97210-373-0, 97210373	8-97070-810-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (G) ASM PART: H = 8-97215-992-3, 97215992	8-97130-577-0	01	1	0406-
24	02.307 SCREW; RECTIFIER,GEN (G) ASM PART: J = 8-97233-824-1, 97233824	8-97130-577-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (F) ASM PART: A = 8-97133-854-0, 97133854	8-97142-261-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: E = 8-97187-304-0, 97187304	8-97142-568-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: E = 8-97187-304-0, 97187304	8-97142-569-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (G) ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, I = 8-97219-253-0, 97219253	8-97182-729-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (G) ASM PART: H = 8-97215-992-3, 97215992	8-97231-516-0	01	1	-0405

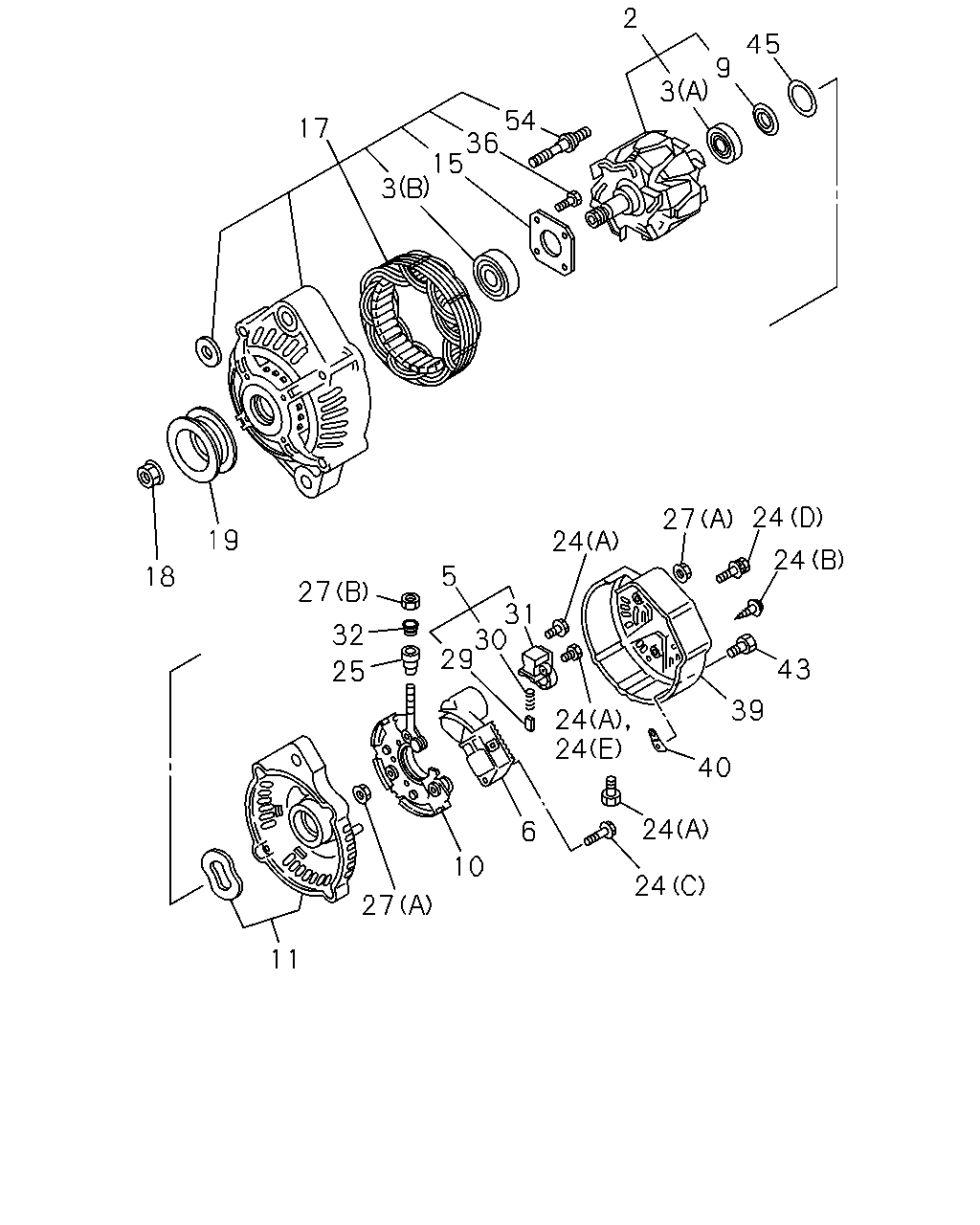

2 45 9 3 54 36 15 3 17 24 27 19 24 24 5 18 27 31 30 29 32 43 25 39 24 24 40 24 6 10 24 27 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.279 ROTOR; GEN ASM PART: G = 8-97210-373-0, 97210373	8-97032-306-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97078-572-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-245-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97187-304-0, 97187304	8-97171-371-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, I = 8-97219-253-0, 97219253	8-97182-711-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97215-992-3, 97215992	8-97231-512-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-97233-824-1, 97233824	8-97237-700-0	01	1	-0405
2	02.279 ROTOR; GEN ASM PART: J = 8-97233-824-1, 97233824	8-97374-849-0	01	1	0406-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: G = 8-97210-373-0, 97210373	1-81229-742-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: G = 8-97210-373-0, 97210373	1-81229-743-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: F = 8-97187-655-0, 97187655	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97133-854-0, 97133854	8-97142-259-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-97187-304-0, 97187304	8-97171-369-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-97187-304-0, 97187304	8-97171-370-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, H = 8-97215-992-3, 97215992, I = 8-97219-253-0, 97219253, J = 8-97233-824-1, 97233824	8-97182-740-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97147-851-0, 97147851	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: F = 8-97187-655-0, 97187655	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: G = 8-97210-373-0, 97210373	8-97032-308-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: E = 8-97187-304-0, 97187304	8-97040-494-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-251-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: C = 8-97147-851-0, 97147851	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-97187-655-0, 97187655	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-250-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-97187-304-0, 97187304, G = 8-97210-373-0, 97210373	8-97183-613-0	01	1	-
9	02.307 COVER; FELT WASHER,ROTOR,GEN 02.298 ASM PART: E = 8-97187-304-0, 97187304, G = 8-97210-373-0, 97210373	8-94123-051-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-255-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97187-304-0, 97187304	8-97171-368-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97210-373-0, 97210373	8-97211-427-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: E = 8-97187-304-0, 97187304	8-97171-367-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: G = 8-97210-373-0, 97210373	8-97211-428-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: E = 8-97187-304-0, 97187304	8-94406-982-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: G = 8-97210-373-0, 97210373	8-97032-304-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97171-005-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97187-304-0, 97187304	8-97171-376-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, I = 8-97219-253-0, 97219253	8-97182-727-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97210-373-0, 97210373	8-97211-424-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97215-992-3, 97215992, J = 8-97233-824-1, 97233824	8-97231-514-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: E = 8-97187-304-0, 97187304, G = 8-97210-373-0, 97210373	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851	8-97016-301-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: F = 8-97187-655-0, 97187655	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-97210-373-0, 97210373	8-97032-301-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-260-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97187-304-0, 97187304	8-97171-380-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, I = 8-97219-253-0, 97219253	8-97182-728-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: H = 8-97215-992-3, 97215992, J = 8-97233-824-1, 97233824	8-97231-515-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (F) ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: E = 8-97187-304-0, 97187304	8-94455-161-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (A) ASM PART: G = 8-97210-373-0, 97210373	8-97032-313-0	06	1	-
24	02.307 SCREW; RECTIFIER,GEN (B) ASM PART: E = 8-97187-304-0, 97187304, G = 8-97210-373-0, 97210373	8-97032-314-0	02	1	-
24	02.307 SCREW; RECTIFIER,GEN (E) ASM PART: G = 8-97210-373-0, 97210373	8-97070-810-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (G) ASM PART: H = 8-97215-992-3, 97215992	8-97130-577-0	01	1	0406-
24	02.307 SCREW; RECTIFIER,GEN (G) ASM PART: J = 8-97233-824-1, 97233824	8-97130-577-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (F) ASM PART: A = 8-97133-854-0, 97133854	8-97142-261-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (C) ASM PART: E = 8-97187-304-0, 97187304	8-97142-568-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (D) ASM PART: E = 8-97187-304-0, 97187304	8-97142-569-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (G) ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, I = 8-97219-253-0, 97219253	8-97182-729-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN (G) ASM PART: H = 8-97215-992-3, 97215992	8-97231-516-0	01	1	-0405
25	02.313 BUSHING; INSULATION TERMINAL 02.298 ASM PART: E = 8-97187-304-0, 97187304	8-94135-760-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL ASM PART: G = 8-97210-373-0, 97210373	8-97032-312-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.316, (A) ASM PART: E = 8-97187-304-0, 97187304, G = 8-97210-373-0, 97210373	8-94123-064-0	07	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: E = 8-97187-304-0, 97187304	8-94206-186-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN (B) ASM PART: G = 8-97210-373-0, 97210373	8-97032-317-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: E = 8-97187-304-0, 97187304	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: G = 8-97210-373-0, 97210373	8-97032-310-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-252-0	02	1	-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: E = 8-97187-304-0, 97187304, G = 8-97210-373-0, 97210373	8-94123-057-0	02	1	-
31	02.291 SHEET; BRUSH,GEN ASM PART: G = 8-97210-373-0, 97210373	8-97032-309-0	01	1	-
31	02.291 SHEET; BRUSH,GEN ASM PART: E = 8-97187-304-0, 97187304	8-97040-495-0	01	1	-
32	02.291 TERMINAL; RECTIFIER,GEN ASM PART: G = 8-97210-373-0, 97210373	8-97211-429-0	01	1	-
36	02.277 SCREW; FRT COVER ASM PART: G = 8-97210-373-0, 97210373	8-97032-305-0	04	1	-
36	02.277 SCREW; FRT COVER ASM PART: E = 8-97187-304-0, 97187304	8-97142-562-0	04	1	-
39	02.297 COVER; END,RR COVER,GEN ASM PART: E = 8-97187-304-0, 97187304	8-97171-366-0	01	1	-
39	02.297 COVER; END,RR COVER,GEN ASM PART: G = 8-97210-373-0, 97210373	8-97211-430-0	01	1	-
40	02.291 PLATE; RR COVER ASM PART: G = 8-97210-373-0, 97210373	8-97070-812-0	01	1	-
43	02.307 SCREW; RR END COVER ASM PART: G = 8-97210-373-0, 97210373	8-97070-811-0	01	1	-
45	02.307 WASHER; INSULATE,RR COVER,GEN ASM PART: E = 8-97187-304-0, 97187304	8-97142-570-0	01	1	-
54	02.291 BOLT; RECTIFIER,GEN 02.316 ASM PART: E = 8-97187-304-0, 97187304, G = 8-97210-373-0, 97210373	8-94123-048-0	04	1	-

22 2 123 3 17 3 19 21 1 18 6 75 5 29 65 44 16 41 10 96 99 99 91 100 90 99 93 94 102 104 109 104 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97147-851-0, 97147851	8-94381-023-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-247-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97145-386-3, 97145386	8-97182-726-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97187-655-0, 97187655	8-97188-853-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97184-531-0, 97184531	8-97189-226-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-97219-253-0, 97219253	8-97225-347-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97215-992-3, 97215992	8-97231-513-0	01	1	-0405
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-97233-824-1, 97233824	8-97237-702-0	01	1	-0405
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97215-992-3, 97215992	8-97374-504-0	01	1	0406-
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-97233-824-1, 97233824	8-97374-505-0	01	1	0406-
2	02.279 ROTOR; GEN ASM PART: G = 8-97210-373-0, 97210373	8-97032-306-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97078-572-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-245-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97187-304-0, 97187304	8-97171-371-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, I = 8-97219-253-0, 97219253	8-97182-711-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: H = 8-97215-992-3, 97215992	8-97231-512-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-97233-824-1, 97233824	8-97237-700-0	01	1	-0405
2	02.279 ROTOR; GEN ASM PART: J = 8-97233-824-1, 97233824	8-97374-849-0	01	1	0406-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: G = 8-97210-373-0, 97210373	1-81229-742-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: G = 8-97210-373-0, 97210373	1-81229-743-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: F = 8-97187-655-0, 97187655	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97133-854-0, 97133854	8-97142-259-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: E = 8-97187-304-0, 97187304	8-97171-369-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-97187-304-0, 97187304	8-97171-370-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, H = 8-97215-992-3, 97215992, I = 8-97219-253-0, 97219253, J = 8-97233-824-1, 97233824	8-97182-740-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97147-851-0, 97147851	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: F = 8-97187-655-0, 97187655	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: G = 8-97210-373-0, 97210373	8-97032-308-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: E = 8-97187-304-0, 97187304	8-97040-494-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-251-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: C = 8-97147-851-0, 97147851	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-97187-655-0, 97187655	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-250-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: E = 8-97187-304-0, 97187304, G = 8-97210-373-0, 97210373	8-97183-613-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94453-149-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-255-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97187-304-0, 97187304	8-97171-368-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97210-373-0, 97210373	8-97211-427-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN 02.313 ASM PART: C = 8-97147-851-0, 97147851	8-94156-597-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: F = 8-97187-655-0, 97187655	8-97111-390-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-256-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97171-005-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97187-304-0, 97187304	8-97171-376-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, I = 8-97219-253-0, 97219253	8-97182-727-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97210-373-0, 97210373	8-97211-424-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97215-992-3, 97215992, J = 8-97233-824-1, 97233824	8-97231-514-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: E = 8-97187-304-0, 97187304, G = 8-97210-373-0, 97210373	8-94123-043-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851	8-97016-301-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: F = 8-97187-655-0, 97187655	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-97210-373-0, 97210373	8-97032-301-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-260-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97187-304-0, 97187304	8-97171-380-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97145-386-3, 97145386, D = 8-97184-531-0, 97184531, I = 8-97219-253-0, 97219253	8-97182-728-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: H = 8-97215-992-3, 97215992, J = 8-97233-824-1, 97233824	8-97231-515-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-97133-854-0, 97133854	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97078-574-0	04	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97187-655-0, 97187655	8-94408-494-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97147-851-0, 97147851	8-97078-573-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-246-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: E = 8-97187-304-0, 97187304	8-94123-056-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: G = 8-97210-373-0, 97210373	8-97032-310-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-252-0	02	1	-
41	02.274 GUIDE; FAN,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-257-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94156-589-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-253-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-254-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97134-763-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97133-854-0, 97133854	8-97142-262-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97062-660-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	5-19679-004-2	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	5-19619-034-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97018-875-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	5-19679-003-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94311-470-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97133-854-0, 97133854	8-97142-263-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97134-764-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94462-877-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-97062-658-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97133-854-0, 97133854, C = 8-97147-851-0, 97147851, F = 8-97187-655-0, 97187655	8-94462-883-0	04	1	-
123	02.291 GUIDE; BRUSH ASM PART: A = 8-97133-854-0, 97133854	8-97062-644-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
