Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#43381) — 542 parça

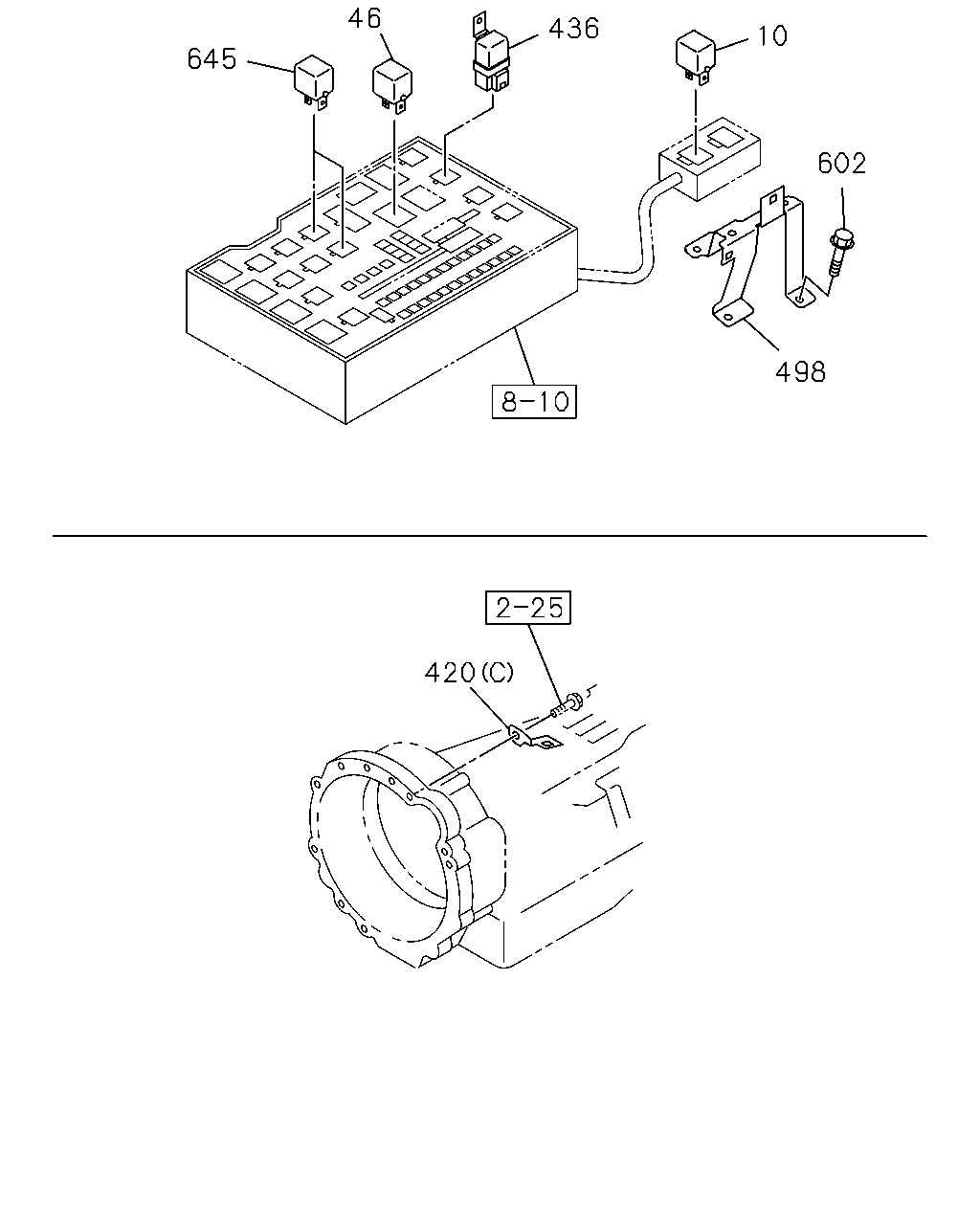

46 436 10 645 602 498 420

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
10	02.100 RELAY; STARTER 02.510 12V 35A	8-97180-794-1	01	1	9712-	●
10	02.100 RELAY; STARTER 02.510 12V 15A	8-94147-095-0	01	1	9712-		●	●
46	02.510 RELAY; GLOW PLUG 12V 35A	8-97180-794-1	01	1	9712-	●
420	02.183 BRACKET; HARNESS A/T AISIN(RMD) 02.483 (C)	8-94315-284-0	01	1	0006-	●
420	02.183 BRACKET; HARNESS (B)	8-97168-884-3	02	1	9712-	●
420	02.183 BRACKET; HARNESS (A)	8-97201-754-1	01	1	9712-0105	●
420	02.183 BRACKET; HARNESS EXC. EUROPE EQUIPMENT(EK4) (A)	8-97201-754-1	01	1	0106-0208	●
420	02.183 BRACKET; HARNESS EXC. EURO3 SPECIFICATION(NT3) (A)	8-97201-754-1	01	1	0209-	●
420	02.183 BRACKET; HARNESS (A)	8-97168-851-0	03	1	9712-0105		●	●
420	02.183 BRACKET; HARNESS SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (A)	8-97168-851-0	03	1	0106-		●
420	02.183 BRACKET; HARNESS (A)	8-97168-851-0	03	1	0106-			●
420	02.183 BRACKET; HARNESS (B)	8-97168-852-0	01	1	9712-0105		●	●
420	02.183 BRACKET; HARNESS SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (B)	8-97168-852-0	01	1	0106-		●
420	02.183 BRACKET; HARNESS (B)	8-97168-852-0	01	1	0106-			●
436	02.510 RELAY; FAST IDLE (Q-CONTROL) 4X4(UBS***) EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> EXC. CERAMIC HEATER<6YX> 02.515 12V 20A	8-97093-910-1	01	1	9712-0005	●
436	02.510 RELAY; FAST IDLE (Q-CONTROL) 4X4(UBS***) EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> 02.515 12V 20A	8-97093-910-1	01	1	9712-0005	●
436	02.510 RELAY; FAST IDLE (Q-CONTROL) 02.515 12V 20A	8-97093-910-1	01	1	0006-	●
498	02.510 BRACKET; RELAY	8-94389-761-4	01	1	9712-				●
498	02.510 BRACKET; RELAY	8-97172-710-1	01	1	9712-	●
602	02.510 BOLT; BRKT 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9712-	●
645	02.510 RELAY; ENG CONT 02.515 12V 20A	8-97093-910-1	02	1	9712-	●
645	02.510 RELAY; ENG CONT 02.515 12V 20A	8-97093-910-1	01	1	9712-		●	●

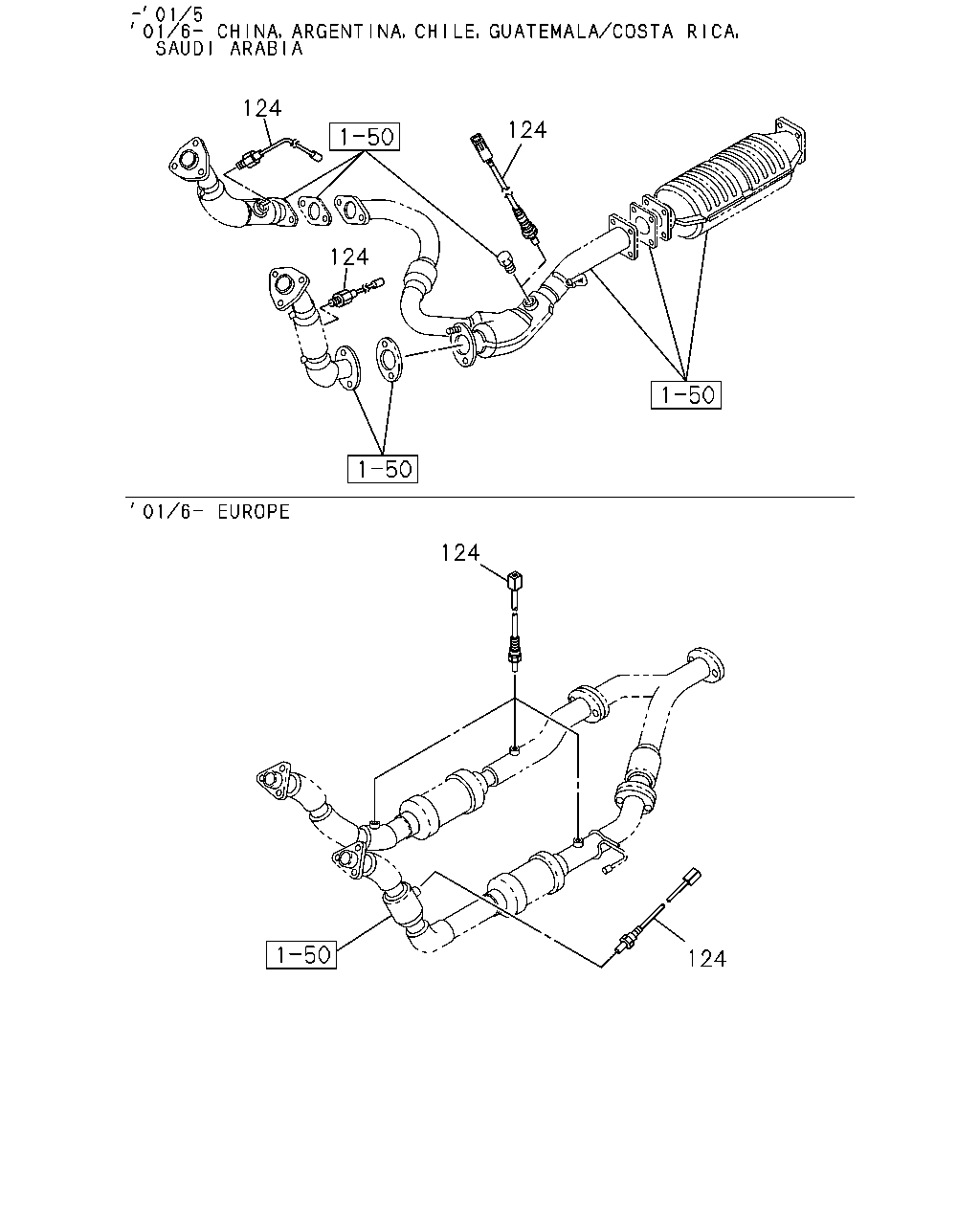

124 124 124 124 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
124	01.150 SENSOR; OXYGEN EUROPE EQUIPMENT(EK4)	8-97224-011-0	04	1	0106-	●
124	01.150 SENSOR; OXYGEN CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97172-293-0	01	1	9712-	●	●
124	01.150 SENSOR; OXYGEN EUROPE EQUIPMENT(EK4)	8-97172-293-0	02	1	9712-0005	●	●
124	01.150 SENSOR; OXYGEN EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ)	8-97172-293-0	02	1	0006-0105	●	●
124	01.150 SENSOR; OXYGEN CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ)	8-97172-293-0	02	1	0106-	●	●
124	01.150 SENSOR; OXYGEN SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2)	8-97187-607-0	01	1	9712-9812		●
124	01.150 SENSOR; OXYGEN SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2)	8-97187-607-0	01	1	9901-0005	●	●
124	01.150 SENSOR; OXYGEN SAUDI ARABIA EQUIPMENT(EU2)	8-97187-607-0	01	1	0006-	●	●

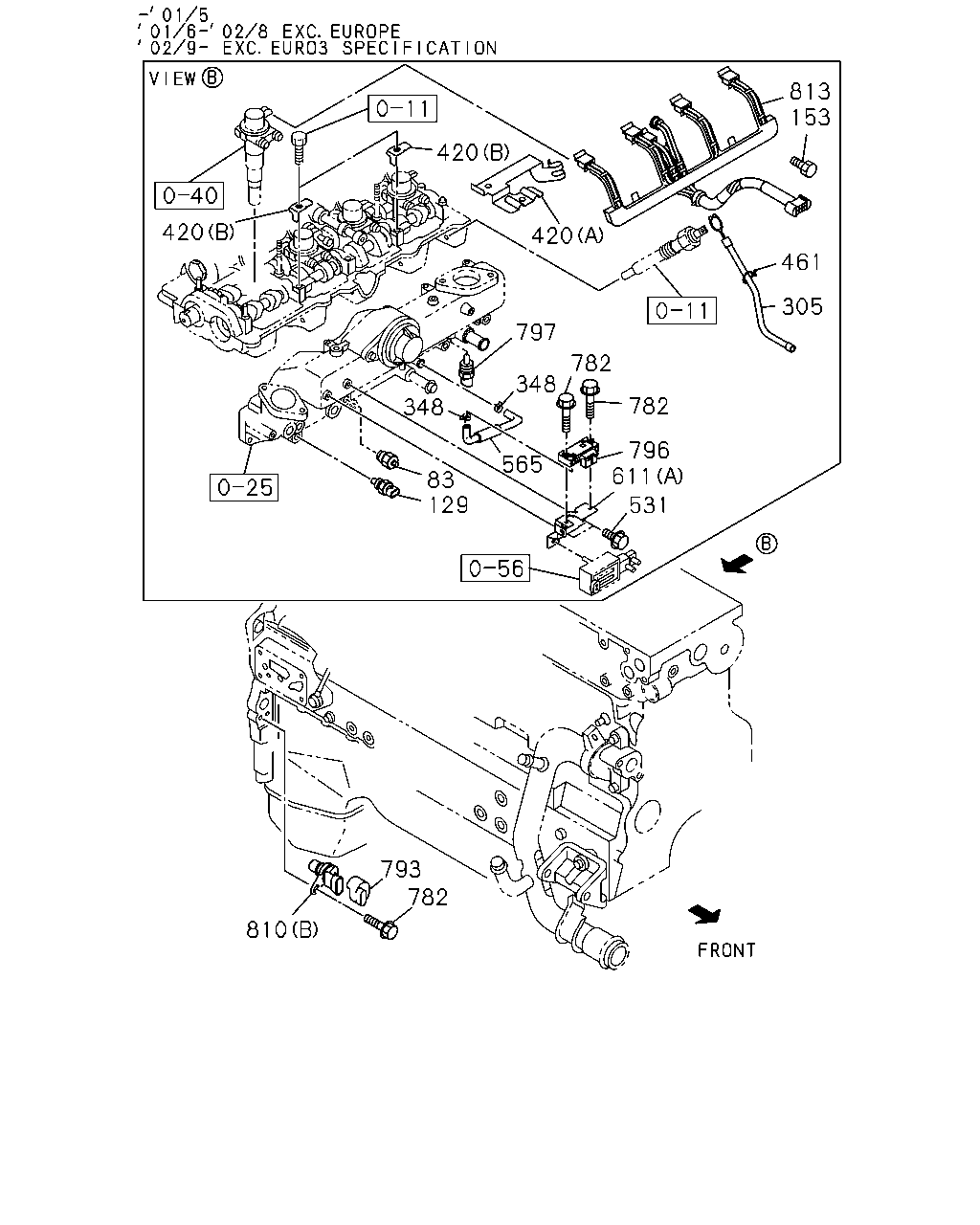

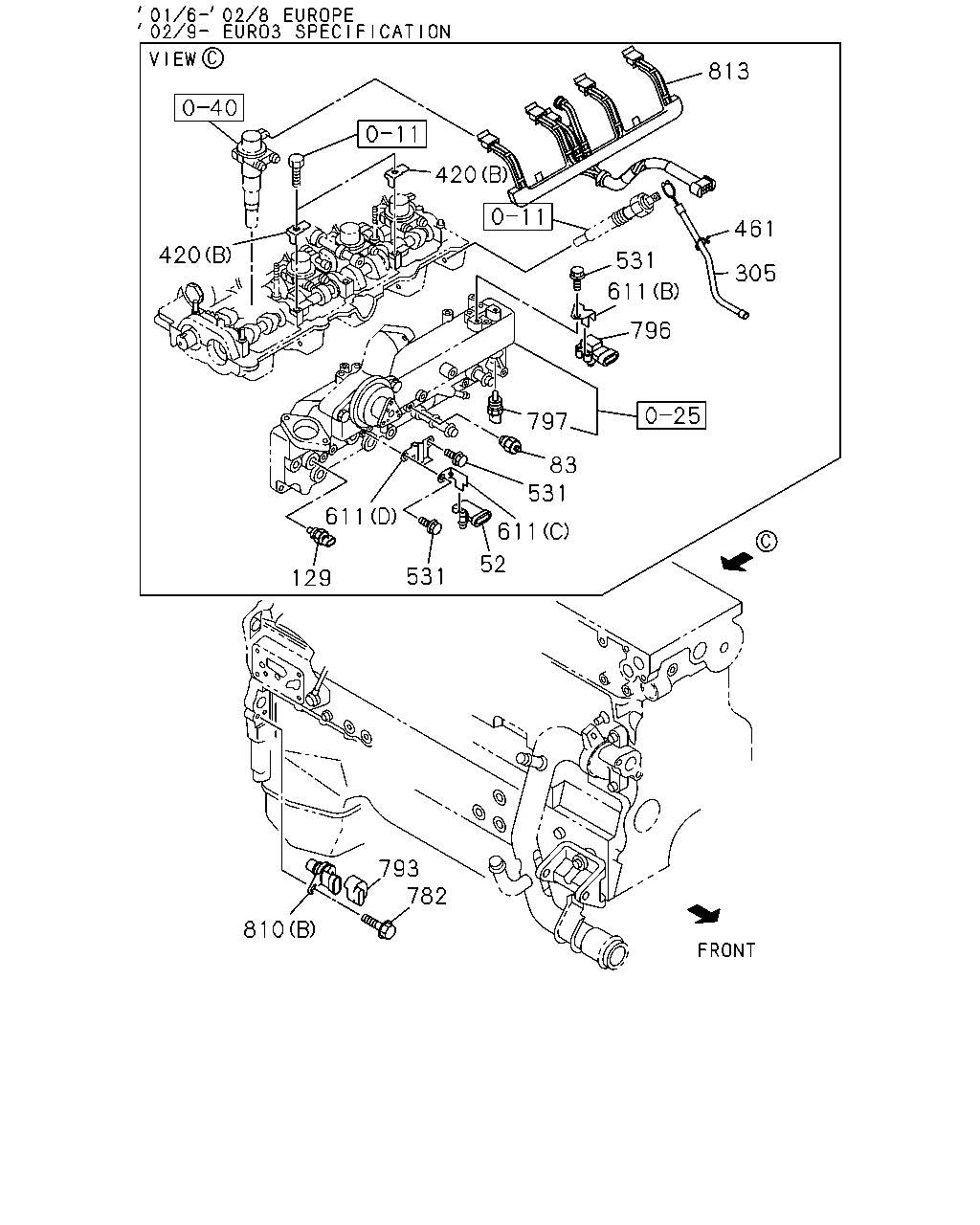

813 420 461 420 531 305 611 796 797 83 531 611 611 52 531 129 793 782 810

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
52	03.337 SENSOR; EGR GAS EUROPE EQUIPMENT(EK4) 01.800	8-16258-659-0	01	1	0106-0208	●
52	03.337 SENSOR; EGR GAS EURO3 SPECIFICATION(NT3) 01.800	8-16258-659-0	01	1	0209-	●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9712-	●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9712-	●			●
83	01.150 THERMOMETER UNIT DENSO	8-94247-437-1	01	1	9712-		●	●
129	01.150 SENSOR; GLOW PLUG,THERMO	8-12146-312-0	01	1	9712-0108	●
129	01.150 SENSOR; GLOW PLUG,THERMO	8-15326-386-0	01	1	0109-	●
305	02.480 HARNESS; EXT,GLOW PLUG	8-97038-742-3	01	1	9712-	●			●
420	02.183 BRACKET; HARNESS A/T AISIN(RMD) 02.483 (C)	8-94315-284-0	01	1	0006-	●
420	02.183 BRACKET; HARNESS (B)	8-97168-884-3	02	1	9712-	●
420	02.183 BRACKET; HARNESS (A)	8-97201-754-1	01	1	9712-0105	●
420	02.183 BRACKET; HARNESS EXC. EUROPE EQUIPMENT(EK4) (A)	8-97201-754-1	01	1	0106-0208	●
420	02.183 BRACKET; HARNESS EXC. EURO3 SPECIFICATION(NT3) (A)	8-97201-754-1	01	1	0209-	●
420	02.183 BRACKET; HARNESS (A)	8-97168-851-0	03	1	9712-0105		●	●
420	02.183 BRACKET; HARNESS SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (A)	8-97168-851-0	03	1	0106-		●
420	02.183 BRACKET; HARNESS (A)	8-97168-851-0	03	1	0106-			●
420	02.183 BRACKET; HARNESS (B)	8-97168-852-0	01	1	9712-0105		●	●
420	02.183 BRACKET; HARNESS SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (B)	8-97168-852-0	01	1	0106-		●
420	02.183 BRACKET; HARNESS (B)	8-97168-852-0	01	1	0106-			●
461	02.559 CLIP; PURSE LOCK AIR CONDITIONER MANUAL CONT(C60) 01.540 ID=30	8-94315-423-0	02	1	9712-9908	●			●
461	02.559 CLIP; PURSE LOCK AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 01.540 ID=30	8-94315-423-0	02	1	9909-	●			●
461	02.559 CLIP; PURSE LOCK EXC. AIR CONDITIONER MANUAL CONT(C60) 16.065 ID=20	1-09709-068-0	02	1	9712-9908	●			●
461	02.559 CLIP; PURSE LOCK EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) 16.065 ID=20	1-09709-068-0	02	1	9909-	●			●
531	02.510 BOLT; SENSOR BRKT 16.550 M6X16 W/PL WASHER	1-09981-438-0	02	1	9712-0105	●
531	02.510 BOLT; SENSOR BRKT EXC. EUROPE EQUIPMENT(EK4) 16.550 M6X16 W/PL WASHER	1-09981-438-0	02	1	0106-0208	●
531	02.510 BOLT; SENSOR BRKT EXC. EURO3 SPECIFICATION(NT3) 16.550 M6X16 W/PL WASHER	1-09981-438-0	02	1	0209-	●
531	02.510 BOLT; SENSOR BRKT EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE	0-28080-610-0	03	1	0106-0208	●
531	02.510 BOLT; SENSOR BRKT EURO3 SPECIFICATION(NT3) 02.500 M6X10 FLANGE	0-28080-610-0	03	1	0209-	●
611	01.150 BRACKET; SENSOR (E)	8-97038-641-0	01	1	9712-				●
611	01.150 BRACKET; SENSOR (A)	8-97160-909-4	01	1	9712-0105	●
611	01.150 BRACKET; SENSOR EXC. EUROPE EQUIPMENT(EK4) (A)	8-97160-909-4	01	1	0106-0208	●
611	01.150 BRACKET; SENSOR EXC. EURO3 SPECIFICATION(NT3) (A)	8-97160-909-4	01	1	0209-	●
611	01.150 BRACKET; SENSOR EUROPE EQUIPMENT(EK4) (B)	8-97241-133-2	01	1	0106-0208	●
611	01.150 BRACKET; SENSOR EURO3 SPECIFICATION(NT3) (B)	8-97241-133-2	01	1	0209-	●
611	01.150 BRACKET; SENSOR EUROPE EQUIPMENT(EK4) (C)	8-97263-338-0	01	1	0106-0208	●
611	01.150 BRACKET; SENSOR EURO3 SPECIFICATION(NT3) (C)	8-97263-338-0	01	1	0209-	●
611	01.150 BRACKET; SENSOR EUROPE EQUIPMENT(EK4) (D)	8-97263-339-1	01	1	0106-0208	●
611	01.150 BRACKET; SENSOR EURO3 SPECIFICATION(NT3) (D)	8-97263-339-1	01	1	0209-	●
782	02.510 BOLT; SENSOR 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9712-	●
782	02.510 BOLT; SENSOR 03.330 M5X30 W/PL WASHER	8-97045-438-0	02	1	9712-0105	●
782	02.510 BOLT; SENSOR EXC. EUROPE EQUIPMENT(EK4) 03.330 M5X30 W/PL WASHER	8-97045-438-0	02	1	0106-0208	●
782	02.510 BOLT; SENSOR EXC. EURO3 SPECIFICATION(NT3) 03.330 M5X30 W/PL WASHER	8-97045-438-0	02	1	0209-	●
782	02.510 BOLT; SENSOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-0105		●	●
782	02.510 BOLT; SENSOR SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-		●
782	02.510 BOLT; SENSOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-			●
793	02.510 BOOT	8-25338-841-0	01	1	0112-	●
796	01.150 SENSOR; MAP 03.320	8-16040-609-0	01	1	9712-0105	●
796	01.150 SENSOR; MAP EXC. EUROPE EQUIPMENT(EK4) 03.320	8-16040-609-0	01	1	0106-0208	●
796	01.150 SENSOR; MAP EXC. EURO3 SPECIFICATION(NT3) 03.320	8-16040-609-1	01	1	0209-0209	●
796	01.150 SENSOR; MAP EXC. EURO3 SPECIFICATION(NT3)	8-12569-241-0	01	1	0210-	●
796	01.150 SENSOR; MAP EUROPE EQUIPMENT(EK4) 03.682	8-97180-655-0	01	1	0106-0208	●
796	01.150 SENSOR; MAP EURO3 SPECIFICATION(NT3) 03.682	8-97180-655-0	01	1	0209-	●
797	01.150 SENSOR; MAT	8-12146-830-0	01	1	9712-	●
810	01.150 SENSOR; CRANK ANGLE (A)	8-10456-250-0	01	1	9712-9912	●
810	01.150 SENSOR; CRANK ANGLE (A)	8-10456-660-0	01	1	0001-	●
810	01.150 SENSOR; CRANK ANGLE (B)	8-10456-571-1	01	1	9712-9810	●
810	01.150 SENSOR; CRANK ANGLE (B)	8-10456-613-1	01	1	9811-9912	●
810	01.150 SENSOR; CRANK ANGLE (B)	8-10456-661-0	01	1	0001-0105	●
810	01.150 SENSOR; CRANK ANGLE EXC. EUROPE EQUIPMENT(EK4) (B)	8-10456-661-0	01	1	0106-0111	●
810	01.150 SENSOR; CRANK ANGLE (B)	8-10456-661-0	01	1	0112-	●
810	01.150 SENSOR; CRANK ANGLE EUROPE EQUIPMENT(EK4) (B)	8-97261-945-0	01	1	0106-0111	●
810	01.150 SENSOR; CRANK ANGLE (B)	8-25339-914-0	01	1	0112-	●
813	02.480 HARNESS; INJECTOR	8-97146-336-7	01	1	9712-0105	●
813	02.480 HARNESS; INJECTOR EXC. EUROPE EQUIPMENT(EK4)	8-97146-336-8	01	1	0106-0208	●
813	02.480 HARNESS; INJECTOR EXC. EURO3 SPECIFICATION(NT3)	8-97146-336-8	01	1	0209-	●
813	02.480 HARNESS; INJECTOR EUROPE EQUIPMENT(EK4)	8-97287-435-0	01	1	0106-0208	●
813	02.480 HARNESS; INJECTOR EURO3 SPECIFICATION(NT3)	8-97287-435-0	01	1	0209-	●

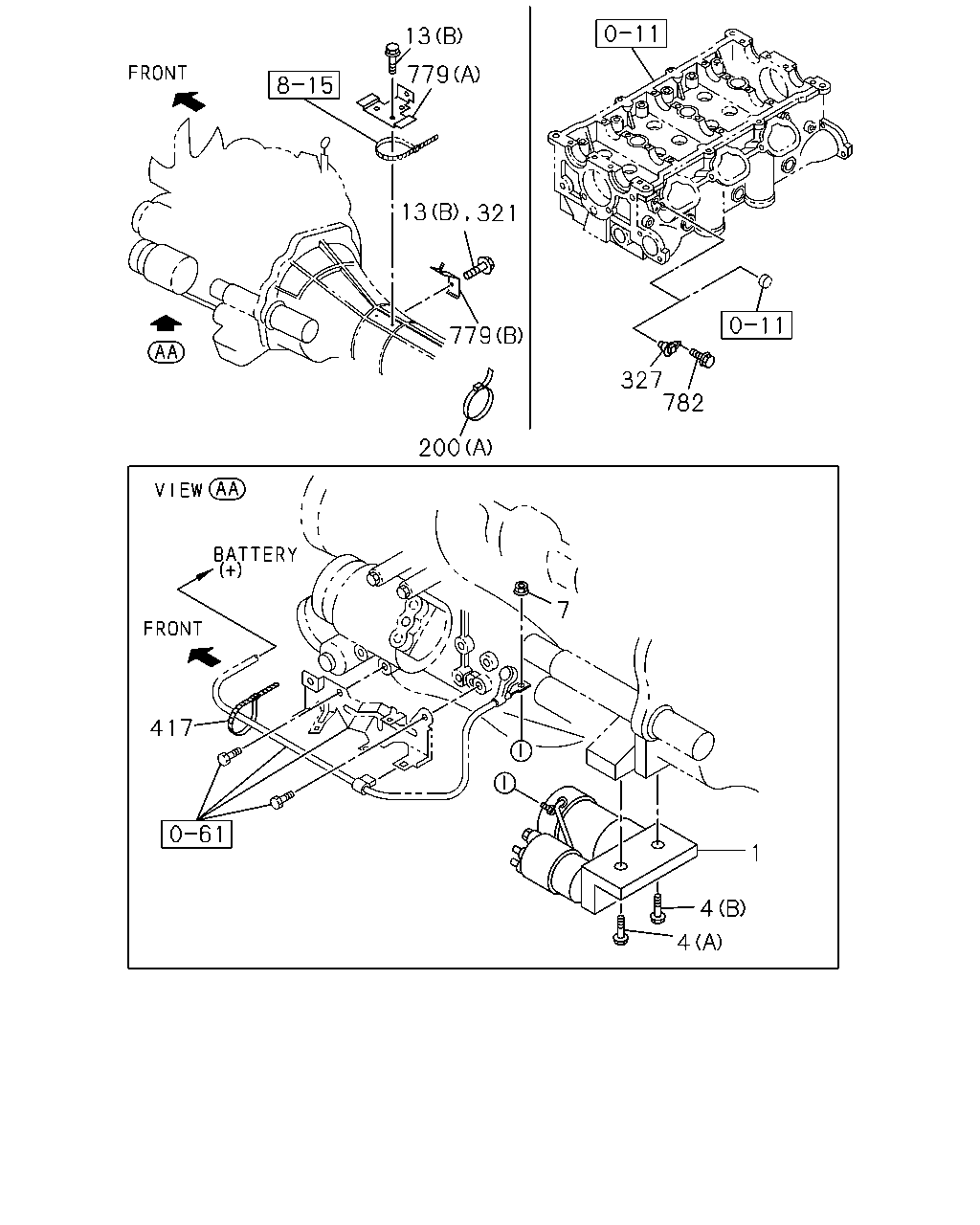

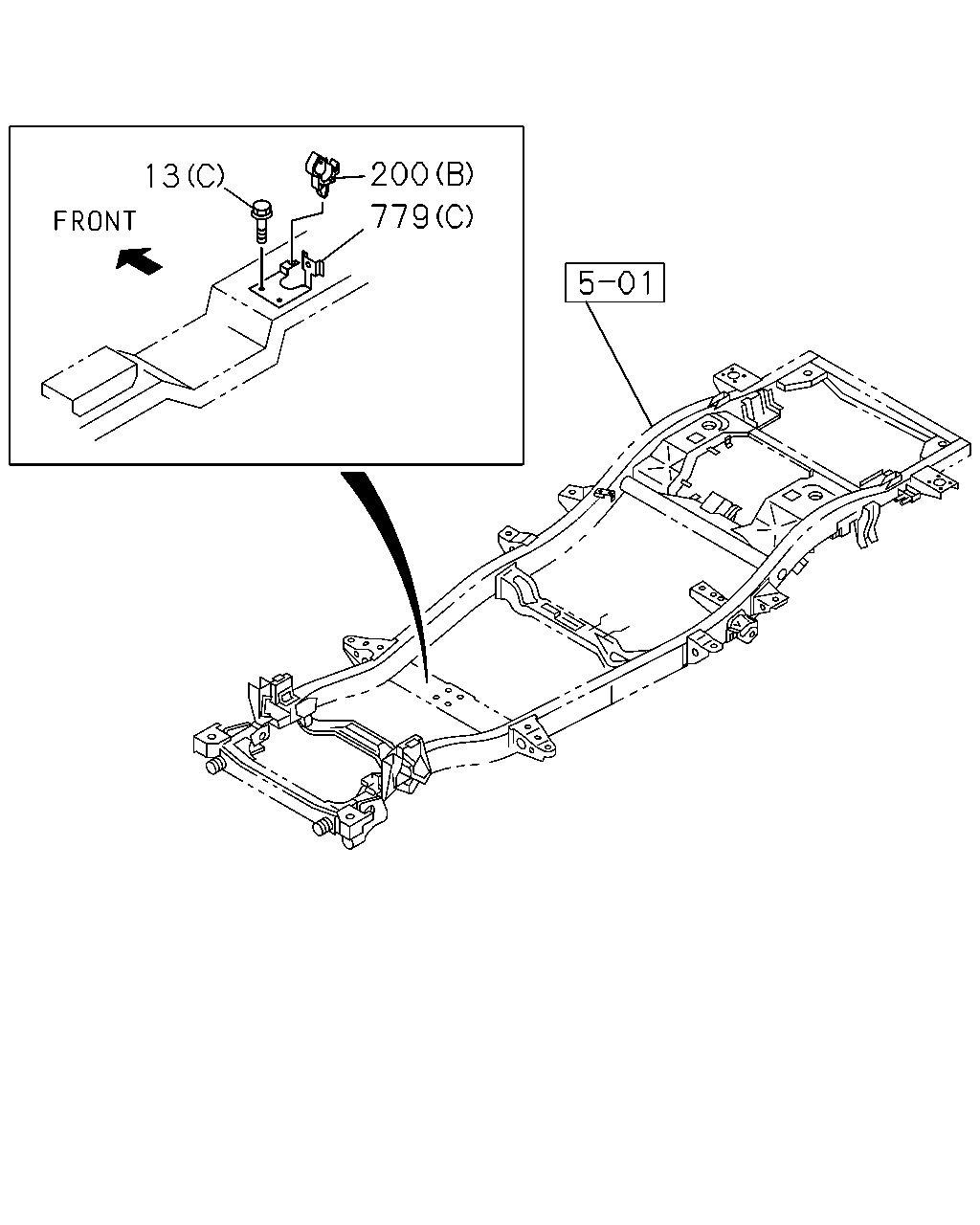

200 13 779

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
13	02.100 BOLT; BRKT 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	9712-	●	●
13	02.100 BOLT; BRKT 03.704 (D) M8X40 FLANGE	0-28680-840-0	02	1	9712-0108	●	●
13	02.100 BOLT; BRKT 16.545 (E) M8X40 FLANGE	0-28690-840-0	02	1	0109-	●	●
13	02.100 BOLT; BRKT A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 06.635 (C) M6X16 FLANGE	0-28480-616-0	02	1	0106-	●
13	02.100 BOLT; BRKT M/T AR-5 5 SPEED(RNK) 03.611 (B) M10X20 FLANGE	0-28681-020-0	01	1	9712-	●
13	02.100 BOLT; BRKT 09.171 (A) M8X90 FLANGE	0-28080-890-0	02	1	9712-	●	●
13	02.100 BOLT; BRKT A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 04.439 (B) M6X16 FLANGE	0-28680-616-0	01	1	9902-0005	●	●
13	02.100 BOLT; BRKT A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 04.439 (B) M6X16 FLANGE	0-28680-616-0	01	1	0006-0009	●	●
200	01.152 CLIP; OXYGEN SENSOR A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (B)	8-97143-183-0	01	1	0106-	●
200	01.152 CLIP; OXYGEN SENSOR M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 03.430 (A) L=200	8-94464-835-0	01	1	0106-	●
200	01.152 CLIP; OXYGEN SENSOR EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD) 03.430 (A) L=200	8-94464-835-0	01	1	9712-9712	●	●
200	01.152 CLIP; OXYGEN SENSOR EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD) 03.162 (A) L=140	5-09707-031-1	01	1	9801-0005	●	●
200	01.152 CLIP; OXYGEN SENSOR EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.162 (A) L=140	5-09707-031-1	01	1	0006-	●	●
779	02.277 BRACKET; CONNECTOR A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (C)	8-97209-842-0	01	1	0106-	●
779	02.277 BRACKET; CONNECTOR M/T AR-5 5 SPEED(RNK) (A)	8-97163-788-0	01	1	9712-	●
779	02.277 BRACKET; CONNECTOR A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 01.150 (B)	8-97183-098-0	01	1	9902-0005	●	●
779	02.277 BRACKET; CONNECTOR A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 01.150 (B)	8-97183-098-0	01	1	0006-0009	●	●
779	02.277 BRACKET; CONNECTOR A/T THM(RMQ) EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 01.150 (B)	8-97183-098-0	01	1	0010-	●	●

420 420 420 797 782 782 348 348 83 129 565 796 611 531 813 153 461 305 793 782 810

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9712-	●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9712-	●			●
83	01.150 THERMOMETER UNIT DENSO	8-94247-437-1	01	1	9712-		●	●
129	01.150 SENSOR; GLOW PLUG,THERMO	8-12146-312-0	01	1	9712-0108	●
129	01.150 SENSOR; GLOW PLUG,THERMO	8-15326-386-0	01	1	0109-	●
153	02.510 BOLT; BRKT FIX 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9712-9810	●
153	02.510 BOLT; BRKT FIX 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9811-0105	●
153	02.510 BOLT; BRKT FIX EXC. EUROPE EQUIPMENT(EK4) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0106-0208	●
153	02.510 BOLT; BRKT FIX EXC. EURO3 SPECIFICATION(NT3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0209-	●
153	02.510 BOLT; BRKT FIX SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 02.500 M6X10 FLANGE	0-28080-610-0	05	1	0106-		●
153	02.510 BOLT; BRKT FIX 02.500 M6X10 FLANGE	0-28080-610-0	05	1	0106-			●
153	02.510 BOLT; BRKT FIX 02.500 M6X10 FLANGE	0-28080-610-0	05	1	9712-0105		●	●
153	02.510 BOLT; BRKT FIX EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE	0-28080-610-0	04	1	0106-		●
305	02.480 HARNESS; EXT,GLOW PLUG	8-97038-742-3	01	1	9712-	●			●
348	02.420 CLIP; HOSE 01.097 ID=11	8-94238-925-0	02	1	9712-0105	●
348	02.420 CLIP; HOSE EXC. EUROPE EQUIPMENT(EK4) 01.097 ID=11	8-94238-925-0	02	1	0106-0208	●
348	02.420 CLIP; HOSE EXC. EURO3 SPECIFICATION(NT3) 01.097 ID=11	8-94238-925-0	02	1	0209-	●
420	02.183 BRACKET; HARNESS A/T AISIN(RMD) 02.483 (C)	8-94315-284-0	01	1	0006-	●
420	02.183 BRACKET; HARNESS (B)	8-97168-884-3	02	1	9712-	●
420	02.183 BRACKET; HARNESS (A)	8-97201-754-1	01	1	9712-0105	●
420	02.183 BRACKET; HARNESS EXC. EUROPE EQUIPMENT(EK4) (A)	8-97201-754-1	01	1	0106-0208	●
420	02.183 BRACKET; HARNESS EXC. EURO3 SPECIFICATION(NT3) (A)	8-97201-754-1	01	1	0209-	●
420	02.183 BRACKET; HARNESS (A)	8-97168-851-0	03	1	9712-0105		●	●
420	02.183 BRACKET; HARNESS SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (A)	8-97168-851-0	03	1	0106-		●
420	02.183 BRACKET; HARNESS (A)	8-97168-851-0	03	1	0106-			●
420	02.183 BRACKET; HARNESS (B)	8-97168-852-0	01	1	9712-0105		●	●
420	02.183 BRACKET; HARNESS SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (B)	8-97168-852-0	01	1	0106-		●
420	02.183 BRACKET; HARNESS (B)	8-97168-852-0	01	1	0106-			●
461	02.559 CLIP; PURSE LOCK AIR CONDITIONER MANUAL CONT(C60) 01.540 ID=30	8-94315-423-0	02	1	9712-9908	●			●
461	02.559 CLIP; PURSE LOCK AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 01.540 ID=30	8-94315-423-0	02	1	9909-	●			●
461	02.559 CLIP; PURSE LOCK EXC. AIR CONDITIONER MANUAL CONT(C60) 16.065 ID=20	1-09709-068-0	02	1	9712-9908	●			●
461	02.559 CLIP; PURSE LOCK EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) 16.065 ID=20	1-09709-068-0	02	1	9909-	●			●
531	02.510 BOLT; SENSOR BRKT 16.550 M6X16 W/PL WASHER	1-09981-438-0	02	1	9712-0105	●
531	02.510 BOLT; SENSOR BRKT EXC. EUROPE EQUIPMENT(EK4) 16.550 M6X16 W/PL WASHER	1-09981-438-0	02	1	0106-0208	●
531	02.510 BOLT; SENSOR BRKT EXC. EURO3 SPECIFICATION(NT3) 16.550 M6X16 W/PL WASHER	1-09981-438-0	02	1	0209-	●
531	02.510 BOLT; SENSOR BRKT EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE	0-28080-610-0	03	1	0106-0208	●
531	02.510 BOLT; SENSOR BRKT EURO3 SPECIFICATION(NT3) 02.500 M6X10 FLANGE	0-28080-610-0	03	1	0209-	●
565	03.672 HOSE; RUBBER	8-97161-536-3	01	1	9712-0105	●
565	03.672 HOSE; RUBBER EXC. EUROPE EQUIPMENT(EK4)	8-97161-536-3	01	1	0106-0208	●
565	03.672 HOSE; RUBBER EXC. EURO3 SPECIFICATION(NT3)	8-97161-536-3	01	1	0209-	●
611	01.150 BRACKET; SENSOR (E)	8-97038-641-0	01	1	9712-				●
611	01.150 BRACKET; SENSOR (A)	8-97160-909-4	01	1	9712-0105	●
611	01.150 BRACKET; SENSOR EXC. EUROPE EQUIPMENT(EK4) (A)	8-97160-909-4	01	1	0106-0208	●
611	01.150 BRACKET; SENSOR EXC. EURO3 SPECIFICATION(NT3) (A)	8-97160-909-4	01	1	0209-	●
611	01.150 BRACKET; SENSOR EUROPE EQUIPMENT(EK4) (B)	8-97241-133-2	01	1	0106-0208	●
611	01.150 BRACKET; SENSOR EURO3 SPECIFICATION(NT3) (B)	8-97241-133-2	01	1	0209-	●
611	01.150 BRACKET; SENSOR EUROPE EQUIPMENT(EK4) (C)	8-97263-338-0	01	1	0106-0208	●
611	01.150 BRACKET; SENSOR EURO3 SPECIFICATION(NT3) (C)	8-97263-338-0	01	1	0209-	●
611	01.150 BRACKET; SENSOR EUROPE EQUIPMENT(EK4) (D)	8-97263-339-1	01	1	0106-0208	●
611	01.150 BRACKET; SENSOR EURO3 SPECIFICATION(NT3) (D)	8-97263-339-1	01	1	0209-	●
782	02.510 BOLT; SENSOR 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9712-	●
782	02.510 BOLT; SENSOR 03.330 M5X30 W/PL WASHER	8-97045-438-0	02	1	9712-0105	●
782	02.510 BOLT; SENSOR EXC. EUROPE EQUIPMENT(EK4) 03.330 M5X30 W/PL WASHER	8-97045-438-0	02	1	0106-0208	●
782	02.510 BOLT; SENSOR EXC. EURO3 SPECIFICATION(NT3) 03.330 M5X30 W/PL WASHER	8-97045-438-0	02	1	0209-	●
782	02.510 BOLT; SENSOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-0105		●	●
782	02.510 BOLT; SENSOR SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-		●
782	02.510 BOLT; SENSOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-			●
793	02.510 BOOT	8-25338-841-0	01	1	0112-	●
796	01.150 SENSOR; MAP 03.320	8-16040-609-0	01	1	9712-0105	●
796	01.150 SENSOR; MAP EXC. EUROPE EQUIPMENT(EK4) 03.320	8-16040-609-0	01	1	0106-0208	●
796	01.150 SENSOR; MAP EXC. EURO3 SPECIFICATION(NT3) 03.320	8-16040-609-1	01	1	0209-0209	●
796	01.150 SENSOR; MAP EXC. EURO3 SPECIFICATION(NT3)	8-12569-241-0	01	1	0210-	●
796	01.150 SENSOR; MAP EUROPE EQUIPMENT(EK4) 03.682	8-97180-655-0	01	1	0106-0208	●
796	01.150 SENSOR; MAP EURO3 SPECIFICATION(NT3) 03.682	8-97180-655-0	01	1	0209-	●
797	01.150 SENSOR; MAT	8-12146-830-0	01	1	9712-	●
810	01.150 SENSOR; CRANK ANGLE (A)	8-10456-250-0	01	1	9712-9912	●
810	01.150 SENSOR; CRANK ANGLE (A)	8-10456-660-0	01	1	0001-	●
810	01.150 SENSOR; CRANK ANGLE (B)	8-10456-571-1	01	1	9712-9810	●
810	01.150 SENSOR; CRANK ANGLE (B)	8-10456-613-1	01	1	9811-9912	●
810	01.150 SENSOR; CRANK ANGLE (B)	8-10456-661-0	01	1	0001-0105	●
810	01.150 SENSOR; CRANK ANGLE EXC. EUROPE EQUIPMENT(EK4) (B)	8-10456-661-0	01	1	0106-0111	●
810	01.150 SENSOR; CRANK ANGLE (B)	8-10456-661-0	01	1	0112-	●
810	01.150 SENSOR; CRANK ANGLE EUROPE EQUIPMENT(EK4) (B)	8-97261-945-0	01	1	0106-0111	●
810	01.150 SENSOR; CRANK ANGLE (B)	8-25339-914-0	01	1	0112-	●
813	02.480 HARNESS; INJECTOR	8-97146-336-7	01	1	9712-0105	●
813	02.480 HARNESS; INJECTOR EXC. EUROPE EQUIPMENT(EK4)	8-97146-336-8	01	1	0106-0208	●
813	02.480 HARNESS; INJECTOR EXC. EURO3 SPECIFICATION(NT3)	8-97146-336-8	01	1	0209-	●
813	02.480 HARNESS; INJECTOR EUROPE EQUIPMENT(EK4)	8-97287-435-0	01	1	0106-0208	●
813	02.480 HARNESS; INJECTOR EURO3 SPECIFICATION(NT3)	8-97287-435-0	01	1	0209-	●

625 606 298 799 310 733 625 636 586 636 498 611 428 301 256 430 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D
256	02.510 BOLT; BRKT,RESISTOR 16.085 M6X14 W/LK&PL WASHER	1-09980-549-0	02	1	9712-		●
298	02.510 GROMMET; SCREW 09.190 D=9X9 L=8 M6	8-94222-314-0	02	1	9712-		●
301	02.510 RESISTOR; DROPPING	8-94389-802-1	01	1	9712-		●
310	02.510 CONTROLLER; QOS	8-97047-029-0	01	1	9712-9801		●
310	02.510 CONTROLLER; QOS EXC. ARGENTINA EQUIPMENT(7SZ)	8-97047-029-0	01	1	9802-0005		●
310	02.510 CONTROLLER; QOS EXC. NICARAGUA EQUIPMENT(R5N)	8-97047-029-0	01	1	0006-0105		●
310	02.510 CONTROLLER; QOS M/T MUA 5 SPEED(RMN) GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97047-029-0	01	1	0106-		●
310	02.510 CONTROLLER; QOS EXC. NICARAGUA EQUIPMENT(R5N), GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97047-029-0	01	1	0106-		●
313	02.500 BOLT; RESISTOR TO BRKT 16.085 M6X14 W/LK&PL WASHER	1-09980-549-0	02	1	9712-		●
428	02.559 CLIP; HARNESS 08.077	8-94225-098-0	01	1	9712-		●
430	02.100 NUT; RELAY FIX 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-		●
498	02.510 BRACKET; RELAY	8-94389-761-4	01	1	9712-		●
498	02.510 BRACKET; RELAY	8-97172-710-1	01	1	9712-	●
586	02.100 RELAY; QOS	8-94389-760-1	01	1	9712-		●
606	03.680 BRACKET; CONT UNIT	8-97110-370-0	01	1	9712-9801		●
606	03.680 BRACKET; CONT UNIT EXC. ARGENTINA EQUIPMENT(7SZ)	8-97110-370-0	01	1	9802-0005		●
606	03.680 BRACKET; CONT UNIT EXC. NICARAGUA EQUIPMENT(R5N)	8-97110-370-0	01	1	0006-0105		●
606	03.680 BRACKET; CONT UNIT M/T MUA 5 SPEED(RMN) GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97110-370-0	01	1	0106-		●
606	03.680 BRACKET; CONT UNIT EXC. NICARAGUA EQUIPMENT(R5N), GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97110-370-0	01	1	0106-		●
606	03.680 BRACKET; CONT UNIT ARGENTINA EQUIPMENT(7SZ)	8-97110-328-0	01	1	9802-0005		●
606	03.680 BRACKET; CONT UNIT NICARAGUA EQUIPMENT(R5N)	8-97110-328-0	01	1	0006-0105		●
606	03.680 BRACKET; CONT UNIT A/T AISIN(RMD) GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97110-328-0	01	1	0106-		●
606	03.680 BRACKET; CONT UNIT NICARAGUA EQUIPMENT(R5N)	8-97110-328-0	01	1	0106-		●
611	01.150 BRACKET; SENSOR (E)	8-97038-641-0	01	1	9712-		●
611	01.150 BRACKET; SENSOR (A)	8-97160-909-4	01	1	9712-0105	●
611	01.150 BRACKET; SENSOR EXC. EUROPE EQUIPMENT(EK4) (A)	8-97160-909-4	01	1	0106-0208	●
611	01.150 BRACKET; SENSOR EXC. EURO3 SPECIFICATION(NT3) (A)	8-97160-909-4	01	1	0209-	●
611	01.150 BRACKET; SENSOR EUROPE EQUIPMENT(EK4) (B)	8-97241-133-2	01	1	0106-0208	●
611	01.150 BRACKET; SENSOR EURO3 SPECIFICATION(NT3) (B)	8-97241-133-2	01	1	0209-	●
611	01.150 BRACKET; SENSOR EUROPE EQUIPMENT(EK4) (C)	8-97263-338-0	01	1	0106-0208	●
611	01.150 BRACKET; SENSOR EURO3 SPECIFICATION(NT3) (C)	8-97263-338-0	01	1	0209-	●
611	01.150 BRACKET; SENSOR EUROPE EQUIPMENT(EK4) (D)	8-97263-339-1	01	1	0106-0208	●
611	01.150 BRACKET; SENSOR EURO3 SPECIFICATION(NT3) (D)	8-97263-339-1	01	1	0209-	●
625	02.270 SCREW; CONT UNIT 16.585 M6X14 W/PL WASHER	9-03900-614-0	03	1	9712-		●
636	02.510 BOLT; BRKT 01.428 (A) M6X12 FLANGE	0-28080-612-0	02	1	9712-		●
636	02.510 BOLT; BRKT 06.635 (B) M6X16 FLANGE	0-28480-616-0	03	1	9712-		●
733	02.343 NUT; BRKT 03.671 M5 FLANGE	8-94178-699-0	02	1	9712-		●
799	02.510 CONTROLLER; EGR/QOS ARGENTINA EQUIPMENT(7SZ)	8-97110-340-1	01	1	9802-0005		●
799	02.510 CONTROLLER; EGR/QOS NICARAGUA EQUIPMENT(R5N)	8-97110-340-1	01	1	0006-0105		●
799	02.510 CONTROLLER; EGR/QOS A/T AISIN(RMD) GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97110-340-1	01	1	0106-		●
799	02.510 CONTROLLER; EGR/QOS NICARAGUA EQUIPMENT(R5N)	8-97110-340-1	01	1	0106-		●

24 2 21 16 13 13 16 13 21 905 153 420 262 900 368 33 153 420 260 520 83 146 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

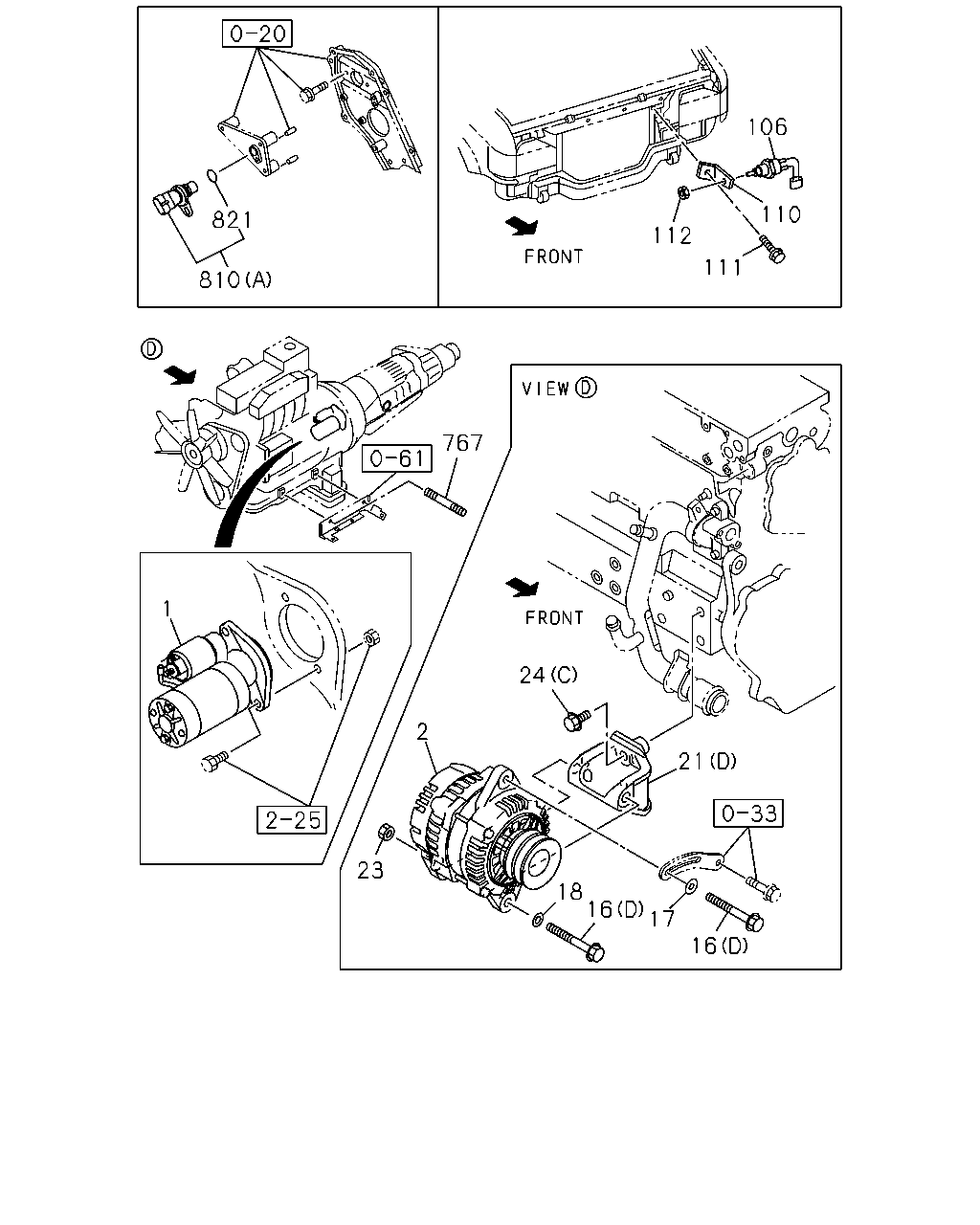

2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER<K51> 12V 80A	8-97133-854-0	01	1	9712-9807				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) 12V 80A	8-97133-854-0	01	1	9808-0007				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2) 12V 80A	8-97133-854-0	01	1	0008-0105				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER<K51> 12V 80A	8-97133-854-0	01	1	0106-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. A/T AISIN(RMD) TURBOCHARGER<K51> 12V 80A	8-97133-854-0	01	1	0106-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIAEQUIPMENT(EU2) 12V 60A	8-97147-851-0	01	1	9712-9801				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIAEQUIPMENT(EU2) 12V 60A	8-97187-655-0	01	1	9802-9807				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U) 12V 60A	8-97187-655-0	01	1	9808-0007				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2) 12V 60A	8-97187-655-0	01	1	0008-0105				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> 12V 60A	8-97187-655-0	01	1	0106-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER<K51> 12V 60A	8-97187-655-0	01	1	0106-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> 12V 60A	8-97187-655-0	01	1	0106-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A	8-97145-386-3	01	1	9712-9804	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-97184-531-0	01	1	9805-9812	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-97219-253-0	01	1	9901-9908	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A	8-97215-992-2	01	1	9909-9909	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4X4(UBS***) EXC. AC GENERATOR 12V 100A(8CK) 12V 90A	8-97215-992-2	01	1	9910-0007	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 100A(8CK) 12V 90A	8-97215-992-3	01	1	0008-	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4X4(UBS***) AC GENERATOR 12V 100A(8CK) 12V 100A	8-97233-824-0	01	1	9910-0007	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 100A(8CK) 12V 100A	8-97233-824-1	01	1	0008-	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A	8-97187-304-0	01	1	9712-9809		●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 90A(7XL) 12V 75A	8-97187-304-0	01	1	9810-		●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 90A(7XL) 12V 90A	8-97210-373-0	01	1	9810-		●	●
13	02.100 BOLT; BRKT 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	9712-		●	●
13	02.100 BOLT; BRKT 03.704 (D) M8X40 FLANGE	0-28680-840-0	02	1	9712-0108		●	●
13	02.100 BOLT; BRKT 16.545 (E) M8X40 FLANGE	0-28690-840-0	02	1	0109-		●	●
13	02.100 BOLT; BRKT A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 06.635 (C) M6X16 FLANGE	0-28480-616-0	02	1	0106-		●
13	02.100 BOLT; BRKT M/T AR-5 5 SPEED(RNK) 03.611 (B) M10X20 FLANGE	0-28681-020-0	01	1	9712-		●
13	02.100 BOLT; BRKT 09.171 (A) M8X90 FLANGE	0-28080-890-0	02	1	9712-		●	●
13	02.100 BOLT; BRKT A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 04.439 (B) M6X16 FLANGE	0-28680-616-0	01	1	9902-0005		●	●
13	02.100 BOLT; BRKT A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 04.439 (B) M6X16 FLANGE	0-28680-616-0	01	1	0006-0009		●	●
16	02.277 BOLT; GEN (C) M10X130 FLANGE	0-28086-013-0	01	1	9712-				●
16	02.277 BOLT; GEN (D) M10X120 FLANGE	0-28086-012-0	01	1	9712-9903	●
16	02.277 BOLT; GEN (D) M10X125 FLANGE	8-97226-470-0	01	1	9904-	●
16	02.277 BOLT; GEN 02.664 (D) M8X20 FLANGE	0-28680-820-0	01	1	9712-9712	●
16	02.277 BOLT; GEN 02.559 (D) M8X25 FLANGE	0-28680-825-0	01	1	9801-	●
16	02.277 BOLT; GEN (A) M10X90 FLANGE	0-28081-090-0	01	1	9712-		●	●
16	02.277 BOLT; GEN 04.686 (B) M8X30 FLANGE	0-28680-830-0	01	1	9712-		●	●
21	02.277 BRACKET; GEN (B)	8-97160-604-1	01	1	9712-0012		●	●
21	02.277 BRACKET; GEN (B)	8-97289-024-0	01	1	0101-0201		●	●
21	02.277 BRACKET; GEN (B)	8-97328-364-0	01	1	0202-		●	●
21	02.277 BRACKET; GEN (C)	8-94437-276-2	01	1	9712-				●
21	02.277 BRACKET; GEN (D)	8-97137-864-4	01	1	9712-	●
21	02.277 BRACKET; GEN (A)	8-97160-605-1	01	1	9712-0111		●	●
21	02.277 BRACKET; GEN (A)	8-97941-401-0	01	1	0112-		●	●
24	02.277 BOLT; GEN BRKT 09.171 (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9712-				●
24	02.277 BOLT; GEN BRKT (B) M10X70 W/LK WASHER	0-50041-070-0	02	1	9712-				●
24	02.277 BOLT; GEN BRKT 00.685 (C) M10X45 FLANGE	0-28081-045-0	03	1	9712-	●
33	02.170 COIL ASM; IGN EUROPE EQUIPMENT(EK4) NO.1-NO.5 CYLINDER	8-19005-249-0	05	1	0106-		●
33	02.170 COIL ASM; IGN EUROPE EQUIPMENT(EK4) NO.6 CYLINDER	8-19005-250-1	01	1	0106-		●
33	02.170 COIL ASM; IGN	8-97136-325-0	06	1	9712-0105		●	●
33	02.170 COIL ASM; IGN SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ)	8-97136-325-0	06	1	0106-		●
33	02.170 COIL ASM; IGN	8-97136-325-0	06	1	0106-			●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9712-	●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9712-	●			●
83	01.150 THERMOMETER UNIT DENSO	8-94247-437-1	01	1	9712-		●	●
146	02.195 BOLT; CLIP 00.206 M8X10 FLANGE	0-28080-810-0	01	1	9712-		●	●
153	02.510 BOLT; BRKT FIX 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9712-9810	●
153	02.510 BOLT; BRKT FIX 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9811-0105	●
153	02.510 BOLT; BRKT FIX EXC. EUROPE EQUIPMENT(EK4) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0106-0208	●
153	02.510 BOLT; BRKT FIX EXC. EURO3 SPECIFICATION(NT3) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0209-	●
153	02.510 BOLT; BRKT FIX SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 02.500 M6X10 FLANGE	0-28080-610-0	05	1	0106-		●
153	02.510 BOLT; BRKT FIX 02.500 M6X10 FLANGE	0-28080-610-0	05	1	0106-			●
153	02.510 BOLT; BRKT FIX 02.500 M6X10 FLANGE	0-28080-610-0	05	1	9712-0105		●	●
153	02.510 BOLT; BRKT FIX EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE	0-28080-610-0	04	1	0106-		●
260	01.150 SENSOR; WATER TEMP	8-12146-312-0	01	1	9712-0105		●	●
260	01.150 SENSOR; WATER TEMP	8-15326-386-0	01	1	0106-		●	●
262	02.559 CLIP; HARNESS ID=12	5-09700-331-0	03	1	9712-		●	●
368	02.240 BOLT; COIL HARNESS CLIP 03.162 M5X20 W/LK WASHER	8-94428-007-0	12	1	9712-		●	●
420	02.183 BRACKET; HARNESS A/T AISIN(RMD) 02.483 (C)	8-94315-284-0	01	1	0006-	●
420	02.183 BRACKET; HARNESS (B)	8-97168-884-3	02	1	9712-	●
420	02.183 BRACKET; HARNESS (A)	8-97201-754-1	01	1	9712-0105	●
420	02.183 BRACKET; HARNESS EXC. EUROPE EQUIPMENT(EK4) (A)	8-97201-754-1	01	1	0106-0208	●
420	02.183 BRACKET; HARNESS EXC. EURO3 SPECIFICATION(NT3) (A)	8-97201-754-1	01	1	0209-	●
420	02.183 BRACKET; HARNESS (A)	8-97168-851-0	03	1	9712-0105		●	●
420	02.183 BRACKET; HARNESS SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (A)	8-97168-851-0	03	1	0106-		●
420	02.183 BRACKET; HARNESS (A)	8-97168-851-0	03	1	0106-			●
420	02.183 BRACKET; HARNESS (B)	8-97168-852-0	01	1	9712-0105		●	●
420	02.183 BRACKET; HARNESS SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (B)	8-97168-852-0	01	1	0106-		●
420	02.183 BRACKET; HARNESS (B)	8-97168-852-0	01	1	0106-			●
520	01.800 SENSOR; PRESSURE	8-97106-478-2	01	1	9712-9908		●	●
520	01.800 SENSOR; PRESSURE EXC. TORQUE ON DEMAND<7HA>	8-97106-478-2	01	1	9909-		●
520	01.800 SENSOR; PRESSURE	8-97106-478-2	01	1	9909-			●
900	02.559 STUD; HARNESS EUROPE EQUIPMENT(EK4) 01.428 M6X12 L=21	9-04110-612-0	01	1	0106-		●
905	02.559 NUT; HARNESS EUROPE EQUIPMENT(EK4) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0106-		●

2 23 305 461 24 24 16 24 21 108 83 4 1 106 7 110 112 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW	8-97120-356-2	01	1	9712-				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.5KW	8-97146-338-3	01	1	9712-9803	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.5KW	8-97210-505-0	01	1	9804-9906	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW	8-97223-653-0	01	1	9907-0109	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW	8-97323-437-0	01	1	0110-	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW	8-94384-314-1	01	1	9712-		●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER<K51> 12V 80A	8-97133-854-0	01	1	9712-9807				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) 12V 80A	8-97133-854-0	01	1	9808-0007				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2) 12V 80A	8-97133-854-0	01	1	0008-0105				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER<K51> 12V 80A	8-97133-854-0	01	1	0106-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. A/T AISIN(RMD) TURBOCHARGER<K51> 12V 80A	8-97133-854-0	01	1	0106-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIAEQUIPMENT(EU2) 12V 60A	8-97147-851-0	01	1	9712-9801				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIAEQUIPMENT(EU2) 12V 60A	8-97187-655-0	01	1	9802-9807				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U) 12V 60A	8-97187-655-0	01	1	9808-0007				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2) 12V 60A	8-97187-655-0	01	1	0008-0105				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> 12V 60A	8-97187-655-0	01	1	0106-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER<K51> 12V 60A	8-97187-655-0	01	1	0106-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> 12V 60A	8-97187-655-0	01	1	0106-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A	8-97145-386-3	01	1	9712-9804	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-97184-531-0	01	1	9805-9812	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-97219-253-0	01	1	9901-9908	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A	8-97215-992-2	01	1	9909-9909	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4X4(UBS***) EXC. AC GENERATOR 12V 100A(8CK) 12V 90A	8-97215-992-2	01	1	9910-0007	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 100A(8CK) 12V 90A	8-97215-992-3	01	1	0008-	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4X4(UBS***) AC GENERATOR 12V 100A(8CK) 12V 100A	8-97233-824-0	01	1	9910-0007	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 100A(8CK) 12V 100A	8-97233-824-1	01	1	0008-	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A	8-97187-304-0	01	1	9712-9809		●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 90A(7XL) 12V 75A	8-97187-304-0	01	1	9810-		●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 90A(7XL) 12V 90A	8-97210-373-0	01	1	9810-		●	●
4	02.042 BOLT; STARTER 04.898 (C) M12X50	0-10806-250-0	02	1	9712-0309				●
4	02.042 BOLT; STARTER 00.685 (C) M12X45 FLANGE	0-28081-245-0	02	1	0310-				●
4	02.042 BOLT; STARTER 08.900 (A) M10X50 FLANGE	0-28181-050-0	01	1	9712-		●	●
4	02.042 BOLT; STARTER 04.085 (B) M10X80 FLANGE	0-28181-080-0	01	1	9712-		●	●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9712-0309				●
7	02.042 NUT; STARTER 05.586 M12 FLANGE	0-91150-112-0	02	1	0310-				●
7	02.042 NUT; STARTER 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	9712-		●	●
16	02.277 BOLT; GEN (C) M10X130 FLANGE	0-28086-013-0	01	1	9712-				●
16	02.277 BOLT; GEN (D) M10X120 FLANGE	0-28086-012-0	01	1	9712-9903	●
16	02.277 BOLT; GEN (D) M10X125 FLANGE	8-97226-470-0	01	1	9904-	●
16	02.277 BOLT; GEN 02.664 (D) M8X20 FLANGE	0-28680-820-0	01	1	9712-9712	●
16	02.277 BOLT; GEN 02.559 (D) M8X25 FLANGE	0-28680-825-0	01	1	9801-	●
16	02.277 BOLT; GEN (A) M10X90 FLANGE	0-28081-090-0	01	1	9712-		●	●
16	02.277 BOLT; GEN 04.686 (B) M8X30 FLANGE	0-28680-830-0	01	1	9712-		●	●
21	02.277 BRACKET; GEN (B)	8-97160-604-1	01	1	9712-0012		●	●
21	02.277 BRACKET; GEN (B)	8-97289-024-0	01	1	0101-0201		●	●
21	02.277 BRACKET; GEN (B)	8-97328-364-0	01	1	0202-		●	●
21	02.277 BRACKET; GEN (C)	8-94437-276-2	01	1	9712-				●
21	02.277 BRACKET; GEN (D)	8-97137-864-4	01	1	9712-	●
21	02.277 BRACKET; GEN (A)	8-97160-605-1	01	1	9712-0111		●	●
21	02.277 BRACKET; GEN (A)	8-97941-401-0	01	1	0112-		●	●
23	02.277 NUT; GEN 08.917 M10 FLANGE	0-91150-210-0	01	1	9712-	●			●
24	02.277 BOLT; GEN BRKT 09.171 (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9712-				●
24	02.277 BOLT; GEN BRKT (B) M10X70 W/LK WASHER	0-50041-070-0	02	1	9712-				●
24	02.277 BOLT; GEN BRKT 00.685 (C) M10X45 FLANGE	0-28081-045-0	03	1	9712-	●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9712-	●			●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9712-	●			●
83	01.150 THERMOMETER UNIT DENSO	8-94247-437-1	01	1	9712-		●	●
106	01.150 SWITCH; THERMO,AIR	8-97043-749-0	01	1	9712-9801	●
106	01.150 SWITCH; THERMO,AIR ARGENTINA EQUIPMENT(7SZ)	8-97043-749-0	01	1	9802-0005				●
106	01.150 SWITCH; THERMO,AIR	8-97043-749-0	01	1	9802-0005	●
106	01.150 SWITCH; THERMO,AIR NICARAGUA EQUIPMENT(R5N)	8-97043-749-0	01	1	0006-				●
106	01.150 SWITCH; THERMO,AIR	8-97043-749-0	01	1	0006-	●
108	01.150 SWITCH; THERMO	8-97069-786-1	01	1	9712-				●
110	01.251 BRACKET; THERMO SW CONNECTOR	8-97043-565-0	01	1	9712-9801	●
110	01.251 BRACKET; THERMO SW CONNECTOR ARGENTINA EQUIPMENT(7SZ)	8-97043-565-0	01	1	9802-0005				●
110	01.251 BRACKET; THERMO SW CONNECTOR	8-97043-565-0	01	1	9802-0005	●
110	01.251 BRACKET; THERMO SW CONNECTOR NICARAGUA EQUIPMENT(R5N)	8-97043-565-0	01	1	0006-				●
110	01.251 BRACKET; THERMO SW CONNECTOR	8-97043-565-0	01	1	0006-	●
111	01.251 BOLT; SWITCH BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9801	●
111	01.251 BOLT; SWITCH BRKT ARGENTINA EQUIPMENT(7SZ) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9802-9908				●
111	01.251 BOLT; SWITCH BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9802-9908	●
111	01.251 BOLT; SWITCH BRKT ARGENTINA EQUIPMENT(7SZ) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9909-0005				●
111	01.251 BOLT; SWITCH BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9909-0005	●
111	01.251 BOLT; SWITCH BRKT NICARAGUA EQUIPMENT(R5N) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0006-0007				●
111	01.251 BOLT; SWITCH BRKT 4X4(UBS***) EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0006-0007	●
111	01.251 BOLT; SWITCH BRKT NICARAGUA EQUIPMENT(R5N) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0008-				●
111	01.251 BOLT; SWITCH BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0008-	●
112	01.251 NUT; SWITCH BRKT 04.681 M16	9-99111-416-0	01	1	9712-9801	●
112	01.251 NUT; SWITCH BRKT ARGENTINA EQUIPMENT(7SZ) 04.681 M16	9-99111-416-0	01	1	9802-0005				●
112	01.251 NUT; SWITCH BRKT 04.681 M16	9-99111-416-0	01	1	9802-0005	●
112	01.251 NUT; SWITCH BRKT NICARAGUA EQUIPMENT(R5N) 04.681 M16	9-99111-416-0	01	1	0006-				●
112	01.251 NUT; SWITCH BRKT 04.681 M16	9-99111-416-0	01	1	0006-	●
305	02.480 HARNESS; EXT,GLOW PLUG	8-97038-742-3	01	1	9712-	●			●
461	02.559 CLIP; PURSE LOCK AIR CONDITIONER MANUAL CONT(C60) 01.540 ID=30	8-94315-423-0	02	1	9712-9908	●			●
461	02.559 CLIP; PURSE LOCK AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 01.540 ID=30	8-94315-423-0	02	1	9909-	●			●
461	02.559 CLIP; PURSE LOCK EXC. AIR CONDITIONER MANUAL CONT(C60) 16.065 ID=20	1-09709-068-0	02	1	9712-9908	●			●
461	02.559 CLIP; PURSE LOCK EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) 16.065 ID=20	1-09709-068-0	02	1	9909-	●			●

106 110 821 112 111 810 767 1 24 2 21 23 18 16 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW	8-97120-356-2	01	1	9712-				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.5KW	8-97146-338-3	01	1	9712-9803	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.5KW	8-97210-505-0	01	1	9804-9906	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW	8-97223-653-0	01	1	9907-0109	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW	8-97323-437-0	01	1	0110-	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW	8-94384-314-1	01	1	9712-		●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER<K51> 12V 80A	8-97133-854-0	01	1	9712-9807				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U) 12V 80A	8-97133-854-0	01	1	9808-0007				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2) 12V 80A	8-97133-854-0	01	1	0008-0105				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) SAUDI ARABIA EQUIPMENT(EU2) EXC. TURBOCHARGER<K51> 12V 80A	8-97133-854-0	01	1	0106-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. A/T AISIN(RMD) TURBOCHARGER<K51> 12V 80A	8-97133-854-0	01	1	0106-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIAEQUIPMENT(EU2) 12V 60A	8-97147-851-0	01	1	9712-9801				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. HEATER & DEFROSTER(C41) EXC. EUROPE EQUIPMENT(EK4),SAUDI ARABIAEQUIPMENT(EU2) 12V 60A	8-97187-655-0	01	1	9802-9807				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2), PHILIPPINE EQUIPMENT(S2U) 12V 60A	8-97187-655-0	01	1	9808-0007				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2) 12V 60A	8-97187-655-0	01	1	0008-0105				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41) EXC. TURBOCHARGER<K51> 12V 60A	8-97187-655-0	01	1	0106-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER<K51> 12V 60A	8-97187-655-0	01	1	0106-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> 12V 60A	8-97187-655-0	01	1	0106-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A	8-97145-386-3	01	1	9712-9804	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-97184-531-0	01	1	9805-9812	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A	8-97219-253-0	01	1	9901-9908	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A	8-97215-992-2	01	1	9909-9909	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4X4(UBS***) EXC. AC GENERATOR 12V 100A(8CK) 12V 90A	8-97215-992-2	01	1	9910-0007	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 100A(8CK) 12V 90A	8-97215-992-3	01	1	0008-	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4X4(UBS***) AC GENERATOR 12V 100A(8CK) 12V 100A	8-97233-824-0	01	1	9910-0007	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 100A(8CK) 12V 100A	8-97233-824-1	01	1	0008-	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A	8-97187-304-0	01	1	9712-9809		●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 90A(7XL) 12V 75A	8-97187-304-0	01	1	9810-		●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 90A(7XL) 12V 90A	8-97210-373-0	01	1	9810-		●	●
16	02.277 BOLT; GEN (C) M10X130 FLANGE	0-28086-013-0	01	1	9712-				●
16	02.277 BOLT; GEN (D) M10X120 FLANGE	0-28086-012-0	01	1	9712-9903	●
16	02.277 BOLT; GEN (D) M10X125 FLANGE	8-97226-470-0	01	1	9904-	●
16	02.277 BOLT; GEN 02.664 (D) M8X20 FLANGE	0-28680-820-0	01	1	9712-9712	●
16	02.277 BOLT; GEN 02.559 (D) M8X25 FLANGE	0-28680-825-0	01	1	9801-	●
16	02.277 BOLT; GEN (A) M10X90 FLANGE	0-28081-090-0	01	1	9712-		●	●
16	02.277 BOLT; GEN 04.686 (B) M8X30 FLANGE	0-28680-830-0	01	1	9712-		●	●
17	02.277 WASHER; PL,GEN 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9712-	●
18	02.317 WASHER; LK,GEN 16.682 ID=10.5 OD=22	9-09160-610-0	01	1	9712-	●
21	02.277 BRACKET; GEN (B)	8-97160-604-1	01	1	9712-0012		●	●
21	02.277 BRACKET; GEN (B)	8-97289-024-0	01	1	0101-0201		●	●
21	02.277 BRACKET; GEN (B)	8-97328-364-0	01	1	0202-		●	●
21	02.277 BRACKET; GEN (C)	8-94437-276-2	01	1	9712-				●
21	02.277 BRACKET; GEN (D)	8-97137-864-4	01	1	9712-	●
21	02.277 BRACKET; GEN (A)	8-97160-605-1	01	1	9712-0111		●	●
21	02.277 BRACKET; GEN (A)	8-97941-401-0	01	1	0112-		●	●
23	02.277 NUT; GEN 08.917 M10 FLANGE	0-91150-210-0	01	1	9712-	●			●
24	02.277 BOLT; GEN BRKT 09.171 (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9712-				●
24	02.277 BOLT; GEN BRKT (B) M10X70 W/LK WASHER	0-50041-070-0	02	1	9712-				●
24	02.277 BOLT; GEN BRKT 00.685 (C) M10X45 FLANGE	0-28081-045-0	03	1	9712-	●
106	01.150 SWITCH; THERMO,AIR	8-97043-749-0	01	1	9712-9801	●
106	01.150 SWITCH; THERMO,AIR ARGENTINA EQUIPMENT(7SZ)	8-97043-749-0	01	1	9802-0005				●
106	01.150 SWITCH; THERMO,AIR	8-97043-749-0	01	1	9802-0005	●
106	01.150 SWITCH; THERMO,AIR NICARAGUA EQUIPMENT(R5N)	8-97043-749-0	01	1	0006-				●
106	01.150 SWITCH; THERMO,AIR	8-97043-749-0	01	1	0006-	●
110	01.251 BRACKET; THERMO SW CONNECTOR	8-97043-565-0	01	1	9712-9801	●
110	01.251 BRACKET; THERMO SW CONNECTOR ARGENTINA EQUIPMENT(7SZ)	8-97043-565-0	01	1	9802-0005				●
110	01.251 BRACKET; THERMO SW CONNECTOR	8-97043-565-0	01	1	9802-0005	●
110	01.251 BRACKET; THERMO SW CONNECTOR NICARAGUA EQUIPMENT(R5N)	8-97043-565-0	01	1	0006-				●
110	01.251 BRACKET; THERMO SW CONNECTOR	8-97043-565-0	01	1	0006-	●
111	01.251 BOLT; SWITCH BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9801	●
111	01.251 BOLT; SWITCH BRKT ARGENTINA EQUIPMENT(7SZ) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9802-9908				●
111	01.251 BOLT; SWITCH BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9802-9908	●
111	01.251 BOLT; SWITCH BRKT ARGENTINA EQUIPMENT(7SZ) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9909-0005				●
111	01.251 BOLT; SWITCH BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9909-0005	●
111	01.251 BOLT; SWITCH BRKT NICARAGUA EQUIPMENT(R5N) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0006-0007				●
111	01.251 BOLT; SWITCH BRKT 4X4(UBS***) EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0006-0007	●
111	01.251 BOLT; SWITCH BRKT NICARAGUA EQUIPMENT(R5N) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0008-				●
111	01.251 BOLT; SWITCH BRKT EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0008-	●
112	01.251 NUT; SWITCH BRKT 04.681 M16	9-99111-416-0	01	1	9712-9801	●
112	01.251 NUT; SWITCH BRKT ARGENTINA EQUIPMENT(7SZ) 04.681 M16	9-99111-416-0	01	1	9802-0005				●
112	01.251 NUT; SWITCH BRKT 04.681 M16	9-99111-416-0	01	1	9802-0005	●
112	01.251 NUT; SWITCH BRKT NICARAGUA EQUIPMENT(R5N) 04.681 M16	9-99111-416-0	01	1	0006-				●
112	01.251 NUT; SWITCH BRKT 04.681 M16	9-99111-416-0	01	1	0006-	●
767	02.277 STUD; BRKT 08.981 M6X16 L=25	9-04110-616-0	02	1	9712-	●
810	01.150 SENSOR; CRANK ANGLE (A)	8-10456-250-0	01	1	9712-9912	●
810	01.150 SENSOR; CRANK ANGLE (A)	8-10456-660-0	01	1	0001-	●
810	01.150 SENSOR; CRANK ANGLE (B)	8-10456-571-1	01	1	9712-9810	●
810	01.150 SENSOR; CRANK ANGLE (B)	8-10456-613-1	01	1	9811-9912	●
810	01.150 SENSOR; CRANK ANGLE (B)	8-10456-661-0	01	1	0001-0105	●
810	01.150 SENSOR; CRANK ANGLE EXC. EUROPE EQUIPMENT(EK4) (B)	8-10456-661-0	01	1	0106-0111	●
810	01.150 SENSOR; CRANK ANGLE (B)	8-10456-661-0	01	1	0112-	●
810	01.150 SENSOR; CRANK ANGLE EUROPE EQUIPMENT(EK4) (B)	8-97261-945-0	01	1	0106-0111	●
810	01.150 SENSOR; CRANK ANGLE (B)	8-25339-914-0	01	1	0112-	●
821	02.510 GASKET; CRANKSHAFT SENSOR 04.765	9-09561-214-0	01	1	9712-9912	●

13 779 779 327 782 200 7 417 1 4 4 13 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW	8-97120-356-2	01	1	9712-				●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.5KW	8-97146-338-3	01	1	9712-9803	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.5KW	8-97210-505-0	01	1	9804-9906	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW	8-97223-653-0	01	1	9907-0109	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW	8-97323-437-0	01	1	0110-	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW	8-94384-314-1	01	1	9712-		●	●
4	02.042 BOLT; STARTER 04.898 (C) M12X50	0-10806-250-0	02	1	9712-0309				●
4	02.042 BOLT; STARTER 00.685 (C) M12X45 FLANGE	0-28081-245-0	02	1	0310-				●
4	02.042 BOLT; STARTER 08.900 (A) M10X50 FLANGE	0-28181-050-0	01	1	9712-		●	●
4	02.042 BOLT; STARTER 04.085 (B) M10X80 FLANGE	0-28181-080-0	01	1	9712-		●	●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9712-0309				●
7	02.042 NUT; STARTER 05.586 M12 FLANGE	0-91150-112-0	02	1	0310-				●
7	02.042 NUT; STARTER 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	9712-		●	●
13	02.100 BOLT; BRKT 04.686 (D) M8X30 FLANGE	0-28680-830-0	01	1	9712-		●	●
13	02.100 BOLT; BRKT 03.704 (D) M8X40 FLANGE	0-28680-840-0	02	1	9712-0108		●	●
13	02.100 BOLT; BRKT 16.545 (E) M8X40 FLANGE	0-28690-840-0	02	1	0109-		●	●
13	02.100 BOLT; BRKT A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 06.635 (C) M6X16 FLANGE	0-28480-616-0	02	1	0106-		●
13	02.100 BOLT; BRKT M/T AR-5 5 SPEED(RNK) 03.611 (B) M10X20 FLANGE	0-28681-020-0	01	1	9712-		●
13	02.100 BOLT; BRKT 09.171 (A) M8X90 FLANGE	0-28080-890-0	02	1	9712-		●	●
13	02.100 BOLT; BRKT A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 04.439 (B) M6X16 FLANGE	0-28680-616-0	01	1	9902-0005		●	●
13	02.100 BOLT; BRKT A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 04.439 (B) M6X16 FLANGE	0-28680-616-0	01	1	0006-0009		●	●
200	01.152 CLIP; OXYGEN SENSOR A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (B)	8-97143-183-0	01	1	0106-		●
200	01.152 CLIP; OXYGEN SENSOR M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 03.430 (A) L=200	8-94464-835-0	01	1	0106-		●
200	01.152 CLIP; OXYGEN SENSOR EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD) 03.430 (A) L=200	8-94464-835-0	01	1	9712-9712		●	●
200	01.152 CLIP; OXYGEN SENSOR EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD) 03.162 (A) L=140	5-09707-031-1	01	1	9801-0005		●	●
200	01.152 CLIP; OXYGEN SENSOR EUROPE EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUI PMENT(7LD),ARGENTINA EQUIPMENT(7SZ) 03.162 (A) L=140	5-09707-031-1	01	1	0006-		●	●
321	02.510 BOLT; BRKT A/T THM(RMQ) EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0010-		●	●
327	02.361 SENSOR; CAMSHAFT POSITION	8-10456-541-0	01	1	9712-0105		●	●
327	02.361 SENSOR; CAMSHAFT POSITION SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ)	8-10456-598-0	01	1	0106-0106		●
327	02.361 SENSOR; CAMSHAFT POSITION	8-10456-598-0	01	1	0106-0106			●
327	02.361 SENSOR; CAMSHAFT POSITION SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ)	8-10456-541-0	01	1	0106-		●
327	02.361 SENSOR; CAMSHAFT POSITION	8-10456-541-0	01	1	0106-			●
417	02.420 CLIP EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.430 L=200	8-94464-835-0	02	1	0106-		●
779	02.277 BRACKET; CONNECTOR A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (C)	8-97209-842-0	01	1	0106-		●
779	02.277 BRACKET; CONNECTOR M/T AR-5 5 SPEED(RNK) (A)	8-97163-788-0	01	1	9712-		●
779	02.277 BRACKET; CONNECTOR A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 01.150 (B)	8-97183-098-0	01	1	9902-0005		●	●
779	02.277 BRACKET; CONNECTOR A/T THM(RMQ) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 01.150 (B)	8-97183-098-0	01	1	0006-0009		●	●
779	02.277 BRACKET; CONNECTOR A/T THM(RMQ) EUROPE EQUIPMENT(EK4),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 01.150 (B)	8-97183-098-0	01	1	0010-		●	●
782	02.510 BOLT; SENSOR 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9712-	●
782	02.510 BOLT; SENSOR 03.330 M5X30 W/PL WASHER	8-97045-438-0	02	1	9712-0105	●
782	02.510 BOLT; SENSOR EXC. EUROPE EQUIPMENT(EK4) 03.330 M5X30 W/PL WASHER	8-97045-438-0	02	1	0106-0208	●
782	02.510 BOLT; SENSOR EXC. EURO3 SPECIFICATION(NT3) 03.330 M5X30 W/PL WASHER	8-97045-438-0	02	1	0209-	●
782	02.510 BOLT; SENSOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-0105		●	●
782	02.510 BOLT; SENSOR SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-		●
782	02.510 BOLT; SENSOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-			●

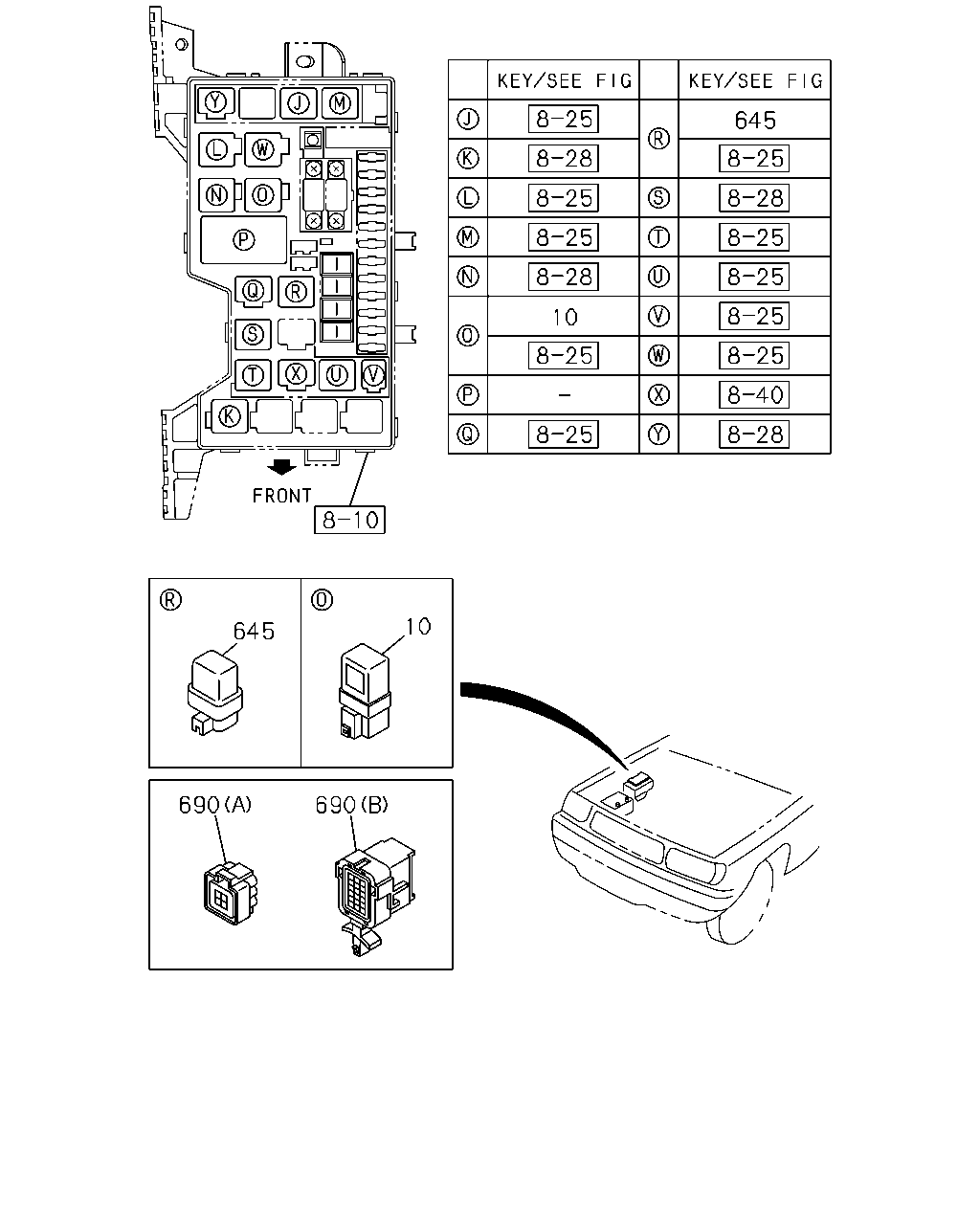

645 10 10 645 690 690

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
10	02.100 RELAY; STARTER 02.510 12V 35A	8-97180-794-1	01	1	9712-	●
10	02.100 RELAY; STARTER 02.510 12V 15A	8-94147-095-0	01	1	9712-		●	●
645	02.510 RELAY; ENG CONT 02.515 12V 20A	8-97093-910-1	02	1	9712-	●
645	02.510 RELAY; ENG CONT 02.515 12V 20A	8-97093-910-1	01	1	9712-		●	●
690	01.150 CONNECTOR M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (B)	8-97304-353-0	01	1	0106-		●
690	01.150 CONNECTOR M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A)	8-97304-354-0	01	1	0106-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
