Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#43380) — 264 parça

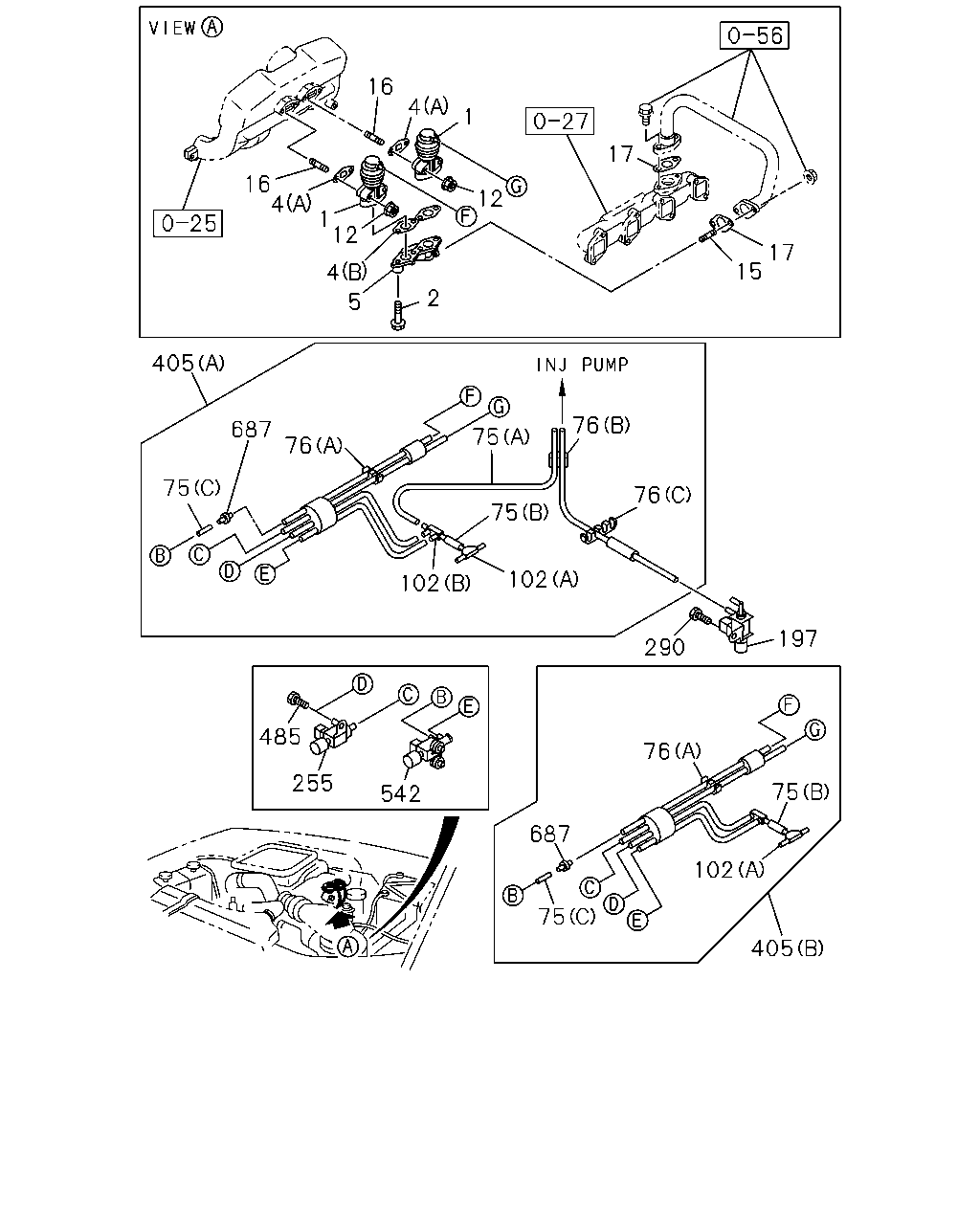

16 4 1 17 16 4 12 1 12 17 15 4 2 5 405 76 687 75 76 75 76 75 102 102 197 290 485 76 255 75 542 687 102 75 405

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; EGR TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97135-674-2	02	1	9802-0005	●
1	03.670 VALVE; EGR TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N)	8-97135-674-5	02	1	0006-	●
1	03.670 VALVE; EGR	8-97137-812-0	01	1	9712-		●
1	03.670 VALVE; EGR EUROPE EQUIPMENT(EK4)	8-17096-178-2	01	1	9712-9812			●
1	03.670 VALVE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-17096-178-2	01	1	9712-9812				●
1	03.670 VALVE; EGR	8-17096-178-2	01	1	9901-0005			●
1	03.670 VALVE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-17096-178-2	01	1	9901-0005				●
1	03.670 VALVE; EGR	8-17096-178-3	01	1	0006-			●
1	03.670 VALVE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-17096-178-3	01	1	0006-				●
2	03.670 BOLT; EGR VLV TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9802-0005	●
2	03.670 BOLT; EGR VLV TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0006-	●
2	03.670 BOLT; EGR VLV EUROPE EQUIPMENT(EK4) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-9812			●
2	03.670 BOLT; EGR VLV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-9812				●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9901-			●	●
4	03.671 GASKET; EGR VLV TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (A)	8-94334-338-0	02	1	9802-0005	●
4	03.671 GASKET; EGR VLV TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N) (A)	8-94334-338-0	02	1	0006-	●
4	03.671 GASKET; EGR VLV TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (B)	8-94379-754-0	01	1	9802-0005	●
4	03.671 GASKET; EGR VLV TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N) (B)	8-94379-754-0	01	1	0006-	●
4	03.671 GASKET; EGR VLV EUROPE EQUIPMENT(EK4) (C)	8-97104-317-1	01	1	9712-9812			●
4	03.671 GASKET; EGR VLV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C)	8-97104-317-1	01	1	9712-9812				●
4	03.671 GASKET; EGR VLV (C)	8-97104-317-2	01	1	9901-			●	●
5	03.670 ADAPTER ASM TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97117-260-0	01	1	9802-0005	●
5	03.670 ADAPTER ASM TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N)	8-97117-260-0	01	1	0006-	●
12	03.671 NUT; EGR VLV TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE	0-91150-208-0	04	1	9802-0005	●
12	03.671 NUT; EGR VLV TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N) 01.540 M8 FLANGE	0-91150-208-0	04	1	0006-	●
12	03.671 NUT; EGR VLV 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●
15	03.670 STUD; EGR PIPE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 03.901 M8X25 L=37	9-04110-825-0	02	1	9802-0005	●
15	03.670 STUD; EGR PIPE TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N) 03.901 M8X25 L=37	9-04110-825-0	02	1	0006-	●
16	03.275 STUD; EGR VLV TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 03.613 M8X45 L=57	8-94105-162-1	04	1	9802-0005	●
16	03.275 STUD; EGR VLV TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N) 03.613 M8X45 L=57	8-94105-162-1	04	1	0006-	●
17	03.665 GASKET; EGR PIPE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-94340-670-0	02	1	9802-0005	●
17	03.665 GASKET; EGR PIPE TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N)	8-94340-670-0	02	1	0006-	●
17	03.665 GASKET; EGR PIPE EUROPE EQUIPMENT(EK4)	8-97060-414-0	01	1	9712-9812			●
17	03.665 GASKET; EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97060-414-0	01	1	9712-9812				●
17	03.665 GASKET; EGR PIPE	8-97060-414-0	01	1	9901-0005			●
17	03.665 GASKET; EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97060-414-0	01	1	9901-0005				●
17	03.665 GASKET; EGR PIPE	8-97060-414-0	01	1	0006-			●
17	03.665 GASKET; EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97060-414-0	01	1	0006-				●
75	03.300 HOSE; CONNECTOR TO VSV & COMMON AIR CONDITIONER MANUAL CONT(C60) ARGENTINA EQUIPMENT(7SZ) 08.962 (A) L=120 SERVICED BY L=3000	0-04730-300-0	01	1	9802-0005	●
75	03.300 HOSE; CONNECTOR TO VSV & COMMON AIR CONDITIONER MANUAL CONT(C60) NICARAGUA EQUIPMENT(R5N) 08.962 (A) L=120 SERVICED BY L=3000	0-04730-300-0	01	1	0006-0006	●
75	03.300 HOSE; CONNECTOR TO VSV & COMMON AIR CONDITIONER MANUAL CONT(C60) NICARAGUA EQUIPMENT(R5N) (A) L=120 SERVICED BY L=3000	0-04934-300-0	01	1	0007-	●
75	03.300 HOSE; CONNECTOR TO VSV & COMMON ARGENTINA EQUIPMENT(7SZ) 08.962 (B) L=35 SERVICED BY L=3000	0-04730-300-0	01	1	9802-0005	●
75	03.300 HOSE; CONNECTOR TO VSV & COMMON NICARAGUA EQUIPMENT(R5N) 08.962 (B) L=35 SERVICED BY L=3000	0-04730-300-0	01	1	0006-0006	●
75	03.300 HOSE; CONNECTOR TO VSV & COMMON NICARAGUA EQUIPMENT(R5N) (B) L=35 SERVICED BY L=3000	0-04934-300-0	01	1	0007-	●
75	03.300 HOSE; CONNECTOR TO VSV & COMMON ARGENTINA EQUIPMENT(7SZ) 08.962 (C) L=50 SERVICED BY L=3000	0-04735-300-0	01	1	9802-0005	●
75	03.300 HOSE; CONNECTOR TO VSV & COMMON NICARAGUA EQUIPMENT(R5N) 08.962 (C) L=50 SERVICED BY L=3000	0-04735-300-0	01	1	0006-0006	●
75	03.300 HOSE; CONNECTOR TO VSV & COMMON NICARAGUA EQUIPMENT(R5N) 03.675 (C) L=50 SERVICED BY L=3000	0-04935-300-0	01	1	0007-	●
76	03.300 CLIP; RUBBER HOSE,VSV AIR CONDITIONER MANUAL CONT(C60) ARGENTINA EQUIPMENT(7SZ) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9802-0005	●
76	03.300 CLIP; RUBBER HOSE,VSV AIR CONDITIONER MANUAL CONT(C60) NICARAGUA EQUIPMENT(R5N) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	0006-	●
76	03.300 CLIP; RUBBER HOSE,VSV AIR CONDITIONER MANUAL CONT(C60) ARGENTINA EQUIPMENT(7SZ) 03.680 (C) ID=20 & 7X4	8-94368-500-0	01	1	9802-0005	●
76	03.300 CLIP; RUBBER HOSE,VSV AIR CONDITIONER MANUAL CONT(C60) NICARAGUA EQUIPMENT(R5N) 03.680 (C) ID=20 & 7X4	8-94368-500-0	01	1	0006-	●
76	03.300 CLIP; RUBBER HOSE,VSV ARGENTINA EQUIPMENT(7SZ) 03.680 (A)	8-94366-035-0	01	1	9802-0005	●
76	03.300 CLIP; RUBBER HOSE,VSV NICARAGUA EQUIPMENT(R5N) 03.680 (A)	8-94366-035-0	01	1	0006-	●
102	03.680 JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60) ARGENTINA EQUIPMENT(7SZ) (B) 4WAY	8-94429-994-0	01	1	9802-0005	●
102	03.680 JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60) NICARAGUA EQUIPMENT(R5N) (B) 4WAY	8-94429-994-0	01	1	0006-	●
102	03.680 JOINT; HOSE ARGENTINA EQUIPMENT(7SZ) (A) 3WAY	8-94208-695-0	01	1	9802-0005	●
102	03.680 JOINT; HOSE NICARAGUA EQUIPMENT(R5N) (A) 3WAY	8-94208-695-0	01	1	0006-	●
197	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60)	8-94178-888-0	01	1	9712-	●
255	03.675 VALVE; VAC SW,EGR CONT ARGENTINA EQUIPMENT(7SZ)	8-94366-692-0	01	1	9802-0005	●
255	03.675 VALVE; VAC SW,EGR CONT NICARAGUA EQUIPMENT(R5N)	8-94366-692-0	01	1	0006-	●
290	03.671 BOLT; VAC CONT SW VLV AIR CONDITIONER MANUAL CONT(C60) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9712-	●
405	03.675 HOSE; RUBBER VAC SWITCHING VLV AIR CONDITIONER MANUAL CONT(C60) ARGENTINA EQUIPMENT(7SZ) (A)	8-97136-599-3	01	1	9802-0005	●
405	03.675 HOSE; RUBBER VAC SWITCHING VLV AIR CONDITIONER MANUAL CONT(C60) NICARAGUA EQUIPMENT(R5N) (A)	8-97136-599-3	01	1	0006-0006	●
405	03.675 HOSE; RUBBER VAC SWITCHING VLV AIR CONDITIONER MANUAL CONT(C60) NICARAGUA EQUIPMENT(R5N) (A)	8-97260-180-0	01	1	0007-	●
405	03.675 HOSE; RUBBER VAC SWITCHING VLV ARGENTINA EQUIPMENT(7SZ) EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-97136-600-3	01	1	9802-0005	●
405	03.675 HOSE; RUBBER VAC SWITCHING VLV NICARAGUA EQUIPMENT(R5N) EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-97136-600-3	01	1	0006-0006	●
405	03.675 HOSE; RUBBER VAC SWITCHING VLV NICARAGUA EQUIPMENT(R5N) EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-97260-181-0	01	1	0007-	●
485	03.671 BOLT; VSV ARGENTINA EQUIPMENT(7SZ) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9802-0005	●
485	03.671 BOLT; VSV NICARAGUA EQUIPMENT(R5N) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0006-	●
542	03.670 VALVE; VAC REGULATING ARGENTINA EQUIPMENT(7SZ)	8-97069-803-0	01	1	9802-0005	●
542	03.670 VALVE; VAC REGULATING NICARAGUA EQUIPMENT(R5N)	8-97069-803-0	01	1	0006-	●
687	03.671 DAMPER; VAC HOSE ARGENTINA EQUIPMENT(7SZ)	8-97086-816-0	01	1	9802-0005	●
687	03.671 DAMPER; VAC HOSE NICARAGUA EQUIPMENT(R5N)	8-97086-816-0	01	1	0006-	●

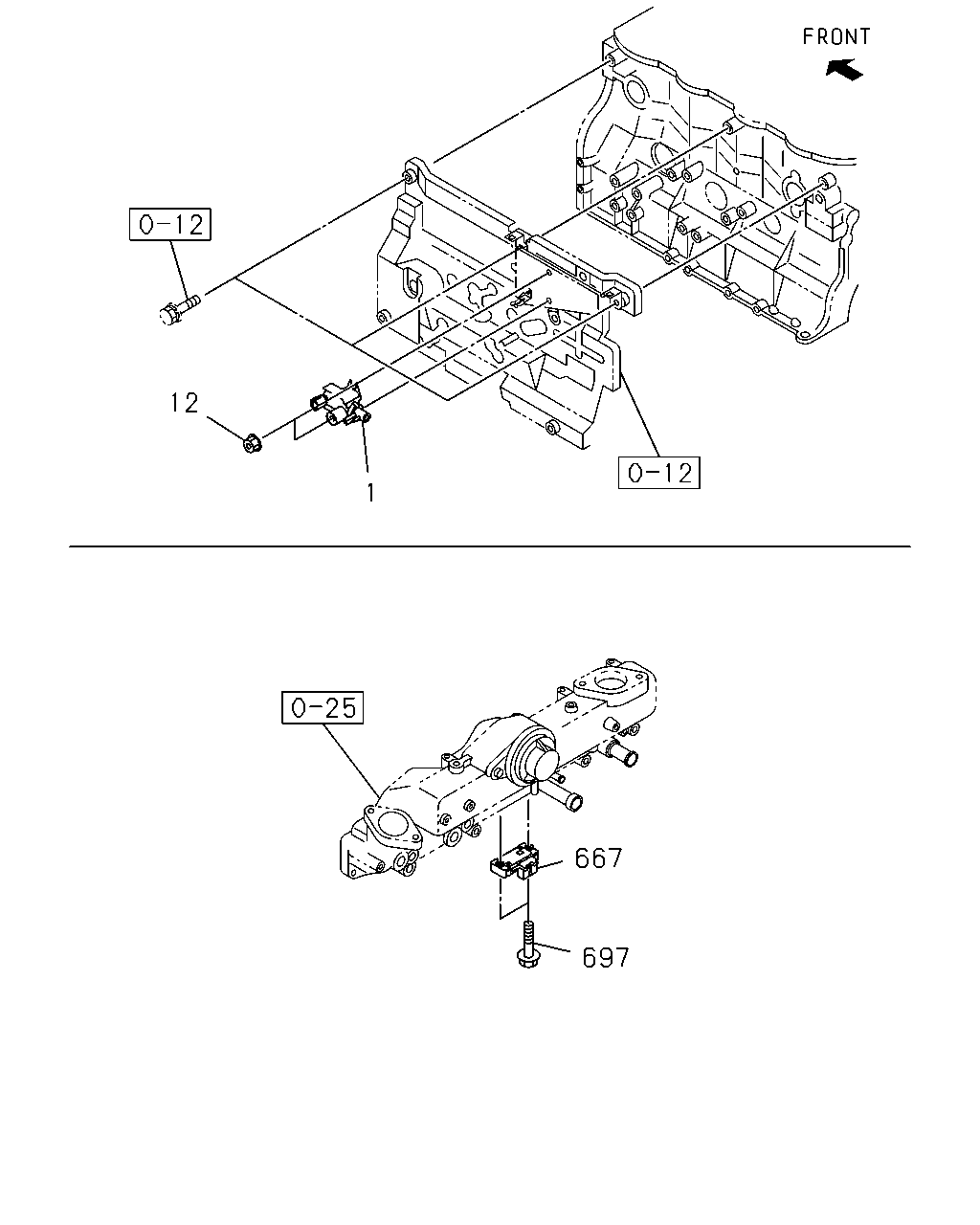

12 1 667 697

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; EGR TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97135-674-2	02	1	9802-0005	●
1	03.670 VALVE; EGR TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N)	8-97135-674-5	02	1	0006-	●
1	03.670 VALVE; EGR	8-97137-812-0	01	1	9712-		●
1	03.670 VALVE; EGR EUROPE EQUIPMENT(EK4)	8-17096-178-2	01	1	9712-9812			●
1	03.670 VALVE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-17096-178-2	01	1	9712-9812				●
1	03.670 VALVE; EGR	8-17096-178-2	01	1	9901-0005			●
1	03.670 VALVE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-17096-178-2	01	1	9901-0005				●
1	03.670 VALVE; EGR	8-17096-178-3	01	1	0006-			●
1	03.670 VALVE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-17096-178-3	01	1	0006-				●
12	03.671 NUT; EGR VLV TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.540 M8 FLANGE	0-91150-208-0	04	1	9802-0005	●
12	03.671 NUT; EGR VLV TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N) 01.540 M8 FLANGE	0-91150-208-0	04	1	0006-	●
12	03.671 NUT; EGR VLV 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●
667	03.670 SENSOR; VAC 03.320	8-16137-039-0	01	1	9712-0105		●
667	03.670 SENSOR; VAC EXC. EUROPE EQUIPMENT(EK4) 03.320	8-16137-039-0	01	1	0106-0207		●
667	03.670 SENSOR; VAC EXC. EUROPE EQUIPMENT(EK4)	8-12569-240-0	01	1	0208-0208		●
667	03.670 SENSOR; VAC EXC. EURO3 SPECIFICATION(NT3)	8-12569-240-0	01	1	0209-		●
697	03.680 BOLT; SENSOR 03.330 M5X30 W/PL WASHER	8-97045-438-0	02	1	9712-0105		●
697	03.680 BOLT; SENSOR EXC. EUROPE EQUIPMENT(EK4) 03.330 M5X30 W/PL WASHER	8-97045-438-0	02	1	0106-0208		●
697	03.680 BOLT; SENSOR EXC. EURO3 SPECIFICATION(NT3) 03.330 M5X30 W/PL WASHER	8-97045-438-0	02	1	0209-		●

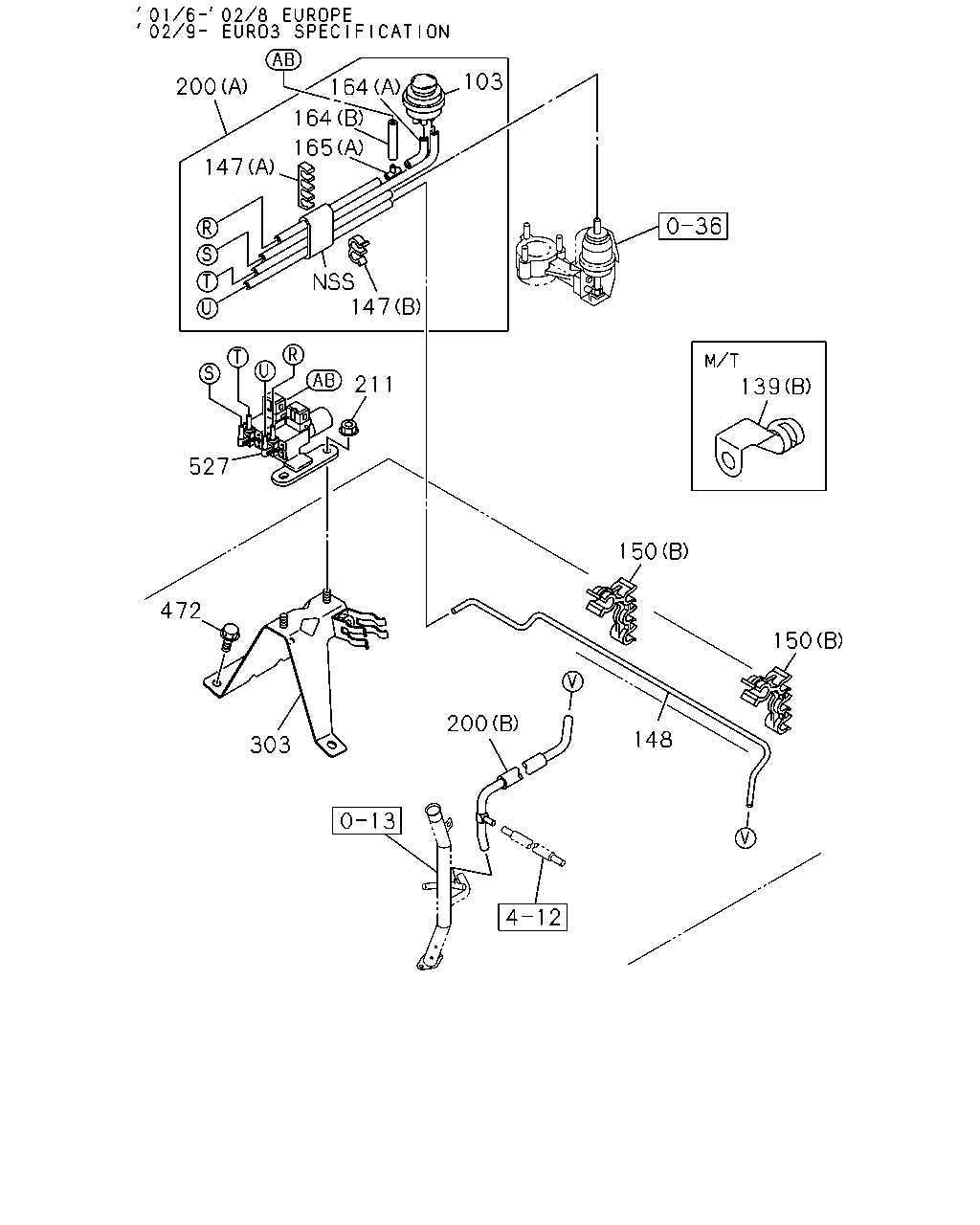

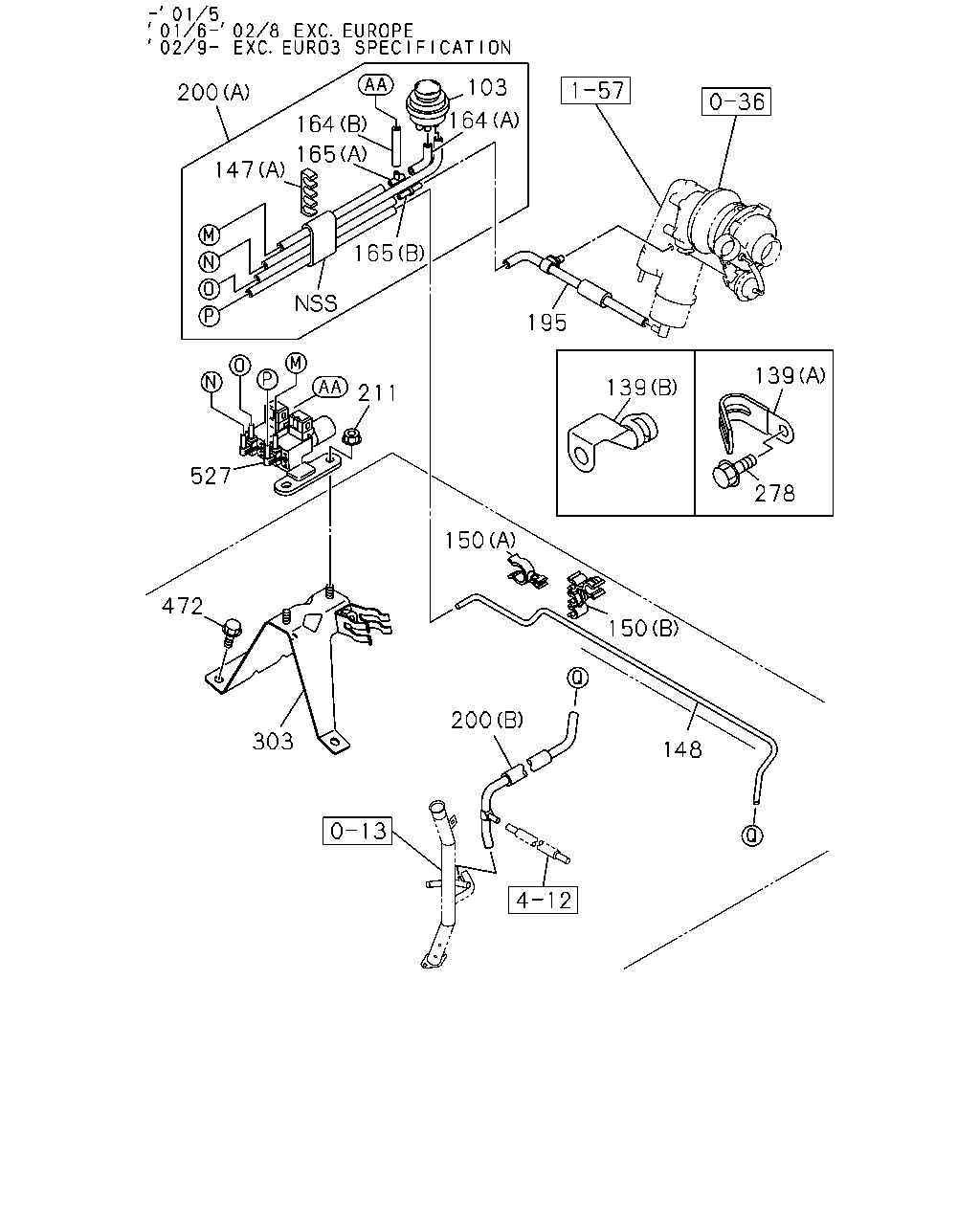

103 200 164 164 165 147 147 139 211 527 150 472 150 200 148 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
103	03.670 VALVE; VAC CONT	8-94111-775-0	01	1	9712-	●
139	02.559 CLIP; HARNESS 01.152 (A) L=36	8-94224-891-1	01	1	9712-9901	●
139	02.559 CLIP; HARNESS (B)	8-97180-126-1	01	1	9712-9908	●
139	02.559 CLIP; HARNESS M/T AR-5 5 SPEED(RNK) (B)	8-97180-126-1	01	1	9909-	●
147	03.680 CLIP; RUBBER HOSE 02.251 (A) 4XID=6.8	8-94132-799-0	01	1	9712-	●
147	03.680 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	0106-0208	●
147	03.680 CLIP; RUBBER HOSE EURO3 SPECIFICATION(NT3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	0209-	●
148	03.675 PIPE; VAC	8-97167-930-2	01	1	9712-9712	●
148	03.675 PIPE; VAC	8-97202-580-0	01	1	9801-0006	●
148	03.675 PIPE; VAC	8-97258-131-0	01	1	0007-0105	●
148	03.675 PIPE; VAC	8-97310-229-0	01	1	0106-	●
150	03.675 CLIP; VAC PIPE 04.686 (A)	8-94468-730-0	01	1	9712-9712	●
150	03.675 CLIP; VAC PIPE 04.686 (B) ID=6.4 & 4.8 & 4.8 & 4.8	8-97204-275-0	01	1	9801-0006	●
150	03.675 CLIP; VAC PIPE 04.686 (B) ID=6.4 & 4.8 & 4.8 & 4.8	8-97204-275-0	02	1	0007-	●
164	03.675 HOSE; RUBBER 08.962 (A) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●
164	03.675 HOSE; RUBBER 08.962 (B) L=150 SERVICED BY L=3000	0-04735-300-0	01	1	9712-	●
165	03.680 JOINT; HOSE (A) 3WAY	8-94208-695-0	01	1	9712-	●
165	03.680 JOINT; HOSE (B) 2WAY	8-94313-805-0	01	1	9712-0105	●
165	03.680 JOINT; HOSE EXC. EUROPE EQUIPMENT(EK4) (B) 2WAY	8-94313-805-0	01	1	0106-0208	●
165	03.680 JOINT; HOSE EXC. EURO3 SPECIFICATION(NT3) (B) 2WAY	8-94313-805-0	01	1	0209-	●
200	03.675 HOSE; VAC (A)	8-97147-633-4	01	1	9712-0105	●
200	03.675 HOSE; VAC EXC. EUROPE EQUIPMENT(EK4) (A)	8-97147-633-4	01	1	0106-0208	●
200	03.675 HOSE; VAC EXC. EURO3 SPECIFICATION(NT3) (A)	8-97147-633-4	01	1	0209-	●
200	03.675 HOSE; VAC (B)	8-97167-932-1	01	1	9712-9803	●
200	03.675 HOSE; VAC (B)	8-97208-077-0	01	1	9804-9910	●
200	03.675 HOSE; VAC (B)	8-97240-376-1	01	1	9911-0105	●
200	03.675 HOSE; VAC (B)	8-97310-231-0	01	1	0106-	●
200	03.675 HOSE; VAC EUROPE EQUIPMENT(EK4) (A)	8-97263-257-1	01	1	0106-0208	●
200	03.675 HOSE; VAC EURO3 SPECIFICATION(NT3) (A)	8-97263-257-1	01	1	0209-	●
211	03.671 NUT; VSV 01.062 M6 FLANGE	0-91150-206-0	02	1	9712-0110	●
211	03.671 NUT; VSV 04.594 M6 FLANGE	0-91150-106-0	02	1	0111-	●
303	03.671 BRACKET; VAC SW	8-97147-337-1	01	1	9712-	●
472	03.671 BOLT; BRKT 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9712-	●
527	03.671 VALVE; VAC SWITCHING 03.670	8-94386-087-0	01	1	9712-	●

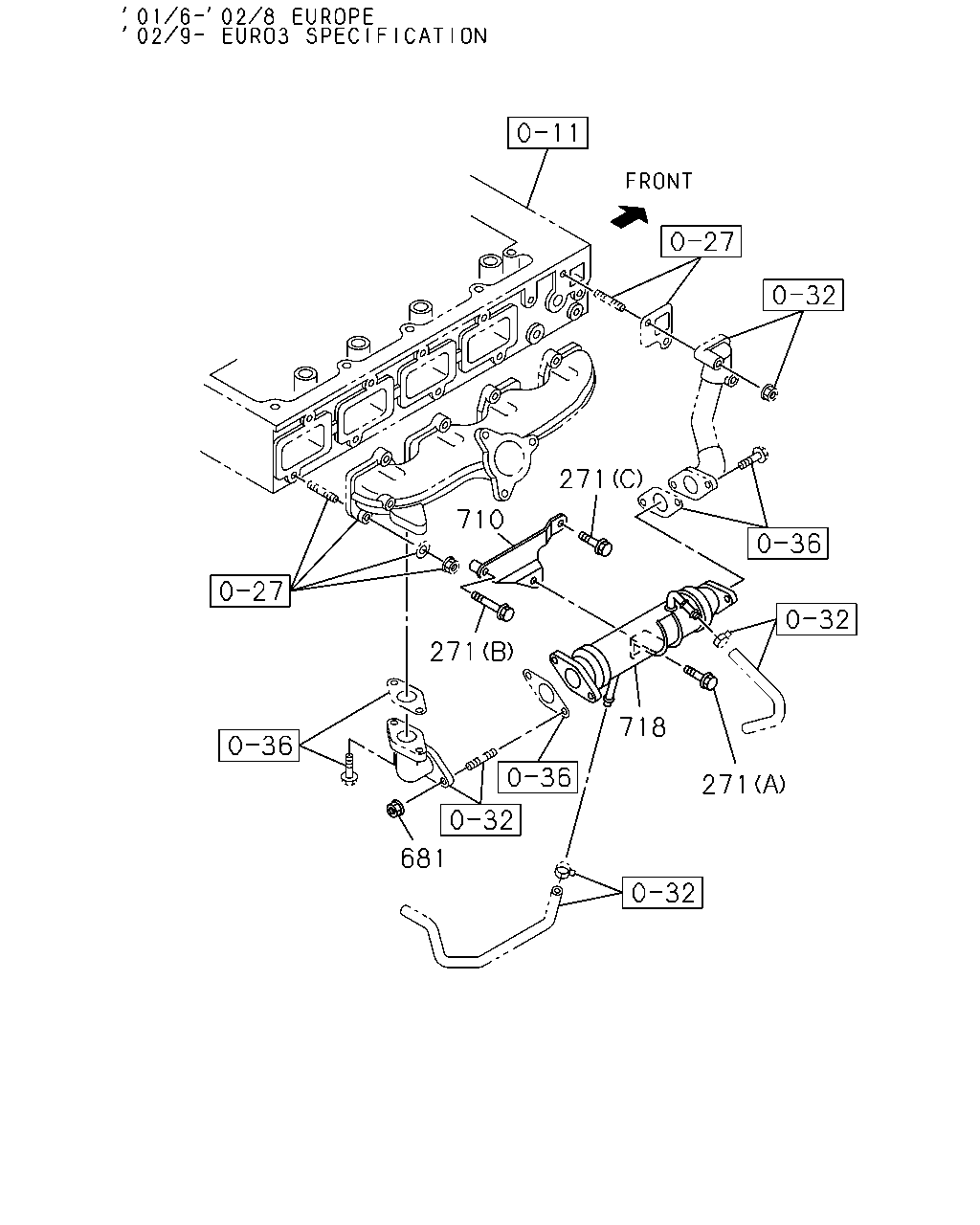

271 710 271 718 271 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
271	03.675 BOLT; BRKT EXC. SHIFT ON THE FLY(7EX) 06.635 (D) M6X16 FLANGE	0-28480-616-0	02	1	9712-0105		●	●
271	03.675 BOLT; BRKT EXC. EUROPE EQUIPMENT(EK4),SHIFT ON THEFLY(7EX) 06.635 (D) M6X16 FLANGE	0-28480-616-0	02	1	0106-		●	●
271	03.675 BOLT; BRKT EUROPE EQUIPMENT(EK4) 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-0208	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0209-	●
271	03.675 BOLT; BRKT EUROPE EQUIPMENT(EK4) 01.531 (B) M8X25 FLANGE	0-28080-825-0	01	1	0106-0208	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 01.531 (B) M8X25 FLANGE	0-28080-825-0	01	1	0209-	●
271	03.675 BOLT; BRKT EUROPE EQUIPMENT(EK4) 02.559 (C) M10X16 FLANGE	0-28081-016-0	01	1	0106-0208	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 02.559 (C) M10X16 FLANGE	0-28081-016-0	01	1	0209-	●
681	03.671 NUT; EGR PIPE EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE	0-91150-208-0	02	1	0106-0208	●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91150-208-0	02	1	0209-	●
710	03.337 BRACKET; EGR COOLER EUROPE EQUIPMENT(EK4)	8-97305-254-0	01	1	0106-0208	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3)	8-97305-254-0	01	1	0209-	●
718	03.337 COOLER; EGR EUROPE EQUIPMENT(EK4)	8-97305-252-1	01	1	0106-0208	●
718	03.337 COOLER; EGR EURO3 SPECIFICATION(NT3)	8-97305-252-1	01	1	0209-	●

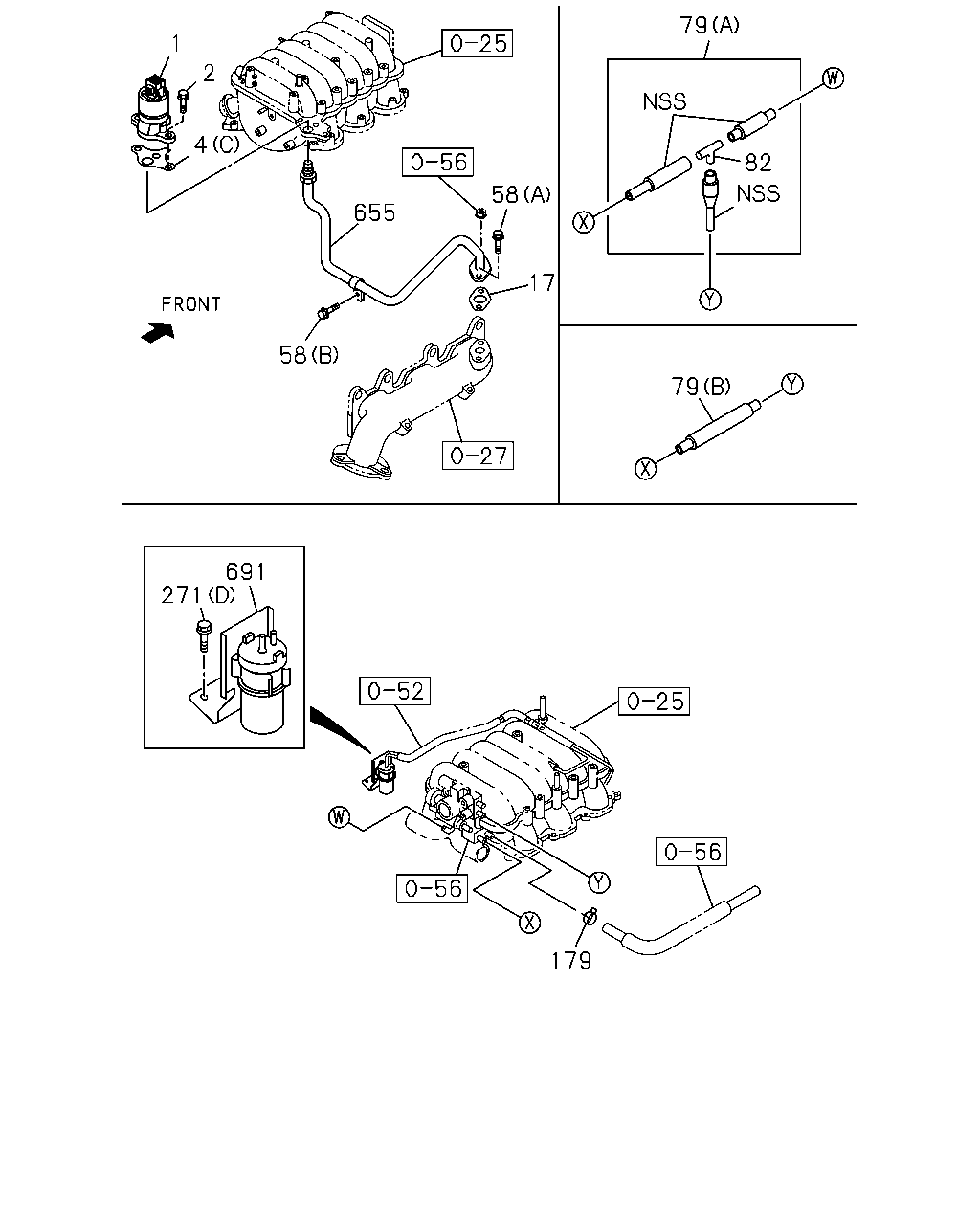

79 1 2 4 82 58 655 17 58 79 691 271 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; EGR TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97135-674-2	02	1	9802-0005	●
1	03.670 VALVE; EGR TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N)	8-97135-674-5	02	1	0006-	●
1	03.670 VALVE; EGR	8-97137-812-0	01	1	9712-		●
1	03.670 VALVE; EGR EUROPE EQUIPMENT(EK4)	8-17096-178-2	01	1	9712-9812			●
1	03.670 VALVE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-17096-178-2	01	1	9712-9812				●
1	03.670 VALVE; EGR	8-17096-178-2	01	1	9901-0005			●
1	03.670 VALVE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-17096-178-2	01	1	9901-0005				●
1	03.670 VALVE; EGR	8-17096-178-3	01	1	0006-			●
1	03.670 VALVE; EGR SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-17096-178-3	01	1	0006-				●
2	03.670 BOLT; EGR VLV TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9802-0005	●
2	03.670 BOLT; EGR VLV TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0006-	●
2	03.670 BOLT; EGR VLV EUROPE EQUIPMENT(EK4) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-9812			●
2	03.670 BOLT; EGR VLV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-9812				●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9901-			●	●
4	03.671 GASKET; EGR VLV TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (A)	8-94334-338-0	02	1	9802-0005	●
4	03.671 GASKET; EGR VLV TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N) (A)	8-94334-338-0	02	1	0006-	●
4	03.671 GASKET; EGR VLV TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) (B)	8-94379-754-0	01	1	9802-0005	●
4	03.671 GASKET; EGR VLV TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N) (B)	8-94379-754-0	01	1	0006-	●
4	03.671 GASKET; EGR VLV EUROPE EQUIPMENT(EK4) (C)	8-97104-317-1	01	1	9712-9812			●
4	03.671 GASKET; EGR VLV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C)	8-97104-317-1	01	1	9712-9812				●
4	03.671 GASKET; EGR VLV (C)	8-97104-317-2	01	1	9901-			●	●
17	03.665 GASKET; EGR PIPE TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-94340-670-0	02	1	9802-0005	●
17	03.665 GASKET; EGR PIPE TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N)	8-94340-670-0	02	1	0006-	●
17	03.665 GASKET; EGR PIPE EUROPE EQUIPMENT(EK4)	8-97060-414-0	01	1	9712-9812			●
17	03.665 GASKET; EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97060-414-0	01	1	9712-9812				●
17	03.665 GASKET; EGR PIPE	8-97060-414-0	01	1	9901-0005			●
17	03.665 GASKET; EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97060-414-0	01	1	9901-0005				●
17	03.665 GASKET; EGR PIPE	8-97060-414-0	01	1	0006-			●
17	03.665 GASKET; EGR PIPE SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97060-414-0	01	1	0006-				●
58	03.417 BOLT; PIPE EUROPE EQUIPMENT(EK4) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9712-9812			●
58	03.417 BOLT; PIPE SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9712-9812				●
58	03.417 BOLT; PIPE 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9901-0005			●
58	03.417 BOLT; PIPE SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9901-0005				●
58	03.417 BOLT; PIPE 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0006-			●
58	03.417 BOLT; PIPE SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0006-				●
58	03.417 BOLT; PIPE EUROPE EQUIPMENT(EK4) 03.680 (B) M8X18 FLANGE	8-94368-563-1	01	1	9712-9812			●
58	03.417 BOLT; PIPE SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.680 (B) M8X18 FLANGE	8-94368-563-1	01	1	9712-9812				●
58	03.417 BOLT; PIPE 03.680 (B) M8X18 FLANGE	8-94368-563-1	01	1	9901-0005			●
58	03.417 BOLT; PIPE SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.680 (B) M8X18 FLANGE	8-94368-563-1	01	1	9901-0005				●
58	03.417 BOLT; PIPE 03.680 (B) M8X18 FLANGE	8-94368-563-1	01	1	0006-			●
58	03.417 BOLT; PIPE SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 03.680 (B) M8X18 FLANGE	8-94368-563-1	01	1	0006-				●
79	03.675 HOSE; RUBBER,THROTTLE BODY TO PI EUROPE EQUIPMENT(EK4) (B)	8-97264-475-0	01	1	0106-			●
79	03.675 HOSE; RUBBER,THROTTLE BODY TO PI (A)	8-97136-220-0	01	1	9712-0105			●	●
79	03.675 HOSE; RUBBER,THROTTLE BODY TO PI SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (A)	8-97136-220-0	01	1	0106-			●
79	03.675 HOSE; RUBBER,THROTTLE BODY TO PI (A)	8-97136-220-0	01	1	0106-				●
82	03.680 JOINT; 3 WAY 03.163	8-97061-674-0	01	1	9712-0105			●	●
82	03.680 JOINT; 3 WAY SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 03.163	8-97061-674-0	01	1	0106-			●
82	03.680 JOINT; 3 WAY 03.163	8-97061-674-0	01	1	0106-				●
179	03.675 CLIP; PIPE CLAMP EUROPE EQUIPMENT(EK4) 01.219 ID=12	8-94238-610-0	01	1	0106-			●
179	03.675 CLIP; PIPE CLAMP 03.163 ID=11	8-94238-570-0	01	1	9712-0105			●	●
179	03.675 CLIP; PIPE CLAMP SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 03.163 ID=11	8-94238-570-0	01	1	0106-			●
179	03.675 CLIP; PIPE CLAMP 03.163 ID=11	8-94238-570-0	01	1	0106-				●
271	03.675 BOLT; BRKT EXC. SHIFT ON THE FLY(7EX) 06.635 (D) M6X16 FLANGE	0-28480-616-0	02	1	9712-0105			●	●
271	03.675 BOLT; BRKT EXC. EUROPE EQUIPMENT(EK4),SHIFT ON THEFLY(7EX) 06.635 (D) M6X16 FLANGE	0-28480-616-0	02	1	0106-			●	●
271	03.675 BOLT; BRKT EUROPE EQUIPMENT(EK4) 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-0208		●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0209-		●
271	03.675 BOLT; BRKT EUROPE EQUIPMENT(EK4) 01.531 (B) M8X25 FLANGE	0-28080-825-0	01	1	0106-0208		●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 01.531 (B) M8X25 FLANGE	0-28080-825-0	01	1	0209-		●
271	03.675 BOLT; BRKT EUROPE EQUIPMENT(EK4) 02.559 (C) M10X16 FLANGE	0-28081-016-0	01	1	0106-0208		●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 02.559 (C) M10X16 FLANGE	0-28081-016-0	01	1	0209-		●
655	03.675 PIPE; EGR VLV EUROPE EQUIPMENT(EK4)	8-97131-897-1	01	1	9712-9812			●
655	03.675 PIPE; EGR VLV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97131-897-1	01	1	9712-9812				●
655	03.675 PIPE; EGR VLV	8-97131-897-1	01	1	9901-0005			●
655	03.675 PIPE; EGR VLV SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97131-897-1	01	1	9901-0005				●
655	03.675 PIPE; EGR VLV	8-97131-897-1	01	1	0006-			●
655	03.675 PIPE; EGR VLV SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97131-897-1	01	1	0006-				●
691	03.670 TANK; VAC EXC. SHIFT ON THE FLY(7EX) 06.008	8-97168-883-2	01	1	9712-0105			●	●
691	03.670 TANK; VAC EXC. EUROPE EQUIPMENT(EK4),SHIFT ON THEFLY(7EX) 06.008	8-97168-883-2	01	1	0106-			●	●

93 100 99 95 95 658 343 343 343 658 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60)	8-97131-415-0	01	1	9712-0005	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EXC. NICARAGUA EQUIPMENT(R5N)	8-97131-415-0	01	1	0006-0006	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EXC. NICARAGUA EQUIPMENT(R5N)	8-97260-179-0	01	1	0007-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9712-0005	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. NICARAGUA EQUIPMENT(R5N) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0006-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) (B) ID=20 & 7X4	8-94368-500-0	01	1	9712-0005	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. NICARAGUA EQUIPMENT(R5N) (B) ID=20 & 7X4	8-94368-500-0	01	1	0006-	●
99	03.675 HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) 08.962 L=180 SERVICED BY L=3000	0-04730-300-0	01	1	9712-0005	●
99	03.675 HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) EXC. NICARAGUA EQUIPMENT(R5N) 08.962 L=180 SERVICED BY L=3000	0-04730-300-0	01	1	0006-0006	●
99	03.675 HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) EXC. NICARAGUA EQUIPMENT(R5N) 03.300 L=180 SERVICED BY L=3000	0-04934-300-0	01	1	0007-	●
100	03.680 JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60) 3WAY	8-94208-695-0	01	1	9712-0005	●
100	03.680 JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. NICARAGUA EQUIPMENT(R5N) 3WAY	8-94208-695-0	01	1	0006-	●
343	03.680 CLIP; RUBBER HOSE TURBOCHARGER<K51> (A) ID=7	8-94208-596-0	02	1	9712-	●
343	03.680 CLIP; RUBBER HOSE TURBOCHARGER<K51> (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9712-	●
351	03.680 CLIP; VAC HOSE TURBOCHARGER<K51> 02.480 ID=25	8-94120-831-0	02	1	9712-	●
658	03.675 HOSE ASM; VSV TO PIPE TURBOCHARGER<K51> (A)	8-97131-414-0	01	1	9712-0006	●
658	03.675 HOSE ASM; VSV TO PIPE EXC. TURBOCHARGER<K51> 03.163 (B)	8-97117-273-2	01	1	9712-0006	●
658	03.675 HOSE ASM; VSV TO PIPE EXC. TURBOCHARGER<K51> (B)	8-97260-177-0	01	1	0007-	●

147 200 103 164 164 165 165 195 139 139 278 150 150 200 148 303 472 527 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
103	03.670 VALVE; VAC CONT	8-94111-775-0	01	1	9712-	●
139	02.559 CLIP; HARNESS 01.152 (A) L=36	8-94224-891-1	01	1	9712-9901	●
139	02.559 CLIP; HARNESS (B)	8-97180-126-1	01	1	9712-9908	●
139	02.559 CLIP; HARNESS M/T AR-5 5 SPEED(RNK) (B)	8-97180-126-1	01	1	9909-	●
147	03.680 CLIP; RUBBER HOSE 02.251 (A) 4XID=6.8	8-94132-799-0	01	1	9712-	●
147	03.680 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	0106-0208	●
147	03.680 CLIP; RUBBER HOSE EURO3 SPECIFICATION(NT3) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	0209-	●
148	03.675 PIPE; VAC	8-97167-930-2	01	1	9712-9712	●
148	03.675 PIPE; VAC	8-97202-580-0	01	1	9801-0006	●
148	03.675 PIPE; VAC	8-97258-131-0	01	1	0007-0105	●
148	03.675 PIPE; VAC	8-97310-229-0	01	1	0106-	●
150	03.675 CLIP; VAC PIPE 04.686 (A)	8-94468-730-0	01	1	9712-9712	●
150	03.675 CLIP; VAC PIPE 04.686 (B) ID=6.4 & 4.8 & 4.8 & 4.8	8-97204-275-0	01	1	9801-0006	●
150	03.675 CLIP; VAC PIPE 04.686 (B) ID=6.4 & 4.8 & 4.8 & 4.8	8-97204-275-0	02	1	0007-	●
164	03.675 HOSE; RUBBER 08.962 (A) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9712-	●
164	03.675 HOSE; RUBBER 08.962 (B) L=150 SERVICED BY L=3000	0-04735-300-0	01	1	9712-	●
165	03.680 JOINT; HOSE (A) 3WAY	8-94208-695-0	01	1	9712-	●
165	03.680 JOINT; HOSE (B) 2WAY	8-94313-805-0	01	1	9712-0105	●
165	03.680 JOINT; HOSE EXC. EUROPE EQUIPMENT(EK4) (B) 2WAY	8-94313-805-0	01	1	0106-0208	●
165	03.680 JOINT; HOSE EXC. EURO3 SPECIFICATION(NT3) (B) 2WAY	8-94313-805-0	01	1	0209-	●
195	03.675 HOSE; VAC	8-97180-264-1	01	1	9712-0105	●
195	03.675 HOSE; VAC EXC. EUROPE EQUIPMENT(EK4)	8-97180-264-1	01	1	0106-0208	●
195	03.675 HOSE; VAC EXC. EURO3 SPECIFICATION(NT3)	8-97180-264-1	01	1	0209-	●
200	03.675 HOSE; VAC (A)	8-97147-633-4	01	1	9712-0105	●
200	03.675 HOSE; VAC EXC. EUROPE EQUIPMENT(EK4) (A)	8-97147-633-4	01	1	0106-0208	●
200	03.675 HOSE; VAC EXC. EURO3 SPECIFICATION(NT3) (A)	8-97147-633-4	01	1	0209-	●
200	03.675 HOSE; VAC (B)	8-97167-932-1	01	1	9712-9803	●
200	03.675 HOSE; VAC (B)	8-97208-077-0	01	1	9804-9910	●
200	03.675 HOSE; VAC (B)	8-97240-376-1	01	1	9911-0105	●
200	03.675 HOSE; VAC (B)	8-97310-231-0	01	1	0106-	●
200	03.675 HOSE; VAC EUROPE EQUIPMENT(EK4) (A)	8-97263-257-1	01	1	0106-0208	●
200	03.675 HOSE; VAC EURO3 SPECIFICATION(NT3) (A)	8-97263-257-1	01	1	0209-	●
211	03.671 NUT; VSV 01.062 M6 FLANGE	0-91150-206-0	02	1	9712-0110	●
211	03.671 NUT; VSV 04.594 M6 FLANGE	0-91150-106-0	02	1	0111-	●
278	03.680 BOLT; CLIP 03.611 M10X20 FLANGE	0-28681-020-0	01	1	9712-9901	●
303	03.671 BRACKET; VAC SW	8-97147-337-1	01	1	9712-	●
472	03.671 BOLT; BRKT 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9712-	●
527	03.671 VALVE; VAC SWITCHING 03.670	8-94386-087-0	01	1	9712-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
