0-55 — ECGI SYSTEM OR COMMON RAIL (#43378) — 108 parça

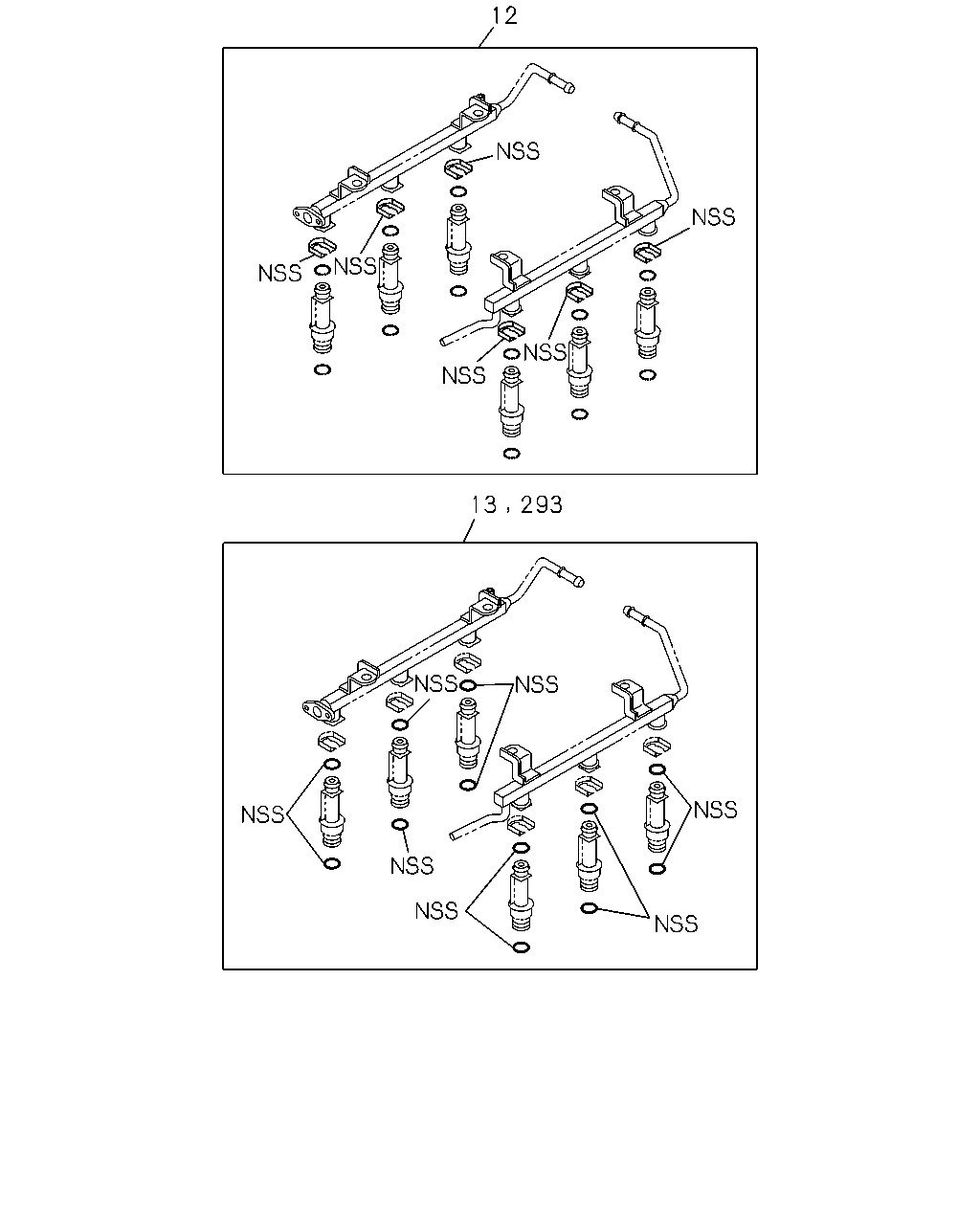

12 13 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.332 CLIP; INJECTOR 1 SET = 6 PIECES	8-17113-401-0	01	1	9712-0304	●	●
12	03.332 CLIP; INJECTOR	8-17113-401-0	06	1	0305-	●	●
13	03.332 GASKET; INJECTOR 03.304 1 SET = 12 PIECES	8-17113-400-0	01	1	9804-0304	●	●
293	03.304 GASKET; FUEL INJECTOR 1 SET = 12 PIECES	8-17113-400-0	01	1	9712-9803	●	●
293	03.304 GASKET; FUEL INJECTOR	8-17113-400-0	06	1	0305-	●	●

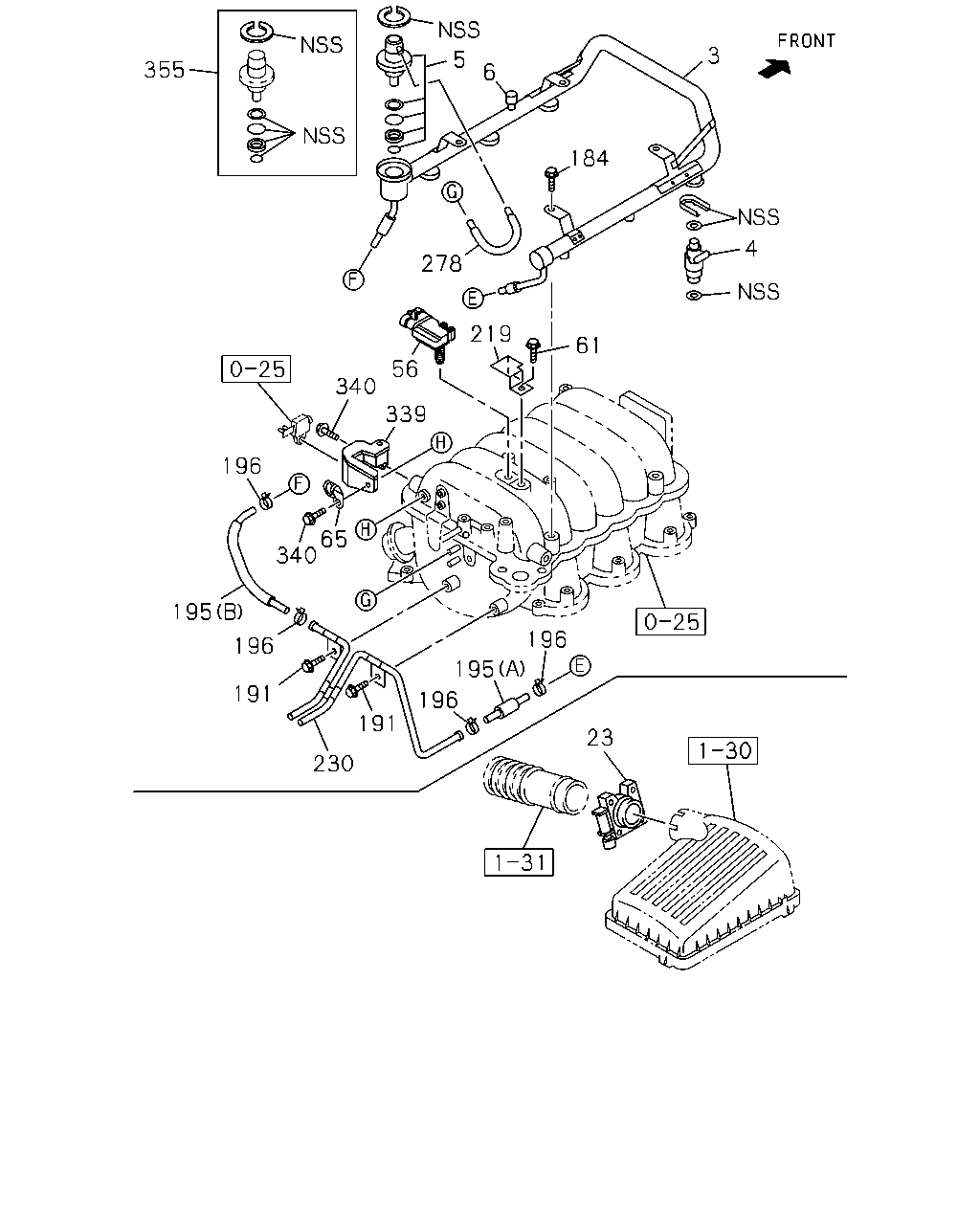

3 5 355 6 184 4 278 219 61 56 340 339 196 65 340 195 196 196 195 191 196 191 23 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	03.330 RAIL; FUEL INJECTOR	8-17113-397-0	01	1	9804-0304	●	●
4	03.332 INJECTOR ASM	8-25166-922-1	06	1	9712-9803	●	●
4	03.332 INJECTOR ASM	8-17113-399-0	06	1	9804-0304	●	●
4	03.332 INJECTOR ASM	8-25166-922-1	06	1	0305-	●	●
5	03.330 REGULATOR; PRESSURE	8-17113-398-0	01	1	9804-0304	●	●
6	03.330 CONNECTOR; PRESSURE	8-17112-556-0	01	1	9804-0304	●	●
23	03.335 METER ASM; AIR FLOW	8-25166-846-1	01	1	9712-	●	●
56	03.320 SENSOR; MAP	8-16212-460-0	01	1	9712-	●	●
61	03.330 BOLT; BRKT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●
65	03.330 CLIP; HOSE 02.559 ID=12	5-09700-331-0	01	1	9712-	●	●
184	03.330 BOLT; FUEL RAIL 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9712-	●	●
191	03.330 BOLT; FUEL PIPE 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●	●
195	03.145 HOSE; RUBBER,FUEL (A) L=106 W/PROTECTOR	8-97116-433-0	01	1	9712-0006	●	●
195	03.145 HOSE; RUBBER,FUEL (A) L=106 W/PROTECTOR	8-97257-804-0	01	1	0007-0203	●	●
195	03.145 HOSE; RUBBER,FUEL (B) L=140 W/PROTECTOR	8-97349-415-0	01	1	0204-	●	●
195	03.145 HOSE; RUBBER,FUEL (B) L=130 W/PROTECTOR	8-97136-350-0	01	1	9712-0203	●	●
195	03.145 HOSE; RUBBER,FUEL (A) L=100 W/PROTECTOR	8-97349-414-0	01	1	0204-	●	●
196	03.145 CLIP; RUBBER HOSE,FUEL 00.034 ID=12 WO/PVC COATING	8-94123-526-1	04	1	9712-	●	●
219	03.306 BRACKET; MAP SENSOR	8-97136-347-2	01	1	9712-	●	●
230	03.330 PIPE; FUEL	8-97136-254-2	01	1	9712-	●	●
278	03.330 HOSE; PRESSURE REG L=200	8-97166-646-2	01	1	9712-	●	●
339	03.330 PROTECTOR; PRESSURE REG	8-97148-718-2	01	1	9712-	●	●
340	03.330 BOLT; PROTECTOR 08.900 M8X16	9-05820-816-0	02	1	9712-0008	●	●
340	03.330 BOLT; PROTECTOR M8X16 HEX SOCKET	0-58310-816-0	02	1	0009-	●	●
355	03.330 RING KIT; PRESSURE REGULATOR	8-17113-393-0	01	1	9804-0304	●	●

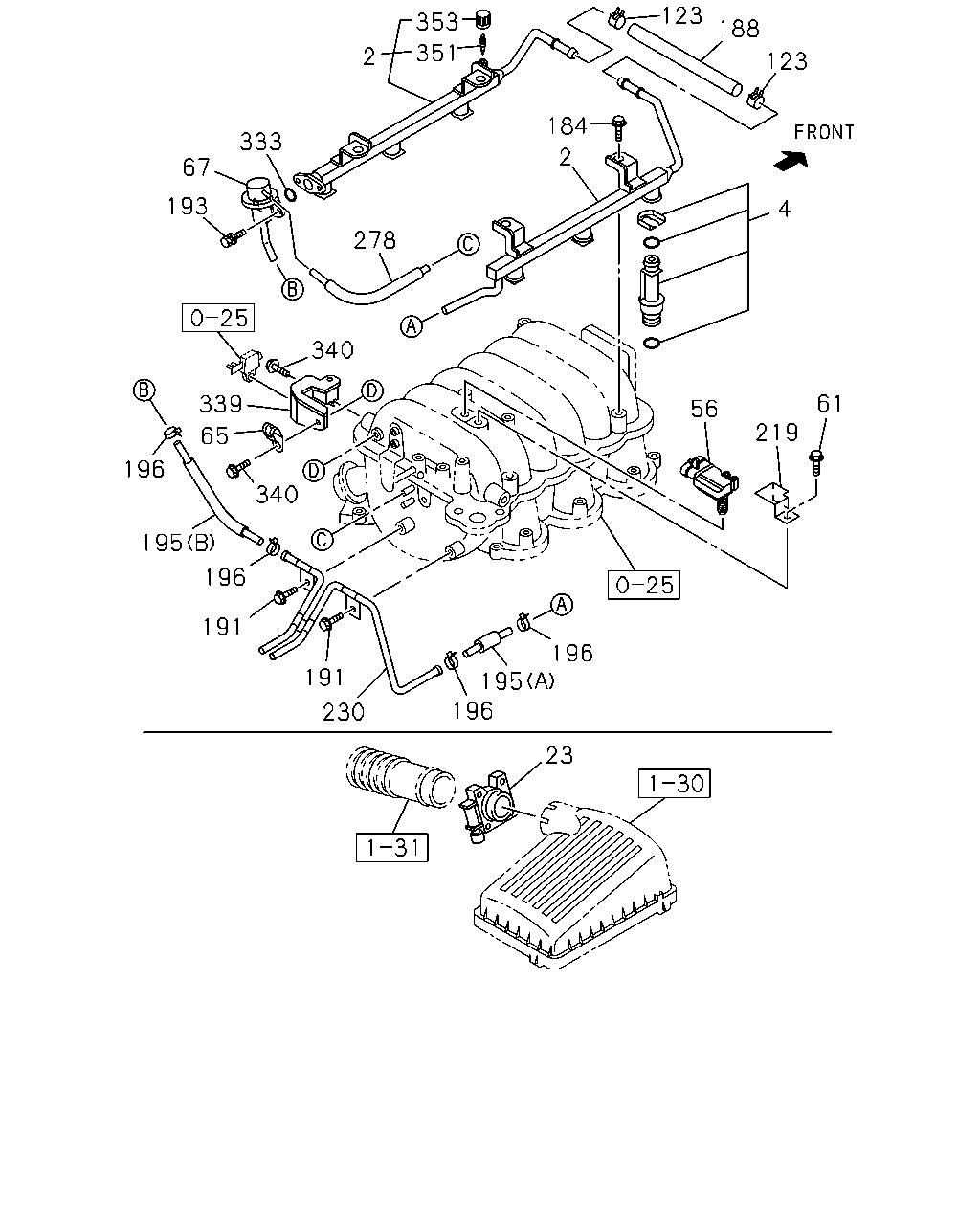

123 353 188 351 2 123 184 333 2 67 193 4 278 340 61 339 56 219 65 196 340 195 196 191 196 191 195 196 230 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.330 RAIL ASM; FUEL,INJECTOR	8-97179-673-1	01	1	9712-9803	●	●
2	03.330 RAIL ASM; FUEL,INJECTOR	8-97179-673-1	01	1	0305-	●	●
2	03.330 RAIL ASM; FUEL,INJECTOR	8-97179-672-1	01	1	9712-9803	●	●
2	03.330 RAIL ASM; FUEL,INJECTOR	8-97351-575-0	01	1	0305-	●	●
4	03.332 INJECTOR ASM	8-25166-922-1	06	1	9712-9803	●	●
4	03.332 INJECTOR ASM	8-17113-399-0	06	1	9804-0304	●	●
4	03.332 INJECTOR ASM	8-25166-922-1	06	1	0305-	●	●
23	03.335 METER ASM; AIR FLOW	8-25166-846-1	01	1	9712-	●	●
56	03.320 SENSOR; MAP	8-16212-460-0	01	1	9712-	●	●
61	03.330 BOLT; BRKT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●
65	03.330 CLIP; HOSE 02.559 ID=12	5-09700-331-0	01	1	9712-	●	●
67	03.330 REGULATOR; PRESSURE	8-97179-585-0	01	1	9712-9803	●	●
67	03.330 REGULATOR; PRESSURE	8-97254-845-0	01	1	0305-	●	●
123	03.901 CLIP; FUEL HOSE 00.034 ID=12 WO/PVC COATING	8-94123-526-0	02	1	9712-9803	●	●
123	03.901 CLIP; FUEL HOSE 00.034 ID=12 WO/PVC COATING	8-94123-526-1	02	1	0305-	●	●
184	03.330 BOLT; FUEL RAIL 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9712-	●	●
188	03.901 HOSE; FUEL 03.163 L=170 SERVICED BY L=3000	0-01558-300-0	01	1	0305-	●	●
188	03.901 HOSE; FUEL L=170 SERVICED BY L=3000	0-01458-300-0	01	1	9712-9803	●	●
191	03.330 BOLT; FUEL PIPE 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●	●
193	03.330 BOLT; PRESSURE REG 14.865 M5X12	8-94386-089-0	02	1	9712-9803	●	●
193	03.330 BOLT; PRESSURE REG 14.865 M5X12	8-94386-089-0	02	1	0305-	●	●
195	03.145 HOSE; RUBBER,FUEL (A) L=106 W/PROTECTOR	8-97116-433-0	01	1	9712-0006	●	●
195	03.145 HOSE; RUBBER,FUEL (A) L=106 W/PROTECTOR	8-97257-804-0	01	1	0007-0203	●	●
195	03.145 HOSE; RUBBER,FUEL (B) L=140 W/PROTECTOR	8-97349-415-0	01	1	0204-	●	●
195	03.145 HOSE; RUBBER,FUEL (B) L=130 W/PROTECTOR	8-97136-350-0	01	1	9712-0203	●	●
195	03.145 HOSE; RUBBER,FUEL (A) L=100 W/PROTECTOR	8-97349-414-0	01	1	0204-	●	●
196	03.145 CLIP; RUBBER HOSE,FUEL 00.034 ID=12 WO/PVC COATING	8-94123-526-1	04	1	9712-	●	●
219	03.306 BRACKET; MAP SENSOR	8-97136-347-2	01	1	9712-	●	●
230	03.330 PIPE; FUEL	8-97136-254-2	01	1	9712-	●	●
278	03.330 HOSE; PRESSURE REG L=200	8-97166-646-2	01	1	9712-	●	●
333	03.304 GASKET; FUEL RETURN	8-97179-766-0	01	1	9712-9803	●	●
333	03.304 GASKET; FUEL RETURN	8-97179-766-0	01	1	0305-	●	●
339	03.330 PROTECTOR; PRESSURE REG	8-97148-718-2	01	1	9712-	●	●
340	03.330 BOLT; PROTECTOR 08.900 M8X16	9-05820-816-0	02	1	9712-0008	●	●
340	03.330 BOLT; PROTECTOR M8X16 HEX SOCKET	0-58310-816-0	02	1	0009-	●	●
351	03.335 VALVE; PRESSURE RELIEF	8-97119-714-0	01	1	9712-9803	●	●
351	03.335 VALVE; PRESSURE RELIEF	8-97119-714-0	01	1	0305-	●	●
353	03.145 CAP; PRESSURE VLV 03.330	8-97119-713-0	01	1	9712-9803	●	●
353	03.145 CAP; PRESSURE VLV 03.330	8-97119-713-0	01	1	0305-	●	●

123 353 188 351 2 123 184 333 2 67 193 4 278 340 61 339 56 219 65 196 340 195 196 191 196 191 195 196 230 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.330 RAIL ASM; FUEL,INJECTOR	8-97179-673-1	01	1	9712-9803	●	●
2	03.330 RAIL ASM; FUEL,INJECTOR	8-97179-673-1	01	1	0305-	●	●
2	03.330 RAIL ASM; FUEL,INJECTOR	8-97179-672-1	01	1	9712-9803	●	●
2	03.330 RAIL ASM; FUEL,INJECTOR	8-97351-575-0	01	1	0305-	●	●
4	03.332 INJECTOR ASM	8-25166-922-1	06	1	9712-9803	●	●
4	03.332 INJECTOR ASM	8-17113-399-0	06	1	9804-0304	●	●
4	03.332 INJECTOR ASM	8-25166-922-1	06	1	0305-	●	●
23	03.335 METER ASM; AIR FLOW	8-25166-846-1	01	1	9712-	●	●
56	03.320 SENSOR; MAP	8-16212-460-0	01	1	9712-	●	●
61	03.330 BOLT; BRKT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-	●	●
65	03.330 CLIP; HOSE 02.559 ID=12	5-09700-331-0	01	1	9712-	●	●
67	03.330 REGULATOR; PRESSURE	8-97179-585-0	01	1	9712-9803	●	●
67	03.330 REGULATOR; PRESSURE	8-97254-845-0	01	1	0305-	●	●
123	03.901 CLIP; FUEL HOSE 00.034 ID=12 WO/PVC COATING	8-94123-526-0	02	1	9712-9803	●	●
123	03.901 CLIP; FUEL HOSE 00.034 ID=12 WO/PVC COATING	8-94123-526-1	02	1	0305-	●	●
184	03.330 BOLT; FUEL RAIL 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9712-	●	●
188	03.901 HOSE; FUEL 03.163 L=170 SERVICED BY L=3000	0-01558-300-0	01	1	0305-	●	●
188	03.901 HOSE; FUEL L=170 SERVICED BY L=3000	0-01458-300-0	01	1	9712-9803	●	●
191	03.330 BOLT; FUEL PIPE 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●	●
193	03.330 BOLT; PRESSURE REG 14.865 M5X12	8-94386-089-0	02	1	9712-9803	●	●
193	03.330 BOLT; PRESSURE REG 14.865 M5X12	8-94386-089-0	02	1	0305-	●	●
195	03.145 HOSE; RUBBER,FUEL (A) L=106 W/PROTECTOR	8-97116-433-0	01	1	9712-0006	●	●
195	03.145 HOSE; RUBBER,FUEL (A) L=106 W/PROTECTOR	8-97257-804-0	01	1	0007-0203	●	●
195	03.145 HOSE; RUBBER,FUEL (B) L=140 W/PROTECTOR	8-97349-415-0	01	1	0204-	●	●
195	03.145 HOSE; RUBBER,FUEL (B) L=130 W/PROTECTOR	8-97136-350-0	01	1	9712-0203	●	●
195	03.145 HOSE; RUBBER,FUEL (A) L=100 W/PROTECTOR	8-97349-414-0	01	1	0204-	●	●
196	03.145 CLIP; RUBBER HOSE,FUEL 00.034 ID=12 WO/PVC COATING	8-94123-526-1	04	1	9712-	●	●
219	03.306 BRACKET; MAP SENSOR	8-97136-347-2	01	1	9712-	●	●
230	03.330 PIPE; FUEL	8-97136-254-2	01	1	9712-	●	●
278	03.330 HOSE; PRESSURE REG L=200	8-97166-646-2	01	1	9712-	●	●
333	03.304 GASKET; FUEL RETURN	8-97179-766-0	01	1	9712-9803	●	●
333	03.304 GASKET; FUEL RETURN	8-97179-766-0	01	1	0305-	●	●
339	03.330 PROTECTOR; PRESSURE REG	8-97148-718-2	01	1	9712-	●	●
340	03.330 BOLT; PROTECTOR 08.900 M8X16	9-05820-816-0	02	1	9712-0008	●	●
340	03.330 BOLT; PROTECTOR M8X16 HEX SOCKET	0-58310-816-0	02	1	0009-	●	●
351	03.335 VALVE; PRESSURE RELIEF	8-97119-714-0	01	1	9712-9803	●	●
351	03.335 VALVE; PRESSURE RELIEF	8-97119-714-0	01	1	0305-	●	●
353	03.145 CAP; PRESSURE VLV 03.330	8-97119-713-0	01	1	9712-9803	●	●
353	03.145 CAP; PRESSURE VLV 03.330	8-97119-713-0	01	1	0305-	●	●
