0-51 — OIL PUMP AND OIL STRAINER (#43376) — 87 parça

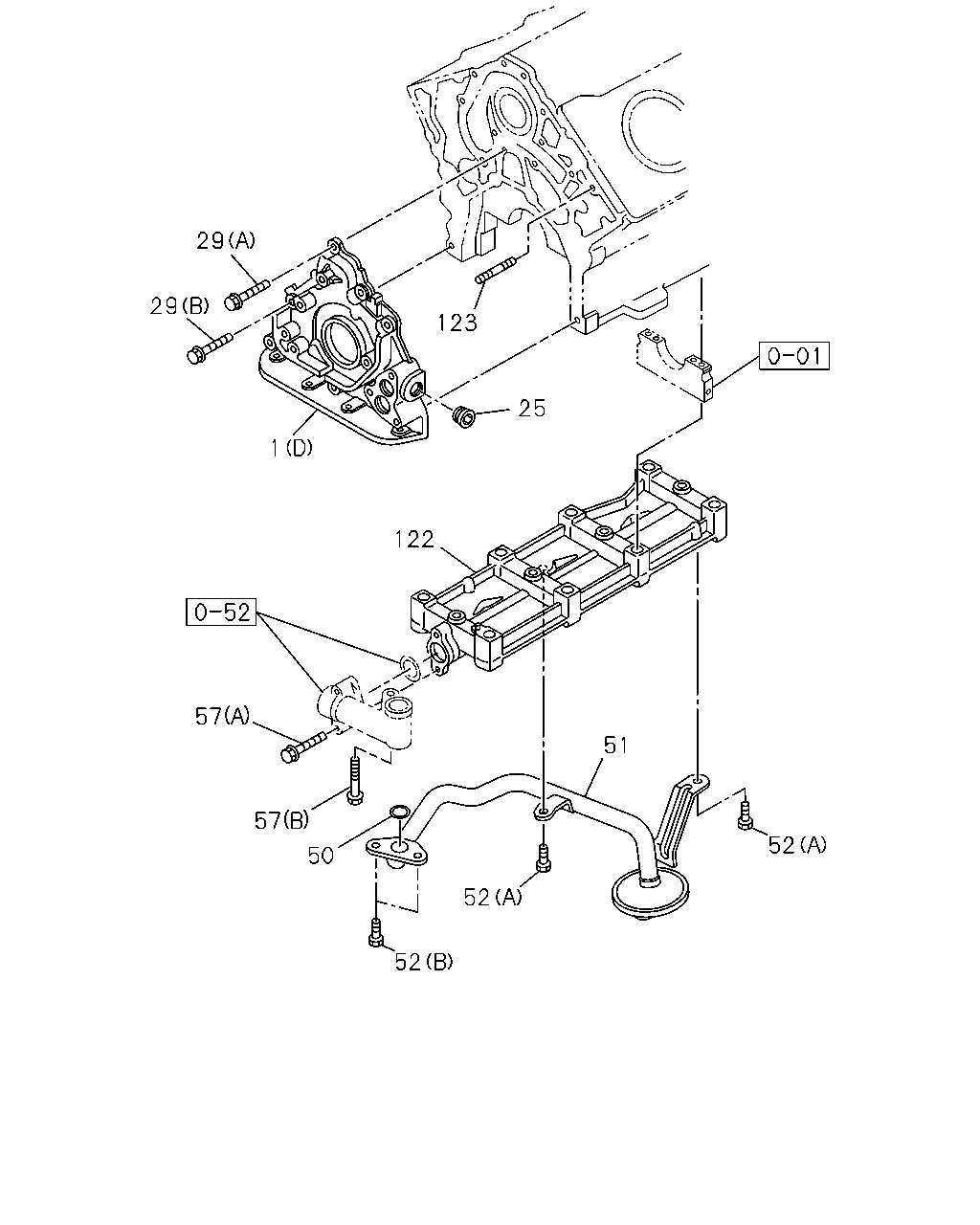

29 29 123 25 1 122 57 51 57 52 50 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.652 PUMP ASM; OIL (C)	8-97033-174-4	01	1	9712-0407	●
1	01.652 PUMP ASM; OIL (C)	8-97385-983-0	01	1	0408-	●
1	01.652 PUMP ASM; OIL (A)	8-97137-043-2	01	1	9712-		●
1	01.652 PUMP ASM; OIL (B)	8-97137-044-1	01	1	9712-		●
1	01.652 PUMP ASM; OIL (D)	8-97136-464-0	01	1	9712-0105			●	●
1	01.652 PUMP ASM; OIL (D)	8-97136-463-0	01	1	0106-			●	●
25	01.609 PLUG; OIL PUMP	8-97063-612-0	01	1	9712-0305			●	●
25	01.609 PLUG; OIL PUMP	8-97063-612-0	02	1	0306-			●	●
29	01.652 BOLT; OIL PUMP 01.531 (C) M8X25 FLANGE	0-28080-825-0	02	1	9712-	●
29	01.652 BOLT; OIL PUMP 02.664 (D) M8X20 FLANGE	0-28680-820-0	08	1	9712-		●
29	01.652 BOLT; OIL PUMP 02.559 (A) M8X25 FLANGE	0-28680-825-0	05	1	9712-			●	●
29	01.652 BOLT; OIL PUMP 04.686 (B) M8X30 FLANGE	0-28680-830-0	01	1	9712-			●	●
50	01.531 GASKET; OIL PIPE,STRAINER TO PUM ALSO INCLUDED IN GASKET SET(ENGINE). W/PLATE ID=18.2	8-94329-964-0	01	1	9712-			●	●
51	01.519 STRAINER & PIPE ASM; OIL	8-97149-340-0	01	1	9712-			●	●
52	01.656 BOLT; OIL PIPE 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9712-			●	●
52	01.656 BOLT; OIL PIPE 07.010 (B) M8X20 FLANGE	0-28080-820-0	02	1	9712-			●	●
57	01.531 BOLT; OIL PIPE (A) M6X35 FLANGE	0-28680-635-0	02	1	9712-			●	●
57	01.531 BOLT; OIL PIPE (B) M6X55 FLANGE	8-97027-257-0	01	1	9712-			●	●
122	01.519 GALLERY; OIL	8-97131-865-0	01	1	9712-0008			●	●
122	01.519 GALLERY; OIL	8-97226-641-0	01	1	0009-			●	●
123	01.060 STUD; FAN BRKT 00.349 M8X65 L=81	9-04020-865-0	01	1	9712-			●	●

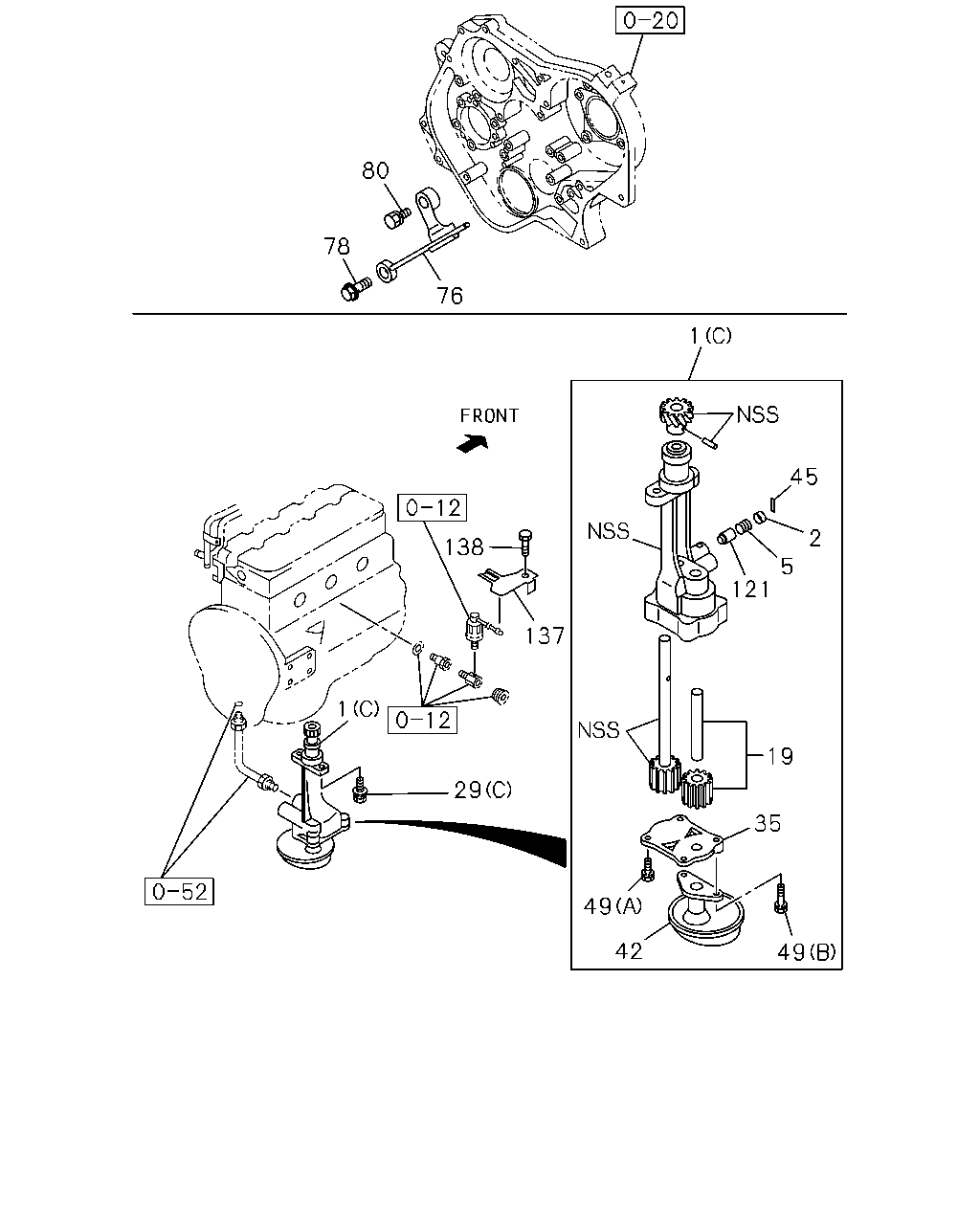

80 78 76 1 45 2 138 5 121 137 1 19 29 35 49 42 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.652 PUMP ASM; OIL (C)	8-97033-174-4	01	1	9712-0407	●
1	01.652 PUMP ASM; OIL (C)	8-97385-983-0	01	1	0408-	●
1	01.652 PUMP ASM; OIL (A)	8-97137-043-2	01	1	9712-		●
1	01.652 PUMP ASM; OIL (B)	8-97137-044-1	01	1	9712-		●
1	01.652 PUMP ASM; OIL (D)	8-97136-464-0	01	1	9712-0105			●	●
1	01.652 PUMP ASM; OIL (D)	8-97136-463-0	01	1	0106-			●	●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9712-	●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9712-	●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	9712-	●
29	01.652 BOLT; OIL PUMP 01.531 (C) M8X25 FLANGE	0-28080-825-0	02	1	9712-	●
29	01.652 BOLT; OIL PUMP 02.664 (D) M8X20 FLANGE	0-28680-820-0	08	1	9712-		●
29	01.652 BOLT; OIL PUMP 02.559 (A) M8X25 FLANGE	0-28680-825-0	05	1	9712-			●	●
29	01.652 BOLT; OIL PUMP 04.686 (B) M8X30 FLANGE	0-28680-830-0	01	1	9712-			●	●
35	01.657 COVER; OIL PUMP	8-97036-830-0	01	1	9712-	●
42	01.656 STRAINER; OIL,OIL PUMP 01.657	8-97036-839-0	01	1	9712-	●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	9712-	●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M8X25 FLANGE	0-28080-825-0	02	1	9712-	●
49	01.531 BOLT; STRAINER,OIL PUMP 03.415 (B) M8X35 FLANGE	0-28080-835-0	02	1	9712-	●
76	01.519 PIPE ASM; OIL	8-97160-706-0	01	1	9712-0212	●
76	01.519 PIPE ASM; OIL	8-97913-292-0	01	1	0301-0301	●
76	01.519 PIPE ASM; OIL	8-97160-706-0	01	1	0301-	●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X23 FLANGE	8-94454-199-0	01	1	9712-	●
80	01.531 BOLT; OIL PIPE FIX 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9712-	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837	8-94235-567-1	01	1	9712-	●
121	01.639 VALVE; RELIEF,OIL PUMP	8-97146-106-1	01	1	9712-		●
137	01.656 BRACKET; OIL PUMP	8-97170-948-0	01	1	9712-	●
138	01.656 BOLT; BRKT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9712-	●

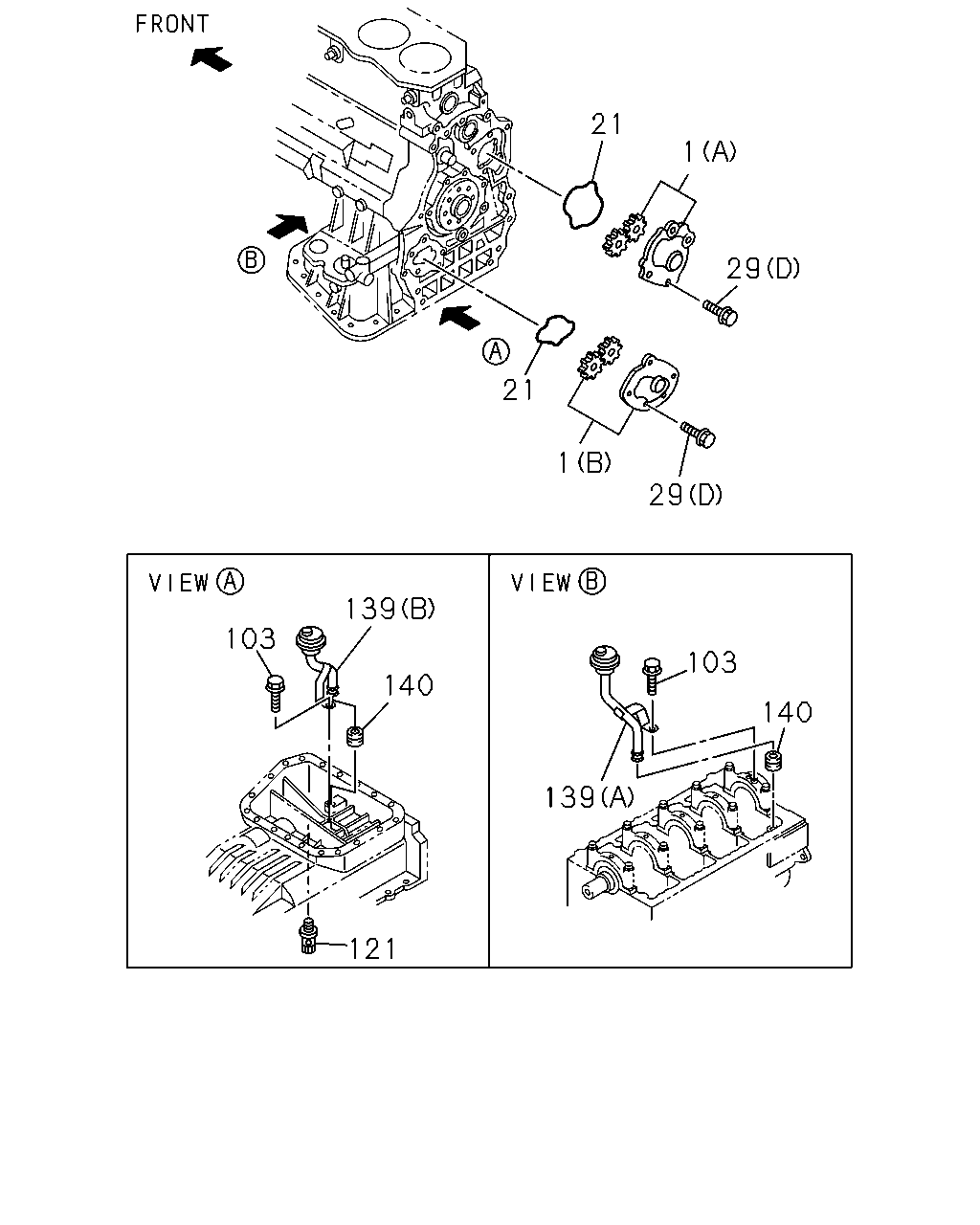

21 1 29 21 1 29 139 103 103 140 140 139 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.652 PUMP ASM; OIL (C)	8-97033-174-4	01	1	9712-0407	●
1	01.652 PUMP ASM; OIL (C)	8-97385-983-0	01	1	0408-	●
1	01.652 PUMP ASM; OIL (A)	8-97137-043-2	01	1	9712-		●
1	01.652 PUMP ASM; OIL (B)	8-97137-044-1	01	1	9712-		●
1	01.652 PUMP ASM; OIL (D)	8-97136-464-0	01	1	9712-0105			●	●
1	01.652 PUMP ASM; OIL (D)	8-97136-463-0	01	1	0106-			●	●
21	01.655 GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97137-797-0	02	1	9712-		●
29	01.652 BOLT; OIL PUMP 01.531 (C) M8X25 FLANGE	0-28080-825-0	02	1	9712-	●
29	01.652 BOLT; OIL PUMP 02.664 (D) M8X20 FLANGE	0-28680-820-0	08	1	9712-		●
29	01.652 BOLT; OIL PUMP 02.559 (A) M8X25 FLANGE	0-28680-825-0	05	1	9712-			●	●
29	01.652 BOLT; OIL PUMP 04.686 (B) M8X30 FLANGE	0-28680-830-0	01	1	9712-			●	●
103	01.656 BOLT; STRAINER 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9712-		●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837	8-94235-567-1	01	1	9712-	●
121	01.639 VALVE; RELIEF,OIL PUMP	8-97146-106-1	01	1	9712-		●
139	01.639 PIPE; OIL STRAINER (A)	8-97137-036-3	01	1	9712-9912		●
139	01.639 PIPE; OIL STRAINER (A)	8-97241-062-0	01	1	0001-0006		●
139	01.639 PIPE; OIL STRAINER (A)	8-97260-856-0	01	1	0007-		●
139	01.639 PIPE; OIL STRAINER (B)	8-97167-118-2	01	1	9712-9912		●
139	01.639 PIPE; OIL STRAINER (B)	8-97241-063-0	01	1	0001-0108		●
139	01.639 PIPE; OIL STRAINER (B)	8-97322-614-0	01	1	0109-0205		●
139	01.639 PIPE; OIL STRAINER (B)	8-97352-153-0	01	1	0206-0206		●
139	01.639 PIPE; OIL STRAINER (B)	8-97352-613-0	01	1	0206-		●
140	01.639 GASKET; OIL STRAINER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97137-798-0	02	1	9712-		●

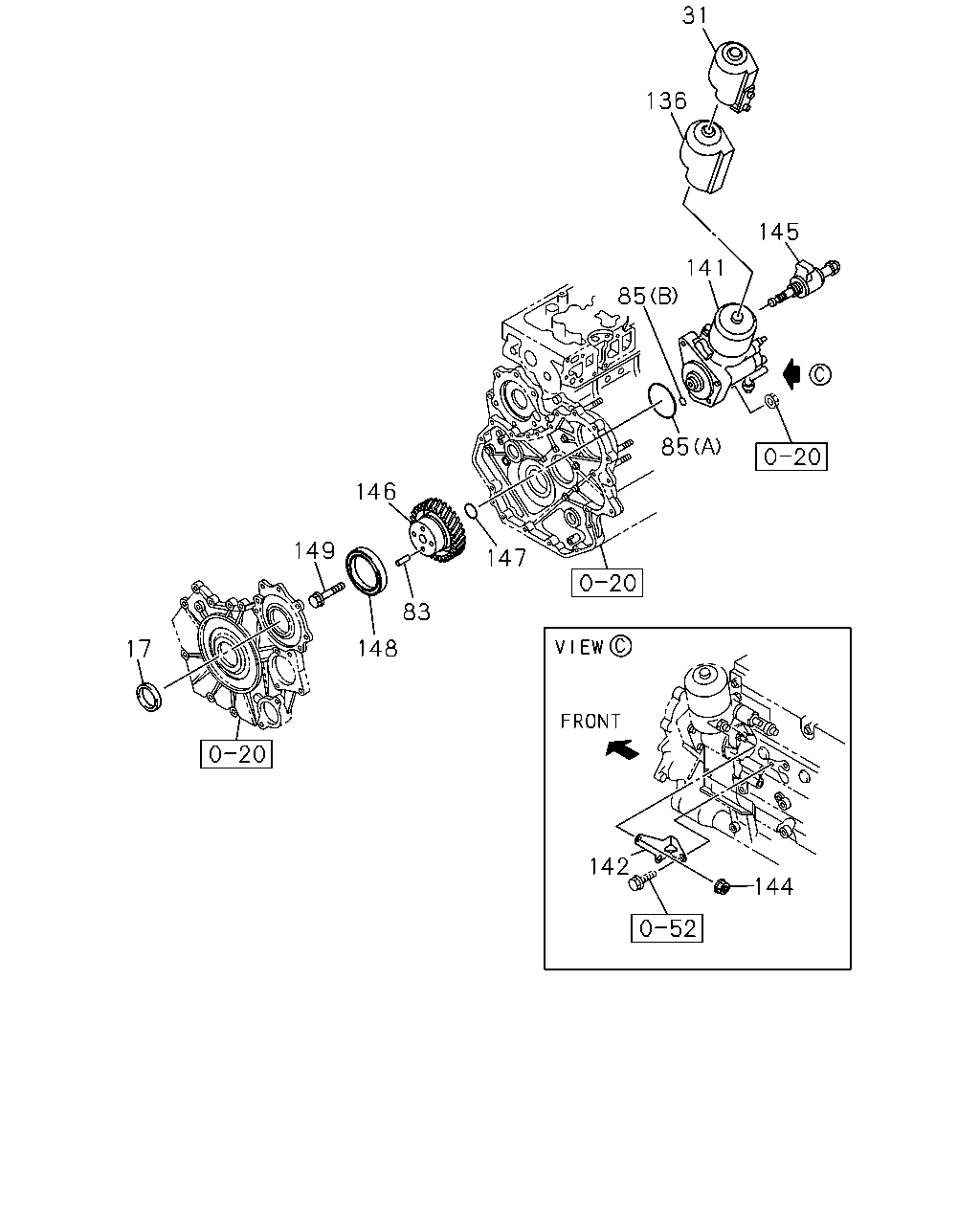

31 136 145 141 85 85 146 149 147 83 148 17 142 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
17	01.657 SEAL; OIL,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 00.213	8-97049-145-0	01	1	9712-0206	●
17	01.657 SEAL; OIL,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 00.213	8-97351-704-0	01	1	0207-	●
31	01.657 COVER; OIL PUMP	8-97178-424-2	01	1	9712-9908	●
83	01.639 PIN; KNOCK 08.939 OD=4 L=12	9-08160-412-0	01	1	9712-	●
85	01.655 GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	5-09623-078-0	01	1	9712-0102	●
85	01.655 GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97300-677-0	01	1	0103-	●
85	01.655 GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97250-368-0	01	1	9712-	●
136	01.639 RUBBER; SPACE,OIL PUMP	8-97178-467-2	01	1	9712-9908	●
141	01.639 PUMP; OIL,INJECTOR	8-97210-322-0	01	1	9712-	●
142	01.639 BRACKET; OIL PUMP	8-97137-040-1	01	1	9712-	●
144	01.639 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●
145	01.639 VALVE; RAIL PRESS CONT	8-97174-872-0	01	1	9712-	●
146	01.639 GEAR; OIL PUMP	8-97173-780-1	01	1	9712-	●
147	01.639 GASKET; GEAR,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-486-0	01	1	9712-	●
148	01.639 BEARING; OIL PUMP	8-97167-903-0	01	1	9712-	●
149	01.639 BOLT; GEAR,OIL PUMP M12X50 FLANGE	0-28191-250-0	01	1	9712-	●
