◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶

0-50 — OIL COOLER AND OIL FILTER (#43375) — 133 parça

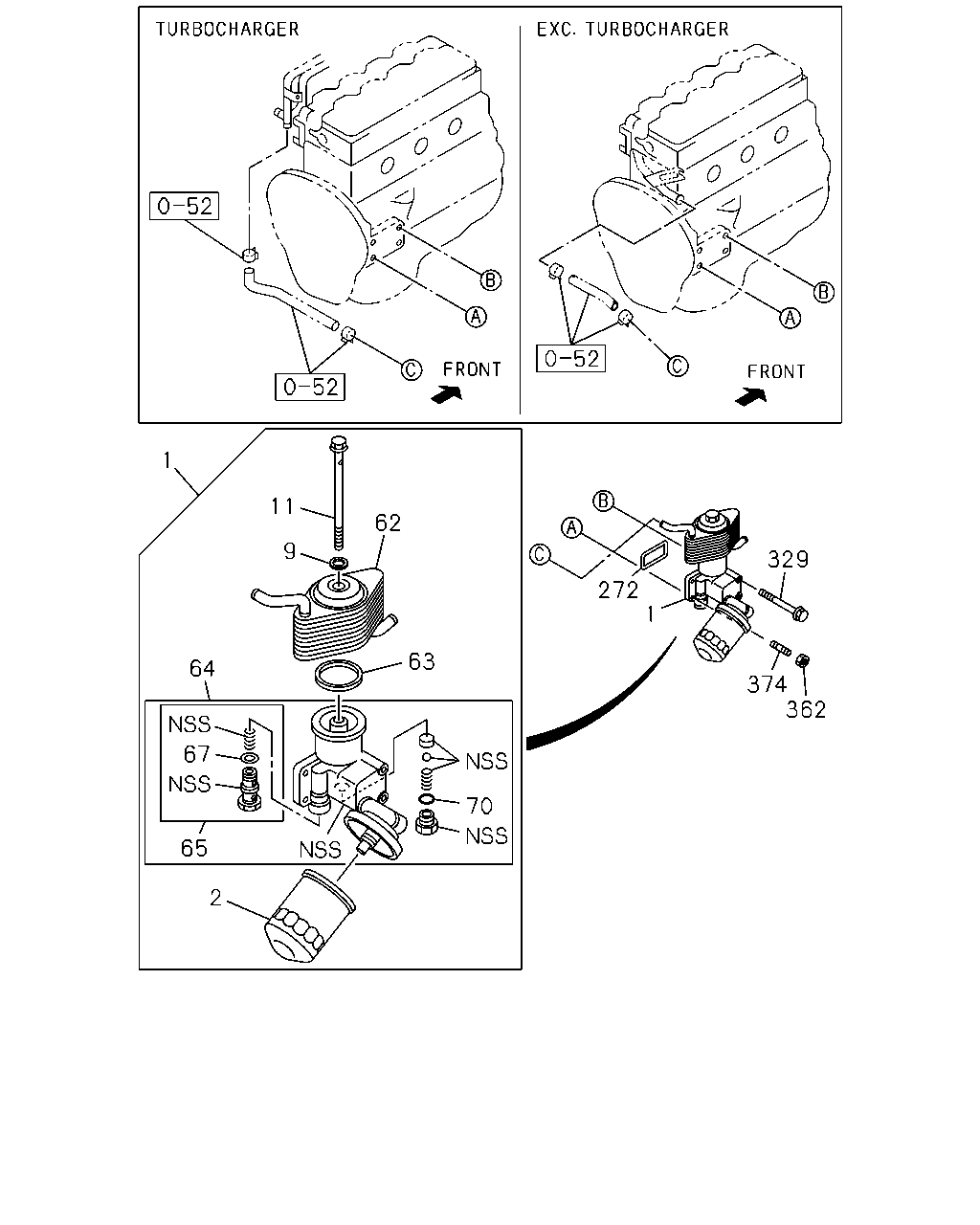

1 11 62 9 329 272 1 63 64 374 362 67 70 65 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.540 FILTER & COOLER ASM; OIL TURBOCHARGER<K51>	8-97069-792-2	01	1	9712-0212	●
1	01.540 FILTER & COOLER ASM; OIL TURBOCHARGER<K51>	8-97351-570-2	01	1	0301-	●
1	01.540 FILTER & COOLER ASM; OIL EXC. TURBOCHARGER<K51>	8-97086-425-2	01	1	9712-0212	●
1	01.540 FILTER & COOLER ASM; OIL EXC. TURBOCHARGER<K51>	8-97147-982-3	01	1	0301-0406	●
1	01.540 FILTER & COOLER ASM; OIL EXC. TURBOCHARGER<K51>	8-97381-662-0	01	1	0407-	●
1	01.540 FILTER & COOLER ASM; OIL	8-97137-805-6	01	1	9712-0105		●
1	01.540 FILTER & COOLER ASM; OIL EXC. EUROPE EQUIPMENT(EK4)	8-97137-805-6	01	1	0106-0110		●
1	01.540 FILTER & COOLER ASM; OIL EUROPE EQUIPMENT(EK4)	8-97254-841-0	01	1	0106-0110		●
1	01.540 FILTER & COOLER ASM; OIL	8-97254-841-0	01	1	0111-		●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51>	8-97329-911-0	01	1	0205-	●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51>	8-94340-697-1	01	1	9712-0005	●
2	01.836 ELEMENT; OIL FILTER	8-94340-697-1	01	1	0006-0204	●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>	8-94340-697-1	01	1	0205-0206	●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51> 01.826	8-97301-752-0	01	1	0207-	●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>	8-94360-427-1	01	1	9712-0005	●
2	01.836 ELEMENT; OIL FILTER	8-97167-972-0	01	1	9712-		●
2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	9712-			●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97047-000-0	01	1	9712-	●	●
11	01.840 BOLT; CENTER EXC. TURBOCHARGER<K51>	8-97144-713-0	01	1	0301-	●
11	01.840 BOLT; CENTER TURBOCHARGER<K51>	8-97046-999-1	01	1	9712-0212	●
11	01.840 BOLT; CENTER EXC. TURBOCHARGER<K51>	8-97094-724-1	01	1	9712-0212	●
11	01.840 BOLT; CENTER	8-97094-724-1	01	1	0301-0301	●
11	01.840 BOLT; CENTER TURBOCHARGER<K51>	8-97094-724-1	01	1	0301-	●
11	01.840 BOLT; CENTER	8-97181-514-0	01	1	9712-		●
62	01.540 COOLER ASM; OIL TURBOCHARGER<K51>	8-97078-376-1	01	1	9712-0212	●
62	01.540 COOLER ASM; OIL TURBOCHARGER<K51>	8-97367-198-0	01	1	0301-0305	●
62	01.540 COOLER ASM; OIL TURBOCHARGER<K51>	8-97369-679-0	01	1	0306-	●
62	01.540 COOLER ASM; OIL EXC. TURBOCHARGER<K51>	8-97094-665-1	01	1	9712-0212	●
62	01.540 COOLER ASM; OIL EXC. TURBOCHARGER<K51>	8-97167-646-1	01	1	0301-0406	●
62	01.540 COOLER ASM; OIL EXC. TURBOCHARGER<K51>	8-97383-282-0	01	1	0407-	●
62	01.540 COOLER ASM; OIL	8-97188-116-0	01	1	9712-0105		●
62	01.540 COOLER ASM; OIL EXC. EUROPE EQUIPMENT(EK4)	8-97188-116-0	01	1	0106-0110		●
62	01.540 COOLER ASM; OIL EUROPE EQUIPMENT(EK4)	8-97313-462-0	01	1	0106-0110		●
62	01.540 COOLER ASM; OIL	8-97313-462-0	01	1	0111-		●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	9712-	●	●
64	01.540 BODY; OIL FILTER & OIL COOLER EXC. TURBOCHARGER<K51>	8-97167-644-0	01	1	0301-	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97078-377-1	01	1	9712-0212	●
64	01.540 BODY; OIL FILTER & OIL COOLER TURBOCHARGER<K51>	8-97078-377-1	01	1	0301-	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97181-450-0	01	1	9712-		●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	9712-	●	●
67	01.550 GASKET; VLV EXC. TURBOCHARGER<K51> 01.837	9-09920-975-0	01	1	9712-9904	●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	9712-9904		●
67	01.550 GASKET; VLV EXC. TURBOCHARGER<K51> 01.837	9-09920-975-0	01	1	9905-	●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	9905-		●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	9712-	●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	9712-	●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 W/PLATE ID=18.2	8-94329-964-0	02	1	9712-			●	●
329	01.840 BOLT; OIL FILTER 01.062 M8X100 W/LK WASHER	0-50040-800-0	02	1	9712-9906	●
329	01.840 BOLT; OIL FILTER 01.062 M8X95 FLANGE	1-09044-075-1	02	1	9907-	●
362	01.837 NUT; OIL FILTER 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●	●
374	01.840 STUD; OIL FILTER 03.901 M8X25 L=37	9-04110-825-0	02	1	9712-	●	●

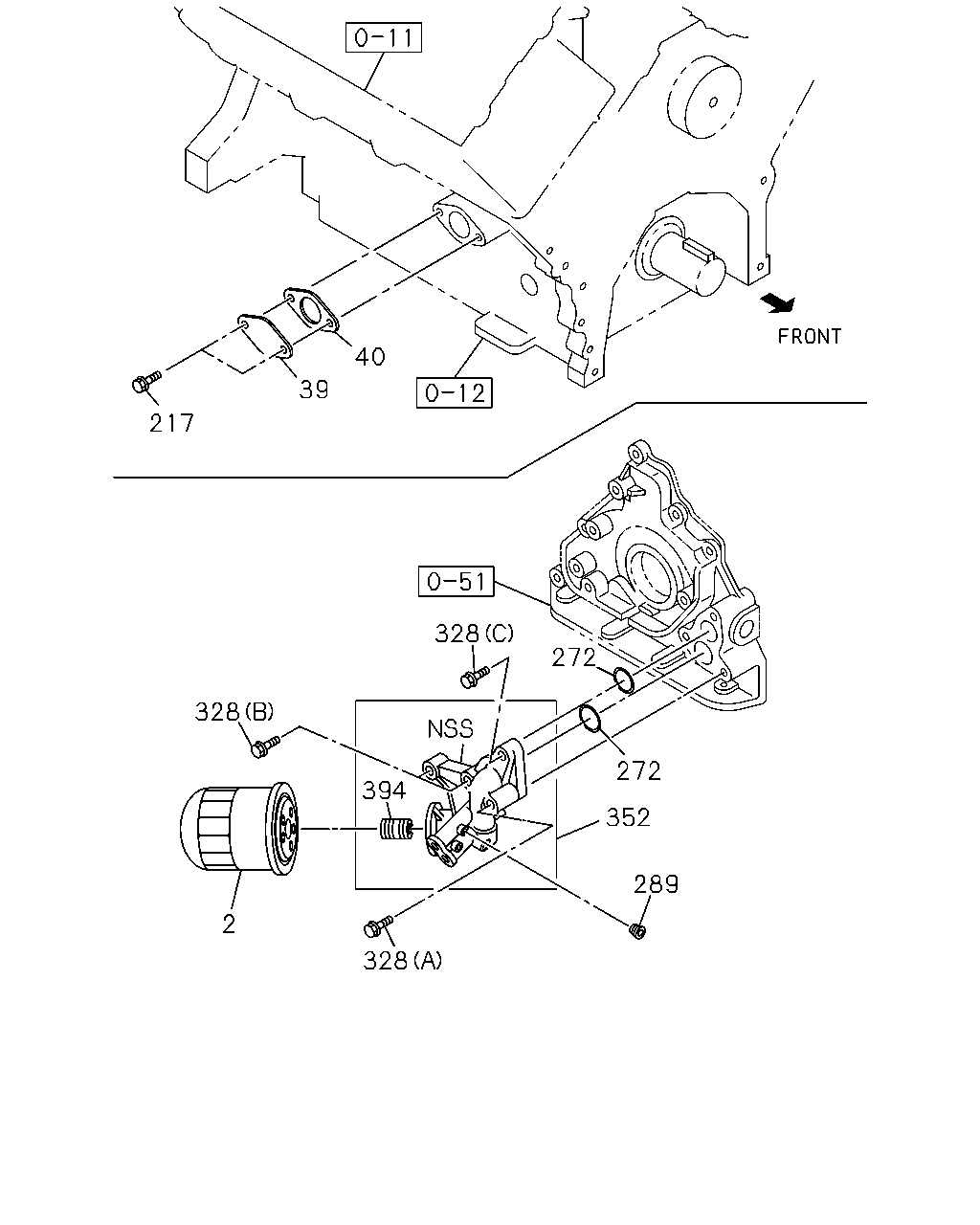

40 39 217 328 272 328 272 394 352 289 2 328

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51>	8-97329-911-0	01	1	0205-	●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51>	8-94340-697-1	01	1	9712-0005	●
2	01.836 ELEMENT; OIL FILTER	8-94340-697-1	01	1	0006-0204	●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>	8-94340-697-1	01	1	0205-0206	●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51> 01.826	8-97301-752-0	01	1	0207-	●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>	8-94360-427-1	01	1	9712-0005	●
2	01.836 ELEMENT; OIL FILTER	8-97167-972-0	01	1	9712-		●
2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	9712-			●	●
39	01.540 COVER; OIL COOLER	8-97031-507-1	01	1	9712-			●	●
40	01.550 GASKET; COVER TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97031-084-0	01	1	9712-			●	●
217	01.540 BOLT; CONNECTOR 00.738 M6X16 FLANGE	0-28080-616-0	02	1	9712-			●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	9712-	●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 W/PLATE ID=18.2	8-94329-964-0	02	1	9712-			●	●
289	01.840 PLUG; ADAPTER A/T THM(RMQ) TORQUE ON DEMAND<7HA> EUROPE EQUIPMENT(EK4) 01.531 PT1/8	1-09605-050-0	01	1	9909-0005			●
289	01.840 PLUG; ADAPTER A/T THM(RMQ) TORQUE ON DEMAND<7HA> EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 01.531 PT1/8	1-09605-050-0	01	1	0006-			●
328	01.840 BOLT; OIL FILTER 03.278 (A) M8X100 FLANGE	0-28080-800-0	01	1	9712-			●	●
328	01.840 BOLT; OIL FILTER 01.540 (B) M8X45 FLANGE	0-28080-845-0	02	1	9712-			●	●
328	01.840 BOLT; OIL FILTER (C) M8X70 FLANGE	0-28080-870-0	01	1	9712-			●	●
352	01.840 ADAPTER; OIL FILTER	8-97149-343-2	01	1	9712-			●	●
394	01.837 STUD; OIL FILTER	8-97022-473-0	01	1	9712-			●	●

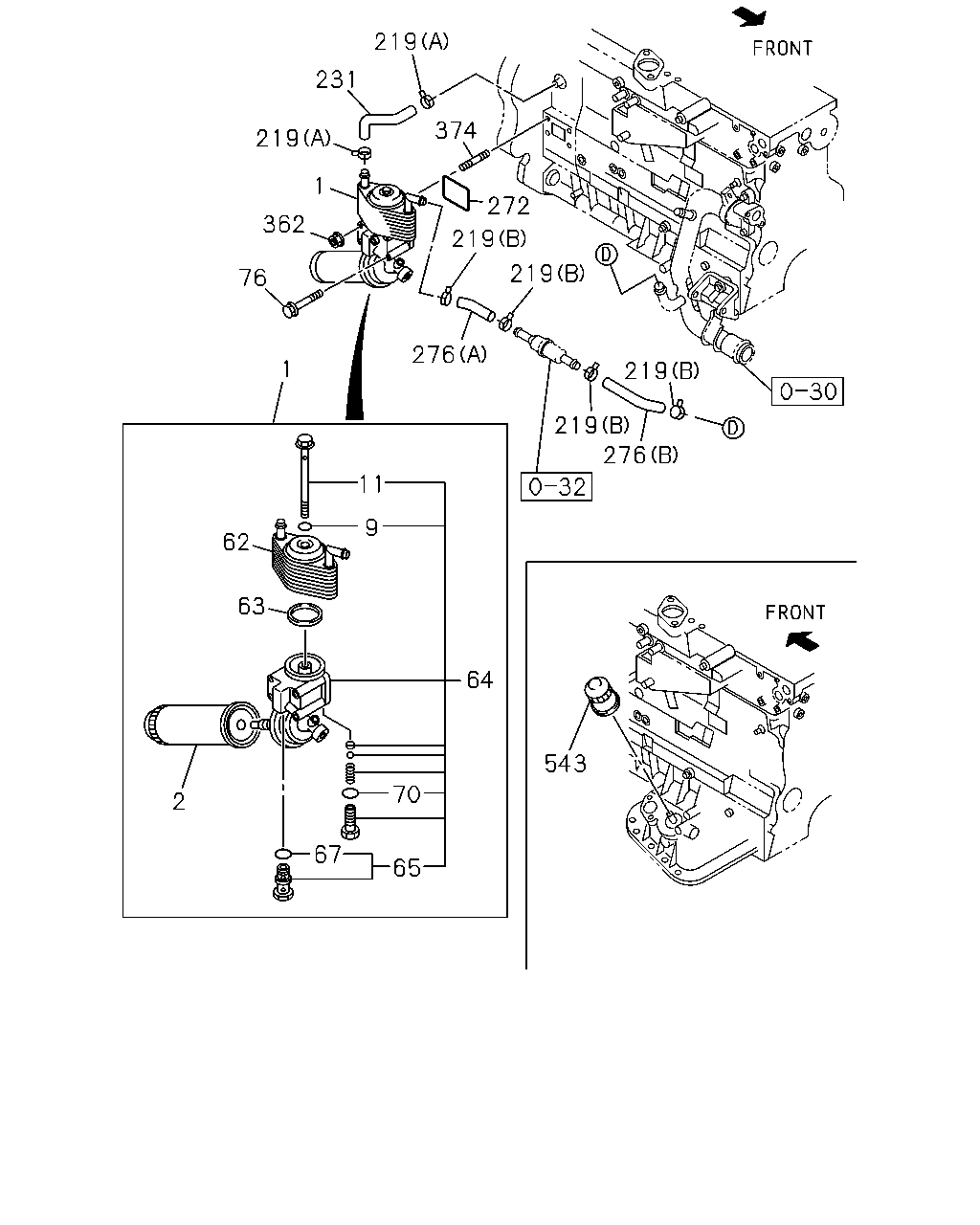

219 231 374 219 1 272 362 219 219 76 276 1 219 219 276 11 9 62 63 64 543 70 2 67 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.540 FILTER & COOLER ASM; OIL TURBOCHARGER<K51>	8-97069-792-2	01	1	9712-0212	●
1	01.540 FILTER & COOLER ASM; OIL TURBOCHARGER<K51>	8-97351-570-2	01	1	0301-	●
1	01.540 FILTER & COOLER ASM; OIL EXC. TURBOCHARGER<K51>	8-97086-425-2	01	1	9712-0212	●
1	01.540 FILTER & COOLER ASM; OIL EXC. TURBOCHARGER<K51>	8-97147-982-3	01	1	0301-0406	●
1	01.540 FILTER & COOLER ASM; OIL EXC. TURBOCHARGER<K51>	8-97381-662-0	01	1	0407-	●
1	01.540 FILTER & COOLER ASM; OIL	8-97137-805-6	01	1	9712-0105		●
1	01.540 FILTER & COOLER ASM; OIL EXC. EUROPE EQUIPMENT(EK4)	8-97137-805-6	01	1	0106-0110		●
1	01.540 FILTER & COOLER ASM; OIL EUROPE EQUIPMENT(EK4)	8-97254-841-0	01	1	0106-0110		●
1	01.540 FILTER & COOLER ASM; OIL	8-97254-841-0	01	1	0111-		●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51>	8-97329-911-0	01	1	0205-	●
2	01.836 ELEMENT; OIL FILTER TURBOCHARGER<K51>	8-94340-697-1	01	1	9712-0005	●
2	01.836 ELEMENT; OIL FILTER	8-94340-697-1	01	1	0006-0204	●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>	8-94340-697-1	01	1	0205-0206	●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51> 01.826	8-97301-752-0	01	1	0207-	●
2	01.836 ELEMENT; OIL FILTER EXC. TURBOCHARGER<K51>	8-94360-427-1	01	1	9712-0005	●
2	01.836 ELEMENT; OIL FILTER	8-97167-972-0	01	1	9712-		●
2	01.836 ELEMENT; OIL FILTER	8-94456-741-2	01	1	9712-			●	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97047-000-0	01	1	9712-	●	●
11	01.840 BOLT; CENTER EXC. TURBOCHARGER<K51>	8-97144-713-0	01	1	0301-	●
11	01.840 BOLT; CENTER TURBOCHARGER<K51>	8-97046-999-1	01	1	9712-0212	●
11	01.840 BOLT; CENTER EXC. TURBOCHARGER<K51>	8-97094-724-1	01	1	9712-0212	●
11	01.840 BOLT; CENTER	8-97094-724-1	01	1	0301-0301	●
11	01.840 BOLT; CENTER TURBOCHARGER<K51>	8-97094-724-1	01	1	0301-	●
11	01.840 BOLT; CENTER	8-97181-514-0	01	1	9712-		●
62	01.540 COOLER ASM; OIL TURBOCHARGER<K51>	8-97078-376-1	01	1	9712-0212	●
62	01.540 COOLER ASM; OIL TURBOCHARGER<K51>	8-97367-198-0	01	1	0301-0305	●
62	01.540 COOLER ASM; OIL TURBOCHARGER<K51>	8-97369-679-0	01	1	0306-	●
62	01.540 COOLER ASM; OIL EXC. TURBOCHARGER<K51>	8-97094-665-1	01	1	9712-0212	●
62	01.540 COOLER ASM; OIL EXC. TURBOCHARGER<K51>	8-97167-646-1	01	1	0301-0406	●
62	01.540 COOLER ASM; OIL EXC. TURBOCHARGER<K51>	8-97383-282-0	01	1	0407-	●
62	01.540 COOLER ASM; OIL	8-97188-116-0	01	1	9712-0105		●
62	01.540 COOLER ASM; OIL EXC. EUROPE EQUIPMENT(EK4)	8-97188-116-0	01	1	0106-0110		●
62	01.540 COOLER ASM; OIL EUROPE EQUIPMENT(EK4)	8-97313-462-0	01	1	0106-0110		●
62	01.540 COOLER ASM; OIL	8-97313-462-0	01	1	0111-		●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	9712-	●	●
64	01.540 BODY; OIL FILTER & OIL COOLER EXC. TURBOCHARGER<K51>	8-97167-644-0	01	1	0301-	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97078-377-1	01	1	9712-0212	●
64	01.540 BODY; OIL FILTER & OIL COOLER TURBOCHARGER<K51>	8-97078-377-1	01	1	0301-	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97181-450-0	01	1	9712-		●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	9712-	●	●
67	01.550 GASKET; VLV EXC. TURBOCHARGER<K51> 01.837	9-09920-975-0	01	1	9712-9904	●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	9712-9904		●
67	01.550 GASKET; VLV EXC. TURBOCHARGER<K51> 01.837	9-09920-975-0	01	1	9905-	●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	9905-		●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	9712-	●	●
76	01.840 BOLT; OIL FILTER 03.278 M8X100 FLANGE	0-28080-800-0	02	1	9712-		●
219	01.540 CLIP; HOSE,OIL COOLER 01.516 (A) ID=17	1-09707-158-0	02	1	9712-9801		●
219	01.540 CLIP; HOSE,OIL COOLER 04.681 (A) ID=15.5	8-94367-944-0	02	1	9802-		●
219	01.540 CLIP; HOSE,OIL COOLER 01.166 (B) ID=20.8	8-94125-862-0	04	1	9712-9802		●
219	01.540 CLIP; HOSE,OIL COOLER 08.846 (B) ID=22	8-94382-401-0	04	1	9803-		●
231	01.540 HOSE; WATER,OIL COOLER OUT	8-97139-176-1	01	1	9712-0105		●
231	01.540 HOSE; WATER,OIL COOLER OUT EXC. EUROPE EQUIPMENT(EK4)	8-97139-176-1	01	1	0106-0110		●
231	01.540 HOSE; WATER,OIL COOLER OUT EUROPE EQUIPMENT(EK4)	8-97254-976-0	01	1	0106-0110		●
231	01.540 HOSE; WATER,OIL COOLER OUT	8-97254-976-0	01	1	0111-		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	9712-	●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 W/PLATE ID=18.2	8-94329-964-0	02	1	9712-			●	●
276	01.540 HOSE; COOLER RETURN (A)	8-97186-514-1	01	1	9712-		●
276	01.540 HOSE; COOLER RETURN (B)	8-97186-515-2	01	1	9712-		●
362	01.837 NUT; OIL FILTER 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●	●
374	01.840 STUD; OIL FILTER 03.901 M8X25 L=37	9-04110-825-0	02	1	9712-	●	●
543	01.836 FILTER; SUB	8-97167-973-1	01	1	9712-9802		●
543	01.836 FILTER; SUB	8-97209-306-2	01	1	9803-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
