0-45 — EVAPORATOR SYSTEM; ENGINE (#43374) — 81 parça

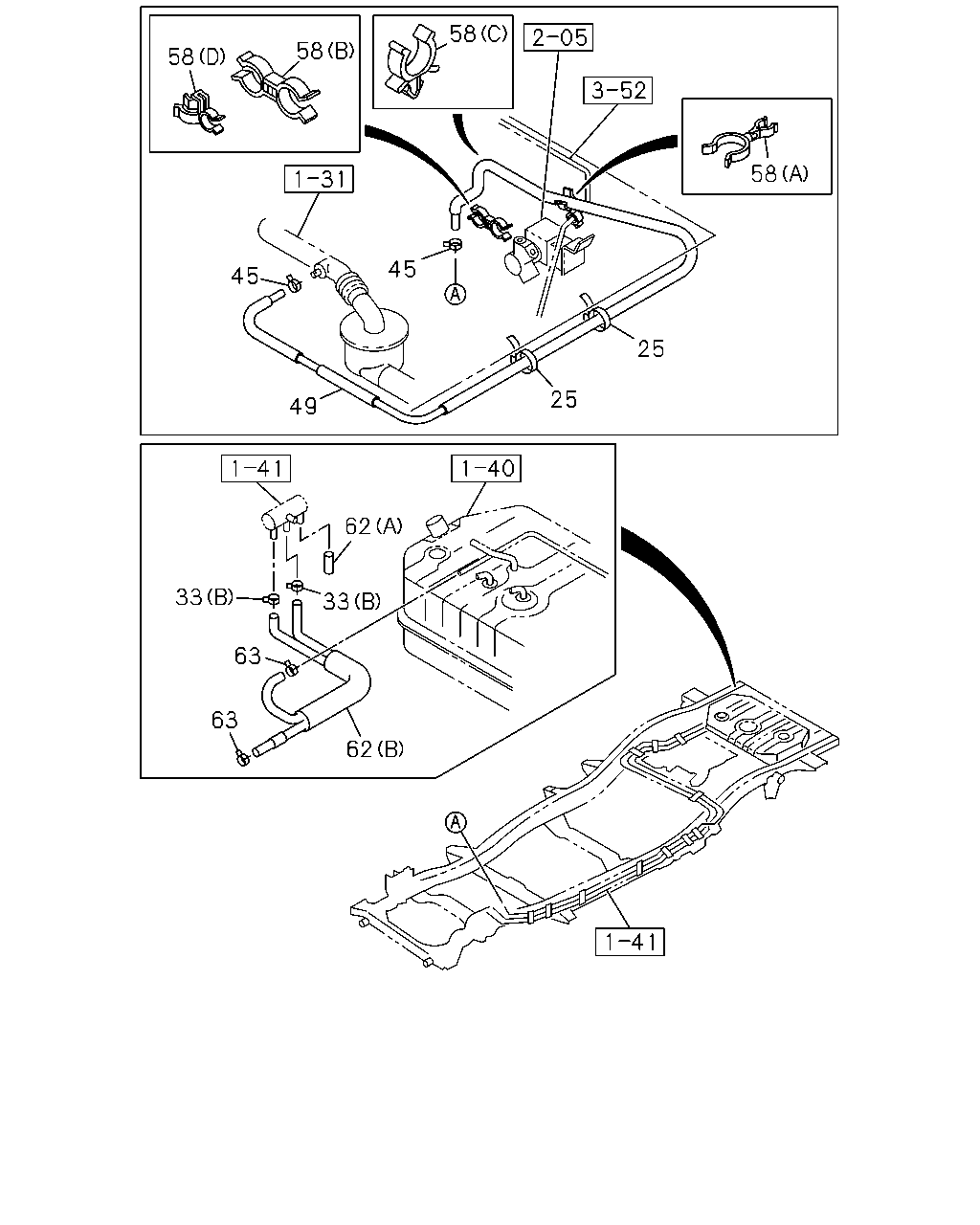

58 58 58 58 45 45 25 25 49 62 33 33 63 63 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	03.162 CLIP; BAND,RUB HOSE,FUEL EUROPE EQUIPMENT(EK4) L=140	5-09707-031-0	02	1	9712-9712	●
25	03.162 CLIP; BAND,RUB HOSE,FUEL EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) L=140	5-09707-031-1	02	1	9801-0005	●	●
25	03.162 CLIP; BAND,RUB HOSE,FUEL EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) L=140	5-09707-031-1	02	1	0006-0007	●	●
25	03.162 CLIP; BAND,RUB HOSE,FUEL EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) L=140	5-09707-031-1	02	1	0008-0211	●	●
33	03.162 CLIP; EVAP HOSE EUROPE EQUIPMENT(EK4) 03.163 (B) ID=11	8-97173-219-0	02	1	9712-9712	●
33	03.162 CLIP; EVAP HOSE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 03.163 (B) ID=11	8-97173-219-0	02	1	9801-0005	●	●
33	03.162 CLIP; EVAP HOSE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) 03.163 (B) ID=11	8-97173-219-0	02	1	0006-0007	●	●
33	03.162 CLIP; EVAP HOSE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) 03.163 (B) ID=11	8-97173-219-0	02	1	0008-0211	●	●
33	03.162 CLIP; EVAP HOSE 03.163 (B) ID=11	8-97173-219-0	02	1	0212-			●	●
33	03.162 CLIP; EVAP HOSE 03.163 (B) ID=11	8-97173-219-0	04	1	9712-			●	●
33	03.162 CLIP; EVAP HOSE 03.003 (A)	8-97022-315-0	01	1	0006-			●	●
45	03.417 CLIP; HOSE,PURGE SIGNAL EUROPE EQUIPMENT(EK4) 03.163 ID=11	8-97173-219-0	02	1	9712-9712	●
45	03.417 CLIP; HOSE,PURGE SIGNAL EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 03.163 ID=11	8-97173-219-0	02	1	9801-0005	●	●
45	03.417 CLIP; HOSE,PURGE SIGNAL EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) 03.163 ID=11	8-97173-219-0	02	1	0006-0007	●	●
45	03.417 CLIP; HOSE,PURGE SIGNAL EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) 03.163 ID=11	8-97173-219-0	02	1	0008-0211	●	●
49	03.120 HOSE; EVAP,AIR CLEANER ARGENTINA EQUIPMENT(7SZ)	8-97212-779-1	01	1	9903-9908		●
49	03.120 HOSE; EVAP,AIR CLEANER ARGENTINA EQUIPMENT(7SZ)	8-97231-964-0	01	1	9909-9909		●
49	03.120 HOSE; EVAP,AIR CLEANER ARGENTINA EQUIPMENT(7SZ)	8-97233-940-0	01	1	9909-0005		●
49	03.120 HOSE; EVAP,AIR CLEANER NICARAGUA EQUIPMENT(R5N)	8-97233-940-0	01	1	0006-0211		●
49	03.120 HOSE; EVAP,AIR CLEANER EUROPE EQUIPMENT(EK4)	8-97212-780-1	01	1	9903-9908	●
49	03.120 HOSE; EVAP,AIR CLEANER EUROPE EQUIPMENT(EK4)	8-97231-965-0	01	1	9909-9909	●
49	03.120 HOSE; EVAP,AIR CLEANER EUROPE EQUIPMENT(EK4)	8-97233-941-0	01	1	9909-0005	●
49	03.120 HOSE; EVAP,AIR CLEANER EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ)	8-97233-941-0	01	1	0006-0007	●
49	03.120 HOSE; EVAP,AIR CLEANER EUROPE EQUIPMENT(EK4),PHILIPPINE EQUIPMENT(S2U),ARGENTINA EQUIPMENT(7SZ)	8-97233-941-0	01	1	0008-0211	●
58	03.145 CLIP; EVAP PIPE A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) 06.672 (C) ID=17	8-94382-792-1	01	1	9909-0005	●
58	03.145 CLIP; EVAP PIPE A/T AISIN(RMD) EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 06.672 (C) ID=17	8-94382-792-1	01	1	0006-0006	●
58	03.145 CLIP; EVAP PIPE A/T AISIN(RMD) EUROPE EQUIPMENT(EK4),PHILIPPINE EQUIPMENT(S2U),ARGENTINA EQUIPMENT(7SZ) 06.672 (C) ID=17	8-94382-792-1	01	1	0006-0007	●
58	03.145 CLIP; EVAP PIPE A/T AISIN(RMD) EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U),ARGEN TINA EQUIPMENT(7SZ) 06.672 (C) ID=17	8-94382-792-1	01	1	0008-0211	●	●
58	03.145 CLIP; EVAP PIPE EUROPE EQUIPMENT(EK4) 03.483 (A) ID=6 & 10	8-94154-844-0	01	1	9712-9804	●
58	03.145 CLIP; EVAP PIPE EUROPE EQUIPMENT(EK4) (B) ID=25 & 11	8-97068-799-0	01	1	9712-9902	●
58	03.145 CLIP; EVAP PIPE EUROPE EQUIPMENT(EK4) (B) ID=20.2 & 23.6	8-97212-884-0	01	1	9903-9908	●
58	03.145 CLIP; EVAP PIPE EUROPE EQUIPMENT(EK4) (D)	8-97237-701-0	01	1	9909-0005	●
58	03.145 CLIP; EVAP PIPE M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) (D)	8-97237-701-0	01	1	0006-0006	●	●
58	03.145 CLIP; EVAP PIPE M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U),ARGEN TINA EQUIPMENT(7SZ) (D)	8-97237-701-0	01	1	0006-0211	●	●
62	03.120 HOSE; EVAP,CONT VLV EUROPE EQUIPMENT(EK4) 08.962 (A) L=50 SERVICED BY L=3000	0-04750-300-0	01	1	9712-9712	●
62	03.120 HOSE; EVAP,CONT VLV EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 08.962 (A) L=50 SERVICED BY L=3000	0-04750-300-0	01	1	9801-0005	●	●
62	03.120 HOSE; EVAP,CONT VLV EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) 08.962 (A) L=50 SERVICED BY L=3000	0-04750-300-0	01	1	0006-0007	●	●
62	03.120 HOSE; EVAP,CONT VLV EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) 08.962 (A) L=50 SERVICED BY L=3000	0-04750-300-0	01	1	0008-0211	●	●
62	03.120 HOSE; EVAP,CONT VLV EUROPE EQUIPMENT(EK4) (B)	8-97102-497-0	01	1	9712-9712	●
62	03.120 HOSE; EVAP,CONT VLV EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) (B)	8-97102-497-0	01	1	9801-0005	●	●
62	03.120 HOSE; EVAP,CONT VLV EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) (B)	8-97102-497-0	01	1	0006-0007	●	●
62	03.120 HOSE; EVAP,CONT VLV EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) (B)	8-97102-497-0	01	1	0008-0211	●	●
63	03.163 CLIP; EVAP HOSE EUROPE EQUIPMENT(EK4) ID=11	8-97173-219-0	02	1	9712-9712	●
63	03.163 CLIP; EVAP HOSE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) ID=11	8-97173-219-0	02	1	9801-0005	●	●
63	03.163 CLIP; EVAP HOSE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) ID=11	8-97173-219-0	02	1	0006-0007	●	●
63	03.163 CLIP; EVAP HOSE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) ID=11	8-97173-219-0	02	1	0008-0211	●	●

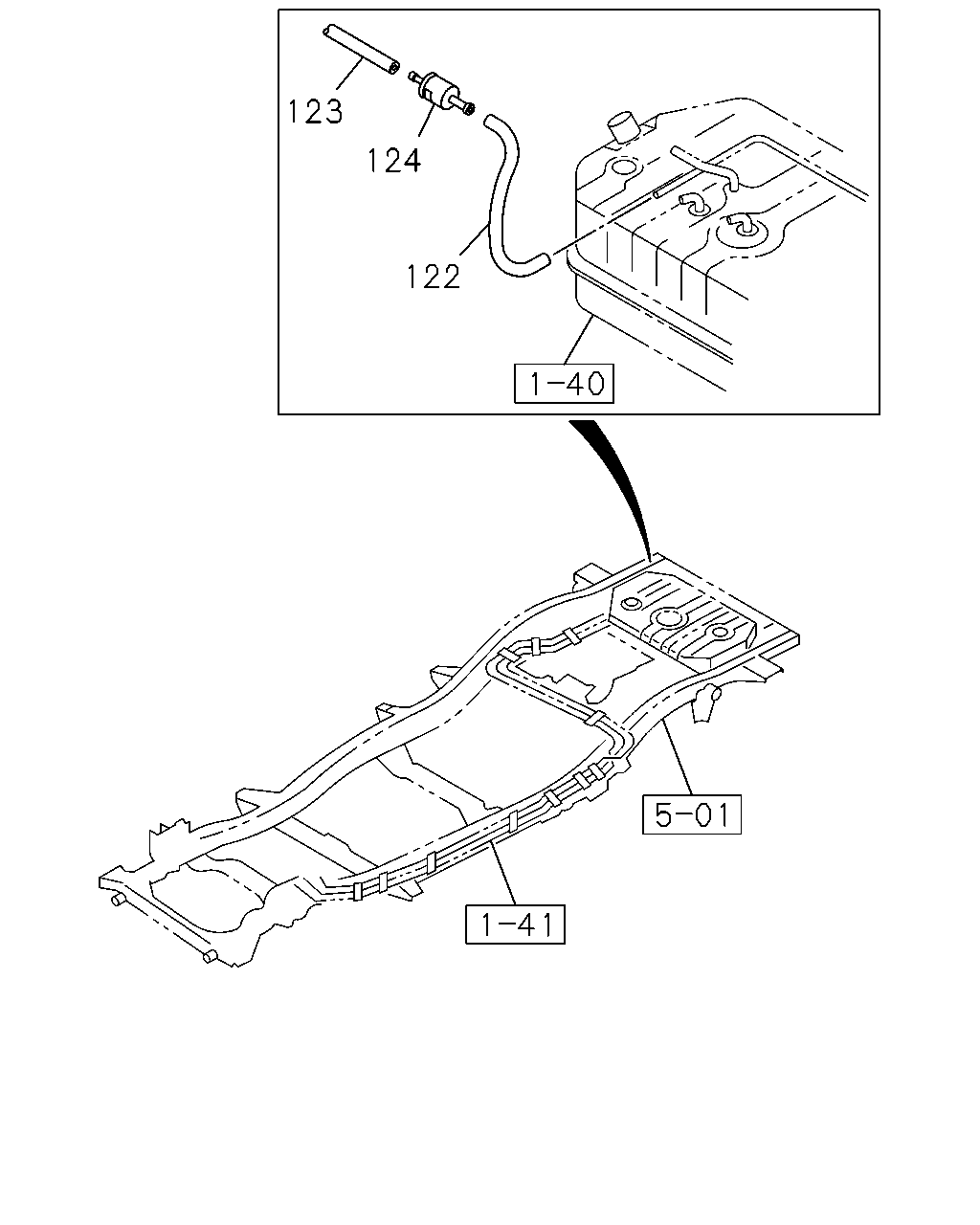

123 124 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
122	03.164 HOSE; EVAPO,TANK TO 2 WAY VLV EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) 03.163 L=230 SERVICED BY L=3000	8-94128-826-0	01	1	0212-	●	●
122	03.164 HOSE; EVAPO,TANK TO 2 WAY VLV 08.962 L=60 SERVICED BY L=3000	0-04750-300-0	01	1	0212-			●	●
123	03.164 HOSE; EVAPO,2 WAY VLV TO FRAME EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) 03.163 L=230 SERVICED BY L=3000	8-94128-826-0	01	1	0212-	●	●
124	03.164 VALVE; 2 WAY,EVAP EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) 03.162	8-97178-373-0	01	1	0212-	●	●
124	03.164 VALVE; 2 WAY,EVAP 03.162	8-97178-373-0	01	1	0212-			●	●

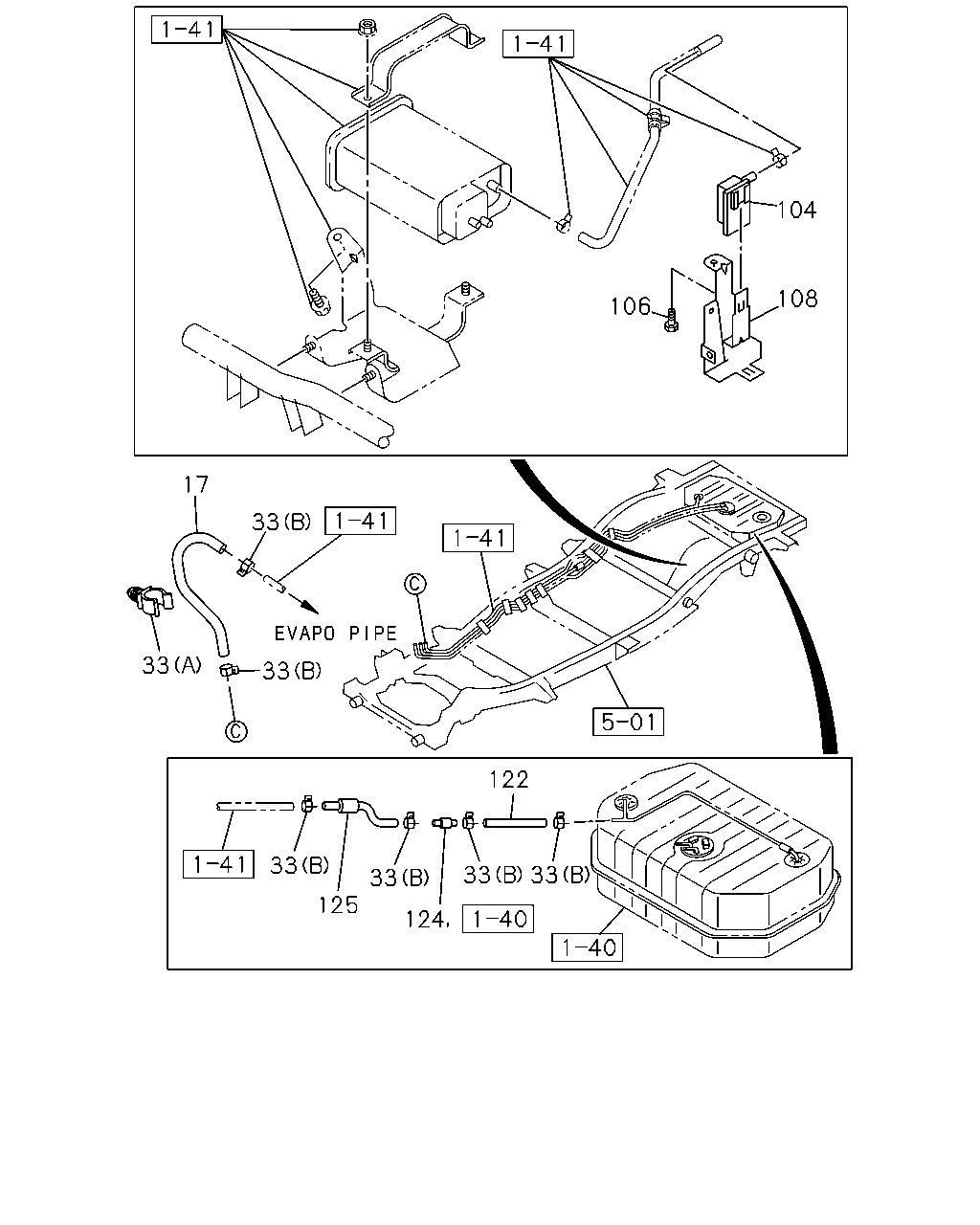

104 108 106 17 33 33 33 122 33 33 125 124 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
17	03.163 HOSE; EVAP	8-97138-507-0	01	1	9712-0005			●	●
17	03.163 HOSE; EVAP	8-97227-884-0	01	1	0006-			●	●
33	03.162 CLIP; EVAP HOSE EUROPE EQUIPMENT(EK4) 03.163 (B) ID=11	8-97173-219-0	02	1	9712-9712	●
33	03.162 CLIP; EVAP HOSE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 03.163 (B) ID=11	8-97173-219-0	02	1	9801-0005	●	●
33	03.162 CLIP; EVAP HOSE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) 03.163 (B) ID=11	8-97173-219-0	02	1	0006-0007	●	●
33	03.162 CLIP; EVAP HOSE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) 03.163 (B) ID=11	8-97173-219-0	02	1	0008-0211	●	●
33	03.162 CLIP; EVAP HOSE 03.163 (B) ID=11	8-97173-219-0	02	1	0212-			●	●
33	03.162 CLIP; EVAP HOSE 03.163 (B) ID=11	8-97173-219-0	04	1	9712-			●	●
33	03.162 CLIP; EVAP HOSE 03.003 (A)	8-97022-315-0	01	1	0006-			●	●
104	03.162 SEPARATOR; AIR	8-17096-210-0	01	1	9712-			●	●
106	03.130 BOLT; BRKT 08.155 M8X16 FLANGE	0-28480-816-0	02	1	9712-			●	●
108	03.163 BRACKET; SEPARATOR 03.162	8-97145-356-2	01	1	9712-			●	●
122	03.164 HOSE; EVAPO,TANK TO 2 WAY VLV EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) 03.163 L=230 SERVICED BY L=3000	8-94128-826-0	01	1	0212-	●	●
122	03.164 HOSE; EVAPO,TANK TO 2 WAY VLV 08.962 L=60 SERVICED BY L=3000	0-04750-300-0	01	1	0212-			●	●
124	03.164 VALVE; 2 WAY,EVAP EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) 03.162	8-97178-373-0	01	1	0212-	●	●
124	03.164 VALVE; 2 WAY,EVAP 03.162	8-97178-373-0	01	1	0212-			●	●
125	03.163 HOSE; EVAPO,2 WAY VLVTO PIPE	8-97352-415-0	01	1	0212-			●	●

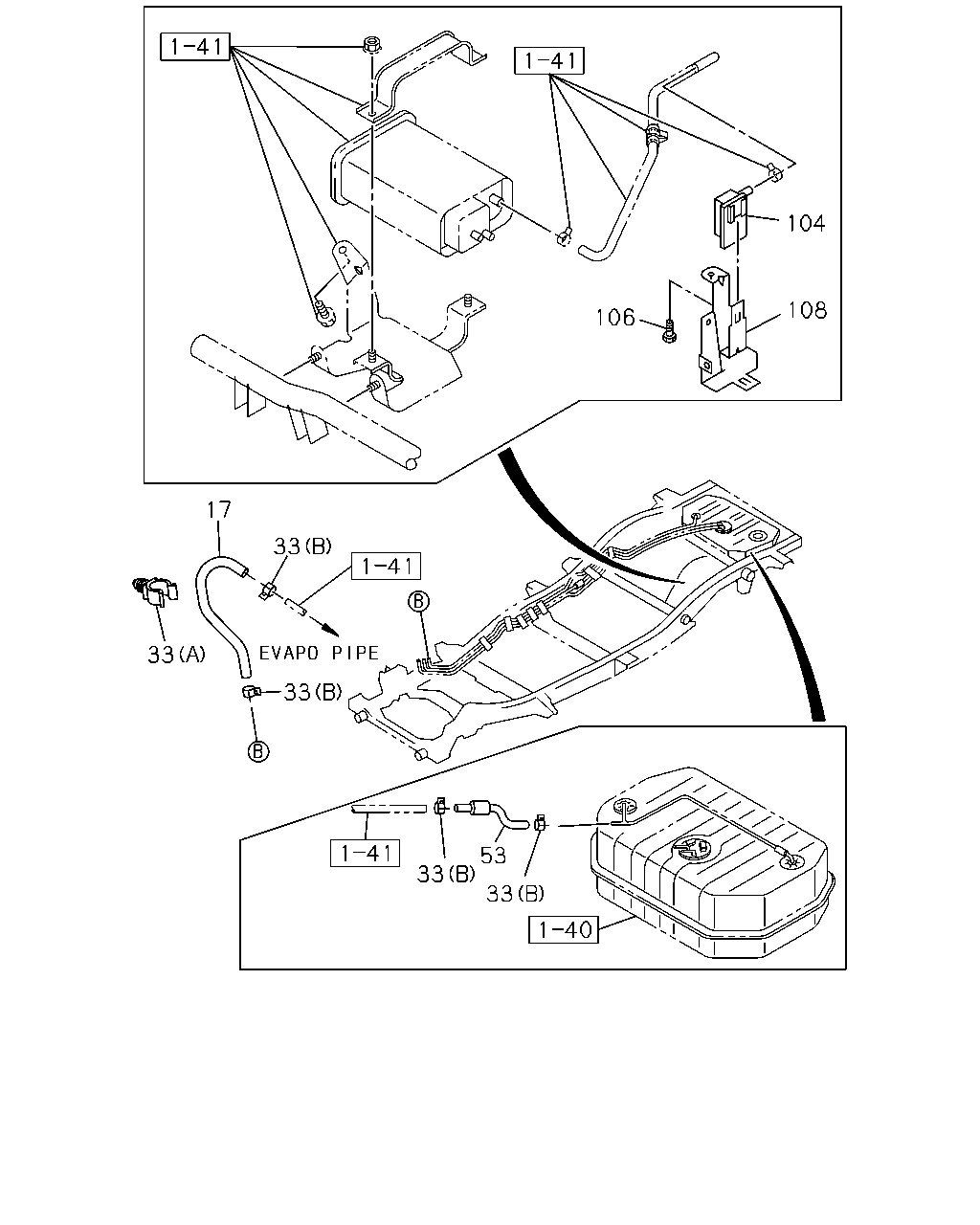

104 108 106 17 33 33 33 53 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
17	03.163 HOSE; EVAP	8-97138-507-0	01	1	9712-0005			●	●
17	03.163 HOSE; EVAP	8-97227-884-0	01	1	0006-			●	●
33	03.162 CLIP; EVAP HOSE EUROPE EQUIPMENT(EK4) 03.163 (B) ID=11	8-97173-219-0	02	1	9712-9712	●
33	03.162 CLIP; EVAP HOSE EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) 03.163 (B) ID=11	8-97173-219-0	02	1	9801-0005	●	●
33	03.162 CLIP; EVAP HOSE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),ARGENTINA EQUIPMENT(7SZ) 03.163 (B) ID=11	8-97173-219-0	02	1	0006-0007	●	●
33	03.162 CLIP; EVAP HOSE EUROPE EQUIPMENT(EK4),NICARAGUA EQUIPMENT(R5N),PHILIPPINE EQUIPMENT(S2U), ARGENTINA EQUIPMENT(7SZ) 03.163 (B) ID=11	8-97173-219-0	02	1	0008-0211	●	●
33	03.162 CLIP; EVAP HOSE 03.163 (B) ID=11	8-97173-219-0	02	1	0212-			●	●
33	03.162 CLIP; EVAP HOSE 03.163 (B) ID=11	8-97173-219-0	04	1	9712-			●	●
33	03.162 CLIP; EVAP HOSE 03.003 (A)	8-97022-315-0	01	1	0006-			●	●
53	03.145 HOSE; EVAP,FUEL TANK TO JOINT L=340 W/INSULATOR	8-97018-369-1	01	1	9712-0211			●	●
104	03.162 SEPARATOR; AIR	8-17096-210-0	01	1	9712-			●	●
106	03.130 BOLT; BRKT 08.155 M8X16 FLANGE	0-28480-816-0	02	1	9712-			●	●
108	03.163 BRACKET; SEPARATOR 03.162	8-97145-356-2	01	1	9712-			●	●
