◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-37 - TURBOCHARGER ▶
0-37 — TURBOCHARGER (#43371) — 5 parça

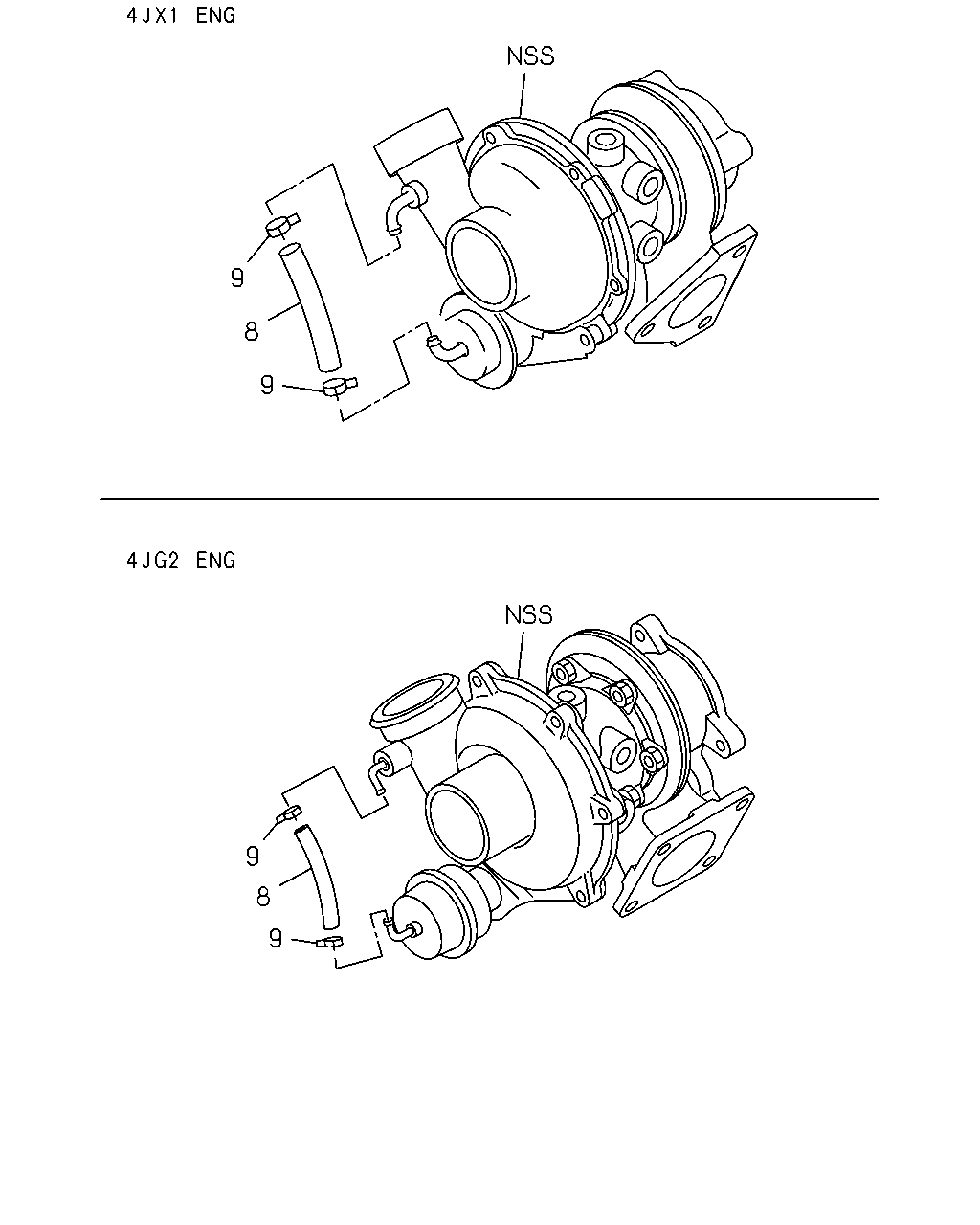

çizim 19656
9 8 9 9 8 9
BalonParca AdiParca NoAdetTipApplied Date
8 03.342 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: B = 8-97148-075-2, 97148075 		8-94387-909-0 01 1 -
8 03.342 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: A = 8-97137-109-9, 97137109, C = 8-97148-076-2, 97148076, D = 8-97250-364-2, 97250364, E = 8-97257-200-0, 97257200 		8-97178-793-0 01 1 -
9 03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: C = 8-97148-076-2, 97148076 		8-94167-469-0 02 1 0003-
9 03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: B = 8-97148-075-2, 97148075 		8-94167-469-0 02 1 0002-
9 03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: D = 8-97250-364-2, 97250364, E = 8-97257-200-0, 97257200 		8-94167-469-0 02 1 -
