Sayfa 0-36 - Isuzu EPC

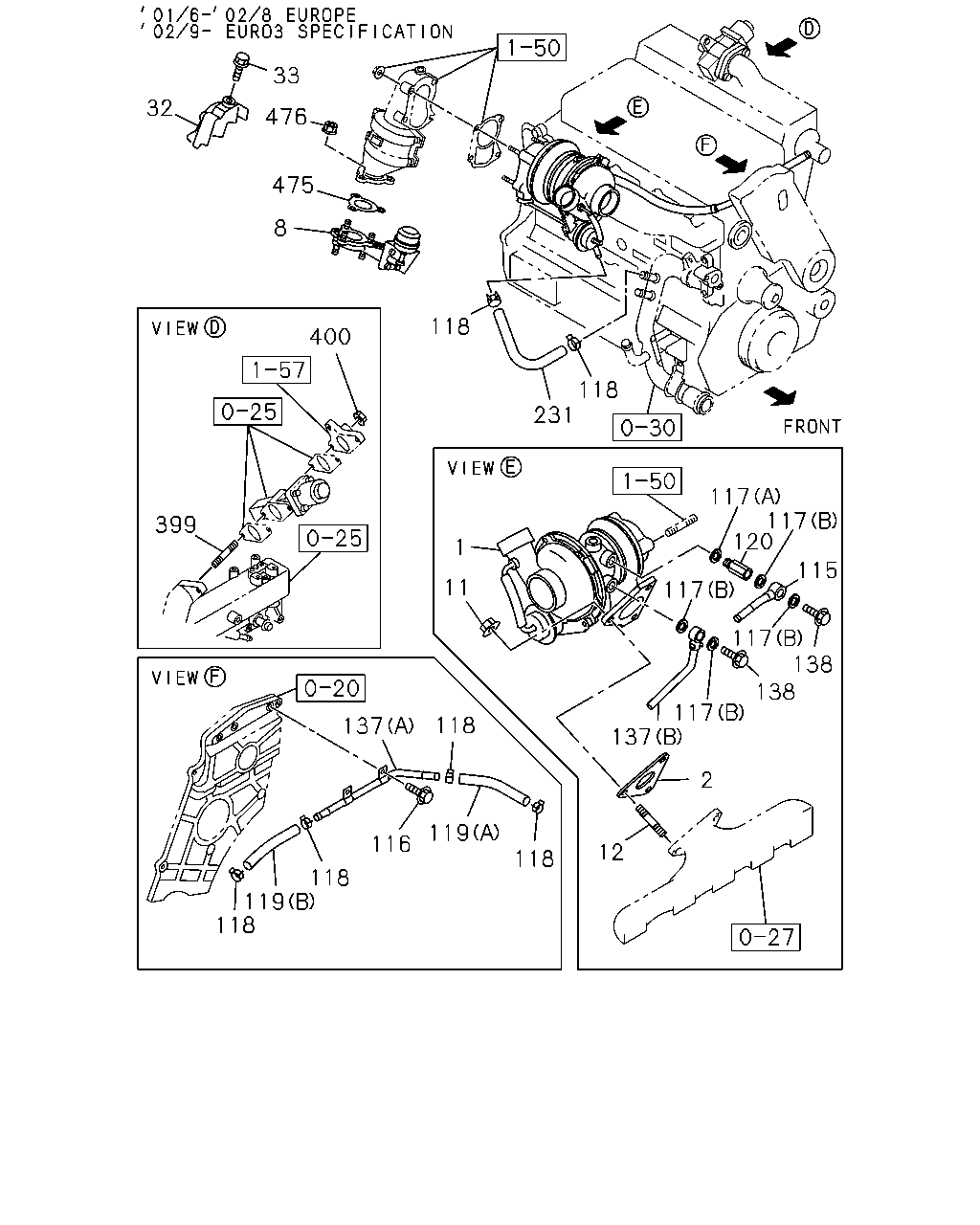

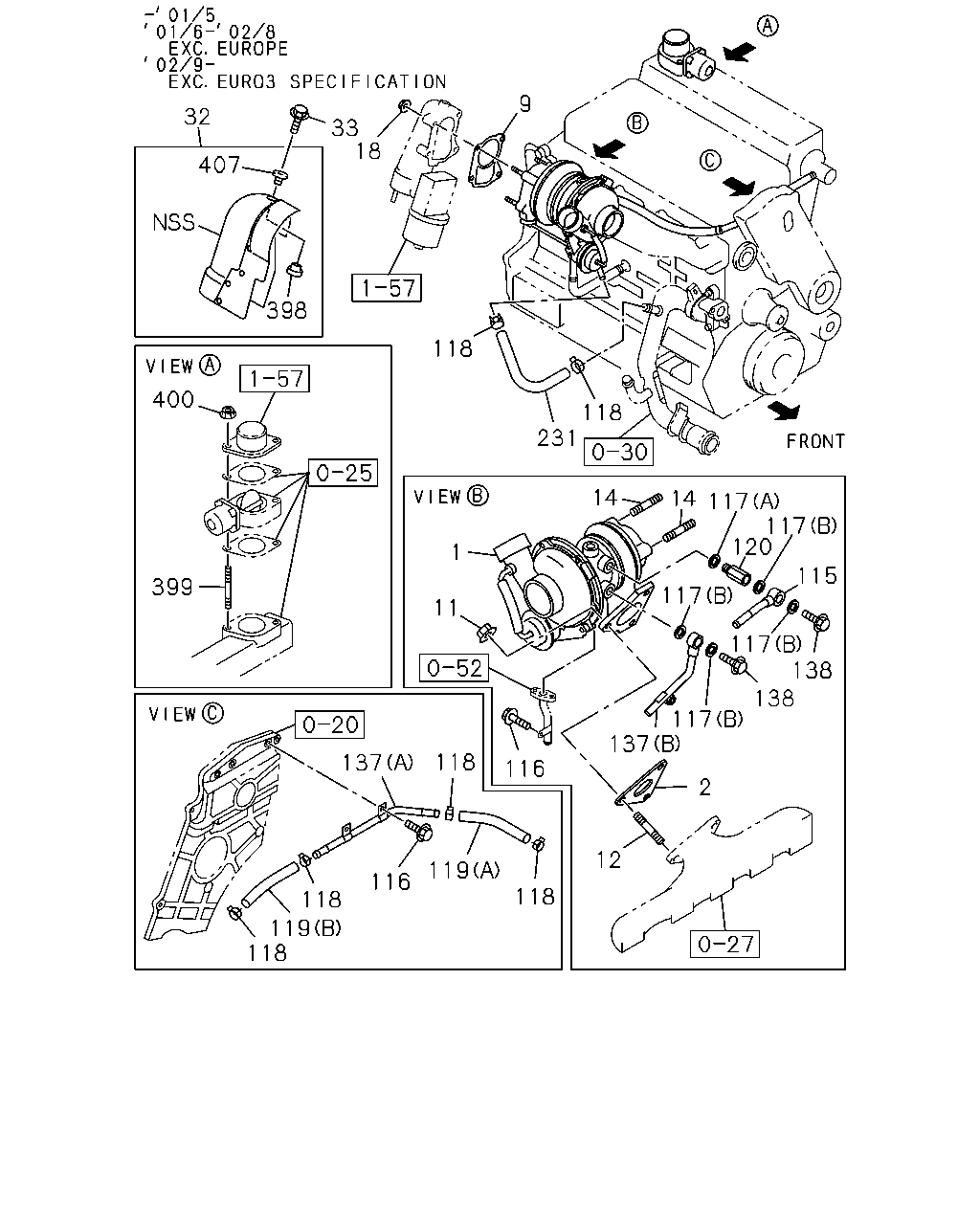

0-36 — TURBOCHARGER SYSTEM (#43370) — 281 parça

9 32 33 18 407 398 118 400 118 231 14 14 117 117 120 1 115 399 117 11 117 138 138 117 137 118 137 116 2 12 119 116 118 118 119 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51>	8-97148-075-0	01	1	9712-9801	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ)	8-97148-075-1	01	1	9802-0005	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N)	8-97148-075-2	01	1	0006-0105	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N)	8-97148-075-2	01	1	0106-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. A/T AISIN(RMD) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97148-075-2	01	1	0106-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97148-076-1	01	1	9802-0005	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N)	8-97148-076-2	01	1	0006-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97137-109-9	01	1	9712-0002		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97250-364-2	01	1	0003-0105		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EUROPE EQUIPMENT(EK4)	8-97250-364-2	01	1	0106-0208		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO3 SPECIFICATION(NT3)	8-97250-364-2	01	1	0209-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EUROPE EQUIPMENT(EK4)	8-97257-200-0	01	1	0106-0208		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3)	8-97257-200-0	01	1	0209-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51>	8-94433-605-0	01	1	9712-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97113-701-1	01	1	9712-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51>	8-94433-604-0	01	1	9712-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97179-646-0	01	1	9712-0105		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EUROPE EQUIPMENT(EK4)	8-97179-646-0	01	1	0106-0111		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EUROPE EQUIPMENT(EK4) 03.611	8-97263-123-0	01	1	0112-0208		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EURO3 SPECIFICATION(NT3) 03.611	8-97263-123-0	01	1	0209-		●
11	03.342 NUT; TURBOCHARGER TURBOCHARGER<K51> 03.613 M8 FLANGE	8-97161-607-0	04	1	9712-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	03	1	9712-		●
12	03.342 STUD; TURBOCHARGER TURBOCHARGER<K51> M8X20 L=31	8-97104-508-1	04	1	9712-	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	03	1	9712-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> M8X41 L=52	8-97188-452-0	04	1	0106-0406	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> M8X43 L=54	8-97104-507-1	04	1	0407-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> M8X43 L=54	8-97104-507-1	04	1	9712-9712	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X41 L=52	8-97188-452-0	04	1	9712-9712		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> M8X41 L=52	8-97188-452-0	04	1	9801-0105	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X41 L=52	8-97188-452-0	04	1	9801-0105		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4) M8X41 L=52	8-97188-452-0	04	1	0106-0208		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EXC. EURO3 SPECIFICATION(NT3) M8X41 L=52	8-97188-452-0	04	1	0209-0406		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> M8X41 L=52	8-97188-452-0	04	1	0407-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EXC. EURO3 SPECIFICATION(NT3) M8X41 L=52	8-97188-452-0	04	1	0407-		●
18	03.613 NUT; EXH PIPE TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	9712-0105	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	9712-0105		●
18	03.613 NUT; EXH PIPE TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	0106-0208	●
18	03.613 NUT; EXH PIPE EXC. EUROPE EQUIPMENT(EK4) M8 FLANGE	8-97161-607-0	04	1	0106-0208		●
18	03.613 NUT; EXH PIPE TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	0209-	●
18	03.613 NUT; EXH PIPE EXC. EURO3 SPECIFICATION(NT3) M8 FLANGE	8-97161-607-0	04	1	0209-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER TURBOCHARGER<K51>	8-97087-029-0	01	1	9712-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97183-523-1	01	1	9712-9802		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97206-003-0	01	1	9803-0105		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. EUROPE EQUIPMENT(EK4)	8-97206-003-0	01	1	0106-0208		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. EURO3 SPECIFICATION(NT3)	8-97206-003-0	01	1	0209-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EUROPE EQUIPMENT(EK4)	8-97263-092-0	01	1	0106-0208		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO3 SPECIFICATION(NT3)	8-97263-092-0	01	1	0209-		●
33	03.342 BOLT; HEAT PROTECTOR 02.334 M6X25 FLANGE	0-28680-625-0	04	1	9712-0105		●
33	03.342 BOLT; HEAT PROTECTOR EXC. EUROPE EQUIPMENT(EK4) 02.334 M6X25 FLANGE	0-28680-625-0	04	1	0106-0208		●
33	03.342 BOLT; HEAT PROTECTOR EXC. EURO3 SPECIFICATION(NT3) 02.334 M6X25 FLANGE	0-28680-625-0	04	1	0209-		●
33	03.342 BOLT; HEAT PROTECTOR EUROPE EQUIPMENT(EK4) 02.334 M6X25 FLANGE	0-28680-625-0	03	1	0106-0208		●
33	03.342 BOLT; HEAT PROTECTOR EURO3 SPECIFICATION(NT3) 02.334 M6X25 FLANGE	0-28680-625-0	03	1	0209-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT TURBOCHARGER<K51> 01.097	8-97063-234-0	01	1	9712-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT 01.097	8-97063-234-0	01	1	9712-		●
116	03.342 BOLT; WATER PIPE TURBOCHARGER<K51> 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9712-	●
116	03.342 BOLT; WATER PIPE 02.500 M6X10 FLANGE	0-28080-610-0	03	1	9712-0105		●
116	03.342 BOLT; WATER PIPE EXC. EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE	0-28080-610-0	03	1	0106-0110		●
116	03.342 BOLT; WATER PIPE 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0111-		●
116	03.342 BOLT; WATER PIPE EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0106-0110		●
116	03.342 BOLT; WATER PIPE EUROPE EQUIPMENT(EK4) 03.670 M8X23 FLANGE	8-94103-629-2	04	1	0106-0208		●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 03.670 M8X23 FLANGE	8-94103-629-2	04	1	0209-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. (A) T=2.5	8-94472-584-1	01	1	9712-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) T=2.5	8-94472-584-1	01	1	9712-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 (B) ID=12.2	9-09571-412-0	04	1	9712-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	9712-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE EQUIPMENT(EK4) 03.665 (C)	8-94340-670-0	03	1	0106-0208		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 03.665 (C)	8-94340-670-0	03	1	0209-		●
118	03.342 CLIP; WATER HOSE TURBOCHARGER<K51> 03.162 ID=15.5	8-94221-519-0	04	1	9712-9907	●
118	03.342 CLIP; WATER HOSE TURBOCHARGER<K51> 01.153 ID=12.8	8-94367-943-0	04	1	9908-	●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	06	1	9712-9907		●
118	03.342 CLIP; WATER HOSE 01.153 ID=12.8	8-94367-943-0	06	1	9908-		●
119	03.342 HOSE; WATER,TURBOCHARGER TURBOCHARGER<K51> (C) L=250 W/INSULATOR	8-94340-669-1	01	1	9712-0402	●
119	03.342 HOSE; WATER,TURBOCHARGER (A) L=170 SERVICED BY L=3000	0-03259-300-0	01	1	9712-0204		●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (A) L=170 SERVICED BY L=3000	0-03559-300-0	01	1	0205-		●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97175-036-1	01	1	9712-		●
120	01.097 ADAPTER; WATER TURBOCHARGER<K51>	8-94472-583-0	01	1	9712-0402	●
120	01.097 ADAPTER; WATER	8-94472-583-0	01	1	9712-0402		●
137	01.097 PIPE; WATER,TURBOCHARGER IN TURBOCHARGER<K51> (C)	8-97086-342-0	01	1	9712-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-97163-069-0	01	1	9712-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97163-070-2	01	1	9712-0105		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. EUROPE EQUIPMENT(EK4) (B)	8-97163-070-2	01	1	0106-0110		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EUROPE EQUIPMENT(EK4) (B)	8-97256-424-1	01	1	0106-0110		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97256-424-1	01	1	0111-		●
138	03.342 BOLT; EYE,WATER PIPE TURBOCHARGER<K51> 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	9712-	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	9712-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER<K51> L=160 W/INSULATOR	8-94325-255-0	01	1	9712-0402	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97163-088-2	01	1	9712-0105		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. EUROPE EQUIPMENT(EK4)	8-97163-088-2	01	1	0106-0110		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EUROPE EQUIPMENT(EK4) 01.097 L=170 SERVICED BY L=3000	0-03559-300-0	01	1	0106-0110		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=170 SERVICED BY L=3000	0-03559-300-0	01	1	0111-		●
398	03.613 MOUNTING	8-97184-255-0	04	1	9712-0105		●
398	03.613 MOUNTING EXC. EUROPE EQUIPMENT(EK4)	8-97184-255-0	04	1	0106-0208		●
398	03.613 MOUNTING EXC. EURO3 SPECIFICATION(NT3)	8-97184-255-0	04	1	0209-		●
399	03.613 STUD; INL MANIFOLD TO INL PIPE 00.413 M8X60 L=72	9-04110-860-0	02	1	9712-9904		●
399	03.613 STUD; INL MANIFOLD TO INL PIPE 00.413 M8X65 L=76	8-94321-032-0	02	1	9905-		●
400	03.425 NUT; INL MANIFOLD TO INL PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	9712-		●
407	03.602 SPACER; HEAT PROTECTOR	8-97184-256-0	04	1	9712-0105		●
407	03.602 SPACER; HEAT PROTECTOR EXC. EUROPE EQUIPMENT(EK4)	8-97184-256-0	04	1	0106-0208		●
407	03.602 SPACER; HEAT PROTECTOR EXC. EURO3 SPECIFICATION(NT3)	8-97184-256-0	04	1	0209-		●

117 116 117 117 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
116	03.342 BOLT; WATER PIPE TURBOCHARGER<K51> 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9712-	●
116	03.342 BOLT; WATER PIPE 02.500 M6X10 FLANGE	0-28080-610-0	03	1	9712-0105		●
116	03.342 BOLT; WATER PIPE EXC. EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE	0-28080-610-0	03	1	0106-0110		●
116	03.342 BOLT; WATER PIPE 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0111-		●
116	03.342 BOLT; WATER PIPE EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0106-0110		●
116	03.342 BOLT; WATER PIPE EUROPE EQUIPMENT(EK4) 03.670 M8X23 FLANGE	8-94103-629-2	04	1	0106-0208		●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 03.670 M8X23 FLANGE	8-94103-629-2	04	1	0209-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. (A) T=2.5	8-94472-584-1	01	1	9712-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) T=2.5	8-94472-584-1	01	1	9712-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 (B) ID=12.2	9-09571-412-0	04	1	9712-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	9712-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE EQUIPMENT(EK4) 03.665 (C)	8-94340-670-0	03	1	0106-0208		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 03.665 (C)	8-94340-670-0	03	1	0209-		●

118 1 117 120 117 117 117 117 138 115 118 138 137 118 231 116 11 12 2 101 32 1 101 9 18 14 101 101 100 66 303 66 119 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51>	8-97148-075-0	01	1	9712-9801	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ)	8-97148-075-1	01	1	9802-0005	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N)	8-97148-075-2	01	1	0006-0105	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N)	8-97148-075-2	01	1	0106-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. A/T AISIN(RMD) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97148-075-2	01	1	0106-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97148-076-1	01	1	9802-0005	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N)	8-97148-076-2	01	1	0006-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97137-109-9	01	1	9712-0002		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97250-364-2	01	1	0003-0105		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EUROPE EQUIPMENT(EK4)	8-97250-364-2	01	1	0106-0208		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO3 SPECIFICATION(NT3)	8-97250-364-2	01	1	0209-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EUROPE EQUIPMENT(EK4)	8-97257-200-0	01	1	0106-0208		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3)	8-97257-200-0	01	1	0209-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51>	8-94433-605-0	01	1	9712-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97113-701-1	01	1	9712-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51>	8-94433-604-0	01	1	9712-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97179-646-0	01	1	9712-0105		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EUROPE EQUIPMENT(EK4)	8-97179-646-0	01	1	0106-0111		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EUROPE EQUIPMENT(EK4) 03.611	8-97263-123-0	01	1	0112-0208		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EURO3 SPECIFICATION(NT3) 03.611	8-97263-123-0	01	1	0209-		●
11	03.342 NUT; TURBOCHARGER TURBOCHARGER<K51> 03.613 M8 FLANGE	8-97161-607-0	04	1	9712-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	03	1	9712-		●
12	03.342 STUD; TURBOCHARGER TURBOCHARGER<K51> M8X20 L=31	8-97104-508-1	04	1	9712-	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	03	1	9712-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> M8X41 L=52	8-97188-452-0	04	1	0106-0406	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> M8X43 L=54	8-97104-507-1	04	1	0407-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> M8X43 L=54	8-97104-507-1	04	1	9712-9712	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X41 L=52	8-97188-452-0	04	1	9712-9712		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> M8X41 L=52	8-97188-452-0	04	1	9801-0105	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X41 L=52	8-97188-452-0	04	1	9801-0105		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4) M8X41 L=52	8-97188-452-0	04	1	0106-0208		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EXC. EURO3 SPECIFICATION(NT3) M8X41 L=52	8-97188-452-0	04	1	0209-0406		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER<K51> M8X41 L=52	8-97188-452-0	04	1	0407-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE EXC. EURO3 SPECIFICATION(NT3) M8X41 L=52	8-97188-452-0	04	1	0407-		●
18	03.613 NUT; EXH PIPE TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	9712-0105	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	9712-0105		●
18	03.613 NUT; EXH PIPE TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	0106-0208	●
18	03.613 NUT; EXH PIPE EXC. EUROPE EQUIPMENT(EK4) M8 FLANGE	8-97161-607-0	04	1	0106-0208		●
18	03.613 NUT; EXH PIPE TURBOCHARGER<K51> M8 FLANGE	8-97161-607-0	04	1	0209-	●
18	03.613 NUT; EXH PIPE EXC. EURO3 SPECIFICATION(NT3) M8 FLANGE	8-97161-607-0	04	1	0209-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER TURBOCHARGER<K51>	8-97087-029-0	01	1	9712-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97183-523-1	01	1	9712-9802		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97206-003-0	01	1	9803-0105		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. EUROPE EQUIPMENT(EK4)	8-97206-003-0	01	1	0106-0208		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. EURO3 SPECIFICATION(NT3)	8-97206-003-0	01	1	0209-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EUROPE EQUIPMENT(EK4)	8-97263-092-0	01	1	0106-0208		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO3 SPECIFICATION(NT3)	8-97263-092-0	01	1	0209-		●
66	03.342 STUD; EXH PIPE TURBOCHARGER<K51> 03.613 M10X38 L=53	5-09302-007-0	02	1	9712-	●
100	03.417 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51>	8-97038-109-1	01	1	9712-	●
101	03.602 BOLT; HEAT PROTECTOR TURBOCHARGER<K51> 08.900 M8X12 FLANGE	0-28080-812-0	06	1	9712-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT TURBOCHARGER<K51> 01.097	8-97063-234-0	01	1	9712-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT 01.097	8-97063-234-0	01	1	9712-		●
116	03.342 BOLT; WATER PIPE TURBOCHARGER<K51> 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9712-	●
116	03.342 BOLT; WATER PIPE 02.500 M6X10 FLANGE	0-28080-610-0	03	1	9712-0105		●
116	03.342 BOLT; WATER PIPE EXC. EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE	0-28080-610-0	03	1	0106-0110		●
116	03.342 BOLT; WATER PIPE 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0111-		●
116	03.342 BOLT; WATER PIPE EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0106-0110		●
116	03.342 BOLT; WATER PIPE EUROPE EQUIPMENT(EK4) 03.670 M8X23 FLANGE	8-94103-629-2	04	1	0106-0208		●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 03.670 M8X23 FLANGE	8-94103-629-2	04	1	0209-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. (A) T=2.5	8-94472-584-1	01	1	9712-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) T=2.5	8-94472-584-1	01	1	9712-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 (B) ID=12.2	9-09571-412-0	04	1	9712-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	9712-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE EQUIPMENT(EK4) 03.665 (C)	8-94340-670-0	03	1	0106-0208		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 03.665 (C)	8-94340-670-0	03	1	0209-		●
118	03.342 CLIP; WATER HOSE TURBOCHARGER<K51> 03.162 ID=15.5	8-94221-519-0	04	1	9712-9907	●
118	03.342 CLIP; WATER HOSE TURBOCHARGER<K51> 01.153 ID=12.8	8-94367-943-0	04	1	9908-	●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	06	1	9712-9907		●
118	03.342 CLIP; WATER HOSE 01.153 ID=12.8	8-94367-943-0	06	1	9908-		●
119	03.342 HOSE; WATER,TURBOCHARGER TURBOCHARGER<K51> (C) L=250 W/INSULATOR	8-94340-669-1	01	1	9712-0402	●
119	03.342 HOSE; WATER,TURBOCHARGER (A) L=170 SERVICED BY L=3000	0-03259-300-0	01	1	9712-0204		●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (A) L=170 SERVICED BY L=3000	0-03559-300-0	01	1	0205-		●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97175-036-1	01	1	9712-		●
120	01.097 ADAPTER; WATER TURBOCHARGER<K51>	8-94472-583-0	01	1	9712-0402	●
120	01.097 ADAPTER; WATER	8-94472-583-0	01	1	9712-0402		●
137	01.097 PIPE; WATER,TURBOCHARGER IN TURBOCHARGER<K51> (C)	8-97086-342-0	01	1	9712-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-97163-069-0	01	1	9712-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97163-070-2	01	1	9712-0105		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. EUROPE EQUIPMENT(EK4) (B)	8-97163-070-2	01	1	0106-0110		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EUROPE EQUIPMENT(EK4) (B)	8-97256-424-1	01	1	0106-0110		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97256-424-1	01	1	0111-		●
138	03.342 BOLT; EYE,WATER PIPE TURBOCHARGER<K51> 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	9712-	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	9712-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER<K51> L=160 W/INSULATOR	8-94325-255-0	01	1	9712-0402	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97163-088-2	01	1	9712-0105		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. EUROPE EQUIPMENT(EK4)	8-97163-088-2	01	1	0106-0110		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EUROPE EQUIPMENT(EK4) 01.097 L=170 SERVICED BY L=3000	0-03559-300-0	01	1	0106-0110		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=170 SERVICED BY L=3000	0-03559-300-0	01	1	0111-		●
303	03.440 ADAPTER; THROTTLE BODY,EXH TURBOCHARGER<K51>	8-97087-028-1	01	1	9712-	●

33 32 476 475 8 118 400 118 231 117 117 120 399 1 115 11 117 117 138 138 117 137 118 137 2 119 116 12 118 118 119 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51>	8-97148-075-0	01	1	9712-9801	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ)	8-97148-075-1	01	1	9802-0005	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N)	8-97148-075-2	01	1	0006-0105	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N)	8-97148-075-2	01	1	0106-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. A/T AISIN(RMD) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97148-075-2	01	1	0106-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97148-076-1	01	1	9802-0005	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N)	8-97148-076-2	01	1	0006-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97137-109-9	01	1	9712-0002		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97250-364-2	01	1	0003-0105		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EUROPE EQUIPMENT(EK4)	8-97250-364-2	01	1	0106-0208		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO3 SPECIFICATION(NT3)	8-97250-364-2	01	1	0209-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EUROPE EQUIPMENT(EK4)	8-97257-200-0	01	1	0106-0208		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION(NT3)	8-97257-200-0	01	1	0209-		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) TURBOCHARGER<K51>	8-94433-605-0	01	1	9712-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97113-701-1	01	1	9712-		●
8	03.440 BODY ASM; EXH THROTTLE A/T AISIN(RMD) EUROPE EQUIPMENT(EK4)	8-97306-587-1	01	1	0106-0208		●
8	03.440 BODY ASM; EXH THROTTLE A/T AISIN(RMD) EURO3 SPECIFICATION(NT3)	8-97306-587-1	01	1	0209-		●
8	03.440 BODY ASM; EXH THROTTLE M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4)	8-97306-586-1	01	1	0106-0208		●
8	03.440 BODY ASM; EXH THROTTLE M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3)	8-97306-586-1	01	1	0209-		●
11	03.342 NUT; TURBOCHARGER TURBOCHARGER<K51> 03.613 M8 FLANGE	8-97161-607-0	04	1	9712-	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	03	1	9712-		●
12	03.342 STUD; TURBOCHARGER TURBOCHARGER<K51> M8X20 L=31	8-97104-508-1	04	1	9712-	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	03	1	9712-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER TURBOCHARGER<K51>	8-97087-029-0	01	1	9712-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97183-523-1	01	1	9712-9802		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97206-003-0	01	1	9803-0105		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. EUROPE EQUIPMENT(EK4)	8-97206-003-0	01	1	0106-0208		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. EURO3 SPECIFICATION(NT3)	8-97206-003-0	01	1	0209-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EUROPE EQUIPMENT(EK4)	8-97263-092-0	01	1	0106-0208		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EURO3 SPECIFICATION(NT3)	8-97263-092-0	01	1	0209-		●
33	03.342 BOLT; HEAT PROTECTOR 02.334 M6X25 FLANGE	0-28680-625-0	04	1	9712-0105		●
33	03.342 BOLT; HEAT PROTECTOR EXC. EUROPE EQUIPMENT(EK4) 02.334 M6X25 FLANGE	0-28680-625-0	04	1	0106-0208		●
33	03.342 BOLT; HEAT PROTECTOR EXC. EURO3 SPECIFICATION(NT3) 02.334 M6X25 FLANGE	0-28680-625-0	04	1	0209-		●
33	03.342 BOLT; HEAT PROTECTOR EUROPE EQUIPMENT(EK4) 02.334 M6X25 FLANGE	0-28680-625-0	03	1	0106-0208		●
33	03.342 BOLT; HEAT PROTECTOR EURO3 SPECIFICATION(NT3) 02.334 M6X25 FLANGE	0-28680-625-0	03	1	0209-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT TURBOCHARGER<K51> 01.097	8-97063-234-0	01	1	9712-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT 01.097	8-97063-234-0	01	1	9712-		●
116	03.342 BOLT; WATER PIPE TURBOCHARGER<K51> 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9712-	●
116	03.342 BOLT; WATER PIPE 02.500 M6X10 FLANGE	0-28080-610-0	03	1	9712-0105		●
116	03.342 BOLT; WATER PIPE EXC. EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE	0-28080-610-0	03	1	0106-0110		●
116	03.342 BOLT; WATER PIPE 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0111-		●
116	03.342 BOLT; WATER PIPE EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0106-0110		●
116	03.342 BOLT; WATER PIPE EUROPE EQUIPMENT(EK4) 03.670 M8X23 FLANGE	8-94103-629-2	04	1	0106-0208		●
116	03.342 BOLT; WATER PIPE EURO3 SPECIFICATION(NT3) 03.670 M8X23 FLANGE	8-94103-629-2	04	1	0209-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. (A) T=2.5	8-94472-584-1	01	1	9712-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) T=2.5	8-94472-584-1	01	1	9712-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 (B) ID=12.2	9-09571-412-0	04	1	9712-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	9712-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE EQUIPMENT(EK4) 03.665 (C)	8-94340-670-0	03	1	0106-0208		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 03.665 (C)	8-94340-670-0	03	1	0209-		●
118	03.342 CLIP; WATER HOSE TURBOCHARGER<K51> 03.162 ID=15.5	8-94221-519-0	04	1	9712-9907	●
118	03.342 CLIP; WATER HOSE TURBOCHARGER<K51> 01.153 ID=12.8	8-94367-943-0	04	1	9908-	●
118	03.342 CLIP; WATER HOSE 03.162 ID=15.5	8-94221-519-0	06	1	9712-9907		●
118	03.342 CLIP; WATER HOSE 01.153 ID=12.8	8-94367-943-0	06	1	9908-		●
119	03.342 HOSE; WATER,TURBOCHARGER TURBOCHARGER<K51> (C) L=250 W/INSULATOR	8-94340-669-1	01	1	9712-0402	●
119	03.342 HOSE; WATER,TURBOCHARGER (A) L=170 SERVICED BY L=3000	0-03259-300-0	01	1	9712-0204		●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (A) L=170 SERVICED BY L=3000	0-03559-300-0	01	1	0205-		●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97175-036-1	01	1	9712-		●
120	01.097 ADAPTER; WATER TURBOCHARGER<K51>	8-94472-583-0	01	1	9712-0402	●
120	01.097 ADAPTER; WATER	8-94472-583-0	01	1	9712-0402		●
137	01.097 PIPE; WATER,TURBOCHARGER IN TURBOCHARGER<K51> (C)	8-97086-342-0	01	1	9712-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN (A)	8-97163-069-0	01	1	9712-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97163-070-2	01	1	9712-0105		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. EUROPE EQUIPMENT(EK4) (B)	8-97163-070-2	01	1	0106-0110		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EUROPE EQUIPMENT(EK4) (B)	8-97256-424-1	01	1	0106-0110		●
137	01.097 PIPE; WATER,TURBOCHARGER IN (B)	8-97256-424-1	01	1	0111-		●
138	03.342 BOLT; EYE,WATER PIPE TURBOCHARGER<K51> 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	9712-	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	9712-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER<K51> L=160 W/INSULATOR	8-94325-255-0	01	1	9712-0402	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97163-088-2	01	1	9712-0105		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. EUROPE EQUIPMENT(EK4)	8-97163-088-2	01	1	0106-0110		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EUROPE EQUIPMENT(EK4) 01.097 L=170 SERVICED BY L=3000	0-03559-300-0	01	1	0106-0110		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=170 SERVICED BY L=3000	0-03559-300-0	01	1	0111-		●
399	03.613 STUD; INL MANIFOLD TO INL PIPE 00.413 M8X60 L=72	9-04110-860-0	02	1	9712-9904		●
399	03.613 STUD; INL MANIFOLD TO INL PIPE 00.413 M8X65 L=76	8-94321-032-0	02	1	9905-		●
400	03.425 NUT; INL MANIFOLD TO INL PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	9712-		●
475	03.342 GASKET; EXH THROTTLE EUROPE EQUIPMENT(EK4)	8-97245-881-0	01	1	0106-0208		●
475	03.342 GASKET; EXH THROTTLE EURO3 SPECIFICATION(NT3)	8-97245-881-0	01	1	0209-		●
476	03.342 NUT; EXH THROTTLE EUROPE EQUIPMENT(EK4) 08.917 M10 FLANGE	0-91150-210-0	03	1	0106-0208		●
476	03.342 NUT; EXH THROTTLE EURO3 SPECIFICATION(NT3) 08.917 M10 FLANGE	0-91150-210-0	03	1	0209-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
