Sayfa 2-36A - Isuzu EPC

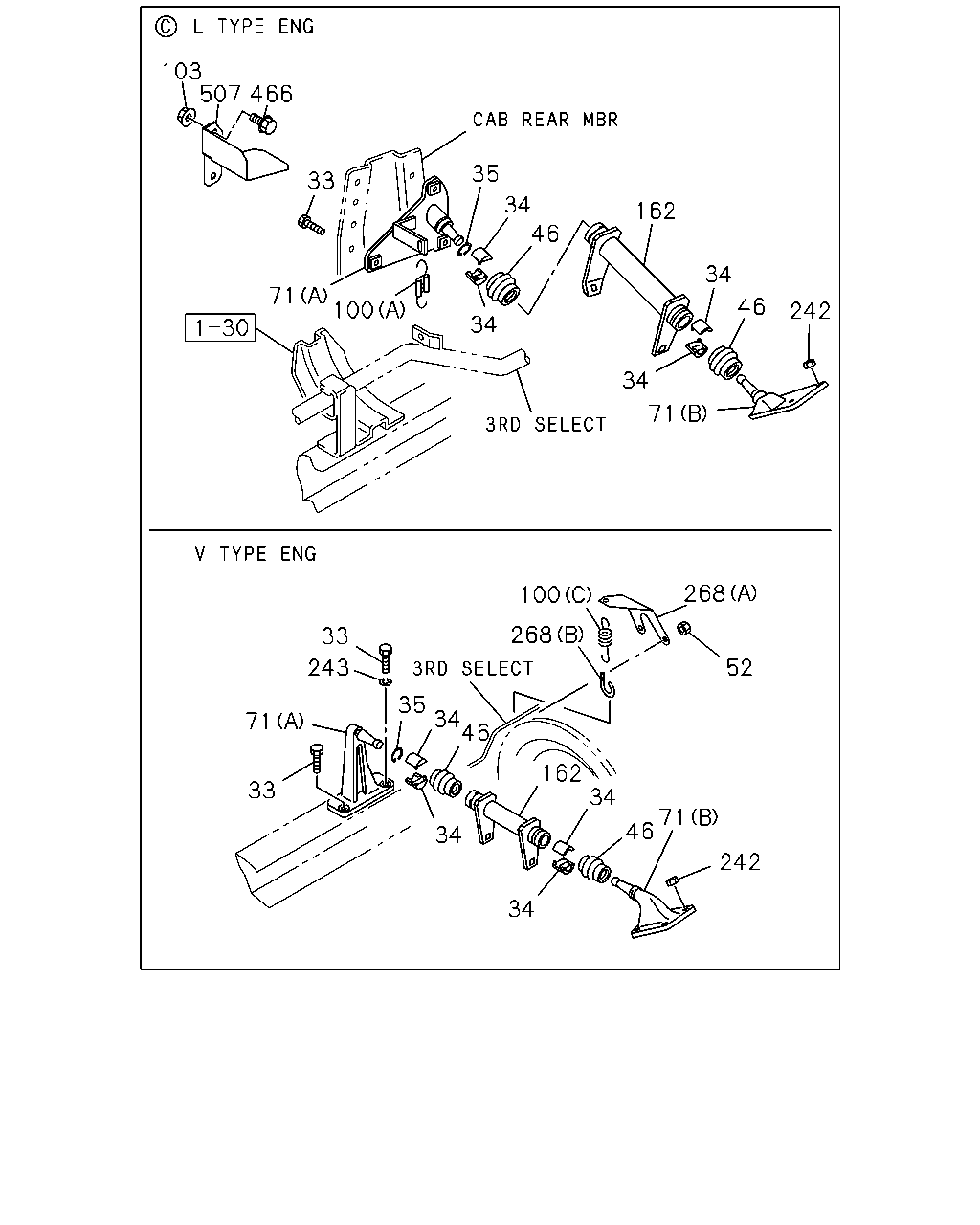

2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#4337) — 154 parça

103 35 33 34 162 46 34 71 100 46 242 34 34 71 268 100 268 33 52 243 35 34 46 71 162 34 33 71 46 34 242 34 507 466

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-S(56L) M10X30 W/LK WASHER	0-50041-030-0	03	1	9603-9606	●
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-S(56L) M10X30 FLANGE	0-28681-030-0	03	1	9607-9706	●
33	BOLT; BRKT,3RD RELAY LEVER 6WA1 TC-S(56L) M10X30 FLANGE	0-28681-030-0	03	1	9707-9904	●
33	BOLT; BRKT,3RD RELAY LEVER L TYPE ENG<90L> M10X30 FLANGE	0-28681-030-0	03	1	9905-	●	●	●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER 8PE1S(59L),10PE1S(60L) M14X45	0-20801-445-0	01	1	9603-9904	●	●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER V TYPE ENG<91L> M14X45	0-20801-445-0	01	1	9905-	●	●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER 8PE1S(59L),10PE1S(60L) M10X40 W/LK WASHER	0-50041-040-0	01	1	9603-9904	●	●	●	●	●
33	BOLT; BRKT,3RD RELAY LEVER V TYPE ENG<91L> M10X40 W/LK WASHER	0-50041-040-0	01	1	9905-	●	●	●	●	●
34	SEAT; BALL,RELAY LEVER 6WA1 TC-S(56L)	1-33659-165-0	04	1	9603-9706	●
34	SEAT; BALL,RELAY LEVER 6WA1 TC-S(56L)	1-33659-165-0	04	1	9707-9904	●
34	SEAT; BALL,RELAY LEVER L TYPE ENG<90L>	1-33659-165-0	04	1	9905-	●	●	●	●	●	●
34	SEAT; BALL,RELAY LEVER 8PE1S(59L),10PE1S(60L)	1-33659-118-0	04	1	9603-9904	●	●	●	●	●
34	SEAT; BALL,RELAY LEVER V TYPE ENG<91L>	1-33659-118-0	04	1	9905-	●	●	●	●	●
35	RING; SNAP,RELAY LEVER 6WA1 TC-S(56L) OD=34.4	9-09180-132-0	01	1	9603-9706	●
35	RING; SNAP,RELAY LEVER 6WA1 TC-S(56L) OD=34.4	9-09180-132-0	01	1	9707-9904	●
35	RING; SNAP,RELAY LEVER L TYPE ENG<90L> OD=34.4	9-09180-132-0	01	1	9905-	●	●	●	●	●	●
35	RING; SNAP,RELAY LEVER 8PE1S(59L),10PE1S(60L) OD=23.5	9-09180-122-0	01	1	9603-9904	●	●	●	●	●
35	RING; SNAP,RELAY LEVER V TYPE ENG<91L> OD=23.5	9-09180-122-0	01	1	9905-	●	●	●	●	●
46	SEAL; DUST,RELAY LEVER 6WA1 TC-S(56L)	1-33659-166-0	02	1	9603-9706	●
46	SEAL; DUST,RELAY LEVER 6WA1 TC-S(56L)	1-33659-166-0	02	1	9707-9904	●
46	SEAL; DUST,RELAY LEVER L TYPE ENG<90L>	1-33659-166-0	02	1	9905-	●	●	●	●	●	●
46	SEAL; DUST,RELAY LEVER 8PE1S(59L),10PE1S(60L)	1-33659-172-0	02	1	9603-9904	●	●	●	●	●
46	SEAL; DUST,RELAY LEVER V TYPE ENG<91L>	1-33659-172-0	02	1	9905-	●	●	●	●	●
52	NUT; BRKT V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> M10 FLANGE	0-91150-110-0	02	1	9603-9608	●	●	●	●	●
52	NUT; BRKT V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> M10 FLANGE	0-91150-210-0	02	1	9609-	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2> (A)	1-33657-657-1	01	1	9905-	●	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> MIXER TRUCK<RA2> CAB UP +110MM<TGG> (A)	1-33657-758-0	01	1	9907-	●	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) (B)	1-33657-481-0	01	1	9603-9706	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) (B)	1-33657-481-0	01	1	9707-9904	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> (B)	1-33657-481-0	01	1	9905-	●	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) (A)	1-33657-512-0	01	1	9603-9702	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) EXC. MIXER TRUCK<RA2> (A)	1-33657-512-0	01	1	9703-9706	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) EXC. MIXER TRUCK<RA2> (A)	1-33657-512-0	01	1	9707-9904	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (A)	1-33657-512-0	01	1	9905-	●
71	BRACKET; 3RD RELAY LEVER,FRAME 6WA1 TC-S(56L) MIXER TRUCK<RA2> (A)	1-33657-675-0	01	1	9703-9904	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> MIXER TRUCK<RA2> (A)	1-33657-675-0	01	1	9905-9906	●
71	BRACKET; 3RD RELAY LEVER,FRAME L TYPE ENG<90L> MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> (A)	1-33657-675-0	01	1	9907-	●	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-478-0	01	1	9603-9904	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-478-0	01	1	9905-	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PE1S(59L),10PE1S(60L) FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-569-0	01	1	9603-9904	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-569-0	01	1	9905-	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-188-0	01	1	9603-9904	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-188-0	01	1	9905-	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 8PE1S(59L),10PE1S(60L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-568-0	01	1	9603-9904	●	●	●	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-568-0	01	1	9905-	●	●	●	●	●
100	SPRING 6WA1 TC-S(56L) (B)	1-09583-218-0	01	1	9603-9904	●
100	SPRING 6WA1 TC-S(56L) (A)	1-09583-351-0	01	1	9905-	●
100	SPRING 6WA1 TC-S(56L) (A)	1-09583-319-0	01	1	9603-9706	●
100	SPRING 6WA1 TC-S(56L) (A)	1-09583-319-0	01	1	9707-9904	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9905-	●	●	●	●	●	●
100	SPRING V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (C)	1-09583-294-0	01	1	9603-	●	●	●	●	●
103	NUT L TYPE ENG<90L> CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●	●	●	●
162	LEVER; RELAY V TYPE ENG<91L> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-33651-806-0	01	1	0104-	●	●	●	●	●
162	LEVER; RELAY 6WA1 TC-S(56L)	1-33651-625-0	01	1	9603-9706	●
162	LEVER; RELAY 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-33651-625-0	01	1	9707-9904	●
162	LEVER; RELAY L TYPE ENG<90L>	1-33651-625-0	01	1	9905-	●	●	●	●	●	●
162	LEVER; RELAY 8PE1S(59L),10PE1S(60L)	1-33651-622-1	01	1	9603-9904	●	●	●	●	●
162	LEVER; RELAY V TYPE ENG<91L>	1-33651-622-1	01	1	9905-0103	●	●	●	●	●
162	LEVER; RELAY V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM>	1-33651-622-1	01	1	0104-	●	●	●	●	●
242	NUT; FLANGE 3RD RELAY LEVER 6WA1 TC-S(56L) M12 FLANGE	0-91150-212-0	03	1	9603-9706	●
242	NUT; FLANGE 3RD RELAY LEVER 6WA1 TC-S(56L) M12 FLANGE	0-91150-212-0	03	1	9707-9904	●
242	NUT; FLANGE 3RD RELAY LEVER L TYPE ENG<90L> M12 FLANGE	0-91150-212-0	03	1	9905-	●	●	●	●	●	●
242	NUT; FLANGE 3RD RELAY LEVER 8PE1S(59L),10PE1S(60L) M8 FLANGE	5-09440-005-0	04	1	9603-9904	●	●	●	●	●
242	NUT; FLANGE 3RD RELAY LEVER V TYPE ENG<91L> M8 FLANGE	5-09440-005-0	04	1	9905-	●	●	●	●	●	●
243	WASHER; LK,BRKT 8PE1S(59L),10PE1S(60L) ID=14.2	9-09150-614-0	01	1	9603-9904	●	●	●	●	●
243	WASHER; LK,BRKT V TYPE ENG<91L> ID=14.2	9-09150-614-0	01	1	9905-	●	●	●	●	●
268	BRACKET; LINK ROD 6WA1 TC-S(56L) (C)	1-33657-216-0	01	1	9603-9904	●
268	BRACKET; LINK ROD 6WA1 TC-S(56L) (C)	1-33657-216-0	01	1	9905-	●
268	BRACKET; LINK ROD V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-439-1	01	1	9603-9807	●	●	●	●	●
268	BRACKET; LINK ROD V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-700-0	01	1	9808-	●	●	●	●	●
268	BRACKET; LINK ROD V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-494-0	01	1	9603-	●	●	●	●	●
466	BOLT; FIX L TYPE ENG<90L> CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●	●	●	●	●
507	PROTECTOR; HEAT L TYPE ENG<90L> CAB UP +110MM<TGG>	1-14181-315-0	01	1	9905-	●	●	●	●	●	●

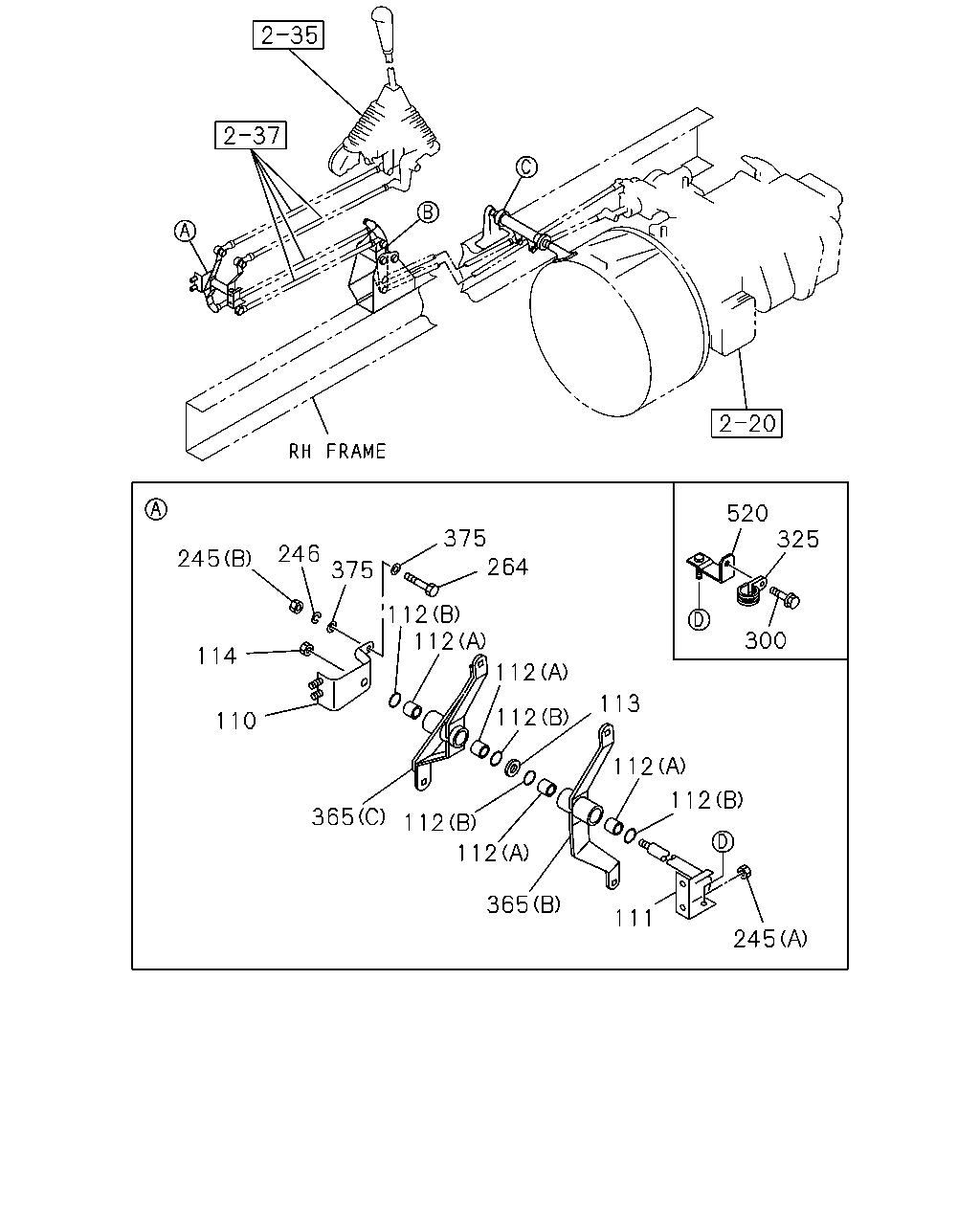

520 325 375 264 246 245 375 112 112 300 114 112 113 112 110 112 112 365 112 112 365 111 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	9603-	●	●	●	●	●	●
111	SHAFT; RELAY LEVER,1ST	1-33619-468-0	01	1	9603-	●	●	●	●	●	●
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	9603-	●	●	●	●	●	●
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	9603-	●	●	●	●	●	●
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	9603-	●	●	●	●	●	●
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	9603-	●	●	●	●	●	●
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	9603-	●	●	●	●	●	●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	9603-	●	●	●	●	●	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	9603-	●	●	●	●	●	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	01	1	9603-	●	●	●	●	●	●
300	BOLT; CLIP V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0104-	●	●	●	●	●
325	CLIP; NYLON TUBE V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> ID=18 L=28	1-09701-067-0	01	1	0104-	●	●	●	●	●
365	LEVER; RELAY,SELECT 6WA1 TC-S(56L) (A)	1-33651-628-1	01	1	9603-9706	●
365	LEVER; RELAY,SELECT 6WA1 TC-S(56L) (A)	1-33651-628-1	01	1	9707-9904	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9905-	●	●	●	●	●	●
365	LEVER; RELAY,SELECT 8PE1S(59L),10PE1S(60L) (A)	1-33651-627-1	01	1	9603-9904	●	●	●	●	●
365	LEVER; RELAY,SELECT V TYPE ENG<91L> (A)	1-33651-627-1	01	1	9905-	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9603-	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9603-	●	●	●	●	●	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9603-	●	●	●	●	●	●
520	BRACKET; NYLON TUBE V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM>	1-79996-545-0	01	1	0104-	●	●	●	●	●

496 465 192 509 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
192	COVER 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5)	1-79907-081-0	01	1	9610-9903	●
192	COVER 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	9904-0001	●
192	COVER ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	0002-	●	●	●	●	●	●
192	COVER ENG CONTROL TICS<Q3P> EXC. ELECTRONIC GOV RED3(KG5)	1-79907-090-0	01	1	0002-	●	●	●	●	●	●
465	BRACKET; CONNECTOR 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5)	1-47477-823-1	01	1	9610-0001	●
465	BRACKET; CONNECTOR ELECTRONIC GOV RED3(KG5)	1-47477-823-2	01	1	0002-	●	●	●	●	●	●
465	BRACKET; CONNECTOR ENG CONTROL TICS<Q3P> EXC. ELECTRONIC GOV RED3(KG5)	1-47477-823-2	01	1	0002-	●	●	●	●	●	●
468	NUT; BRKT V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0104-	●	●	●	●	●
468	NUT; BRKT 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) M8 FLANGE	8-94279-517-0	02	1	9610-9611	●
468	NUT; BRKT 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9612-0001	●
468	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0002-	●	●	●	●	●	●
468	NUT; BRKT ENG CONTROL TICS<Q3P> EXC. ELECTRONIC GOV RED3(KG5) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0002-	●	●	●	●	●	●
496	FASTENER 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) ID=6X6 OD=8	1-09987-194-0	02	1	9610-9610	●
496	FASTENER 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	9611-0001	●
496	FASTENER ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	0002-	●	●	●	●	●	●
496	FASTENER ENG CONTROL TICS<Q3P> EXC. ELECTRONIC GOV RED3(KG5) D8X13.5	1-09987-248-1	02	1	0002-	●	●	●	●	●	●
509	SEAL; BRKT 6WA1 TC-S(56L) ELECTRONIC GOV RED3(KG5)	1-47477-825-2	01	1	9610-0001	●
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5)	1-47477-825-2	01	1	0002-	●	●	●	●	●	●
509	SEAL; BRKT ENG CONTROL TICS<Q3P> EXC. ELECTRONIC GOV RED3(KG5)	1-47477-825-2	01	1	0002-	●	●	●	●	●	●

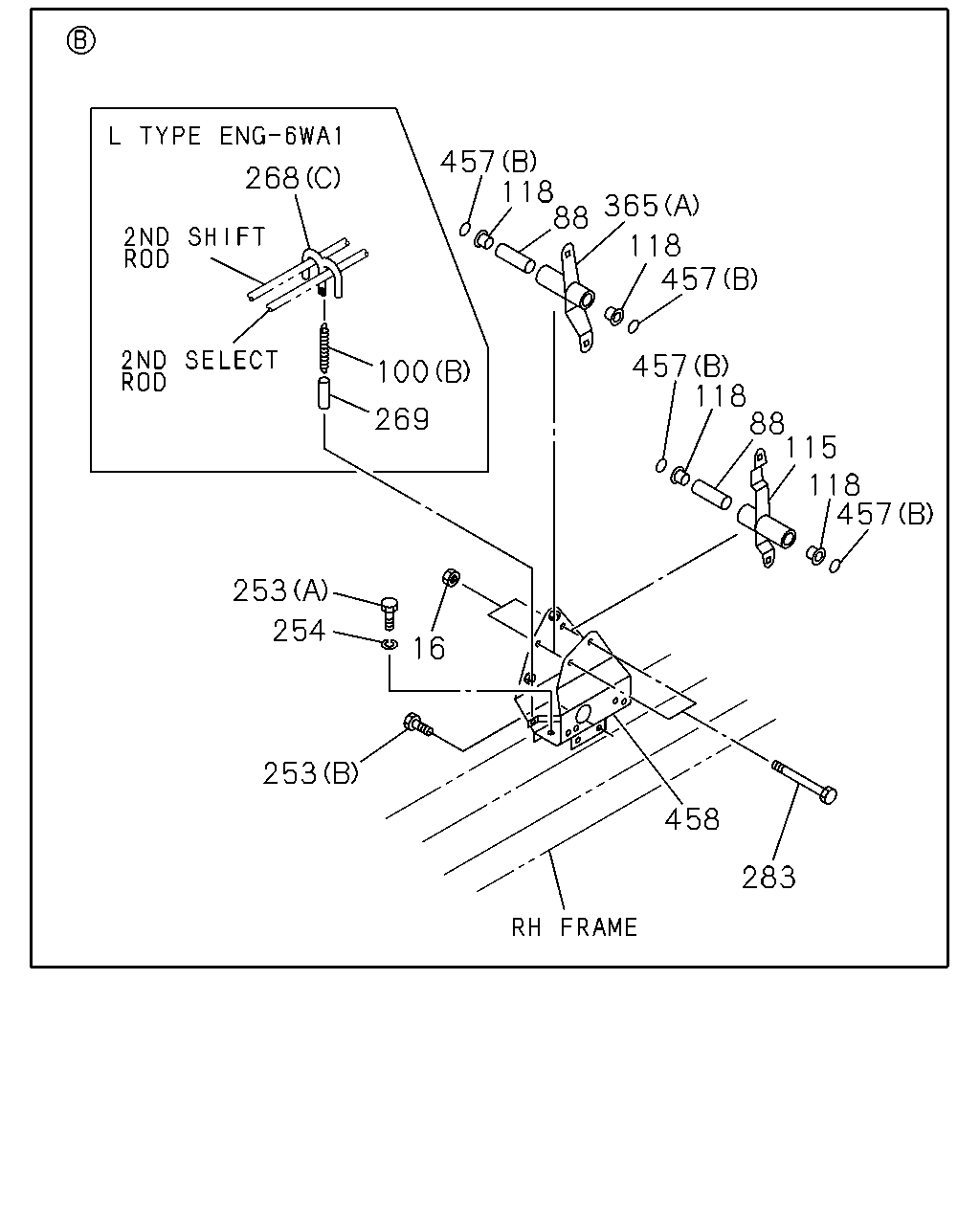

457 118 88 268 365 118 457 457 118 88 115 118 457 100 269 253 254 16 253 458 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9603-9904	●	●	●	●	●
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9905-	●	●	●	●	●	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9603-9904	●	●	●	●	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9905-	●	●	●	●	●	●
100	SPRING 6WA1 TC-S(56L) (B)	1-09583-218-0	01	1	9603-9904	●
100	SPRING 6WA1 TC-S(56L) (A)	1-09583-351-0	01	1	9905-	●
100	SPRING 6WA1 TC-S(56L) (A)	1-09583-319-0	01	1	9603-9706	●
100	SPRING 6WA1 TC-S(56L) (A)	1-09583-319-0	01	1	9707-9904	●
100	SPRING L TYPE ENG<90L> (A)	1-09583-319-0	01	1	9905-	●	●	●	●	●	●
100	SPRING V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (C)	1-09583-294-0	01	1	9603-	●	●	●	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9603-9904	●	●	●	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9905-	●	●	●	●	●	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9603-9904	●	●	●	●	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9905-	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9603-	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9603-9606	●	●	●	●	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9607-	●	●	●	●	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9603-	●	●	●	●	●	●
268	BRACKET; LINK ROD 6WA1 TC-S(56L) (C)	1-33657-216-0	01	1	9603-9904	●
268	BRACKET; LINK ROD 6WA1 TC-S(56L) (C)	1-33657-216-0	01	1	9905-	●
268	BRACKET; LINK ROD V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-439-1	01	1	9603-9807	●	●	●	●	●
268	BRACKET; LINK ROD V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-700-0	01	1	9808-	●	●	●	●	●
268	BRACKET; LINK ROD V TYPE ENG<91L> FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-494-0	01	1	9603-	●	●	●	●	●
269	COVER; SPR 6WA1 TC-S(56L)	1-15669-002-0	01	1	9603-9904	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9603-9904	●	●	●	●	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9905-	●	●	●	●	●	●
365	LEVER; RELAY,SELECT 6WA1 TC-S(56L) (A)	1-33651-628-1	01	1	9603-9706	●
365	LEVER; RELAY,SELECT 6WA1 TC-S(56L) (A)	1-33651-628-1	01	1	9707-9904	●
365	LEVER; RELAY,SELECT L TYPE ENG<90L> (A)	1-33651-628-1	01	1	9905-	●	●	●	●	●	●
365	LEVER; RELAY,SELECT 8PE1S(59L),10PE1S(60L) (A)	1-33651-627-1	01	1	9603-9904	●	●	●	●	●
365	LEVER; RELAY,SELECT V TYPE ENG<91L> (A)	1-33651-627-1	01	1	9905-	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9603-	●	●	●	●	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9603-	●	●	●	●	●	●
457	GASKET (B)	1-09623-594-0	04	1	9603-9904	●	●	●	●	●
457	GASKET (B)	1-09623-594-0	04	1	9905-	●	●	●	●	●	●
458	BRACKET; 2ND RELAY LEVER L TYPE ENG<90L> EXC. CAB UP +110MM<TGG>	1-33657-583-1	01	1	9905-	●	●	●	●	●	●
458	BRACKET; 2ND RELAY LEVER 6WA1 TC-S(56L)	1-33657-573-2	01	1	9603-9706	●
458	BRACKET; 2ND RELAY LEVER 6WA1 TC-S(56L)	1-33657-573-2	01	1	9707-9904	●
458	BRACKET; 2ND RELAY LEVER L TYPE ENG<90L> CAB UP +110MM<TGG>	1-33657-664-1	01	1	9905-	●	●	●	●	●	●
458	BRACKET; 2ND RELAY LEVER 8PE1S(59L),10PE1S(60L)	1-33657-572-2	01	1	9603-9904	●	●	●	●	●
458	BRACKET; 2ND RELAY LEVER V TYPE ENG<91L>	1-33657-572-2	01	1	9905-	●	●	●	●	●	●
