◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#43369) — 22 parça

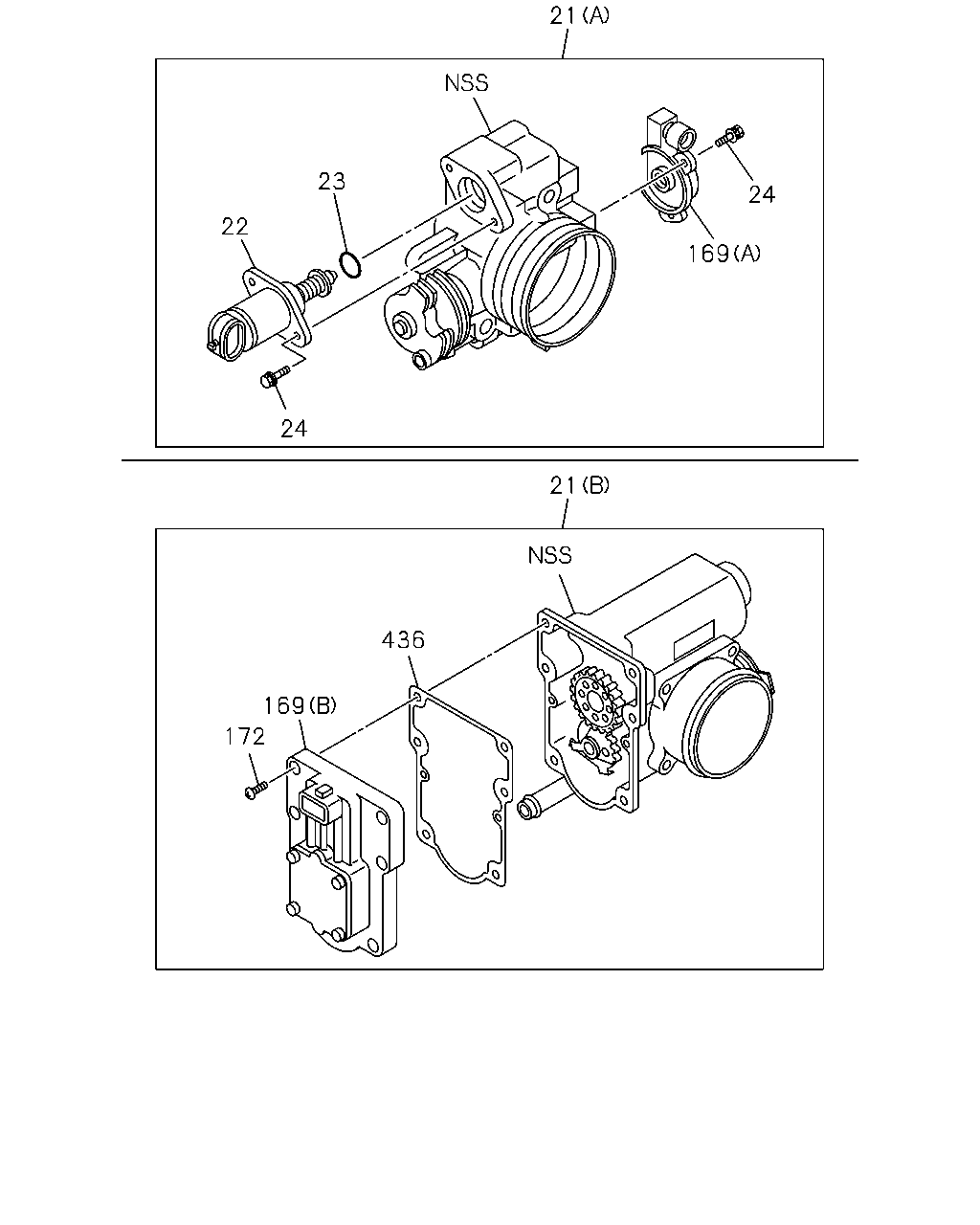

çizim 71799
21 23 24 22 169 24 21 436 169 172
BalonParca AdiParca NoAdetTipApplied Date A B
21 03.440 VALVE ASM; THROTTLE
EUROPE EQUIPMENT(EK4) (B) 		8-97213-219-3 01 1 0106- ●
21 03.440 VALVE ASM; THROTTLE
A/T THM(RMQ) (A) 		8-17098-025-1 01 1 9712-0105 ● ●
21 03.440 VALVE ASM; THROTTLE
A/T THM(RMQ) SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (A) 		8-17098-025-1 01 1 0106- ●
21 03.440 VALVE ASM; THROTTLE
A/T THM(RMQ) (A) 		8-17098-025-1 01 1 0106- ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) (A) 		8-17098-164-1 01 1 9712-0105 ● ●
21 03.440 VALVE ASM; THROTTLE
M/T AR-5 5 SPEED(RNK) SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (A) 		8-17098-164-1 01 1 0106- ●
21 03.440 VALVE ASM; THROTTLE
M/T MUA 5 SPEED(RMN) (A) 		8-17098-164-1 01 1 0106- ●
22 03.440 VALVE ASM; CONT,TB 8-17112-648-0 01 1 9712-0105 ● ●
22 03.440 VALVE ASM; CONT,TB
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-17112-648-0 01 1 0106- ●
22 03.440 VALVE ASM; CONT,TB 8-17112-648-0 01 1 0106- ●
23 03.440 GASKET; AIR CONT VLV 8-17082-049-0 01 1 9712-0105 ● ●
23 03.440 GASKET; AIR CONT VLV
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-17082-049-0 01 1 0106- ●
23 03.440 GASKET; AIR CONT VLV 8-17082-049-0 01 1 0106- ●
24 03.440 SCREW SET; TB 8-17112-689-0 01 1 9712-0105 ● ●
24 03.440 SCREW SET; TB
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-17112-689-0 01 1 0106- ●
24 03.440 SCREW SET; TB 8-17112-689-0 01 1 0106- ●
169 03.440 SENSOR
EUROPE EQUIPMENT(EK4) (B) 		8-97254-681-0 01 1 0106- ●
169 03.440 SENSOR
(A) 		8-17106-680-0 01 1 9712-0105 ● ●
169 03.440 SENSOR
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) (A) 		8-17106-680-0 01 1 0106- ●
169 03.440 SENSOR
(A) 		8-17106-680-0 01 1 0106- ●
172 03.440 SCREW; SENSOR
EUROPE EQUIPMENT(EK4) 		8-97254-684-0 06 1 0106- ●
436 03.440 GASKET; SENSOR
EUROPE EQUIPMENT(EK4) 		8-97254-683-0 01 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
