◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#43366) — 145 parça

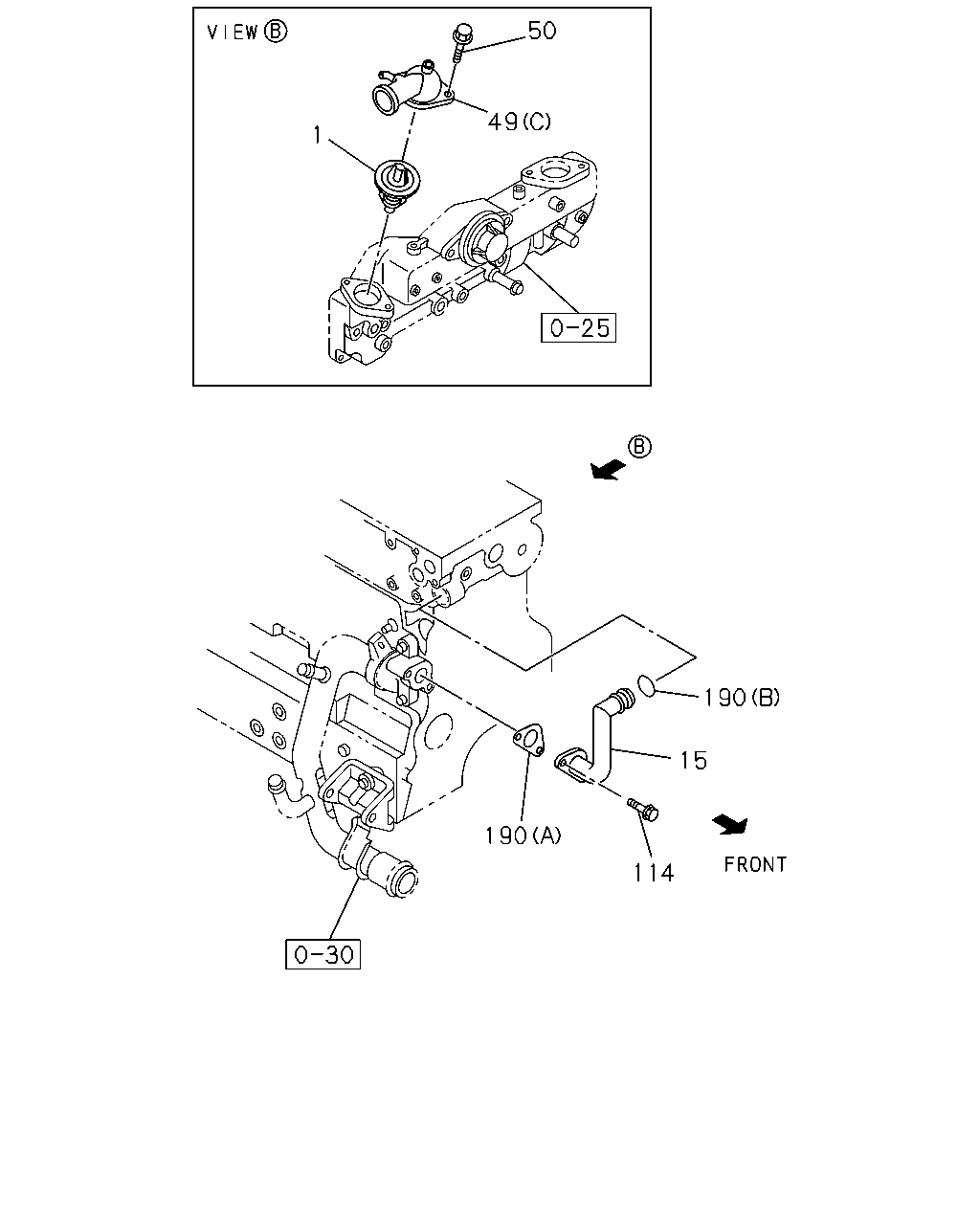

çizim 17089
50 49 1 190 15 190 114
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.246 THERMOSTAT
82?C 		8-97089-891-0 01 1 9712-0301 ●
1 01.246 THERMOSTAT
82?C 		8-97361-770-0 01 1 0302- ●
1 01.246 THERMOSTAT
85?C 		8-97137-087-1 01 1 9712-9910 ●
1 01.246 THERMOSTAT
85?C 		8-97246-973-0 01 1 9911- ●
1 01.246 THERMOSTAT
76.5?C 		8-97123-161-4 01 1 9712-0301 ● ●
1 01.246 THERMOSTAT
76.5?C 		8-97362-894-0 01 1 0302- ● ●
15 01.251 PIPE; BYPASS 8-94343-211-1 01 1 9712- ●
15 01.251 PIPE; BYPASS 8-97137-265-1 01 1 9712- ●
49 01.153 PIPE; WATER OUTLET
TURBOCHARGER<K51> (A) 		8-97183-181-0 01 1 9712- ●
49 01.153 PIPE; WATER OUTLET
EXC. TURBOCHARGER<K51> (B) 		8-97139-712-0 01 1 9712- ●
49 01.153 PIPE; WATER OUTLET
(C) 		8-97162-420-2 01 1 9712-0008 ●
49 01.153 PIPE; WATER OUTLET
(C) 		8-97255-905-0 01 1 0009- ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9712- ●
50 01.252 BOLT; OUTLET PIPE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9712- ●
114 01.097 BOLT; BYPASS PIPE
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9712- ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97184-500-1 01 1 9712- ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97250-367-0 01 1 9712- ●

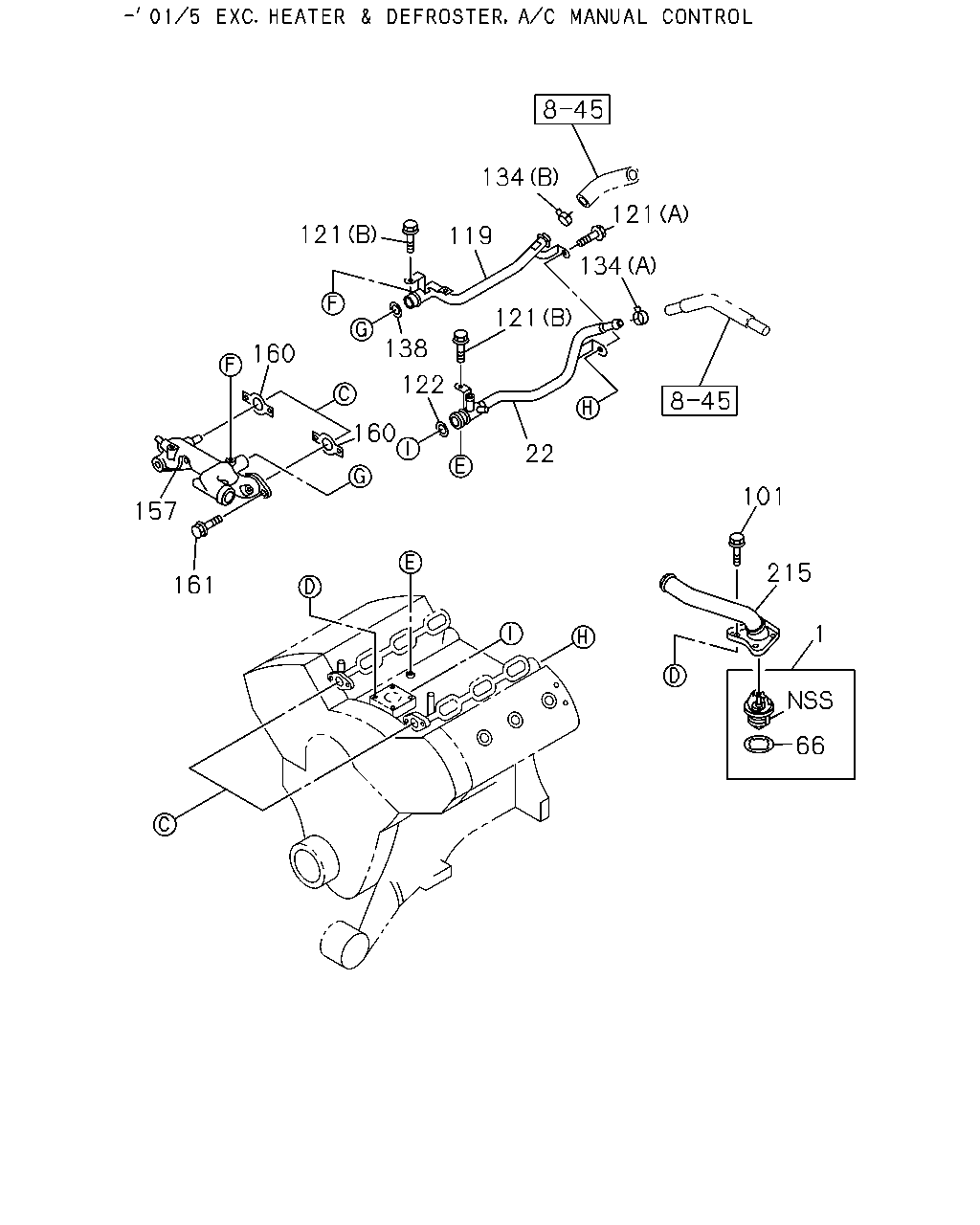

çizim 68878
134 121 121 119 134 121 138 160 122 160 22 101 157 215 161 1 66
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.246 THERMOSTAT
82?C 		8-97089-891-0 01 1 9712-0301 ●
1 01.246 THERMOSTAT
82?C 		8-97361-770-0 01 1 0302- ●
1 01.246 THERMOSTAT
85?C 		8-97137-087-1 01 1 9712-9910 ●
1 01.246 THERMOSTAT
85?C 		8-97246-973-0 01 1 9911- ●
1 01.246 THERMOSTAT
76.5?C 		8-97123-161-4 01 1 9712-0301 ● ●
1 01.246 THERMOSTAT
76.5?C 		8-97362-894-0 01 1 0302- ● ●
22 03.278 PIPE; HTR,RETURN 8-94478-869-2 01 1 9712- ●
22 03.278 PIPE; HTR,RETURN 8-97131-890-2 01 1 9712-9812 ●
22 03.278 PIPE; HTR,RETURN
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97131-890-2 01 1 9712-9812 ●
22 03.278 PIPE; HTR,RETURN
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97131-890-2 01 1 9901-9906 ● ●
22 03.278 PIPE; HTR,RETURN
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97231-679-0 01 1 9907-0105 ● ●
22 03.278 PIPE; HTR,RETURN 8-97231-679-2 01 1 0106- ● ●
22 03.278 PIPE; HTR,RETURN
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97136-134-1 01 1 9712-9812 ●
22 03.278 PIPE; HTR,RETURN
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97136-134-1 01 1 9901-9907 ● ●
22 03.278 PIPE; HTR,RETURN
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97224-807-0 01 1 9908-0105 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94365-675-1 01 1 9712-9902 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97216-156-0 01 1 9903- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97123-162-0 01 1 9712-0301 ● ●
101 01.251 BOLT; PIPE
08.900 M8X12 FLANGE 		0-28080-812-0 04 1 9712- ● ●
119 08.846 PIPE; HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97136-133-1 01 1 9712-9812 ●
119 08.846 PIPE; HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97136-133-1 01 1 9901-0105 ● ●
121 08.900 BOLT; HTR PIPE
(B) M8X12 FLANGE 		0-28080-812-0 04 1 9712-9812 ●
121 08.900 BOLT; HTR PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) M8X12 FLANGE 		0-28080-812-0 04 1 9712-9812 ●
121 08.900 BOLT; HTR PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) M8X12 FLANGE 		0-28080-812-0 04 1 9901-0105 ● ●
121 08.900 BOLT; HTR PIPE
(B) M8X12 FLANGE 		0-28080-812-0 04 1 0106- ● ●
121 08.900 BOLT; HTR PIPE
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 9712- ● ●
121 08.900 BOLT; HTR PIPE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M8X12 FLANGE 		0-28080-812-0 02 1 9712-9812 ●
121 08.900 BOLT; HTR PIPE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M8X12 FLANGE 		0-28080-812-0 02 1 9901-0105 ● ●
122 03.602 GASKET; HSG TO PIPE
01.154 		9-09561-220-0 01 1 9712- ● ●
134 04.930 CLIP; RUBBER HOSE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (A) ID=20.8 		8-94125-862-0 01 1 9712-9812 ●
134 04.930 CLIP; RUBBER HOSE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (A) ID=20.8 		8-94125-862-1 01 1 9901-0105 ● ●
134 04.930 CLIP; RUBBER HOSE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=23 		8-94382-402-0 01 1 9712-9812 ●
134 04.930 CLIP; RUBBER HOSE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=23 		8-94382-402-0 01 1 9901-0105 ● ●
138 01.252 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 06.021 		9-09561-225-0 01 1 9712- ● ●
157 01.251 MANIFOLD; WATER 8-97136-345-3 01 1 9712-0310 ● ●
160 01.252 GASKET; WATER MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97136-346-0 02 1 9712- ● ●
161 01.251 BOLT; MANIF TO HD
16.545 M8X40 FLANGE 		0-28690-840-0 04 1 9712- ● ●
215 01.159 PIPE; WATER,INL 8-97131-884-2 01 1 9712- ● ●

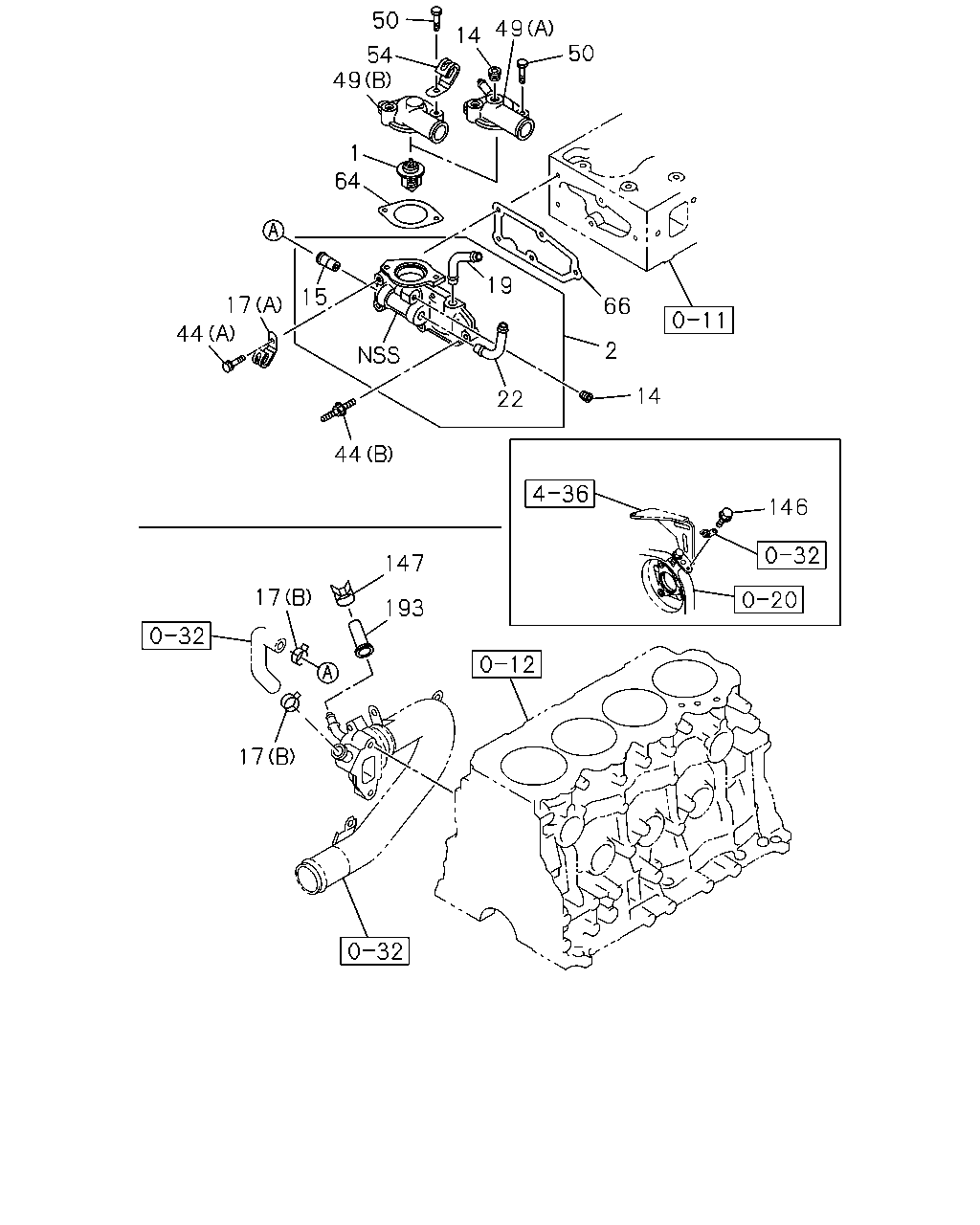

çizim 69043
50 49 14 50 54 49 1 64 19 15 17 66 44 2 14 22 44 146 147 17 193 17
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.246 THERMOSTAT
82?C 		8-97089-891-0 01 1 9712-0301 ●
1 01.246 THERMOSTAT
82?C 		8-97361-770-0 01 1 0302- ●
1 01.246 THERMOSTAT
85?C 		8-97137-087-1 01 1 9712-9910 ●
1 01.246 THERMOSTAT
85?C 		8-97246-973-0 01 1 9911- ●
1 01.246 THERMOSTAT
76.5?C 		8-97123-161-4 01 1 9712-0301 ● ●
1 01.246 THERMOSTAT
76.5?C 		8-97362-894-0 01 1 0302- ● ●
2 01.251 HOUSING; THERMOSTAT 8-97117-243-0 01 1 9712-0312 ●
2 01.251 HOUSING; THERMOSTAT 8-97372-994-1 01 1 0401- ●
14 01.252 PLUG; SW
TURBOCHARGER<K51> 01.073 PT3/8 		5-09605-005-0 02 1 9712- ●
14 01.252 PLUG; SW
EXC. TURBOCHARGER<K51> 01.073 PT3/8 		5-09605-005-0 01 1 9712- ●
15 01.251 PIPE; BYPASS 8-94343-211-1 01 1 9712- ●
15 01.251 PIPE; BYPASS 8-97137-265-1 01 1 9712- ●
17 01.166 CLIP; WATER HOSE
02.559 (A) ID=12 		5-09700-331-0 01 1 9712-9807 ●
17 01.166 CLIP; WATER HOSE
TURBOCHARGER<K51> 02.559 (A) ID=12 		5-09700-331-0 01 1 9808-0302 ●
17 01.166 CLIP; WATER HOSE
02.559 (A) ID=12 		5-09700-331-0 01 1 9808-0302 ●
17 01.166 CLIP; WATER HOSE
TURBOCHARGER<K51> 01.150 (A) ID=12 		8-97367-983-0 01 1 0303- ●
17 01.166 CLIP; WATER HOSE
01.150 (A) ID=12 		8-97367-983-0 01 1 0303- ●
17 01.166 CLIP; WATER HOSE
(B) ID=20.8 		8-94125-862-1 02 1 9712- ●
19 01.252 PIPE; HSG TO HTR 8-94478-870-1 01 1 9712- ●
22 03.278 PIPE; HTR,RETURN 8-94478-869-2 01 1 9712- ●
22 03.278 PIPE; HTR,RETURN 8-97131-890-2 01 1 9712-9812 ●
22 03.278 PIPE; HTR,RETURN
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97131-890-2 01 1 9712-9812 ●
22 03.278 PIPE; HTR,RETURN
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97131-890-2 01 1 9901-9906 ● ●
22 03.278 PIPE; HTR,RETURN
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97231-679-0 01 1 9907-0105 ● ●
22 03.278 PIPE; HTR,RETURN 8-97231-679-2 01 1 0106- ● ●
22 03.278 PIPE; HTR,RETURN
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97136-134-1 01 1 9712-9812 ●
22 03.278 PIPE; HTR,RETURN
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97136-134-1 01 1 9901-9907 ● ●
22 03.278 PIPE; HTR,RETURN
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97224-807-0 01 1 9908-0105 ● ●
44 01.252 BOLT; HSG TO HD
00.780 (A) M8X30 W/LK WASHER 		0-50040-830-0 04 1 9712- ●
44 01.252 BOLT; HSG TO HD
(B) M8X28,M8X34 L=69 		8-94479-011-1 01 1 9712- ●
49 01.153 PIPE; WATER OUTLET
TURBOCHARGER<K51> (A) 		8-97183-181-0 01 1 9712- ●
49 01.153 PIPE; WATER OUTLET
EXC. TURBOCHARGER<K51> (B) 		8-97139-712-0 01 1 9712- ●
49 01.153 PIPE; WATER OUTLET
(C) 		8-97162-420-2 01 1 9712-0008 ●
49 01.153 PIPE; WATER OUTLET
(C) 		8-97255-905-0 01 1 0009- ●
50 01.252 BOLT; OUTLET PIPE
M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9712- ●
50 01.252 BOLT; OUTLET PIPE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9712- ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
02.559 ID=12 		5-09700-331-0 01 1 9712-0302 ●
54 01.152 CLIP; THERMO SWITCH,OUTLET PIPE
01.150 ID=12 		8-97367-983-0 01 1 0303- ●
64 01.154 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 01.252 		8-94365-674-2 01 1 9712- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94365-675-1 01 1 9712-9902 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97216-156-0 01 1 9903- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97123-162-0 01 1 9712-0301 ● ●
146 01.166 BOLT; CLIP
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712- ●
147 03.330 CLIP; RUBBER CAP
EXC. TURBOCHARGER<K51> 01.097 ID=14.8 		8-94448-727-0 01 1 9712-0111 ●
147 03.330 CLIP; RUBBER CAP
EXC. TURBOCHARGER<K51> 01.097 ID=14.8 		8-94448-727-0 01 1 0112-0208 ●
147 03.330 CLIP; RUBBER CAP
4X2(UBR***) 01.097 ID=14.8 		8-94448-727-0 01 1 0112-0208 ●
147 03.330 CLIP; RUBBER CAP
M/T MUA 5 SPEED(RMN) EXC. TURBOCHARGER<K51> 01.097 ID=14.8 		8-94448-727-0 01 1 0209- ●
147 03.330 CLIP; RUBBER CAP
EXC. EURO3 SPECIFICATION(NT3) 01.097 ID=14.8 		8-94448-727-0 01 1 0209- ●
193 01.252 CAP; RUBBER
EXC. TURBOCHARGER<K51> 08.846 		8-94366-898-1 01 1 9712-0111 ●
193 01.252 CAP; RUBBER
EXC. TURBOCHARGER<K51> 08.846 		8-94366-898-1 01 1 0112-0208 ●
193 01.252 CAP; RUBBER
4X2(UBR***) 08.846 		8-94366-898-1 01 1 0112-0208 ●
193 01.252 CAP; RUBBER
M/T MUA 5 SPEED(RMN) EXC. TURBOCHARGER<K51> 08.846 		8-94366-898-1 01 1 0209- ●
193 01.252 CAP; RUBBER
EXC. EURO3 SPECIFICATION(NT3) 08.846 		8-94366-898-1 01 1 0209- ●

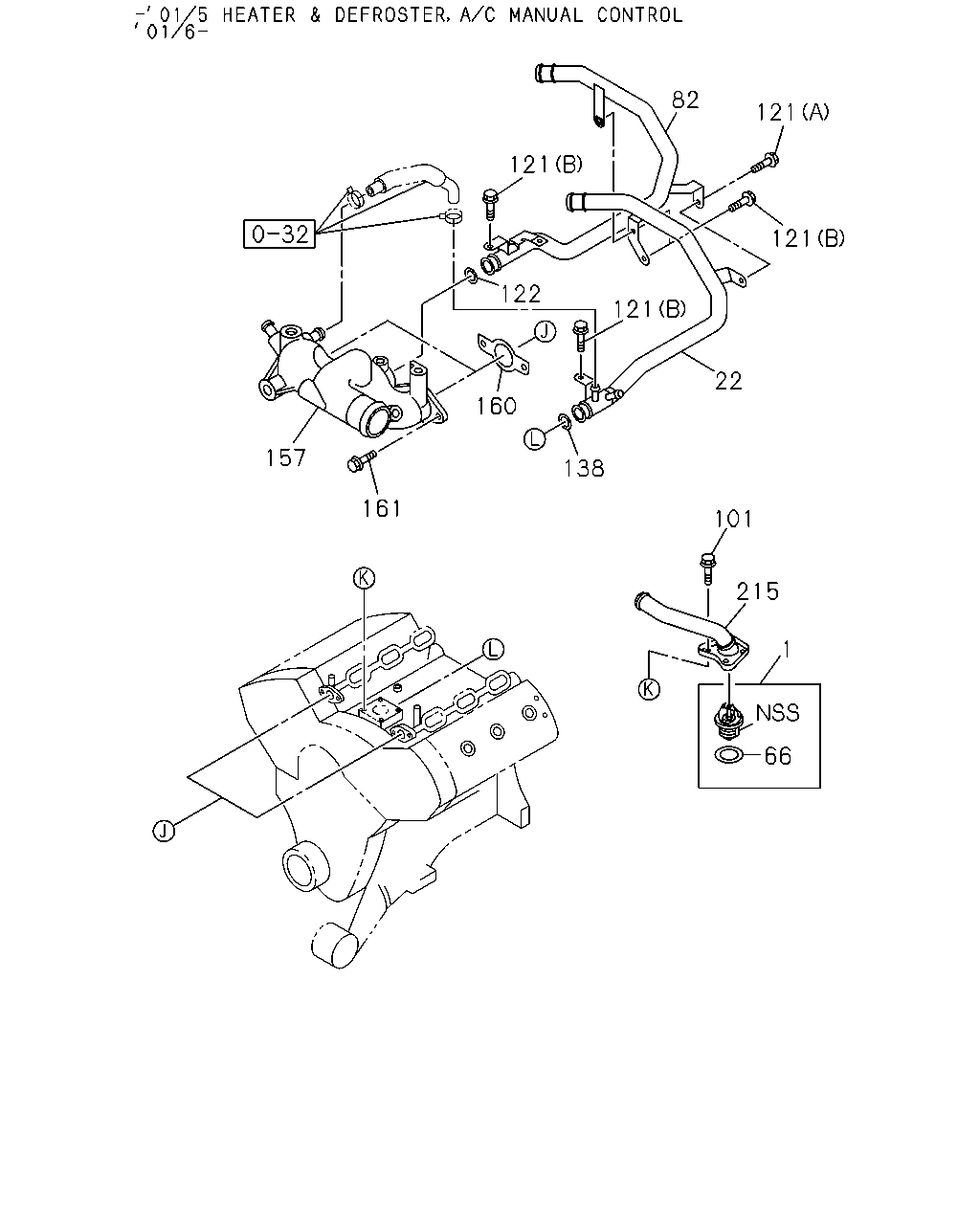

çizim 69962
82 121 121 121 122 121 22 160 157 138 161 101 215 1 66
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.246 THERMOSTAT
82?C 		8-97089-891-0 01 1 9712-0301 ●
1 01.246 THERMOSTAT
82?C 		8-97361-770-0 01 1 0302- ●
1 01.246 THERMOSTAT
85?C 		8-97137-087-1 01 1 9712-9910 ●
1 01.246 THERMOSTAT
85?C 		8-97246-973-0 01 1 9911- ●
1 01.246 THERMOSTAT
76.5?C 		8-97123-161-4 01 1 9712-0301 ● ●
1 01.246 THERMOSTAT
76.5?C 		8-97362-894-0 01 1 0302- ● ●
22 03.278 PIPE; HTR,RETURN 8-94478-869-2 01 1 9712- ●
22 03.278 PIPE; HTR,RETURN 8-97131-890-2 01 1 9712-9812 ●
22 03.278 PIPE; HTR,RETURN
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97131-890-2 01 1 9712-9812 ●
22 03.278 PIPE; HTR,RETURN
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97131-890-2 01 1 9901-9906 ● ●
22 03.278 PIPE; HTR,RETURN
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97231-679-0 01 1 9907-0105 ● ●
22 03.278 PIPE; HTR,RETURN 8-97231-679-2 01 1 0106- ● ●
22 03.278 PIPE; HTR,RETURN
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97136-134-1 01 1 9712-9812 ●
22 03.278 PIPE; HTR,RETURN
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97136-134-1 01 1 9901-9907 ● ●
22 03.278 PIPE; HTR,RETURN
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97224-807-0 01 1 9908-0105 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94365-675-1 01 1 9712-9902 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97216-156-0 01 1 9903- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97123-162-0 01 1 9712-0301 ● ●
82 08.845 PIPE; WATER,HTR 8-97131-889-2 01 1 9712-9812 ●
82 08.845 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97131-889-2 01 1 9712-9812 ●
82 08.845 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97131-889-2 01 1 9901-9906 ● ●
82 08.845 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-97222-133-0 01 1 9907-0105 ● ●
82 08.845 PIPE; WATER,HTR 8-97222-133-0 01 1 0106- ● ●
101 01.251 BOLT; PIPE
08.900 M8X12 FLANGE 		0-28080-812-0 04 1 9712- ● ●
121 08.900 BOLT; HTR PIPE
(B) M8X12 FLANGE 		0-28080-812-0 04 1 9712-9812 ●
121 08.900 BOLT; HTR PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) M8X12 FLANGE 		0-28080-812-0 04 1 9712-9812 ●
121 08.900 BOLT; HTR PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) M8X12 FLANGE 		0-28080-812-0 04 1 9901-0105 ● ●
121 08.900 BOLT; HTR PIPE
(B) M8X12 FLANGE 		0-28080-812-0 04 1 0106- ● ●
121 08.900 BOLT; HTR PIPE
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 9712- ● ●
121 08.900 BOLT; HTR PIPE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M8X12 FLANGE 		0-28080-812-0 02 1 9712-9812 ●
121 08.900 BOLT; HTR PIPE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M8X12 FLANGE 		0-28080-812-0 02 1 9901-0105 ● ●
122 03.602 GASKET; HSG TO PIPE
01.154 		9-09561-220-0 01 1 9712- ● ●
138 01.252 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 06.021 		9-09561-225-0 01 1 9712- ● ●
157 01.251 MANIFOLD; WATER 8-97136-345-3 01 1 9712-0310 ● ●
160 01.252 GASKET; WATER MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97136-346-0 02 1 9712- ● ●
161 01.251 BOLT; MANIF TO HD
16.545 M8X40 FLANGE 		0-28690-840-0 04 1 9712- ● ●
215 01.159 PIPE; WATER,INL 8-97131-884-2 01 1 9712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
