0-27 — EXHAUST MANIFOLD (#43363) — 246 parça

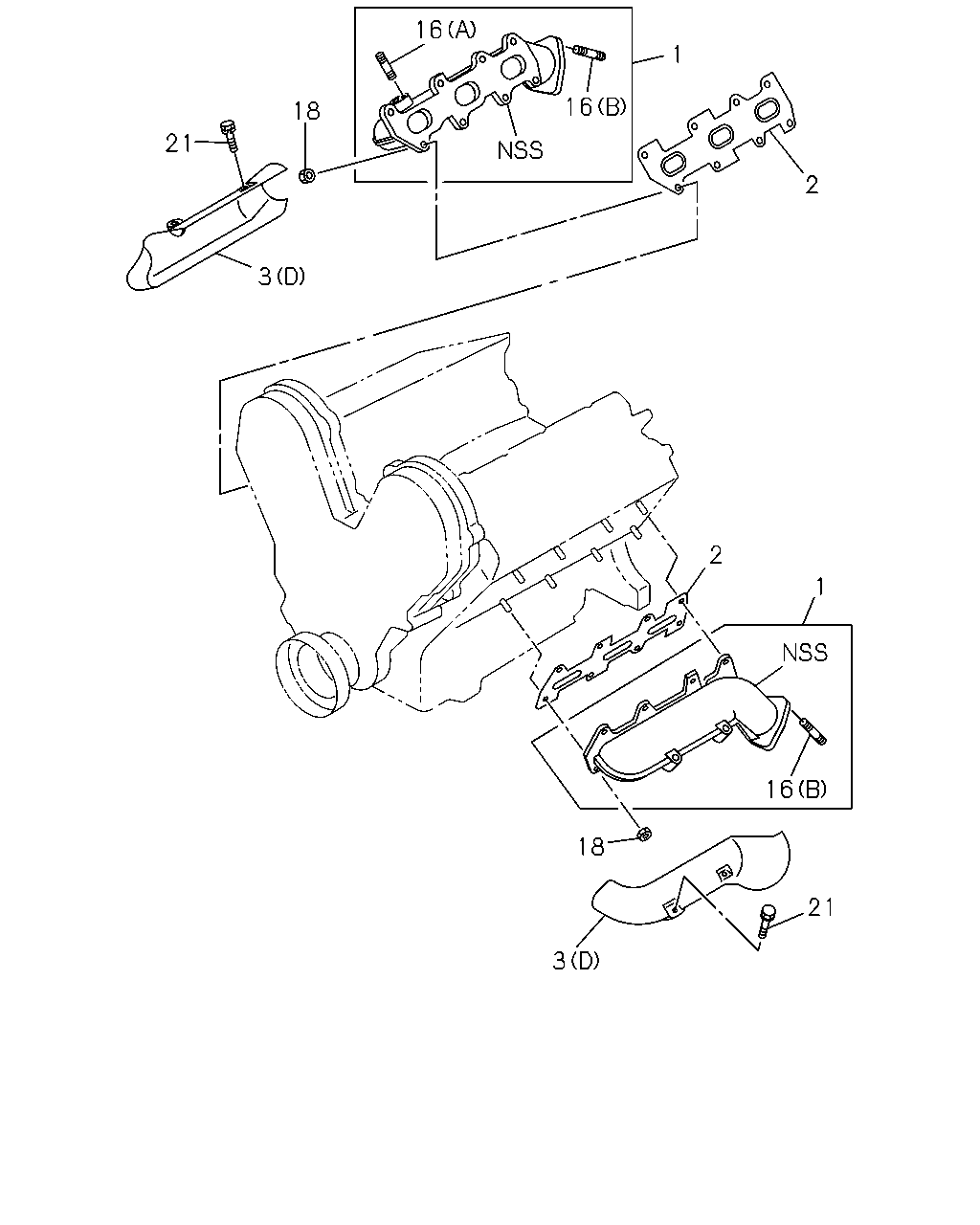

çizim 69008
16 1 16 18 21 2 3 2 1 16 18 21 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> 		8-97039-473-3 01 1 9712-9801 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97039-473-3 01 1 9802-0005 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N) 		8-97039-473-3 01 1 0006-0105 ●
1 03.601 MANIFOLD; EXHAUST
M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N) 		8-97039-473-3 01 1 0106- ●
1 03.601 MANIFOLD; EXHAUST
A/T AISIN(RMD) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97039-473-3 01 1 0106- ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-97039-474-3 01 1 9802-0005 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N) 		8-97039-474-3 01 1 0006- ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> 		8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST 8-97137-099-1 01 1 9712-0105 ●
1 03.601 MANIFOLD; EXHAUST
EXC. EUROPE EQUIPMENT(EK4) 		8-97137-099-1 01 1 0106-0208 ●
1 03.601 MANIFOLD; EXHAUST
EXC. EURO3 SPECIFICATION(NT3) 		8-97137-099-1 01 1 0209- ●
1 03.601 MANIFOLD; EXHAUST
EUROPE EQUIPMENT(EK4) 		8-97263-064-0 01 1 0106-0208 ●
1 03.601 MANIFOLD; EXHAUST
EURO3 SPECIFICATION(NT3) 		8-97263-064-0 01 1 0209- ●
1 03.601 MANIFOLD; EXHAUST 8-97167-062-1 01 1 9712-0005 ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97167-062-1 01 1 9712-0005 ●
1 03.601 MANIFOLD; EXHAUST 8-97167-062-2 01 1 0006- ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97167-062-2 01 1 0006- ●
1 03.601 MANIFOLD; EXHAUST 8-97167-063-1 01 1 9712- ● ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97170-146-0 01 1 9712-0005 ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97170-146-0 01 1 0006- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97109-216-2 01 1 9712-0210 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97350-317-0 01 1 0211- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97137-100-0 04 1 9712- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97148-717-0 02 1 9712- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (B) 		8-97038-107-2 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97133-936-1 01 1 9712-0309 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97912-766-0 01 1 0310-0406 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97133-936-1 01 1 0407- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51> (C) 		8-97131-704-0 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97164-276-1 01 1 9712- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97164-278-1 01 1 9712- ● ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51> 03.613 (C) M10X38 L=53 		5-09302-007-0 02 1 9712- ●
16 03.604 STUD; EXH PIPE TO MANIF
(A) M8X18 L=29 		8-97061-377-1 01 1 9712-0005 ●
16 03.604 STUD; EXH PIPE TO MANIF
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) M8X18 L=29 		8-97061-377-1 01 1 9712-0005 ●
16 03.604 STUD; EXH PIPE TO MANIF
(A) M8X18 L=29 		8-97061-377-1 01 1 0006- ●
16 03.604 STUD; EXH PIPE TO MANIF
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) M8X18 L=29 		8-97061-377-1 01 1 0006- ●
16 03.604 STUD; EXH PIPE TO MANIF
(B) M12X15 L=46.6 		8-97115-132-0 03 1 9712-9809 ● ●
16 03.604 STUD; EXH PIPE TO MANIF
(B) M12X15 L=46.6 		8-97115-132-0 03 1 9810- ● ●
16 03.604 STUD; EXH PIPE TO MANIF
(B) M12X15 L=46.6 		8-97115-132-0 03 1 9810- ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9712- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 10 1 9712-0105 ●
18 03.604 NUT; EXH MANIF
EXC. EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE 		0-91150-208-0 10 1 0106-0208 ●
18 03.604 NUT; EXH MANIF
EXC. EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE 		0-91150-208-0 10 1 0209- ●
18 03.604 NUT; EXH MANIF
EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE 		0-91150-208-0 08 1 0106-0208 ●
18 03.604 NUT; EXH MANIF
EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE 		0-91150-208-0 08 1 0209- ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 16 1 9712- ● ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		8-97012-320-1 04 1 9712- ● ●

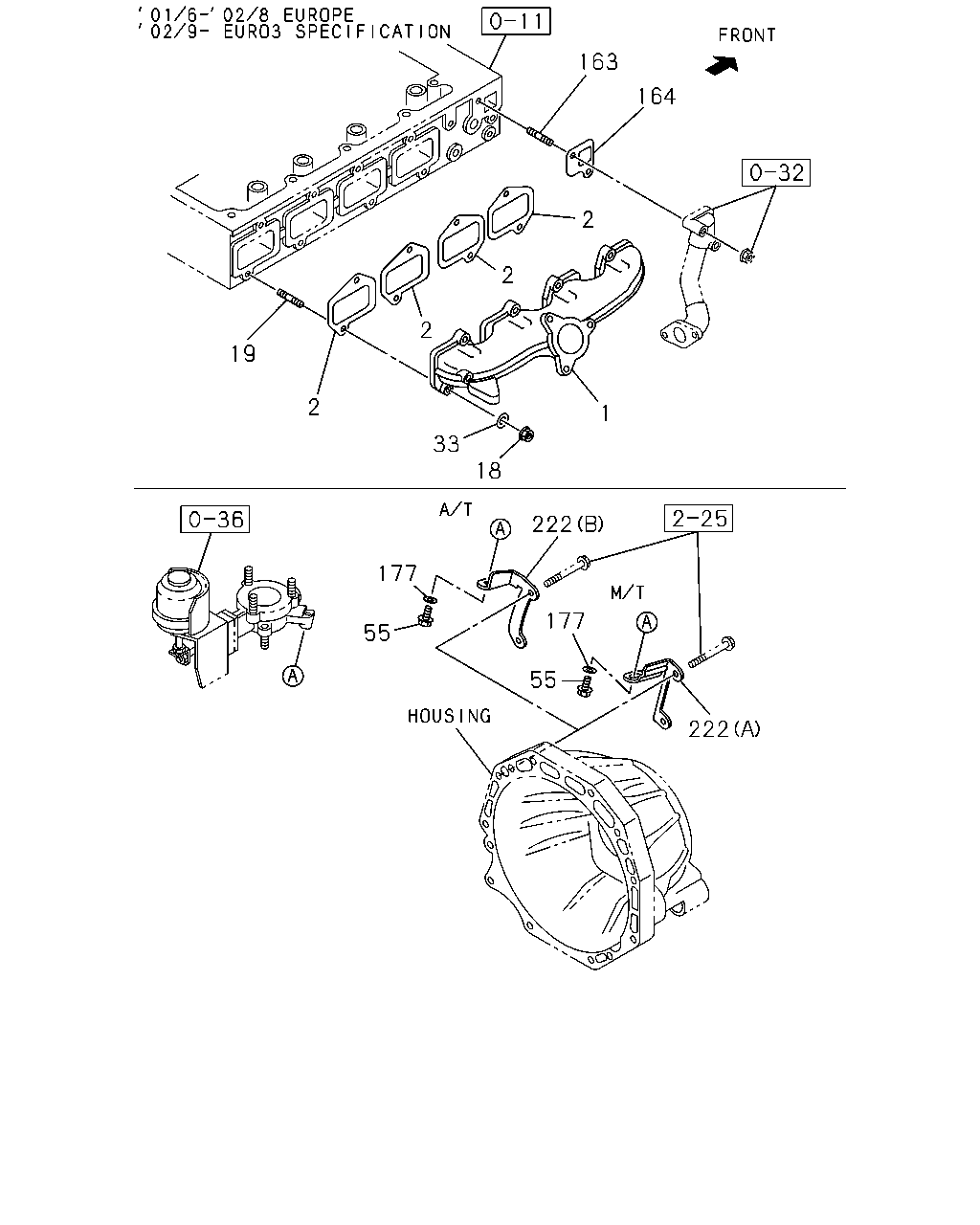

çizim 71639
163 164 2 2 2 19 2 1 33 18 222 177 177 55 55 222
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> 		8-97039-473-3 01 1 9712-9801 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97039-473-3 01 1 9802-0005 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N) 		8-97039-473-3 01 1 0006-0105 ●
1 03.601 MANIFOLD; EXHAUST
M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N) 		8-97039-473-3 01 1 0106- ●
1 03.601 MANIFOLD; EXHAUST
A/T AISIN(RMD) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97039-473-3 01 1 0106- ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-97039-474-3 01 1 9802-0005 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N) 		8-97039-474-3 01 1 0006- ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> 		8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST 8-97137-099-1 01 1 9712-0105 ●
1 03.601 MANIFOLD; EXHAUST
EXC. EUROPE EQUIPMENT(EK4) 		8-97137-099-1 01 1 0106-0208 ●
1 03.601 MANIFOLD; EXHAUST
EXC. EURO3 SPECIFICATION(NT3) 		8-97137-099-1 01 1 0209- ●
1 03.601 MANIFOLD; EXHAUST
EUROPE EQUIPMENT(EK4) 		8-97263-064-0 01 1 0106-0208 ●
1 03.601 MANIFOLD; EXHAUST
EURO3 SPECIFICATION(NT3) 		8-97263-064-0 01 1 0209- ●
1 03.601 MANIFOLD; EXHAUST 8-97167-062-1 01 1 9712-0005 ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97167-062-1 01 1 9712-0005 ●
1 03.601 MANIFOLD; EXHAUST 8-97167-062-2 01 1 0006- ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97167-062-2 01 1 0006- ●
1 03.601 MANIFOLD; EXHAUST 8-97167-063-1 01 1 9712- ● ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97170-146-0 01 1 9712-0005 ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97170-146-0 01 1 0006- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97109-216-2 01 1 9712-0210 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97350-317-0 01 1 0211- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97137-100-0 04 1 9712- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97148-717-0 02 1 9712- ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9712- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 10 1 9712-0105 ●
18 03.604 NUT; EXH MANIF
EXC. EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE 		0-91150-208-0 10 1 0106-0208 ●
18 03.604 NUT; EXH MANIF
EXC. EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE 		0-91150-208-0 10 1 0209- ●
18 03.604 NUT; EXH MANIF
EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE 		0-91150-208-0 08 1 0106-0208 ●
18 03.604 NUT; EXH MANIF
EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE 		0-91150-208-0 08 1 0209- ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 16 1 9712- ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-1 02 1 9712- ●
19 03.604 STUD; MANIF TO CYL HD
03.342 M8X30 L=41 		8-94111-619-1 06 1 9712- ●
19 03.604 STUD; MANIF TO CYL HD
03.342 M8X64 L=76 		8-94150-352-0 02 1 9712- ●
33 03.604 WASHER; EXH MANIF
03.332 ID=8.5 OD=15 T=4 		1-09503-219-0 10 1 9712-0006 ●
33 03.604 WASHER; EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 10 1 0007-0105 ●
33 03.604 WASHER; EXH MANIF
EXC. EUROPE EQUIPMENT(EK4) ID=8.5 OD=15 T=4 		8-97257-914-0 10 1 0106-0208 ●
33 03.604 WASHER; EXH MANIF
EXC. EURO3 SPECIFICATION(NT3) ID=8.5 OD=15 T=4 		8-97257-914-0 10 1 0209- ●
33 03.604 WASHER; EXH MANIF
EUROPE EQUIPMENT(EK4) ID=8.5 OD=15 T=4 		8-97257-914-0 08 1 0106-0208 ●
33 03.604 WASHER; EXH MANIF
EURO3 SPECIFICATION(NT3) ID=8.5 OD=15 T=4 		8-97257-914-0 08 1 0209- ●
55 03.613 BOLT; BRKT
EUROPE EQUIPMENT(EK4) 01.540 M10X20 FLANGE 		0-28181-020-0 01 1 0106-0208 ●
55 03.613 BOLT; BRKT
EURO3 SPECIFICATION(NT3) 01.540 M10X20 FLANGE 		0-28181-020-0 01 1 0209- ●
163 03.604 STUD; EGR PORT 8-97202-734-0 02 1 9712- ●
164 03.270 GASKET; EGR PORT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97137-811-1 01 1 9712- ●
177 03.613 WASHER; PL
EUROPE EQUIPMENT(EK4) 16.682 ID=10.5 OD=22 		9-09160-610-0 01 1 0106-0208 ●
177 03.613 WASHER; PL
EURO3 SPECIFICATION(NT3) 16.682 ID=10.5 OD=22 		9-09160-610-0 01 1 0209- ●
222 03.602 BRACKET; EXH ADAPTOR
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (B) 		8-97309-041-1 01 1 0106-0208 ●
222 03.602 BRACKET; EXH ADAPTOR
A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) (B) 		8-97309-041-1 01 1 0209- ●
222 03.602 BRACKET; EXH ADAPTOR
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97309-042-1 01 1 0106-0208 ●
222 03.602 BRACKET; EXH ADAPTOR
M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) (A) 		8-97309-042-1 01 1 0209- ●

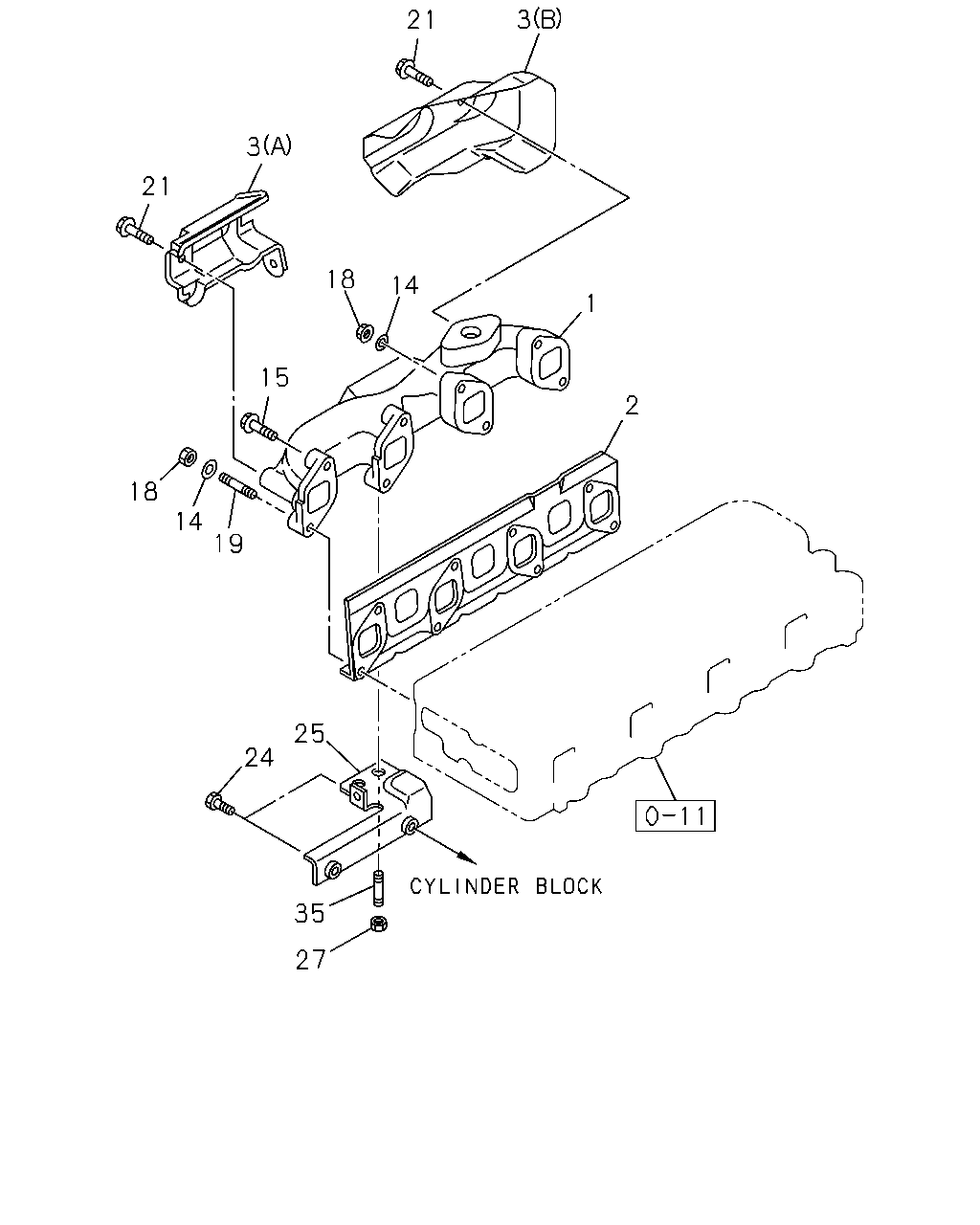

çizim 71844
3 21 3 21 18 14 1 15 2 18 14 19 25 24 35 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> 		8-97039-473-3 01 1 9712-9801 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97039-473-3 01 1 9802-0005 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N) 		8-97039-473-3 01 1 0006-0105 ●
1 03.601 MANIFOLD; EXHAUST
M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N) 		8-97039-473-3 01 1 0106- ●
1 03.601 MANIFOLD; EXHAUST
A/T AISIN(RMD) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97039-473-3 01 1 0106- ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-97039-474-3 01 1 9802-0005 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N) 		8-97039-474-3 01 1 0006- ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> 		8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST 8-97137-099-1 01 1 9712-0105 ●
1 03.601 MANIFOLD; EXHAUST
EXC. EUROPE EQUIPMENT(EK4) 		8-97137-099-1 01 1 0106-0208 ●
1 03.601 MANIFOLD; EXHAUST
EXC. EURO3 SPECIFICATION(NT3) 		8-97137-099-1 01 1 0209- ●
1 03.601 MANIFOLD; EXHAUST
EUROPE EQUIPMENT(EK4) 		8-97263-064-0 01 1 0106-0208 ●
1 03.601 MANIFOLD; EXHAUST
EURO3 SPECIFICATION(NT3) 		8-97263-064-0 01 1 0209- ●
1 03.601 MANIFOLD; EXHAUST 8-97167-062-1 01 1 9712-0005 ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97167-062-1 01 1 9712-0005 ●
1 03.601 MANIFOLD; EXHAUST 8-97167-062-2 01 1 0006- ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97167-062-2 01 1 0006- ●
1 03.601 MANIFOLD; EXHAUST 8-97167-063-1 01 1 9712- ● ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97170-146-0 01 1 9712-0005 ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97170-146-0 01 1 0006- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97109-216-2 01 1 9712-0210 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97350-317-0 01 1 0211- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97137-100-0 04 1 9712- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97148-717-0 02 1 9712- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (B) 		8-97038-107-2 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97133-936-1 01 1 9712-0309 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97912-766-0 01 1 0310-0406 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97133-936-1 01 1 0407- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51> (C) 		8-97131-704-0 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97164-276-1 01 1 9712- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97164-278-1 01 1 9712- ● ●
14 03.604 WASHER; PL,EXH MANIF
TURBOCHARGER<K51> 03.332 ID=8.5 OD=15 T=4 		1-09503-219-0 02 1 9712-0006 ●
14 03.604 WASHER; PL,EXH MANIF
TURBOCHARGER<K51> ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0007- ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 9712- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9712- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 10 1 9712-0105 ●
18 03.604 NUT; EXH MANIF
EXC. EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE 		0-91150-208-0 10 1 0106-0208 ●
18 03.604 NUT; EXH MANIF
EXC. EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE 		0-91150-208-0 10 1 0209- ●
18 03.604 NUT; EXH MANIF
EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE 		0-91150-208-0 08 1 0106-0208 ●
18 03.604 NUT; EXH MANIF
EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE 		0-91150-208-0 08 1 0209- ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 16 1 9712- ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-1 02 1 9712- ●
19 03.604 STUD; MANIF TO CYL HD
03.342 M8X30 L=41 		8-94111-619-1 06 1 9712- ●
19 03.604 STUD; MANIF TO CYL HD
03.342 M8X64 L=76 		8-94150-352-0 02 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		8-97012-320-1 04 1 9712- ● ●
24 03.613 BOLT; BRKT,EXH MANIF
TURBOCHARGER<K51> 02.510 M8X25 W/LK&PL WASHER 		0-50140-825-0 01 1 9712- ●
24 03.613 BOLT; BRKT,EXH MANIF
TURBOCHARGER<K51> 03.890 M10X32 W/LK WASHER 		0-50141-032-0 01 1 9712- ●
25 03.602 BRACKET; EXH MANIF
TURBOCHARGER<K51> 		8-97145-973-0 01 1 9712- ●
27 03.602 NUT; BRKT,EXH MANIF
TURBOCHARGER<K51> 01.540 M8 FLANGE 		0-91150-208-0 01 1 9712- ●
35 03.604 STUD; BRKT
TURBOCHARGER<K51> M8X20 L=29 		5-09300-069-0 01 1 9712- ●

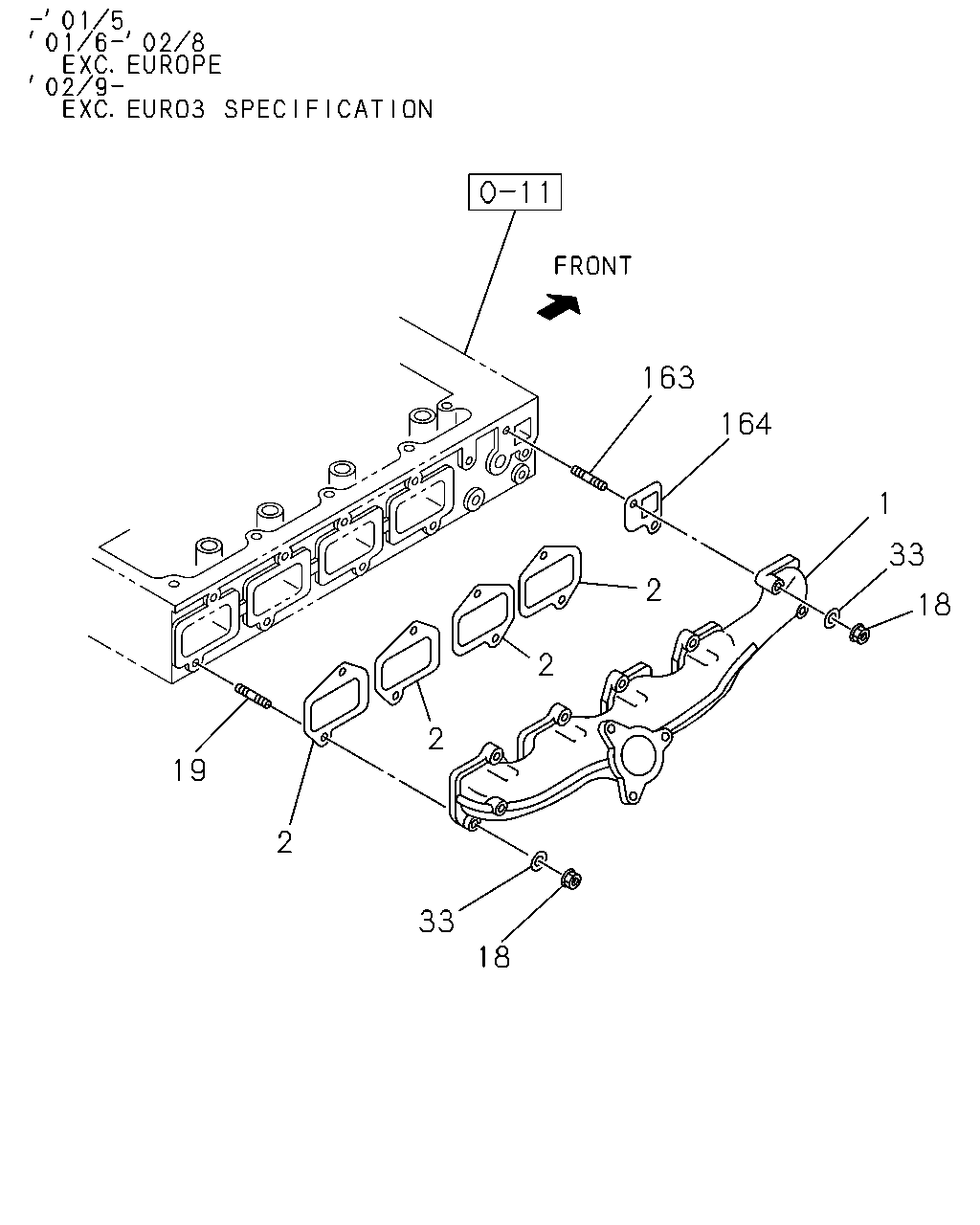

çizim 71964
163 164 1 33 2 18 2 2 19 2 33 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> 		8-97039-473-3 01 1 9712-9801 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97039-473-3 01 1 9802-0005 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N) 		8-97039-473-3 01 1 0006-0105 ●
1 03.601 MANIFOLD; EXHAUST
M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N) 		8-97039-473-3 01 1 0106- ●
1 03.601 MANIFOLD; EXHAUST
A/T AISIN(RMD) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97039-473-3 01 1 0106- ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-97039-474-3 01 1 9802-0005 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N) 		8-97039-474-3 01 1 0006- ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> 		8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST 8-97137-099-1 01 1 9712-0105 ●
1 03.601 MANIFOLD; EXHAUST
EXC. EUROPE EQUIPMENT(EK4) 		8-97137-099-1 01 1 0106-0208 ●
1 03.601 MANIFOLD; EXHAUST
EXC. EURO3 SPECIFICATION(NT3) 		8-97137-099-1 01 1 0209- ●
1 03.601 MANIFOLD; EXHAUST
EUROPE EQUIPMENT(EK4) 		8-97263-064-0 01 1 0106-0208 ●
1 03.601 MANIFOLD; EXHAUST
EURO3 SPECIFICATION(NT3) 		8-97263-064-0 01 1 0209- ●
1 03.601 MANIFOLD; EXHAUST 8-97167-062-1 01 1 9712-0005 ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97167-062-1 01 1 9712-0005 ●
1 03.601 MANIFOLD; EXHAUST 8-97167-062-2 01 1 0006- ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97167-062-2 01 1 0006- ●
1 03.601 MANIFOLD; EXHAUST 8-97167-063-1 01 1 9712- ● ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97170-146-0 01 1 9712-0005 ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97170-146-0 01 1 0006- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97109-216-2 01 1 9712-0210 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97350-317-0 01 1 0211- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97137-100-0 04 1 9712- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97148-717-0 02 1 9712- ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9712- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 10 1 9712-0105 ●
18 03.604 NUT; EXH MANIF
EXC. EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE 		0-91150-208-0 10 1 0106-0208 ●
18 03.604 NUT; EXH MANIF
EXC. EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE 		0-91150-208-0 10 1 0209- ●
18 03.604 NUT; EXH MANIF
EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE 		0-91150-208-0 08 1 0106-0208 ●
18 03.604 NUT; EXH MANIF
EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE 		0-91150-208-0 08 1 0209- ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 16 1 9712- ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-1 02 1 9712- ●
19 03.604 STUD; MANIF TO CYL HD
03.342 M8X30 L=41 		8-94111-619-1 06 1 9712- ●
19 03.604 STUD; MANIF TO CYL HD
03.342 M8X64 L=76 		8-94150-352-0 02 1 9712- ●
33 03.604 WASHER; EXH MANIF
03.332 ID=8.5 OD=15 T=4 		1-09503-219-0 10 1 9712-0006 ●
33 03.604 WASHER; EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 10 1 0007-0105 ●
33 03.604 WASHER; EXH MANIF
EXC. EUROPE EQUIPMENT(EK4) ID=8.5 OD=15 T=4 		8-97257-914-0 10 1 0106-0208 ●
33 03.604 WASHER; EXH MANIF
EXC. EURO3 SPECIFICATION(NT3) ID=8.5 OD=15 T=4 		8-97257-914-0 10 1 0209- ●
33 03.604 WASHER; EXH MANIF
EUROPE EQUIPMENT(EK4) ID=8.5 OD=15 T=4 		8-97257-914-0 08 1 0106-0208 ●
33 03.604 WASHER; EXH MANIF
EURO3 SPECIFICATION(NT3) ID=8.5 OD=15 T=4 		8-97257-914-0 08 1 0209- ●
163 03.604 STUD; EGR PORT 8-97202-734-0 02 1 9712- ●
164 03.270 GASKET; EGR PORT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97137-811-1 01 1 9712- ●
çizim 72388
21 18 1 19 2 3 15 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> 		8-97039-473-3 01 1 9712-9801 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ) 		8-97039-473-3 01 1 9802-0005 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N) 		8-97039-473-3 01 1 0006-0105 ●
1 03.601 MANIFOLD; EXHAUST
M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N) 		8-97039-473-3 01 1 0106- ●
1 03.601 MANIFOLD; EXHAUST
A/T AISIN(RMD) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97039-473-3 01 1 0106- ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ) 		8-97039-474-3 01 1 9802-0005 ●
1 03.601 MANIFOLD; EXHAUST
TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N) 		8-97039-474-3 01 1 0006- ●
1 03.601 MANIFOLD; EXHAUST
EXC. TURBOCHARGER<K51> 		8-97065-960-1 01 1 9712- ●
1 03.601 MANIFOLD; EXHAUST 8-97137-099-1 01 1 9712-0105 ●
1 03.601 MANIFOLD; EXHAUST
EXC. EUROPE EQUIPMENT(EK4) 		8-97137-099-1 01 1 0106-0208 ●
1 03.601 MANIFOLD; EXHAUST
EXC. EURO3 SPECIFICATION(NT3) 		8-97137-099-1 01 1 0209- ●
1 03.601 MANIFOLD; EXHAUST
EUROPE EQUIPMENT(EK4) 		8-97263-064-0 01 1 0106-0208 ●
1 03.601 MANIFOLD; EXHAUST
EURO3 SPECIFICATION(NT3) 		8-97263-064-0 01 1 0209- ●
1 03.601 MANIFOLD; EXHAUST 8-97167-062-1 01 1 9712-0005 ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97167-062-1 01 1 9712-0005 ●
1 03.601 MANIFOLD; EXHAUST 8-97167-062-2 01 1 0006- ●
1 03.601 MANIFOLD; EXHAUST
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97167-062-2 01 1 0006- ●
1 03.601 MANIFOLD; EXHAUST 8-97167-063-1 01 1 9712- ● ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97170-146-0 01 1 9712-0005 ●
1 03.601 MANIFOLD; EXHAUST
EXC. SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97170-146-0 01 1 0006- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97109-216-2 01 1 9712-0210 ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97350-317-0 01 1 0211- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97137-100-0 04 1 9712- ●
2 03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97148-717-0 02 1 9712- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (B) 		8-97038-107-2 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97133-936-1 01 1 9712-0309 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97912-766-0 01 1 0310-0406 ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97133-936-1 01 1 0407- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51> (C) 		8-97131-704-0 01 1 9712- ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97164-276-1 01 1 9712- ● ●
3 03.602 PROTECTOR; HEAT,EXH MANIF
(D) 		8-97164-278-1 01 1 9712- ● ●
15 03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 9712- ●
16 03.604 STUD; EXH PIPE TO MANIF
EXC. TURBOCHARGER<K51> 03.613 (C) M10X38 L=53 		5-09302-007-0 02 1 9712- ●
16 03.604 STUD; EXH PIPE TO MANIF
(A) M8X18 L=29 		8-97061-377-1 01 1 9712-0005 ●
16 03.604 STUD; EXH PIPE TO MANIF
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) M8X18 L=29 		8-97061-377-1 01 1 9712-0005 ●
16 03.604 STUD; EXH PIPE TO MANIF
(A) M8X18 L=29 		8-97061-377-1 01 1 0006- ●
16 03.604 STUD; EXH PIPE TO MANIF
SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) M8X18 L=29 		8-97061-377-1 01 1 0006- ●
16 03.604 STUD; EXH PIPE TO MANIF
(B) M12X15 L=46.6 		8-97115-132-0 03 1 9712-9809 ● ●
16 03.604 STUD; EXH PIPE TO MANIF
(B) M12X15 L=46.6 		8-97115-132-0 03 1 9810- ● ●
16 03.604 STUD; EXH PIPE TO MANIF
(B) M12X15 L=46.6 		8-97115-132-0 03 1 9810- ● ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 02 1 9712- ●
18 03.604 NUT; EXH MANIF
01.540 M8 FLANGE 		0-91150-208-0 10 1 9712-0105 ●
18 03.604 NUT; EXH MANIF
EXC. EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE 		0-91150-208-0 10 1 0106-0208 ●
18 03.604 NUT; EXH MANIF
EXC. EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE 		0-91150-208-0 10 1 0209- ●
18 03.604 NUT; EXH MANIF
EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE 		0-91150-208-0 08 1 0106-0208 ●
18 03.604 NUT; EXH MANIF
EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE 		0-91150-208-0 08 1 0209- ●
18 03.604 NUT; EXH MANIF
08.917 M10 FLANGE 		0-91150-210-0 16 1 9712- ● ●
19 03.604 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-1 02 1 9712- ●
19 03.604 STUD; MANIF TO CYL HD
03.342 M8X30 L=41 		8-94111-619-1 06 1 9712- ●
19 03.604 STUD; MANIF TO CYL HD
03.342 M8X64 L=76 		8-94150-352-0 02 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712- ●
21 03.604 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		8-97012-320-1 04 1 9712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
