Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#43362) — 236 parça

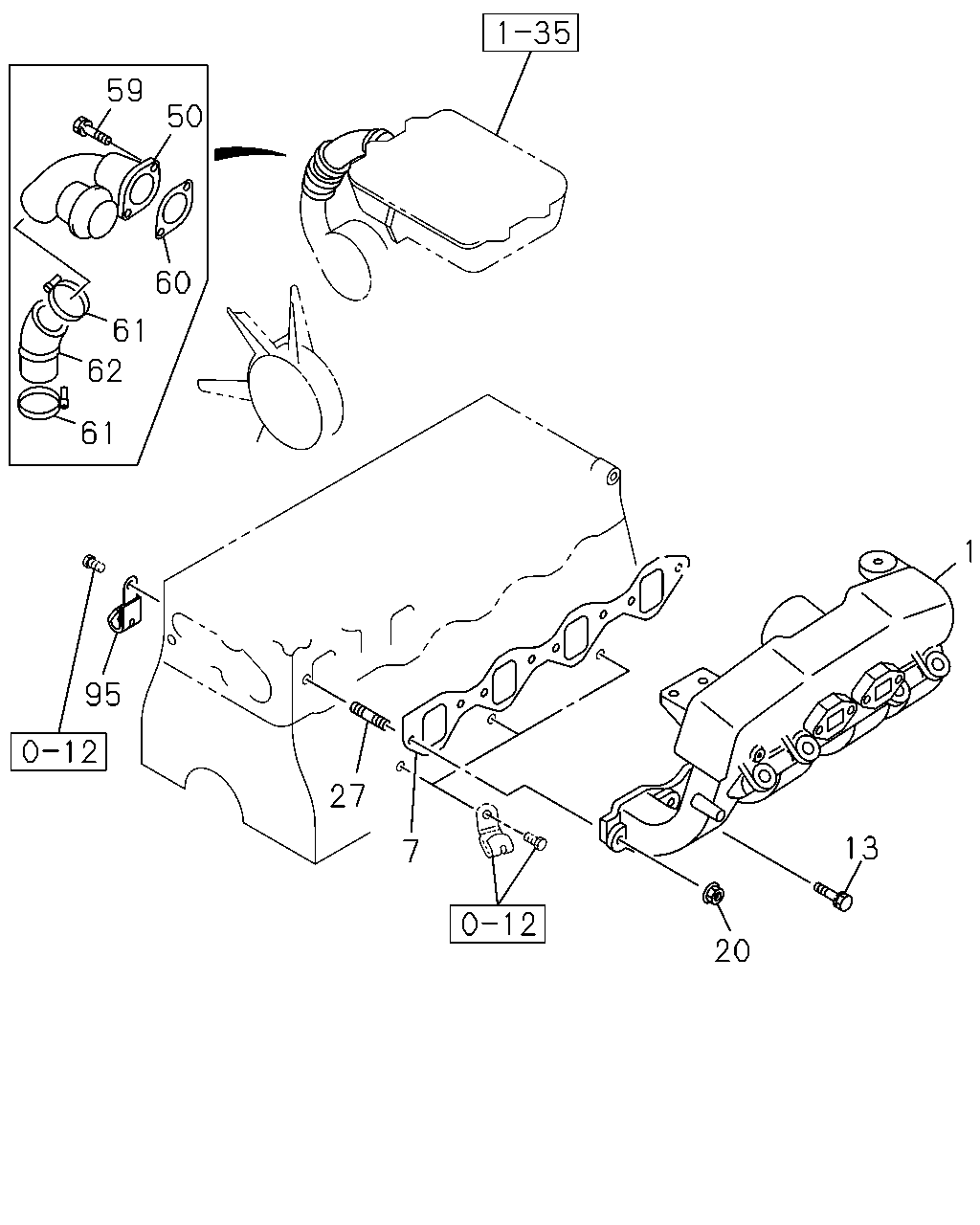

59 50 60 61 62 61 1 95 27 13 7 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL TURBOCHARGER<K51>	8-97116-132-1	01	1	9712-9801	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ)	8-97116-132-2	01	1	9802-0005	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N)	8-97116-132-2	01	1	0006-0105	●
1	03.265 MANIFOLD; INL M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N)	8-97116-132-2	01	1	0106-0303	●
1	03.265 MANIFOLD; INL A/T AISIN(RMD) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97116-132-2	01	1	0106-0303	●
1	03.265 MANIFOLD; INL M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N)	8-97350-916-0	01	1	0304-	●
1	03.265 MANIFOLD; INL A/T AISIN(RMD) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97350-916-0	01	1	0304-	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97139-649-1	01	1	9802-0005	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N)	8-97139-649-1	01	1	0006-	●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97110-514-1	01	1	9712-	●
1	03.265 MANIFOLD; INL	8-97137-095-9	01	1	9712-9904		●
1	03.265 MANIFOLD; INL	8-97229-436-1	01	1	9905-0105		●
1	03.265 MANIFOLD; INL EXC. EUROPE EQUIPMENT(EK4)	8-97229-436-2	01	1	0106-0208		●
1	03.265 MANIFOLD; INL EXC. EURO3 SPECIFICATION(NT3)	8-97229-436-3	01	1	0209-		●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4)	8-97309-090-1	01	1	0106-0208		●
1	03.265 MANIFOLD; INL EURO3 SPECIFICATION(NT3)	8-97309-090-2	01	1	0209-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9712-9905	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	9906-0101	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97301-838-1	01	1	0102-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97137-098-1	01	1	9712-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97131-894-2	02	1	9712-9909			●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97237-538-0	02	1	9910-			●	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9712-	●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9712-	●
13	03.275 BOLT; INL MANIF 03.278 M8X100 FLANGE	0-28080-800-0	05	1	9712-		●
13	03.275 BOLT; INL MANIF 01.780 M8X120 FLANGE	0-28085-812-0	01	1	9712-		●
13	03.275 BOLT; INL MANIF 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9712-		●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9712-	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	03	1	9712-		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-			●	●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	02	1	9712-	●
27	03.275 STUD; INL MANIF 01.428 M8X20 L=32	9-04110-820-0	03	1	9712-		●
50	03.265 PIPE; INL TURBOCHARGER<K51>	8-97139-402-0	01	1	9712-	●
59	03.403 BOLT; INL PIPE TO MANIF TURBOCHARGER<K51> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9712-	●
60	03.270 GASKET; INL PIPE TURBOCHARGER<K51> 03.275	8-97086-961-0	01	1	9712-	●
60	03.270 GASKET; INL PIPE	8-97210-886-0	01	1	9806-9904		●
60	03.270 GASKET; INL PIPE	8-97222-933-0	01	1	9905-		●
61	03.273 CLIP; CONNECTOR HOSE TURBOCHARGER<K51> 03.407 ID=45.5-56.5	8-97131-943-0	02	1	9712-	●
62	03.265 HOSE; CONNECTOR TURBOCHARGER<K51>	8-97120-496-0	01	1	9712-	●
95	03.278 CLIP; RUBBER HOSE	8-94406-478-0	01	1	9712-0101	●
95	03.278 CLIP; RUBBER HOSE 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0102-	●

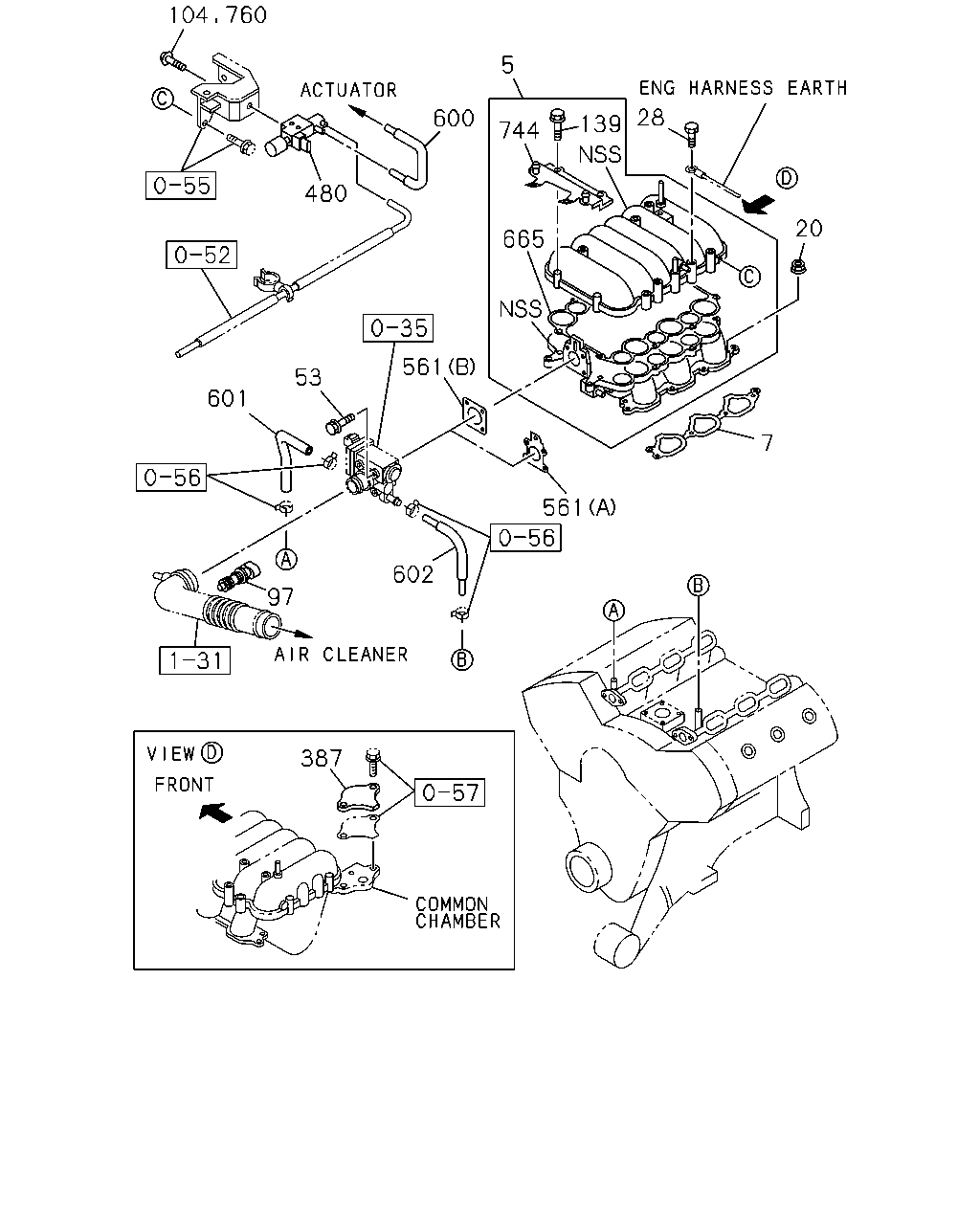

5 28 600 139 744 480 20 665 561 53 601 7 561 602 97 387 104 760

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	03.278 CHAMBER; COMMON EUROPE EQUIPMENT(EK4)	8-97193-355-2	01	1	0106-			●
5	03.278 CHAMBER; COMMON	8-97131-891-7	01	1	9712-0105			●	●
5	03.278 CHAMBER; COMMON SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ)	8-97131-891-8	01	1	0106-			●
5	03.278 CHAMBER; COMMON	8-97131-891-8	01	1	0106-				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9712-9905	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	9906-0101	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97301-838-1	01	1	0102-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97137-098-1	01	1	9712-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97131-894-2	02	1	9712-9909			●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97237-538-0	02	1	9910-			●	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9712-	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	03	1	9712-		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-			●	●
28	03.278 BOLT; CHAMBER M8X150 FLANGE	0-28085-815-0	04	1	9712-			●	●
53	03.602 BOLT; INL PIPE EXC. TURBOCHARGER<K51> 09.171 M10X30 W/LK WASHER	0-50051-030-0	02	1	9712-	●
53	03.602 BOLT; INL PIPE EUROPE EQUIPMENT(EK4) 01.153 M6X50 FLANGE	0-28080-650-0	04	1	0106-			●
53	03.602 BOLT; INL PIPE 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9712-0105			●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0106-			●
53	03.602 BOLT; INL PIPE 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0106-				●
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE	8-12160-244-0	01	1	9712-			●	●
104	03.415 SCREW 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	9712-0209			●	●
139	03.162 BOLT; BRKT FIX 01.035	8-97308-002-0	04	1	0106-			●	●
387	03.265 PLATE; EGR,INL MANIF EXC. SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97169-805-0	01	1	9712-0005				●
387	03.265 PLATE; EGR,INL MANIF EXC. SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97169-805-0	01	1	0006-				●
480	03.314 VALVE ASM; VAC SW 03.670	8-97086-348-0	01	1	9712-			●	●
561	03.724 GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE EQUIPMENT(EK4) (B)	8-97193-729-1	01	1	0106-			●
561	03.724 GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94389-939-0	01	1	9712-0105			●	●
561	03.724 GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE). SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ). (A)	8-94389-939-0	01	1	0106-			●
561	03.724 GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94389-939-0	01	1	0106-				●
600	03.163 HOSE; RUBBER,VACUUM	8-97149-231-1	01	1	9712-			●	●
601	01.097 HOSE; WATER,T/V FEED	8-97136-218-0	01	1	9712-9907			●	●
601	01.097 HOSE; WATER,T/V FEED	8-97231-680-0	01	1	9908-			●	●
602	01.097 HOSE; WATER,T/V RETURN	8-97136-219-2	01	1	9712-			●	●
665	03.270 GASKET; COMMON CHAMBER EUROPE EQUIPMENT(EK4)	8-97254-448-0	01	1	0108-0108			●
665	03.270 GASKET; COMMON CHAMBER	8-97254-448-0	01	1	0108-			●	●
665	03.270 GASKET; COMMON CHAMBER	8-97146-074-1	01	1	9712-0107			●	●
665	03.270 GASKET; COMMON CHAMBER SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ)	8-97146-074-1	01	1	0108-0108			●
665	03.270 GASKET; COMMON CHAMBER	8-97146-074-1	01	1	0108-0108				●
744	01.035 BRACKET; ENG COVER SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ)	8-97172-064-0	01	1	0106-			●
744	01.035 BRACKET; ENG COVER	8-97172-064-0	01	1	0106-				●
744	01.035 BRACKET; ENG COVER EUROPE EQUIPMENT(EK4)	8-97307-352-0	01	1	0106-			●
760	03.314 BOLT; VSV FIX 14.865 M5X12	8-94386-089-0	01	1	0210-			●	●

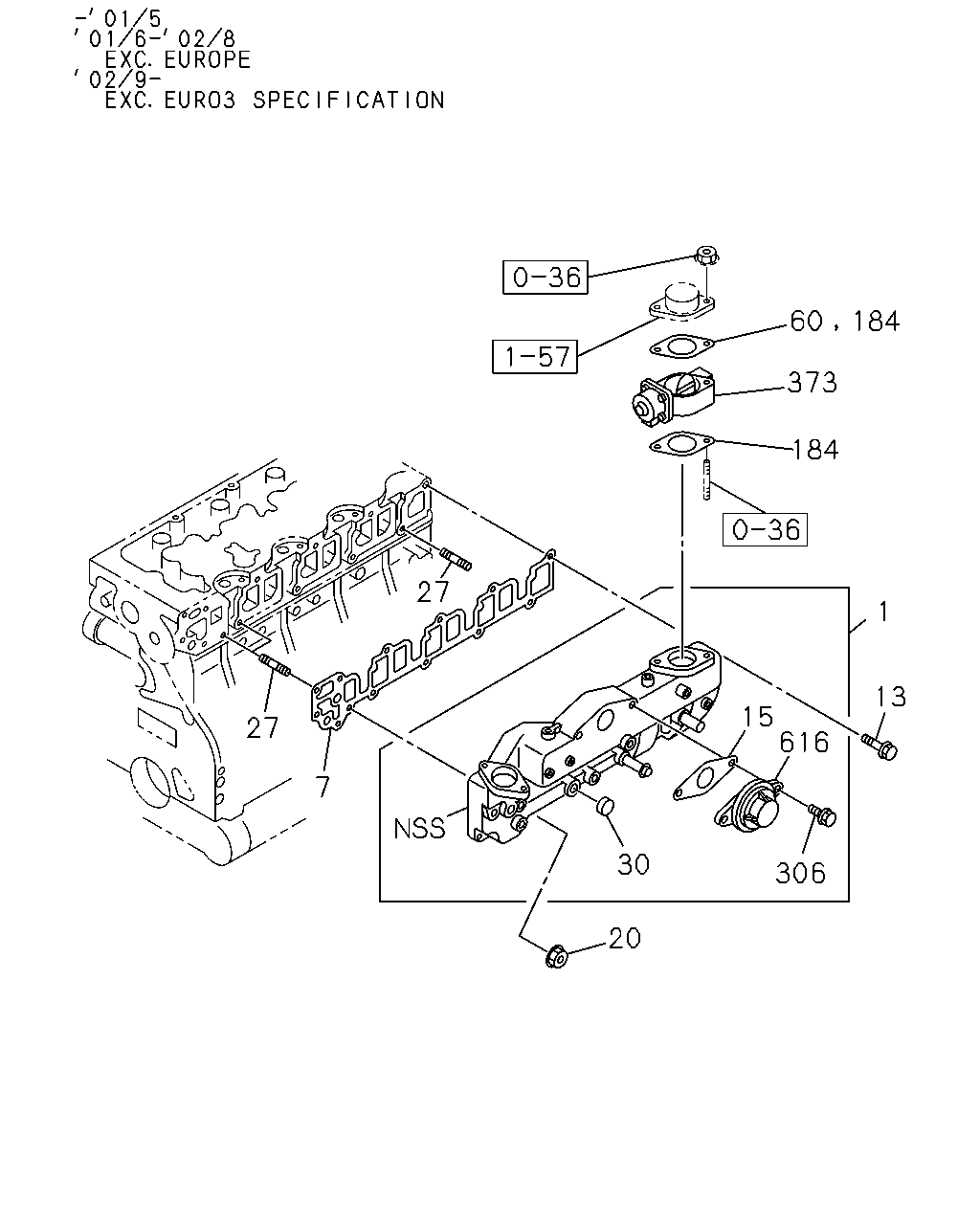

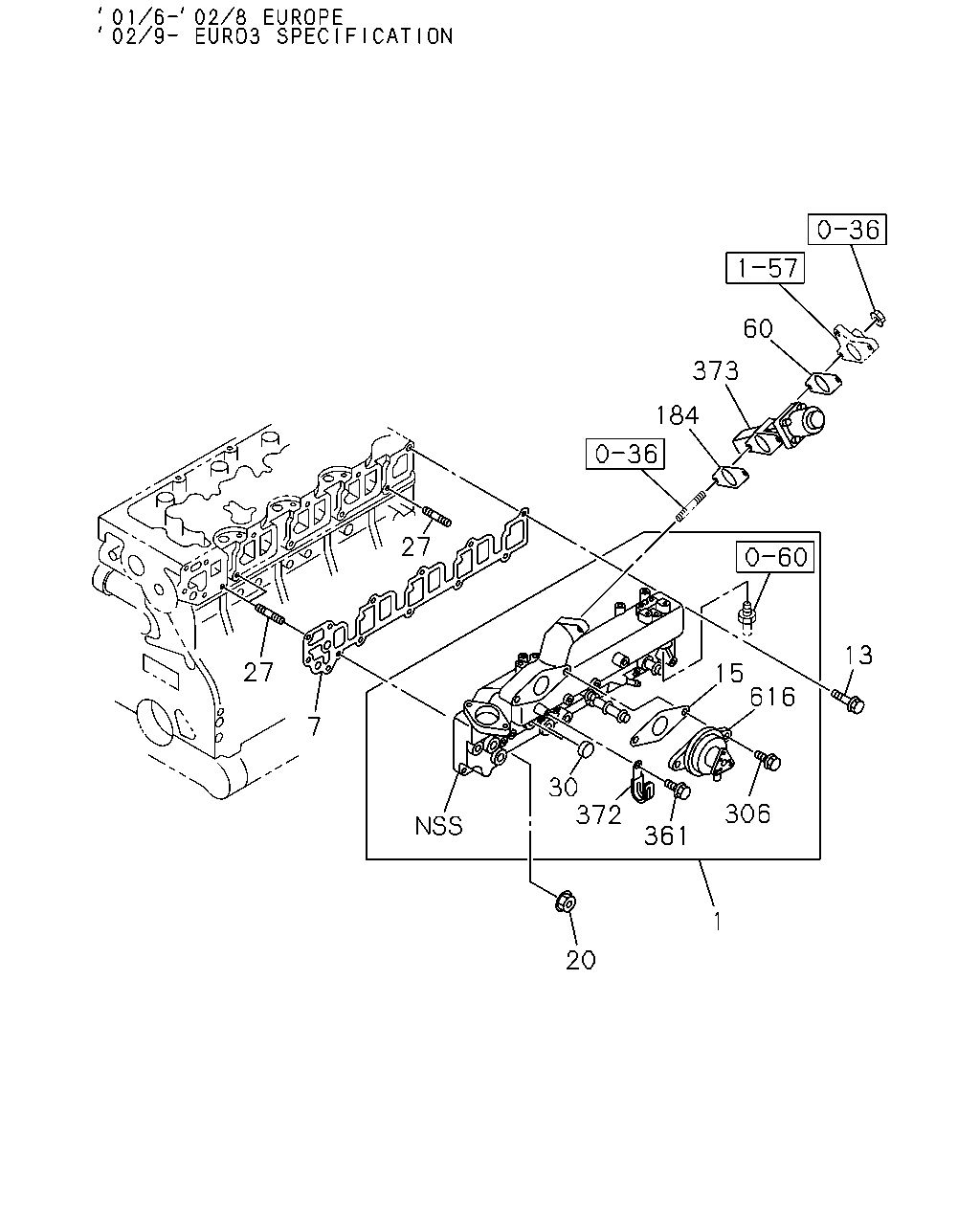

60 184 373 184 27 1 13 15 616 27 7 30 306 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL TURBOCHARGER<K51>	8-97116-132-1	01	1	9712-9801	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ)	8-97116-132-2	01	1	9802-0005	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N)	8-97116-132-2	01	1	0006-0105	●
1	03.265 MANIFOLD; INL M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N)	8-97116-132-2	01	1	0106-0303	●
1	03.265 MANIFOLD; INL A/T AISIN(RMD) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97116-132-2	01	1	0106-0303	●
1	03.265 MANIFOLD; INL M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N)	8-97350-916-0	01	1	0304-	●
1	03.265 MANIFOLD; INL A/T AISIN(RMD) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97350-916-0	01	1	0304-	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97139-649-1	01	1	9802-0005	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N)	8-97139-649-1	01	1	0006-	●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97110-514-1	01	1	9712-	●
1	03.265 MANIFOLD; INL	8-97137-095-9	01	1	9712-9904		●
1	03.265 MANIFOLD; INL	8-97229-436-1	01	1	9905-0105		●
1	03.265 MANIFOLD; INL EXC. EUROPE EQUIPMENT(EK4)	8-97229-436-2	01	1	0106-0208		●
1	03.265 MANIFOLD; INL EXC. EURO3 SPECIFICATION(NT3)	8-97229-436-3	01	1	0209-		●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4)	8-97309-090-1	01	1	0106-0208		●
1	03.265 MANIFOLD; INL EURO3 SPECIFICATION(NT3)	8-97309-090-2	01	1	0209-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9712-9905	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	9906-0101	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97301-838-1	01	1	0102-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97137-098-1	01	1	9712-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97131-894-2	02	1	9712-9909			●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97237-538-0	02	1	9910-			●	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9712-	●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9712-	●
13	03.275 BOLT; INL MANIF 03.278 M8X100 FLANGE	0-28080-800-0	05	1	9712-		●
13	03.275 BOLT; INL MANIF 01.780 M8X120 FLANGE	0-28085-812-0	01	1	9712-		●
13	03.275 BOLT; INL MANIF 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9712-		●
15	03.342 GASKET; VLV	8-97137-097-0	01	1	9712-		●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9712-	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	03	1	9712-		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-			●	●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	02	1	9712-	●
27	03.275 STUD; INL MANIF 01.428 M8X20 L=32	9-04110-820-0	03	1	9712-		●
30	03.265 CUP; SEALING,INL MANIF 00.253 OD=18	5-11219-008-0	01	1	9712-0105		●
30	03.265 CUP; SEALING,INL MANIF EXC. EUROPE EQUIPMENT(EK4) 00.253 OD=18	5-11219-008-0	01	1	0106-0208		●
30	03.265 CUP; SEALING,INL MANIF EXC. EURO3 SPECIFICATION(NT3) 00.253 OD=18	5-11219-008-0	01	1	0209-		●
30	03.265 CUP; SEALING,INL MANIF EUROPE EQUIPMENT(EK4) 00.253 OD=18	5-11219-008-0	02	1	0106-0208		●
30	03.265 CUP; SEALING,INL MANIF EURO3 SPECIFICATION(NT3) 00.253 OD=18	5-11219-008-0	02	1	0209-		●
60	03.270 GASKET; INL PIPE TURBOCHARGER<K51> 03.275	8-97086-961-0	01	1	9712-	●
60	03.270 GASKET; INL PIPE	8-97210-886-0	01	1	9806-9904		●
60	03.270 GASKET; INL PIPE	8-97222-933-0	01	1	9905-		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97137-820-0	02	1	9712-9805		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97137-820-0	01	1	9806-		●
306	03.265 BOLT; VLV 04.686 M8X30 FLANGE	0-28680-830-0	02	1	9712-		●
373	03.265 THROTTLE ASM; INT	8-97166-097-3	01	1	9712-0105		●
373	03.265 THROTTLE ASM; INT EXC. EUROPE EQUIPMENT(EK4)	8-97166-097-3	01	1	0106-0208		●
373	03.265 THROTTLE ASM; INT EXC. EURO3 SPECIFICATION(NT3)	8-97166-097-3	01	1	0209-		●
373	03.265 THROTTLE ASM; INT EUROPE EQUIPMENT(EK4)	8-97239-672-1	01	1	0106-0208		●
373	03.265 THROTTLE ASM; INT EURO3 SPECIFICATION(NT3)	8-97239-672-1	01	1	0209-		●
616	03.670 VALVE; EGR	8-97113-894-7	01	1	9712-0105		●
616	03.670 VALVE; EGR EXC. EUROPE EQUIPMENT(EK4)	8-97113-894-8	01	1	0106-0208		●
616	03.670 VALVE; EGR EXC. EURO3 SPECIFICATION(NT3)	8-97113-894-9	01	1	0209-		●
616	03.670 VALVE; EGR EUROPE EQUIPMENT(EK4)	8-97253-691-1	01	1	0106-0208		●
616	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3)	8-97253-691-2	01	1	0209-		●

95 7 1 10 27 53 13 20 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL TURBOCHARGER<K51>	8-97116-132-1	01	1	9712-9801	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ)	8-97116-132-2	01	1	9802-0005	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N)	8-97116-132-2	01	1	0006-0105	●
1	03.265 MANIFOLD; INL M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N)	8-97116-132-2	01	1	0106-0303	●
1	03.265 MANIFOLD; INL A/T AISIN(RMD) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97116-132-2	01	1	0106-0303	●
1	03.265 MANIFOLD; INL M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N)	8-97350-916-0	01	1	0304-	●
1	03.265 MANIFOLD; INL A/T AISIN(RMD) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97350-916-0	01	1	0304-	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97139-649-1	01	1	9802-0005	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N)	8-97139-649-1	01	1	0006-	●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97110-514-1	01	1	9712-	●
1	03.265 MANIFOLD; INL	8-97137-095-9	01	1	9712-9904		●
1	03.265 MANIFOLD; INL	8-97229-436-1	01	1	9905-0105		●
1	03.265 MANIFOLD; INL EXC. EUROPE EQUIPMENT(EK4)	8-97229-436-2	01	1	0106-0208		●
1	03.265 MANIFOLD; INL EXC. EURO3 SPECIFICATION(NT3)	8-97229-436-3	01	1	0209-		●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4)	8-97309-090-1	01	1	0106-0208		●
1	03.265 MANIFOLD; INL EURO3 SPECIFICATION(NT3)	8-97309-090-2	01	1	0209-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9712-9905	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	9906-0101	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97301-838-1	01	1	0102-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97137-098-1	01	1	9712-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97131-894-2	02	1	9712-9909			●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97237-538-0	02	1	9910-			●	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. TURBOCHARGER<K51>	8-97035-883-1	01	1	9712-	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9712-	●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9712-	●
13	03.275 BOLT; INL MANIF 03.278 M8X100 FLANGE	0-28080-800-0	05	1	9712-		●
13	03.275 BOLT; INL MANIF 01.780 M8X120 FLANGE	0-28085-812-0	01	1	9712-		●
13	03.275 BOLT; INL MANIF 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9712-		●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9712-	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	03	1	9712-		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-			●	●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	02	1	9712-	●
27	03.275 STUD; INL MANIF 01.428 M8X20 L=32	9-04110-820-0	03	1	9712-		●
53	03.602 BOLT; INL PIPE EXC. TURBOCHARGER<K51> 09.171 M10X30 W/LK WASHER	0-50051-030-0	02	1	9712-	●
53	03.602 BOLT; INL PIPE EUROPE EQUIPMENT(EK4) 01.153 M6X50 FLANGE	0-28080-650-0	04	1	0106-			●
53	03.602 BOLT; INL PIPE 01.271 M8X40 FLANGE	0-28080-840-0	04	1	9712-0105			●	●
53	03.602 BOLT; INL PIPE SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0106-			●
53	03.602 BOLT; INL PIPE 01.271 M8X40 FLANGE	0-28080-840-0	04	1	0106-				●
95	03.278 CLIP; RUBBER HOSE	8-94406-478-0	01	1	9712-0101	●
95	03.278 CLIP; RUBBER HOSE 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0102-	●
138	03.265 PIPE; INL EXC. TURBOCHARGER<K51>	8-97023-536-0	01	1	9712-	●

60 373 184 27 13 27 15 616 7 30 372 306 361 1 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL TURBOCHARGER<K51>	8-97116-132-1	01	1	9712-9801	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. ARGENTINA EQUIPMENT(7SZ)	8-97116-132-2	01	1	9802-0005	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N)	8-97116-132-2	01	1	0006-0105	●
1	03.265 MANIFOLD; INL M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N)	8-97116-132-2	01	1	0106-0303	●
1	03.265 MANIFOLD; INL A/T AISIN(RMD) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97116-132-2	01	1	0106-0303	●
1	03.265 MANIFOLD; INL M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. NICARAGUA EQUIPMENT(R5N)	8-97350-916-0	01	1	0304-	●
1	03.265 MANIFOLD; INL A/T AISIN(RMD) TURBOCHARGER<K51> GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97350-916-0	01	1	0304-	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> ARGENTINA EQUIPMENT(7SZ)	8-97139-649-1	01	1	9802-0005	●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> NICARAGUA EQUIPMENT(R5N)	8-97139-649-1	01	1	0006-	●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51>	8-97110-514-1	01	1	9712-	●
1	03.265 MANIFOLD; INL	8-97137-095-9	01	1	9712-9904		●
1	03.265 MANIFOLD; INL	8-97229-436-1	01	1	9905-0105		●
1	03.265 MANIFOLD; INL EXC. EUROPE EQUIPMENT(EK4)	8-97229-436-2	01	1	0106-0208		●
1	03.265 MANIFOLD; INL EXC. EURO3 SPECIFICATION(NT3)	8-97229-436-3	01	1	0209-		●
1	03.265 MANIFOLD; INL EUROPE EQUIPMENT(EK4)	8-97309-090-1	01	1	0106-0208		●
1	03.265 MANIFOLD; INL EURO3 SPECIFICATION(NT3)	8-97309-090-2	01	1	0209-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97066-741-1	01	1	9712-9905	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97228-044-0	01	1	9906-0101	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97301-838-1	01	1	0102-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97137-098-1	01	1	9712-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97131-894-2	02	1	9712-9909			●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97237-538-0	02	1	9910-			●	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> 01.531 M8X25 FLANGE	0-28080-825-0	06	1	9712-	●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9712-	●
13	03.275 BOLT; INL MANIF 03.278 M8X100 FLANGE	0-28080-800-0	05	1	9712-		●
13	03.275 BOLT; INL MANIF 01.780 M8X120 FLANGE	0-28085-812-0	01	1	9712-		●
13	03.275 BOLT; INL MANIF 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9712-		●
15	03.342 GASKET; VLV	8-97137-097-0	01	1	9712-		●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9712-	●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	03	1	9712-		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-			●	●
27	03.275 STUD; INL MANIF 03.901 M8X25 L=37	9-04110-825-0	02	1	9712-	●
27	03.275 STUD; INL MANIF 01.428 M8X20 L=32	9-04110-820-0	03	1	9712-		●
30	03.265 CUP; SEALING,INL MANIF 00.253 OD=18	5-11219-008-0	01	1	9712-0105		●
30	03.265 CUP; SEALING,INL MANIF EXC. EUROPE EQUIPMENT(EK4) 00.253 OD=18	5-11219-008-0	01	1	0106-0208		●
30	03.265 CUP; SEALING,INL MANIF EXC. EURO3 SPECIFICATION(NT3) 00.253 OD=18	5-11219-008-0	01	1	0209-		●
30	03.265 CUP; SEALING,INL MANIF EUROPE EQUIPMENT(EK4) 00.253 OD=18	5-11219-008-0	02	1	0106-0208		●
30	03.265 CUP; SEALING,INL MANIF EURO3 SPECIFICATION(NT3) 00.253 OD=18	5-11219-008-0	02	1	0209-		●
60	03.270 GASKET; INL PIPE TURBOCHARGER<K51> 03.275	8-97086-961-0	01	1	9712-	●
60	03.270 GASKET; INL PIPE	8-97210-886-0	01	1	9806-9904		●
60	03.270 GASKET; INL PIPE	8-97222-933-0	01	1	9905-		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97137-820-0	02	1	9712-9805		●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97137-820-0	01	1	9806-		●
306	03.265 BOLT; VLV 04.686 M8X30 FLANGE	0-28680-830-0	02	1	9712-		●
361	03.278 BOLT; CLIP EUROPE EQUIPMENT(EK4) 00.206 M8X10 FLANGE	0-28080-810-0	01	1	0106-0208		●
361	03.278 BOLT; CLIP EURO3 SPECIFICATION(NT3) 00.206 M8X10 FLANGE	0-28080-810-0	01	1	0209-		●
372	01.152 CLIP; HOSE EUROPE EQUIPMENT(EK4) ID=8.5	5-09700-275-0	01	1	0106-0208		●
372	01.152 CLIP; HOSE EURO3 SPECIFICATION(NT3) ID=8.5	5-09700-275-0	01	1	0209-		●
373	03.265 THROTTLE ASM; INT	8-97166-097-3	01	1	9712-0105		●
373	03.265 THROTTLE ASM; INT EXC. EUROPE EQUIPMENT(EK4)	8-97166-097-3	01	1	0106-0208		●
373	03.265 THROTTLE ASM; INT EXC. EURO3 SPECIFICATION(NT3)	8-97166-097-3	01	1	0209-		●
373	03.265 THROTTLE ASM; INT EUROPE EQUIPMENT(EK4)	8-97239-672-1	01	1	0106-0208		●
373	03.265 THROTTLE ASM; INT EURO3 SPECIFICATION(NT3)	8-97239-672-1	01	1	0209-		●
616	03.670 VALVE; EGR	8-97113-894-7	01	1	9712-0105		●
616	03.670 VALVE; EGR EXC. EUROPE EQUIPMENT(EK4)	8-97113-894-8	01	1	0106-0208		●
616	03.670 VALVE; EGR EXC. EURO3 SPECIFICATION(NT3)	8-97113-894-9	01	1	0209-		●
616	03.670 VALVE; EGR EUROPE EQUIPMENT(EK4)	8-97253-691-1	01	1	0106-0208		●
616	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3)	8-97253-691-2	01	1	0209-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
