0-22 — ENGINE MOUNTING (#43361) — 157 parça

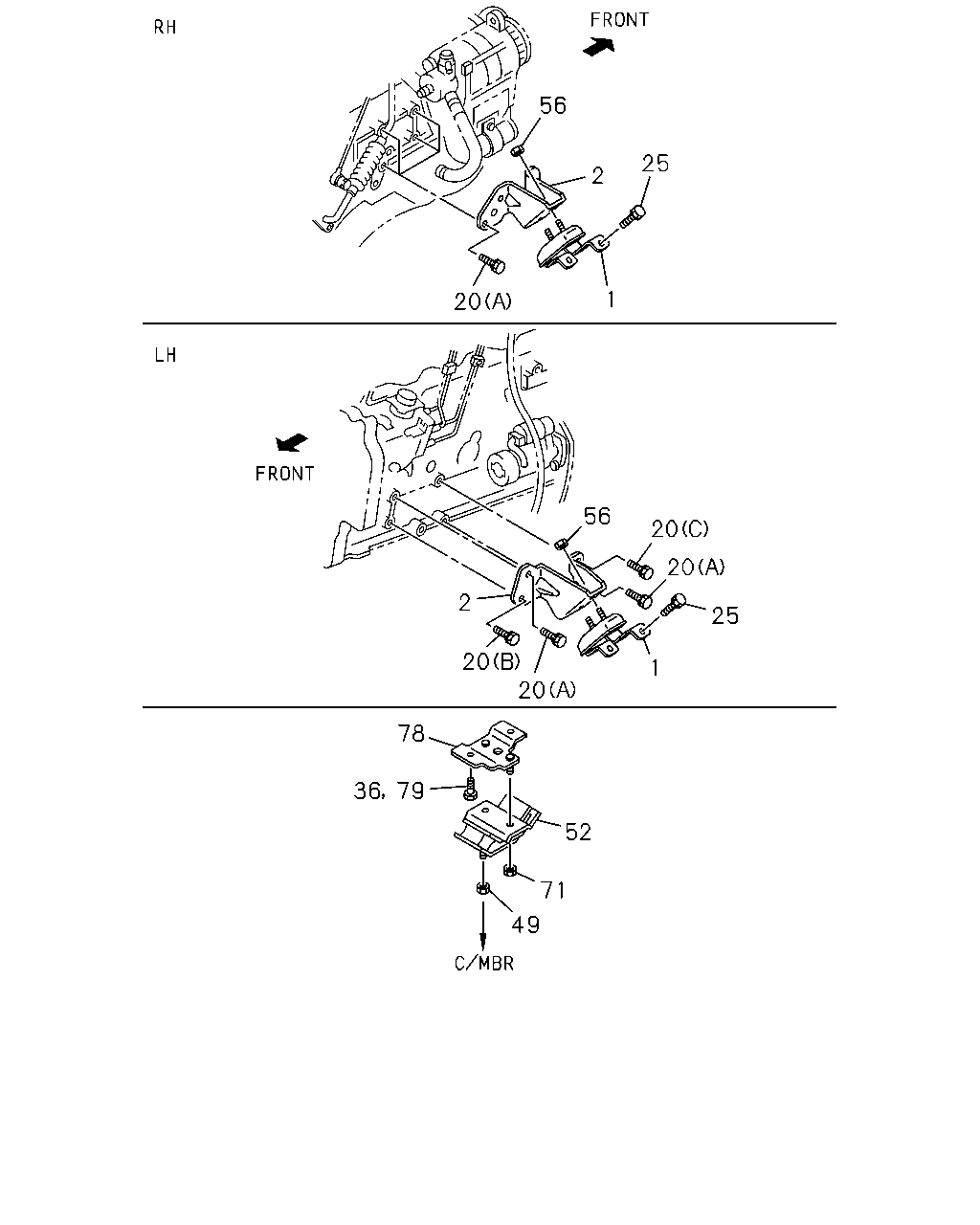

çizim 69564
56 25 2 1 20 56 20 20 2 25 20 20 1 78 36 79 52 71 49
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.027 RUBBER; ENG FOOT,FRT 8-97039-190-3 01 1 9712- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97039-189-3 01 1 9712- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97188-893-0 01 1 9712-9905 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97217-766-0 01 1 9906- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97188-892-0 01 1 9712-9905 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97217-765-0 01 1 9906- ●
1 00.027 RUBBER; ENG FOOT,FRT
AIR BAG DRIVER<AJ3> 		8-97104-158-1 01 1 9712- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
AIR BAG DRIVER<AJ3> 		8-97104-157-1 01 1 9712- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. AIR BAG DRIVER<AJ3> 		8-94375-283-2 01 1 9712- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. AIR BAG DRIVER<AJ3> 		8-94375-282-5 01 1 9712- ● ●
2 00.029 FOOT; ENG 8-97038-196-2 01 1 9712- ●
2 00.029 FOOT; ENG 8-97038-195-2 01 1 9712- ●
2 00.029 FOOT; ENG 8-97144-195-2 01 1 9712- ●
2 00.029 FOOT; ENG 8-97137-821-1 01 1 9712- ●
2 00.029 FOOT; ENG
AIR BAG DRIVER<AJ3> 		8-97110-078-0 01 1 9712- ● ●
2 00.029 FOOT; ENG
AIR BAG DRIVER<AJ3> 		8-97146-073-0 01 1 9712- ● ●
2 00.029 FOOT; ENG
EXC. AIR BAG DRIVER<AJ3> 		8-97088-678-0 01 1 9712- ● ●
2 00.029 FOOT; ENG
EXC. AIR BAG DRIVER<AJ3> 		8-97179-568-0 01 1 9712- ● ●
20 00.029 BOLT; ENG FOOT
02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 06 1 9712- ●
20 00.029 BOLT; ENG FOOT
09.171 (C) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9712- ●
20 00.029 BOLT; ENG FOOT
00.002 (B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 9712- ●
20 00.029 BOLT; ENG FOOT
00.685 (A) M10X50 FLANGE 		0-28081-050-0 01 1 9712- ●
20 00.029 BOLT; ENG FOOT
03.611 (B) M10X20 FLANGE 		0-28681-020-0 01 1 9712- ●
20 00.029 BOLT; ENG FOOT
03.405 (C) M10X30 FLANGE 		0-28681-030-0 04 1 9712-9801 ●
20 00.029 BOLT; ENG FOOT
03.162 (D) M10X35 FLANGE 		0-28681-035-0 01 1 9712-9801 ●
20 00.029 BOLT; ENG FOOT
03.162 (D) M10X35 FLANGE 		0-28681-035-0 05 1 9802- ●
20 00.029 BOLT; ENG FOOT
09.744 (E) M14X50 FLANGE 		0-28881-450-0 01 1 9712- ●
20 00.029 BOLT; ENG FOOT
04.510 (F) M10X40 FLANGE 		0-28181-040-0 01 1 9712- ● ●
20 00.029 BOLT; ENG FOOT
09.181 (F) M10X25 FLANGE 		0-28781-025-0 07 1 9712- ● ●
25 00.002 BOLT; CUSHION RUBBER TO BRKT
M10X28 W/LK WASHER 		8-97035-564-0 04 1 9712- ● ● ● ●
36 00.002 BOLT; MTG RUBBER
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE 		0-28681-035-0 02 1 9712-9908 ● ● ●
36 00.002 BOLT; MTG RUBBER
A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE 		0-28681-035-0 02 1 9909-0007 ● ● ●
36 00.002 BOLT; MTG RUBBER
A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE 		0-28681-035-0 02 1 0008- ● ● ● ●
49 00.002 NUT; CUSHION RUBBER TO FRAME
04.085 M10 FLANGE 		8-94126-973-0 02 1 9712- ● ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MUA 5 SPEED(RMN) 		8-97039-196-6 01 1 9712- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-97039-195-6 01 1 9712-0007 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T AISIN(RMD) 		8-97039-195-6 01 1 0008- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-97039-195-6 01 1 0008- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T THM(RMQ) TORQUE ON DEMAND<7HA> 		8-97183-490-1 01 1 9909- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 		8-94375-288-1 01 1 9712-9908 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> 		8-94375-288-1 01 1 9909-0006 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> 		8-97133-866-0 01 1 0007- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MUA 5 SPEED(RMN) 		8-97123-260-0 01 1 9712- ●
56 00.002 NUT; ENG MTG
04.785 M10 FLANGE 		0-91150-110-0 04 1 9712-9712 ●
56 00.002 NUT; ENG MTG
08.917 M10 FLANGE 		0-91150-210-0 04 1 9801- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 9712- ● ●
78 00.029 BRACKET; ENG MTG,RR
M/T MUA 5 SPEED(RMN) 		8-97063-019-3 01 1 9712- ●
78 00.029 BRACKET; ENG MTG,RR 8-97063-020-3 01 1 9712-0007 ●
78 00.029 BRACKET; ENG MTG,RR
A/T AISIN(RMD) 		8-97063-020-3 01 1 0008- ●
78 00.029 BRACKET; ENG MTG,RR 8-97063-020-3 01 1 0008- ●
79 00.002 BOLT; SUPPORT RUBBER TO TRANS
01.652 M10X25 W/LK WASHER 		0-50041-025-0 02 1 9712-9809 ● ●
79 00.002 BOLT; SUPPORT RUBBER TO TRANS
M/T MUA 5 SPEED(RMN) 01.652 M10X25 W/LK WASHER 		0-50041-025-0 02 1 9810- ● ●

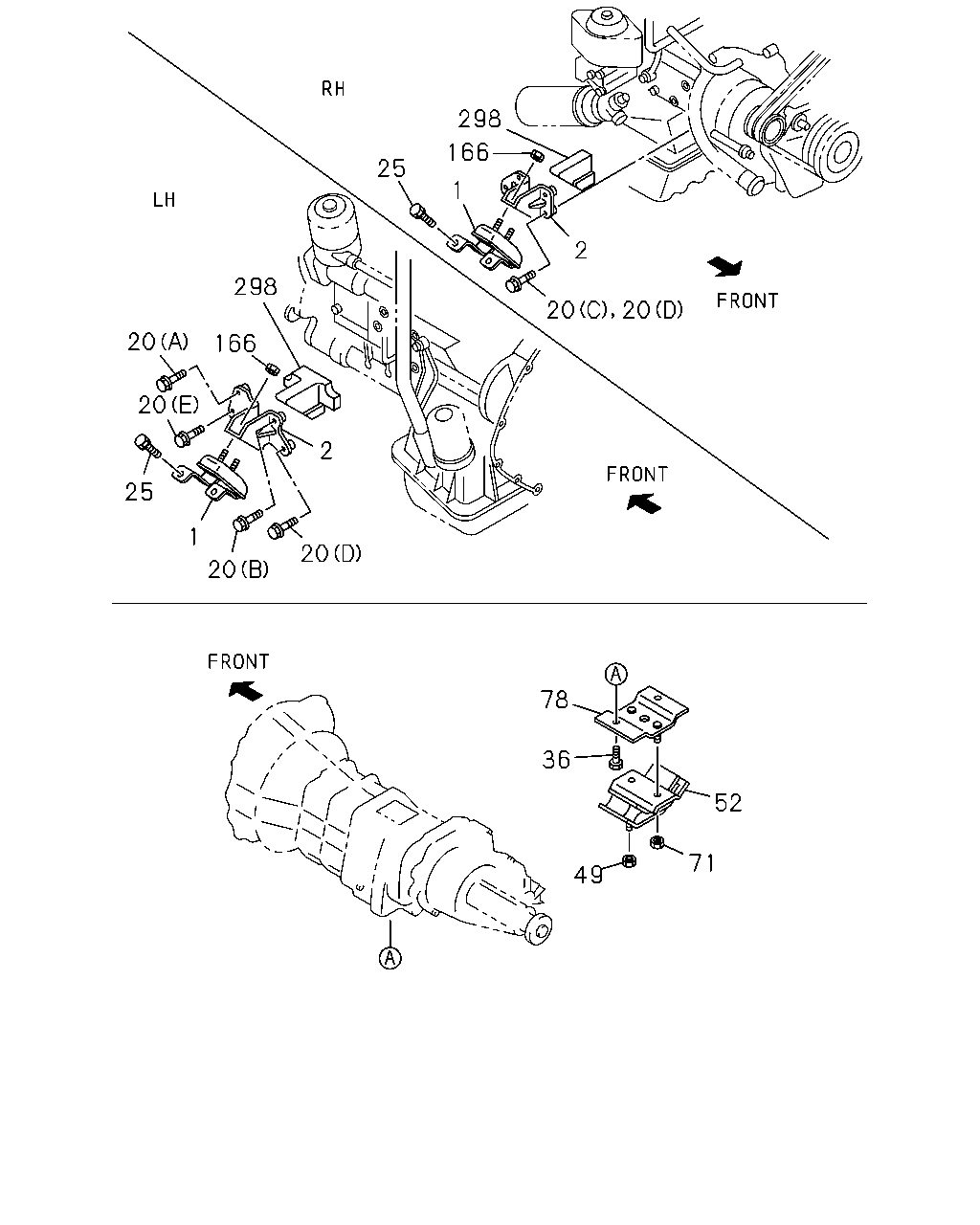

çizim 72380
298 166 25 1 2 298 20 166 20 2 25 1 20 20 78 36 52 71 49 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.027 RUBBER; ENG FOOT,FRT 8-97039-190-3 01 1 9712- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97039-189-3 01 1 9712- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97188-893-0 01 1 9712-9905 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97217-766-0 01 1 9906- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97188-892-0 01 1 9712-9905 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97217-765-0 01 1 9906- ●
1 00.027 RUBBER; ENG FOOT,FRT
AIR BAG DRIVER<AJ3> 		8-97104-158-1 01 1 9712- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
AIR BAG DRIVER<AJ3> 		8-97104-157-1 01 1 9712- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. AIR BAG DRIVER<AJ3> 		8-94375-283-2 01 1 9712- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. AIR BAG DRIVER<AJ3> 		8-94375-282-5 01 1 9712- ● ●
2 00.029 FOOT; ENG 8-97038-196-2 01 1 9712- ●
2 00.029 FOOT; ENG 8-97038-195-2 01 1 9712- ●
2 00.029 FOOT; ENG 8-97144-195-2 01 1 9712- ●
2 00.029 FOOT; ENG 8-97137-821-1 01 1 9712- ●
2 00.029 FOOT; ENG
AIR BAG DRIVER<AJ3> 		8-97110-078-0 01 1 9712- ● ●
2 00.029 FOOT; ENG
AIR BAG DRIVER<AJ3> 		8-97146-073-0 01 1 9712- ● ●
2 00.029 FOOT; ENG
EXC. AIR BAG DRIVER<AJ3> 		8-97088-678-0 01 1 9712- ● ●
2 00.029 FOOT; ENG
EXC. AIR BAG DRIVER<AJ3> 		8-97179-568-0 01 1 9712- ● ●
20 00.029 BOLT; ENG FOOT
02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 06 1 9712- ●
20 00.029 BOLT; ENG FOOT
09.171 (C) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9712- ●
20 00.029 BOLT; ENG FOOT
00.002 (B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 9712- ●
20 00.029 BOLT; ENG FOOT
00.685 (A) M10X50 FLANGE 		0-28081-050-0 01 1 9712- ●
20 00.029 BOLT; ENG FOOT
03.611 (B) M10X20 FLANGE 		0-28681-020-0 01 1 9712- ●
20 00.029 BOLT; ENG FOOT
03.405 (C) M10X30 FLANGE 		0-28681-030-0 04 1 9712-9801 ●
20 00.029 BOLT; ENG FOOT
03.162 (D) M10X35 FLANGE 		0-28681-035-0 01 1 9712-9801 ●
20 00.029 BOLT; ENG FOOT
03.162 (D) M10X35 FLANGE 		0-28681-035-0 05 1 9802- ●
20 00.029 BOLT; ENG FOOT
09.744 (E) M14X50 FLANGE 		0-28881-450-0 01 1 9712- ●
20 00.029 BOLT; ENG FOOT
04.510 (F) M10X40 FLANGE 		0-28181-040-0 01 1 9712- ● ●
20 00.029 BOLT; ENG FOOT
09.181 (F) M10X25 FLANGE 		0-28781-025-0 07 1 9712- ● ●
25 00.002 BOLT; CUSHION RUBBER TO BRKT
M10X28 W/LK WASHER 		8-97035-564-0 04 1 9712- ● ● ● ●
36 00.002 BOLT; MTG RUBBER
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE 		0-28681-035-0 02 1 9712-9908 ● ● ●
36 00.002 BOLT; MTG RUBBER
A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE 		0-28681-035-0 02 1 9909-0007 ● ● ●
36 00.002 BOLT; MTG RUBBER
A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE 		0-28681-035-0 02 1 0008- ● ● ● ●
49 00.002 NUT; CUSHION RUBBER TO FRAME
04.085 M10 FLANGE 		8-94126-973-0 02 1 9712- ● ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MUA 5 SPEED(RMN) 		8-97039-196-6 01 1 9712- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-97039-195-6 01 1 9712-0007 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T AISIN(RMD) 		8-97039-195-6 01 1 0008- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-97039-195-6 01 1 0008- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T THM(RMQ) TORQUE ON DEMAND<7HA> 		8-97183-490-1 01 1 9909- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 		8-94375-288-1 01 1 9712-9908 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> 		8-94375-288-1 01 1 9909-0006 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> 		8-97133-866-0 01 1 0007- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MUA 5 SPEED(RMN) 		8-97123-260-0 01 1 9712- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 9712- ● ●
78 00.029 BRACKET; ENG MTG,RR
M/T MUA 5 SPEED(RMN) 		8-97063-019-3 01 1 9712- ●
78 00.029 BRACKET; ENG MTG,RR 8-97063-020-3 01 1 9712-0007 ●
78 00.029 BRACKET; ENG MTG,RR
A/T AISIN(RMD) 		8-97063-020-3 01 1 0008- ●
78 00.029 BRACKET; ENG MTG,RR 8-97063-020-3 01 1 0008- ●
166 00.002 NUT; SUPPORT RUBBER
04.785 M10 FLANGE 		0-91150-110-0 04 1 9712-9712 ●
166 00.002 NUT; SUPPORT RUBBER
08.917 M10 FLANGE 		0-91150-210-0 04 1 9801- ●
298 00.027 RUBBER; SPACE,ENG FOOT 8-97194-380-1 01 1 9712- ●
298 00.027 RUBBER; SPACE,ENG FOOT 8-97194-381-1 01 1 9712- ●

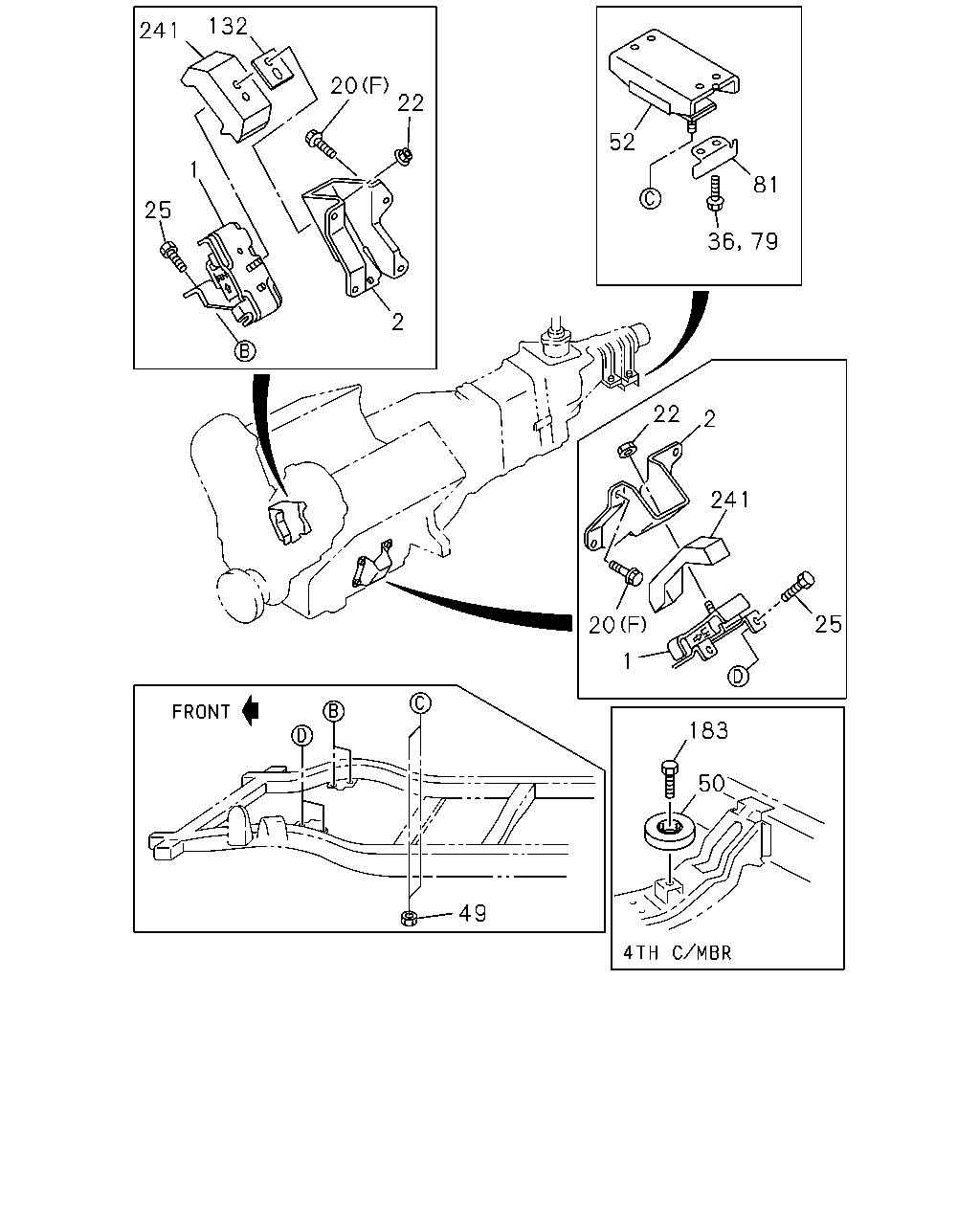

çizim 72426
132 241 20 22 52 1 81 25 2 22 2 241 25 20 1 183 50 49 36 79
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.027 RUBBER; ENG FOOT,FRT 8-97039-190-3 01 1 9712- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97039-189-3 01 1 9712- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97188-893-0 01 1 9712-9905 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97217-766-0 01 1 9906- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97188-892-0 01 1 9712-9905 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97217-765-0 01 1 9906- ●
1 00.027 RUBBER; ENG FOOT,FRT
AIR BAG DRIVER<AJ3> 		8-97104-158-1 01 1 9712- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
AIR BAG DRIVER<AJ3> 		8-97104-157-1 01 1 9712- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. AIR BAG DRIVER<AJ3> 		8-94375-283-2 01 1 9712- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
EXC. AIR BAG DRIVER<AJ3> 		8-94375-282-5 01 1 9712- ● ●
2 00.029 FOOT; ENG 8-97038-196-2 01 1 9712- ●
2 00.029 FOOT; ENG 8-97038-195-2 01 1 9712- ●
2 00.029 FOOT; ENG 8-97144-195-2 01 1 9712- ●
2 00.029 FOOT; ENG 8-97137-821-1 01 1 9712- ●
2 00.029 FOOT; ENG
AIR BAG DRIVER<AJ3> 		8-97110-078-0 01 1 9712- ● ●
2 00.029 FOOT; ENG
AIR BAG DRIVER<AJ3> 		8-97146-073-0 01 1 9712- ● ●
2 00.029 FOOT; ENG
EXC. AIR BAG DRIVER<AJ3> 		8-97088-678-0 01 1 9712- ● ●
2 00.029 FOOT; ENG
EXC. AIR BAG DRIVER<AJ3> 		8-97179-568-0 01 1 9712- ● ●
20 00.029 BOLT; ENG FOOT
02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 06 1 9712- ●
20 00.029 BOLT; ENG FOOT
09.171 (C) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9712- ●
20 00.029 BOLT; ENG FOOT
00.002 (B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 9712- ●
20 00.029 BOLT; ENG FOOT
00.685 (A) M10X50 FLANGE 		0-28081-050-0 01 1 9712- ●
20 00.029 BOLT; ENG FOOT
03.611 (B) M10X20 FLANGE 		0-28681-020-0 01 1 9712- ●
20 00.029 BOLT; ENG FOOT
03.405 (C) M10X30 FLANGE 		0-28681-030-0 04 1 9712-9801 ●
20 00.029 BOLT; ENG FOOT
03.162 (D) M10X35 FLANGE 		0-28681-035-0 01 1 9712-9801 ●
20 00.029 BOLT; ENG FOOT
03.162 (D) M10X35 FLANGE 		0-28681-035-0 05 1 9802- ●
20 00.029 BOLT; ENG FOOT
09.744 (E) M14X50 FLANGE 		0-28881-450-0 01 1 9712- ●
20 00.029 BOLT; ENG FOOT
04.510 (F) M10X40 FLANGE 		0-28181-040-0 01 1 9712- ● ●
20 00.029 BOLT; ENG FOOT
09.181 (F) M10X25 FLANGE 		0-28781-025-0 07 1 9712- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
AIR BAG DRIVER<AJ3> 04.785 M10 FLANGE 		0-91150-110-0 04 1 9712- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
EXC. AIR BAG DRIVER<AJ3> 05.586 M12 FLANGE 		0-91150-112-0 02 1 9712- ● ●
25 00.002 BOLT; CUSHION RUBBER TO BRKT
M10X28 W/LK WASHER 		8-97035-564-0 04 1 9712- ● ● ● ●
36 00.002 BOLT; MTG RUBBER
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE 		0-28681-035-0 02 1 9712-9908 ● ● ●
36 00.002 BOLT; MTG RUBBER
A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE 		0-28681-035-0 02 1 9909-0007 ● ● ●
36 00.002 BOLT; MTG RUBBER
A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE 		0-28681-035-0 02 1 0008- ● ● ● ●
49 00.002 NUT; CUSHION RUBBER TO FRAME
04.085 M10 FLANGE 		8-94126-973-0 02 1 9712- ● ● ● ●
50 00.029 DAMPER; DYNAMIC 8-97184-772-0 01 1 9712- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MUA 5 SPEED(RMN) 		8-97039-196-6 01 1 9712- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-97039-195-6 01 1 9712-0007 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T AISIN(RMD) 		8-97039-195-6 01 1 0008- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-97039-195-6 01 1 0008- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T THM(RMQ) TORQUE ON DEMAND<7HA> 		8-97183-490-1 01 1 9909- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 		8-94375-288-1 01 1 9712-9908 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> 		8-94375-288-1 01 1 9909-0006 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA> 		8-97133-866-0 01 1 0007- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MUA 5 SPEED(RMN) 		8-97123-260-0 01 1 9712- ●
79 00.002 BOLT; SUPPORT RUBBER TO TRANS
01.652 M10X25 W/LK WASHER 		0-50041-025-0 02 1 9712-9809 ● ●
79 00.002 BOLT; SUPPORT RUBBER TO TRANS
M/T MUA 5 SPEED(RMN) 01.652 M10X25 W/LK WASHER 		0-50041-025-0 02 1 9810- ● ●
81 00.029 PROTECTOR; HEAT,ENG MTG 8-97022-766-0 01 1 9712- ● ●
132 00.002 PLATE; ENG MTG
AIR BAG DRIVER<AJ3> 		8-97139-639-0 01 1 9712- ● ●
183 00.027 BOLT; DAMPER
03.611 M10X20 FLANGE 		0-28681-020-0 01 1 9712- ●
241 00.027 COVER; ENG MTG
AIR BAG DRIVER<AJ3> 		8-97137-834-0 01 1 9712- ● ●
241 00.027 COVER; ENG MTG
AIR BAG DRIVER<AJ3> 		8-97137-833-0 01 1 9712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
