◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35C - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35C — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#4336) — 78 parça

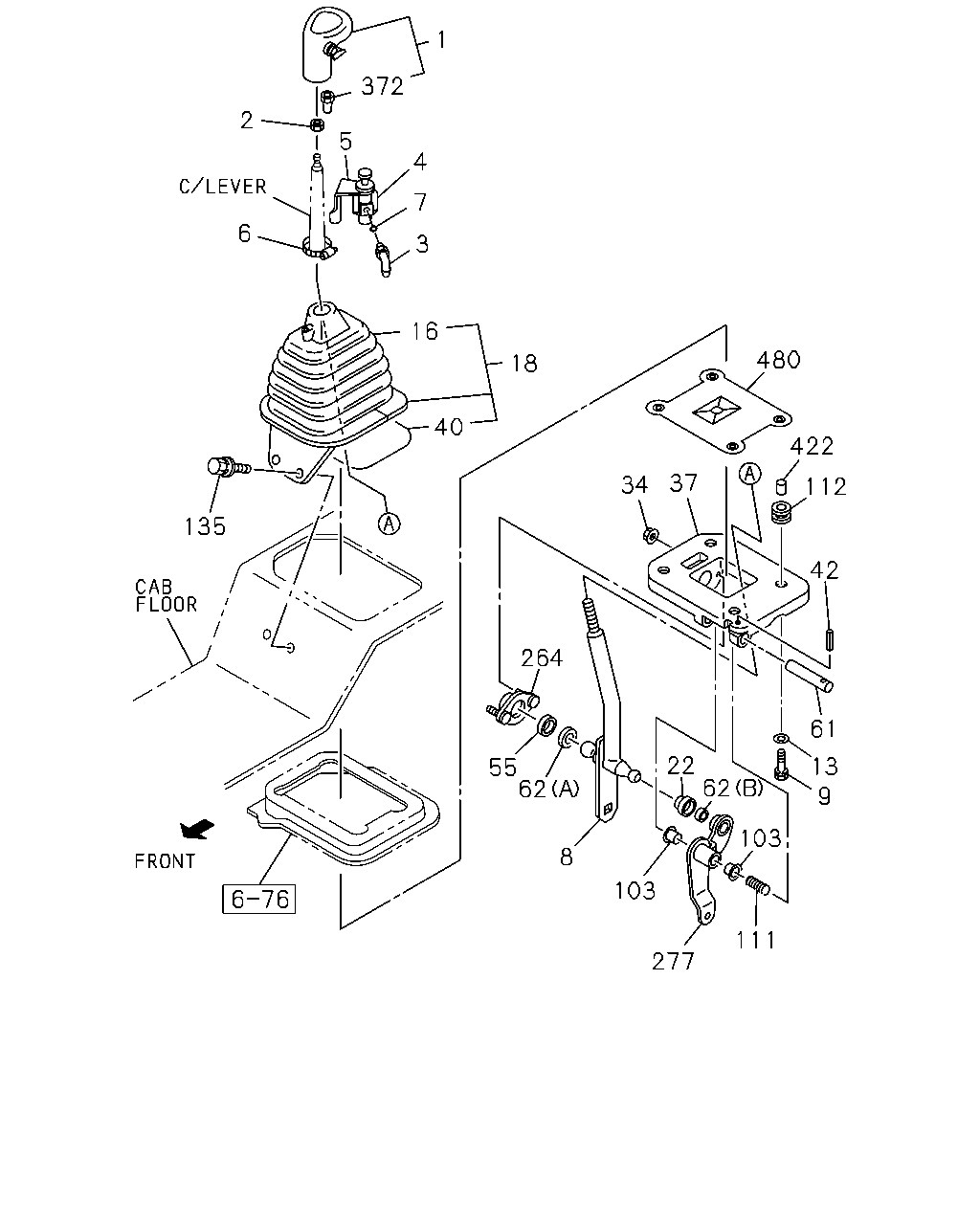

çizim 40008
1 372 2 5 4 7 6 3 16 480 18 40 422 37 34 112 135 42 264 61 22 62 13 55 62 9 103 8 103 111 277
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 KNOB; CHANGE LEVER 1-33611-044-0 01 1 9603-9610 ● ●
1 KNOB; CHANGE LEVER 1-33611-111-0 01 1 9611-9803 ● ●
1 KNOB; CHANGE LEVER 1-33611-111-0 01 1 9804-9904 ●
1 KNOB; CHANGE LEVER 1-33611-111-0 01 1 9905- ● ●
1 KNOB; CHANGE LEVER 1-33611-116-0 01 1 9804-9904 ●
1 KNOB; CHANGE LEVER 1-33611-116-0 01 1 9905-9905 ●
1 KNOB; CHANGE LEVER 1-33611-116-0 01 1 9906- ● ●
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 9603-9904 ● ●
2 NUT; KNOB
1/2-13UNC 		1-33619-033-0 01 1 9905- ● ● ● ●
3 CONNECTOR; CONT TUBE 1-33619-533-0 02 1 9603-9904 ● ●
3 CONNECTOR; CONT TUBE
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33619-533-0 02 1 9905- ● ● ● ●
4 VALVE; ACTUATOR 1-33712-003-0 01 1 9603-9904 ● ●
4 VALVE; ACTUATOR
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33712-003-0 01 1 9905- ● ● ● ●
5 BRACKET; ACTUATOR VLV 1-33719-078-0 01 1 9603-9904 ● ●
5 BRACKET; ACTUATOR VLV
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33719-078-0 01 1 9905- ● ● ● ●
6 CLAMP; BRKT 1-33719-079-0 01 1 9603-9904 ● ●
6 CLAMP; BRKT
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-33719-079-0 01 1 9905- ● ● ● ●
7 GASKET; CONNECTOR 1-33619-034-0 03 1 9603-9904 ● ●
8 LEVER; CHANGE 1-33613-349-0 01 1 9603-9904 ● ●
8 LEVER; CHANGE 1-33613-349-0 01 1 9905- ● ● ● ●
9 BOLT; CHANGE LEVER
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9603-9807 ● ● ● ● ● ●
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28680-825-0 04 1 9808- ● ● ● ● ● ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 9603- ● ● ● ● ● ●
16 BOOT; CHANGE LEVER 1-79996-367-0 01 1 9703-9904 ● ●
16 BOOT; CHANGE LEVER 1-79996-367-0 01 1 9905- ● ● ● ●
18 BOOT; CHANGE LEVER 1-79996-298-0 01 1 9603-9604 ●
18 BOOT; CHANGE LEVER 1-79996-298-1 01 1 9605-9702 ● ●
18 BOOT; CHANGE LEVER 1-79996-364-2 01 1 9703-9904 ● ●
18 BOOT; CHANGE LEVER 1-79996-435-1 01 1 9905- ● ● ● ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 9610-9904 ● ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 9905-9910 ● ● ● ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 9911- ● ● ● ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 9603-9904 ● ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 9905-9910 ● ● ● ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 9911- ● ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 9603-9904 ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 9905-9910 ● ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 9911- ● ● ● ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 9905- ● ● ● ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 9603-9904 ● ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 9905-9910 ● ● ● ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 9911- ● ● ● ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 9603-9904 ● ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 9905-9910 ● ● ● ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 9911- ● ● ● ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 9603-9904 ● ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 9905-9910 ● ● ● ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 9911- ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9603-9904 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9905-9910 ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9911- ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9603-9904 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9905-9910 ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9911- ● ● ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9603-9904 ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9905-9910 ● ● ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9911- ● ● ● ●
111 SPRING 1-09585-133-1 01 1 9603-9904 ● ●
111 SPRING 1-09585-133-1 01 1 9905-9910 ● ● ● ●
111 SPRING 1-09585-133-1 01 1 9911- ● ● ● ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 9603-9904 ● ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 9905-9910 ● ● ● ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 9911- ● ● ● ●
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9603- ● ● ● ● ● ●
264 PLATE; COVER 1-33619-469-0 01 1 9603-9904 ● ●
264 PLATE; COVER 1-33619-469-0 01 1 9905-9910 ● ● ● ●
264 PLATE; COVER 1-33619-469-0 01 1 9911- ● ● ● ●
277 LEVER; RELAY 1-33651-636-0 01 1 9603-9904 ● ●
277 LEVER; RELAY 1-33651-636-0 01 1 9905-9910 ● ● ● ●
277 LEVER; RELAY 1-33651-636-0 01 1 9911- ● ● ● ●
372 CONNECTOR; CHANGE LEVER 8-97500-148-0 04 1 9603-9904 ● ●
372 CONNECTOR; CHANGE LEVER 8-97500-148-0 04 1 9905-9905 ● ● ●
372 CONNECTOR; CHANGE LEVER 8-97500-148-0 04 1 9906- ● ● ● ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 9603-9904 ● ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 9905-9910 ● ● ● ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 9911- ● ● ● ●
480 RUBBER; COVER 1-33619-554-0 01 1 9905-9910 ● ● ● ●
480 RUBBER; COVER 1-33619-554-0 01 1 9911- ● ● ● ●
