Sayfa 0-15 - Isuzu EPC

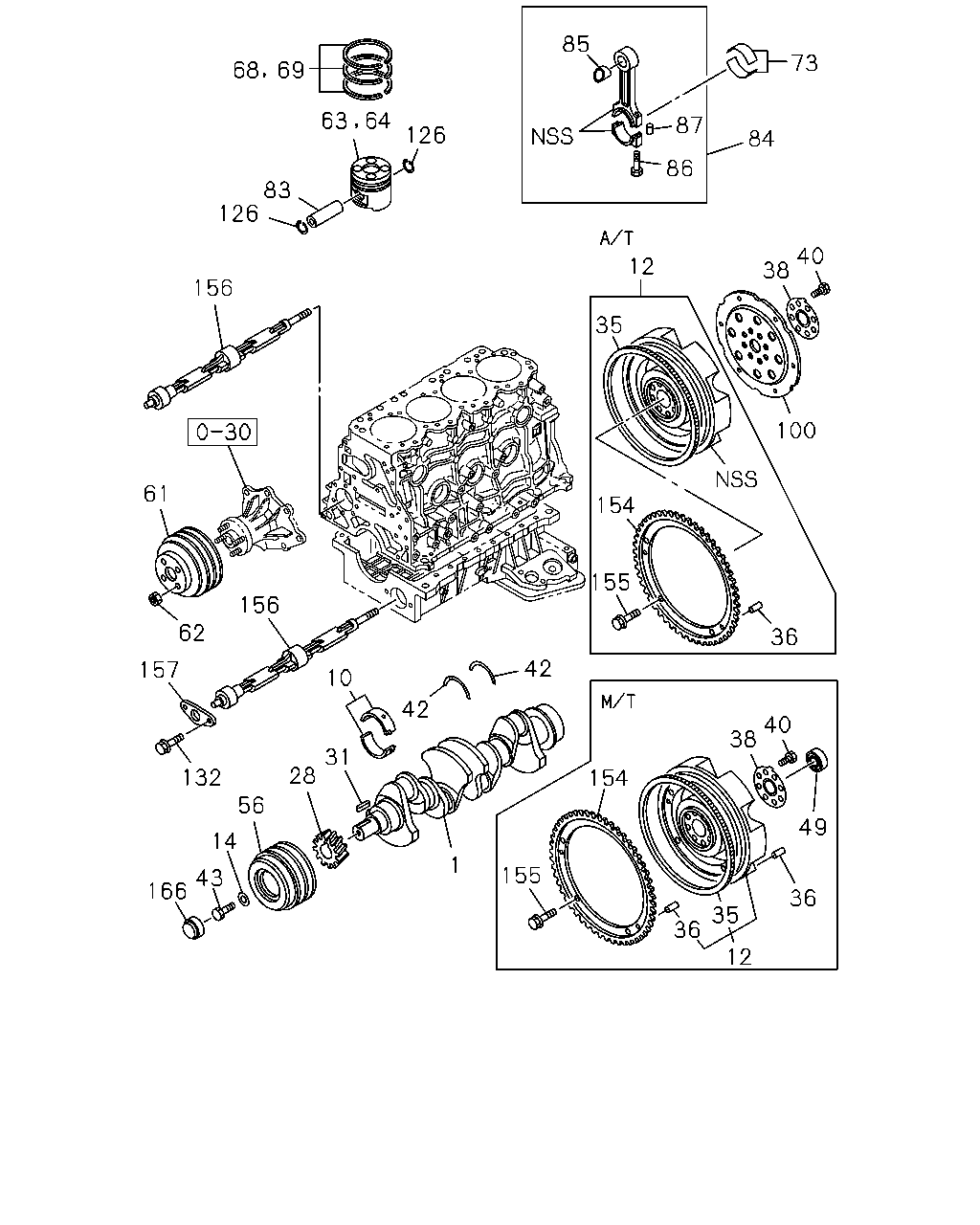

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#43359) — 487 parça

85 73 68 69 87 126 84 86 83 126 40 38 12 156 35 100 61 154 155 156 62 36 42 157 10 42 40 38 31 28 132 154 56 49 14 1 155 43 166 36 35 36 12 63 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9712-0008	●
1	00.646 CRANKSHAFT	8-97190-930-1	01	1	0009-	●
1	00.646 CRANKSHAFT	8-97137-174-0	01	1	9712-0008		●
1	00.646 CRANKSHAFT	8-97190-931-0	01	1	0009-0105		●
1	00.646 CRANKSHAFT EXC. EUROPE EQUIPMENT(EK4)	8-97190-931-0	01	1	0106-0109		●
1	00.646 CRANKSHAFT EUROPE EQUIPMENT(EK4)	8-97254-611-1	01	1	0106-0109		●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0110-		●
1	00.646 CRANKSHAFT	8-97162-717-1	01	1	9712-0202			●
1	00.646 CRANKSHAFT	8-97333-958-0	01	1	0203-0302			●
1	00.646 CRANKSHAFT	8-97358-476-0	01	1	0303-			●
1	00.646 CRANKSHAFT	8-97131-857-2	01	1	9712-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9712-0202	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9712-0202	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9712-0202	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	9712-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0203-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	9712-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0203-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	9712-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0203-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	9712-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0203-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	9712-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0203-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 BROWN	8-97179-296-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 GREEN	8-97179-297-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 YELLOW	8-97179-298-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 BLUE	8-97179-299-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 BROWN	8-97179-300-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 GREEN	8-97179-301-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 YELLOW	8-97179-302-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 BLUE	8-97179-303-0	02	1	9712-			●	●
12	00.666 FLYWHEEL W/RING GEAR	8-97021-401-2	01	1	9712-0105	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED(RMN) W/RING GEAR	8-97021-401-2	01	1	0106-	●
12	00.666 FLYWHEEL A/T AISIN(RMD)	8-97110-515-0	01	1	0106-	●
12	00.666 FLYWHEEL	8-97134-517-4	01	1	9712-9908		●
12	00.666 FLYWHEEL M/T AR-5 5 SPEED(RNK)	8-97134-517-4	01	1	9909-		●
12	00.666 FLYWHEEL A/T AISIN(RMD)	8-97174-848-2	01	1	9909-		●
12	00.666 FLYWHEEL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97131-860-0	01	1	9712-			●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9712-	●	●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9712-	●
28	00.728 GEAR; CR/SHF Z=42	8-97173-774-1	01	1	9712-		●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9712-0008	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9712-9908	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9909-	●
35	00.673 GEAR; RING A/T AISIN(RMD) Z=108	8-94419-602-1	01	1	9909-		●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	9712-9908		●
35	00.673 GEAR; RING M/T AR-5 5 SPEED(RNK) Z=122	8-94364-395-1	01	1	9909-		●
35	00.673 GEAR; RING A/T THM(RMQ) Z=121	8-97174-420-0	01	1	9712-			●	●
35	00.673 GEAR; RING M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) ID=281	8-94374-959-0	01	1	9712-			●	●
36	00.862 PIN; FLYWHEEL ID=6 L=12	9-08160-612-0	02	1	9712-		●
36	00.862 PIN; FLYWHEEL OD=6 L=24	9-09878-532-0	03	1	9712-9908		●
36	00.862 PIN; FLYWHEEL M/T AR-5 5 SPEED(RNK) OD=6 L=24	9-09878-532-0	03	1	9909-		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9712-9908	●
38	00.862 WASHER; FLYWHEEL 4X4(UBS***) 00.669	8-94133-970-0	01	1	9712-9908		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9909-0105	●
38	00.862 WASHER; FLYWHEEL 4X4(UBS***) M/T AR-5 5 SPEED(RNK) 00.669	8-94133-970-0	01	1	9909-0105		●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 00.669	8-94133-970-0	01	1	0106-	●	●
38	00.862 WASHER; FLYWHEEL A/T AISIN(RMD)	8-97038-939-0	01	1	9909-0105		●
38	00.862 WASHER; FLYWHEEL A/T AISIN(RMD)	8-97038-939-0	01	1	0106-	●	●
38	00.862 WASHER; FLYWHEEL 00.669 T=0.8	8-94235-325-1	01	1	9712-			●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9712-0105	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED(RMN) M13X36	8-97065-984-1	08	1	0106-	●
40	00.669 BOLT; FLYWHEEL M13X78	8-97080-561-1	08	1	9712-0105		●
40	00.669 BOLT; FLYWHEEL A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) M13X78	8-97080-561-1	08	1	0106-	●	●
40	00.669 BOLT; FLYWHEEL A/T THM(RMQ) M10X17	8-97015-187-0	08	1	9712-			●	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) M10X31	8-94379-616-0	08	1	9712-			●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9712-9809	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9712-9809		●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9810-	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-97014-208-0	02	1	9712-			●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9712-	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X30	8-94108-479-0	01	1	9712-			●	●
49	00.669 BEARING; PILOT 00.649	9-00090-679-0	01	1	9712-9908		●
49	00.669 BEARING; PILOT M/T AR-5 5 SPEED(RNK) 00.649	9-00090-679-0	01	1	9909-		●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97184-135-0	01	1	9712-	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97174-629-1	01	1	9712-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	9712-	●
61	00.659 PULLEY; FAN DRIVE 3-GROOVE	8-97144-865-2	01	1	9712-		●
61	00.659 PULLEY; FAN DRIVE	8-97130-518-0	01	1	9712-0301			●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-97352-277-0	01	1	0302-			●	●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	9712-		●
63	00.629 PISTON TURBOCHARGER<K51> GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-622-1	04	1	9712-	●
63	00.629 PISTON TURBOCHARGER<K51> GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-623-1	04	1	9712-	●
63	00.629 PISTON EXC. TURBOCHARGER<K51> GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-616-0	04	1	9712-	●
63	00.629 PISTON EXC. TURBOCHARGER<K51> GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-617-0	04	1	9712-	●
63	00.629 PISTON GRADE=A	8-97182-768-1	04	1	9712-0105		●
63	00.629 PISTON EXC. EUROPE EQUIPMENT(EK4) GRADE=A	8-97182-768-2	04	1	0106-0208		●
63	00.629 PISTON EXC. EURO3 SPECIFICATION(NT3) GRADE=A	8-97182-768-2	04	1	0209-		●
63	00.629 PISTON GRADE=B	8-97182-769-1	04	1	9712-0105		●
63	00.629 PISTON EXC. EUROPE EQUIPMENT(EK4) GRADE=B	8-97182-769-2	04	1	0106-0208		●
63	00.629 PISTON EXC. EURO3 SPECIFICATION(NT3) GRADE=B	8-97182-769-2	04	1	0209-		●
63	00.629 PISTON GRADE=C	8-97182-770-1	04	1	9712-0105		●
63	00.629 PISTON EXC. EUROPE EQUIPMENT(EK4) GRADE=C	8-97182-770-2	04	1	0106-0208		●
63	00.629 PISTON EXC. EURO3 SPECIFICATION(NT3) GRADE=C	8-97182-770-2	04	1	0209-		●
63	00.629 PISTON EUROPE EQUIPMENT(EK4) GRADE=A	8-97263-258-2	04	1	0106-0208		●
63	00.629 PISTON EURO3 SPECIFICATION(NT3) GRADE=A	8-97263-258-2	04	1	0209-		●
63	00.629 PISTON EUROPE EQUIPMENT(EK4) GRADE=B	8-97263-264-2	04	1	0106-0208		●
63	00.629 PISTON EURO3 SPECIFICATION(NT3) GRADE=B	8-97263-264-2	04	1	0209-		●
63	00.629 PISTON EUROPE EQUIPMENT(EK4) GRADE=C	8-97263-265-2	04	1	0106-0208		●
63	00.629 PISTON EURO3 SPECIFICATION(NT3) GRADE=C	8-97263-265-2	04	1	0209-		●
63	00.629 PISTON GRADE=B	8-97136-315-3	06	1	9712-0308			●
63	00.629 PISTON GRADE=B	8-97358-038-0	06	1	0309-			●
63	00.629 PISTON GRADE=A	8-97167-093-2	06	1	9712-0308			●
63	00.629 PISTON GRADE=A	8-97358-037-0	06	1	0309-			●
63	00.629 PISTON GRADE=C	8-97167-094-2	06	1	9712-0308			●
63	00.629 PISTON GRADE=C	8-97358-039-0	06	1	0309-			●
63	00.629 PISTON GRADE=A	8-97172-674-0	06	1	9712-0308				●
63	00.629 PISTON GRADE=A	8-97358-034-0	06	1	0309-				●
63	00.629 PISTON GRADE=B	8-97172-675-0	06	1	9712-0308				●
63	00.629 PISTON GRADE=B	8-97358-035-0	06	1	0309-				●
63	00.629 PISTON GRADE=C	8-97172-676-0	06	1	9712-0308				●
63	00.629 PISTON GRADE=C	8-97358-036-0	06	1	0309-				●
64	00.629 PISTON; O/S=0.50 GRADE=A	8-97184-498-1	04	1	9712-0105		●
64	00.629 PISTON; O/S=0.50 EXC. EUROPE EQUIPMENT(EK4) GRADE=A	8-97184-498-2	04	1	0106-0208		●
64	00.629 PISTON; O/S=0.50 EXC. EURO3 SPECIFICATION(NT3) GRADE=A	8-97184-498-2	04	1	0209-		●
64	00.629 PISTON; O/S=0.50 GRADE=B	8-97184-499-1	04	1	9712-0105		●
64	00.629 PISTON; O/S=0.50 EXC. EUROPE EQUIPMENT(EK4) GRADE=B	8-97184-499-2	04	1	0106-0208		●
64	00.629 PISTON; O/S=0.50 EXC. EURO3 SPECIFICATION(NT3) GRADE=B	8-97184-499-2	04	1	0209-		●
64	00.629 PISTON; O/S=0.50 GRADE=C	8-97190-816-1	04	1	9712-0105		●
64	00.629 PISTON; O/S=0.50 EXC. EUROPE EQUIPMENT(EK4) GRADE=C	8-97190-816-2	04	1	0106-0208		●
64	00.629 PISTON; O/S=0.50 EXC. EURO3 SPECIFICATION(NT3) GRADE=C	8-97190-816-2	04	1	0209-		●
64	00.629 PISTON; O/S=0.50 EUROPE EQUIPMENT(EK4) GRADE=A	8-97306-512-1	04	1	0106-0208		●
64	00.629 PISTON; O/S=0.50 EURO3 SPECIFICATION(NT3) GRADE=A	8-97306-512-1	04	1	0209-		●
64	00.629 PISTON; O/S=0.50 EUROPE EQUIPMENT(EK4) GRADE=B	8-97306-513-1	04	1	0106-0208		●
64	00.629 PISTON; O/S=0.50 EURO3 SPECIFICATION(NT3) GRADE=B	8-97306-513-1	04	1	0209-		●
64	00.629 PISTON; O/S=0.50 EUROPE EQUIPMENT(EK4) GRADE=C	8-97306-514-1	04	1	0106-0208		●
64	00.629 PISTON; O/S=0.50 EURO3 SPECIFICATION(NT3) GRADE=C	8-97306-514-1	04	1	0209-		●
68	00.643 RING SET; PISTON,STANDARD EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) T=1.2	8-97371-552-0	06	1	0308-			●
68	00.643 RING SET; PISTON,STANDARD CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.2	8-97371-552-0	06	1	0308-				●
68	00.643 RING SET; PISTON,STANDARD SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) T=1.2	8-97365-480-0	06	1	0306-0307			●
68	00.643 RING SET; PISTON,STANDARD EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.2	8-97365-480-0	06	1	0306-0307				●
68	00.643 RING SET; PISTON,STANDARD SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) T=1.2	8-97371-553-0	06	1	0308-			●
68	00.643 RING SET; PISTON,STANDARD EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.2	8-97371-553-0	06	1	0308-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9712-	●
68	00.643 RING SET; PISTON,STANDARD	8-97184-533-0	04	1	9712-		●
68	00.643 RING SET; PISTON,STANDARD T=1.5	8-97136-135-0	06	1	9712-9809			●
68	00.643 RING SET; PISTON,STANDARD CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.5	8-97136-135-0	06	1	9712-9809				●
68	00.643 RING SET; PISTON,STANDARD EXC. SAUDI ARABIA EQUIPMENT(EU2) T=1.5	8-97136-135-0	06	1	9810-0005			●
68	00.643 RING SET; PISTON,STANDARD CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.5	8-97136-135-0	06	1	9810-0005				●
68	00.643 RING SET; PISTON,STANDARD EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) T=1.5	8-97136-135-0	06	1	0006-			●
68	00.643 RING SET; PISTON,STANDARD CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.5	8-97136-135-0	06	1	0006-				●
68	00.643 RING SET; PISTON,STANDARD EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.5	8-97170-113-0	06	1	9712-9812				●
68	00.643 RING SET; PISTON,STANDARD SAUDI ARABIA EQUIPMENT(EU2) T=1.5	8-97170-113-0	06	1	9901-0005			●
68	00.643 RING SET; PISTON,STANDARD EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.5	8-97170-113-0	06	1	9901-0005				●
68	00.643 RING SET; PISTON,STANDARD SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) T=1.5	8-97170-113-0	06	1	0006-			●
68	00.643 RING SET; PISTON,STANDARD EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.5	8-97170-113-0	06	1	0006-				●
69	00.643 RING SET; PISTON,O/S=0.50	8-97253-145-0	04	1	9712-		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9712-0210	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0211-	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	9712-		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97179-293-0	06	1	9712-			●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97179-294-0	06	1	9712-			●	●
73	00.616 METAL SET; CONN ROD,STANDARD PINK	8-97179-295-0	06	1	9712-			●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9712-	●
83	00.636 PIN; PISTON	8-94454-479-0	04	1	9712-		●
83	00.636 PIN; PISTON	8-97149-195-1	06	1	9712-			●	●
84	00.603 ROD ASM; CONN	8-97062-300-1	04	1	9712-	●
84	00.603 ROD ASM; CONN	8-97137-181-1	04	1	9712-0111		●
84	00.603 ROD ASM; CONN	8-97288-580-0	04	1	0112-0206		●
84	00.603 ROD ASM; CONN	8-97352-890-1	04	1	0207-		●
84	00.603 ROD ASM; CONN	8-97136-202-0	06	1	9712-0302			●	●
84	00.603 ROD ASM; CONN	8-97351-159-0	06	1	0303-			●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9712-	●
85	00.613 BUSHING; CONNROD	8-94419-455-0	04	1	9712-0111		●
85	00.613 BUSHING; CONNROD	8-97288-551-0	04	1	0112-0206		●
85	00.613 BUSHING; CONNROD	8-97352-889-0	04	1	0207-		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9712-	●	●
86	00.623 BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	12	1	9712-			●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9712-	●	●
100	00.666 PLATE; FLEX A/T AISIN(RMD)	8-97118-308-0	01	1	9909-0105		●
100	00.666 PLATE; FLEX A/T AISIN(RMD)	8-97118-308-0	01	1	0106-	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9712-	●
126	00.639 RING; SNAP,PISTON PIN	8-94133-969-0	08	1	9712-		●
132	00.669 BOLT; PLATE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9712-		●
154	00.728 WHEEL; TIMING & SPEED	8-97163-034-3	01	1	9712-		●
155	00.728 BOLT; WHEEL 01.428 M6X12 FLANGE	0-28080-612-0	05	1	9712-		●
156	00.659 SHAFT; BALANCER	8-97136-733-1	01	1	9712-		●
156	00.659 SHAFT; BALANCER	8-97136-732-0	01	1	9712-9801		●
156	00.659 SHAFT; BALANCER	8-97206-381-0	01	1	9802-		●
157	00.659 PLATE; THRUST	8-97145-144-0	01	1	9712-		●
166	00.659 RUBBER; SPACE,PULLEY	8-97193-373-0	01	1	9712-0106		●
166	00.659 RUBBER; SPACE,PULLEY	8-97303-729-0	01	1	0107-0107		●
166	00.659 RUBBER; SPACE,PULLEY	8-97193-373-1	01	1	0107-		●

37 68 63 83 40 38 86 84 35 12 73 88 52 40 38 35 61 42 42 1 48 18 43 10 10 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9712-0008	●
1	00.646 CRANKSHAFT	8-97190-930-1	01	1	0009-	●
1	00.646 CRANKSHAFT	8-97137-174-0	01	1	9712-0008		●
1	00.646 CRANKSHAFT	8-97190-931-0	01	1	0009-0105		●
1	00.646 CRANKSHAFT EXC. EUROPE EQUIPMENT(EK4)	8-97190-931-0	01	1	0106-0109		●
1	00.646 CRANKSHAFT EUROPE EQUIPMENT(EK4)	8-97254-611-1	01	1	0106-0109		●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0110-		●
1	00.646 CRANKSHAFT	8-97162-717-1	01	1	9712-0202			●
1	00.646 CRANKSHAFT	8-97333-958-0	01	1	0203-0302			●
1	00.646 CRANKSHAFT	8-97358-476-0	01	1	0303-			●
1	00.646 CRANKSHAFT	8-97131-857-2	01	1	9712-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9712-0202	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9712-0202	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9712-0202	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	9712-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0203-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	9712-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0203-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	9712-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0203-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	9712-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0203-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	9712-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0203-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 BROWN	8-97179-296-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 GREEN	8-97179-297-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 YELLOW	8-97179-298-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 BLUE	8-97179-299-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 BROWN	8-97179-300-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 GREEN	8-97179-301-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 YELLOW	8-97179-302-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 BLUE	8-97179-303-0	02	1	9712-			●	●
12	00.666 FLYWHEEL W/RING GEAR	8-97021-401-2	01	1	9712-0105	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED(RMN) W/RING GEAR	8-97021-401-2	01	1	0106-	●
12	00.666 FLYWHEEL A/T AISIN(RMD)	8-97110-515-0	01	1	0106-	●
12	00.666 FLYWHEEL	8-97134-517-4	01	1	9712-9908		●
12	00.666 FLYWHEEL M/T AR-5 5 SPEED(RNK)	8-97134-517-4	01	1	9909-		●
12	00.666 FLYWHEEL A/T AISIN(RMD)	8-97174-848-2	01	1	9909-		●
12	00.666 FLYWHEEL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97131-860-0	01	1	9712-			●	●
18	00.659 PULLEY; CR/SHF 6-GROOVE	8-97131-859-0	01	1	9712-0203			●	●
18	00.659 PULLEY; CR/SHF 6-GROOVE	8-97321-296-0	01	1	0204-0308			●	●
18	00.659 PULLEY; CR/SHF 6-GROOVE	8-97328-604-0	01	1	0309-			●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9712-9908	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9909-	●
35	00.673 GEAR; RING A/T AISIN(RMD) Z=108	8-94419-602-1	01	1	9909-		●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	9712-9908		●
35	00.673 GEAR; RING M/T AR-5 5 SPEED(RNK) Z=122	8-94364-395-1	01	1	9909-		●
35	00.673 GEAR; RING A/T THM(RMQ) Z=121	8-97174-420-0	01	1	9712-			●	●
35	00.673 GEAR; RING M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) ID=281	8-94374-959-0	01	1	9712-			●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9712-0105	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED(RMN) 00.649	9-00090-679-0	01	1	0106-	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 00.649	8-97031-741-0	01	1	9712-			●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9712-9908	●
38	00.862 WASHER; FLYWHEEL 4X4(UBS***) 00.669	8-94133-970-0	01	1	9712-9908		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9909-0105	●
38	00.862 WASHER; FLYWHEEL 4X4(UBS***) M/T AR-5 5 SPEED(RNK) 00.669	8-94133-970-0	01	1	9909-0105		●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 00.669	8-94133-970-0	01	1	0106-	●	●
38	00.862 WASHER; FLYWHEEL A/T AISIN(RMD)	8-97038-939-0	01	1	9909-0105		●
38	00.862 WASHER; FLYWHEEL A/T AISIN(RMD)	8-97038-939-0	01	1	0106-	●	●
38	00.862 WASHER; FLYWHEEL 00.669 T=0.8	8-94235-325-1	01	1	9712-			●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9712-0105	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED(RMN) M13X36	8-97065-984-1	08	1	0106-	●
40	00.669 BOLT; FLYWHEEL M13X78	8-97080-561-1	08	1	9712-0105		●
40	00.669 BOLT; FLYWHEEL A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) M13X78	8-97080-561-1	08	1	0106-	●	●
40	00.669 BOLT; FLYWHEEL A/T THM(RMQ) M10X17	8-97015-187-0	08	1	9712-			●	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) M10X31	8-94379-616-0	08	1	9712-			●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9712-9809	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9712-9809		●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9810-	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-97014-208-0	02	1	9712-			●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9712-	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X30	8-94108-479-0	01	1	9712-			●	●
48	00.662 KEY; WOODRUFF,CR/SHF	5-09737-003-0	01	1	9712-			●	●
52	00.669 SLEEVE; CONV PILOT A/T THM(RMQ)	8-94384-695-0	01	1	9712-			●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	9712-	●
61	00.659 PULLEY; FAN DRIVE 3-GROOVE	8-97144-865-2	01	1	9712-		●
61	00.659 PULLEY; FAN DRIVE	8-97130-518-0	01	1	9712-0301			●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-97352-277-0	01	1	0302-			●	●
63	00.629 PISTON TURBOCHARGER<K51> GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-622-1	04	1	9712-	●
63	00.629 PISTON TURBOCHARGER<K51> GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-623-1	04	1	9712-	●
63	00.629 PISTON EXC. TURBOCHARGER<K51> GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-616-0	04	1	9712-	●
63	00.629 PISTON EXC. TURBOCHARGER<K51> GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-617-0	04	1	9712-	●
63	00.629 PISTON GRADE=A	8-97182-768-1	04	1	9712-0105		●
63	00.629 PISTON EXC. EUROPE EQUIPMENT(EK4) GRADE=A	8-97182-768-2	04	1	0106-0208		●
63	00.629 PISTON EXC. EURO3 SPECIFICATION(NT3) GRADE=A	8-97182-768-2	04	1	0209-		●
63	00.629 PISTON GRADE=B	8-97182-769-1	04	1	9712-0105		●
63	00.629 PISTON EXC. EUROPE EQUIPMENT(EK4) GRADE=B	8-97182-769-2	04	1	0106-0208		●
63	00.629 PISTON EXC. EURO3 SPECIFICATION(NT3) GRADE=B	8-97182-769-2	04	1	0209-		●
63	00.629 PISTON GRADE=C	8-97182-770-1	04	1	9712-0105		●
63	00.629 PISTON EXC. EUROPE EQUIPMENT(EK4) GRADE=C	8-97182-770-2	04	1	0106-0208		●
63	00.629 PISTON EXC. EURO3 SPECIFICATION(NT3) GRADE=C	8-97182-770-2	04	1	0209-		●
63	00.629 PISTON EUROPE EQUIPMENT(EK4) GRADE=A	8-97263-258-2	04	1	0106-0208		●
63	00.629 PISTON EURO3 SPECIFICATION(NT3) GRADE=A	8-97263-258-2	04	1	0209-		●
63	00.629 PISTON EUROPE EQUIPMENT(EK4) GRADE=B	8-97263-264-2	04	1	0106-0208		●
63	00.629 PISTON EURO3 SPECIFICATION(NT3) GRADE=B	8-97263-264-2	04	1	0209-		●
63	00.629 PISTON EUROPE EQUIPMENT(EK4) GRADE=C	8-97263-265-2	04	1	0106-0208		●
63	00.629 PISTON EURO3 SPECIFICATION(NT3) GRADE=C	8-97263-265-2	04	1	0209-		●
63	00.629 PISTON GRADE=B	8-97136-315-3	06	1	9712-0308			●
63	00.629 PISTON GRADE=B	8-97358-038-0	06	1	0309-			●
63	00.629 PISTON GRADE=A	8-97167-093-2	06	1	9712-0308			●
63	00.629 PISTON GRADE=A	8-97358-037-0	06	1	0309-			●
63	00.629 PISTON GRADE=C	8-97167-094-2	06	1	9712-0308			●
63	00.629 PISTON GRADE=C	8-97358-039-0	06	1	0309-			●
63	00.629 PISTON GRADE=A	8-97172-674-0	06	1	9712-0308				●
63	00.629 PISTON GRADE=A	8-97358-034-0	06	1	0309-				●
63	00.629 PISTON GRADE=B	8-97172-675-0	06	1	9712-0308				●
63	00.629 PISTON GRADE=B	8-97358-035-0	06	1	0309-				●
63	00.629 PISTON GRADE=C	8-97172-676-0	06	1	9712-0308				●
63	00.629 PISTON GRADE=C	8-97358-036-0	06	1	0309-				●
68	00.643 RING SET; PISTON,STANDARD EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) T=1.2	8-97371-552-0	06	1	0308-			●
68	00.643 RING SET; PISTON,STANDARD CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.2	8-97371-552-0	06	1	0308-				●
68	00.643 RING SET; PISTON,STANDARD SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) T=1.2	8-97365-480-0	06	1	0306-0307			●
68	00.643 RING SET; PISTON,STANDARD EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.2	8-97365-480-0	06	1	0306-0307				●
68	00.643 RING SET; PISTON,STANDARD SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) T=1.2	8-97371-553-0	06	1	0308-			●
68	00.643 RING SET; PISTON,STANDARD EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.2	8-97371-553-0	06	1	0308-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9712-	●
68	00.643 RING SET; PISTON,STANDARD	8-97184-533-0	04	1	9712-		●
68	00.643 RING SET; PISTON,STANDARD T=1.5	8-97136-135-0	06	1	9712-9809			●
68	00.643 RING SET; PISTON,STANDARD CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.5	8-97136-135-0	06	1	9712-9809				●
68	00.643 RING SET; PISTON,STANDARD EXC. SAUDI ARABIA EQUIPMENT(EU2) T=1.5	8-97136-135-0	06	1	9810-0005			●
68	00.643 RING SET; PISTON,STANDARD CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.5	8-97136-135-0	06	1	9810-0005				●
68	00.643 RING SET; PISTON,STANDARD EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) T=1.5	8-97136-135-0	06	1	0006-			●
68	00.643 RING SET; PISTON,STANDARD CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.5	8-97136-135-0	06	1	0006-				●
68	00.643 RING SET; PISTON,STANDARD EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.5	8-97170-113-0	06	1	9712-9812				●
68	00.643 RING SET; PISTON,STANDARD SAUDI ARABIA EQUIPMENT(EU2) T=1.5	8-97170-113-0	06	1	9901-0005			●
68	00.643 RING SET; PISTON,STANDARD EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.5	8-97170-113-0	06	1	9901-0005				●
68	00.643 RING SET; PISTON,STANDARD SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) T=1.5	8-97170-113-0	06	1	0006-			●
68	00.643 RING SET; PISTON,STANDARD EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.5	8-97170-113-0	06	1	0006-				●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9712-0210	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0211-	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	9712-		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97179-293-0	06	1	9712-			●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97179-294-0	06	1	9712-			●	●
73	00.616 METAL SET; CONN ROD,STANDARD PINK	8-97179-295-0	06	1	9712-			●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9712-	●
83	00.636 PIN; PISTON	8-94454-479-0	04	1	9712-		●
83	00.636 PIN; PISTON	8-97149-195-1	06	1	9712-			●	●
84	00.603 ROD ASM; CONN	8-97062-300-1	04	1	9712-	●
84	00.603 ROD ASM; CONN	8-97137-181-1	04	1	9712-0111		●
84	00.603 ROD ASM; CONN	8-97288-580-0	04	1	0112-0206		●
84	00.603 ROD ASM; CONN	8-97352-890-1	04	1	0207-		●
84	00.603 ROD ASM; CONN	8-97136-202-0	06	1	9712-0302			●	●
84	00.603 ROD ASM; CONN	8-97351-159-0	06	1	0303-			●	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9712-	●	●
86	00.623 BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	12	1	9712-			●	●
88	00.623 NUT; CONNROD 00.626 3/8-24 UNF	8-94377-785-0	12	1	9712-			●	●

68 73 85 63 126 84 87 126 83 86 12 40 38 42 42 61 35 10 37 1 31 28 56 14 43 100 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-97023-182-1	01	1	9712-0008	●
1	00.646 CRANKSHAFT	8-97190-930-1	01	1	0009-	●
1	00.646 CRANKSHAFT	8-97137-174-0	01	1	9712-0008		●
1	00.646 CRANKSHAFT	8-97190-931-0	01	1	0009-0105		●
1	00.646 CRANKSHAFT EXC. EUROPE EQUIPMENT(EK4)	8-97190-931-0	01	1	0106-0109		●
1	00.646 CRANKSHAFT EUROPE EQUIPMENT(EK4)	8-97254-611-1	01	1	0106-0109		●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0110-		●
1	00.646 CRANKSHAFT	8-97162-717-1	01	1	9712-0202			●
1	00.646 CRANKSHAFT	8-97333-958-0	01	1	0203-0302			●
1	00.646 CRANKSHAFT	8-97358-476-0	01	1	0303-			●
1	00.646 CRANKSHAFT	8-97131-857-2	01	1	9712-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97063-258-0	05	1	9712-0202	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97063-259-0	05	1	9712-0202	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97063-260-0	05	1	9712-0202	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	9712-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0203-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	9712-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0203-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	9712-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0203-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	9712-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0203-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	9712-0202		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0203-	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 BROWN	8-97179-296-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 GREEN	8-97179-297-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 YELLOW	8-97179-298-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.1, NO.4 BLUE	8-97179-299-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 BROWN	8-97179-300-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 GREEN	8-97179-301-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 YELLOW	8-97179-302-0	02	1	9712-			●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD NO.2, NO.3 BLUE	8-97179-303-0	02	1	9712-			●	●
12	00.666 FLYWHEEL W/RING GEAR	8-97021-401-2	01	1	9712-0105	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED(RMN) W/RING GEAR	8-97021-401-2	01	1	0106-	●
12	00.666 FLYWHEEL A/T AISIN(RMD)	8-97110-515-0	01	1	0106-	●
12	00.666 FLYWHEEL	8-97134-517-4	01	1	9712-9908		●
12	00.666 FLYWHEEL M/T AR-5 5 SPEED(RNK)	8-97134-517-4	01	1	9909-		●
12	00.666 FLYWHEEL A/T AISIN(RMD)	8-97174-848-2	01	1	9909-		●
12	00.666 FLYWHEEL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97131-860-0	01	1	9712-			●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	9712-	●	●
28	00.728 GEAR; CR/SHF Z=21	8-94139-754-0	01	1	9712-	●
28	00.728 GEAR; CR/SHF Z=42	8-97173-774-1	01	1	9712-		●
31	00.662 KEY; FEATHER,CR/SHF 00.729	9-08030-743-0	01	1	9712-0008	●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0009-	●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9712-9908	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	9909-	●
35	00.673 GEAR; RING A/T AISIN(RMD) Z=108	8-94419-602-1	01	1	9909-		●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	9712-9908		●
35	00.673 GEAR; RING M/T AR-5 5 SPEED(RNK) Z=122	8-94364-395-1	01	1	9909-		●
35	00.673 GEAR; RING A/T THM(RMQ) Z=121	8-97174-420-0	01	1	9712-			●	●
35	00.673 GEAR; RING M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) ID=281	8-94374-959-0	01	1	9712-			●	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649	9-00090-679-0	01	1	9712-0105	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED(RMN) 00.649	9-00090-679-0	01	1	0106-	●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 00.649	8-97031-741-0	01	1	9712-			●	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9712-9908	●
38	00.862 WASHER; FLYWHEEL 4X4(UBS***) 00.669	8-94133-970-0	01	1	9712-9908		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	9909-0105	●
38	00.862 WASHER; FLYWHEEL 4X4(UBS***) M/T AR-5 5 SPEED(RNK) 00.669	8-94133-970-0	01	1	9909-0105		●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 00.669	8-94133-970-0	01	1	0106-	●	●
38	00.862 WASHER; FLYWHEEL A/T AISIN(RMD)	8-97038-939-0	01	1	9909-0105		●
38	00.862 WASHER; FLYWHEEL A/T AISIN(RMD)	8-97038-939-0	01	1	0106-	●	●
38	00.862 WASHER; FLYWHEEL 00.669 T=0.8	8-94235-325-1	01	1	9712-			●	●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	9712-0105	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED(RMN) M13X36	8-97065-984-1	08	1	0106-	●
40	00.669 BOLT; FLYWHEEL M13X78	8-97080-561-1	08	1	9712-0105		●
40	00.669 BOLT; FLYWHEEL A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) M13X78	8-97080-561-1	08	1	0106-	●	●
40	00.669 BOLT; FLYWHEEL A/T THM(RMQ) M10X17	8-97015-187-0	08	1	9712-			●	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) M10X31	8-94379-616-0	08	1	9712-			●	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9712-9809	●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9712-9809		●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	9810-	●	●
42	00.095 WASHER; THRUST,CR/SHF	8-97014-208-0	02	1	9712-			●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	9712-	●	●
43	00.662 BOLT; CR/SHF PULLEY M16X30	8-94108-479-0	01	1	9712-			●	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97184-135-0	01	1	9712-	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97174-629-1	01	1	9712-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	9712-	●
61	00.659 PULLEY; FAN DRIVE 3-GROOVE	8-97144-865-2	01	1	9712-		●
61	00.659 PULLEY; FAN DRIVE	8-97130-518-0	01	1	9712-0301			●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-97352-277-0	01	1	0302-			●	●
63	00.629 PISTON TURBOCHARGER<K51> GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-622-1	04	1	9712-	●
63	00.629 PISTON TURBOCHARGER<K51> GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-623-1	04	1	9712-	●
63	00.629 PISTON EXC. TURBOCHARGER<K51> GRADE=AX ALSO INCLUDED IN LINER SET.	8-97176-616-0	04	1	9712-	●
63	00.629 PISTON EXC. TURBOCHARGER<K51> GRADE=CX ALSO INCLUDED IN LINER SET.	8-97176-617-0	04	1	9712-	●
63	00.629 PISTON GRADE=A	8-97182-768-1	04	1	9712-0105		●
63	00.629 PISTON EXC. EUROPE EQUIPMENT(EK4) GRADE=A	8-97182-768-2	04	1	0106-0208		●
63	00.629 PISTON EXC. EURO3 SPECIFICATION(NT3) GRADE=A	8-97182-768-2	04	1	0209-		●
63	00.629 PISTON GRADE=B	8-97182-769-1	04	1	9712-0105		●
63	00.629 PISTON EXC. EUROPE EQUIPMENT(EK4) GRADE=B	8-97182-769-2	04	1	0106-0208		●
63	00.629 PISTON EXC. EURO3 SPECIFICATION(NT3) GRADE=B	8-97182-769-2	04	1	0209-		●
63	00.629 PISTON GRADE=C	8-97182-770-1	04	1	9712-0105		●
63	00.629 PISTON EXC. EUROPE EQUIPMENT(EK4) GRADE=C	8-97182-770-2	04	1	0106-0208		●
63	00.629 PISTON EXC. EURO3 SPECIFICATION(NT3) GRADE=C	8-97182-770-2	04	1	0209-		●
63	00.629 PISTON EUROPE EQUIPMENT(EK4) GRADE=A	8-97263-258-2	04	1	0106-0208		●
63	00.629 PISTON EURO3 SPECIFICATION(NT3) GRADE=A	8-97263-258-2	04	1	0209-		●
63	00.629 PISTON EUROPE EQUIPMENT(EK4) GRADE=B	8-97263-264-2	04	1	0106-0208		●
63	00.629 PISTON EURO3 SPECIFICATION(NT3) GRADE=B	8-97263-264-2	04	1	0209-		●
63	00.629 PISTON EUROPE EQUIPMENT(EK4) GRADE=C	8-97263-265-2	04	1	0106-0208		●
63	00.629 PISTON EURO3 SPECIFICATION(NT3) GRADE=C	8-97263-265-2	04	1	0209-		●
63	00.629 PISTON GRADE=B	8-97136-315-3	06	1	9712-0308			●
63	00.629 PISTON GRADE=B	8-97358-038-0	06	1	0309-			●
63	00.629 PISTON GRADE=A	8-97167-093-2	06	1	9712-0308			●
63	00.629 PISTON GRADE=A	8-97358-037-0	06	1	0309-			●
63	00.629 PISTON GRADE=C	8-97167-094-2	06	1	9712-0308			●
63	00.629 PISTON GRADE=C	8-97358-039-0	06	1	0309-			●
63	00.629 PISTON GRADE=A	8-97172-674-0	06	1	9712-0308				●
63	00.629 PISTON GRADE=A	8-97358-034-0	06	1	0309-				●
63	00.629 PISTON GRADE=B	8-97172-675-0	06	1	9712-0308				●
63	00.629 PISTON GRADE=B	8-97358-035-0	06	1	0309-				●
63	00.629 PISTON GRADE=C	8-97172-676-0	06	1	9712-0308				●
63	00.629 PISTON GRADE=C	8-97358-036-0	06	1	0309-				●
68	00.643 RING SET; PISTON,STANDARD EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) T=1.2	8-97371-552-0	06	1	0308-			●
68	00.643 RING SET; PISTON,STANDARD CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.2	8-97371-552-0	06	1	0308-				●
68	00.643 RING SET; PISTON,STANDARD SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) T=1.2	8-97365-480-0	06	1	0306-0307			●
68	00.643 RING SET; PISTON,STANDARD EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.2	8-97365-480-0	06	1	0306-0307				●
68	00.643 RING SET; PISTON,STANDARD SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) T=1.2	8-97371-553-0	06	1	0308-			●
68	00.643 RING SET; PISTON,STANDARD EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.2	8-97371-553-0	06	1	0308-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97147-984-0	04	1	9712-	●
68	00.643 RING SET; PISTON,STANDARD	8-97184-533-0	04	1	9712-		●
68	00.643 RING SET; PISTON,STANDARD T=1.5	8-97136-135-0	06	1	9712-9809			●
68	00.643 RING SET; PISTON,STANDARD CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.5	8-97136-135-0	06	1	9712-9809				●
68	00.643 RING SET; PISTON,STANDARD EXC. SAUDI ARABIA EQUIPMENT(EU2) T=1.5	8-97136-135-0	06	1	9810-0005			●
68	00.643 RING SET; PISTON,STANDARD CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.5	8-97136-135-0	06	1	9810-0005				●
68	00.643 RING SET; PISTON,STANDARD EUROPE EQUIPMENT(EK4),ARGENTINA EQUIPMENT(7SZ) T=1.5	8-97136-135-0	06	1	0006-			●
68	00.643 RING SET; PISTON,STANDARD CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.5	8-97136-135-0	06	1	0006-				●
68	00.643 RING SET; PISTON,STANDARD EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.5	8-97170-113-0	06	1	9712-9812				●
68	00.643 RING SET; PISTON,STANDARD SAUDI ARABIA EQUIPMENT(EU2) T=1.5	8-97170-113-0	06	1	9901-0005			●
68	00.643 RING SET; PISTON,STANDARD EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.5	8-97170-113-0	06	1	9901-0005				●
68	00.643 RING SET; PISTON,STANDARD SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) T=1.5	8-97170-113-0	06	1	0006-			●
68	00.643 RING SET; PISTON,STANDARD EXC. CHILE EQUIPMENT(6KB), GUATEMALA/COSTA RICA EQUIPMENT(7LD) T=1.5	8-97170-113-0	06	1	0006-				●
73	00.616 METAL SET; CONN ROD,STANDARD	8-94372-193-1	04	1	9712-0210	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0211-	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	9712-		●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97179-293-0	06	1	9712-			●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97179-294-0	06	1	9712-			●	●
73	00.616 METAL SET; CONN ROD,STANDARD PINK	8-97179-295-0	06	1	9712-			●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94457-008-1	04	1	9712-	●
83	00.636 PIN; PISTON	8-94454-479-0	04	1	9712-		●
83	00.636 PIN; PISTON	8-97149-195-1	06	1	9712-			●	●
84	00.603 ROD ASM; CONN	8-97062-300-1	04	1	9712-	●
84	00.603 ROD ASM; CONN	8-97137-181-1	04	1	9712-0111		●
84	00.603 ROD ASM; CONN	8-97288-580-0	04	1	0112-0206		●
84	00.603 ROD ASM; CONN	8-97352-890-1	04	1	0207-		●
84	00.603 ROD ASM; CONN	8-97136-202-0	06	1	9712-0302			●	●
84	00.603 ROD ASM; CONN	8-97351-159-0	06	1	0303-			●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	9712-	●
85	00.613 BUSHING; CONNROD	8-94419-455-0	04	1	9712-0111		●
85	00.613 BUSHING; CONNROD	8-97288-551-0	04	1	0112-0206		●
85	00.613 BUSHING; CONNROD	8-97352-889-0	04	1	0207-		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	9712-	●	●
86	00.623 BOLT; CONNROD 3/8-24UNF X 55.5	8-97010-606-0	12	1	9712-			●	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	9712-	●	●
100	00.666 PLATE; FLEX A/T AISIN(RMD)	8-97118-308-0	01	1	9909-0105		●
100	00.666 PLATE; FLEX A/T AISIN(RMD)	8-97118-308-0	01	1	0106-	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	9712-	●
126	00.639 RING; SNAP,PISTON PIN	8-94133-969-0	08	1	9712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
