Sayfa 0-13 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶

0-13 — OIL PAN AND LEVEL GAUGE (#43357) — 173 parça

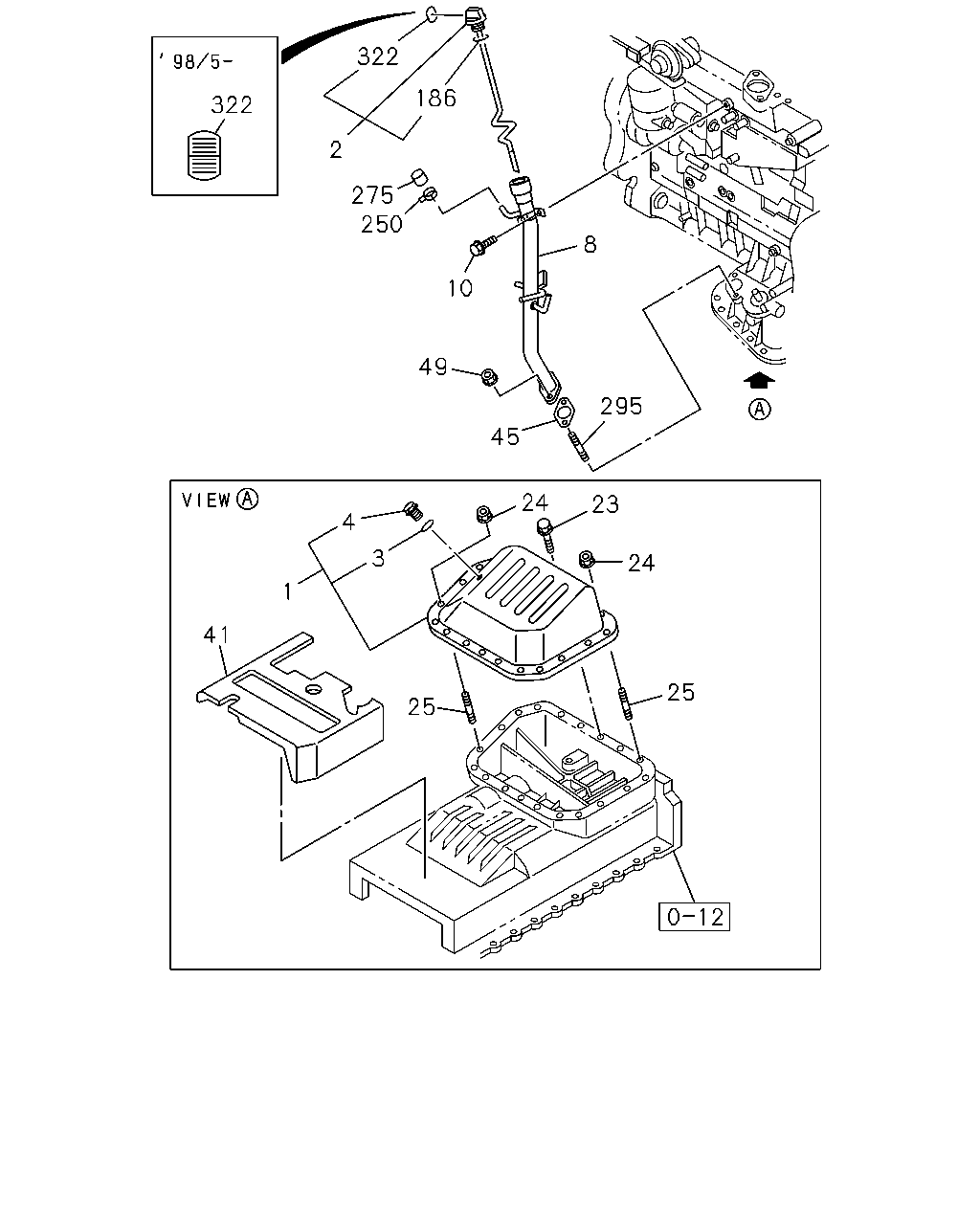

322 186 322 2 275 250 8 10 49 295 45 24 23 4 3 24 1 41 25 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97137-919-0	01	1	9712-9911	●
1	01.426 PAN ASM; OIL	8-97248-862-1	01	1	9912-	●
1	01.426 PAN ASM; OIL	8-97167-117-3	01	1	9712-		●
1	01.426 PAN ASM; OIL	8-97149-083-2	01	1	9712-0104			●	●
1	01.426 PAN ASM; OIL	8-97264-032-0	01	1	0105-			●	●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97085-167-0	01	1	9712-	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-94362-305-0	01	1	9712-	●
2	01.516 GAUGE; OIL LEVEL	8-97148-480-4	01	1	9712-9804		●
2	01.516 GAUGE; OIL LEVEL	8-97210-321-1	01	1	9805-0002		●
2	01.516 GAUGE; OIL LEVEL EXC. OIL FOR FRIGID ZONE<8DB>	8-97210-321-1	01	1	0003-		●
2	01.516 GAUGE; OIL LEVEL OIL FOR FRIGID ZONE<8DB>	8-97251-433-0	01	1	0003-		●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	9712-0211			●	●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	0212-0308			●	●
2	01.516 GAUGE; OIL LEVEL	8-97326-997-0	01	1	0309-			●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9712-	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-			●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9712-9802	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9803-	●
4	01.453 PLUG; DRAIN,OIL 03.890 M14X14.5	8-94316-800-0	01	1	9803-		●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9712-			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51>	8-97038-960-2	01	1	9712-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>	8-97049-422-1	01	1	9712-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97181-447-1	01	1	9712-9804		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97206-097-1	01	1	9805-0105		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. EUROPE EQUIPMENT(EK4)	8-97206-097-1	01	1	0106-0208		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. EURO3 SPECIFICATION(NT3)	8-97206-097-1	01	1	0209-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EUROPE EQUIPMENT(EK4)	8-97239-673-1	01	1	0106-0208		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NT3)	8-97239-673-1	01	1	0209-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97132-302-2	01	1	9712-0308			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97310-969-0	01	1	0309-			●	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-	●		●	●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-9801		●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9802-		●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9712-	●
23	01.428 BOLT; OIL PAN 08.900 M8X12 FLANGE	0-28080-812-0	17	1	9712-		●
23	01.428 BOLT; OIL PAN 08.900 M8X16	9-05820-816-0	12	1	9712-0103			●	●
23	01.428 BOLT; OIL PAN 03.330 M8X16 HEX SOCKET	0-58310-816-0	12	1	0104-			●	●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	9712-	●
24	01.453 NUT; OIL PAN 06.164 M8 FLANGE	5-09440-010-0	02	1	9712-		●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	9712-	●
25	01.453 STUD; OIL PAN M8X12 L=24	9-04110-812-0	02	1	9712-		●
25	01.453 STUD; OIL PAN M6X30 L=41	0-49740-630-0	01	1	9712-			●	●
41	00.137 RUBBER; SPACE	8-97178-431-2	01	1	9712-		●
45	01.516 GASKET; GUIDE TUBE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97137-803-0	01	1	9712-		●
49	01.516 NUT; GUIDE TUBE 01.540 M8 FLANGE	0-91150-208-0	02	1	9712-		●
186	01.516 GASKET; LEVEL GAUGE 04.164	9-09561-326-0	01	1	9712-		●
250	01.516 CLIP; RUBBER CAP 03.265 ID=20.4	8-94121-113-0	01	1	9712-9804		●
275	01.453 CAP; RUBBER 03.406	8-94373-247-0	01	1	9712-9804		●
295	01.516 STUD; GUIDE TUBE 01.428 M8X20 L=32	9-04110-820-0	02	1	9712-		●
322	08.808 PLATE; CAUTION,ENG OIL	8-97210-250-0	01	1	9805-0002		●
322	08.808 PLATE; CAUTION,ENG OIL EXC. OIL FOR FRIGID ZONE<8DB>	8-97210-250-0	01	1	0003-		●
322	08.808 PLATE; CAUTION,ENG OIL OIL FOR FRIGID ZONE<8DB>	8-97247-847-0	01	1	0003-		●

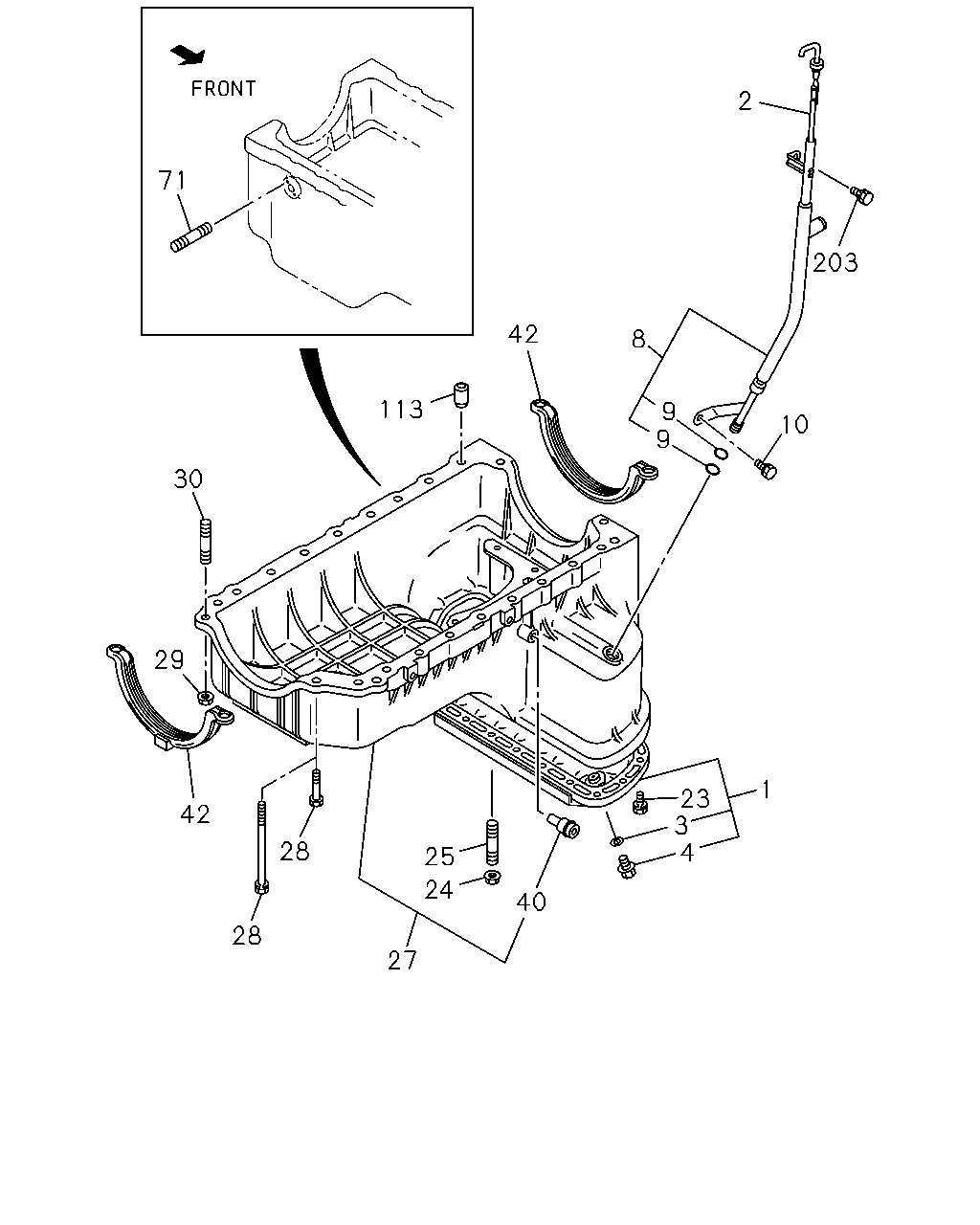

2 71 203 42 8 113 9 9 10 30 29 1 23 3 4 42 28 25 24 40 28 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97137-919-0	01	1	9712-9911	●
1	01.426 PAN ASM; OIL	8-97248-862-1	01	1	9912-	●
1	01.426 PAN ASM; OIL	8-97167-117-3	01	1	9712-		●
1	01.426 PAN ASM; OIL	8-97149-083-2	01	1	9712-0104			●	●
1	01.426 PAN ASM; OIL	8-97264-032-0	01	1	0105-			●	●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97085-167-0	01	1	9712-	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-94362-305-0	01	1	9712-	●
2	01.516 GAUGE; OIL LEVEL	8-97148-480-4	01	1	9712-9804		●
2	01.516 GAUGE; OIL LEVEL	8-97210-321-1	01	1	9805-0002		●
2	01.516 GAUGE; OIL LEVEL EXC. OIL FOR FRIGID ZONE<8DB>	8-97210-321-1	01	1	0003-		●
2	01.516 GAUGE; OIL LEVEL OIL FOR FRIGID ZONE<8DB>	8-97251-433-0	01	1	0003-		●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	9712-0211			●	●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	0212-0308			●	●
2	01.516 GAUGE; OIL LEVEL	8-97326-997-0	01	1	0309-			●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9712-	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-			●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9712-9802	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9803-	●
4	01.453 PLUG; DRAIN,OIL 03.890 M14X14.5	8-94316-800-0	01	1	9803-		●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9712-			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51>	8-97038-960-2	01	1	9712-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>	8-97049-422-1	01	1	9712-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97181-447-1	01	1	9712-9804		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97206-097-1	01	1	9805-0105		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. EUROPE EQUIPMENT(EK4)	8-97206-097-1	01	1	0106-0208		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. EURO3 SPECIFICATION(NT3)	8-97206-097-1	01	1	0209-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EUROPE EQUIPMENT(EK4)	8-97239-673-1	01	1	0106-0208		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NT3)	8-97239-673-1	01	1	0209-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97132-302-2	01	1	9712-0308			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97310-969-0	01	1	0309-			●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9712-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9712-			●	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-	●		●	●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-9801		●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9802-		●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9712-	●
23	01.428 BOLT; OIL PAN 08.900 M8X12 FLANGE	0-28080-812-0	17	1	9712-		●
23	01.428 BOLT; OIL PAN 08.900 M8X16	9-05820-816-0	12	1	9712-0103			●	●
23	01.428 BOLT; OIL PAN 03.330 M8X16 HEX SOCKET	0-58310-816-0	12	1	0104-			●	●
24	01.453 NUT; OIL PAN M6 W/LK WASHER	8-97137-836-0	02	1	9712-	●
24	01.453 NUT; OIL PAN 06.164 M8 FLANGE	5-09440-010-0	02	1	9712-		●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	9712-	●
25	01.453 STUD; OIL PAN M8X12 L=24	9-04110-812-0	02	1	9712-		●
25	01.453 STUD; OIL PAN M6X30 L=41	0-49740-630-0	01	1	9712-			●	●
27	01.426 CRANKCASE TURBOCHARGER<K51> W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9712-0210	●
27	01.426 CRANKCASE TURBOCHARGER<K51>	8-97359-517-0	01	1	0211-	●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>	8-97122-059-1	01	1	9712-0210	●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>	8-97359-514-0	01	1	0211-	●
27	01.426 CRANKCASE	8-97149-081-3	01	1	9712-0012			●	●
27	01.426 CRANKCASE	8-97306-569-0	01	1	0101-			●	●
28	01.780 BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	9712-	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9712-	●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25	9-05820-625-0	18	1	9712-0008			●	●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25 HEX SOCKET	0-58310-625-0	18	1	0009-			●	●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●
29	01.426 NUT; CRANKCASE 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-			●	●
30	01.780 STUD; CRANKCASE 08.981 M8X35 L=47	9-04110-835-0	02	1	9712-	●
40	01.426 NIPPLE; OIL RETURN HOSE VAC PUMP 01.531	5-11369-038-0	01	1	9712-	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). FRONT	8-97120-933-0	01	1	9712-	●
42	01.429 GASKET; CRANKCASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). REAR	8-97123-342-0	01	1	9712-	●
71	01.428 STUD; OIL DRAIN PIPE TURBOCHARGER<K51> M8X18 L=30	9-04110-818-0	02	1	9712-	●
113	01.453 PIN; STRAIGHT 01.428	9-09878-597-0	02	1	9712-	●
203	01.516 BOLT; CLIP TURBOCHARGER<K51> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-	●
203	01.516 BOLT; CLIP EXC. TURBOCHARGER<K51> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-	●

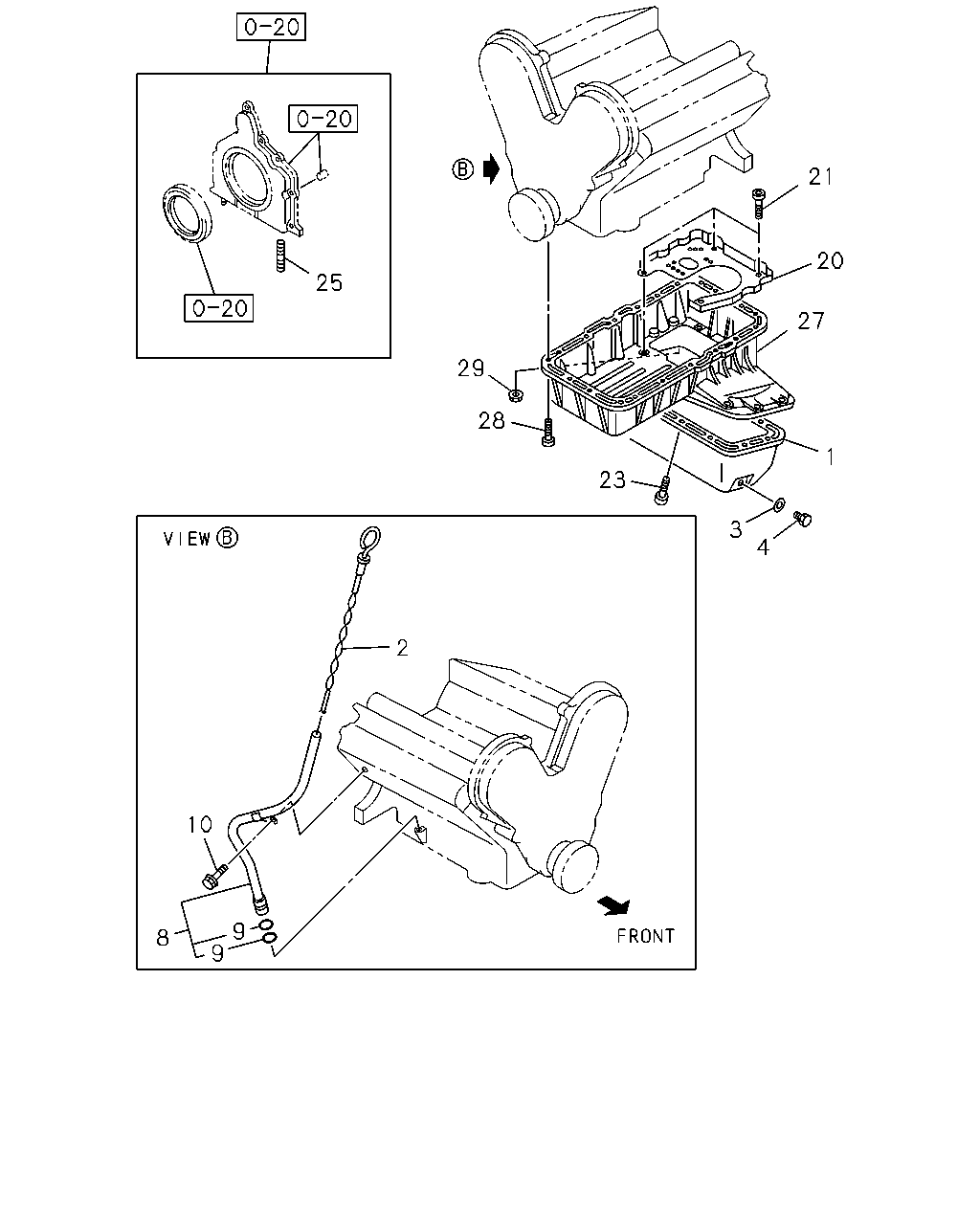

21 20 25 27 29 28 1 23 3 4 2 10 9 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL	8-97137-919-0	01	1	9712-9911	●
1	01.426 PAN ASM; OIL	8-97248-862-1	01	1	9912-	●
1	01.426 PAN ASM; OIL	8-97167-117-3	01	1	9712-		●
1	01.426 PAN ASM; OIL	8-97149-083-2	01	1	9712-0104			●	●
1	01.426 PAN ASM; OIL	8-97264-032-0	01	1	0105-			●	●
2	01.516 GAUGE; OIL LEVEL TURBOCHARGER<K51>	8-97085-167-0	01	1	9712-	●
2	01.516 GAUGE; OIL LEVEL EXC. TURBOCHARGER<K51>	8-94362-305-0	01	1	9712-	●
2	01.516 GAUGE; OIL LEVEL	8-97148-480-4	01	1	9712-9804		●
2	01.516 GAUGE; OIL LEVEL	8-97210-321-1	01	1	9805-0002		●
2	01.516 GAUGE; OIL LEVEL EXC. OIL FOR FRIGID ZONE<8DB>	8-97210-321-1	01	1	0003-		●
2	01.516 GAUGE; OIL LEVEL OIL FOR FRIGID ZONE<8DB>	8-97251-433-0	01	1	0003-		●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	9712-0211			●	●
2	01.516 GAUGE; OIL LEVEL	8-97148-697-2	01	1	0212-0308			●	●
2	01.516 GAUGE; OIL LEVEL	8-97326-997-0	01	1	0309-			●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	9712-	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-			●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9712-9802	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	9803-	●
4	01.453 PLUG; DRAIN,OIL 03.890 M14X14.5	8-94316-800-0	01	1	9803-		●
4	01.453 PLUG; DRAIN,OIL M14X14	9-09862-156-0	01	1	9712-			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE TURBOCHARGER<K51>	8-97038-960-2	01	1	9712-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. TURBOCHARGER<K51>	8-97049-422-1	01	1	9712-	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97181-447-1	01	1	9712-9804		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97206-097-1	01	1	9805-0105		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. EUROPE EQUIPMENT(EK4)	8-97206-097-1	01	1	0106-0208		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EXC. EURO3 SPECIFICATION(NT3)	8-97206-097-1	01	1	0209-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EUROPE EQUIPMENT(EK4)	8-97239-673-1	01	1	0106-0208		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE EURO3 SPECIFICATION(NT3)	8-97239-673-1	01	1	0209-		●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97132-302-2	01	1	9712-0308			●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE	8-97310-969-0	01	1	0309-			●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9712-	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	02	1	9712-			●	●
10	01.516 BOLT; GUIDE TUBE 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-	●		●	●
10	01.516 BOLT; GUIDE TUBE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-9801		●
10	01.516 BOLT; GUIDE TUBE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9802-		●
20	01.430 PLATE; BAFFLE,CRANKCASE	8-97149-082-1	01	1	9712-			●	●
21	01.430 BOLT; BAFFLE PLATE,CRANKCASE 08.900 M6X12 HEX SOCKET	9-05820-612-0	04	1	9712-0008			●	●
21	01.430 BOLT; BAFFLE PLATE,CRANKCASE M6X12 HEX SOCKET	0-58310-612-0	04	1	0009-			●	●
23	01.428 BOLT; OIL PAN M6X13 W/PL WASHER	8-97135-141-0	15	1	9712-	●
23	01.428 BOLT; OIL PAN 08.900 M8X12 FLANGE	0-28080-812-0	17	1	9712-		●
23	01.428 BOLT; OIL PAN 08.900 M8X16	9-05820-816-0	12	1	9712-0103			●	●
23	01.428 BOLT; OIL PAN 03.330 M8X16 HEX SOCKET	0-58310-816-0	12	1	0104-			●	●
25	01.453 STUD; OIL PAN 01.428 M6X12 L=21	9-04110-612-0	02	1	9712-	●
25	01.453 STUD; OIL PAN M8X12 L=24	9-04110-812-0	02	1	9712-		●
25	01.453 STUD; OIL PAN M6X30 L=41	0-49740-630-0	01	1	9712-			●	●
27	01.426 CRANKCASE TURBOCHARGER<K51> W/BAFFLE-PLATE & PIPE	8-97120-920-1	01	1	9712-0210	●
27	01.426 CRANKCASE TURBOCHARGER<K51>	8-97359-517-0	01	1	0211-	●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>	8-97122-059-1	01	1	9712-0210	●
27	01.426 CRANKCASE EXC. TURBOCHARGER<K51>	8-97359-514-0	01	1	0211-	●
27	01.426 CRANKCASE	8-97149-081-3	01	1	9712-0012			●	●
27	01.426 CRANKCASE	8-97306-569-0	01	1	0101-			●	●
28	01.780 BOLT; CRANKCASE TO C/BL M8X120 FLANGE	0-28085-812-0	01	1	9712-	●
28	01.780 BOLT; CRANKCASE TO C/BL 00.727 M8X32 W/LK WASHER	0-50040-832-0	19	1	9712-	●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25	9-05820-625-0	18	1	9712-0008			●	●
28	01.780 BOLT; CRANKCASE TO C/BL M6X25 HEX SOCKET	0-58310-625-0	18	1	0009-			●	●
29	01.426 NUT; CRANKCASE 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●
29	01.426 NUT; CRANKCASE 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
