Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#43356) — 245 parça

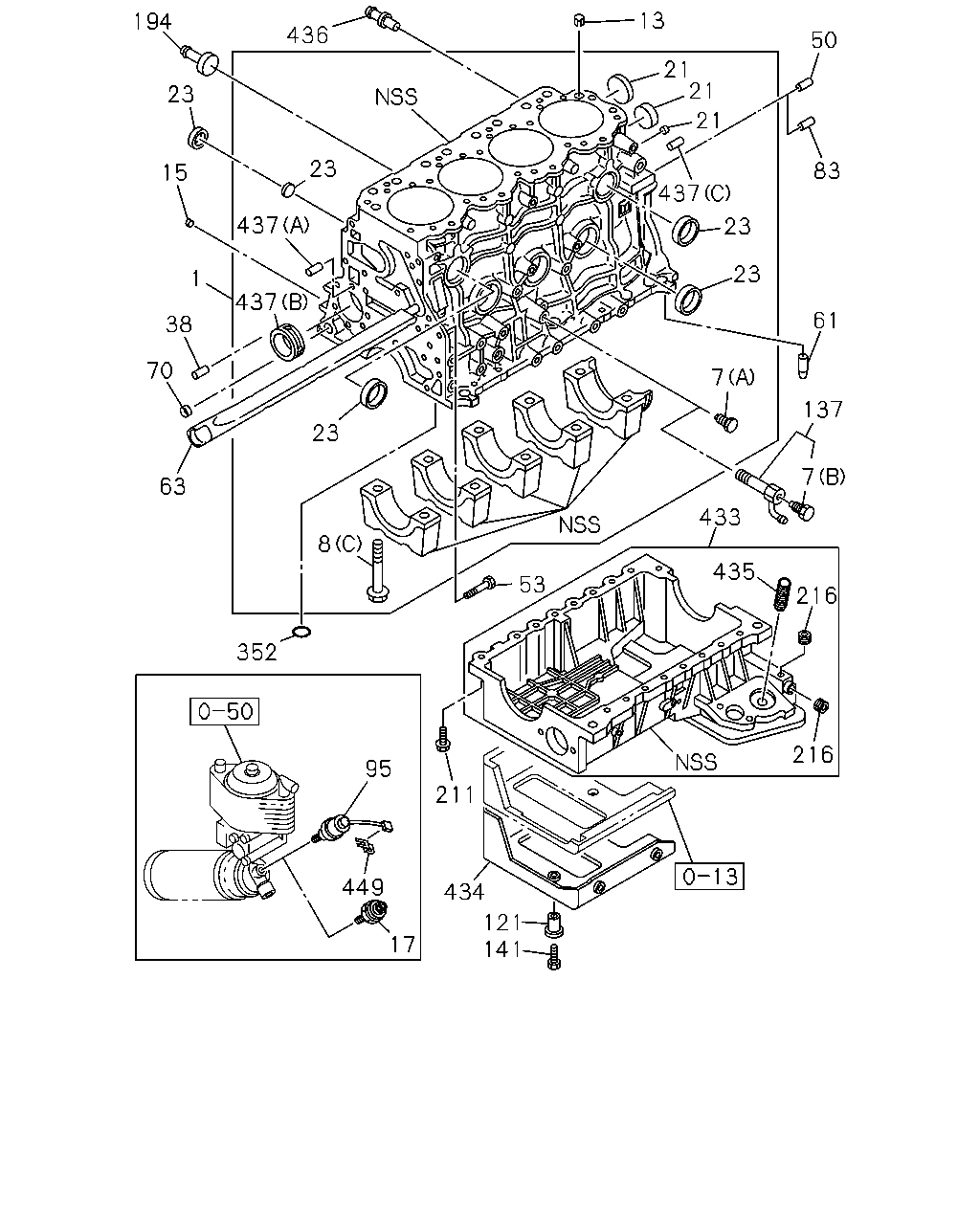

13 194 436 50 21 21 23 21 23 83 15 437 437 23 23 1 437 61 38 70 7 137 23 7 63 433 8 435 53 216 352 216 95 211 449 434 121 141 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97043-280-1	01	1	9712-0202	●
1	00.033 BLOCK ASM; CYL	8-97314-579-2	01	1	0203-	●
1	00.033 BLOCK ASM; CYL	8-97134-967-2	01	1	9712-0106		●
1	00.033 BLOCK ASM; CYL	8-97315-148-1	01	1	0107-		●
1	00.033 BLOCK ASM; CYL	8-97131-850-1	01	1	9712-0105			●
1	00.033 BLOCK ASM; CYL SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ)	8-97131-850-1	01	1	0106-0212			●
1	00.033 BLOCK ASM; CYL EUROPE EQUIPMENT(EK4)	8-97193-231-0	01	1	0106-0212			●
1	00.033 BLOCK ASM; CYL	8-97193-231-1	01	1	0301-			●
1	00.033 BLOCK ASM; CYL	8-97149-360-1	01	1	9712-0212				●
1	00.033 BLOCK ASM; CYL	8-97193-222-1	01	1	0301-				●
7	00.034 PLUG; WATER DRAIN (A) PT1/4	9-09664-001-0	01	1	9712-	●	●
7	00.034 PLUG; WATER DRAIN (B) M10X17.5	8-97203-641-0	01	1	9712-		●
8	00.056 BOLT; BRG CAP (C) M14X89 FLANGE	8-94432-642-0	10	1	9712-	●	●
8	00.056 BOLT; BRG CAP (A) M11X143 FLANGE	8-94363-095-1	08	1	9712-			●	●
8	00.056 BOLT; BRG CAP (B) M9X85 FLANGE	8-94363-224-1	08	1	9712-			●	●
13	00.293 DOWEL; C/BL TO HD	8-94453-344-0	02	1	9712-	●	●
13	00.293 DOWEL; C/BL TO HD OD=15.25	8-94200-819-0	04	1	9712-			●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9712-	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	9712-		●
17	01.800 SWITCH; OIL PRESSURE 4X4(UBS***) TORQUE ON DEMAND<7HA>	9-82720-209-2	01	1	9909-		●
21	00.034 CUP; SEALING,RR OD=38	5-11219-017-0	01	1	9712-	●	●
21	00.034 CUP; SEALING,RR OD=36	5-11219-018-0	01	1	9712-	●	●
21	00.034 CUP; SEALING,RR 00.253 OD=12.3	5-09600-013-0	01	1	9712-		●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=36	5-11219-018-0	03	1	9712-0105	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=36	5-11219-018-0	03	1	0106-0208	●
23	00.034 CUP; SEALING,C/BL FRT & RR EUROPE EQUIPMENT(EK4) OD=36	5-11219-018-0	03	1	0106-0208		●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=36	5-11219-018-0	03	1	0209-	●
23	00.034 CUP; SEALING,C/BL FRT & RR EURO3 SPECIFICATION(NT3) OD=36	5-11219-018-0	03	1	0209-		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 OD=45	1-09600-005-1	03	1	9712-9803	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 OD=45	1-09600-005-1	03	1	9804-0210	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 OD=18	5-11219-008-0	03	1	9712-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=32	5-11219-015-0	02	1	9712-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=36	5-11219-018-0	02	1	9712-0105		●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. EUROPE EQUIPMENT(EK4) OD=36	5-11219-018-0	02	1	0106-0208		●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. EURO3 SPECIFICATION(NT3) OD=36	5-11219-018-0	02	1	0209-		●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=45	8-97036-550-1	03	1	9804-0210		●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=45	8-97036-550-1	03	1	0211-	●	●
38	00.206 PIN; TIMING GEAR CASE 04.510 OD=10 L=20	8-97135-423-0	02	1	9712-		●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9712-9908	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9909-	●
50	00.685 PIN; STRAIGHT,RR PLATE A/T AISIN(RMD) 08.939 OD=10 L=32	9-08161-032-0	01	1	9909-		●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9712-9908	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9909-0105	●
53	00.862 BOLT; REAMER A/T AISIN(RMD) 00.683 M10X52	9-09806-020-0	01	1	9909-0105		●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	0106-0208	●
53	00.862 BOLT; REAMER A/T AISIN(RMD) EXC. EUROPE EQUIPMENT(EK4) 00.683 M10X52	9-09806-020-0	01	1	0106-0208		●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	0209-	●
53	00.862 BOLT; REAMER A/T AISIN(RMD) EXC. EURO3 SPECIFICATION(NT3) 00.683 M10X52	9-09806-020-0	01	1	0209-		●
53	00.862 BOLT; REAMER A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) M10X60	8-94200-831-2	01	1	0106-0208		●
53	00.862 BOLT; REAMER A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) M10X60	8-94200-831-2	01	1	0209-		●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9712-0201	●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-	●
61	00.206 PIN; STRAIGHT 01.428	9-09878-597-0	02	1	9712-		●
63	01.153 DUCT; WATER,C/BL	8-94456-794-3	01	1	9712-	●
63	01.153 DUCT; WATER,C/BL	8-97136-709-3	01	1	9712-		●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9712-	●	●
83	00.685 PIN; FLYWHEEL HSG 04.510 OD=10 L=20	8-97135-423-0	01	1	9712-9908		●
83	00.685 PIN; FLYWHEEL HSG M/T AR-5 5 SPEED(RNK) 04.510 OD=10 L=20	8-97135-423-0	01	1	9909-		●
95	01.800 PRESSURE UNIT; OIL	8-97163-851-0	01	1	9712-9908	●	●
95	01.800 PRESSURE UNIT; OIL	8-97163-851-0	01	1	9909-	●
95	01.800 PRESSURE UNIT; OIL EXC. TORQUE ON DEMAND<7HA>	8-97163-851-0	01	1	9909-		●
121	00.034 RUBBER; MTG,COVER 00.206	8-97168-200-1	06	1	9712-		●
137	00.034 COCK; DRAIN,WATER	8-97203-594-0	01	1	9712-		●
141	01.531 BOLT; COVER 09.190 M6X30 FLANGE	0-28680-630-0	06	1	9712-		●
194	00.439 PIPE; OIL DRAIN,C/BL	8-97137-781-0	01	1	9712-0105		●
194	00.439 PIPE; OIL DRAIN,C/BL EXC. EUROPE EQUIPMENT(EK4)	8-97137-781-0	01	1	0106-0208		●
194	00.439 PIPE; OIL DRAIN,C/BL EXC. EURO3 SPECIFICATION(NT3)	8-97137-781-0	01	1	0209-		●
211	01.428 BOLT; CRANKCASE 00.002 M8X25 FLANGE	0-28690-825-0	18	1	9712-		●
211	01.428 BOLT; CRANKCASE M10X31 FLANGE	8-94363-094-1	08	1	9712-			●	●
216	00.034 CUP; SEALING 01.531 PT3/8	1-09605-056-0	03	1	9712-		●
352	01.429 GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09565-109-0	01	1	9712-		●
433	01.426 CASE; CRANK	8-97167-120-6	01	1	9712-9806		●
433	01.426 CASE; CRANK	8-97210-841-3	01	1	9807-0105		●
433	01.426 CASE; CRANK EXC. EUROPE EQUIPMENT(EK4)	8-97210-841-4	01	1	0106-0208		●
433	01.426 CASE; CRANK EXC. EURO3 SPECIFICATION(NT3)	8-97210-841-5	01	1	0209-		●
433	01.426 CASE; CRANK EUROPE EQUIPMENT(EK4)	8-97241-131-1	01	1	0106-0208		●
433	01.426 CASE; CRANK EURO3 SPECIFICATION(NT3)	8-97241-131-2	01	1	0209-		●
434	00.034 COVER; CARNKCASE	8-97178-429-2	01	1	9712-		●
435	01.855 PIPE; OIL FILTER	8-97146-432-0	01	1	9712-		●
436	01.540 PIPE; OIL COOLER 01.430	8-94455-311-1	01	1	9712-		●
437	00.539 METAL; BALANCE SHAFT (A)	8-94427-206-2	01	1	9712-		●
437	00.539 METAL; BALANCE SHAFT (C)	8-97143-568-0	01	1	9712-		●
437	00.539 METAL; BALANCE SHAFT (B)	8-97184-507-0	01	1	9712-		●
449	00.340 BRACKET; CONNECTOR	8-97185-202-0	01	1	9712-9908		●
449	00.340 BRACKET; CONNECTOR EXC. TORQUE ON DEMAND<7HA>	8-97185-202-0	01	1	9909-		●

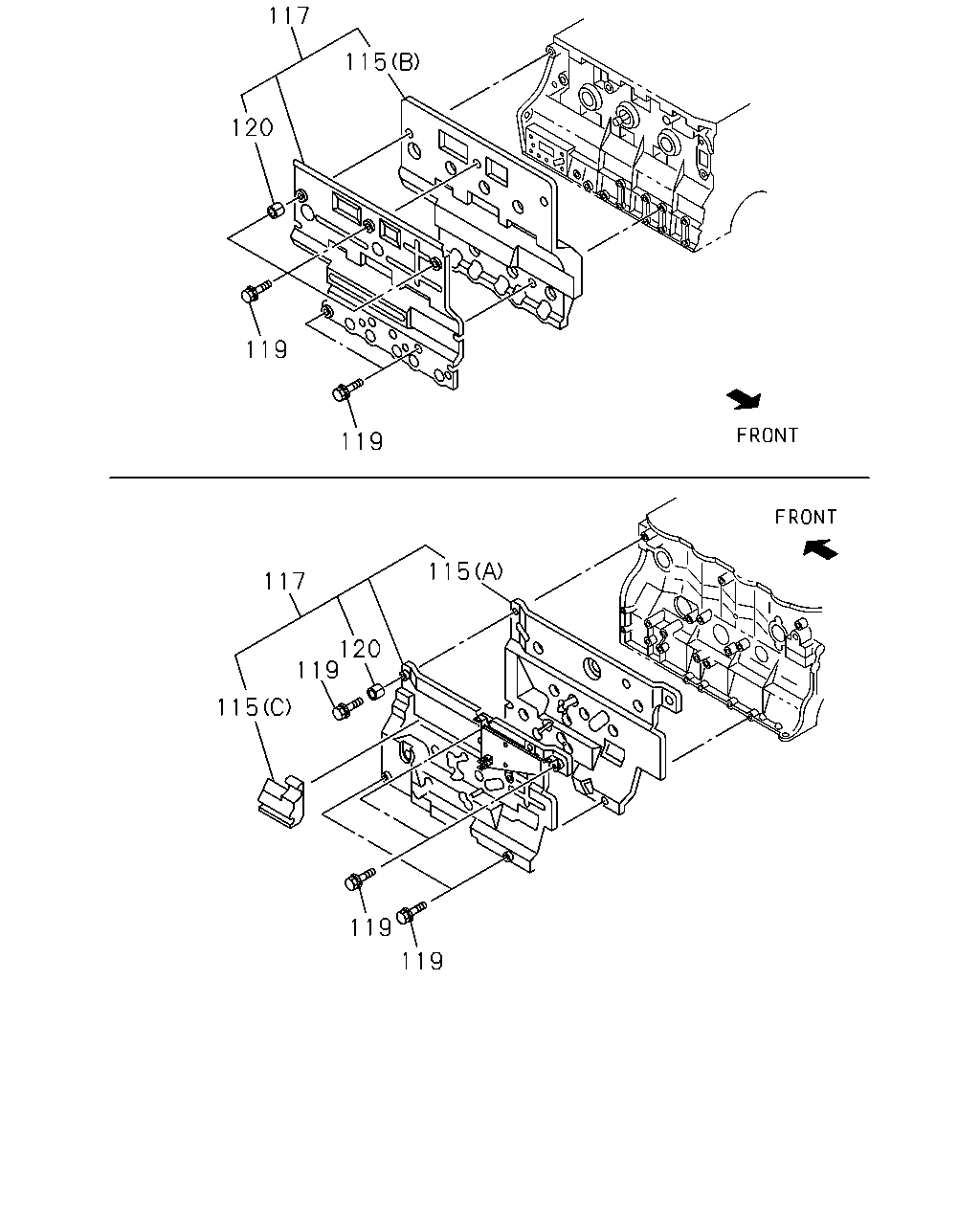

117 115 120 119 119 115 117 120 119 115 119 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
115	00.034 RUBBER; SPACE (A)	8-97137-169-3	01	1	9712-0105	●
115	00.034 RUBBER; SPACE EXC. EUROPE EQUIPMENT(EK4) (A)	8-97137-169-3	01	1	0106-0108	●
115	00.034 RUBBER; SPACE (B)	8-97137-172-4	01	1	9712-0105	●
115	00.034 RUBBER; SPACE EXC. EUROPE EQUIPMENT(EK4) (B)	8-97137-172-4	01	1	0106-0208	●
115	00.034 RUBBER; SPACE EXC. EURO3 SPECIFICATION(NT3) (B)	8-97137-172-5	01	1	0209-	●
115	00.034 RUBBER; SPACE (C)	8-97174-710-1	01	1	9712-	●
115	00.034 RUBBER; SPACE EUROPE EQUIPMENT(EK4) (A)	8-97302-644-0	01	1	0106-0108	●
115	00.034 RUBBER; SPACE (A)	8-97302-644-1	01	1	0109-	●
115	00.034 RUBBER; SPACE EUROPE EQUIPMENT(EK4) (B)	8-97302-645-1	01	1	0106-0208	●
115	00.034 RUBBER; SPACE EURO3 SPECIFICATION(NT3) (B)	8-97302-645-1	01	1	0209-	●
117	00.030 COVER ASM; C/BL	8-97137-167-2	01	1	9712-0105	●
117	00.030 COVER ASM; C/BL EXC. EUROPE EQUIPMENT(EK4)	8-97137-167-2	01	1	0106-0108	●
117	00.030 COVER ASM; C/BL	8-97137-170-1	01	1	9712-0105	●
117	00.030 COVER ASM; C/BL EXC. EUROPE EQUIPMENT(EK4)	8-97137-170-1	01	1	0106-0208	●
117	00.030 COVER ASM; C/BL EXC. EURO3 SPECIFICATION(NT3)	8-97137-170-2	01	1	0209-	●
117	00.030 COVER ASM; C/BL EUROPE EQUIPMENT(EK4)	8-97302-642-0	01	1	0106-0108	●
117	00.030 COVER ASM; C/BL	8-97302-642-1	01	1	0109-	●
117	00.030 COVER ASM; C/BL EUROPE EQUIPMENT(EK4)	8-97302-643-2	01	1	0106-0208	●
117	00.030 COVER ASM; C/BL EURO3 SPECIFICATION(NT3)	8-97302-643-2	01	1	0209-	●
119	00.034 BOLT; COVER FIX M10X28	8-94329-952-1	04	1	9712-	●
119	00.034 BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	06	1	9712-0105	●
119	00.034 BOLT; COVER FIX EXC. EUROPE EQUIPMENT(EK4) M8X22 W/LK&PL WASHER	8-94329-953-1	06	1	0106-0208	●
119	00.034 BOLT; COVER FIX EXC. EURO3 SPECIFICATION(NT3) M8X22 W/LK&PL WASHER	8-94329-953-1	06	1	0209-	●
119	00.034 BOLT; COVER FIX EUROPE EQUIPMENT(EK4) M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0106-0208	●
119	00.034 BOLT; COVER FIX EURO3 SPECIFICATION(NT3) M8X22 W/LK&PL WASHER	8-94329-953-1	04	1	0209-	●
119	00.034 BOLT; COVER FIX EUROPE EQUIPMENT(EK4) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0106-0208	●
119	00.034 BOLT; COVER FIX EURO3 SPECIFICATION(NT3) 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0209-	●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	10	1	9712-0105	●
120	00.034 BUSHING; MTG RUBBER EXC. EUROPE EQUIPMENT(EK4) OD=13 T=9.5	8-94140-427-1	10	1	0106-0208	●
120	00.034 BUSHING; MTG RUBBER EXC. EURO3 SPECIFICATION(NT3) OD=13 T=9.5	8-94140-427-1	10	1	0209-	●
120	00.034 BUSHING; MTG RUBBER EUROPE EQUIPMENT(EK4) OD=13 T=9.5	8-94140-427-1	09	1	0106-0208	●
120	00.034 BUSHING; MTG RUBBER EURO3 SPECIFICATION(NT3) OD=13 T=9.5	8-94140-427-1	09	1	0209-	●

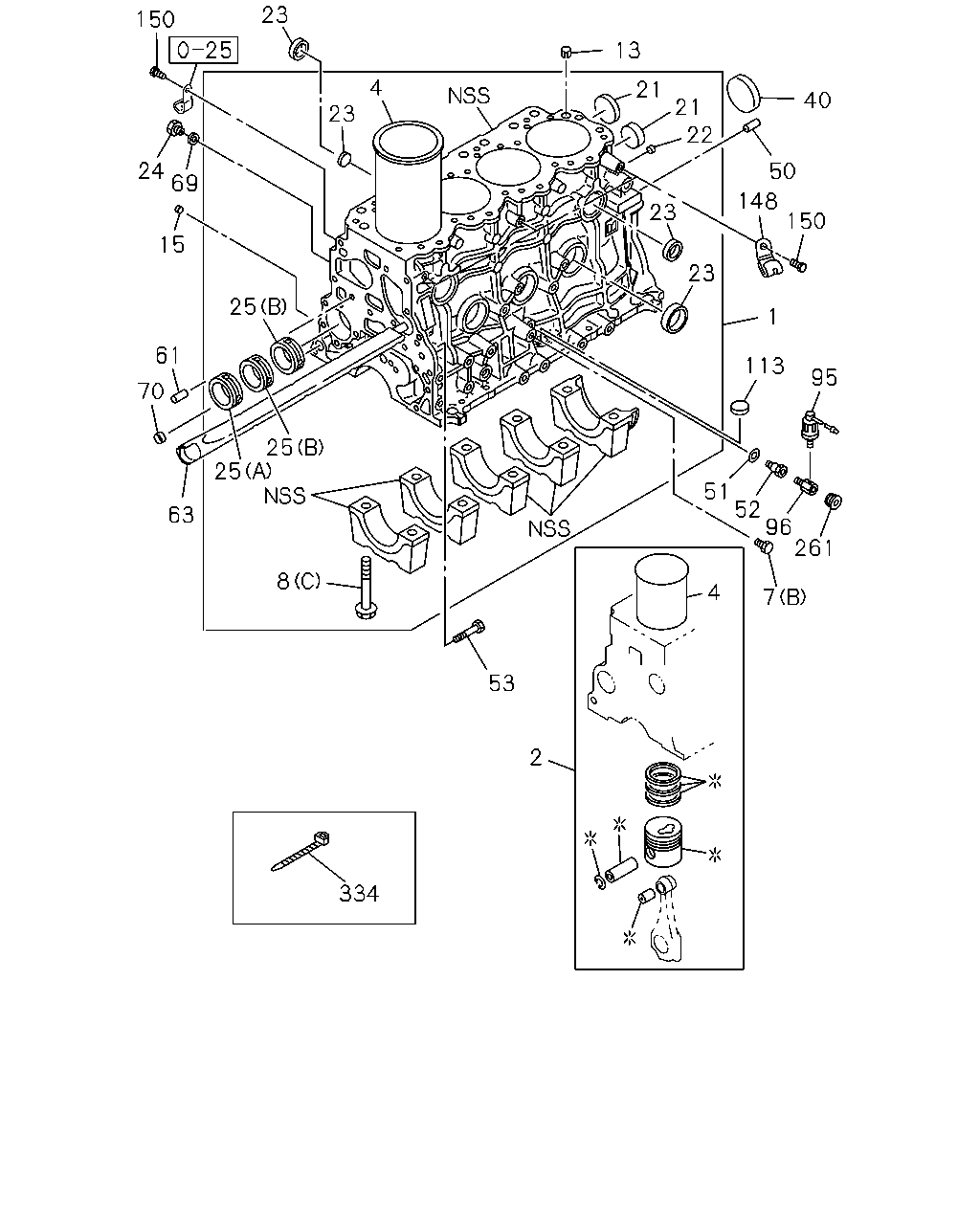

23 150 13 4 21 40 21 22 23 24 69 50 148 23 150 15 23 25 1 61 113 95 70 25 25 51 52 96 261 63 8 4 7 53 2 334

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97043-280-1	01	1	9712-0202	●
1	00.033 BLOCK ASM; CYL	8-97314-579-2	01	1	0203-	●
1	00.033 BLOCK ASM; CYL	8-97134-967-2	01	1	9712-0106		●
1	00.033 BLOCK ASM; CYL	8-97315-148-1	01	1	0107-		●
1	00.033 BLOCK ASM; CYL	8-97131-850-1	01	1	9712-0105			●
1	00.033 BLOCK ASM; CYL SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ)	8-97131-850-1	01	1	0106-0212			●
1	00.033 BLOCK ASM; CYL EUROPE EQUIPMENT(EK4)	8-97193-231-0	01	1	0106-0212			●
1	00.033 BLOCK ASM; CYL	8-97193-231-1	01	1	0301-			●
1	00.033 BLOCK ASM; CYL	8-97149-360-1	01	1	9712-0212				●
1	00.033 BLOCK ASM; CYL	8-97193-222-1	01	1	0301-				●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=1	5-87813-213-1	04	1	9712-	●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=2	5-87813-214-1	04	1	9712-	●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=3	5-87813-215-1	04	1	9712-	●
2	00.030 LINER SET; ENG CYL TURBOCHARGER<K51> GRADE=4	5-87813-216-1	04	1	9712-	●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=1	5-87813-205-0	04	1	9712-	●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=2	5-87813-206-0	04	1	9712-	●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=3	5-87813-207-0	04	1	9712-	●
2	00.030 LINER SET; ENG CYL EXC. TURBOCHARGER<K51> 00.094 GRADE=4	5-87813-208-0	04	1	9712-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	9712-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	9712-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	9712-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	9712-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	9712-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	9712-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	9712-	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	9712-	●
7	00.034 PLUG; WATER DRAIN (A) PT1/4	9-09664-001-0	01	1	9712-	●	●
7	00.034 PLUG; WATER DRAIN (B) M10X17.5	8-97203-641-0	01	1	9712-		●
8	00.056 BOLT; BRG CAP (C) M14X89 FLANGE	8-94432-642-0	10	1	9712-	●	●
8	00.056 BOLT; BRG CAP (A) M11X143 FLANGE	8-94363-095-1	08	1	9712-			●	●
8	00.056 BOLT; BRG CAP (B) M9X85 FLANGE	8-94363-224-1	08	1	9712-			●	●
13	00.293 DOWEL; C/BL TO HD	8-94453-344-0	02	1	9712-	●	●
13	00.293 DOWEL; C/BL TO HD OD=15.25	8-94200-819-0	04	1	9712-			●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	9712-	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	9712-		●
21	00.034 CUP; SEALING,RR OD=38	5-11219-017-0	01	1	9712-	●	●
21	00.034 CUP; SEALING,RR OD=36	5-11219-018-0	01	1	9712-	●	●
21	00.034 CUP; SEALING,RR 00.253 OD=12.3	5-09600-013-0	01	1	9712-		●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	9712-	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=36	5-11219-018-0	03	1	9712-0105	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=36	5-11219-018-0	03	1	0106-0208	●
23	00.034 CUP; SEALING,C/BL FRT & RR EUROPE EQUIPMENT(EK4) OD=36	5-11219-018-0	03	1	0106-0208		●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=36	5-11219-018-0	03	1	0209-	●
23	00.034 CUP; SEALING,C/BL FRT & RR EURO3 SPECIFICATION(NT3) OD=36	5-11219-018-0	03	1	0209-		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 OD=45	1-09600-005-1	03	1	9712-9803	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 OD=45	1-09600-005-1	03	1	9804-0210	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 OD=18	5-11219-008-0	03	1	9712-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=32	5-11219-015-0	02	1	9712-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=36	5-11219-018-0	02	1	9712-0105		●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. EUROPE EQUIPMENT(EK4) OD=36	5-11219-018-0	02	1	0106-0208		●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. EURO3 SPECIFICATION(NT3) OD=36	5-11219-018-0	02	1	0209-		●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=45	8-97036-550-1	03	1	9804-0210		●
23	00.034 CUP; SEALING,C/BL FRT & RR OD=45	8-97036-550-1	03	1	0211-	●	●
24	01.531 NIPPLE; OIL FEED,VAC PUMP EXC. TURBOCHARGER<K51>	8-94419-728-0	01	1	9712-	●
25	00.539 METAL; CM/SHF (B)	8-94427-201-2	02	1	9712-	●
25	00.539 METAL; CM/SHF (A)	8-94427-206-2	01	1	9712-	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-1	01	1	9712-	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9712-9908	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	9909-	●
50	00.685 PIN; STRAIGHT,RR PLATE A/T AISIN(RMD) 08.939 OD=10 L=32	9-08161-032-0	01	1	9909-		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	9712-0402	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	9712-	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9712-9908	●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	9909-0105	●
53	00.862 BOLT; REAMER A/T AISIN(RMD) 00.683 M10X52	9-09806-020-0	01	1	9909-0105		●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	0106-0208	●
53	00.862 BOLT; REAMER A/T AISIN(RMD) EXC. EUROPE EQUIPMENT(EK4) 00.683 M10X52	9-09806-020-0	01	1	0106-0208		●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	0209-	●
53	00.862 BOLT; REAMER A/T AISIN(RMD) EXC. EURO3 SPECIFICATION(NT3) 00.683 M10X52	9-09806-020-0	01	1	0209-		●
53	00.862 BOLT; REAMER A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) M10X60	8-94200-831-2	01	1	0106-0208		●
53	00.862 BOLT; REAMER A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) M10X60	8-94200-831-2	01	1	0209-		●
61	00.206 PIN; STRAIGHT 00.669 OD=10 L=20	9-08151-020-0	02	1	9712-0201	●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-	●
61	00.206 PIN; STRAIGHT 01.428	9-09878-597-0	02	1	9712-		●
63	01.153 DUCT; WATER,C/BL	8-94456-794-3	01	1	9712-	●
63	01.153 DUCT; WATER,C/BL	8-97136-709-3	01	1	9712-		●
69	01.531 GASKET; PLUG,OIL GALLERY,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	9712-	●	●
95	01.800 PRESSURE UNIT; OIL	8-97163-851-0	01	1	9712-9908	●	●
95	01.800 PRESSURE UNIT; OIL	8-97163-851-0	01	1	9909-	●
95	01.800 PRESSURE UNIT; OIL EXC. TORQUE ON DEMAND<7HA>	8-97163-851-0	01	1	9909-		●
96	01.800 ADAPTER; PRESS UNIT & SW PT1/8 & 2-PS1/8	8-94419-858-1	01	1	9712-	●
113	00.034 CUP; SEALING OD=15.6	5-11129-003-0	01	1	9712-	●
148	02.313 CLIP; HARNESS M/T MUA 5 SPEED(RMN) 01.152 ID=18 L=44	8-94225-185-0	03	1	0106-0302	●
148	02.313 CLIP; HARNESS M/T MUA 5 SPEED(RMN) ID=18 L=44	8-97367-985-0	03	1	0303-	●
148	02.313 CLIP; HARNESS 01.152 ID=18 L=44	8-94225-185-0	03	1	9712-0105	●
148	02.313 CLIP; HARNESS A/T AISIN(RMD) 01.152 ID=18 L=44	8-94225-185-0	02	1	0106-0302	●
148	02.313 CLIP; HARNESS A/T AISIN(RMD) ID=18 L=44	8-97367-985-0	02	1	0303-	●
150	02.313 BOLT; CLIP M/T MUA 5 SPEED(RMN) 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0106-	●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	03	1	9712-0105	●
150	02.313 BOLT; CLIP A/T AISIN(RMD) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-	●
150	02.313 BOLT; CLIP TURBOCHARGER<K51> 00.206 M8X10 FLANGE	0-28080-810-0	01	1	9712-	●
150	02.313 BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> 00.206 M8X10 FLANGE	0-28080-810-0	01	1	9712-	●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	9712-	●
334	01.803 CLIP; BAND,OIL PRESS UNIT 03.162 L=140	5-09707-031-0	01	1	9712-9802	●		●	●
334	01.803 CLIP; BAND,OIL PRESS UNIT 03.162 L=140	5-09707-031-1	01	1	9803-9908	●

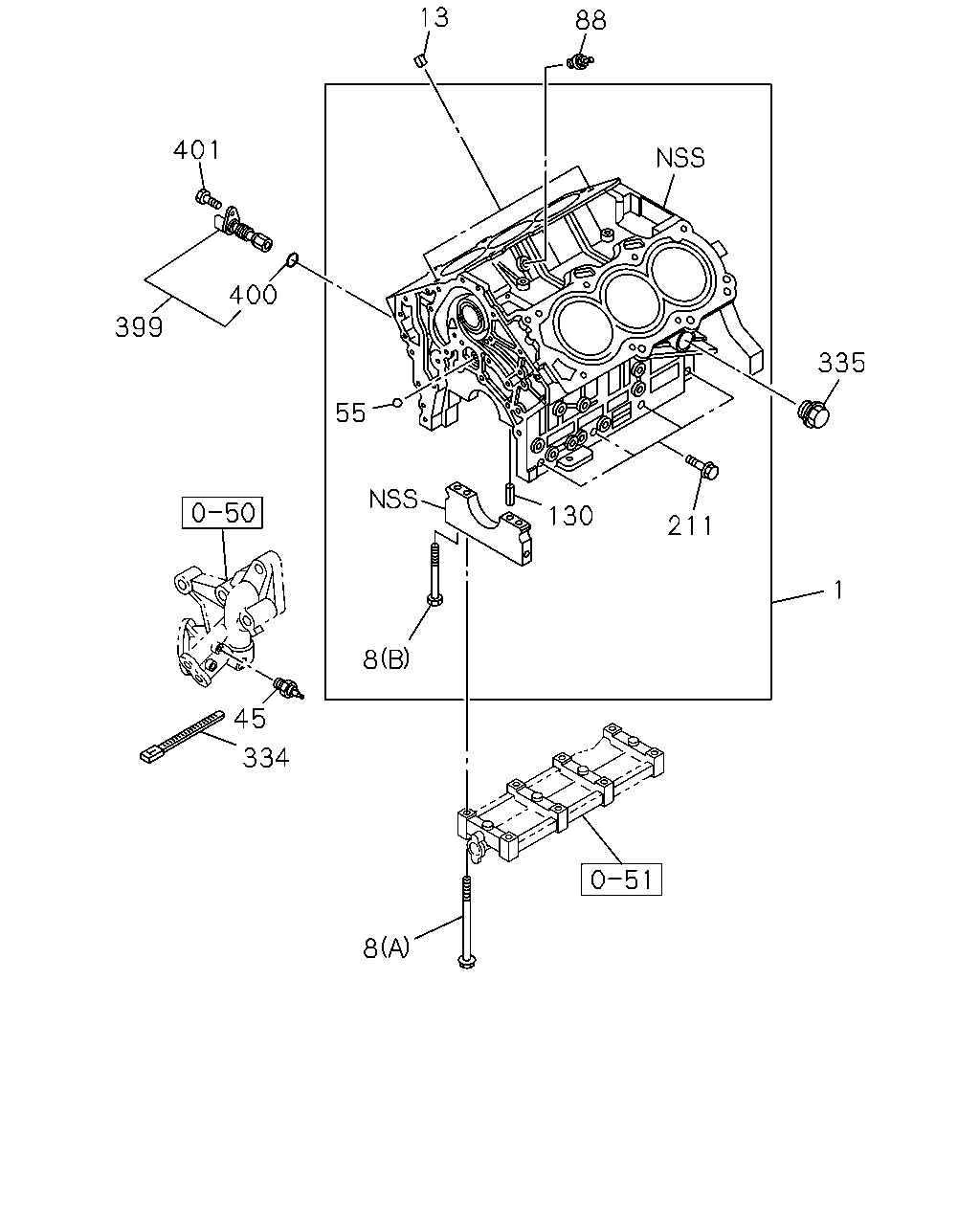

13 88 401 400 399 335 55 130 211 1 8 45 334 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97043-280-1	01	1	9712-0202	●
1	00.033 BLOCK ASM; CYL	8-97314-579-2	01	1	0203-	●
1	00.033 BLOCK ASM; CYL	8-97134-967-2	01	1	9712-0106		●
1	00.033 BLOCK ASM; CYL	8-97315-148-1	01	1	0107-		●
1	00.033 BLOCK ASM; CYL	8-97131-850-1	01	1	9712-0105			●
1	00.033 BLOCK ASM; CYL SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ)	8-97131-850-1	01	1	0106-0212			●
1	00.033 BLOCK ASM; CYL EUROPE EQUIPMENT(EK4)	8-97193-231-0	01	1	0106-0212			●
1	00.033 BLOCK ASM; CYL	8-97193-231-1	01	1	0301-			●
1	00.033 BLOCK ASM; CYL	8-97149-360-1	01	1	9712-0212				●
1	00.033 BLOCK ASM; CYL	8-97193-222-1	01	1	0301-				●
8	00.056 BOLT; BRG CAP (C) M14X89 FLANGE	8-94432-642-0	10	1	9712-	●	●
8	00.056 BOLT; BRG CAP (A) M11X143 FLANGE	8-94363-095-1	08	1	9712-			●	●
8	00.056 BOLT; BRG CAP (B) M9X85 FLANGE	8-94363-224-1	08	1	9712-			●	●
13	00.293 DOWEL; C/BL TO HD	8-94453-344-0	02	1	9712-	●	●
13	00.293 DOWEL; C/BL TO HD OD=15.25	8-94200-819-0	04	1	9712-			●	●
45	01.800 SWITCH; OIL PRESSURE	8-94312-940-0	01	1	9712-			●	●
55	01.531 PLUG; OIL GALLERY 01.837 3/8" BALL	9-00097-011-0	01	1	9712-			●	●
88	03.682 SENSOR; KNOCK CONT	8-10456-085-0	01	1	9712-0105			●	●
88	03.682 SENSOR; KNOCK CONT SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ)	8-10456-085-0	01	1	0106-			●
88	03.682 SENSOR; KNOCK CONT	8-10456-085-0	01	1	0106-				●
130	00.056 DOWEL; BRG CAP	8-94382-070-0	08	1	9712-			●	●
211	01.428 BOLT; CRANKCASE 00.002 M8X25 FLANGE	0-28690-825-0	18	1	9712-		●
211	01.428 BOLT; CRANKCASE M10X31 FLANGE	8-94363-094-1	08	1	9712-			●	●
334	01.803 CLIP; BAND,OIL PRESS UNIT 03.162 L=140	5-09707-031-0	01	1	9712-9802	●		●	●
334	01.803 CLIP; BAND,OIL PRESS UNIT 03.162 L=140	5-09707-031-1	01	1	9803-9908	●
335	01.531 PLUG; C/BL,SIDE M28X16 FLANGE	8-97028-246-2	01	1	9712-			●	●
399	00.724 SENSOR; CRANKSHAFT POSITION EUROPE EQUIPMENT(EK4)	8-97258-523-0	01	1	0106-			●
399	00.724 SENSOR; CRANKSHAFT POSITION	8-97136-125-1	01	1	9712-0105			●	●
399	00.724 SENSOR; CRANKSHAFT POSITION SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ)	8-97136-125-1	01	1	0106-			●
399	00.724 SENSOR; CRANKSHAFT POSITION	8-97136-125-1	01	1	0106-				●
400	00.724 GASKET; CRANKSHAFT POSITION SENS	8-97131-356-0	01	1	9712-			●	●
401	00.724 BOLT; SENSOR 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9712-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
