0-11 — CYLINDER HEAD (#43355) — 230 parça

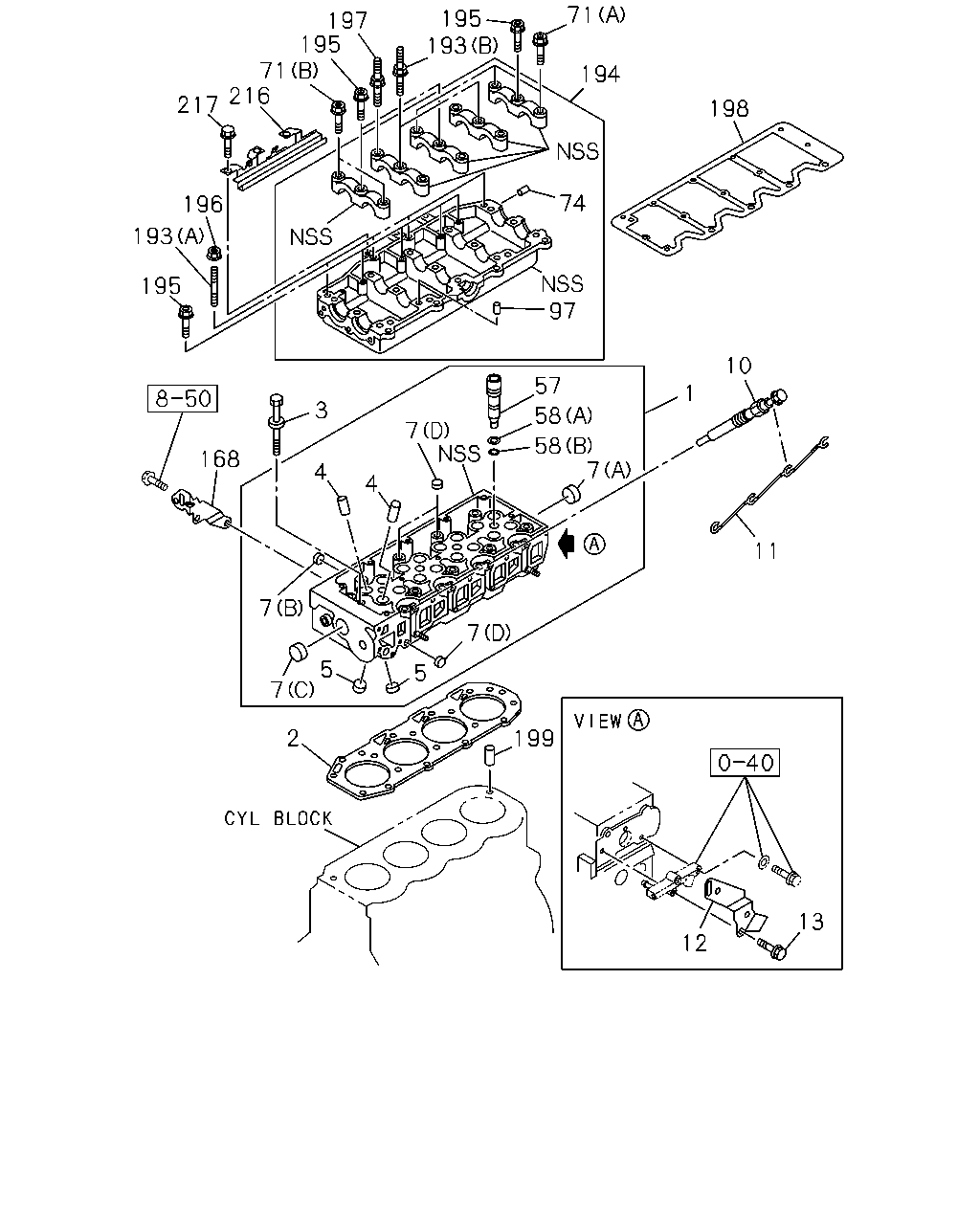

çizim 17582
71 195 193 197 195 71 216 194 217 198 74 196 193 97 195 10 57 1 3 58 7 58 7 168 4 4 11 7 7 5 7 5 199 2 13 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-97086-338-7 01 1 9712- ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-97089-280-5 01 1 9712- ●
1 00.269 HEAD ASM; CYL 8-97134-599-6 01 1 9712-9801 ●
1 00.269 HEAD ASM; CYL 8-97204-140-0 01 1 9802-9910 ●
1 00.269 HEAD ASM; CYL 8-97245-184-1 01 1 9911- ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9712-0111 ● ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0112- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4) T=1.30 1-NOTCH 		8-97317-556-0 01 1 0106-0106 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.30 1-NOTCH 		8-97317-556-0 01 1 0106- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4) T=1.35 2-NOTCH 		8-97317-557-0 01 1 0106-0106 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.35 2-NOTCH 		8-97317-557-0 01 1 0106- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4) T=1.40 3-NOTCH 		8-97317-558-0 01 1 0106-0106 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.40 3-NOTCH 		8-97317-558-0 01 1 0106- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-HOLE 		8-97066-196-0 01 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-HOLE 		8-97066-197-0 01 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-HOLE 		8-97066-198-0 01 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.35 1-NOTCH 		8-97169-316-1 01 1 9712-0105 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EUROPE EQUIPMENT(EK4) T=1.35 1-NOTCH 		8-97169-316-1 01 1 0106-0106 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.40 2-NOTCH 		8-97169-317-1 01 1 9712-0105 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EUROPE EQUIPMENT(EK4) T=1.40 2-NOTCH 		8-97169-317-1 01 1 0106-0106 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.45 3-NOTCH 		8-97169-318-1 01 1 9712-0105 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EUROPE EQUIPMENT(EK4) T=1.45 3-NOTCH 		8-97169-318-1 01 1 0106-0106 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97148-520-3 01 1 9712-0104 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97262-096-0 01 1 0105- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97136-259-3 01 1 9712-0104 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97262-094-0 01 1 0105- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 9712- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X114 		8-97144-583-1 18 1 9712- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9712- ● ●
4 00.283 GUIDE; VLV 5-11721-016-0 08 1 9712- ●
4 00.283 GUIDE; VLV 8-97136-719-1 16 1 9712- ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9712- ● ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97083-162-0 04 1 9712-0003 ●
5 00.253 SEAT; VLV INSERT
INLET OD=42.7 		8-97254-813-0 04 1 0004-0404 ●
5 00.253 SEAT; VLV INSERT
INLET OD=42.7 		8-97378-030-0 04 1 0405- ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> EXHAUST 		8-94431-522-0 04 1 9712-0003 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> EXHAUST 		8-97254-815-0 04 1 0004-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> EXHAUST OD=36.7 		8-94130-559-0 04 1 9712-0207 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97231-229-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97136-717-0 08 1 9712- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97136-718-0 08 1 9712- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97131-854-1 12 1 9712- ● ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97131-855-1 12 1 9712- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=45 		1-09600-005-1 01 1 9712-0207 ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=45 		8-97351-451-0 01 1 0208- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=22 		1-09600-011-2 07 1 9712-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=22 		8-97209-609-0 07 1 9906- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=12.3 		5-09600-013-0 05 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=16 		5-11129-006-0 03 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-2 01 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 01 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=28 		5-11219-014-0 01 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=14 		8-97174-871-0 03 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9712- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9712- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9712- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9712- ● ●
10 02.270 PLUG; GLOW
NGK 		8-97044-037-2 04 1 9712- ●
10 02.270 PLUG; GLOW 8-97143-674-1 04 1 9712- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9712- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97143-673-1 01 1 9712- ●
12 00.004 HANGER; ENG,RR 8-97136-729-3 01 1 9712- ●
13 00.004 BOLT; HANGER
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9712- ●
57 00.293 SLEEVE; NOZZLE HOLDER 8-97137-815-1 04 1 9712-9801 ●
57 00.293 SLEEVE; NOZZLE HOLDER 8-97204-076-0 04 1 9802- ●
58 00.289 GASKET; SLEEVE,NOZZLE HOLDER
00.293 (B) ID=18.8 		8-97169-020-0 04 1 9712- ●
58 00.289 GASKET; SLEEVE,NOZZLE HOLDER
(A) 		8-97240-797-0 04 1 9712- ●
71 00.413 BOLT; CAM BRKT
(A) M8X40 FLANGE 		0-28090-840-0 06 1 9712- ●
71 00.413 BOLT; CAM BRKT
01.276 (B) M8X50 FLANGE 		0-28090-850-0 02 1 9712- ●
71 00.413 BOLT; CAM BRKT
(C) M6X40 FLANGE 		0-28690-640-0 40 1 9712- ● ●
74 01.531 PLUG; OIL GALLERY
00.253 		8-94123-183-1 02 1 9712-0104 ●
74 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 08 1 9712- ● ●
97 00.349 DOWEL; CAM BRKT SET
00.206 OD=11 L=8 		9-11229-058-1 10 1 9712- ●
97 00.349 DOWEL; CAM BRKT SET 8-97014-295-1 24 1 9712- ● ●
168 00.004 HANGER; ENG,FRT 8-97136-728-5 01 1 9712- ●
193 00.349 STUD; CARRIER
03.613 (A) M8X45 L=57 		8-94105-162-1 02 1 9712- ●
193 00.349 STUD; CARRIER
(B) M10X70 L=130 		8-97145-349-1 02 1 9712- ●
194 00.349 CARRIER; CAM SHAFT 8-97136-720-9 01 1 9712- ●
195 00.413 BOLT; CARRIER
M8X45 FLANGE 		0-28090-845-0 08 1 9712- ●
195 00.413 BOLT; CARRIER
03.890 M10X70 FLANGE 		0-28181-070-0 03 1 9712- ●
196 00.349 NUT; CARRIER
M8 FLANGE 		9-09844-190-0 02 1 9712- ●
197 00.349 STUD; OIL MANIFOLD
M8X39 M8X54 L=100 		8-97169-052-2 02 1 9712- ●
198 00.349 GASKET; CAM CARRIER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97136-726-2 01 1 9712- ●
199 00.413 DOWEL
00.206 OD=11 L=8 		9-11229-058-1 02 1 9712- ●
216 03.602 PLATE; EXH MANIFOLD 8-97191-693-1 01 1 9712-9801 ●
216 03.602 PLATE; EXH MANIFOLD 8-97206-781-0 01 1 9802-0209 ●
216 03.602 PLATE; EXH MANIFOLD
EXC. EURO3 SPECIFICATION(NT3) 		8-97206-781-0 01 1 0210- ●
217 03.602 BOLT; PLATE
02.334 M6X25 FLANGE 		0-28680-625-0 03 1 9712-0209 ●
217 03.602 BOLT; PLATE
EXC. EURO3 SPECIFICATION(NT3) 02.334 M6X25 FLANGE 		0-28680-625-0 03 1 0210- ●
çizim 71990
73 25 21 3 9 15 191 190 4 4 71 74 74 7 97 97 7 97 74 7 5 7 5 74 7 7 2 1 14 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-97086-338-7 01 1 9712- ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-97089-280-5 01 1 9712- ●
1 00.269 HEAD ASM; CYL 8-97134-599-6 01 1 9712-9801 ●
1 00.269 HEAD ASM; CYL 8-97204-140-0 01 1 9802-9910 ●
1 00.269 HEAD ASM; CYL 8-97245-184-1 01 1 9911- ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9712-0111 ● ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0112- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4) T=1.30 1-NOTCH 		8-97317-556-0 01 1 0106-0106 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.30 1-NOTCH 		8-97317-556-0 01 1 0106- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4) T=1.35 2-NOTCH 		8-97317-557-0 01 1 0106-0106 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.35 2-NOTCH 		8-97317-557-0 01 1 0106- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4) T=1.40 3-NOTCH 		8-97317-558-0 01 1 0106-0106 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.40 3-NOTCH 		8-97317-558-0 01 1 0106- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-HOLE 		8-97066-196-0 01 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-HOLE 		8-97066-197-0 01 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-HOLE 		8-97066-198-0 01 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.35 1-NOTCH 		8-97169-316-1 01 1 9712-0105 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EUROPE EQUIPMENT(EK4) T=1.35 1-NOTCH 		8-97169-316-1 01 1 0106-0106 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.40 2-NOTCH 		8-97169-317-1 01 1 9712-0105 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EUROPE EQUIPMENT(EK4) T=1.40 2-NOTCH 		8-97169-317-1 01 1 0106-0106 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.45 3-NOTCH 		8-97169-318-1 01 1 9712-0105 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EUROPE EQUIPMENT(EK4) T=1.45 3-NOTCH 		8-97169-318-1 01 1 0106-0106 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97148-520-3 01 1 9712-0104 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97262-096-0 01 1 0105- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97136-259-3 01 1 9712-0104 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97262-094-0 01 1 0105- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 9712- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X114 		8-97144-583-1 18 1 9712- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9712- ● ●
4 00.283 GUIDE; VLV 5-11721-016-0 08 1 9712- ●
4 00.283 GUIDE; VLV 8-97136-719-1 16 1 9712- ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9712- ● ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97083-162-0 04 1 9712-0003 ●
5 00.253 SEAT; VLV INSERT
INLET OD=42.7 		8-97254-813-0 04 1 0004-0404 ●
5 00.253 SEAT; VLV INSERT
INLET OD=42.7 		8-97378-030-0 04 1 0405- ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> EXHAUST 		8-94431-522-0 04 1 9712-0003 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> EXHAUST 		8-97254-815-0 04 1 0004-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> EXHAUST OD=36.7 		8-94130-559-0 04 1 9712-0207 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97231-229-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97136-717-0 08 1 9712- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97136-718-0 08 1 9712- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97131-854-1 12 1 9712- ● ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97131-855-1 12 1 9712- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=45 		1-09600-005-1 01 1 9712-0207 ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=45 		8-97351-451-0 01 1 0208- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=22 		1-09600-011-2 07 1 9712-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=22 		8-97209-609-0 07 1 9906- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=12.3 		5-09600-013-0 05 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=16 		5-11129-006-0 03 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-2 01 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 01 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=28 		5-11219-014-0 01 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=14 		8-97174-871-0 03 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9712- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9712- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9712- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9712- ● ●
9 03.275 STUD; INL MANIF
M8X35 L=47 		0-49540-828-0 04 1 9712- ● ●
14 03.275 STUD; EXH MANIF
06.665 		0-49641-030-0 16 1 9712- ● ●
15 00.004 BOLT; HANGER,FRT
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9712- ● ●
21 02.270 PLUG; SPARK
DENSO 		8-97170-268-0 06 1 9712-0009 ● ●
21 02.270 PLUG; SPARK
CHAMPION 		8-97125-969-0 06 1 9810- ● ●
25 00.293 PLUG; CYL HD 8-97136-174-1 06 1 9712- ● ●
71 00.413 BOLT; CAM BRKT
(A) M8X40 FLANGE 		0-28090-840-0 06 1 9712- ●
71 00.413 BOLT; CAM BRKT
01.276 (B) M8X50 FLANGE 		0-28090-850-0 02 1 9712- ●
71 00.413 BOLT; CAM BRKT
(C) M6X40 FLANGE 		0-28690-640-0 40 1 9712- ● ●
73 00.293 GASKET; PLUG,HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97136-173-0 06 1 9712- ● ●
74 01.531 PLUG; OIL GALLERY
00.253 		8-94123-183-1 02 1 9712-0104 ●
74 01.531 PLUG; OIL GALLERY
PT1/8 		1-09605-050-0 08 1 9712- ● ●
97 00.349 DOWEL; CAM BRKT SET
00.206 OD=11 L=8 		9-11229-058-1 10 1 9712- ●
97 00.349 DOWEL; CAM BRKT SET 8-97014-295-1 24 1 9712- ● ●
190 00.004 HANGER; ENG 8-97131-856-0 02 1 9712-0111 ● ●
190 00.004 HANGER; ENG 8-97288-729-0 02 1 0112- ● ●
191 00.293 CAP; BLIND
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97167-998-0 01 1 0106- ●
191 00.293 CAP; BLIND 8-97167-998-0 01 1 0106- ●
191 00.293 CAP; BLIND 8-97167-998-0 01 1 9712-0105 ● ●
191 00.293 CAP; BLIND
EUROPE EQUIPMENT(EK4) 		8-97167-998-0 02 1 0106- ●

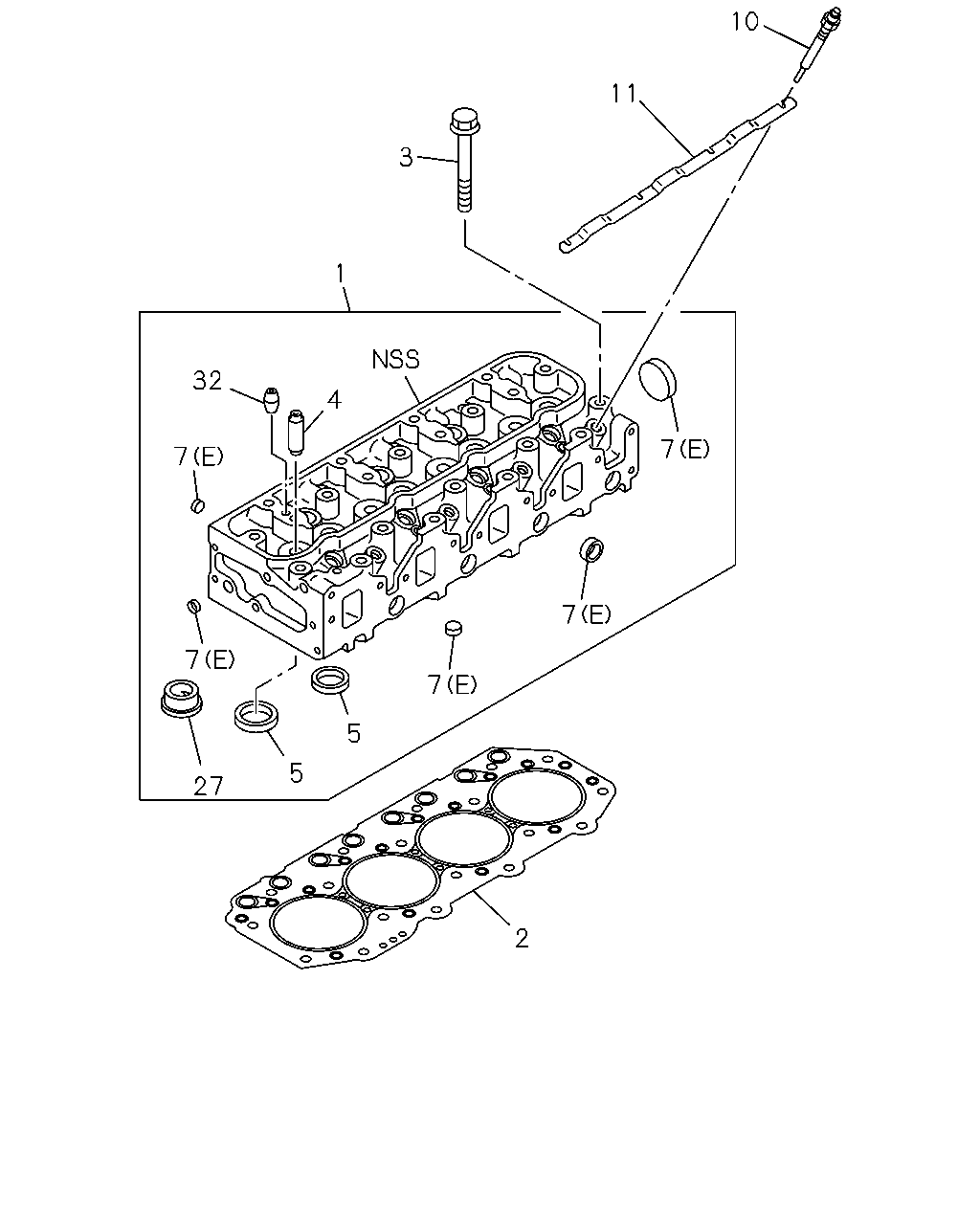

çizim 72387
10 11 3 1 32 4 7 7 7 7 7 5 5 27 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-97086-338-7 01 1 9712- ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-97089-280-5 01 1 9712- ●
1 00.269 HEAD ASM; CYL 8-97134-599-6 01 1 9712-9801 ●
1 00.269 HEAD ASM; CYL 8-97204-140-0 01 1 9802-9910 ●
1 00.269 HEAD ASM; CYL 8-97245-184-1 01 1 9911- ●
1 00.269 HEAD ASM; CYL 8-97131-853-3 02 1 9712-0111 ● ●
1 00.269 HEAD ASM; CYL 8-97316-740-1 02 1 0112- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4) T=1.30 1-NOTCH 		8-97317-556-0 01 1 0106-0106 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.30 1-NOTCH 		8-97317-556-0 01 1 0106- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4) T=1.35 2-NOTCH 		8-97317-557-0 01 1 0106-0106 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.35 2-NOTCH 		8-97317-557-0 01 1 0106- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EUROPE EQUIPMENT(EK4) T=1.40 3-NOTCH 		8-97317-558-0 01 1 0106-0106 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.40 3-NOTCH 		8-97317-558-0 01 1 0106- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.60 1-HOLE 		8-97066-196-0 01 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.65 2-HOLE 		8-97066-197-0 01 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.70 3-HOLE 		8-97066-198-0 01 1 9712- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.35 1-NOTCH 		8-97169-316-1 01 1 9712-0105 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EUROPE EQUIPMENT(EK4) T=1.35 1-NOTCH 		8-97169-316-1 01 1 0106-0106 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.40 2-NOTCH 		8-97169-317-1 01 1 9712-0105 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EUROPE EQUIPMENT(EK4) T=1.40 2-NOTCH 		8-97169-317-1 01 1 0106-0106 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.45 3-NOTCH 		8-97169-318-1 01 1 9712-0105 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. EUROPE EQUIPMENT(EK4) T=1.45 3-NOTCH 		8-97169-318-1 01 1 0106-0106 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97148-520-3 01 1 9712-0104 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97262-096-0 01 1 0105- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97136-259-3 01 1 9712-0104 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97262-094-0 01 1 0105- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 9712- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X114 		8-97144-583-1 18 1 9712- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X155 		8-97011-998-2 16 1 9712- ● ●
4 00.283 GUIDE; VLV 5-11721-016-0 08 1 9712- ●
4 00.283 GUIDE; VLV 8-97136-719-1 16 1 9712- ●
4 00.283 GUIDE; VLV
L=42 		8-94176-708-1 24 1 9712- ● ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97083-162-0 04 1 9712-0003 ●
5 00.253 SEAT; VLV INSERT
INLET OD=42.7 		8-97254-813-0 04 1 0004-0404 ●
5 00.253 SEAT; VLV INSERT
INLET OD=42.7 		8-97378-030-0 04 1 0405- ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> EXHAUST 		8-94431-522-0 04 1 9712-0003 ●
5 00.253 SEAT; VLV INSERT
TURBOCHARGER<K51> EXHAUST 		8-97254-815-0 04 1 0004-0207 ●
5 00.253 SEAT; VLV INSERT
EXC. TURBOCHARGER<K51> EXHAUST OD=36.7 		8-94130-559-0 04 1 9712-0207 ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97231-229-0 04 1 0208- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97136-717-0 08 1 9712- ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97136-718-0 08 1 9712- ●
5 00.253 SEAT; VLV INSERT
INLET 		8-97131-854-1 12 1 9712- ● ●
5 00.253 SEAT; VLV INSERT
EXHAUST 		8-97131-855-1 12 1 9712- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=45 		1-09600-005-1 01 1 9712-0207 ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=45 		8-97351-451-0 01 1 0208- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=22 		1-09600-011-2 07 1 9712-9905 ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=22 		8-97209-609-0 07 1 9906- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=12.3 		5-09600-013-0 05 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=16 		5-11129-006-0 03 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-2 01 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=18 		5-11219-008-0 01 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=28 		5-11219-014-0 01 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=14 		8-97174-871-0 03 1 9712- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 04 1 9712- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (B) OD=28 		5-11219-014-0 06 1 9712- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (C) OD=36 		5-11219-018-0 06 1 9712- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=54 		8-97136-590-0 02 1 9712- ● ●
10 02.270 PLUG; GLOW
NGK 		8-97044-037-2 04 1 9712- ●
10 02.270 PLUG; GLOW 8-97143-674-1 04 1 9712- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9712- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97143-673-1 01 1 9712- ●
27 00.253 PLUG; HOT
TURBOCHARGER<K51> 		8-97086-450-0 04 1 9712- ●
27 00.253 PLUG; HOT
EXC. TURBOCHARGER<K51> 		8-97089-278-0 04 1 9712- ●
32 00.004 ORIFICE
TURBOCHARGER<K51> 		8-97190-639-0 01 1 9712-9802 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
