0-10 — CYLINDER HEAD COVER (#43354) — 167 parça

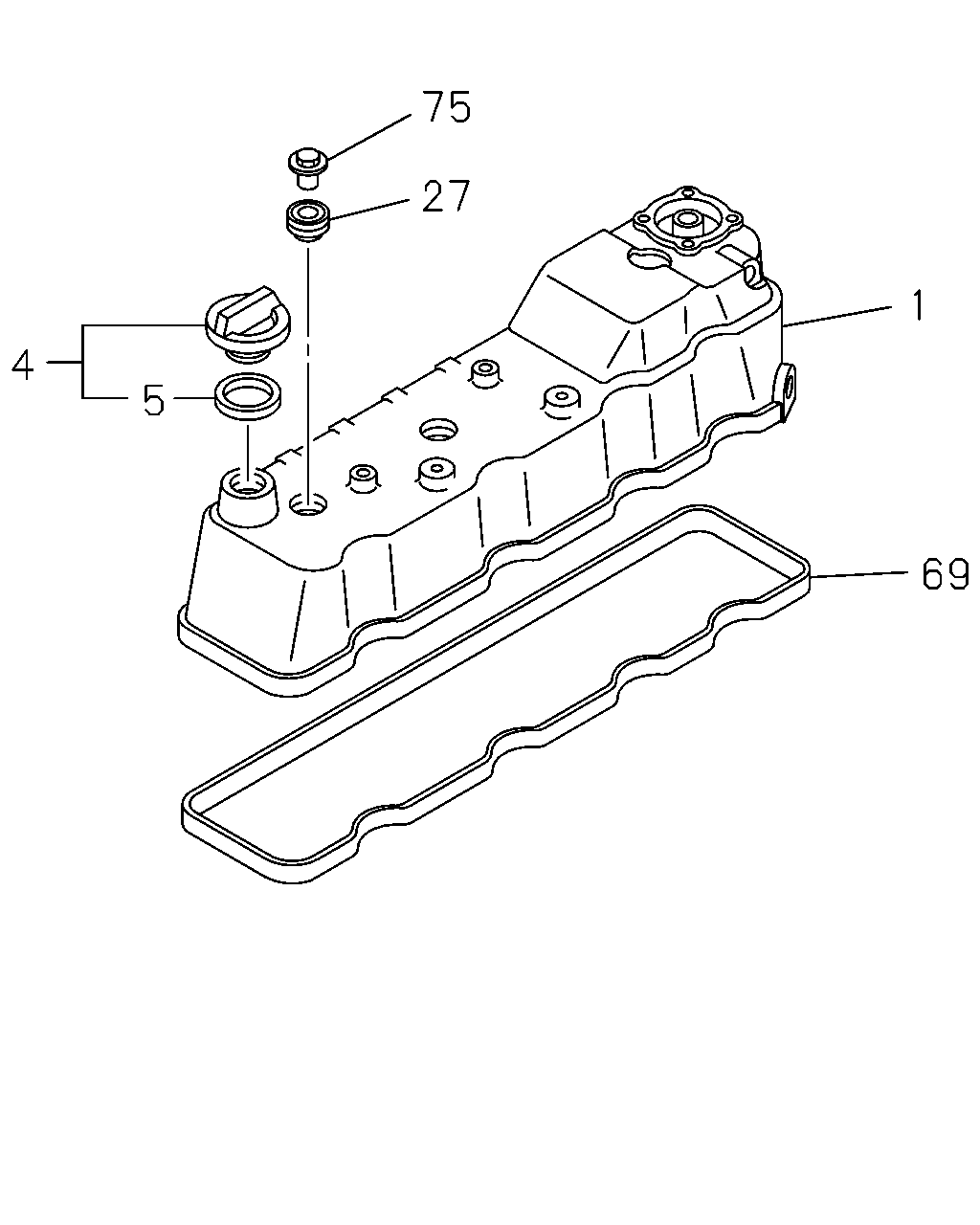

çizim 19359
75 27 1 4 5 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.386 COVER; CYL HD
TURBOCHARGER<K51> 		8-97038-193-2 01 1 9712- ●
1 00.386 COVER; CYL HD
EXC. TURBOCHARGER<K51> 		8-94476-696-1 01 1 9712- ●
1 00.386 COVER; CYL HD 8-97137-161-3 01 1 9712-0011 ●
1 00.386 COVER; CYL HD 8-97300-325-1 01 1 0012-0105 ●
1 00.386 COVER; CYL HD
EXC. EUROPE EQUIPMENT(EK4) 		8-97300-325-2 01 1 0106-0109 ●
1 00.386 COVER; CYL HD
EUROPE EQUIPMENT(EK4) 		8-97306-379-2 01 1 0106-0109 ●
1 00.386 COVER; CYL HD 8-97306-379-3 01 1 0110- ●
1 00.386 COVER; CYL HD
EUROPE EQUIPMENT(EK4) 		8-97289-505-0 01 1 0106-0111 ●
1 00.386 COVER; CYL HD
EUROPE EQUIPMENT(EK4) 		8-97321-301-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-97131-970-4 01 1 9712-9908 ● ●
1 00.386 COVER; CYL HD 8-97187-666-0 01 1 9909-0105 ● ●
1 00.386 COVER; CYL HD
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97187-666-0 01 1 0106-0111 ●
1 00.386 COVER; CYL HD 8-97187-666-0 01 1 0106-0111 ●
1 00.386 COVER; CYL HD
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97323-541-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-97323-541-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-97131-968-4 01 1 9712-9908 ● ●
1 00.386 COVER; CYL HD 8-97187-664-0 01 1 9909-0105 ● ●
1 00.386 COVER; CYL HD 8-97300-286-0 01 1 0106-0111 ● ●
1 00.386 COVER; CYL HD 8-97321-299-0 01 1 0112- ● ●
4 01.758 CAP; OIL FILLER
TURBOCHARGER<K51> 		8-94425-685-2 01 1 9712- ●
4 01.758 CAP; OIL FILLER
EXC. TURBOCHARGER<K51> 		8-94133-207-5 01 1 9712-9812 ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 9712-9812 ●
4 01.758 CAP; OIL FILLER
EXC. TURBOCHARGER<K51> 		8-94133-207-5 01 1 9901-0005 ●
4 01.758 CAP; OIL FILLER
SAUDI ARABIA EQUIPMENT(EU2) 		8-94133-207-5 01 1 9901-0005 ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 9901-0005 ●
4 01.758 CAP; OIL FILLER
EXC. TURBOCHARGER<K51> 		8-94133-207-5 01 1 0006- ●
4 01.758 CAP; OIL FILLER
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 		8-94133-207-5 01 1 0006- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0006- ●
4 01.758 CAP; OIL FILLER 8-97117-692-0 01 1 9712-9807 ●
4 01.758 CAP; OIL FILLER 8-97117-766-0 01 1 9808-9809 ●
4 01.758 CAP; OIL FILLER
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97117-766-0 01 1 9810-0005 ●
4 01.758 CAP; OIL FILLER
EXC. SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 		8-97117-766-0 01 1 0006- ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 		8-94123-623-1 01 1 9712-9807 ● ● ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 		8-94123-623-1 01 1 9808-9908 ● ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 		8-94123-623-1 01 1 9909-0005 ● ●
5 01.758 GASKET; OIL FILLER
SAUDI ARABIA EQUIPMENT(EU2) 00.413 ID=32 OD=40 		8-94123-623-1 01 1 9909-0005 ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 		8-94123-623-1 01 1 0006-0105 ● ●
5 01.758 GASKET; OIL FILLER
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0006-0105 ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 		8-94123-623-1 01 1 0106- ● ● ●
5 01.758 GASKET; OIL FILLER
ID=32 OD=40 		8-97136-177-0 01 1 9808-9809 ●
5 01.758 GASKET; OIL FILLER
EXC. SAUDI ARABIA EQUIPMENT(EU2) ID=32 OD=40 		8-97136-177-0 01 1 9810-0005 ●
5 01.758 GASKET; OIL FILLER
EXC. SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) ID=32 OD=40 		8-97136-177-0 01 1 0006- ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=19.5 		8-94202-456-3 03 1 9712-0103 ●
27 00.423 GASKET; HD COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=19.5 		8-97263-801-1 03 1 0104- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97161-131-0 01 1 9712-0301 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97349-416-0 01 1 0302- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97160-672-1 01 1 9712- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97172-394-0 02 1 9712- ● ●
75 00.413 NUT; CAP,HD COVER
M8 OD=19 		8-94158-108-0 03 1 9712- ●

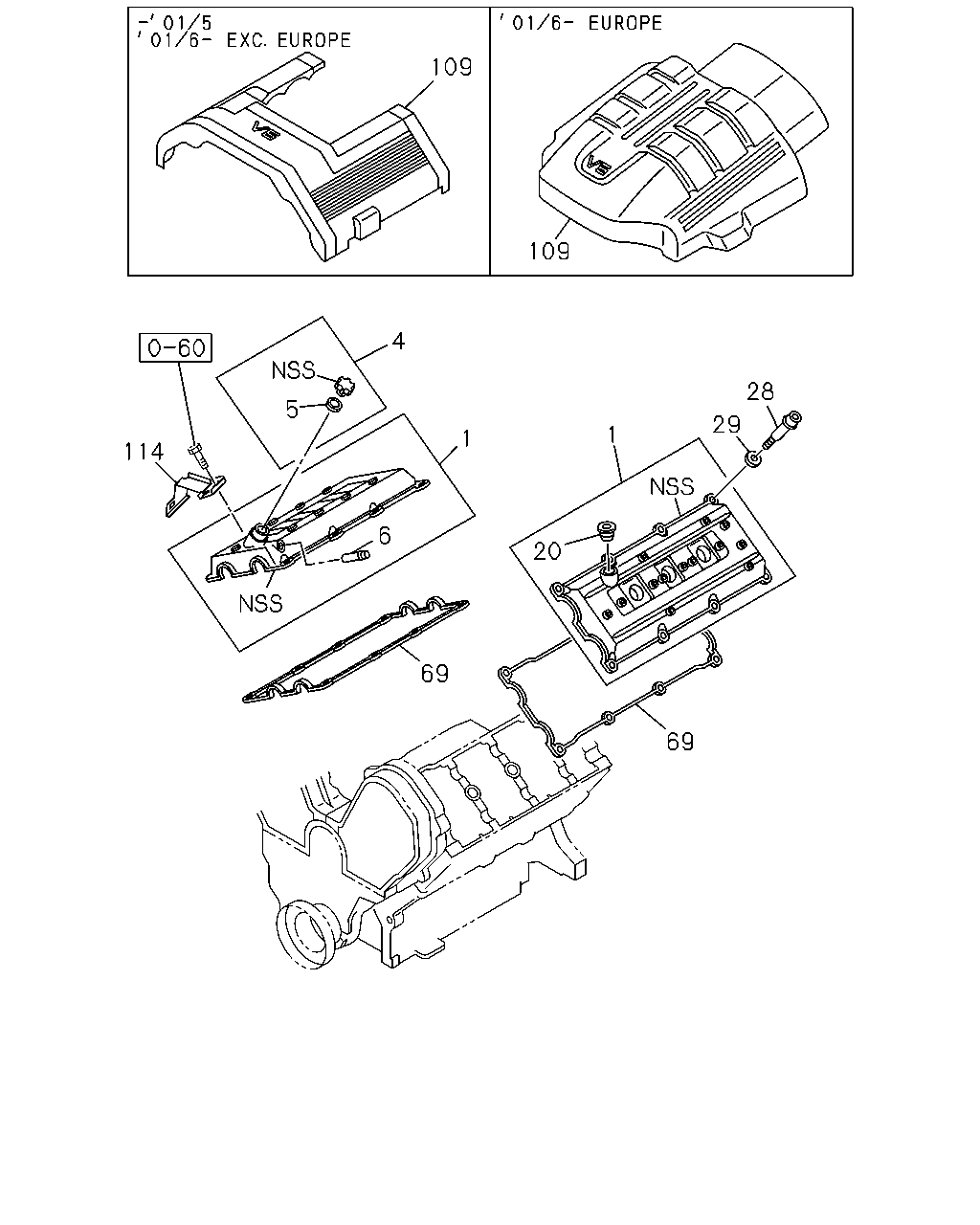

çizim 72386
109 109 4 28 5 29 1 1 114 6 20 69 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.386 COVER; CYL HD
TURBOCHARGER<K51> 		8-97038-193-2 01 1 9712- ●
1 00.386 COVER; CYL HD
EXC. TURBOCHARGER<K51> 		8-94476-696-1 01 1 9712- ●
1 00.386 COVER; CYL HD 8-97137-161-3 01 1 9712-0011 ●
1 00.386 COVER; CYL HD 8-97300-325-1 01 1 0012-0105 ●
1 00.386 COVER; CYL HD
EXC. EUROPE EQUIPMENT(EK4) 		8-97300-325-2 01 1 0106-0109 ●
1 00.386 COVER; CYL HD
EUROPE EQUIPMENT(EK4) 		8-97306-379-2 01 1 0106-0109 ●
1 00.386 COVER; CYL HD 8-97306-379-3 01 1 0110- ●
1 00.386 COVER; CYL HD
EUROPE EQUIPMENT(EK4) 		8-97289-505-0 01 1 0106-0111 ●
1 00.386 COVER; CYL HD
EUROPE EQUIPMENT(EK4) 		8-97321-301-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-97131-970-4 01 1 9712-9908 ● ●
1 00.386 COVER; CYL HD 8-97187-666-0 01 1 9909-0105 ● ●
1 00.386 COVER; CYL HD
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97187-666-0 01 1 0106-0111 ●
1 00.386 COVER; CYL HD 8-97187-666-0 01 1 0106-0111 ●
1 00.386 COVER; CYL HD
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97323-541-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-97323-541-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-97131-968-4 01 1 9712-9908 ● ●
1 00.386 COVER; CYL HD 8-97187-664-0 01 1 9909-0105 ● ●
1 00.386 COVER; CYL HD 8-97300-286-0 01 1 0106-0111 ● ●
1 00.386 COVER; CYL HD 8-97321-299-0 01 1 0112- ● ●
4 01.758 CAP; OIL FILLER
TURBOCHARGER<K51> 		8-94425-685-2 01 1 9712- ●
4 01.758 CAP; OIL FILLER
EXC. TURBOCHARGER<K51> 		8-94133-207-5 01 1 9712-9812 ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 9712-9812 ●
4 01.758 CAP; OIL FILLER
EXC. TURBOCHARGER<K51> 		8-94133-207-5 01 1 9901-0005 ●
4 01.758 CAP; OIL FILLER
SAUDI ARABIA EQUIPMENT(EU2) 		8-94133-207-5 01 1 9901-0005 ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 9901-0005 ●
4 01.758 CAP; OIL FILLER
EXC. TURBOCHARGER<K51> 		8-94133-207-5 01 1 0006- ●
4 01.758 CAP; OIL FILLER
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 		8-94133-207-5 01 1 0006- ●
4 01.758 CAP; OIL FILLER 8-94133-207-5 01 1 0006- ●
4 01.758 CAP; OIL FILLER 8-97117-692-0 01 1 9712-9807 ●
4 01.758 CAP; OIL FILLER 8-97117-766-0 01 1 9808-9809 ●
4 01.758 CAP; OIL FILLER
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-97117-766-0 01 1 9810-0005 ●
4 01.758 CAP; OIL FILLER
EXC. SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 		8-97117-766-0 01 1 0006- ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 		8-94123-623-1 01 1 9712-9807 ● ● ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 		8-94123-623-1 01 1 9808-9908 ● ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 		8-94123-623-1 01 1 9909-0005 ● ●
5 01.758 GASKET; OIL FILLER
SAUDI ARABIA EQUIPMENT(EU2) 00.413 ID=32 OD=40 		8-94123-623-1 01 1 9909-0005 ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 		8-94123-623-1 01 1 0006-0105 ● ●
5 01.758 GASKET; OIL FILLER
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) 00.413 ID=32 OD=40 		8-94123-623-1 01 1 0006-0105 ●
5 01.758 GASKET; OIL FILLER
00.413 ID=32 OD=40 		8-94123-623-1 01 1 0106- ● ● ●
5 01.758 GASKET; OIL FILLER
ID=32 OD=40 		8-97136-177-0 01 1 9808-9809 ●
5 01.758 GASKET; OIL FILLER
EXC. SAUDI ARABIA EQUIPMENT(EU2) ID=32 OD=40 		8-97136-177-0 01 1 9810-0005 ●
5 01.758 GASKET; OIL FILLER
EXC. SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2) ID=32 OD=40 		8-97136-177-0 01 1 0006- ●
6 01.762 PIPE; PCV HOSE
03.602 OD=15 L=41 		8-94442-052-0 01 1 9712-9806 ● ●
20 00.413 GROMMET; HD COVER 8-97074-653-0 01 1 9712-0105 ● ●
20 00.413 GROMMET; HD COVER
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97074-653-0 01 1 0106- ●
20 00.413 GROMMET; HD COVER 8-97074-653-0 01 1 0106- ●
28 00.413 BOLT; HD COVER 8-97149-252-2 16 1 9712- ● ●
29 00.413 RUBBER; MTG,HD COVER
00.206 		8-97168-200-1 09 1 9712- ●
29 00.413 RUBBER; MTG,HD COVER 8-97149-002-2 16 1 9712- ● ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97161-131-0 01 1 9712-0301 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97349-416-0 01 1 0302- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97160-672-1 01 1 9712- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97172-394-0 02 1 9712- ● ●
109 00.386 COVER; ENG
EUROPE EQUIPMENT(EK4) 		8-97314-145-1 01 1 0106- ●
109 00.386 COVER; ENG 8-97170-239-1 01 1 9712-0105 ● ●
109 00.386 COVER; ENG
EXC. EUROPE EQUIPMENT(EK4) 		8-97170-239-1 01 1 0106- ● ●
114 00.413 BRACKET; BATTERY CABLE
02.333 		8-97183-097-0 01 1 9712-0105 ● ●
114 00.413 BRACKET; BATTERY CABLE
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 02.333 		8-97183-097-0 01 1 0106- ●
114 00.413 BRACKET; BATTERY CABLE
02.333 		8-97183-097-0 01 1 0106- ●

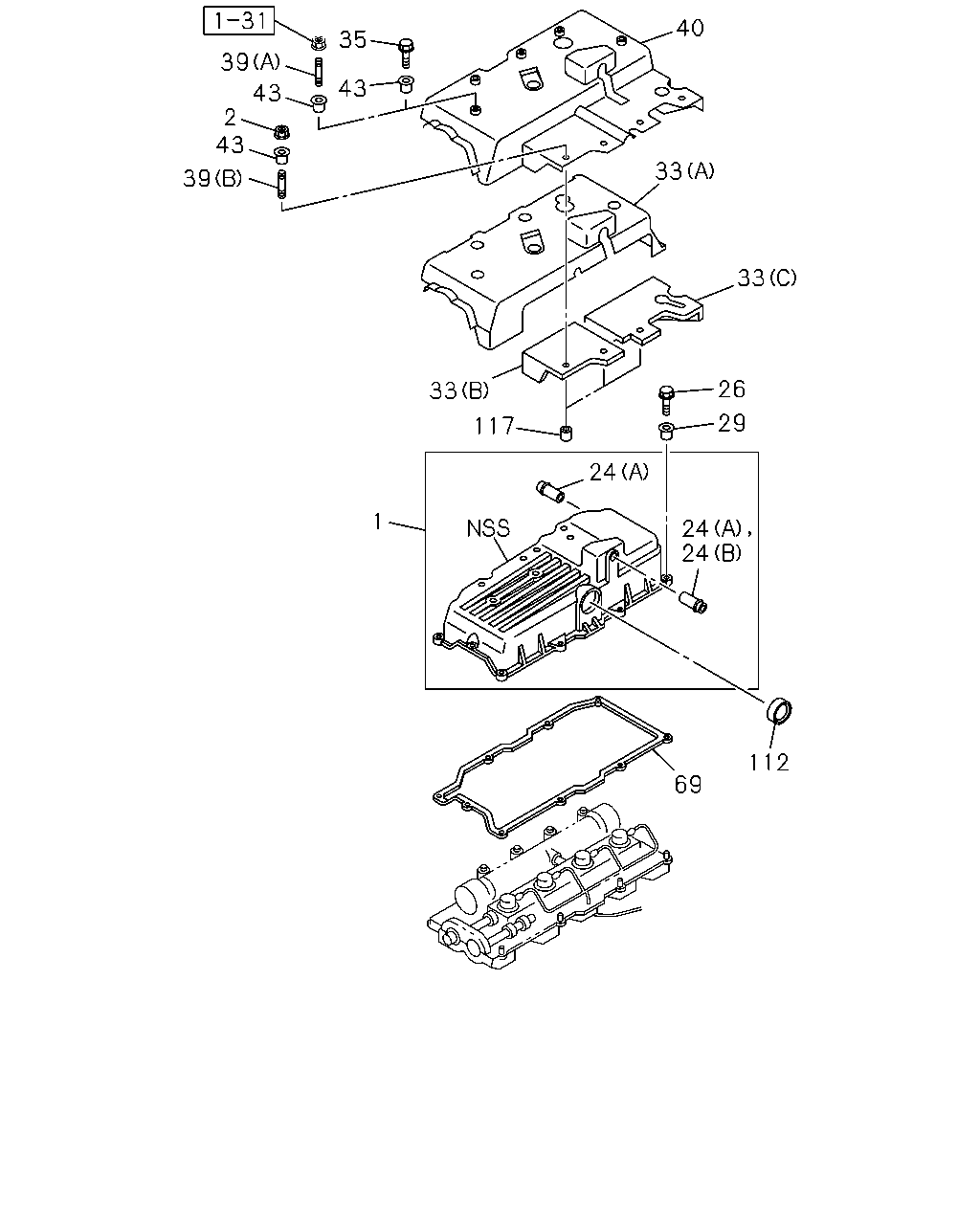

çizim 72421
40 35 39 43 43 2 43 33 39 33 26 33 29 117 24 1 24 24 112 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.386 COVER; CYL HD
TURBOCHARGER<K51> 		8-97038-193-2 01 1 9712- ●
1 00.386 COVER; CYL HD
EXC. TURBOCHARGER<K51> 		8-94476-696-1 01 1 9712- ●
1 00.386 COVER; CYL HD 8-97137-161-3 01 1 9712-0011 ●
1 00.386 COVER; CYL HD 8-97300-325-1 01 1 0012-0105 ●
1 00.386 COVER; CYL HD
EXC. EUROPE EQUIPMENT(EK4) 		8-97300-325-2 01 1 0106-0109 ●
1 00.386 COVER; CYL HD
EUROPE EQUIPMENT(EK4) 		8-97306-379-2 01 1 0106-0109 ●
1 00.386 COVER; CYL HD 8-97306-379-3 01 1 0110- ●
1 00.386 COVER; CYL HD
EUROPE EQUIPMENT(EK4) 		8-97289-505-0 01 1 0106-0111 ●
1 00.386 COVER; CYL HD
EUROPE EQUIPMENT(EK4) 		8-97321-301-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-97131-970-4 01 1 9712-9908 ● ●
1 00.386 COVER; CYL HD 8-97187-666-0 01 1 9909-0105 ● ●
1 00.386 COVER; CYL HD
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97187-666-0 01 1 0106-0111 ●
1 00.386 COVER; CYL HD 8-97187-666-0 01 1 0106-0111 ●
1 00.386 COVER; CYL HD
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		8-97323-541-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-97323-541-0 01 1 0112- ●
1 00.386 COVER; CYL HD 8-97131-968-4 01 1 9712-9908 ● ●
1 00.386 COVER; CYL HD 8-97187-664-0 01 1 9909-0105 ● ●
1 00.386 COVER; CYL HD 8-97300-286-0 01 1 0106-0111 ● ●
1 00.386 COVER; CYL HD 8-97321-299-0 01 1 0112- ● ●
2 00.413 NUT; COVER,HD
04.594 M6 FLANGE 		0-91150-106-0 05 1 9712- ●
24 00.413 PIPE; BREATHER,OIL FILLER
01.762 (A) 		8-94250-615-1 02 1 9712-0105 ●
24 00.413 PIPE; BREATHER,OIL FILLER
EXC. EUROPE EQUIPMENT(EK4) 01.762 (A) 		8-94250-615-1 02 1 0106-0109 ●
24 00.413 PIPE; BREATHER,OIL FILLER
01.762 (A) 		8-94250-615-1 01 1 0110- ●
24 00.413 PIPE; BREATHER,OIL FILLER
EUROPE EQUIPMENT(EK4) 01.762 (A) 		8-94250-615-1 01 1 0106-0109 ●
24 00.413 PIPE; BREATHER,OIL FILLER
EUROPE EQUIPMENT(EK4) (B) 		8-97287-784-0 01 1 0106-0109 ●
24 00.413 PIPE; BREATHER,OIL FILLER
(B) 		8-97287-784-0 01 1 0110- ●
26 08.900 BOLT; CYL HD COVER
09.190 M6X30 FLANGE 		0-28680-630-0 09 1 9712- ●
29 00.413 RUBBER; MTG,HD COVER
00.206 		8-97168-200-1 09 1 9712- ●
29 00.413 RUBBER; MTG,HD COVER 8-97149-002-2 16 1 9712- ● ●
33 00.386 RUBBER; SPACE,CYL HD COVER
(A) 		8-97137-863-2 01 1 9712-0105 ●
33 00.386 RUBBER; SPACE,CYL HD COVER
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97137-863-2 01 1 0106-0108 ●
33 00.386 RUBBER; SPACE,CYL HD COVER
(B) 		8-97185-171-0 01 1 9712-0105 ●
33 00.386 RUBBER; SPACE,CYL HD COVER
EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97185-171-0 01 1 0106-0108 ●
33 00.386 RUBBER; SPACE,CYL HD COVER
(C) 		8-97185-172-1 01 1 9712-0105 ●
33 00.386 RUBBER; SPACE,CYL HD COVER
EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97185-172-1 01 1 0106-0108 ●
33 00.386 RUBBER; SPACE,CYL HD COVER
EUROPE EQUIPMENT(EK4) (B) 		8-97302-647-0 01 1 0106-0108 ●
33 00.386 RUBBER; SPACE,CYL HD COVER
(B) 		8-97302-647-2 01 1 0109- ●
33 00.386 RUBBER; SPACE,CYL HD COVER
EUROPE EQUIPMENT(EK4) (C) 		8-97302-648-0 01 1 0106-0108 ●
33 00.386 RUBBER; SPACE,CYL HD COVER
(C) 		8-97302-648-2 01 1 0109- ●
33 00.386 RUBBER; SPACE,CYL HD COVER
EUROPE EQUIPMENT(EK4) (A) 		8-97302-649-0 01 1 0106-0108 ●
33 00.386 RUBBER; SPACE,CYL HD COVER
(A) 		8-97302-649-1 01 1 0109- ●
35 00.293 BOLT; NOISE SHIELD COVER
09.190 M6X30 FLANGE 		0-28680-630-0 03 1 9712-9910 ●
35 00.293 BOLT; NOISE SHIELD COVER
09.190 M6X30 FLANGE 		0-28680-630-0 02 1 9911- ●
39 00.413 STUD; COVER,HD
(B) M6X35 L=43 		8-97203-278-0 05 1 9712- ●
39 00.413 STUD; COVER,HD
01.453 (A) M6X40 L=50 		9-04110-640-0 01 1 9911- ●
40 00.386 COVER 8-97137-862-5 01 1 9712-9801 ●
40 00.386 COVER 8-97204-781-0 01 1 9802-0105 ●
40 00.386 COVER
EXC. EUROPE EQUIPMENT(EK4) 		8-97204-781-0 01 1 0106-0208 ●
40 00.386 COVER
EXC. EURO3 SPECIFICATION(NT3) 		8-97204-781-0 01 1 0209- ●
40 00.386 COVER
EUROPE EQUIPMENT(EK4) 		8-97300-674-1 01 1 0106-0208 ●
40 00.386 COVER
EURO3 SPECIFICATION(NT3) 		8-97300-674-1 01 1 0209- ●
43 00.413 RUBBER; MTG,HD COVER,OUTER
00.206 		8-97168-200-1 08 1 9712- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97161-131-0 01 1 9712-0301 ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97349-416-0 01 1 0302- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97160-672-1 01 1 9712- ●
69 00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-97172-394-0 02 1 9712- ● ●
112 00.413 SEAL; OIL PIPE 8-97175-893-0 01 1 9712- ●
117 00.413 TUBE; DISTANCE 8-97204-901-0 03 1 9802-0105 ●
117 00.413 TUBE; DISTANCE
EXC. EUROPE EQUIPMENT(EK4) 		8-97204-901-0 03 1 0106-0108 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
