◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50775 - UBS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#43353) — 221 parça

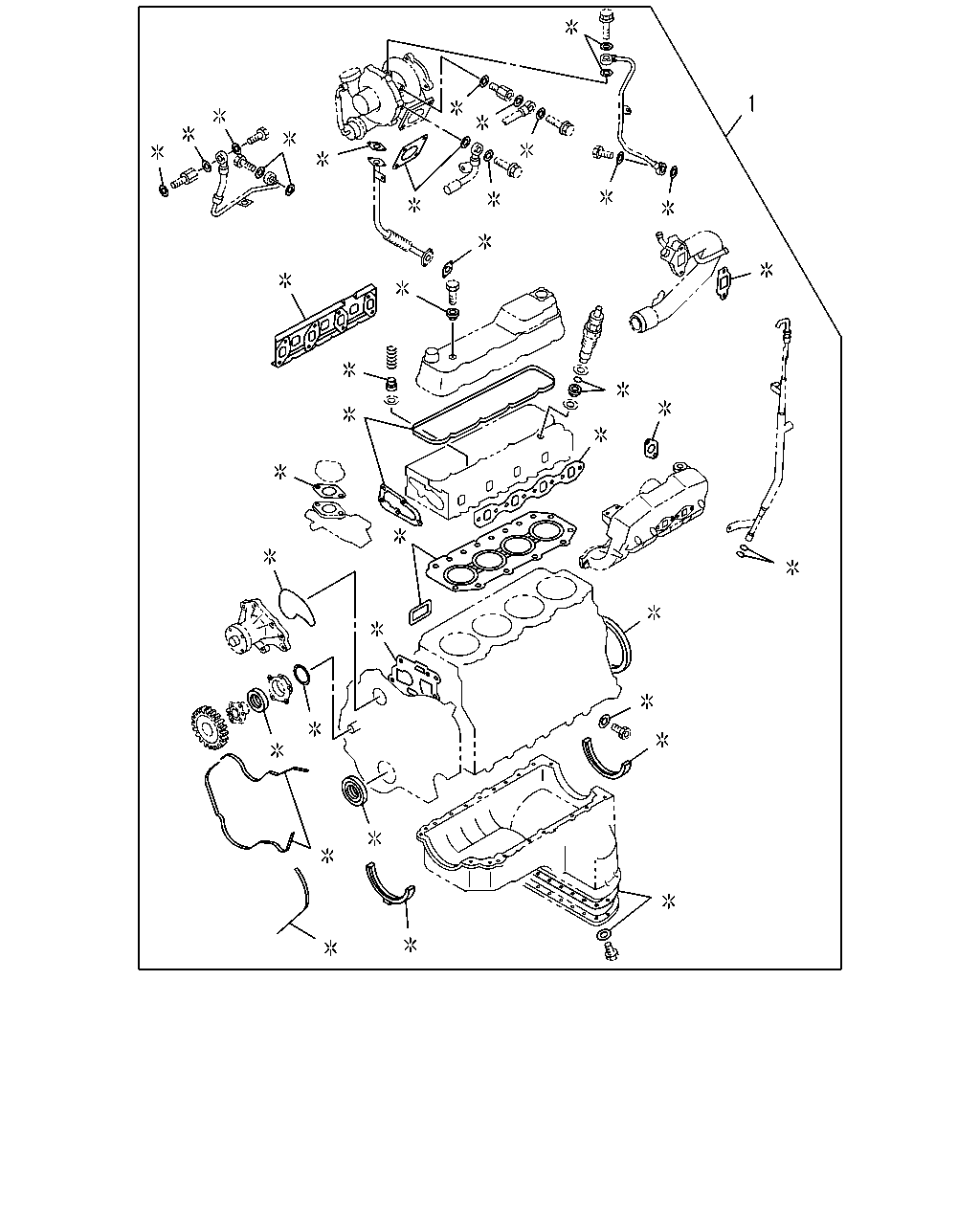

çizim 18408
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.30 1-NOTCH 		5-87814-136-0 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-136-1 01 1 0201- ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.35 2-NOTCH 		5-87814-137-0 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-137-1 01 1 0201- ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.40 3-NOTCH 		5-87814-138-0 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-138-1 01 1 0201- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-945-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-946-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-947-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-942-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-943-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-944-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 1-NOTCH 		5-87813-384-0 01 1 9712-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 2-NOTCH 		5-87813-385-0 01 1 9712-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.45 3-NOTCH 		5-87813-386-0 01 1 9712-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 1-NOTCH 		5-87814-108-0 01 1 9910-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.35 1-NOTCH 		5-87814-108-0 01 1 0106-0106 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.30 1-NOTCH 		5-87814-165-1 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 2-NOTCH 		5-87814-109-0 01 1 9910-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.40 2-NOTCH 		5-87814-109-0 01 1 0106-0106 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.35 2-NOTCH 		5-87814-166-1 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.45 3-NOTCH 		5-87814-110-0 01 1 9910-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.45 3-NOTCH 		5-87814-110-0 01 1 0106-0106 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.40 3-NOTCH 		5-87814-167-1 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) 		5-87813-755-2 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-053-0 01 1 9712-9909 ● ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-756-0 01 1 9910-0105 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		5-87813-756-2 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-756-2 01 1 0106- ●

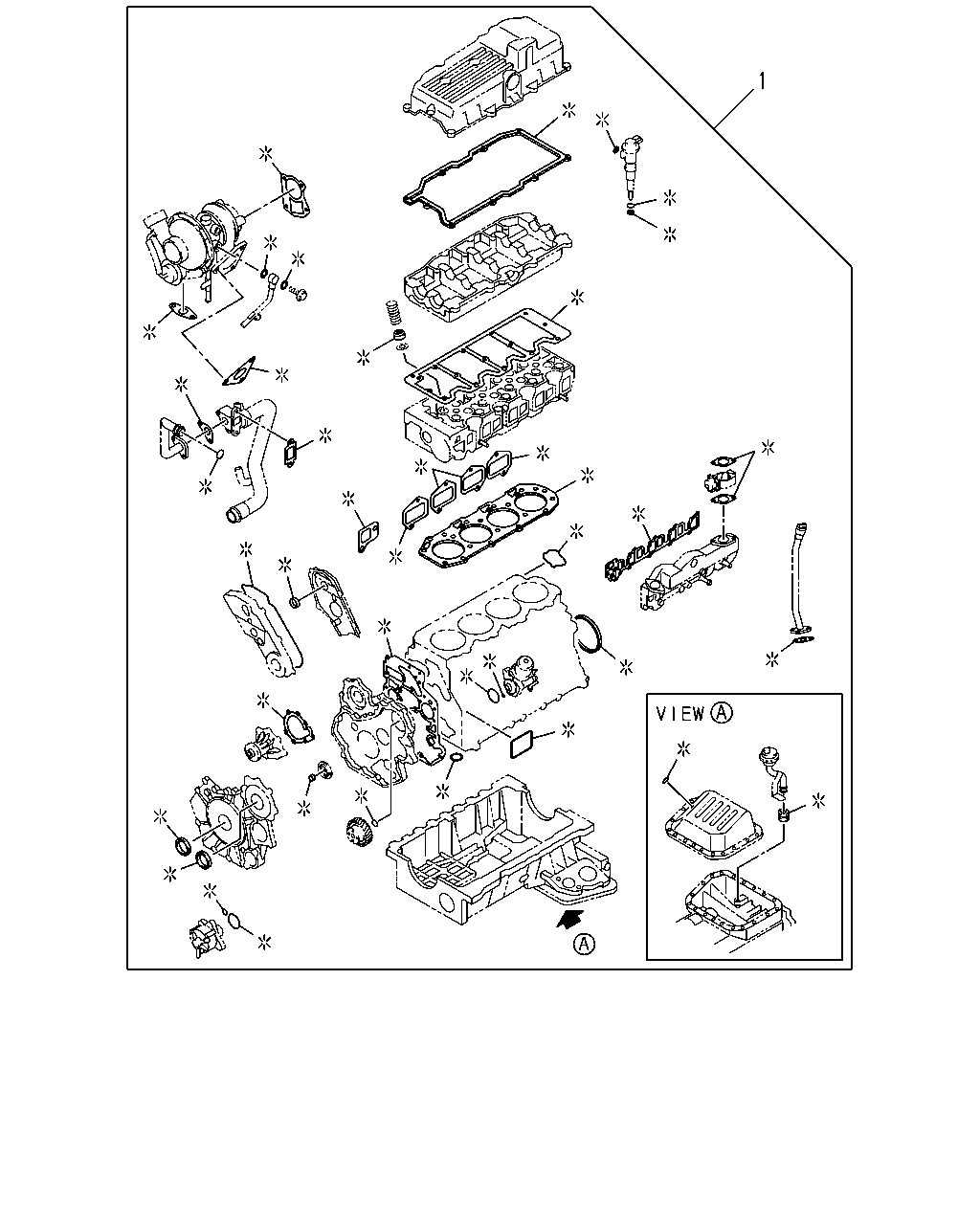

çizim 18999
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.30 1-NOTCH 		5-87814-136-0 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-136-1 01 1 0201- ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.35 2-NOTCH 		5-87814-137-0 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-137-1 01 1 0201- ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.40 3-NOTCH 		5-87814-138-0 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-138-1 01 1 0201- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-945-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-946-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-947-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-942-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-943-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-944-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 1-NOTCH 		5-87813-384-0 01 1 9712-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 2-NOTCH 		5-87813-385-0 01 1 9712-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.45 3-NOTCH 		5-87813-386-0 01 1 9712-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 1-NOTCH 		5-87814-108-0 01 1 9910-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.35 1-NOTCH 		5-87814-108-0 01 1 0106-0106 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.30 1-NOTCH 		5-87814-165-1 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 2-NOTCH 		5-87814-109-0 01 1 9910-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.40 2-NOTCH 		5-87814-109-0 01 1 0106-0106 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.35 2-NOTCH 		5-87814-166-1 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.45 3-NOTCH 		5-87814-110-0 01 1 9910-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.45 3-NOTCH 		5-87814-110-0 01 1 0106-0106 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.40 3-NOTCH 		5-87814-167-1 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) 		5-87813-755-2 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-053-0 01 1 9712-9909 ● ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-756-0 01 1 9910-0105 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		5-87813-756-2 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-756-2 01 1 0106- ●

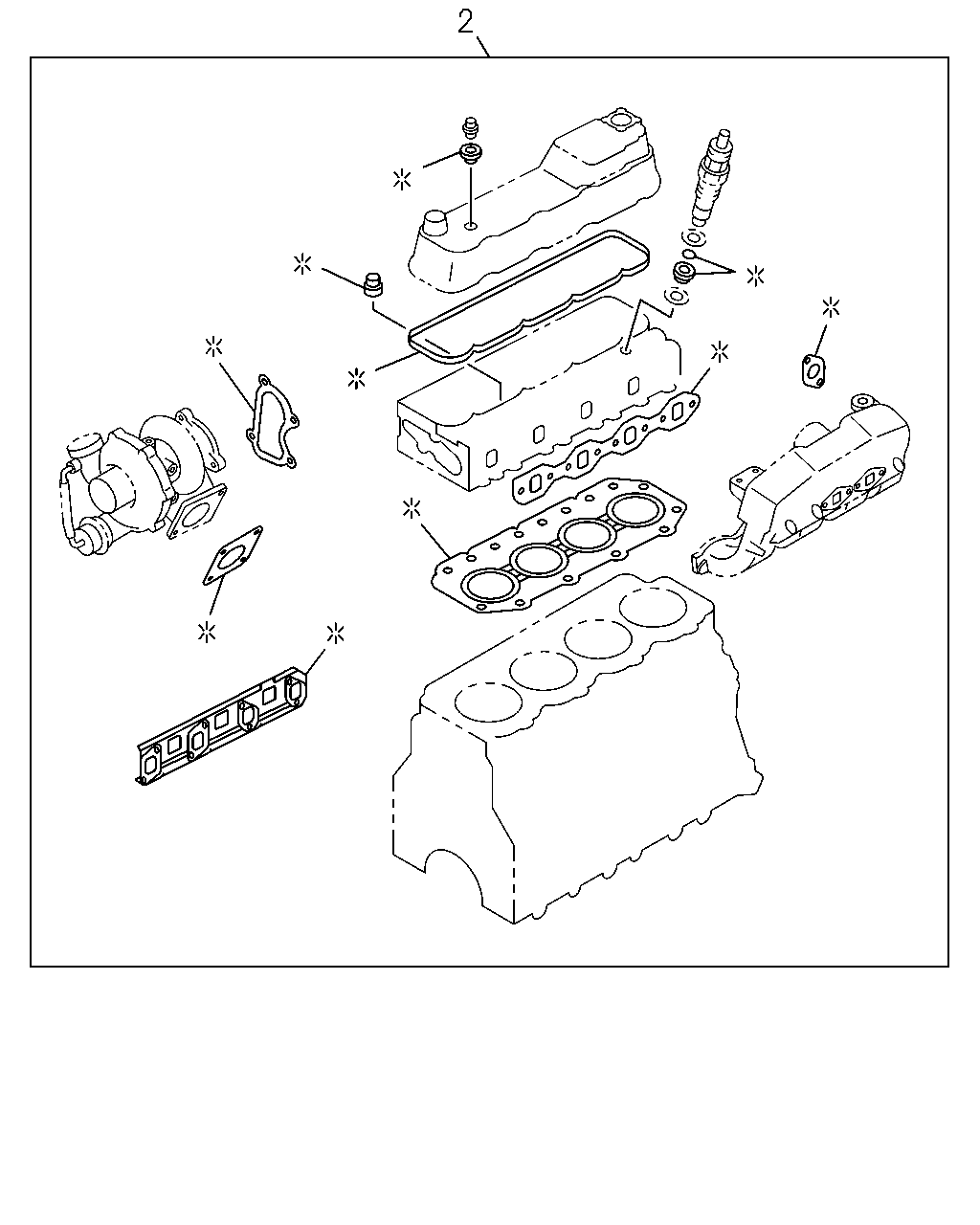

çizim 19199
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 00.010 GASKET SET; ENG HD OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.30 1-HOLE 		5-87814-139-0 01 1 0106-0208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.30 1-HOLE 		5-87814-139-0 01 1 0209- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.35 2-HOLE 		5-87814-140-0 01 1 0106-0208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.35 2-HOLE 		5-87814-140-0 01 1 0209- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.40 3-HOLE 		5-87814-141-0 01 1 0106-0208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.40 3-HOLE 		5-87814-141-0 01 1 0209- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-939-0 01 1 9712-0005 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-940-0 01 1 9712-0005 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-941-0 01 1 9712-0005 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-694-3 01 1 0006- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-695-3 01 1 0006- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-696-3 01 1 0006- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-907-0 01 1 9712-0005 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-908-0 01 1 9712-0005 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-909-0 01 1 9712-0005 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87813-705-3 01 1 0006- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87813-706-3 01 1 0006- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87813-707-3 01 1 0006- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 1-NOTCH 		5-87813-387-0 01 1 9712-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 2-NOTCH 		5-87813-388-0 01 1 9712-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.45 3-NOTCH 		5-87813-389-0 01 1 9712-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 1-NOTCH 		5-87814-111-0 01 1 9909-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.35 1-NOTCH 		5-87814-111-0 01 1 0106-0106 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.30 1-NOTCH 		5-87814-168-1 01 1 0106-0208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO3 SPECIFICATION(NT3) T=1.30 1-NOTCH 		5-87814-168-1 01 1 0209- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 2-NOTCH 		5-87814-112-0 01 1 9909-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.40 2-NOTCH 		5-87814-112-0 01 1 0106-0106 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.35 2-NOTCH 		5-87814-169-1 01 1 0106-0208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO3 SPECIFICATION(NT3) T=1.35 2-NOTCH 		5-87814-169-1 01 1 0209- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.45 3-NOTCH 		5-87814-113-0 01 1 9909-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.45 3-NOTCH 		5-87814-113-0 01 1 0106-0106 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.40 3-NOTCH 		5-87814-170-1 01 1 0106-0208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO3 SPECIFICATION(NT3) T=1.40 3-NOTCH 		5-87814-170-1 01 1 0209- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-054-0 01 1 9712-9909 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-757-2 01 1 9910- ● ●

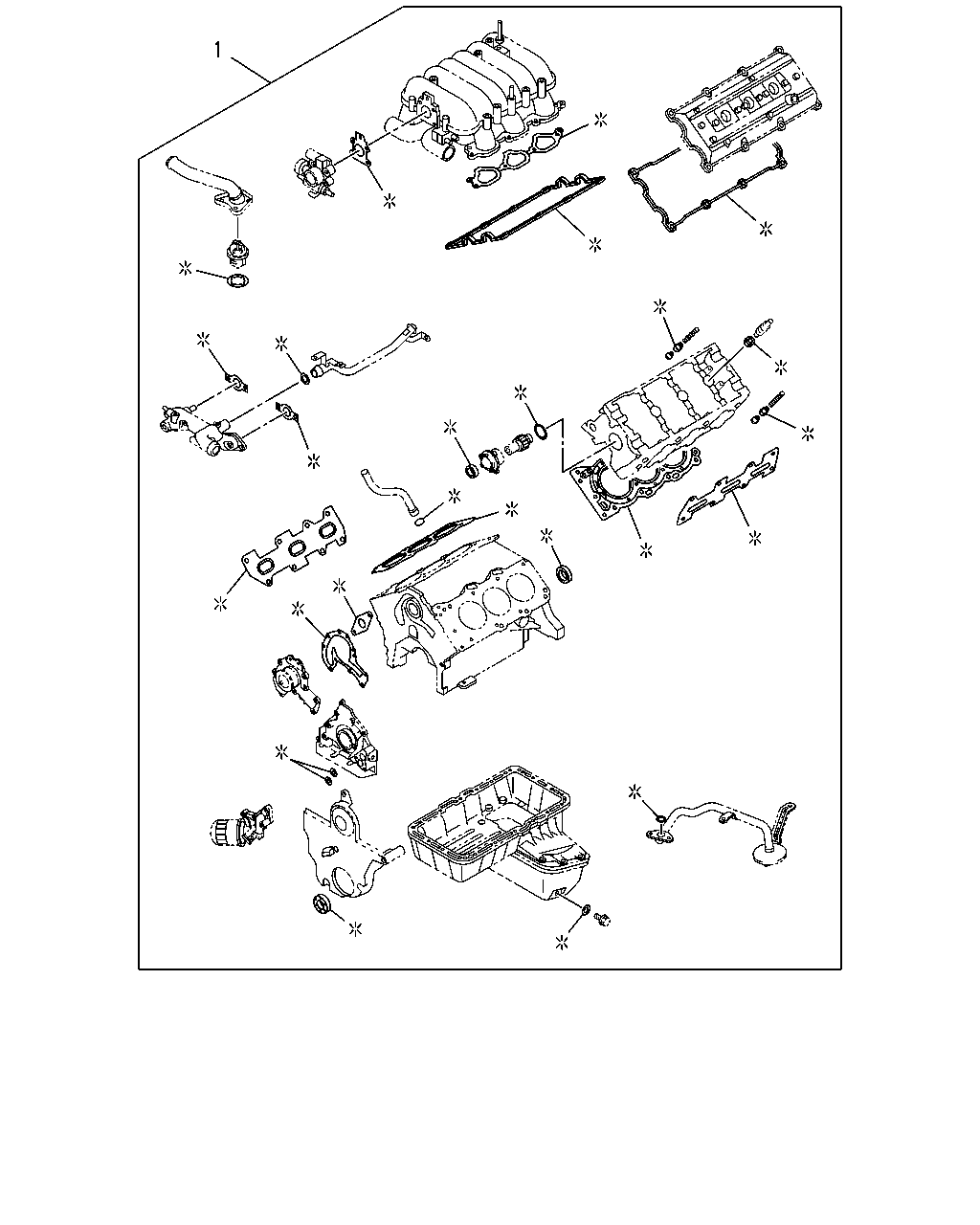

çizim 19207
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.30 1-NOTCH 		5-87814-136-0 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-136-1 01 1 0201- ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.35 2-NOTCH 		5-87814-137-0 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-137-1 01 1 0201- ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.40 3-NOTCH 		5-87814-138-0 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-138-1 01 1 0201- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-945-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-946-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-947-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-942-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-943-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-944-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 1-NOTCH 		5-87813-384-0 01 1 9712-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 2-NOTCH 		5-87813-385-0 01 1 9712-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.45 3-NOTCH 		5-87813-386-0 01 1 9712-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 1-NOTCH 		5-87814-108-0 01 1 9910-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.35 1-NOTCH 		5-87814-108-0 01 1 0106-0106 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.30 1-NOTCH 		5-87814-165-1 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 2-NOTCH 		5-87814-109-0 01 1 9910-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.40 2-NOTCH 		5-87814-109-0 01 1 0106-0106 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.35 2-NOTCH 		5-87814-166-1 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.45 3-NOTCH 		5-87814-110-0 01 1 9910-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.45 3-NOTCH 		5-87814-110-0 01 1 0106-0106 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.40 3-NOTCH 		5-87814-167-1 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) 		5-87813-755-2 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-053-0 01 1 9712-9909 ● ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-756-0 01 1 9910-0105 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		5-87813-756-2 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-756-2 01 1 0106- ●

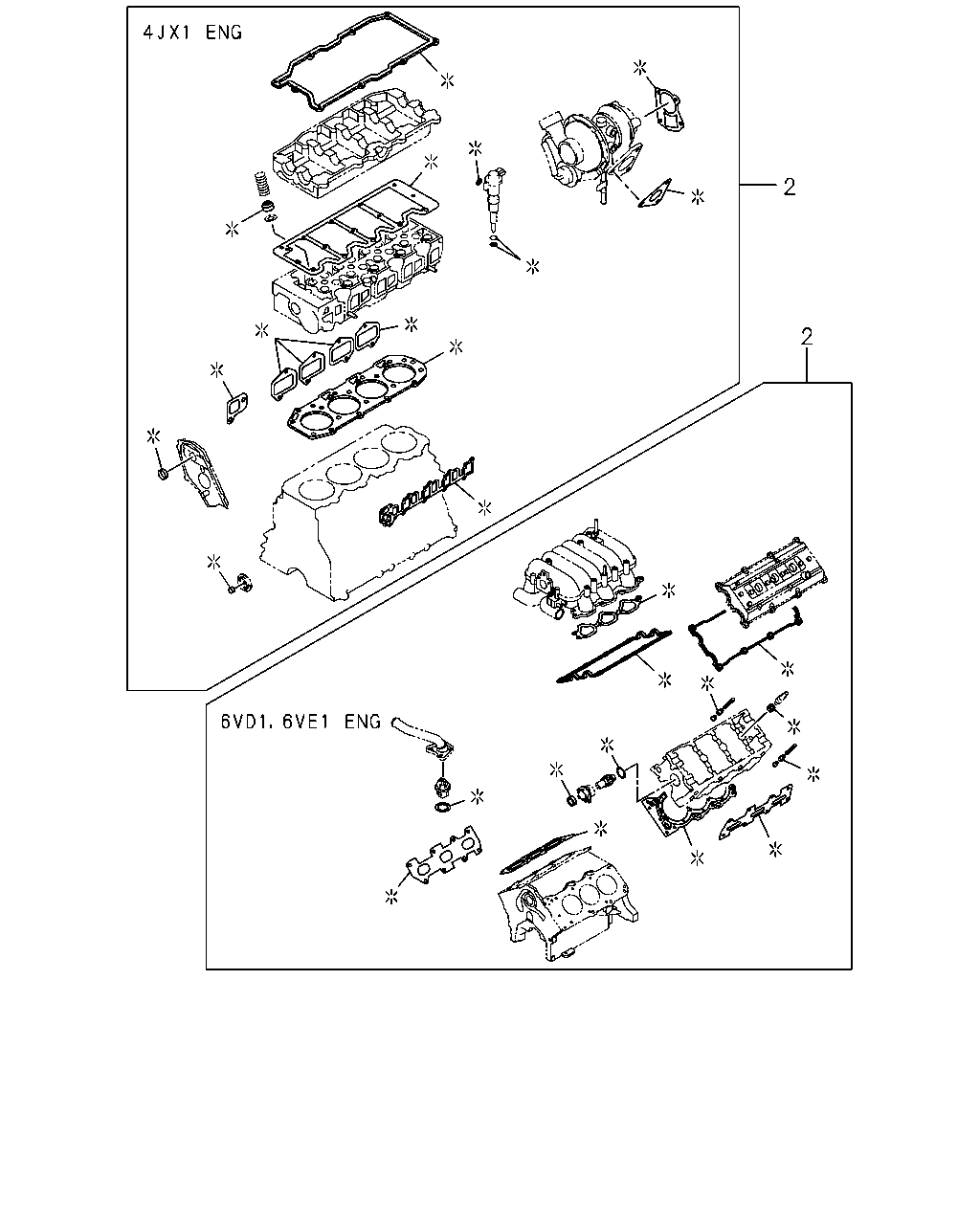

çizim 69463
2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 00.010 GASKET SET; ENG HD OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.30 1-HOLE 		5-87814-139-0 01 1 0106-0208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.30 1-HOLE 		5-87814-139-0 01 1 0209- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.35 2-HOLE 		5-87814-140-0 01 1 0106-0208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.35 2-HOLE 		5-87814-140-0 01 1 0209- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.40 3-HOLE 		5-87814-141-0 01 1 0106-0208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.40 3-HOLE 		5-87814-141-0 01 1 0209- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-939-0 01 1 9712-0005 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-940-0 01 1 9712-0005 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-941-0 01 1 9712-0005 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-694-3 01 1 0006- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-695-3 01 1 0006- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-696-3 01 1 0006- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-907-0 01 1 9712-0005 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-908-0 01 1 9712-0005 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-909-0 01 1 9712-0005 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87813-705-3 01 1 0006- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87813-706-3 01 1 0006- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87813-707-3 01 1 0006- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 1-NOTCH 		5-87813-387-0 01 1 9712-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 2-NOTCH 		5-87813-388-0 01 1 9712-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.45 3-NOTCH 		5-87813-389-0 01 1 9712-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 1-NOTCH 		5-87814-111-0 01 1 9909-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.35 1-NOTCH 		5-87814-111-0 01 1 0106-0106 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.30 1-NOTCH 		5-87814-168-1 01 1 0106-0208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO3 SPECIFICATION(NT3) T=1.30 1-NOTCH 		5-87814-168-1 01 1 0209- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 2-NOTCH 		5-87814-112-0 01 1 9909-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.40 2-NOTCH 		5-87814-112-0 01 1 0106-0106 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.35 2-NOTCH 		5-87814-169-1 01 1 0106-0208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO3 SPECIFICATION(NT3) T=1.35 2-NOTCH 		5-87814-169-1 01 1 0209- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.45 3-NOTCH 		5-87814-113-0 01 1 9909-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.45 3-NOTCH 		5-87814-113-0 01 1 0106-0106 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.40 3-NOTCH 		5-87814-170-1 01 1 0106-0208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO3 SPECIFICATION(NT3) T=1.40 3-NOTCH 		5-87814-170-1 01 1 0209- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-054-0 01 1 9712-9909 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-757-2 01 1 9910- ● ●

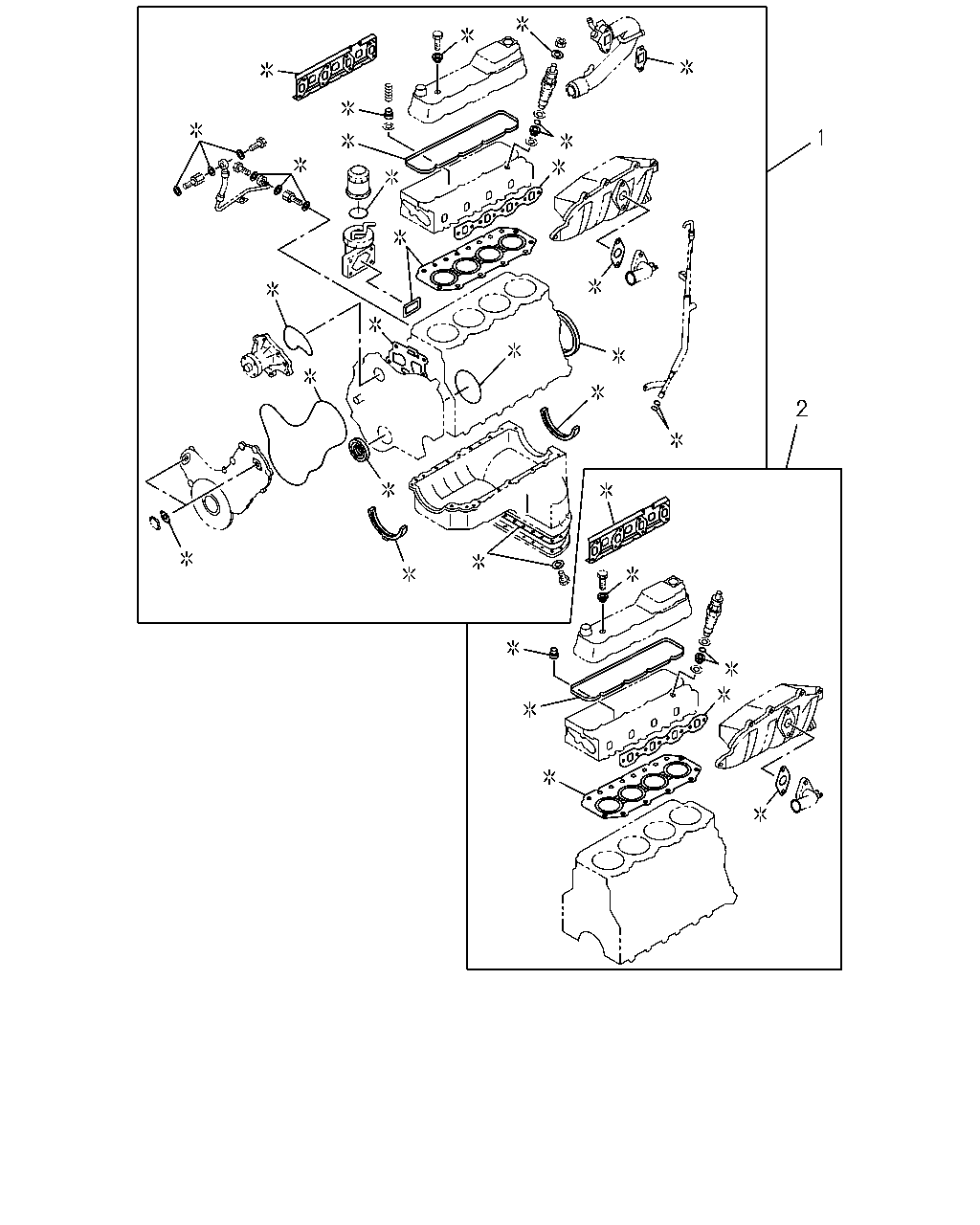

çizim 72339
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.30 1-NOTCH 		5-87814-136-0 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-136-1 01 1 0201- ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.35 2-NOTCH 		5-87814-137-0 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-137-1 01 1 0201- ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.40 3-NOTCH 		5-87814-138-0 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-138-1 01 1 0201- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-945-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-946-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-947-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-942-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-943-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-944-8 01 1 9712- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 1-NOTCH 		5-87813-384-0 01 1 9712-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 2-NOTCH 		5-87813-385-0 01 1 9712-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.45 3-NOTCH 		5-87813-386-0 01 1 9712-9909 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 1-NOTCH 		5-87814-108-0 01 1 9910-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.35 1-NOTCH 		5-87814-108-0 01 1 0106-0106 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.30 1-NOTCH 		5-87814-165-1 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 2-NOTCH 		5-87814-109-0 01 1 9910-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.40 2-NOTCH 		5-87814-109-0 01 1 0106-0106 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.35 2-NOTCH 		5-87814-166-1 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.45 3-NOTCH 		5-87814-110-0 01 1 9910-0105 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.45 3-NOTCH 		5-87814-110-0 01 1 0106-0106 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.40 3-NOTCH 		5-87814-167-1 01 1 0106-0112 ●
1 00.010 GASKET SET; ENG OVERHAUL
EUROPE EQUIPMENT(EK4) 		5-87813-755-2 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-053-0 01 1 9712-9909 ● ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-756-0 01 1 9910-0105 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),ARGENTINA EQUIPMENT(7SZ) 		5-87813-756-2 01 1 0106- ●
1 00.010 GASKET SET; ENG OVERHAUL 5-87813-756-2 01 1 0106- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.30 1-HOLE 		5-87814-139-0 01 1 0106-0208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.30 1-HOLE 		5-87814-139-0 01 1 0209- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.35 2-HOLE 		5-87814-140-0 01 1 0106-0208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.35 2-HOLE 		5-87814-140-0 01 1 0209- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EUROPE EQUIPMENT(EK4) T=1.40 3-HOLE 		5-87814-141-0 01 1 0106-0208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO3 SPECIFICATION(NT3) T=1.40 3-HOLE 		5-87814-141-0 01 1 0209- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-939-0 01 1 9712-0005 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-940-0 01 1 9712-0005 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-941-0 01 1 9712-0005 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.60 1-NOTCH 		5-87813-694-3 01 1 0006- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.65 2-NOTCH 		5-87813-695-3 01 1 0006- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
TURBOCHARGER<K51> T=1.70 3-NOTCH 		5-87813-696-3 01 1 0006- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87812-907-0 01 1 9712-0005 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87812-908-0 01 1 9712-0005 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87812-909-0 01 1 9712-0005 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.60 1-HOLE 		5-87813-705-3 01 1 0006- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.65 2-HOLE 		5-87813-706-3 01 1 0006- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. TURBOCHARGER<K51> T=1.70 3-HOLE 		5-87813-707-3 01 1 0006- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 1-NOTCH 		5-87813-387-0 01 1 9712-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 2-NOTCH 		5-87813-388-0 01 1 9712-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.45 3-NOTCH 		5-87813-389-0 01 1 9712-9908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 1-NOTCH 		5-87814-111-0 01 1 9909-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.35 1-NOTCH 		5-87814-111-0 01 1 0106-0106 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.30 1-NOTCH 		5-87814-168-1 01 1 0106-0208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO3 SPECIFICATION(NT3) T=1.30 1-NOTCH 		5-87814-168-1 01 1 0209- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 2-NOTCH 		5-87814-112-0 01 1 9909-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.40 2-NOTCH 		5-87814-112-0 01 1 0106-0106 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.35 2-NOTCH 		5-87814-169-1 01 1 0106-0208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO3 SPECIFICATION(NT3) T=1.35 2-NOTCH 		5-87814-169-1 01 1 0209- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.45 3-NOTCH 		5-87814-113-0 01 1 9909-0105 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.45 3-NOTCH 		5-87814-113-0 01 1 0106-0106 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EUROPE EQUIPMENT(EK4) T=1.40 3-NOTCH 		5-87814-170-1 01 1 0106-0208 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. EURO3 SPECIFICATION(NT3) T=1.40 3-NOTCH 		5-87814-170-1 01 1 0209- ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-054-0 01 1 9712-9909 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL 5-87813-757-2 01 1 9910- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
