◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#43348) — 27 parça
çizim 66248
42 7 4 5 42 7 4 5 2 3 3 3 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 00.782 BOLT; EYE,SLAVE CYL
M/T MUA 5 SPEED(RMN) 04.665 M10X22 		5-09675-017-0 01 1 9112- ● ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
M/T MUA 5 SPEED(RMN) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 9112- ● ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN) 		8-94436-216-0 01 1 9112- ● ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97066-439-0 01 1 9112-9504 ● ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97066-439-0 01 1 9505- ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97039-203-0 01 1 9112- ●
5 00.785 HOSE; FLEX,CLU PIPE
M/T MUA 5 SPEED(RMN) 		8-97020-579-1 01 1 9112- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9112- ● ● ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
00.829 		8-97069-911-0 01 1 9112-9308 ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97092-787-0 01 1 9309-9503 ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97130-249-0 01 1 9504-9504 ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97130-249-0 01 1 9505- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
00.829 		8-94425-108-2 01 1 9112- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT
M/T MUA 5 SPEED(RMN) 00.829 		8-97040-868-0 01 1 9112- ●

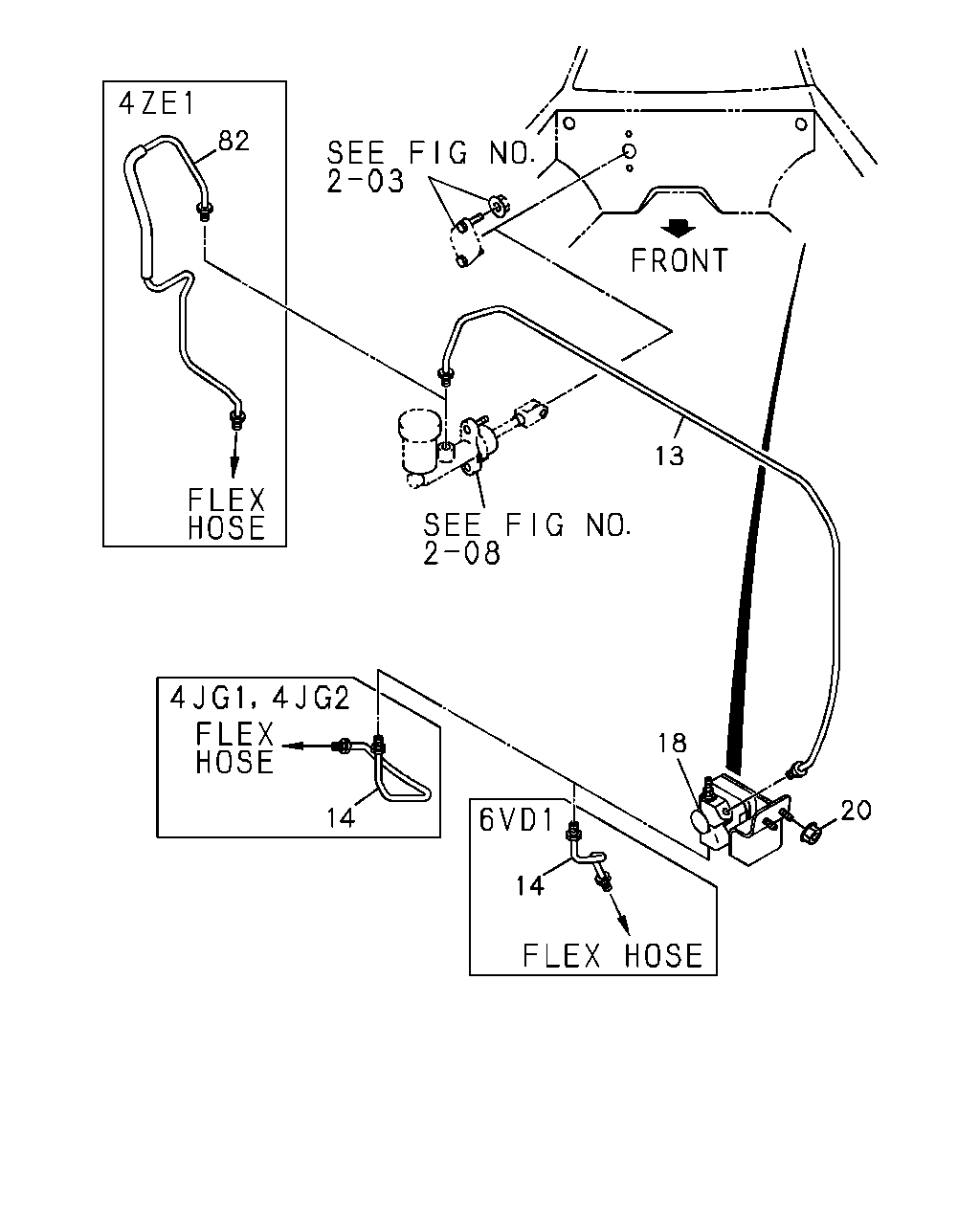

çizim 68397
82 13 18 20 14 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL 8-97066-881-1 01 1 9112-9504 ● ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL
M/T MUA 5 SPEED(RMN) EXC. ANTI LOCK BRAKE SYSTEM(JE5) 		8-97066-881-2 01 1 9505- ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL
M/T MUA 5 SPEED(RMN) ANTI LOCK BRAKE SYSTEM(JE5) 		8-97130-570-3 01 1 9505- ●
13 00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL
M/T MUA 5 SPEED(RMN) 		8-94374-846-4 01 1 9112- ●
14 00.785 PIPE ASM; OIL,OIL DAMPER TO SLAV 8-97066-883-1 01 1 9112-9504 ● ●
14 00.785 PIPE ASM; OIL,OIL DAMPER TO SLAV 8-97066-883-2 01 1 9505- ●
14 00.785 PIPE ASM; OIL,OIL DAMPER TO SLAV
M/T MUA 5 SPEED(RMN) 		8-97035-074-3 01 1 9112- ●
18 00.830 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED(RMN) 		8-97066-444-1 01 1 9112-9504 ● ● ●
18 00.830 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED(RMN) 		8-97066-444-1 01 1 9505-9506 ● ●
18 00.830 DAMPER ASM; CLU OIL
M/T MUA 5 SPEED(RMN) 		8-97132-841-0 01 1 9507- ● ●
20 00.837 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED(RMN) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9112-9504 ● ● ●
20 00.837 NUT; CLU OIL DAMPER
M/T MUA 5 SPEED(RMN) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9505- ● ●
82 00.785 PIPE; OIL,M/CYL TO FLEX HOSE 8-97038-955-1 01 1 9112- ●
