Sayfa 1-57 - Isuzu EPC

1-57 — EXHAUST THROTTLE BODY (#43345) — 172 parça

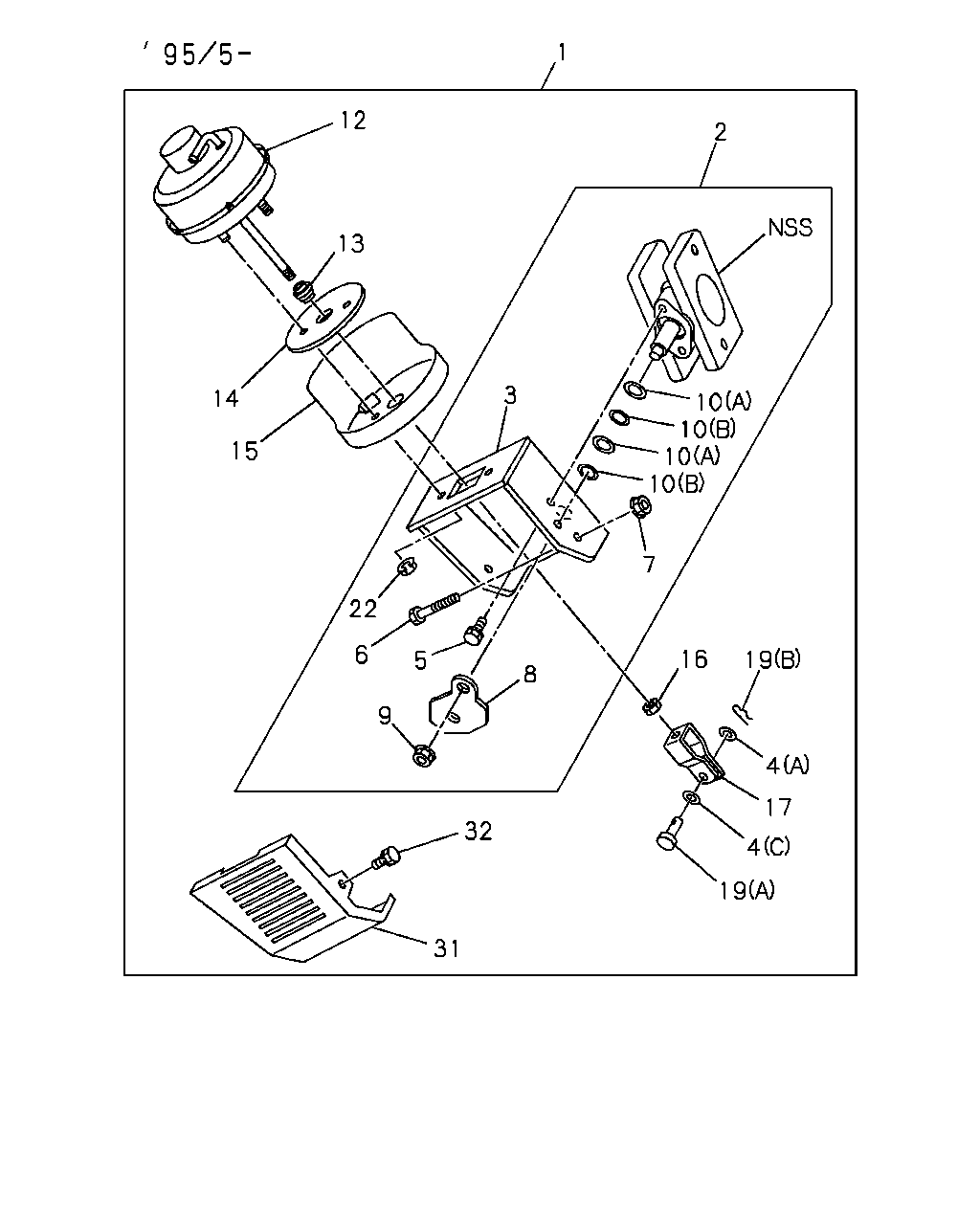

1 12 13 2 3 10 10 10 10 7 14 15 22 6 5 9 8 16 19 4 17 4 19 31 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.440 BODY ASM; EXH THROTTLE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97043-558-4	01	1	9112-9308
1	03.440 BODY ASM; EXH THROTTLE EUROPE EQUIPMENT(EK4)	8-97043-558-4	01	1	9309-9503
1	03.440 BODY ASM; EXH THROTTLE EUROPE EQUIPMENT(EK4)	8-97128-897-0	01	1	9504-9504
1	03.440 BODY ASM; EXH THROTTLE EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97128-896-1	01	1	9505-
2	03.440 BODY; EXH THROTTLE EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97129-575-1	01	1	9505-
3	03.444 BRACKET; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97065-621-0	01	1	9112-9308
3	03.444 BRACKET; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4)	8-97065-621-1	01	1	9309-9504
3	03.444 BRACKET; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97129-578-0	01	1	9505-
4	03.440 WASHER; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.425 (A)	8-94311-430-0	01	1	9112-9308
4	03.440 WASHER; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) 03.425 (A)	8-94311-430-0	01	1	9309-9504
4	03.440 WASHER; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 03.425 (A)	8-94311-430-0	01	1	9505-
4	03.440 WASHER; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (C)	8-97072-431-0	01	1	9112-9308
4	03.440 WASHER; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) (C)	8-97072-431-0	01	1	9309-9504
4	03.440 WASHER; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (C)	8-97112-939-0	01	1	9505-
4	03.440 WASHER; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 00.002 (B) ID=8.2	9-09150-508-0	06	1	9112-9308
4	03.440 WASHER; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) 00.002 (B) ID=8.2	9-09150-508-0	06	1	9309-9404
5	03.444 BOLT; BRKT TO VLV EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 00.206 M8X16	9-02050-816-0	04	1	9112-9308
5	03.444 BOLT; BRKT TO VLV EUROPE EQUIPMENT(EK4) 00.206 M8X16	9-02050-816-0	04	1	9309-9404
5	03.444 BOLT; BRKT TO VLV EUROPE EQUIPMENT(EK4)	1-22199-154-0	04	1	9405-9504
5	03.444 BOLT; BRKT TO VLV EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	1-22199-154-0	02	1	9505-
6	03.444 BOLT; BRKT,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97065-622-0	02	1	9112-9308
6	03.444 BOLT; BRKT,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4)	8-97065-622-0	02	1	9309-9504
6	03.444 BOLT; BRKT,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97065-622-0	02	1	9505-
7	03.444 NUT; LOCK,BOLT EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.425	8-94311-424-0	02	1	9112-9308
7	03.444 NUT; LOCK,BOLT EUROPE EQUIPMENT(EK4) 03.425	8-94311-424-0	02	1	9309-9504
7	03.444 NUT; LOCK,BOLT EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-94311-441-0	02	1	9505-
8	03.440 LEVER; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.431	8-94311-427-0	01	1	9112-9308
8	03.440 LEVER; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) 03.431	8-94311-427-0	01	1	9309-9504
8	03.440 LEVER; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97129-579-0	01	1	9505-
9	03.440 NUT; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 05.122	8-94311-428-0	02	1	9112-9308
9	03.440 NUT; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) 05.122	8-94311-428-0	02	1	9309-9404
9	03.440 NUT; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	9405-9504
9	03.440 NUT; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 00.777 M8 W/LK WASHER	8-94279-050-0	01	1	9505-
10	03.444 RING; SEAL,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 03.632 (B) ID=13	1-22189-009-0	02	1	9505-
10	03.444 RING; SEAL,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97130-338-0	02	1	9505-
12	03.440 CHAMBER; POWER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B)	8-97065-022-0	01	1	9112-9308
12	03.440 CHAMBER; POWER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) (B)	8-97065-022-0	01	1	9309-9503
12	03.440 CHAMBER; POWER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) (B)	8-97128-390-0	01	1	9504-9504
12	03.440 CHAMBER; POWER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (A)	8-97069-401-1	01	1	9112-9308
12	03.440 CHAMBER; POWER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) (A)	8-97069-401-2	01	1	9309-9503
12	03.440 CHAMBER; POWER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) (A)	8-97115-927-0	01	1	9504-9504
12	03.440 CHAMBER; POWER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97117-602-0	01	1	9505-
13	03.440 BEARING; POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.634	8-94383-629-0	01	1	9112-9308
13	03.440 BEARING; POWER CHAMBER EUROPE EQUIPMENT(EK4) 03.634	8-94383-629-0	01	1	9309-9504
13	03.440 BEARING; POWER CHAMBER EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-94311-446-0	01	1	9505-
14	03.440 GASKET; POWER CHAMBER EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 03.634	8-94328-234-0	01	1	9505-
15	03.440 INSULATOR; POWER CHAMBER EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97129-576-0	01	1	9505-
16	03.440 NUT; LK,POWER CHAMBER EUROPE EQUIPMENT(EK4) 05.122 (A)	8-94311-428-0	02	1	9309-9504
16	03.440 NUT; LK,POWER CHAMBER EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 03.636	9-88510-009-0	01	1	9505-
16	03.440 NUT; LK,POWER CHAMBER EUROPE EQUIPMENT(EK4) (B)	8-97039-201-0	02	1	9309-9504
16	03.440 NUT; LK,POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 05.122 (A)	8-94311-428-0	02	1	9112-9208
16	03.440 NUT; LK,POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B)	8-97039-201-0	02	1	9112-9208
16	03.440 NUT; LK,POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 05.122 (A)	8-94311-428-0	02	1	9209-9308
16	03.440 NUT; LK,POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B)	8-97039-201-0	02	1	9209-9308
17	03.440 CLEVIS; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 03.636	8-94428-084-0	01	1	9505-
19	03.440 PIN; LEVER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97010-295-1	01	1	9112-9308
19	03.440 PIN; LEVER EUROPE EQUIPMENT(EK4)	8-97010-295-1	01	1	9309-9504
19	03.440 PIN; LEVER EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 03.636 (A)	8-94311-452-0	01	1	9505-
19	03.440 PIN; LEVER EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97049-560-0	01	1	9505-
22	03.440 NUT; BRKT TO POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 05.122	8-94311-428-0	02	1	9112-9308
22	03.440 NUT; BRKT TO POWER CHAMBER EUROPE EQUIPMENT(EK4) 05.122	8-94311-428-0	02	1	9309-9504
22	03.440 NUT; BRKT TO POWER CHAMBER EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	9505-
31	03.440 COVER; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (A)	8-97065-627-0	01	1	9112-9308
31	03.440 COVER; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) (A)	8-97065-627-0	01	1	9309-9504
31	03.440 COVER; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97129-577-0	01	1	9505-
31	03.440 COVER; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B)	8-97065-628-0	01	1	9112-9308
31	03.440 COVER; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) (B)	8-97065-628-0	01	1	9309-9504
32	03.440 SCREW; COVER,THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97065-629-0	07	1	9112-9203
32	03.440 SCREW; COVER,THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97065-629-0	08	1	9204-9308
32	03.440 SCREW; COVER,THROTTLE BODY EUROPE EQUIPMENT(EK4)	8-97065-629-0	08	1	9309-9504
32	03.440 SCREW; COVER,THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97065-629-0	02	1	9505-

12 12 13 37 37 16 40 38 22 21 39 42 43 18 16 16 12 45 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.440 CHAMBER; POWER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B)	8-97065-022-0	01	1	9112-9308
12	03.440 CHAMBER; POWER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) (B)	8-97065-022-0	01	1	9309-9503
12	03.440 CHAMBER; POWER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) (B)	8-97128-390-0	01	1	9504-9504
12	03.440 CHAMBER; POWER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (A)	8-97069-401-1	01	1	9112-9308
12	03.440 CHAMBER; POWER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) (A)	8-97069-401-2	01	1	9309-9503
12	03.440 CHAMBER; POWER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) (A)	8-97115-927-0	01	1	9504-9504
12	03.440 CHAMBER; POWER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97117-602-0	01	1	9505-
13	03.440 BEARING; POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.634	8-94383-629-0	01	1	9112-9308
13	03.440 BEARING; POWER CHAMBER EUROPE EQUIPMENT(EK4) 03.634	8-94383-629-0	01	1	9309-9504
13	03.440 BEARING; POWER CHAMBER EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-94311-446-0	01	1	9505-
16	03.440 NUT; LK,POWER CHAMBER EUROPE EQUIPMENT(EK4) 05.122 (A)	8-94311-428-0	02	1	9309-9504
16	03.440 NUT; LK,POWER CHAMBER EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 03.636	9-88510-009-0	01	1	9505-
16	03.440 NUT; LK,POWER CHAMBER EUROPE EQUIPMENT(EK4) (B)	8-97039-201-0	02	1	9309-9504
16	03.440 NUT; LK,POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 05.122 (A)	8-94311-428-0	02	1	9112-9208
16	03.440 NUT; LK,POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B)	8-97039-201-0	02	1	9112-9208
16	03.440 NUT; LK,POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 05.122 (A)	8-94311-428-0	02	1	9209-9308
16	03.440 NUT; LK,POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B)	8-97039-201-0	02	1	9209-9308
18	03.440 BOLT; SET,POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9112-9308
18	03.440 BOLT; SET,POWER CHAMBER EUROPE EQUIPMENT(EK4) 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9309-9410
18	03.440 BOLT; SET,POWER CHAMBER EUROPE EQUIPMENT(EK4) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9411-9504
21	03.440 WASHER; BRKT TO POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 00.002 ID=8.2	9-09150-508-0	02	1	9112-9308
21	03.440 WASHER; BRKT TO POWER CHAMBER EUROPE EQUIPMENT(EK4) 00.002 ID=8.2	9-09150-508-0	02	1	9309-9504
22	03.440 NUT; BRKT TO POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 05.122	8-94311-428-0	02	1	9112-9308
22	03.440 NUT; BRKT TO POWER CHAMBER EUROPE EQUIPMENT(EK4) 05.122	8-94311-428-0	02	1	9309-9504
22	03.440 NUT; BRKT TO POWER CHAMBER EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	9505-
37	03.444 BRACKET; POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (A)	8-97065-023-0	01	1	9112-9308
37	03.444 BRACKET; POWER CHAMBER EUROPE EQUIPMENT(EK4) (A)	8-97065-023-0	01	1	9309-9504
37	03.444 BRACKET; POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B)	8-97065-027-0	01	1	9112-9308
37	03.444 BRACKET; POWER CHAMBER EUROPE EQUIPMENT(EK4) (B)	8-97065-027-0	01	1	9309-9504
38	03.444 BOOT; POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97065-024-0	01	1	9112-9308
38	03.444 BOOT; POWER CHAMBER EUROPE EQUIPMENT(EK4)	8-97065-024-0	01	1	9309-9503
39	03.444 RETAINER; POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.440	8-97065-025-0	01	1	9112-9308
39	03.444 RETAINER; POWER CHAMBER EUROPE EQUIPMENT(EK4) 03.440	8-97065-025-0	01	1	9309-9504
40	03.444 JOINT; POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97065-026-0	01	1	9112-9308
40	03.444 JOINT; POWER CHAMBER EUROPE EQUIPMENT(EK4)	8-97065-026-0	01	1	9309-9504
42	03.444 BOLT; COVER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9112-9308
42	03.444 BOLT; COVER EUROPE EQUIPMENT(EK4) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9309-9504
43	03.440 COVER; POWER CHAMBER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.444	8-97065-028-0	01	1	9112-9308
43	03.440 COVER; POWER CHAMBER EUROPE EQUIPMENT(EK4) 03.444	8-97065-028-0	01	1	9309-9504
45	03.445 HOSE; CHAMBER TO PIPE EUROPE EQUIPMENT(EK4) 08.962 (A) L=170 SERVICED BY L=3000	0-04730-300-0	01	1	9309-9503
45	03.445 HOSE; CHAMBER TO PIPE EUROPE EQUIPMENT(EK4) 08.962 (A) L=190 SERVICED BY L=3000	0-04731-300-0	01	1	9504-9504
45	03.445 HOSE; CHAMBER TO PIPE EUROPE EQUIPMENT(EK4) 08.962 (B) L=190 SERVICED BY L=3000	0-04731-300-0	01	1	9309-9503
45	03.445 HOSE; CHAMBER TO PIPE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 08.962 (A) L=170 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9308
45	03.445 HOSE; CHAMBER TO PIPE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 08.962 (B) L=190 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9308

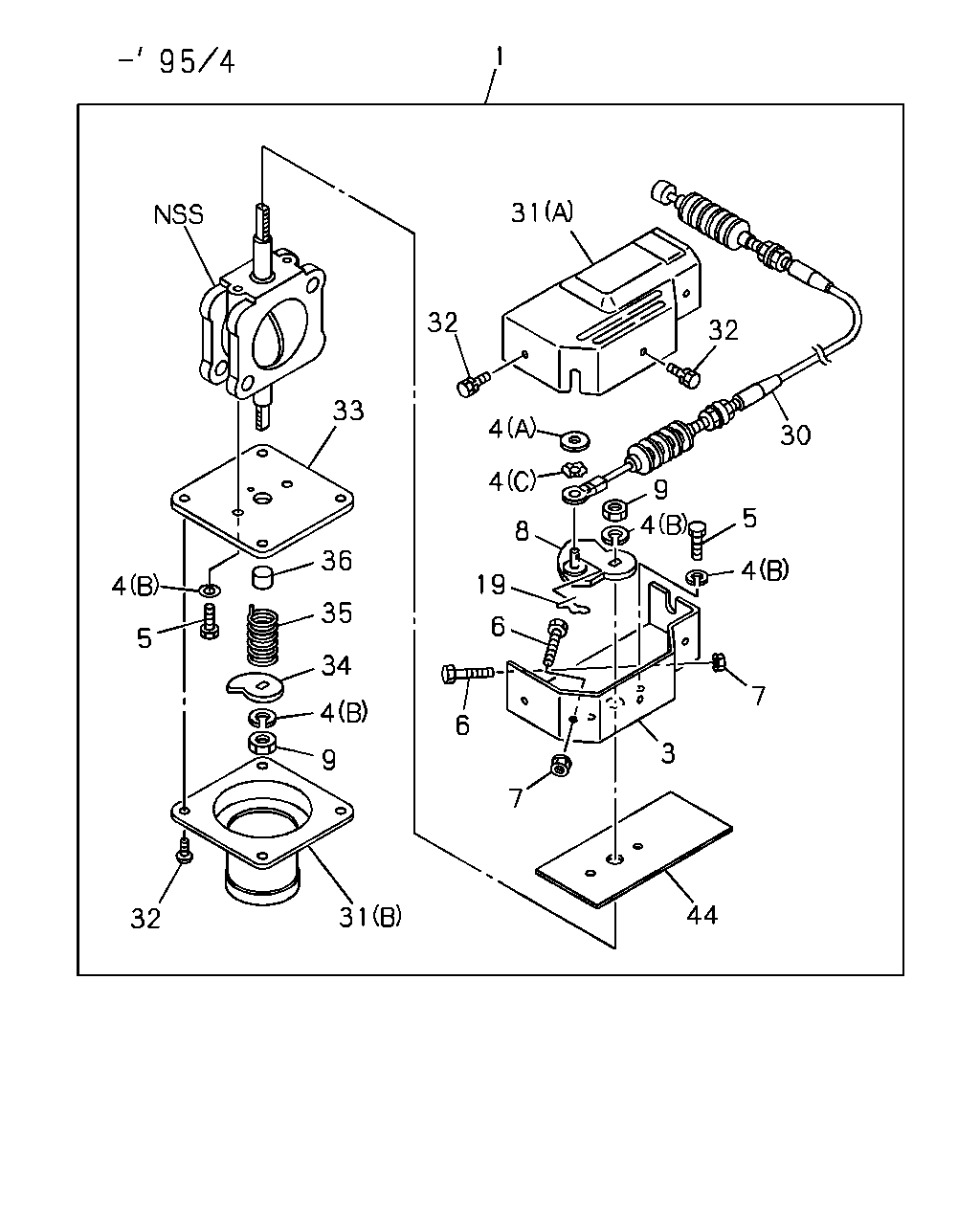

1 31 32 33 4 5 36 35 34 4 9 32 31 44 3 7 6 6 19 4 4 8 7 4 4 5 9 30 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.440 BODY ASM; EXH THROTTLE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97043-558-4	01	1	9112-9308
1	03.440 BODY ASM; EXH THROTTLE EUROPE EQUIPMENT(EK4)	8-97043-558-4	01	1	9309-9503
1	03.440 BODY ASM; EXH THROTTLE EUROPE EQUIPMENT(EK4)	8-97128-897-0	01	1	9504-9504
1	03.440 BODY ASM; EXH THROTTLE EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97128-896-1	01	1	9505-
3	03.444 BRACKET; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97065-621-0	01	1	9112-9308
3	03.444 BRACKET; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4)	8-97065-621-1	01	1	9309-9504
3	03.444 BRACKET; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97129-578-0	01	1	9505-
4	03.440 WASHER; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.425 (A)	8-94311-430-0	01	1	9112-9308
4	03.440 WASHER; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) 03.425 (A)	8-94311-430-0	01	1	9309-9504
4	03.440 WASHER; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 03.425 (A)	8-94311-430-0	01	1	9505-
4	03.440 WASHER; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (C)	8-97072-431-0	01	1	9112-9308
4	03.440 WASHER; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) (C)	8-97072-431-0	01	1	9309-9504
4	03.440 WASHER; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (C)	8-97112-939-0	01	1	9505-
4	03.440 WASHER; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 00.002 (B) ID=8.2	9-09150-508-0	06	1	9112-9308
4	03.440 WASHER; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) 00.002 (B) ID=8.2	9-09150-508-0	06	1	9309-9404
5	03.444 BOLT; BRKT TO VLV EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 00.206 M8X16	9-02050-816-0	04	1	9112-9308
5	03.444 BOLT; BRKT TO VLV EUROPE EQUIPMENT(EK4) 00.206 M8X16	9-02050-816-0	04	1	9309-9404
5	03.444 BOLT; BRKT TO VLV EUROPE EQUIPMENT(EK4)	1-22199-154-0	04	1	9405-9504
5	03.444 BOLT; BRKT TO VLV EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	1-22199-154-0	02	1	9505-
6	03.444 BOLT; BRKT,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97065-622-0	02	1	9112-9308
6	03.444 BOLT; BRKT,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4)	8-97065-622-0	02	1	9309-9504
6	03.444 BOLT; BRKT,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97065-622-0	02	1	9505-
7	03.444 NUT; LOCK,BOLT EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.425	8-94311-424-0	02	1	9112-9308
7	03.444 NUT; LOCK,BOLT EUROPE EQUIPMENT(EK4) 03.425	8-94311-424-0	02	1	9309-9504
7	03.444 NUT; LOCK,BOLT EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-94311-441-0	02	1	9505-
8	03.440 LEVER; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.431	8-94311-427-0	01	1	9112-9308
8	03.440 LEVER; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) 03.431	8-94311-427-0	01	1	9309-9504
8	03.440 LEVER; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97129-579-0	01	1	9505-
9	03.440 NUT; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 05.122	8-94311-428-0	02	1	9112-9308
9	03.440 NUT; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) 05.122	8-94311-428-0	02	1	9309-9404
9	03.440 NUT; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) 00.777 M8 W/LK WASHER	8-94279-050-0	02	1	9405-9504
9	03.440 NUT; LEVER,EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 00.777 M8 W/LK WASHER	8-94279-050-0	01	1	9505-
19	03.440 PIN; LEVER EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97010-295-1	01	1	9112-9308
19	03.440 PIN; LEVER EUROPE EQUIPMENT(EK4)	8-97010-295-1	01	1	9309-9504
19	03.440 PIN; LEVER EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 03.636 (A)	8-94311-452-0	01	1	9505-
19	03.440 PIN; LEVER EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97049-560-0	01	1	9505-
30	03.440 CABLE; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97065-626-0	01	1	9112-9308
30	03.440 CABLE; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4)	8-97065-626-0	01	1	9309-9504
31	03.440 COVER; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (A)	8-97065-627-0	01	1	9112-9308
31	03.440 COVER; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) (A)	8-97065-627-0	01	1	9309-9504
31	03.440 COVER; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97129-577-0	01	1	9505-
31	03.440 COVER; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B)	8-97065-628-0	01	1	9112-9308
31	03.440 COVER; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4) (B)	8-97065-628-0	01	1	9309-9504
32	03.440 SCREW; COVER,THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97065-629-0	07	1	9112-9203
32	03.440 SCREW; COVER,THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97065-629-0	08	1	9204-9308
32	03.440 SCREW; COVER,THROTTLE BODY EUROPE EQUIPMENT(EK4)	8-97065-629-0	08	1	9309-9504
32	03.440 SCREW; COVER,THROTTLE BODY EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97065-629-0	02	1	9505-
33	03.440 PLATE; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97065-623-0	01	1	9112-9308
33	03.440 PLATE; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4)	8-97065-623-0	01	1	9309-9504
34	03.440 ARM; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97065-625-0	01	1	9112-9308
34	03.440 ARM; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4)	8-97065-625-0	01	1	9309-9504
35	03.440 SPRING; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97065-624-0	01	1	9112-9308
35	03.440 SPRING; EXH THROTTLE BODY EUROPE EQUIPMENT(EK4)	8-97065-624-0	01	1	9309-9504
36	03.440 RETAINER; SPRING,THROTTLE BODY EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.425	8-94311-425-0	01	1	9112-9308
36	03.440 RETAINER; SPRING,THROTTLE BODY EUROPE EQUIPMENT(EK4) 03.425	8-94311-425-0	01	1	9309-9504
44	03.444 INSULATOR; BRKT EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97072-432-0	01	1	9204-9308
44	03.444 INSULATOR; BRKT EUROPE EQUIPMENT(EK4)	8-97072-432-0	01	1	9309-9504

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
