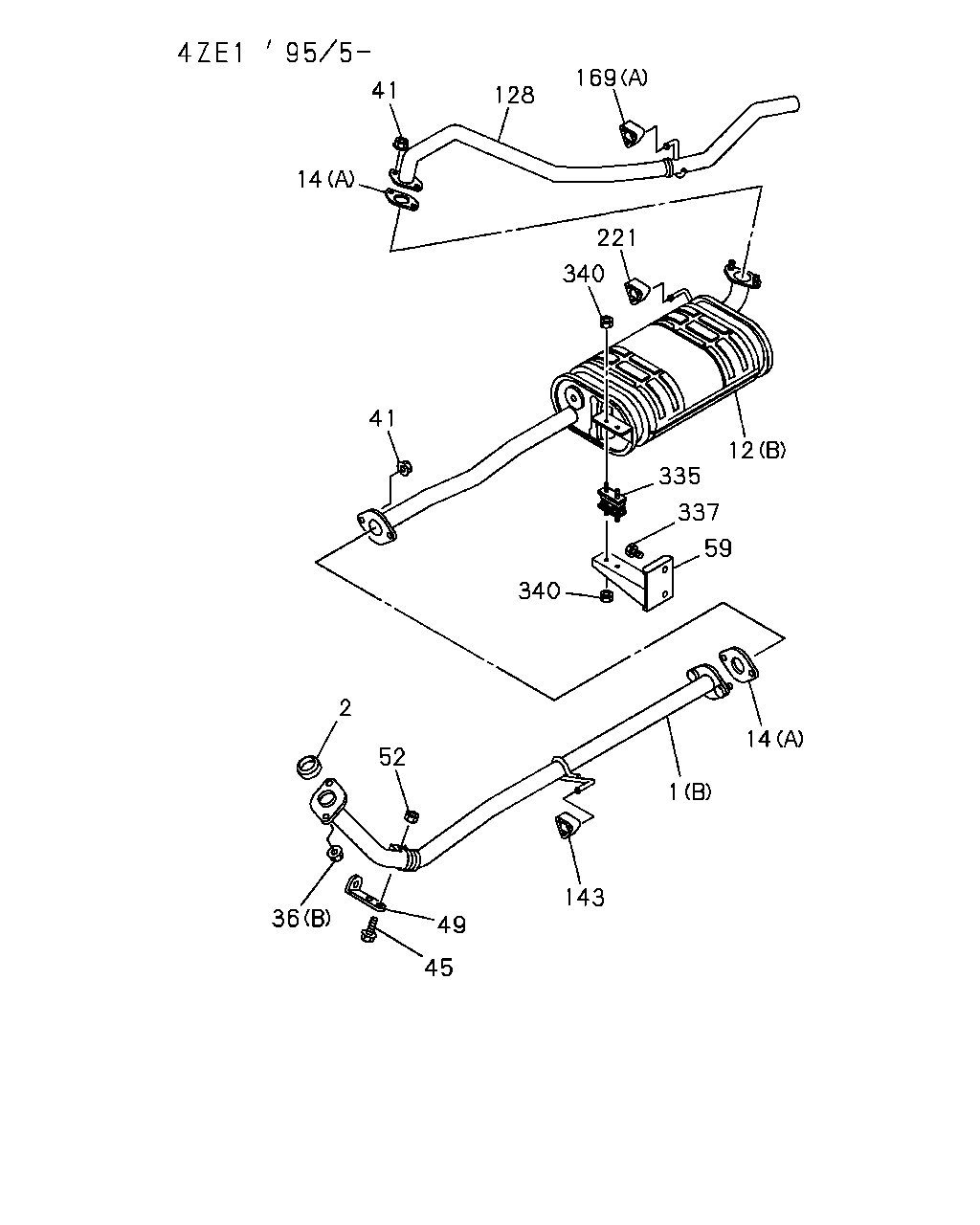

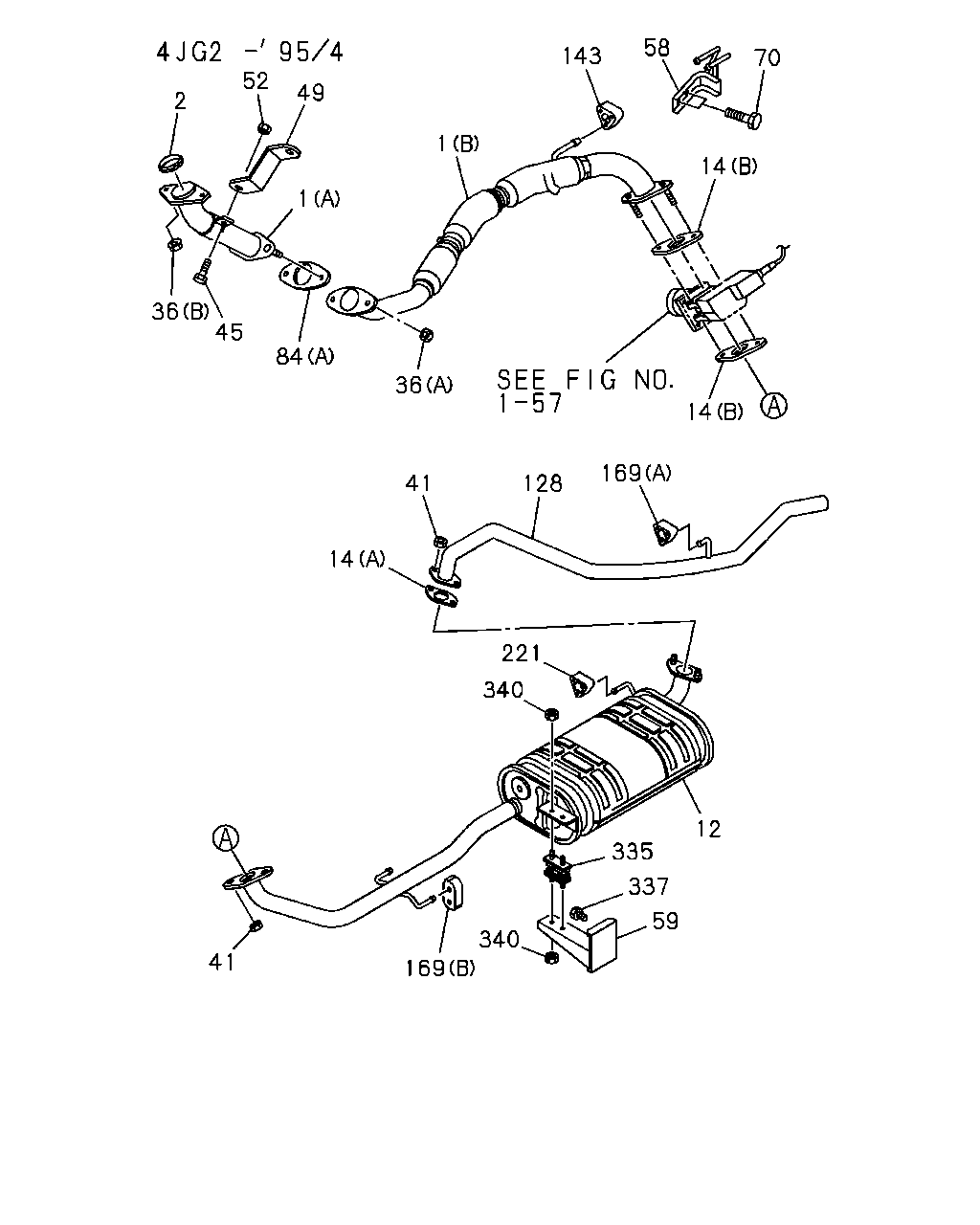

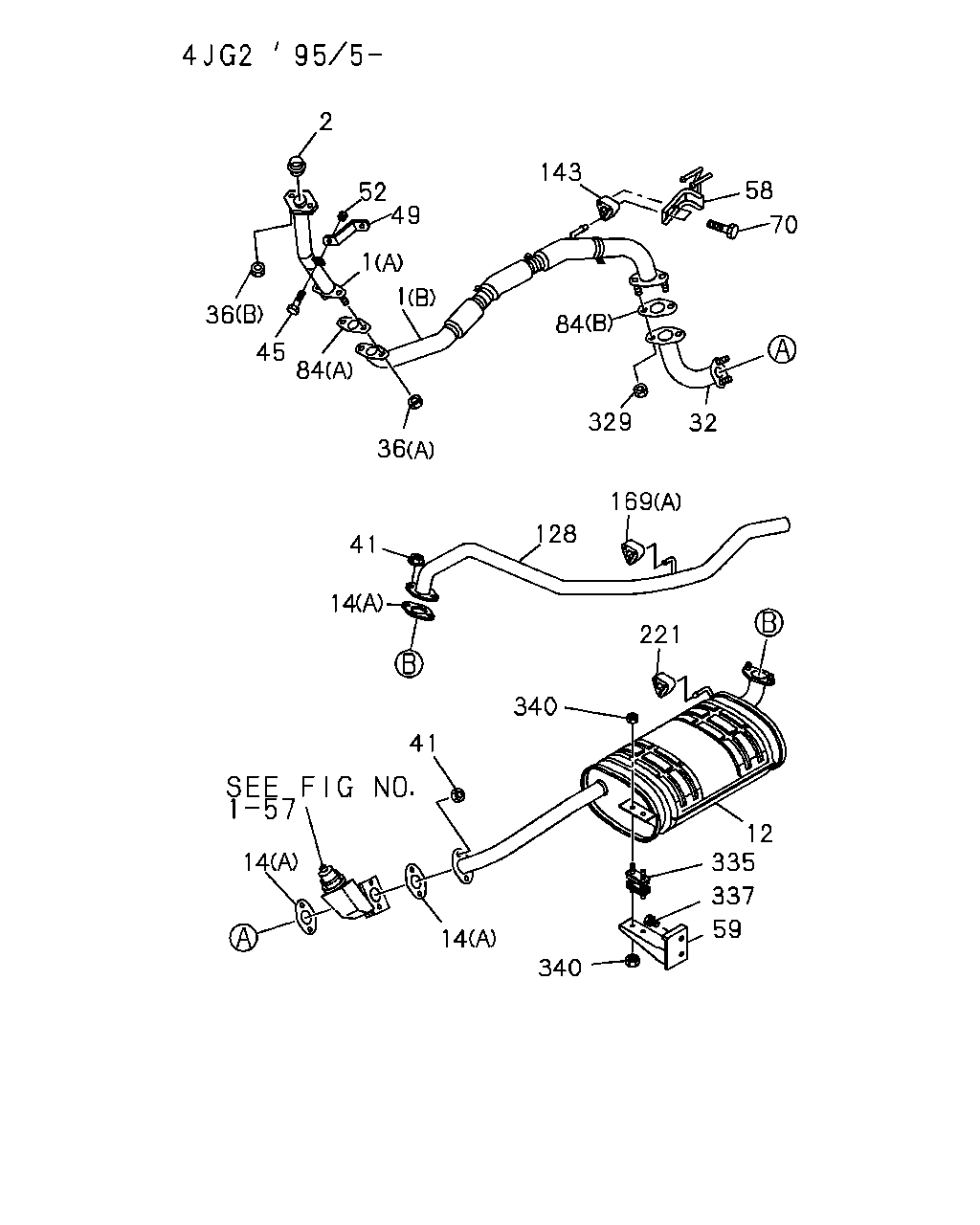

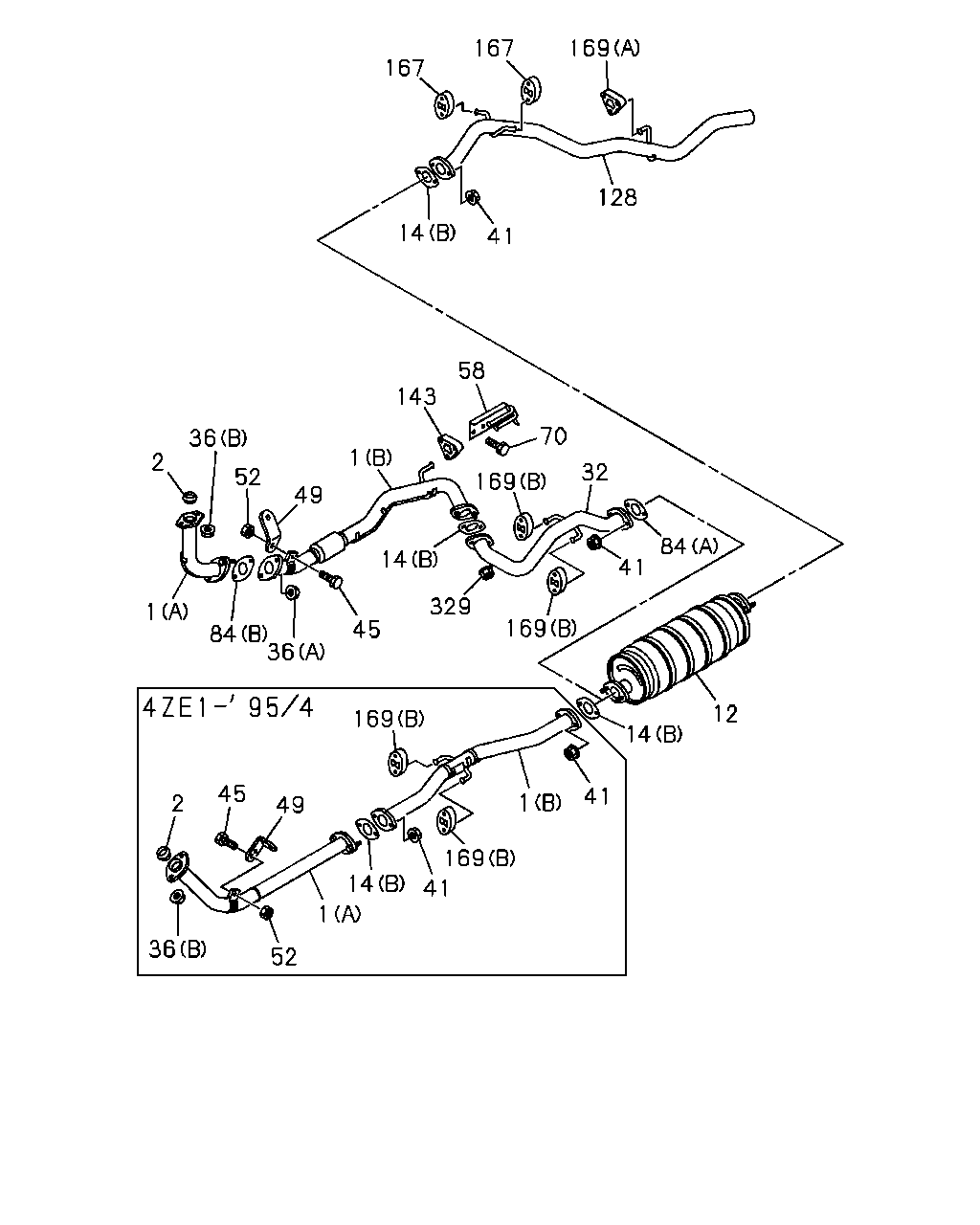

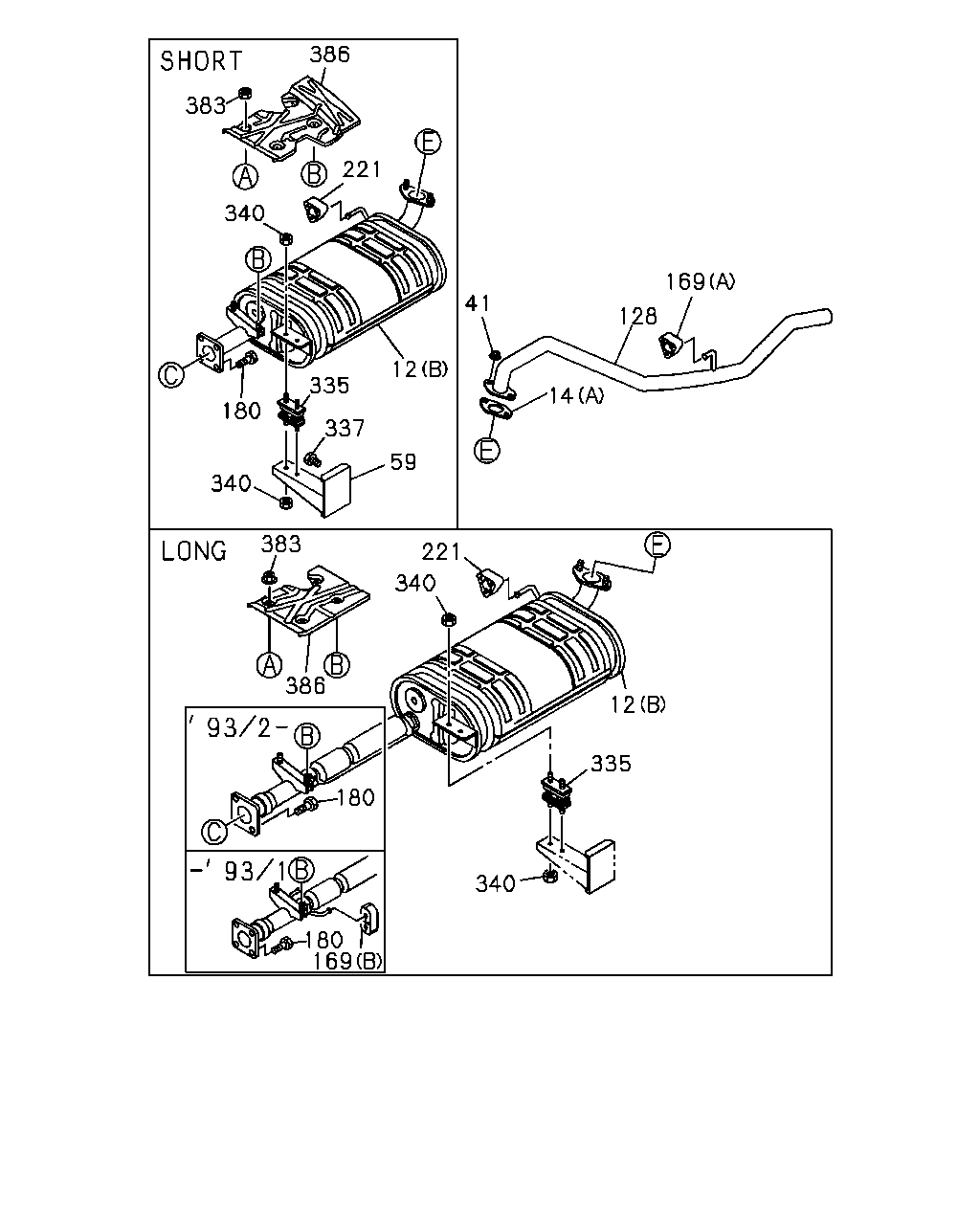

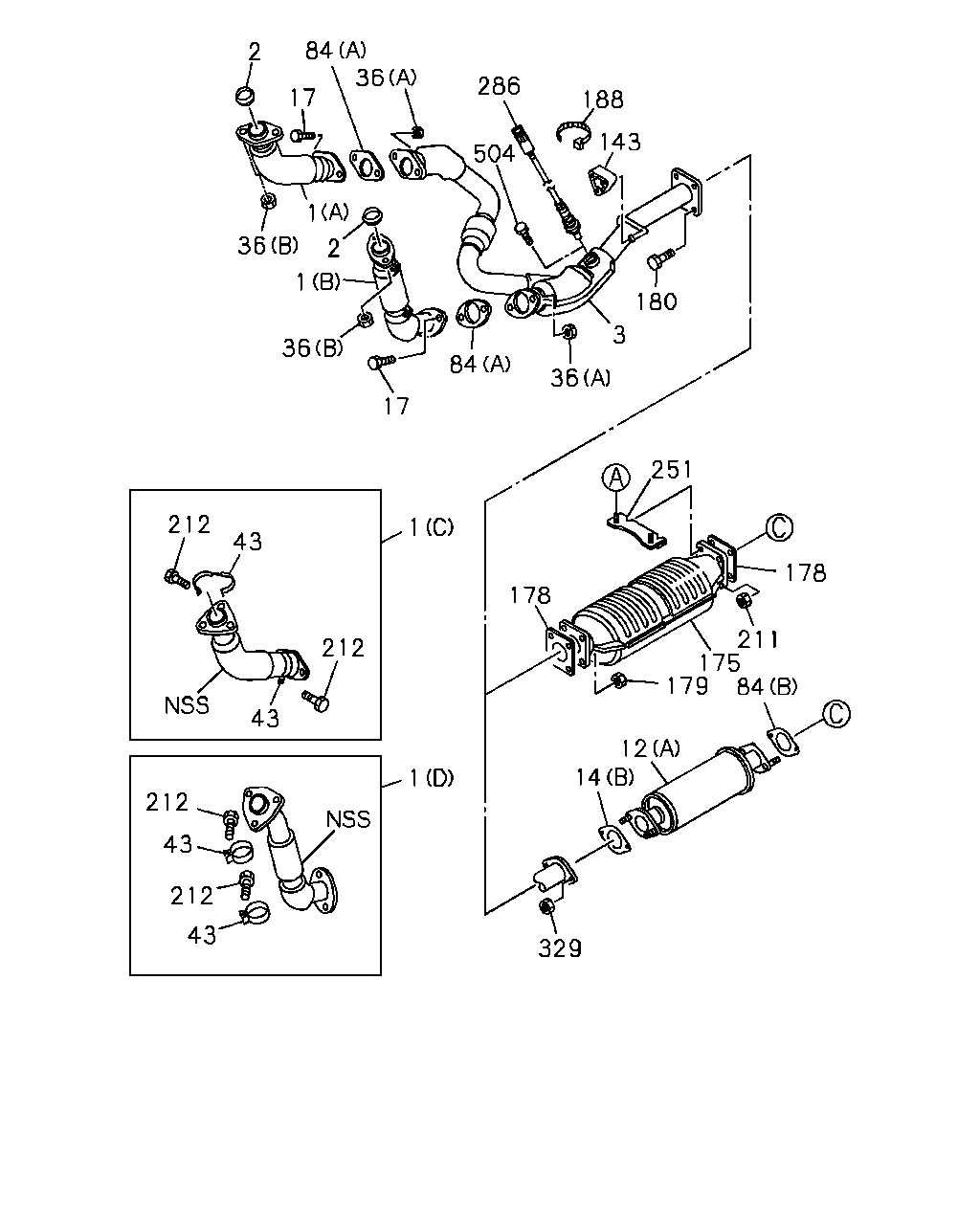

1-50 — EXHAUST PIPE AND SILENCER (#43344) — 1025 parça

2 84 17 36 286 188 504 143 180 3 36 84 17 1 36 2 1 36 212 43 1 212 43 1 212 43 212 43 329 14 12 178 251 178 211 175 179 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.609 PIPE; EXH (A)	8-94369-041-2	01	1	9112-9504	●
1	03.609 PIPE; EXH (B)	8-97022-844-1	01	1	9112-9404	●
1	03.609 PIPE; EXH (B)	8-97111-857-0	01	1	9405-9504	●
1	03.609 PIPE; EXH (A)	8-97037-890-1	01	1	9112-9504		●
1	03.609 PIPE; EXH TURBOCHARGER<K51> (A)	8-97114-606-0	01	1	9505-		●
1	03.609 PIPE; EXH EXC. TURBOCHARGER<K51> (A)	8-97126-077-0	01	1	9505-		●
1	03.609 PIPE; EXH EUROPE EQUIPMENT(EK4) (B)	8-97043-596-4	01	1	9112-9504		●
1	03.609 PIPE; EXH TURBOCHARGER<K51> (B)	8-97126-884-1	01	1	9505-		●
1	03.609 PIPE; EXH EXC. EUROPE EQUIPMENT(EK4) (B)	8-97061-461-3	01	1	9112-9504		●
1	03.609 PIPE; EXH EXC. TURBOCHARGER<K51> (B)	8-97126-886-0	01	1	9505-		●
1	03.609 PIPE; EXH (A)	8-97022-845-0	01	1	9112-9504			●
1	03.609 PIPE; EXH SHORT(UB***C) (B)	8-97022-847-1	01	1	9112-9504			●
1	03.609 PIPE; EXH SHORT(UB***C) (B)	8-97111-400-1	01	1	9505-			●
1	03.609 PIPE; EXH LONG(UB***F) (B)	8-97022-846-1	01	1	9112-9504			●
1	03.609 PIPE; EXH LONG(UB***F) (B)	8-97111-399-0	01	1	9505-			●
1	03.609 PIPE; EXH (A)	8-97030-276-1	01	1	9112-9301				●
1	03.609 PIPE; EXH EXC. CATALYSIS CONTROL(6MZ) (B)	8-97093-320-0	01	1	9302-9308				●
1	03.609 PIPE; EXH CATALYSIS CONTROL(6MZ) (A)	8-97093-319-0	01	1	9302-9308				●
1	03.609 PIPE; EXH (A)	8-97093-319-1	01	1	9309-9510				●
1	03.609 PIPE; EXH (C)	8-97127-477-1	01	1	9511-				●
1	03.609 PIPE; EXH A/T THM(RMQ) (B)	8-97030-280-1	01	1	9112-9301				●
1	03.609 PIPE; EXH A/T THM(RMQ) (B)	8-97093-322-1	01	1	9302-9510				●
1	03.609 PIPE; EXH A/T THM(RMQ) (D)	8-97127-479-1	01	1	9511-				●
1	03.609 PIPE; EXH M/T MUA 5 SPEED(RMN) (B)	8-97030-277-1	01	1	9112-9301				●
1	03.609 PIPE; EXH M/T MUA 5 SPEED(RMN) (B)	8-97093-321-1	01	1	9302-9510				●
1	03.609 PIPE; EXH M/T MUA 5 SPEED(RMN) (D)	8-97127-478-1	01	1	9511-				●
2	03.611 GASKET; PIPE TO MANIF	8-94329-529-0	01	1	9112-9112	●	●	●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9201-9504	●	●	●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9505-		●	●
2	03.611 GASKET; PIPE TO MANIF	8-94329-529-0	02	1	9112-9112				●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	02	1	9201-9510				●
2	03.611 GASKET; PIPE TO MANIF	8-97102-031-1	02	1	9511-				●
3	03.609 PIPE; EXH,CENTER A/T THM(RMQ) CATALYSIS CONTROL(6MZ)	8-97048-577-0	01	1	9112-9301				●
3	03.609 PIPE; EXH,CENTER A/T THM(RMQ) CATALYSIS CONTROL(6MZ)	8-97093-325-0	01	1	9302-9308				●
3	03.609 PIPE; EXH,CENTER A/T THM(RMQ) EXC. CATALYSIS CONTROL(6MZ)	8-97048-578-0	01	1	9112-9301				●
3	03.609 PIPE; EXH,CENTER A/T THM(RMQ) EXC. CATALYSIS CONTROL(6MZ)	8-97093-330-0	01	1	9302-9308				●
3	03.609 PIPE; EXH,CENTER A/T THM(RMQ)	8-97093-325-0	01	1	9309-				●
3	03.609 PIPE; EXH,CENTER M/T MUA 5 SPEED(RMN) CATALYSIS CONTROL(6MZ)	8-97048-579-3	01	1	9112-9301				●
3	03.609 PIPE; EXH,CENTER M/T MUA 5 SPEED(RMN) CATALYSIS CONTROL(6MZ)	8-97093-323-0	01	1	9302-9308				●
3	03.609 PIPE; EXH,CENTER M/T MUA 5 SPEED(RMN) EXC. CATALYSIS CONTROL(6MZ)	8-97048-580-3	01	1	9112-9301				●
3	03.609 PIPE; EXH,CENTER M/T MUA 5 SPEED(RMN) EXC. CATALYSIS CONTROL(6MZ)	8-97093-328-0	01	1	9302-9308				●
3	03.609 PIPE; EXH,CENTER M/T MUA 5 SPEED(RMN)	8-97093-323-0	01	1	9309-				●
12	03.701 SILENCER ASM; EXH	8-97031-660-1	01	1	9112-9504	●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97043-595-5	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-582-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) RR COIL & LINK SUSPENSION<6SV>	8-97092-582-1	01	1	9309-9504		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C)	8-97111-398-1	01	1	9505-9601		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C)	8-97133-911-0	01	1	9602-9608		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C)	8-97165-833-0	01	1	9609-		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-915-4	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-583-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97043-594-5	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-580-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) RR COIL & LINK SUSPENSION<6SV>	8-97092-580-1	01	1	9309-9504		●
12	03.701 SILENCER ASM; EXH LONG(UB***F)	8-97111-397-1	01	1	9505-9601		●
12	03.701 SILENCER ASM; EXH LONG(UB***F)	8-97133-910-0	01	1	9602-9608		●
12	03.701 SILENCER ASM; EXH LONG(UB***F)	8-97165-834-0	01	1	9609-		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-916-4	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-581-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH	8-97031-659-1	01	1	9112-9501			●
12	03.701 SILENCER ASM; EXH	8-97125-944-0	01	1	9502-9504			●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97092-579-0	01	1	9505-9508			●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97130-508-0	01	1	9509-9608			●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97165-831-0	01	1	9609-			●
12	03.701 SILENCER ASM; EXH EXC. CATALYSIS CONTROL(6MZ) (A)	8-97029-575-0	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH EXC. CATALYSIS CONTROL(6MZ) (A)	8-97070-149-0	01	1	9209-9308				●
12	03.701 SILENCER ASM; EXH EXC. CATALYSIS CONTROL(6MZ) (A)	8-97103-020-0	01	1	9309-				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B)	8-97047-911-3	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B)	8-97070-148-1	01	1	9209-9301				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B)	8-97092-578-1	01	1	9302-9504				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97092-578-1	01	1	9505-9508				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97130-507-0	01	1	9509-9601				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97130-507-0	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97165-829-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97047-912-3	01	1	9112-9301				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97092-579-0	01	1	9302-9504				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B)	8-97134-606-1	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B)	8-97165-838-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97047-913-3	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97070-146-1	01	1	9209-9301				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97092-575-2	01	1	9302-9508				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97130-505-0	01	1	9509-9601				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97130-505-0	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97165-830-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97047-914-3	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97070-174-1	01	1	9209-9301				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97092-576-0	01	1	9302-9504				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) (B)	8-97092-576-0	01	1	9505-9508			●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97092-576-0	01	1	9505-9508				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) (B)	8-97130-506-0	01	1	9509-9608			●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97130-506-0	01	1	9509-9608				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) (B)	8-97165-832-0	01	1	9609-			●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97165-832-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4) (B)	8-97134-605-1	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4) (B)	8-97165-839-0	01	1	9609-				●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9504	●		●
14	03.704 GASKET; SILENCER TO EXH PIPE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9301		●
14	03.704 GASKET; SILENCER TO EXH PIPE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.611 (B) ID=55	8-97093-574-0	02	1	9302-9308		●
14	03.704 GASKET; SILENCER TO EXH PIPE EUROPE EQUIPMENT(EK4) 03.611 (B) ID=55	8-97093-574-0	02	1	9309-9504		●
14	03.704 GASKET; SILENCER TO EXH PIPE ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7	8-94328-352-0	02	1	9505-		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	9112-9504		●		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	9505-		●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7	8-94328-352-0	01	1	9505-		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	9505-			●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CATALYSIS CONTROL(6MZ) (A) ID=64.7	8-94328-352-0	01	1	9505-				●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9112-9208	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9209-9301		●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.611 (B) ID=55	8-97093-574-0	01	1	9302-9308		●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4) 03.611 (B) ID=55	8-97093-574-0	01	1	9309-9504		●
17	03.613 BOLT; EXH PIPE A/T THM(RMQ) M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9112-9301				●
17	03.613 BOLT; EXH PIPE A/T THM(RMQ) 00.685 M10X35 FLANGE	0-28081-035-0	04	1	9302-9410				●
17	03.613 BOLT; EXH PIPE A/T THM(RMQ) M10X40 FLANGE	0-28681-040-0	04	1	9411-				●
17	03.613 BOLT; EXH PIPE M/T MUA 5 SPEED(RMN) M10X30 W/LK&PL WASHER	0-50141-030-0	03	1	9112-9301				●
17	03.613 BOLT; EXH PIPE M/T MUA 5 SPEED(RMN) 00.685 M10X35 FLANGE	0-28081-035-0	03	1	9302-9410				●
17	03.613 BOLT; EXH PIPE M/T MUA 5 SPEED(RMN) M10X40 FLANGE	0-28681-040-0	03	1	9411-				●
36	03.613 NUT; EXH PIPE 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9112-9504	●	●
36	03.613 NUT; EXH PIPE 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9505-		●
36	03.613 NUT; EXH PIPE 00.004 (B) M10 LOCK NUT	8-94375-110-0	02	1	9112-9305	●	●	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	02	1	9306-9504	●	●	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	02	1	9505-		●	●
36	03.613 NUT; EXH PIPE 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9112-				●
36	03.613 NUT; EXH PIPE 00.004 (B) M10 LOCK NUT	8-94375-110-0	04	1	9112-9305				●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	04	1	9306-9510				●
36	03.613 NUT; EXH PIPE (B) M12 LK W/FLANGE	8-97102-030-0	06	1	9511-9702				●
36	03.613 NUT; EXH PIPE (B) M12 FLANGE	8-97170-524-1	06	1	9703-				●
43	03.611 CLAMP; EXH PIPE 03.708	8-94472-880-0	02	1	9705-				●
43	03.611 CLAMP; EXH PIPE 03.708	8-94472-880-0	02	1	9705-				●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9112-9208	●	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9208				●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9209-9301	●	●
84	03.611 GASKET; EXH PIPE (A) ID=55	8-97093-574-0	01	1	9302-9504	●	●
84	03.611 GASKET; EXH PIPE (A) ID=55	8-97093-574-0	01	1	9505-		●
84	03.611 GASKET; EXH PIPE 03.704 (B) ID=64.7	8-94328-352-0	01	1	9505-		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9209-9301				●
84	03.611 GASKET; EXH PIPE (A) ID=55	8-97093-574-0	02	1	9302-				●
84	03.611 GASKET; EXH PIPE EXC. CATALYSIS CONTROL(6MZ) 03.704 (B) ID=64.7	8-94328-352-0	01	1	9112-9308				●
143	03.704 RUBBER; SUPPORT 03.706	8-97021-581-0	01	1	9112-9301	●	●		●
143	03.704 RUBBER; SUPPORT	8-97080-694-0	01	1	9302-9504	●	●		●
143	03.704 RUBBER; SUPPORT	8-97080-694-0	01	1	9505-		●	●	●
175	03.685 CONVERTER; CATALYST AUSTRALIA EQUIPMENT(RR3)	8-94388-862-1	01	1	9112-9208				●
175	03.685 CONVERTER; CATALYST AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D)	8-94388-862-3	01	1	9209-9607				●
175	03.685 CONVERTER; CATALYST EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D)	8-94388-862-3	01	1	9608-				●
175	03.685 CONVERTER; CATALYST EUROPE EQUIPMENT(EK4)	8-97032-881-2	01	1	9112-9212				●
175	03.685 CONVERTER; CATALYST EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2)	8-97032-881-2	01	1	9301-9303				●
175	03.685 CONVERTER; CATALYST EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. SOUTH AFRICA EQUIPMENT(SW2)	8-97032-881-2	01	1	9304-9308				●
175	03.685 CONVERTER; CATALYST EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9)	8-97032-881-3	01	1	9309-				●
178	03.611 GASKET; CONV TO MANIF EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) ID=71	8-94324-194-0	02	1	9112-9208				●
178	03.611 GASKET; CONV TO MANIF EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) ID=71	8-94324-194-0	02	1	9209-9212				●
178	03.611 GASKET; CONV TO MANIF EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) ID=71	8-94324-194-0	02	1	9301-9303				●
178	03.611 GASKET; CONV TO MANIF EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) ID=71	8-94324-194-0	02	1	9305-9308				●
178	03.611 GASKET; CONV TO MANIF EXC. CATALYSIS CONTROL(6MZ) ID=71	8-94324-194-0	01	1	9309-				●
178	03.611 GASKET; CONV TO MANIF EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) ID=71	8-94324-194-0	02	1	9309-9607				●
178	03.611 GASKET; CONV TO MANIF EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) ID=71	8-94324-194-0	02	1	9608-				●
179	03.611 NUT; CONV TO PIPE CATALYSIS CONTROL(6MZ) 03.613 M10	8-94201-308-1	04	1	9112-9308				●
179	03.611 NUT; CONV TO PIPE 03.613 M10	8-94201-308-1	04	1	9309-				●
180	03.708 BOLT; CONV TO PIPE CATALYSIS CONTROL(6MZ)	0-28211-040-0	08	1	9112-9204				●
180	03.708 BOLT; CONV TO PIPE CATALYSIS CONTROL(6MZ) M10X40	0-28281-040-0	08	1	9205-9308				●
180	03.708 BOLT; CONV TO PIPE M10X40	0-28281-040-0	04	1	9309-9410				●
180	03.708 BOLT; CONV TO PIPE CATALYSIS CONTROL(6MZ) M10X40	0-28281-040-0	04	1	9309-9410				●
180	03.708 BOLT; CONV TO PIPE 03.613 M10X40 FLANGE	0-28681-040-0	04	1	9411-				●
180	03.708 BOLT; CONV TO PIPE CATALYSIS CONTROL(6MZ) 03.613 M10X40 FLANGE	0-28681-040-0	04	1	9411-				●
188	03.682 CLIP; OXYGEN SENSOR EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.162 L=140	5-09707-031-0	01	1	9112-9208				●
188	03.682 CLIP; OXYGEN SENSOR EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 03.162 L=140	5-09707-031-0	01	1	9209-9212				●
188	03.682 CLIP; OXYGEN SENSOR EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) 03.162 L=140	5-09707-031-0	01	1	9301-9303				●
188	03.682 CLIP; OXYGEN SENSOR EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2) 03.162 L=140	5-09707-031-0	01	1	9304-9308				●
188	03.682 CLIP; OXYGEN SENSOR EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) 03.162 L=140	5-09707-031-0	01	1	9309-9607				●
188	03.682 CLIP; OXYGEN SENSOR EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 03.162 L=140	5-09707-031-0	01	1	9608-				●
211	03.685 NUT; CONV CATALYSIS CONTROL(6MZ) 03.613 M10	8-94201-308-1	02	1	9112-				●
212	03.704 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9705-				●
212	03.704 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9705-				●
251	03.685 BRACKET; HEAT PROTECTOR CATALYSIS CONTROL(6MZ)	8-97044-896-3	01	1	9112-				●
286	01.150 SENSOR; OXYGEN EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97062-292-0	01	1	9112-9208				●
286	01.150 SENSOR; OXYGEN EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D)	8-97062-292-0	01	1	9209-9212				●
286	01.150 SENSOR; OXYGEN EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2)	8-97062-292-0	01	1	9301-9303				●
286	01.150 SENSOR; OXYGEN EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D) EXC. SOUTH AFRICA EQUIPMENT(SW2)	8-97062-292-0	01	1	9304-9308				●
329	03.613 NUT; EXH PIPE TO PIPE EXC. RR COIL & LINK SUSPENSION<6SV> 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9308	●
329	03.613 NUT; EXH PIPE TO PIPE EXC. CATALYSIS CONTROL(6MZ) 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9308				●
329	03.613 NUT; EXH PIPE TO PIPE EXC. RR COIL & LINK SUSPENSION<6SV> 04.785 M10 FLANGE	0-91150-110-0	02	1	9309-9504	●
329	03.613 NUT; EXH PIPE TO PIPE 04.785 M10 FLANGE	0-91150-110-0	02	1	9505-		●
504	03.613 PLUG; EXH PIPE EXC. CATALYSIS CONTROL(6MZ) 04.104 M18X12	9-99202-318-0	01	1	9309-				●

36 52 2 45 49 1 41 14 169 169 1 41 14 12 169 41 84 32 70 169 58 143 1 14 329 45 36 84 1 2 52 36 49 14 41 128 169 167 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.609 PIPE; EXH (A)	8-94369-041-2	01	1	9112-9504	●
1	03.609 PIPE; EXH (B)	8-97022-844-1	01	1	9112-9404	●
1	03.609 PIPE; EXH (B)	8-97111-857-0	01	1	9405-9504	●
1	03.609 PIPE; EXH (A)	8-97037-890-1	01	1	9112-9504		●
1	03.609 PIPE; EXH TURBOCHARGER<K51> (A)	8-97114-606-0	01	1	9505-		●
1	03.609 PIPE; EXH EXC. TURBOCHARGER<K51> (A)	8-97126-077-0	01	1	9505-		●
1	03.609 PIPE; EXH EUROPE EQUIPMENT(EK4) (B)	8-97043-596-4	01	1	9112-9504		●
1	03.609 PIPE; EXH TURBOCHARGER<K51> (B)	8-97126-884-1	01	1	9505-		●
1	03.609 PIPE; EXH EXC. EUROPE EQUIPMENT(EK4) (B)	8-97061-461-3	01	1	9112-9504		●
1	03.609 PIPE; EXH EXC. TURBOCHARGER<K51> (B)	8-97126-886-0	01	1	9505-		●
1	03.609 PIPE; EXH (A)	8-97022-845-0	01	1	9112-9504			●
1	03.609 PIPE; EXH SHORT(UB***C) (B)	8-97022-847-1	01	1	9112-9504			●
1	03.609 PIPE; EXH SHORT(UB***C) (B)	8-97111-400-1	01	1	9505-			●
1	03.609 PIPE; EXH LONG(UB***F) (B)	8-97022-846-1	01	1	9112-9504			●
1	03.609 PIPE; EXH LONG(UB***F) (B)	8-97111-399-0	01	1	9505-			●
1	03.609 PIPE; EXH (A)	8-97030-276-1	01	1	9112-9301				●
1	03.609 PIPE; EXH EXC. CATALYSIS CONTROL(6MZ) (B)	8-97093-320-0	01	1	9302-9308				●
1	03.609 PIPE; EXH CATALYSIS CONTROL(6MZ) (A)	8-97093-319-0	01	1	9302-9308				●
1	03.609 PIPE; EXH (A)	8-97093-319-1	01	1	9309-9510				●
1	03.609 PIPE; EXH (C)	8-97127-477-1	01	1	9511-				●
1	03.609 PIPE; EXH A/T THM(RMQ) (B)	8-97030-280-1	01	1	9112-9301				●
1	03.609 PIPE; EXH A/T THM(RMQ) (B)	8-97093-322-1	01	1	9302-9510				●
1	03.609 PIPE; EXH A/T THM(RMQ) (D)	8-97127-479-1	01	1	9511-				●
1	03.609 PIPE; EXH M/T MUA 5 SPEED(RMN) (B)	8-97030-277-1	01	1	9112-9301				●
1	03.609 PIPE; EXH M/T MUA 5 SPEED(RMN) (B)	8-97093-321-1	01	1	9302-9510				●
1	03.609 PIPE; EXH M/T MUA 5 SPEED(RMN) (D)	8-97127-478-1	01	1	9511-				●
2	03.611 GASKET; PIPE TO MANIF	8-94329-529-0	01	1	9112-9112	●	●	●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9201-9504	●	●	●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9505-		●	●
2	03.611 GASKET; PIPE TO MANIF	8-94329-529-0	02	1	9112-9112				●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	02	1	9201-9510				●
2	03.611 GASKET; PIPE TO MANIF	8-97102-031-1	02	1	9511-				●
12	03.701 SILENCER ASM; EXH	8-97031-660-1	01	1	9112-9504	●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97043-595-5	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-582-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) RR COIL & LINK SUSPENSION<6SV>	8-97092-582-1	01	1	9309-9504		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C)	8-97111-398-1	01	1	9505-9601		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C)	8-97133-911-0	01	1	9602-9608		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C)	8-97165-833-0	01	1	9609-		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-915-4	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-583-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97043-594-5	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-580-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) RR COIL & LINK SUSPENSION<6SV>	8-97092-580-1	01	1	9309-9504		●
12	03.701 SILENCER ASM; EXH LONG(UB***F)	8-97111-397-1	01	1	9505-9601		●
12	03.701 SILENCER ASM; EXH LONG(UB***F)	8-97133-910-0	01	1	9602-9608		●
12	03.701 SILENCER ASM; EXH LONG(UB***F)	8-97165-834-0	01	1	9609-		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-916-4	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-581-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH	8-97031-659-1	01	1	9112-9501			●
12	03.701 SILENCER ASM; EXH	8-97125-944-0	01	1	9502-9504			●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97092-579-0	01	1	9505-9508			●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97130-508-0	01	1	9509-9608			●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97165-831-0	01	1	9609-			●
12	03.701 SILENCER ASM; EXH EXC. CATALYSIS CONTROL(6MZ) (A)	8-97029-575-0	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH EXC. CATALYSIS CONTROL(6MZ) (A)	8-97070-149-0	01	1	9209-9308				●
12	03.701 SILENCER ASM; EXH EXC. CATALYSIS CONTROL(6MZ) (A)	8-97103-020-0	01	1	9309-				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B)	8-97047-911-3	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B)	8-97070-148-1	01	1	9209-9301				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B)	8-97092-578-1	01	1	9302-9504				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97092-578-1	01	1	9505-9508				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97130-507-0	01	1	9509-9601				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97130-507-0	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97165-829-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97047-912-3	01	1	9112-9301				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97092-579-0	01	1	9302-9504				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B)	8-97134-606-1	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B)	8-97165-838-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97047-913-3	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97070-146-1	01	1	9209-9301				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97092-575-2	01	1	9302-9508				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97130-505-0	01	1	9509-9601				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97130-505-0	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97165-830-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97047-914-3	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97070-174-1	01	1	9209-9301				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97092-576-0	01	1	9302-9504				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) (B)	8-97092-576-0	01	1	9505-9508			●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97092-576-0	01	1	9505-9508				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) (B)	8-97130-506-0	01	1	9509-9608			●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97130-506-0	01	1	9509-9608				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) (B)	8-97165-832-0	01	1	9609-			●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97165-832-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4) (B)	8-97134-605-1	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4) (B)	8-97165-839-0	01	1	9609-				●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9504	●		●
14	03.704 GASKET; SILENCER TO EXH PIPE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9301		●
14	03.704 GASKET; SILENCER TO EXH PIPE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.611 (B) ID=55	8-97093-574-0	02	1	9302-9308		●
14	03.704 GASKET; SILENCER TO EXH PIPE EUROPE EQUIPMENT(EK4) 03.611 (B) ID=55	8-97093-574-0	02	1	9309-9504		●
14	03.704 GASKET; SILENCER TO EXH PIPE ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7	8-94328-352-0	02	1	9505-		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	9112-9504		●		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	9505-		●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7	8-94328-352-0	01	1	9505-		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	9505-			●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CATALYSIS CONTROL(6MZ) (A) ID=64.7	8-94328-352-0	01	1	9505-				●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9112-9208	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9209-9301		●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.611 (B) ID=55	8-97093-574-0	01	1	9302-9308		●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4) 03.611 (B) ID=55	8-97093-574-0	01	1	9309-9504		●
32	03.609 PIPE; EXH,FRT SHORT(UB***C)	8-97018-577-0	01	1	9112-9404	●
32	03.609 PIPE; EXH,FRT SHORT(UB***C)	8-97111-859-0	01	1	9405-9504	●
32	03.609 PIPE; EXH,FRT TURBOCHARGER<K51> ENG QUICK WARM UP SYSTEM<6JZ>	8-97126-887-0	01	1	9505-		●
32	03.609 PIPE; EXH,FRT LONG(UB***F)	8-97018-576-0	01	1	9112-9404	●
32	03.609 PIPE; EXH,FRT LONG(UB***F)	8-97111-858-0	01	1	9405-9504	●
32	03.609 PIPE; EXH,FRT EXC. TURBOCHARGER<K51>	8-97130-204-0	01	1	9505-		●
32	03.609 PIPE; EXH,FRT TURBOCHARGER<K51> EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97130-204-0	01	1	9505-		●
36	03.613 NUT; EXH PIPE 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9112-9504	●	●
36	03.613 NUT; EXH PIPE 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9505-		●
36	03.613 NUT; EXH PIPE 00.004 (B) M10 LOCK NUT	8-94375-110-0	02	1	9112-9305	●	●	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	02	1	9306-9504	●	●	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	02	1	9505-		●	●
36	03.613 NUT; EXH PIPE 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9112-				●
36	03.613 NUT; EXH PIPE 00.004 (B) M10 LOCK NUT	8-94375-110-0	04	1	9112-9305				●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	04	1	9306-9510				●
36	03.613 NUT; EXH PIPE (B) M12 LK W/FLANGE	8-97102-030-0	06	1	9511-9702				●
36	03.613 NUT; EXH PIPE (B) M12 FLANGE	8-97170-524-1	06	1	9703-				●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9504	●		●
41	03.704 NUT; EXH PIPE TO EXH SILENCER RR COIL & LINK SUSPENSION<6SV> 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9504		●
41	03.704 NUT; EXH PIPE TO EXH SILENCER EXC. CATALYSIS CONTROL(6MZ) 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9504				●
41	03.704 NUT; EXH PIPE TO EXH SILENCER SHORT(UB***C) 04.785 M10 FLANGE	0-91150-110-0	02	1	9505-		●	●	●
45	03.613 BOLT; BRKT 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9112-9410	●	●	●
45	03.613 BOLT; BRKT 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9411-9504	●	●	●
45	03.613 BOLT; BRKT EXC. TURBOCHARGER<K51> 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9505-		●
45	03.613 BOLT; BRKT 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9505-			●
49	03.613 BRACKET; EXH PIPE TO TRANS	8-97037-538-0	01	1	9112-9504	●
49	03.613 BRACKET; EXH PIPE TO TRANS	8-97037-539-0	01	1	9112-9504		●
49	03.613 BRACKET; EXH PIPE TO TRANS EXC. TURBOCHARGER<K51>	8-97092-867-0	01	1	9505-		●
49	03.613 BRACKET; EXH PIPE TO TRANS	8-94473-560-0	01	1	9112-			●
52	03.613 NUT; BRKT 01.540 M8 FLANGE	0-91150-208-0	01	1	9112-9504	●	●	●
52	03.613 NUT; BRKT EXC. TURBOCHARGER<K51> 01.540 M8 FLANGE	0-91150-208-0	01	1	9505-		●
52	03.613 NUT; BRKT 01.540 M8 FLANGE	0-91150-208-0	01	1	9505-			●
58	03.613 BRACKET; EXH PIPE,RR	8-97043-727-1	01	1	9112-9504	●	●
58	03.613 BRACKET; EXH PIPE,RR	8-97043-727-1	01	1	9505-9605		●
70	03.706 BOLT; BRKT 00.862 M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9112-9204	●	●
70	03.706 BOLT; BRKT 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9410	●	●
70	03.706 BOLT; BRKT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9411-9504	●	●
70	03.706 BOLT; BRKT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9505-9605		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9112-9208	●	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9208				●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9209-9301	●	●
84	03.611 GASKET; EXH PIPE (A) ID=55	8-97093-574-0	01	1	9302-9504	●	●
84	03.611 GASKET; EXH PIPE (A) ID=55	8-97093-574-0	01	1	9505-		●
84	03.611 GASKET; EXH PIPE 03.704 (B) ID=64.7	8-94328-352-0	01	1	9505-		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9209-9301				●
84	03.611 GASKET; EXH PIPE (A) ID=55	8-97093-574-0	02	1	9302-				●
84	03.611 GASKET; EXH PIPE EXC. CATALYSIS CONTROL(6MZ) 03.704 (B) ID=64.7	8-94328-352-0	01	1	9112-9308				●
128	03.609 PIPE; EXH,RR SHORT(UB***C)	8-97011-631-0	01	1	9112-9504	●		●
128	03.609 PIPE; EXH,RR LONG(UB***F)	8-97011-630-0	01	1	9112-9504	●		●
128	03.609 PIPE; EXH,RR	8-97047-559-0	01	1	9309-9504		●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97047-559-0	01	1	9309-9504				●
128	03.609 PIPE; EXH,RR	8-97047-559-0	01	1	9505-9601		●	●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97047-559-0	01	1	9505-9601				●
128	03.609 PIPE; EXH,RR	8-97131-338-1	01	1	9602-9608		●	●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97131-338-1	01	1	9602-9608				●
128	03.609 PIPE; EXH,RR	8-97165-817-0	01	1	9609-		●	●	●
128	03.609 PIPE; EXH,RR EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-559-0	01	1	9112-9208		●
128	03.609 PIPE; EXH,RR CATALYSIS CONTROL(6MZ)	8-97047-559-0	01	1	9112-9208				●
128	03.609 PIPE; EXH,RR EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-559-0	01	1	9209-9308		●
128	03.609 PIPE; EXH,RR EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-560-0	01	1	9112-9308		●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97047-560-0	01	1	9112-9308				●
128	03.609 PIPE; EXH,RR CATALYSIS CONTROL(6MZ)	8-97070-151-0	01	1	9209-9601				●
128	03.609 PIPE; EXH,RR CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4)	8-97070-151-0	01	1	9602-9608				●
128	03.609 PIPE; EXH,RR EUROPE EQUIPMENT(EK4)	8-97141-971-0	01	1	9602-9608				●
143	03.704 RUBBER; SUPPORT 03.706	8-97021-581-0	01	1	9112-9301	●	●		●
143	03.704 RUBBER; SUPPORT	8-97080-694-0	01	1	9302-9504	●	●		●
143	03.704 RUBBER; SUPPORT	8-97080-694-0	01	1	9505-		●	●	●
167	03.706 HANGER; EXH PIPE T=28 55X44(OVAL)	8-94332-331-0	02	1	9112-9504	●		●
169	03.706 RING; DAMPER,EXH PIPE (A)	8-97021-581-0	01	1	9112-9301	●	●	●	●
169	03.706 RING; DAMPER,EXH PIPE 03.704 (A)	8-97080-694-0	01	1	9302-	●	●	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 55X44(OVAL)	8-94332-331-0	02	1	9112-9301	●		●
169	03.706 RING; DAMPER,EXH PIPE LONG(UB***F) (B) T=28 55X44(OVAL)	8-94332-331-0	02	1	9112-9301		●		●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 55X44(OVAL)	8-94332-331-0	02	1	9302-9504	●		●
329	03.613 NUT; EXH PIPE TO PIPE EXC. RR COIL & LINK SUSPENSION<6SV> 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9308	●
329	03.613 NUT; EXH PIPE TO PIPE EXC. CATALYSIS CONTROL(6MZ) 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9308				●
329	03.613 NUT; EXH PIPE TO PIPE EXC. RR COIL & LINK SUSPENSION<6SV> 04.785 M10 FLANGE	0-91150-110-0	02	1	9309-9504	●
329	03.613 NUT; EXH PIPE TO PIPE 04.785 M10 FLANGE	0-91150-110-0	02	1	9505-		●

14 41 128 169 221 340 12 335 337 59 41 340 14 1 143 45 36 2 52 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.609 PIPE; EXH (A)	8-94369-041-2	01	1	9112-9504	●
1	03.609 PIPE; EXH (B)	8-97022-844-1	01	1	9112-9404	●
1	03.609 PIPE; EXH (B)	8-97111-857-0	01	1	9405-9504	●
1	03.609 PIPE; EXH (A)	8-97037-890-1	01	1	9112-9504		●
1	03.609 PIPE; EXH TURBOCHARGER<K51> (A)	8-97114-606-0	01	1	9505-		●
1	03.609 PIPE; EXH EXC. TURBOCHARGER<K51> (A)	8-97126-077-0	01	1	9505-		●
1	03.609 PIPE; EXH EUROPE EQUIPMENT(EK4) (B)	8-97043-596-4	01	1	9112-9504		●
1	03.609 PIPE; EXH TURBOCHARGER<K51> (B)	8-97126-884-1	01	1	9505-		●
1	03.609 PIPE; EXH EXC. EUROPE EQUIPMENT(EK4) (B)	8-97061-461-3	01	1	9112-9504		●
1	03.609 PIPE; EXH EXC. TURBOCHARGER<K51> (B)	8-97126-886-0	01	1	9505-		●
1	03.609 PIPE; EXH (A)	8-97022-845-0	01	1	9112-9504			●
1	03.609 PIPE; EXH SHORT(UB***C) (B)	8-97022-847-1	01	1	9112-9504			●
1	03.609 PIPE; EXH SHORT(UB***C) (B)	8-97111-400-1	01	1	9505-			●
1	03.609 PIPE; EXH LONG(UB***F) (B)	8-97022-846-1	01	1	9112-9504			●
1	03.609 PIPE; EXH LONG(UB***F) (B)	8-97111-399-0	01	1	9505-			●
1	03.609 PIPE; EXH (A)	8-97030-276-1	01	1	9112-9301				●
1	03.609 PIPE; EXH EXC. CATALYSIS CONTROL(6MZ) (B)	8-97093-320-0	01	1	9302-9308				●
1	03.609 PIPE; EXH CATALYSIS CONTROL(6MZ) (A)	8-97093-319-0	01	1	9302-9308				●
1	03.609 PIPE; EXH (A)	8-97093-319-1	01	1	9309-9510				●
1	03.609 PIPE; EXH (C)	8-97127-477-1	01	1	9511-				●
1	03.609 PIPE; EXH A/T THM(RMQ) (B)	8-97030-280-1	01	1	9112-9301				●
1	03.609 PIPE; EXH A/T THM(RMQ) (B)	8-97093-322-1	01	1	9302-9510				●
1	03.609 PIPE; EXH A/T THM(RMQ) (D)	8-97127-479-1	01	1	9511-				●
1	03.609 PIPE; EXH M/T MUA 5 SPEED(RMN) (B)	8-97030-277-1	01	1	9112-9301				●
1	03.609 PIPE; EXH M/T MUA 5 SPEED(RMN) (B)	8-97093-321-1	01	1	9302-9510				●
1	03.609 PIPE; EXH M/T MUA 5 SPEED(RMN) (D)	8-97127-478-1	01	1	9511-				●
2	03.611 GASKET; PIPE TO MANIF	8-94329-529-0	01	1	9112-9112	●	●	●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9201-9504	●	●	●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9505-		●	●
2	03.611 GASKET; PIPE TO MANIF	8-94329-529-0	02	1	9112-9112				●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	02	1	9201-9510				●
2	03.611 GASKET; PIPE TO MANIF	8-97102-031-1	02	1	9511-				●
12	03.701 SILENCER ASM; EXH	8-97031-660-1	01	1	9112-9504	●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97043-595-5	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-582-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) RR COIL & LINK SUSPENSION<6SV>	8-97092-582-1	01	1	9309-9504		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C)	8-97111-398-1	01	1	9505-9601		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C)	8-97133-911-0	01	1	9602-9608		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C)	8-97165-833-0	01	1	9609-		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-915-4	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-583-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97043-594-5	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-580-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) RR COIL & LINK SUSPENSION<6SV>	8-97092-580-1	01	1	9309-9504		●
12	03.701 SILENCER ASM; EXH LONG(UB***F)	8-97111-397-1	01	1	9505-9601		●
12	03.701 SILENCER ASM; EXH LONG(UB***F)	8-97133-910-0	01	1	9602-9608		●
12	03.701 SILENCER ASM; EXH LONG(UB***F)	8-97165-834-0	01	1	9609-		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-916-4	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-581-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH	8-97031-659-1	01	1	9112-9501			●
12	03.701 SILENCER ASM; EXH	8-97125-944-0	01	1	9502-9504			●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97092-579-0	01	1	9505-9508			●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97130-508-0	01	1	9509-9608			●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97165-831-0	01	1	9609-			●
12	03.701 SILENCER ASM; EXH EXC. CATALYSIS CONTROL(6MZ) (A)	8-97029-575-0	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH EXC. CATALYSIS CONTROL(6MZ) (A)	8-97070-149-0	01	1	9209-9308				●
12	03.701 SILENCER ASM; EXH EXC. CATALYSIS CONTROL(6MZ) (A)	8-97103-020-0	01	1	9309-				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B)	8-97047-911-3	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B)	8-97070-148-1	01	1	9209-9301				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B)	8-97092-578-1	01	1	9302-9504				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97092-578-1	01	1	9505-9508				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97130-507-0	01	1	9509-9601				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97130-507-0	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97165-829-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97047-912-3	01	1	9112-9301				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97092-579-0	01	1	9302-9504				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B)	8-97134-606-1	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B)	8-97165-838-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97047-913-3	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97070-146-1	01	1	9209-9301				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97092-575-2	01	1	9302-9508				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97130-505-0	01	1	9509-9601				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97130-505-0	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97165-830-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97047-914-3	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97070-174-1	01	1	9209-9301				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97092-576-0	01	1	9302-9504				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) (B)	8-97092-576-0	01	1	9505-9508			●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97092-576-0	01	1	9505-9508				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) (B)	8-97130-506-0	01	1	9509-9608			●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97130-506-0	01	1	9509-9608				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) (B)	8-97165-832-0	01	1	9609-			●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97165-832-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4) (B)	8-97134-605-1	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4) (B)	8-97165-839-0	01	1	9609-				●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9504	●		●
14	03.704 GASKET; SILENCER TO EXH PIPE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9301		●
14	03.704 GASKET; SILENCER TO EXH PIPE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.611 (B) ID=55	8-97093-574-0	02	1	9302-9308		●
14	03.704 GASKET; SILENCER TO EXH PIPE EUROPE EQUIPMENT(EK4) 03.611 (B) ID=55	8-97093-574-0	02	1	9309-9504		●
14	03.704 GASKET; SILENCER TO EXH PIPE ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7	8-94328-352-0	02	1	9505-		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	9112-9504		●		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	9505-		●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7	8-94328-352-0	01	1	9505-		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	9505-			●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CATALYSIS CONTROL(6MZ) (A) ID=64.7	8-94328-352-0	01	1	9505-				●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9112-9208	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9209-9301		●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.611 (B) ID=55	8-97093-574-0	01	1	9302-9308		●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4) 03.611 (B) ID=55	8-97093-574-0	01	1	9309-9504		●
36	03.613 NUT; EXH PIPE 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9112-9504	●	●
36	03.613 NUT; EXH PIPE 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9505-		●
36	03.613 NUT; EXH PIPE 00.004 (B) M10 LOCK NUT	8-94375-110-0	02	1	9112-9305	●	●	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	02	1	9306-9504	●	●	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	02	1	9505-		●	●
36	03.613 NUT; EXH PIPE 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9112-				●
36	03.613 NUT; EXH PIPE 00.004 (B) M10 LOCK NUT	8-94375-110-0	04	1	9112-9305				●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	04	1	9306-9510				●
36	03.613 NUT; EXH PIPE (B) M12 LK W/FLANGE	8-97102-030-0	06	1	9511-9702				●
36	03.613 NUT; EXH PIPE (B) M12 FLANGE	8-97170-524-1	06	1	9703-				●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9504	●		●
41	03.704 NUT; EXH PIPE TO EXH SILENCER RR COIL & LINK SUSPENSION<6SV> 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9504		●
41	03.704 NUT; EXH PIPE TO EXH SILENCER EXC. CATALYSIS CONTROL(6MZ) 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9504				●
41	03.704 NUT; EXH PIPE TO EXH SILENCER SHORT(UB***C) 04.785 M10 FLANGE	0-91150-110-0	02	1	9505-		●	●	●
45	03.613 BOLT; BRKT 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9112-9410	●	●	●
45	03.613 BOLT; BRKT 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9411-9504	●	●	●
45	03.613 BOLT; BRKT EXC. TURBOCHARGER<K51> 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9505-		●
45	03.613 BOLT; BRKT 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9505-			●
49	03.613 BRACKET; EXH PIPE TO TRANS	8-97037-538-0	01	1	9112-9504	●
49	03.613 BRACKET; EXH PIPE TO TRANS	8-97037-539-0	01	1	9112-9504		●
49	03.613 BRACKET; EXH PIPE TO TRANS EXC. TURBOCHARGER<K51>	8-97092-867-0	01	1	9505-		●
49	03.613 BRACKET; EXH PIPE TO TRANS	8-94473-560-0	01	1	9112-			●
52	03.613 NUT; BRKT 01.540 M8 FLANGE	0-91150-208-0	01	1	9112-9504	●	●	●
52	03.613 NUT; BRKT EXC. TURBOCHARGER<K51> 01.540 M8 FLANGE	0-91150-208-0	01	1	9505-		●
52	03.613 NUT; BRKT 01.540 M8 FLANGE	0-91150-208-0	01	1	9505-			●
59	03.704 BRACKET; EXH SILENCER,FRT SHORT(UB***C)	8-97043-723-1	01	1	9112-9504		●		●
59	03.704 BRACKET; EXH SILENCER,FRT SHORT(UB***C)	8-97043-723-1	01	1	9505-		●	●	●
128	03.609 PIPE; EXH,RR SHORT(UB***C)	8-97011-631-0	01	1	9112-9504	●		●
128	03.609 PIPE; EXH,RR LONG(UB***F)	8-97011-630-0	01	1	9112-9504	●		●
128	03.609 PIPE; EXH,RR	8-97047-559-0	01	1	9309-9504		●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97047-559-0	01	1	9309-9504				●
128	03.609 PIPE; EXH,RR	8-97047-559-0	01	1	9505-9601		●	●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97047-559-0	01	1	9505-9601				●
128	03.609 PIPE; EXH,RR	8-97131-338-1	01	1	9602-9608		●	●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97131-338-1	01	1	9602-9608				●
128	03.609 PIPE; EXH,RR	8-97165-817-0	01	1	9609-		●	●	●
128	03.609 PIPE; EXH,RR EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-559-0	01	1	9112-9208		●
128	03.609 PIPE; EXH,RR CATALYSIS CONTROL(6MZ)	8-97047-559-0	01	1	9112-9208				●
128	03.609 PIPE; EXH,RR EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-559-0	01	1	9209-9308		●
128	03.609 PIPE; EXH,RR EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-560-0	01	1	9112-9308		●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97047-560-0	01	1	9112-9308				●
128	03.609 PIPE; EXH,RR CATALYSIS CONTROL(6MZ)	8-97070-151-0	01	1	9209-9601				●
128	03.609 PIPE; EXH,RR CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4)	8-97070-151-0	01	1	9602-9608				●
128	03.609 PIPE; EXH,RR EUROPE EQUIPMENT(EK4)	8-97141-971-0	01	1	9602-9608				●
143	03.704 RUBBER; SUPPORT 03.706	8-97021-581-0	01	1	9112-9301	●	●		●
143	03.704 RUBBER; SUPPORT	8-97080-694-0	01	1	9302-9504	●	●		●
143	03.704 RUBBER; SUPPORT	8-97080-694-0	01	1	9505-		●	●	●
169	03.706 RING; DAMPER,EXH PIPE (A)	8-97021-581-0	01	1	9112-9301	●	●	●	●
169	03.706 RING; DAMPER,EXH PIPE 03.704 (A)	8-97080-694-0	01	1	9302-	●	●	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 55X44(OVAL)	8-94332-331-0	02	1	9112-9301	●		●
169	03.706 RING; DAMPER,EXH PIPE LONG(UB***F) (B) T=28 55X44(OVAL)	8-94332-331-0	02	1	9112-9301		●		●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 55X44(OVAL)	8-94332-331-0	02	1	9302-9504	●		●
221	03.704 CLAMP; EXH SILENCER 03.706	8-97021-581-0	01	1	9112-9301		●		●
221	03.704 CLAMP; EXH SILENCER	8-97080-694-0	01	1	9302-9504		●		●
221	03.704 CLAMP; EXH SILENCER	8-97080-694-0	01	1	9505-		●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-1	01	1	9112-9301		●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-1	01	1	9302-9504		●		●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-2	01	1	9505-		●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97023-883-0	01	1	9112-9301				●
337	03.706 BOLT; RUBBER,SUPPORT SHORT(UB***C) 00.862 M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9112-9204		●		●
337	03.706 BOLT; RUBBER,SUPPORT SHORT(UB***C) 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9410		●		●
337	03.706 BOLT; RUBBER,SUPPORT SHORT(UB***C) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9411-9504		●		●
337	03.706 BOLT; RUBBER,SUPPORT SHORT(UB***C) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9505-		●	●	●
340	03.706 NUT; RUBBER,SUPPORT 07.633 M8 FLANGE	0-91150-108-0	04	1	9112-9504		●		●
340	03.706 NUT; RUBBER,SUPPORT 07.633 M8 FLANGE	0-91150-108-0	04	1	9505-		●	●	●

41 169 340 59 337 335 12 340 221 14 41 128 169 14 14 70 58 143 1 36 84 45 36 1 49 52 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.609 PIPE; EXH (A)	8-94369-041-2	01	1	9112-9504	●
1	03.609 PIPE; EXH (B)	8-97022-844-1	01	1	9112-9404	●
1	03.609 PIPE; EXH (B)	8-97111-857-0	01	1	9405-9504	●
1	03.609 PIPE; EXH (A)	8-97037-890-1	01	1	9112-9504		●
1	03.609 PIPE; EXH TURBOCHARGER<K51> (A)	8-97114-606-0	01	1	9505-		●
1	03.609 PIPE; EXH EXC. TURBOCHARGER<K51> (A)	8-97126-077-0	01	1	9505-		●
1	03.609 PIPE; EXH EUROPE EQUIPMENT(EK4) (B)	8-97043-596-4	01	1	9112-9504		●
1	03.609 PIPE; EXH TURBOCHARGER<K51> (B)	8-97126-884-1	01	1	9505-		●
1	03.609 PIPE; EXH EXC. EUROPE EQUIPMENT(EK4) (B)	8-97061-461-3	01	1	9112-9504		●
1	03.609 PIPE; EXH EXC. TURBOCHARGER<K51> (B)	8-97126-886-0	01	1	9505-		●
1	03.609 PIPE; EXH (A)	8-97022-845-0	01	1	9112-9504			●
1	03.609 PIPE; EXH SHORT(UB***C) (B)	8-97022-847-1	01	1	9112-9504			●
1	03.609 PIPE; EXH SHORT(UB***C) (B)	8-97111-400-1	01	1	9505-			●
1	03.609 PIPE; EXH LONG(UB***F) (B)	8-97022-846-1	01	1	9112-9504			●
1	03.609 PIPE; EXH LONG(UB***F) (B)	8-97111-399-0	01	1	9505-			●
1	03.609 PIPE; EXH (A)	8-97030-276-1	01	1	9112-9301				●
1	03.609 PIPE; EXH EXC. CATALYSIS CONTROL(6MZ) (B)	8-97093-320-0	01	1	9302-9308				●
1	03.609 PIPE; EXH CATALYSIS CONTROL(6MZ) (A)	8-97093-319-0	01	1	9302-9308				●
1	03.609 PIPE; EXH (A)	8-97093-319-1	01	1	9309-9510				●
1	03.609 PIPE; EXH (C)	8-97127-477-1	01	1	9511-				●
1	03.609 PIPE; EXH A/T THM(RMQ) (B)	8-97030-280-1	01	1	9112-9301				●
1	03.609 PIPE; EXH A/T THM(RMQ) (B)	8-97093-322-1	01	1	9302-9510				●
1	03.609 PIPE; EXH A/T THM(RMQ) (D)	8-97127-479-1	01	1	9511-				●
1	03.609 PIPE; EXH M/T MUA 5 SPEED(RMN) (B)	8-97030-277-1	01	1	9112-9301				●
1	03.609 PIPE; EXH M/T MUA 5 SPEED(RMN) (B)	8-97093-321-1	01	1	9302-9510				●
1	03.609 PIPE; EXH M/T MUA 5 SPEED(RMN) (D)	8-97127-478-1	01	1	9511-				●
2	03.611 GASKET; PIPE TO MANIF	8-94329-529-0	01	1	9112-9112	●	●	●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9201-9504	●	●	●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9505-		●	●
2	03.611 GASKET; PIPE TO MANIF	8-94329-529-0	02	1	9112-9112				●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	02	1	9201-9510				●
2	03.611 GASKET; PIPE TO MANIF	8-97102-031-1	02	1	9511-				●
12	03.701 SILENCER ASM; EXH	8-97031-660-1	01	1	9112-9504	●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97043-595-5	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-582-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) RR COIL & LINK SUSPENSION<6SV>	8-97092-582-1	01	1	9309-9504		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C)	8-97111-398-1	01	1	9505-9601		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C)	8-97133-911-0	01	1	9602-9608		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C)	8-97165-833-0	01	1	9609-		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-915-4	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-583-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97043-594-5	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-580-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) RR COIL & LINK SUSPENSION<6SV>	8-97092-580-1	01	1	9309-9504		●
12	03.701 SILENCER ASM; EXH LONG(UB***F)	8-97111-397-1	01	1	9505-9601		●
12	03.701 SILENCER ASM; EXH LONG(UB***F)	8-97133-910-0	01	1	9602-9608		●
12	03.701 SILENCER ASM; EXH LONG(UB***F)	8-97165-834-0	01	1	9609-		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-916-4	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-581-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH	8-97031-659-1	01	1	9112-9501			●
12	03.701 SILENCER ASM; EXH	8-97125-944-0	01	1	9502-9504			●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97092-579-0	01	1	9505-9508			●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97130-508-0	01	1	9509-9608			●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97165-831-0	01	1	9609-			●
12	03.701 SILENCER ASM; EXH EXC. CATALYSIS CONTROL(6MZ) (A)	8-97029-575-0	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH EXC. CATALYSIS CONTROL(6MZ) (A)	8-97070-149-0	01	1	9209-9308				●
12	03.701 SILENCER ASM; EXH EXC. CATALYSIS CONTROL(6MZ) (A)	8-97103-020-0	01	1	9309-				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B)	8-97047-911-3	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B)	8-97070-148-1	01	1	9209-9301				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B)	8-97092-578-1	01	1	9302-9504				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97092-578-1	01	1	9505-9508				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97130-507-0	01	1	9509-9601				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97130-507-0	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97165-829-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97047-912-3	01	1	9112-9301				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97092-579-0	01	1	9302-9504				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B)	8-97134-606-1	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B)	8-97165-838-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97047-913-3	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97070-146-1	01	1	9209-9301				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97092-575-2	01	1	9302-9508				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97130-505-0	01	1	9509-9601				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97130-505-0	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97165-830-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97047-914-3	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97070-174-1	01	1	9209-9301				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97092-576-0	01	1	9302-9504				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) (B)	8-97092-576-0	01	1	9505-9508			●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97092-576-0	01	1	9505-9508				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) (B)	8-97130-506-0	01	1	9509-9608			●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97130-506-0	01	1	9509-9608				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) (B)	8-97165-832-0	01	1	9609-			●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97165-832-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4) (B)	8-97134-605-1	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4) (B)	8-97165-839-0	01	1	9609-				●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9504	●		●
14	03.704 GASKET; SILENCER TO EXH PIPE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9301		●
14	03.704 GASKET; SILENCER TO EXH PIPE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.611 (B) ID=55	8-97093-574-0	02	1	9302-9308		●
14	03.704 GASKET; SILENCER TO EXH PIPE EUROPE EQUIPMENT(EK4) 03.611 (B) ID=55	8-97093-574-0	02	1	9309-9504		●
14	03.704 GASKET; SILENCER TO EXH PIPE ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7	8-94328-352-0	02	1	9505-		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	9112-9504		●		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	9505-		●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7	8-94328-352-0	01	1	9505-		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	9505-			●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CATALYSIS CONTROL(6MZ) (A) ID=64.7	8-94328-352-0	01	1	9505-				●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9112-9208	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9209-9301		●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.611 (B) ID=55	8-97093-574-0	01	1	9302-9308		●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4) 03.611 (B) ID=55	8-97093-574-0	01	1	9309-9504		●
36	03.613 NUT; EXH PIPE 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9112-9504	●	●
36	03.613 NUT; EXH PIPE 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9505-		●
36	03.613 NUT; EXH PIPE 00.004 (B) M10 LOCK NUT	8-94375-110-0	02	1	9112-9305	●	●	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	02	1	9306-9504	●	●	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	02	1	9505-		●	●
36	03.613 NUT; EXH PIPE 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9112-				●
36	03.613 NUT; EXH PIPE 00.004 (B) M10 LOCK NUT	8-94375-110-0	04	1	9112-9305				●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	04	1	9306-9510				●
36	03.613 NUT; EXH PIPE (B) M12 LK W/FLANGE	8-97102-030-0	06	1	9511-9702				●
36	03.613 NUT; EXH PIPE (B) M12 FLANGE	8-97170-524-1	06	1	9703-				●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9504	●		●
41	03.704 NUT; EXH PIPE TO EXH SILENCER RR COIL & LINK SUSPENSION<6SV> 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9504		●
41	03.704 NUT; EXH PIPE TO EXH SILENCER EXC. CATALYSIS CONTROL(6MZ) 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9504				●
41	03.704 NUT; EXH PIPE TO EXH SILENCER SHORT(UB***C) 04.785 M10 FLANGE	0-91150-110-0	02	1	9505-		●	●	●
45	03.613 BOLT; BRKT 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9112-9410	●	●	●
45	03.613 BOLT; BRKT 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9411-9504	●	●	●
45	03.613 BOLT; BRKT EXC. TURBOCHARGER<K51> 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9505-		●
45	03.613 BOLT; BRKT 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9505-			●
49	03.613 BRACKET; EXH PIPE TO TRANS	8-97037-538-0	01	1	9112-9504	●
49	03.613 BRACKET; EXH PIPE TO TRANS	8-97037-539-0	01	1	9112-9504		●
49	03.613 BRACKET; EXH PIPE TO TRANS EXC. TURBOCHARGER<K51>	8-97092-867-0	01	1	9505-		●
49	03.613 BRACKET; EXH PIPE TO TRANS	8-94473-560-0	01	1	9112-			●
52	03.613 NUT; BRKT 01.540 M8 FLANGE	0-91150-208-0	01	1	9112-9504	●	●	●
52	03.613 NUT; BRKT EXC. TURBOCHARGER<K51> 01.540 M8 FLANGE	0-91150-208-0	01	1	9505-		●
52	03.613 NUT; BRKT 01.540 M8 FLANGE	0-91150-208-0	01	1	9505-			●
58	03.613 BRACKET; EXH PIPE,RR	8-97043-727-1	01	1	9112-9504	●	●
58	03.613 BRACKET; EXH PIPE,RR	8-97043-727-1	01	1	9505-9605		●
59	03.704 BRACKET; EXH SILENCER,FRT SHORT(UB***C)	8-97043-723-1	01	1	9112-9504		●		●
59	03.704 BRACKET; EXH SILENCER,FRT SHORT(UB***C)	8-97043-723-1	01	1	9505-		●	●	●
70	03.706 BOLT; BRKT 00.862 M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9112-9204	●	●
70	03.706 BOLT; BRKT 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9410	●	●
70	03.706 BOLT; BRKT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9411-9504	●	●
70	03.706 BOLT; BRKT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9505-9605		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9112-9208	●	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9208				●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9209-9301	●	●
84	03.611 GASKET; EXH PIPE (A) ID=55	8-97093-574-0	01	1	9302-9504	●	●
84	03.611 GASKET; EXH PIPE (A) ID=55	8-97093-574-0	01	1	9505-		●
84	03.611 GASKET; EXH PIPE 03.704 (B) ID=64.7	8-94328-352-0	01	1	9505-		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9209-9301				●
84	03.611 GASKET; EXH PIPE (A) ID=55	8-97093-574-0	02	1	9302-				●
84	03.611 GASKET; EXH PIPE EXC. CATALYSIS CONTROL(6MZ) 03.704 (B) ID=64.7	8-94328-352-0	01	1	9112-9308				●
128	03.609 PIPE; EXH,RR SHORT(UB***C)	8-97011-631-0	01	1	9112-9504	●		●
128	03.609 PIPE; EXH,RR LONG(UB***F)	8-97011-630-0	01	1	9112-9504	●		●
128	03.609 PIPE; EXH,RR	8-97047-559-0	01	1	9309-9504		●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97047-559-0	01	1	9309-9504				●
128	03.609 PIPE; EXH,RR	8-97047-559-0	01	1	9505-9601		●	●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97047-559-0	01	1	9505-9601				●
128	03.609 PIPE; EXH,RR	8-97131-338-1	01	1	9602-9608		●	●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97131-338-1	01	1	9602-9608				●
128	03.609 PIPE; EXH,RR	8-97165-817-0	01	1	9609-		●	●	●
128	03.609 PIPE; EXH,RR EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-559-0	01	1	9112-9208		●
128	03.609 PIPE; EXH,RR CATALYSIS CONTROL(6MZ)	8-97047-559-0	01	1	9112-9208				●
128	03.609 PIPE; EXH,RR EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-559-0	01	1	9209-9308		●
128	03.609 PIPE; EXH,RR EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-560-0	01	1	9112-9308		●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97047-560-0	01	1	9112-9308				●
128	03.609 PIPE; EXH,RR CATALYSIS CONTROL(6MZ)	8-97070-151-0	01	1	9209-9601				●
128	03.609 PIPE; EXH,RR CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4)	8-97070-151-0	01	1	9602-9608				●
128	03.609 PIPE; EXH,RR EUROPE EQUIPMENT(EK4)	8-97141-971-0	01	1	9602-9608				●
143	03.704 RUBBER; SUPPORT 03.706	8-97021-581-0	01	1	9112-9301	●	●		●
143	03.704 RUBBER; SUPPORT	8-97080-694-0	01	1	9302-9504	●	●		●
143	03.704 RUBBER; SUPPORT	8-97080-694-0	01	1	9505-		●	●	●
169	03.706 RING; DAMPER,EXH PIPE (A)	8-97021-581-0	01	1	9112-9301	●	●	●	●
169	03.706 RING; DAMPER,EXH PIPE 03.704 (A)	8-97080-694-0	01	1	9302-	●	●	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 55X44(OVAL)	8-94332-331-0	02	1	9112-9301	●		●
169	03.706 RING; DAMPER,EXH PIPE LONG(UB***F) (B) T=28 55X44(OVAL)	8-94332-331-0	02	1	9112-9301		●		●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 55X44(OVAL)	8-94332-331-0	02	1	9302-9504	●		●
221	03.704 CLAMP; EXH SILENCER 03.706	8-97021-581-0	01	1	9112-9301		●		●
221	03.704 CLAMP; EXH SILENCER	8-97080-694-0	01	1	9302-9504		●		●
221	03.704 CLAMP; EXH SILENCER	8-97080-694-0	01	1	9505-		●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-1	01	1	9112-9301		●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-1	01	1	9302-9504		●		●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-2	01	1	9505-		●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97023-883-0	01	1	9112-9301				●
337	03.706 BOLT; RUBBER,SUPPORT SHORT(UB***C) 00.862 M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9112-9204		●		●
337	03.706 BOLT; RUBBER,SUPPORT SHORT(UB***C) 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9410		●		●
337	03.706 BOLT; RUBBER,SUPPORT SHORT(UB***C) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9411-9504		●		●
337	03.706 BOLT; RUBBER,SUPPORT SHORT(UB***C) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9505-		●	●	●
340	03.706 NUT; RUBBER,SUPPORT 07.633 M8 FLANGE	0-91150-108-0	04	1	9112-9504		●		●
340	03.706 NUT; RUBBER,SUPPORT 07.633 M8 FLANGE	0-91150-108-0	04	1	9505-		●	●	●

340 14 59 337 335 12 221 340 41 14 14 41 128 169 32 329 84 70 58 143 1 1 49 52 2 36 84 45 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.609 PIPE; EXH (A)	8-94369-041-2	01	1	9112-9504	●
1	03.609 PIPE; EXH (B)	8-97022-844-1	01	1	9112-9404	●
1	03.609 PIPE; EXH (B)	8-97111-857-0	01	1	9405-9504	●
1	03.609 PIPE; EXH (A)	8-97037-890-1	01	1	9112-9504		●
1	03.609 PIPE; EXH TURBOCHARGER<K51> (A)	8-97114-606-0	01	1	9505-		●
1	03.609 PIPE; EXH EXC. TURBOCHARGER<K51> (A)	8-97126-077-0	01	1	9505-		●
1	03.609 PIPE; EXH EUROPE EQUIPMENT(EK4) (B)	8-97043-596-4	01	1	9112-9504		●
1	03.609 PIPE; EXH TURBOCHARGER<K51> (B)	8-97126-884-1	01	1	9505-		●
1	03.609 PIPE; EXH EXC. EUROPE EQUIPMENT(EK4) (B)	8-97061-461-3	01	1	9112-9504		●
1	03.609 PIPE; EXH EXC. TURBOCHARGER<K51> (B)	8-97126-886-0	01	1	9505-		●
1	03.609 PIPE; EXH (A)	8-97022-845-0	01	1	9112-9504			●
1	03.609 PIPE; EXH SHORT(UB***C) (B)	8-97022-847-1	01	1	9112-9504			●
1	03.609 PIPE; EXH SHORT(UB***C) (B)	8-97111-400-1	01	1	9505-			●
1	03.609 PIPE; EXH LONG(UB***F) (B)	8-97022-846-1	01	1	9112-9504			●
1	03.609 PIPE; EXH LONG(UB***F) (B)	8-97111-399-0	01	1	9505-			●
1	03.609 PIPE; EXH (A)	8-97030-276-1	01	1	9112-9301				●
1	03.609 PIPE; EXH EXC. CATALYSIS CONTROL(6MZ) (B)	8-97093-320-0	01	1	9302-9308				●
1	03.609 PIPE; EXH CATALYSIS CONTROL(6MZ) (A)	8-97093-319-0	01	1	9302-9308				●
1	03.609 PIPE; EXH (A)	8-97093-319-1	01	1	9309-9510				●
1	03.609 PIPE; EXH (C)	8-97127-477-1	01	1	9511-				●
1	03.609 PIPE; EXH A/T THM(RMQ) (B)	8-97030-280-1	01	1	9112-9301				●
1	03.609 PIPE; EXH A/T THM(RMQ) (B)	8-97093-322-1	01	1	9302-9510				●
1	03.609 PIPE; EXH A/T THM(RMQ) (D)	8-97127-479-1	01	1	9511-				●
1	03.609 PIPE; EXH M/T MUA 5 SPEED(RMN) (B)	8-97030-277-1	01	1	9112-9301				●
1	03.609 PIPE; EXH M/T MUA 5 SPEED(RMN) (B)	8-97093-321-1	01	1	9302-9510				●
1	03.609 PIPE; EXH M/T MUA 5 SPEED(RMN) (D)	8-97127-478-1	01	1	9511-				●
2	03.611 GASKET; PIPE TO MANIF	8-94329-529-0	01	1	9112-9112	●	●	●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9201-9504	●	●	●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	01	1	9505-		●	●
2	03.611 GASKET; PIPE TO MANIF	8-94329-529-0	02	1	9112-9112				●
2	03.611 GASKET; PIPE TO MANIF	8-97069-287-0	02	1	9201-9510				●
2	03.611 GASKET; PIPE TO MANIF	8-97102-031-1	02	1	9511-				●
12	03.701 SILENCER ASM; EXH	8-97031-660-1	01	1	9112-9504	●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97043-595-5	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-582-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) RR COIL & LINK SUSPENSION<6SV>	8-97092-582-1	01	1	9309-9504		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C)	8-97111-398-1	01	1	9505-9601		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C)	8-97133-911-0	01	1	9602-9608		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C)	8-97165-833-0	01	1	9609-		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-915-4	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-583-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97043-594-5	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-580-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) RR COIL & LINK SUSPENSION<6SV>	8-97092-580-1	01	1	9309-9504		●
12	03.701 SILENCER ASM; EXH LONG(UB***F)	8-97111-397-1	01	1	9505-9601		●
12	03.701 SILENCER ASM; EXH LONG(UB***F)	8-97133-910-0	01	1	9602-9608		●
12	03.701 SILENCER ASM; EXH LONG(UB***F)	8-97165-834-0	01	1	9609-		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-916-4	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-581-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH	8-97031-659-1	01	1	9112-9501			●
12	03.701 SILENCER ASM; EXH	8-97125-944-0	01	1	9502-9504			●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97092-579-0	01	1	9505-9508			●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97130-508-0	01	1	9509-9608			●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97165-831-0	01	1	9609-			●
12	03.701 SILENCER ASM; EXH EXC. CATALYSIS CONTROL(6MZ) (A)	8-97029-575-0	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH EXC. CATALYSIS CONTROL(6MZ) (A)	8-97070-149-0	01	1	9209-9308				●
12	03.701 SILENCER ASM; EXH EXC. CATALYSIS CONTROL(6MZ) (A)	8-97103-020-0	01	1	9309-				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B)	8-97047-911-3	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B)	8-97070-148-1	01	1	9209-9301				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B)	8-97092-578-1	01	1	9302-9504				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97092-578-1	01	1	9505-9508				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97130-507-0	01	1	9509-9601				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97130-507-0	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97165-829-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97047-912-3	01	1	9112-9301				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97092-579-0	01	1	9302-9504				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B)	8-97134-606-1	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B)	8-97165-838-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97047-913-3	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97070-146-1	01	1	9209-9301				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97092-575-2	01	1	9302-9508				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97130-505-0	01	1	9509-9601				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97130-505-0	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97165-830-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97047-914-3	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97070-174-1	01	1	9209-9301				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97092-576-0	01	1	9302-9504				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) (B)	8-97092-576-0	01	1	9505-9508			●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97092-576-0	01	1	9505-9508				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) (B)	8-97130-506-0	01	1	9509-9608			●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97130-506-0	01	1	9509-9608				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) (B)	8-97165-832-0	01	1	9609-			●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97165-832-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4) (B)	8-97134-605-1	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4) (B)	8-97165-839-0	01	1	9609-				●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9504	●		●
14	03.704 GASKET; SILENCER TO EXH PIPE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9301		●
14	03.704 GASKET; SILENCER TO EXH PIPE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.611 (B) ID=55	8-97093-574-0	02	1	9302-9308		●
14	03.704 GASKET; SILENCER TO EXH PIPE EUROPE EQUIPMENT(EK4) 03.611 (B) ID=55	8-97093-574-0	02	1	9309-9504		●
14	03.704 GASKET; SILENCER TO EXH PIPE ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7	8-94328-352-0	02	1	9505-		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	9112-9504		●		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	9505-		●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7	8-94328-352-0	01	1	9505-		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	9505-			●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CATALYSIS CONTROL(6MZ) (A) ID=64.7	8-94328-352-0	01	1	9505-				●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9112-9208	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9209-9301		●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.611 (B) ID=55	8-97093-574-0	01	1	9302-9308		●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4) 03.611 (B) ID=55	8-97093-574-0	01	1	9309-9504		●
32	03.609 PIPE; EXH,FRT SHORT(UB***C)	8-97018-577-0	01	1	9112-9404	●
32	03.609 PIPE; EXH,FRT SHORT(UB***C)	8-97111-859-0	01	1	9405-9504	●
32	03.609 PIPE; EXH,FRT TURBOCHARGER<K51> ENG QUICK WARM UP SYSTEM<6JZ>	8-97126-887-0	01	1	9505-		●
32	03.609 PIPE; EXH,FRT LONG(UB***F)	8-97018-576-0	01	1	9112-9404	●
32	03.609 PIPE; EXH,FRT LONG(UB***F)	8-97111-858-0	01	1	9405-9504	●
32	03.609 PIPE; EXH,FRT EXC. TURBOCHARGER<K51>	8-97130-204-0	01	1	9505-		●
32	03.609 PIPE; EXH,FRT TURBOCHARGER<K51> EXC. ENG QUICK WARM UP SYSTEM<6JZ>	8-97130-204-0	01	1	9505-		●
36	03.613 NUT; EXH PIPE 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9112-9504	●	●
36	03.613 NUT; EXH PIPE 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9505-		●
36	03.613 NUT; EXH PIPE 00.004 (B) M10 LOCK NUT	8-94375-110-0	02	1	9112-9305	●	●	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	02	1	9306-9504	●	●	●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	02	1	9505-		●	●
36	03.613 NUT; EXH PIPE 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9112-				●
36	03.613 NUT; EXH PIPE 00.004 (B) M10 LOCK NUT	8-94375-110-0	04	1	9112-9305				●
36	03.613 NUT; EXH PIPE (B) M10 FLANGE	8-97096-192-0	04	1	9306-9510				●
36	03.613 NUT; EXH PIPE (B) M12 LK W/FLANGE	8-97102-030-0	06	1	9511-9702				●
36	03.613 NUT; EXH PIPE (B) M12 FLANGE	8-97170-524-1	06	1	9703-				●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9504	●		●
41	03.704 NUT; EXH PIPE TO EXH SILENCER RR COIL & LINK SUSPENSION<6SV> 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9504		●
41	03.704 NUT; EXH PIPE TO EXH SILENCER EXC. CATALYSIS CONTROL(6MZ) 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9504				●
41	03.704 NUT; EXH PIPE TO EXH SILENCER SHORT(UB***C) 04.785 M10 FLANGE	0-91150-110-0	02	1	9505-		●	●	●
45	03.613 BOLT; BRKT 03.706 M8X40 W/LK WASHER	0-50040-840-0	01	1	9112-9410	●	●	●
45	03.613 BOLT; BRKT 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9411-9504	●	●	●
45	03.613 BOLT; BRKT EXC. TURBOCHARGER<K51> 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9505-		●
45	03.613 BOLT; BRKT 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9505-			●
49	03.613 BRACKET; EXH PIPE TO TRANS	8-97037-538-0	01	1	9112-9504	●
49	03.613 BRACKET; EXH PIPE TO TRANS	8-97037-539-0	01	1	9112-9504		●
49	03.613 BRACKET; EXH PIPE TO TRANS EXC. TURBOCHARGER<K51>	8-97092-867-0	01	1	9505-		●
49	03.613 BRACKET; EXH PIPE TO TRANS	8-94473-560-0	01	1	9112-			●
52	03.613 NUT; BRKT 01.540 M8 FLANGE	0-91150-208-0	01	1	9112-9504	●	●	●
52	03.613 NUT; BRKT EXC. TURBOCHARGER<K51> 01.540 M8 FLANGE	0-91150-208-0	01	1	9505-		●
52	03.613 NUT; BRKT 01.540 M8 FLANGE	0-91150-208-0	01	1	9505-			●
58	03.613 BRACKET; EXH PIPE,RR	8-97043-727-1	01	1	9112-9504	●	●
58	03.613 BRACKET; EXH PIPE,RR	8-97043-727-1	01	1	9505-9605		●
59	03.704 BRACKET; EXH SILENCER,FRT SHORT(UB***C)	8-97043-723-1	01	1	9112-9504		●		●
59	03.704 BRACKET; EXH SILENCER,FRT SHORT(UB***C)	8-97043-723-1	01	1	9505-		●	●	●
70	03.706 BOLT; BRKT 00.862 M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9112-9204	●	●
70	03.706 BOLT; BRKT 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9410	●	●
70	03.706 BOLT; BRKT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9411-9504	●	●
70	03.706 BOLT; BRKT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9505-9605		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9112-9208	●	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9208				●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9209-9301	●	●
84	03.611 GASKET; EXH PIPE (A) ID=55	8-97093-574-0	01	1	9302-9504	●	●
84	03.611 GASKET; EXH PIPE (A) ID=55	8-97093-574-0	01	1	9505-		●
84	03.611 GASKET; EXH PIPE 03.704 (B) ID=64.7	8-94328-352-0	01	1	9505-		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9209-9301				●
84	03.611 GASKET; EXH PIPE (A) ID=55	8-97093-574-0	02	1	9302-				●
84	03.611 GASKET; EXH PIPE EXC. CATALYSIS CONTROL(6MZ) 03.704 (B) ID=64.7	8-94328-352-0	01	1	9112-9308				●
128	03.609 PIPE; EXH,RR SHORT(UB***C)	8-97011-631-0	01	1	9112-9504	●		●
128	03.609 PIPE; EXH,RR LONG(UB***F)	8-97011-630-0	01	1	9112-9504	●		●
128	03.609 PIPE; EXH,RR	8-97047-559-0	01	1	9309-9504		●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97047-559-0	01	1	9309-9504				●
128	03.609 PIPE; EXH,RR	8-97047-559-0	01	1	9505-9601		●	●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97047-559-0	01	1	9505-9601				●
128	03.609 PIPE; EXH,RR	8-97131-338-1	01	1	9602-9608		●	●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97131-338-1	01	1	9602-9608				●
128	03.609 PIPE; EXH,RR	8-97165-817-0	01	1	9609-		●	●	●
128	03.609 PIPE; EXH,RR EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-559-0	01	1	9112-9208		●
128	03.609 PIPE; EXH,RR CATALYSIS CONTROL(6MZ)	8-97047-559-0	01	1	9112-9208				●
128	03.609 PIPE; EXH,RR EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-559-0	01	1	9209-9308		●
128	03.609 PIPE; EXH,RR EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-560-0	01	1	9112-9308		●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97047-560-0	01	1	9112-9308				●
128	03.609 PIPE; EXH,RR CATALYSIS CONTROL(6MZ)	8-97070-151-0	01	1	9209-9601				●
128	03.609 PIPE; EXH,RR CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4)	8-97070-151-0	01	1	9602-9608				●
128	03.609 PIPE; EXH,RR EUROPE EQUIPMENT(EK4)	8-97141-971-0	01	1	9602-9608				●
143	03.704 RUBBER; SUPPORT 03.706	8-97021-581-0	01	1	9112-9301	●	●		●
143	03.704 RUBBER; SUPPORT	8-97080-694-0	01	1	9302-9504	●	●		●
143	03.704 RUBBER; SUPPORT	8-97080-694-0	01	1	9505-		●	●	●
169	03.706 RING; DAMPER,EXH PIPE (A)	8-97021-581-0	01	1	9112-9301	●	●	●	●
169	03.706 RING; DAMPER,EXH PIPE 03.704 (A)	8-97080-694-0	01	1	9302-	●	●	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 55X44(OVAL)	8-94332-331-0	02	1	9112-9301	●		●
169	03.706 RING; DAMPER,EXH PIPE LONG(UB***F) (B) T=28 55X44(OVAL)	8-94332-331-0	02	1	9112-9301		●		●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 55X44(OVAL)	8-94332-331-0	02	1	9302-9504	●		●
221	03.704 CLAMP; EXH SILENCER 03.706	8-97021-581-0	01	1	9112-9301		●		●
221	03.704 CLAMP; EXH SILENCER	8-97080-694-0	01	1	9302-9504		●		●
221	03.704 CLAMP; EXH SILENCER	8-97080-694-0	01	1	9505-		●	●	●
329	03.613 NUT; EXH PIPE TO PIPE EXC. RR COIL & LINK SUSPENSION<6SV> 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9308	●
329	03.613 NUT; EXH PIPE TO PIPE EXC. CATALYSIS CONTROL(6MZ) 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9308				●
329	03.613 NUT; EXH PIPE TO PIPE EXC. RR COIL & LINK SUSPENSION<6SV> 04.785 M10 FLANGE	0-91150-110-0	02	1	9309-9504	●
329	03.613 NUT; EXH PIPE TO PIPE 04.785 M10 FLANGE	0-91150-110-0	02	1	9505-		●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-1	01	1	9112-9301		●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-1	01	1	9302-9504		●		●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-2	01	1	9505-		●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97023-883-0	01	1	9112-9301				●
337	03.706 BOLT; RUBBER,SUPPORT SHORT(UB***C) 00.862 M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9112-9204		●		●
337	03.706 BOLT; RUBBER,SUPPORT SHORT(UB***C) 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9410		●		●
337	03.706 BOLT; RUBBER,SUPPORT SHORT(UB***C) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9411-9504		●		●
337	03.706 BOLT; RUBBER,SUPPORT SHORT(UB***C) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9505-		●	●	●
340	03.706 NUT; RUBBER,SUPPORT 07.633 M8 FLANGE	0-91150-108-0	04	1	9112-9504		●		●
340	03.706 NUT; RUBBER,SUPPORT 07.633 M8 FLANGE	0-91150-108-0	04	1	9505-		●	●	●

151 119 116 159 398 116 151 119 398 159 151 159 151 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
116	03.704 BOLT; BRKT CATALYSIS CONTROL(6MZ) 08.900 M6X16	0-28010-616-0	02	1	9112-9204	●
116	03.704 BOLT; BRKT CATALYSIS CONTROL(6MZ) 00.738 M6X16 FLANGE	0-28080-616-0	02	1	9205-9510	●
116	03.704 BOLT; BRKT CATALYSIS CONTROL(6MZ) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	9511-	●
119	03.704 NUT; BRKT CATALYSIS CONTROL(6MZ) 04.594 M6 FLANGE	0-91150-106-0	02	1	9112-	●
151	03.704 PROTECTOR; HEAT,EXH PIPE A/T THM(RMQ) 03.602 (A)	8-97018-375-2	01	1	9112-	●
151	03.704 PROTECTOR; HEAT,EXH PIPE M/T MUA 5 SPEED(RMN) 03.602 (B)	8-97018-374-1	01	1	9112-	●
151	03.704 PROTECTOR; HEAT,EXH PIPE SHORT(UB***C) CATALYSIS CONTROL(6MZ) (C)	8-97047-568-3	01	1	9112-	●
151	03.704 PROTECTOR; HEAT,EXH PIPE LONG(UB***F) CATALYSIS CONTROL(6MZ) (D)	8-97047-569-1	01	1	9112-	●
159	03.690 BOLT; HEAT PROTECTOR A/T THM(RMQ) 01.267 (A) M10X25	8-94492-949-0	03	1	9112-9310	●
159	03.690 BOLT; HEAT PROTECTOR A/T THM(RMQ) (A) M10X28 W/LK&PL WASHER	8-97104-788-0	03	1	9311-	●
159	03.690 BOLT; HEAT PROTECTOR M/T MUA 5 SPEED(RMN) 01.267 (B) M10X25	8-94492-949-0	02	1	9112-9310	●
159	03.690 BOLT; HEAT PROTECTOR M/T MUA 5 SPEED(RMN) (B) M10X28 W/LK&PL WASHER	8-97104-788-0	02	1	9311-	●
159	03.690 BOLT; HEAT PROTECTOR CATALYSIS CONTROL(6MZ) 00.862 (C) M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9112-9204	●
159	03.690 BOLT; HEAT PROTECTOR CATALYSIS CONTROL(6MZ) 12.187 (C) M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9410	●
159	03.690 BOLT; HEAT PROTECTOR CATALYSIS CONTROL(6MZ) 02.664 (C) M8X20 FLANGE	0-28680-820-0	02	1	9411-	●
398	03.706 BRACKET; HEAT PROTECTOR SHORT(UB***C) CATALYSIS CONTROL(6MZ)	8-97065-926-0	01	1	9112-	●
398	03.706 BRACKET; HEAT PROTECTOR LONG(UB***F) CATALYSIS CONTROL(6MZ)	8-97065-927-0	01	1	9112-	●

386 383 221 340 180 340 335 337 12 59 41 14 128 169 221 340 383 386 180 180 169 340 335 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	03.701 SILENCER ASM; EXH	8-97031-660-1	01	1	9112-9504	●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97043-595-5	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-582-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) RR COIL & LINK SUSPENSION<6SV>	8-97092-582-1	01	1	9309-9504		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C)	8-97111-398-1	01	1	9505-9601		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C)	8-97133-911-0	01	1	9602-9608		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C)	8-97165-833-0	01	1	9609-		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-915-4	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-583-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97043-594-5	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-580-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) RR COIL & LINK SUSPENSION<6SV>	8-97092-580-1	01	1	9309-9504		●
12	03.701 SILENCER ASM; EXH LONG(UB***F)	8-97111-397-1	01	1	9505-9601		●
12	03.701 SILENCER ASM; EXH LONG(UB***F)	8-97133-910-0	01	1	9602-9608		●
12	03.701 SILENCER ASM; EXH LONG(UB***F)	8-97165-834-0	01	1	9609-		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-916-4	01	1	9112-9301		●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97092-581-0	01	1	9302-9308		●
12	03.701 SILENCER ASM; EXH	8-97031-659-1	01	1	9112-9501			●
12	03.701 SILENCER ASM; EXH	8-97125-944-0	01	1	9502-9504			●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97092-579-0	01	1	9505-9508			●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97130-508-0	01	1	9509-9608			●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97165-831-0	01	1	9609-			●
12	03.701 SILENCER ASM; EXH EXC. CATALYSIS CONTROL(6MZ) (A)	8-97029-575-0	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH EXC. CATALYSIS CONTROL(6MZ) (A)	8-97070-149-0	01	1	9209-9308				●
12	03.701 SILENCER ASM; EXH EXC. CATALYSIS CONTROL(6MZ) (A)	8-97103-020-0	01	1	9309-				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B)	8-97047-911-3	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B)	8-97070-148-1	01	1	9209-9301				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B)	8-97092-578-1	01	1	9302-9504				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97092-578-1	01	1	9505-9508				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) (B)	8-97130-507-0	01	1	9509-9601				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97130-507-0	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97165-829-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97047-912-3	01	1	9112-9301				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97092-579-0	01	1	9302-9504				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B)	8-97134-606-1	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B)	8-97165-838-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97047-913-3	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97070-146-1	01	1	9209-9301				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97092-575-2	01	1	9302-9508				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) (B)	8-97130-505-0	01	1	9509-9601				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97130-505-0	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B)	8-97165-830-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97047-914-3	01	1	9112-9208				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97070-174-1	01	1	9209-9301				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97092-576-0	01	1	9302-9504				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) (B)	8-97092-576-0	01	1	9505-9508			●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97092-576-0	01	1	9505-9508				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) (B)	8-97130-506-0	01	1	9509-9608			●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97130-506-0	01	1	9509-9608				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) (B)	8-97165-832-0	01	1	9609-			●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B)	8-97165-832-0	01	1	9609-				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4) (B)	8-97134-605-1	01	1	9602-9608				●
12	03.701 SILENCER ASM; EXH LONG(UB***F) EUROPE EQUIPMENT(EK4) (B)	8-97165-839-0	01	1	9609-				●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9504	●		●
14	03.704 GASKET; SILENCER TO EXH PIPE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	02	1	9112-9301		●
14	03.704 GASKET; SILENCER TO EXH PIPE EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.611 (B) ID=55	8-97093-574-0	02	1	9302-9308		●
14	03.704 GASKET; SILENCER TO EXH PIPE EUROPE EQUIPMENT(EK4) 03.611 (B) ID=55	8-97093-574-0	02	1	9309-9504		●
14	03.704 GASKET; SILENCER TO EXH PIPE ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7	8-94328-352-0	02	1	9505-		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	9112-9504		●		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	9505-		●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=64.7	8-94328-352-0	01	1	9505-		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	9505-			●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CATALYSIS CONTROL(6MZ) (A) ID=64.7	8-94328-352-0	01	1	9505-				●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9112-9208	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9209-9301		●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 03.611 (B) ID=55	8-97093-574-0	01	1	9302-9308		●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EUROPE EQUIPMENT(EK4) 03.611 (B) ID=55	8-97093-574-0	01	1	9309-9504		●
41	03.704 NUT; EXH PIPE TO EXH SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9504	●		●
41	03.704 NUT; EXH PIPE TO EXH SILENCER RR COIL & LINK SUSPENSION<6SV> 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9504		●
41	03.704 NUT; EXH PIPE TO EXH SILENCER EXC. CATALYSIS CONTROL(6MZ) 04.785 M10 FLANGE	0-91150-110-0	02	1	9112-9504				●
41	03.704 NUT; EXH PIPE TO EXH SILENCER SHORT(UB***C) 04.785 M10 FLANGE	0-91150-110-0	02	1	9505-		●	●	●
59	03.704 BRACKET; EXH SILENCER,FRT SHORT(UB***C)	8-97043-723-1	01	1	9112-9504		●		●
59	03.704 BRACKET; EXH SILENCER,FRT SHORT(UB***C)	8-97043-723-1	01	1	9505-		●	●	●
128	03.609 PIPE; EXH,RR SHORT(UB***C)	8-97011-631-0	01	1	9112-9504	●		●
128	03.609 PIPE; EXH,RR LONG(UB***F)	8-97011-630-0	01	1	9112-9504	●		●
128	03.609 PIPE; EXH,RR	8-97047-559-0	01	1	9309-9504		●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97047-559-0	01	1	9309-9504				●
128	03.609 PIPE; EXH,RR	8-97047-559-0	01	1	9505-9601		●	●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97047-559-0	01	1	9505-9601				●
128	03.609 PIPE; EXH,RR	8-97131-338-1	01	1	9602-9608		●	●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97131-338-1	01	1	9602-9608				●
128	03.609 PIPE; EXH,RR	8-97165-817-0	01	1	9609-		●	●	●
128	03.609 PIPE; EXH,RR EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-559-0	01	1	9112-9208		●
128	03.609 PIPE; EXH,RR CATALYSIS CONTROL(6MZ)	8-97047-559-0	01	1	9112-9208				●
128	03.609 PIPE; EXH,RR EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-559-0	01	1	9209-9308		●
128	03.609 PIPE; EXH,RR EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97047-560-0	01	1	9112-9308		●
128	03.609 PIPE; EXH,RR EXC. CATALYSIS CONTROL(6MZ)	8-97047-560-0	01	1	9112-9308				●
128	03.609 PIPE; EXH,RR CATALYSIS CONTROL(6MZ)	8-97070-151-0	01	1	9209-9601				●
128	03.609 PIPE; EXH,RR CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4)	8-97070-151-0	01	1	9602-9608				●
128	03.609 PIPE; EXH,RR EUROPE EQUIPMENT(EK4)	8-97141-971-0	01	1	9602-9608				●
169	03.706 RING; DAMPER,EXH PIPE (A)	8-97021-581-0	01	1	9112-9301	●	●	●	●
169	03.706 RING; DAMPER,EXH PIPE 03.704 (A)	8-97080-694-0	01	1	9302-	●	●	●	●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 55X44(OVAL)	8-94332-331-0	02	1	9112-9301	●		●
169	03.706 RING; DAMPER,EXH PIPE LONG(UB***F) (B) T=28 55X44(OVAL)	8-94332-331-0	02	1	9112-9301		●		●
169	03.706 RING; DAMPER,EXH PIPE (B) T=28 55X44(OVAL)	8-94332-331-0	02	1	9302-9504	●		●
180	03.708 BOLT; CONV TO PIPE CATALYSIS CONTROL(6MZ)	0-28211-040-0	08	1	9112-9204				●
180	03.708 BOLT; CONV TO PIPE CATALYSIS CONTROL(6MZ) M10X40	0-28281-040-0	08	1	9205-9308				●
180	03.708 BOLT; CONV TO PIPE M10X40	0-28281-040-0	04	1	9309-9410				●
180	03.708 BOLT; CONV TO PIPE CATALYSIS CONTROL(6MZ) M10X40	0-28281-040-0	04	1	9309-9410				●
180	03.708 BOLT; CONV TO PIPE 03.613 M10X40 FLANGE	0-28681-040-0	04	1	9411-				●
180	03.708 BOLT; CONV TO PIPE CATALYSIS CONTROL(6MZ) 03.613 M10X40 FLANGE	0-28681-040-0	04	1	9411-				●
221	03.704 CLAMP; EXH SILENCER 03.706	8-97021-581-0	01	1	9112-9301		●		●
221	03.704 CLAMP; EXH SILENCER	8-97080-694-0	01	1	9302-9504		●		●
221	03.704 CLAMP; EXH SILENCER	8-97080-694-0	01	1	9505-		●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-1	01	1	9112-9301		●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-1	01	1	9302-9504		●		●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97038-816-2	01	1	9505-		●	●	●
335	03.706 RUBBER; SUPPORT,SILENCER	8-97023-883-0	01	1	9112-9301				●
337	03.706 BOLT; RUBBER,SUPPORT SHORT(UB***C) 00.862 M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9112-9204		●		●
337	03.706 BOLT; RUBBER,SUPPORT SHORT(UB***C) 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9205-9410		●		●
337	03.706 BOLT; RUBBER,SUPPORT SHORT(UB***C) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9411-9504		●		●
337	03.706 BOLT; RUBBER,SUPPORT SHORT(UB***C) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9505-		●	●	●
340	03.706 NUT; RUBBER,SUPPORT 07.633 M8 FLANGE	0-91150-108-0	04	1	9112-9504		●		●
340	03.706 NUT; RUBBER,SUPPORT 07.633 M8 FLANGE	0-91150-108-0	04	1	9505-		●	●	●
383	03.602 NUT; PROTECTOR CATALYSIS CONTROL(6MZ) 04.594 M6 FLANGE	0-91150-106-0	04	1	9112-				●
386	03.602 PANEL; HEAT PROTECTOR SHORT(UB***C) CATALYSIS CONTROL(6MZ)	8-97063-965-1	01	1	9112-9601				●
386	03.602 PANEL; HEAT PROTECTOR SHORT(UB***C) CATALYSIS CONTROL(6MZ)	8-97134-610-0	01	1	9602-				●
386	03.602 PANEL; HEAT PROTECTOR LONG(UB***F) CATALYSIS CONTROL(6MZ)	8-97063-966-1	01	1	9112-9601				●
386	03.602 PANEL; HEAT PROTECTOR LONG(UB***F) CATALYSIS CONTROL(6MZ)	8-97134-609-0	01	1	9602-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
