Sayfa 1-41 - Isuzu EPC

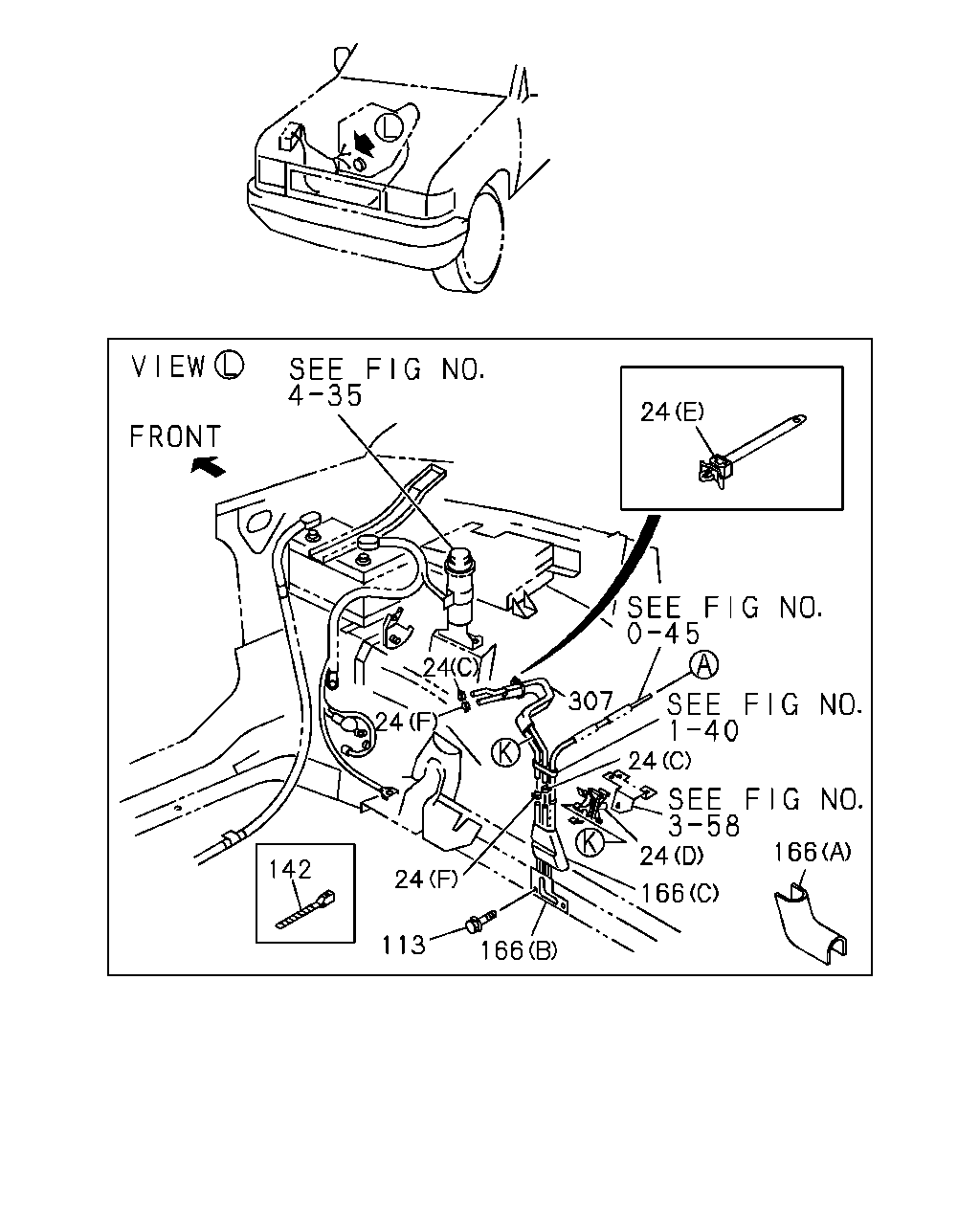

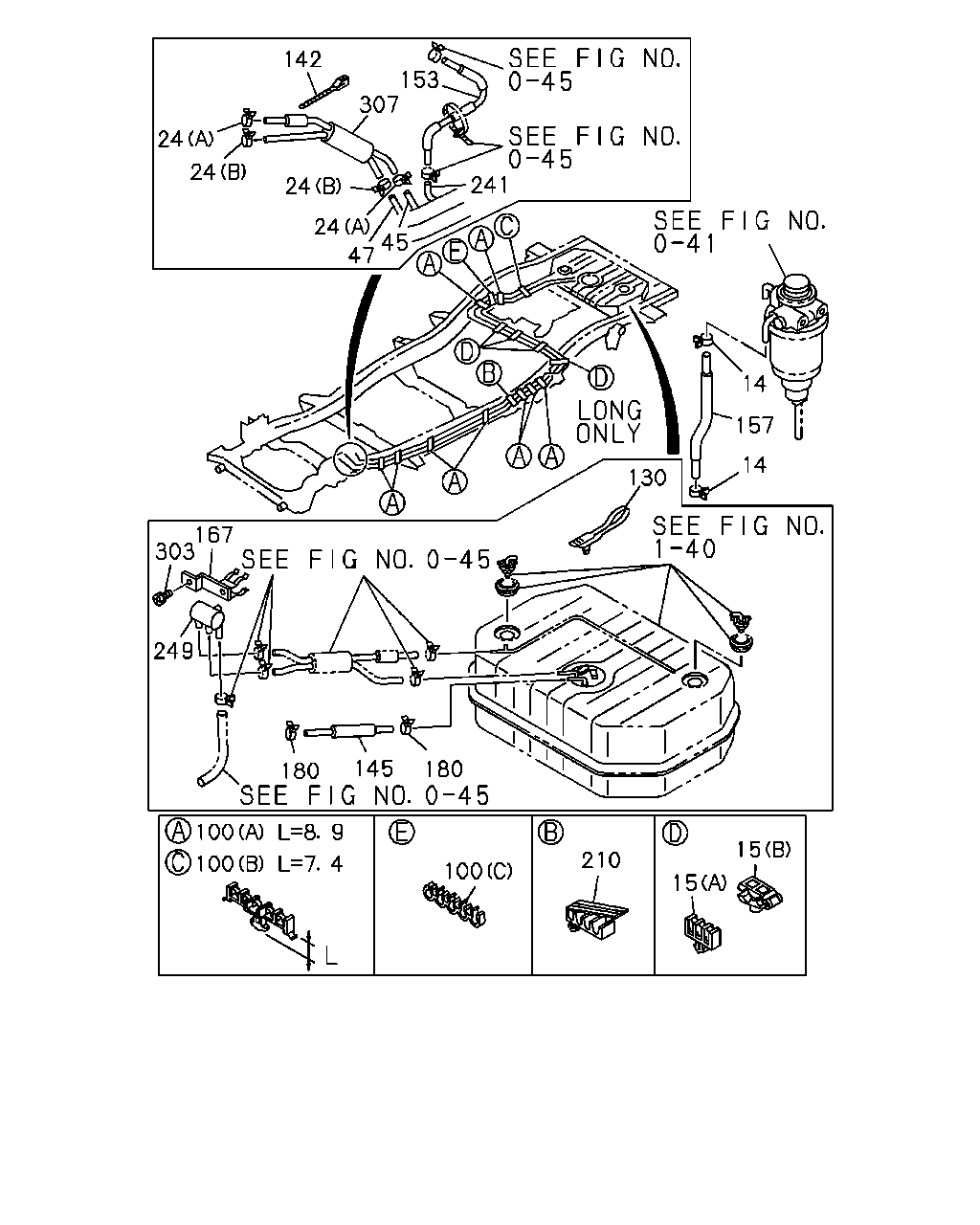

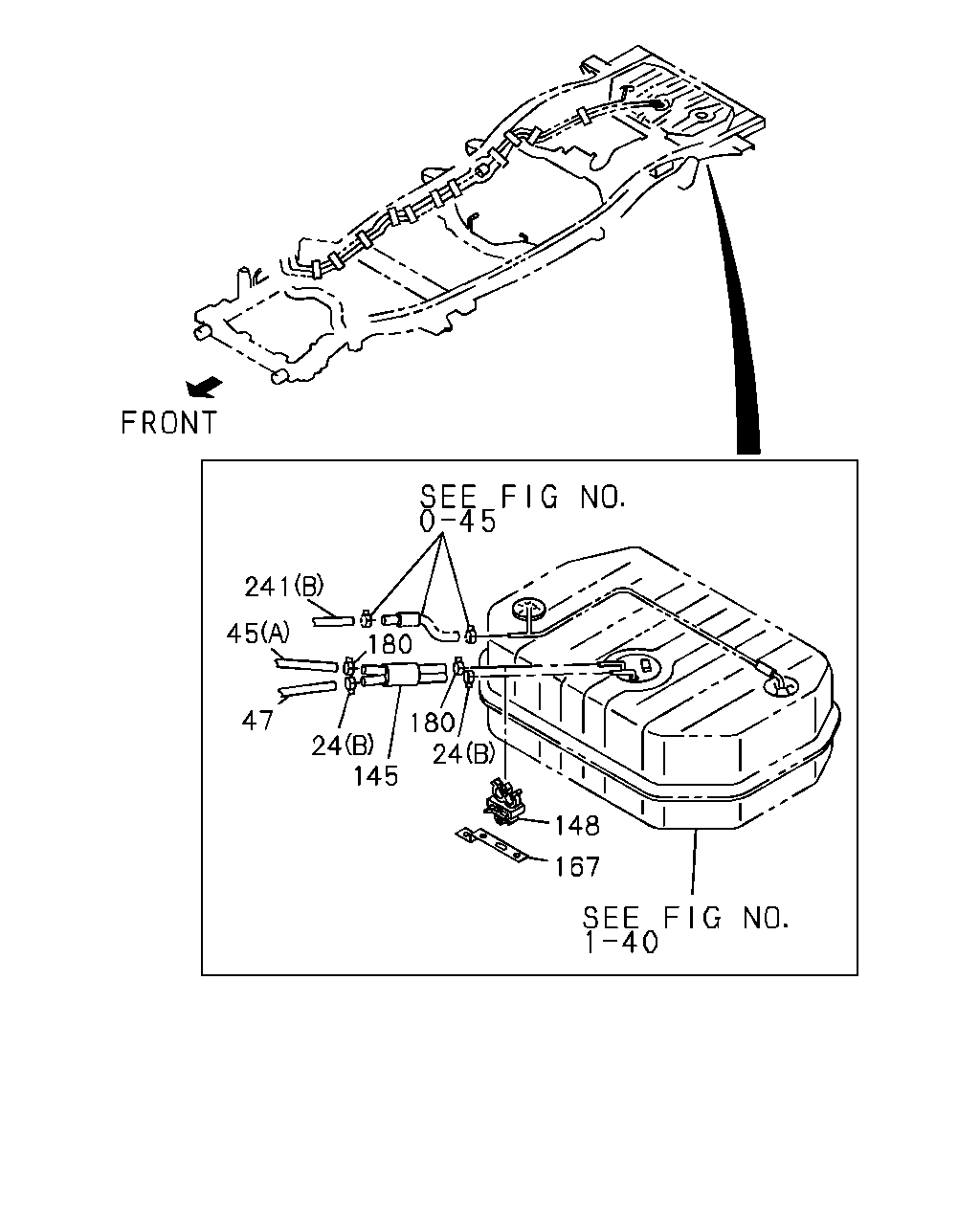

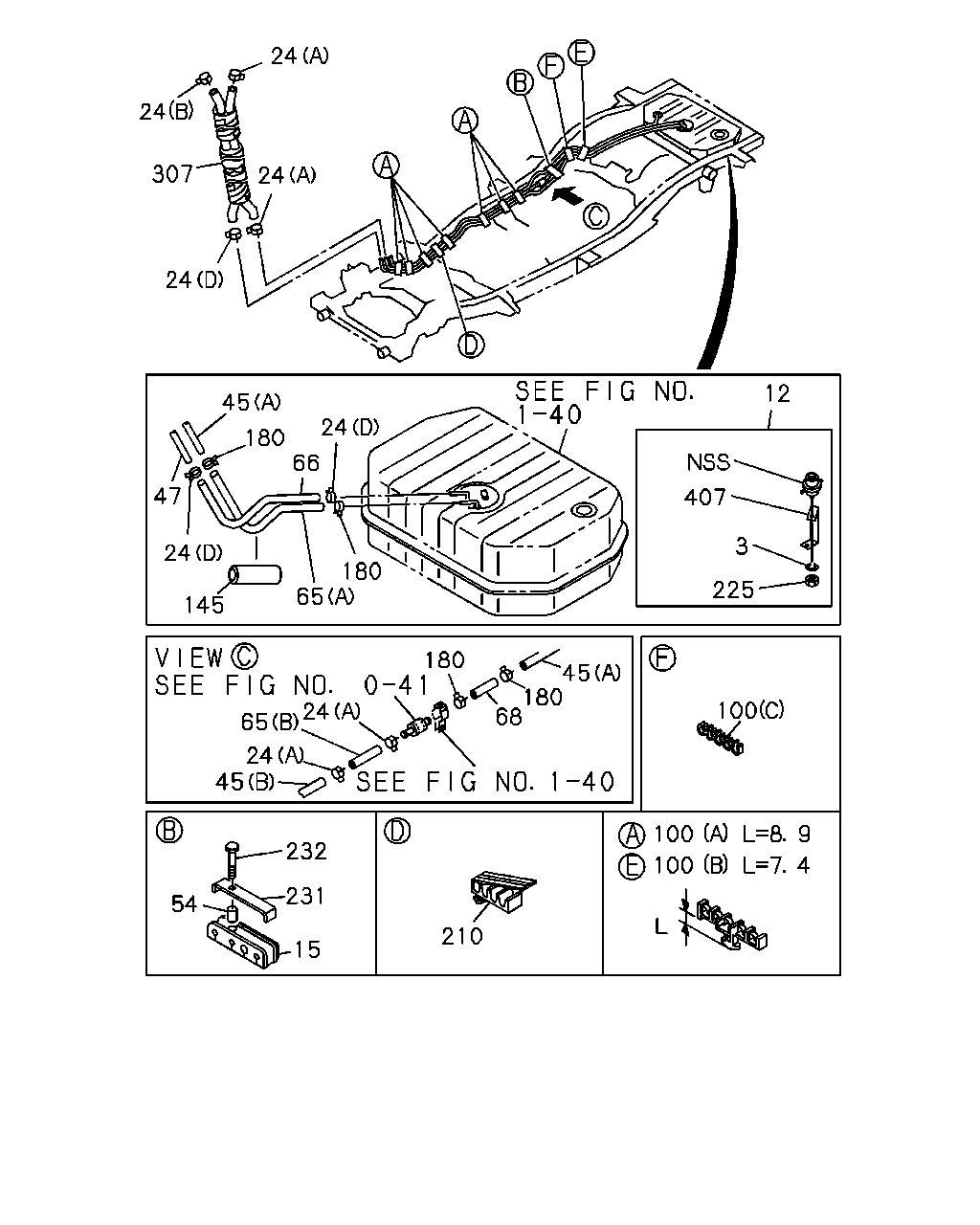

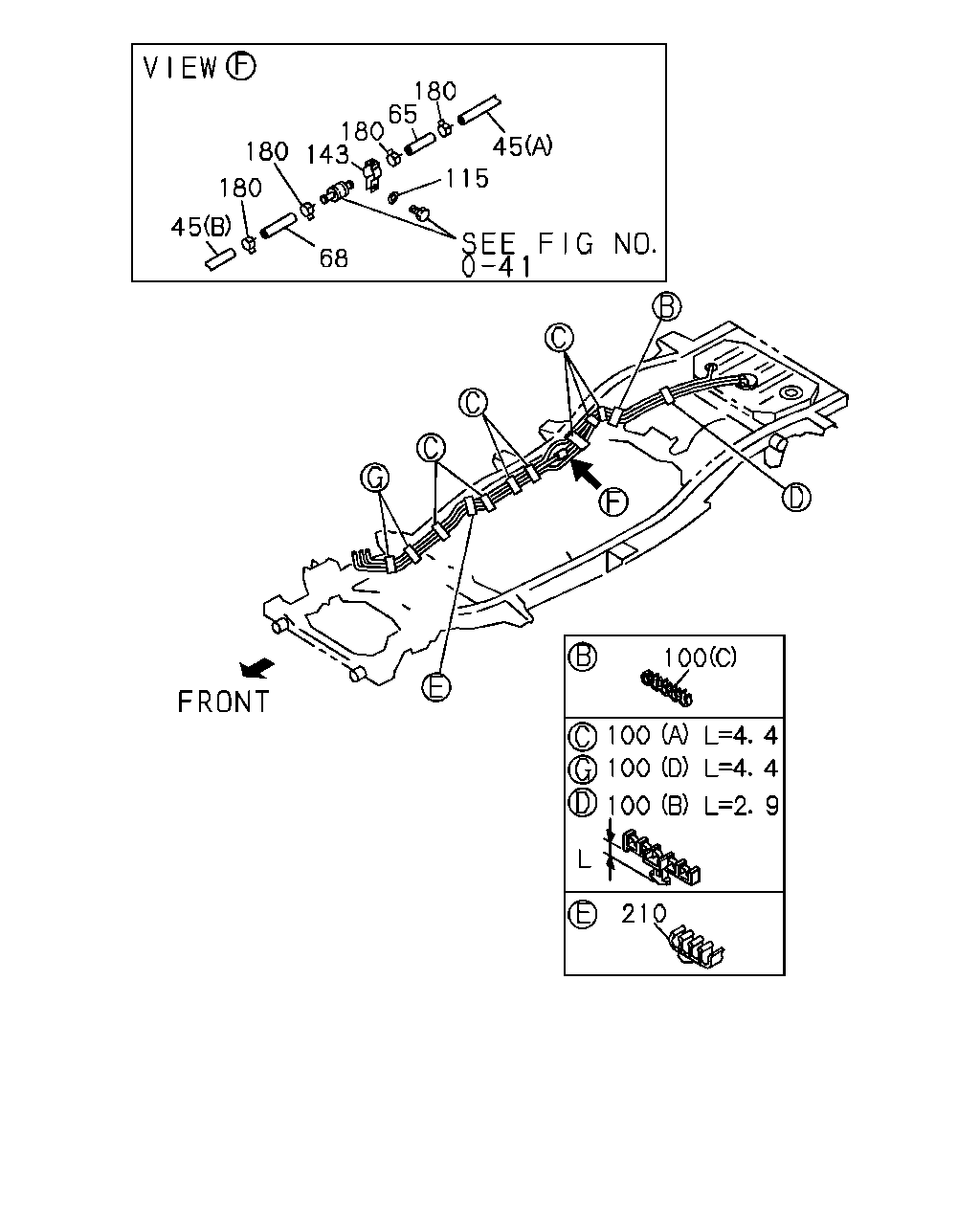

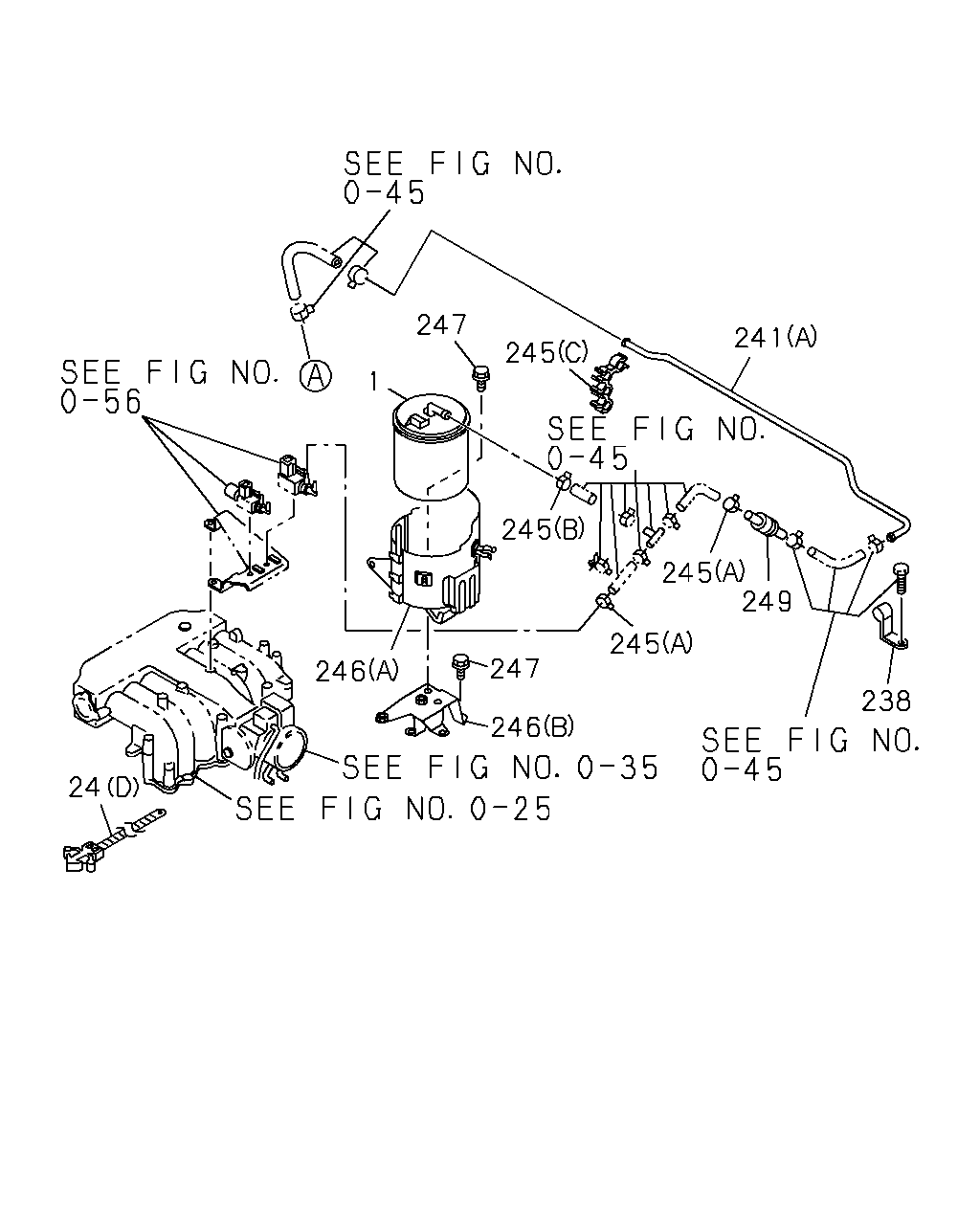

1-41 — FUEL PIPING; CHASSIS (#43342) — 544 parça

24 142 24 24 24 307 153 241 45 47 14 14 157 130 167 303 249 180 145 180 15 15 210 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
14	03.162 CLIP; HOSE 01.166 ID=14	8-94238-572-0	02	1	9112-9504	●	●
14	03.162 CLIP; HOSE EXC. EUROPE EQUIPMENT(EK4) 01.166 ID=14	8-94238-572-0	02	1	9505-9607	●
14	03.162 CLIP; HOSE 01.166 ID=14	8-94238-572-0	02	1	9505-9607	●
14	03.162 CLIP; HOSE EXC. EUROPE EQUIPMENT(EK4) ID=14.2	8-97087-056-0	02	1	9608-	●
14	03.162 CLIP; HOSE ID=14.2	8-97087-056-0	02	1	9608-	●
15	03.162 CLIP; FUEL PIPE (A) BLUE	8-94455-380-1	02	1	9112-9504		●
15	03.162 CLIP; FUEL PIPE SHORT(UB***C) (B)	8-97012-498-1	03	1	9112-	●
15	03.162 CLIP; FUEL PIPE LONG(UB***F) (B)	8-97012-498-1	04	1	9112-	●
15	03.162 CLIP; FUEL PIPE	8-94182-922-0	01	1	9112-9512			●
15	03.162 CLIP; FUEL PIPE	8-94182-922-0	01	1	9209-9308			●
24	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	02	1	9112-9504	●	●	●
24	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	02	1	9505-9607	●		●
24	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	02	1	9608-9704			●
24	03.162 CLIP; FUEL HOSE (A) ID=14	8-97173-221-0	02	1	9705-			●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	04	1	9112-9504	●	●		●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	04	1	9505-9607	●			●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	02	1	9608-9704	●			●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	02	1	9608-9704	●
24	03.162 CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> 01.219 (B) ID=13	8-94238-571-0	02	1	9608-9704				●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	02	1	9705-	●			●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	02	1	9705-	●
24	03.162 CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> (B) ID=13	8-97173-220-0	02	1	9705-				●
24	03.162 CLIP; FUEL HOSE (B) ID=14.2	8-97087-056-0	02	1	9608-	●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	01	1	9112-9704			●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	01	1	9705-			●
24	03.162 CLIP; FUEL HOSE 03.163 (D) ID=11	8-94238-570-0	03	1	9112-9704			●
24	03.162 CLIP; FUEL HOSE 03.163 (D) ID=11	8-97173-219-0	03	1	9705-			●
24	03.162 CLIP; FUEL HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-0	02	1	9112-9704				●
24	03.162 CLIP; FUEL HOSE (C) ID=12	8-97148-892-0	02	1	9705-				●
24	03.162 CLIP; FUEL HOSE (D)	8-97063-401-0	02	1	9112-9501				●
24	03.162 CLIP; FUEL HOSE (D)	8-97019-746-0	02	1	9502-9607				●
24	03.162 CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (D)	8-97019-746-0	01	1	9608-				●
24	03.162 CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> 02.559 (E) L=212	8-94107-652-0	01	1	9608-				●
24	03.162 CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (F) ID=11.5	8-97138-011-0	02	1	9608-				●
24	03.162 CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> (D)	8-97019-746-0	02	1	9608-				●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C)	8-94374-815-2	01	1	9112-9504		●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F)	8-97012-433-1	01	1	9112-9504		●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C)	8-94374-834-1	01	1	9112-9607	●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C)	8-97133-265-1	01	1	9608-	●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F)	8-94374-835-1	01	1	9112-9410	●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F)	8-97114-237-0	01	1	9411-9607	●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F)	8-97133-266-1	01	1	9608-	●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-94316-813-0	01	1	9112-9504			●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97012-435-1	01	1	9112-9504			●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97109-522-1	01	1	9505-			●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97018-366-1	01	1	9112-9504			●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97109-520-1	01	1	9505-			●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-94374-833-1	01	1	9112-9504				●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-94374-833-1	01	1	9505-9506			●	●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-97109-897-1	01	1	9507-			●	●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-94374-831-0	01	1	9112-9206				●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97083-096-0	01	1	9207-9607				●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97122-277-2	01	1	9608-				●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-94374-832-1	01	1	9112-9505				●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97113-024-0	01	1	9506-9607				●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97122-278-2	01	1	9608-				●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-94374-816-2	01	1	9112-9504		●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-97012-434-1	01	1	9112-9504		●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-94374-838-2	01	1	9112-9607	●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-97133-267-1	01	1	9608-	●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-94374-839-2	01	1	9112-9410	●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-97113-028-0	01	1	9411-9607	●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-97133-268-1	01	1	9608-	●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-94374-836-1	01	1	9112-9504			●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-97109-524-2	01	1	9505-			●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-94374-837-1	01	1	9112-9504			●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-97109-523-2	01	1	9505-			●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-94375-529-1	01	1	9112-9506				●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-97113-030-0	01	1	9507-9607				●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-97122-279-2	01	1	9608-				●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-94375-530-2	01	1	9112-9506				●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-97113-031-0	01	1	9507-9607				●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-97122-280-2	01	1	9608-				●
100	03.162 CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	07	1	9112-9504		●		●
100	03.162 CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	07	1	9505-9607	●		●	●
100	03.162 CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	07	1	9608-	●		●
100	03.162 CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	07	1	9608-				●
100	03.162 CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	09	1	9112-9504		●		●
100	03.162 CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	09	1	9608-	●		●
100	03.162 CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	08	1	9112-9504	●
100	03.162 CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	08	1	9112-9504			●
100	03.162 CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	10	1	9112-9504	●
100	03.162 CLIP; FUEL PIPE (C)	8-97073-935-0	01	1	9505-	●		●	●
100	03.162 CLIP; FUEL PIPE (B) L=7.4	8-94435-550-0	01	1	9112-	●		●	●
100	03.162 CLIP; FUEL PIPE (C)	8-97073-935-0	01	1	9201-9504	●			●
100	03.162 CLIP; FUEL PIPE (C)	8-97073-935-0	02	1	9505-9510	●
100	03.162 CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	06	1	9112-9504			●
100	03.162 CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	09	1	9505-9607	●		●	●
100	03.162 CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	05	1	9608-				●
100	03.162 CLIP; FUEL PIPE (D) L=8.9	8-97137-467-0	02	1	9608-				●
130	03.162 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4) 02.559 L=135	8-94473-399-0	01	1	9112-9305	●
130	03.162 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4) 02.559 L=135	8-94473-399-0	02	1	9306-9308	●
130	03.162 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4) 02.559 L=135	8-94473-399-0	01	1	9309-	●
142	03.162 CLIP; BAND,FUEL HOSE 02.559 L=250	5-09707-030-0	01	1	9112-9504	●	●
142	03.162 CLIP; BAND,FUEL HOSE 02.559 L=250	5-09707-030-0	01	1	9505-	●
142	03.162 CLIP; BAND,FUEL HOSE L=170	5-09707-054-0	01	1	9303-9508				●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE	8-97807-123-0	01	1	9112-9504		●	●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE	8-97109-644-1	01	1	9505-			●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE RR COIL & LINK SUSPENSION<6SV>	8-97018-368-0	01	1	9112-9504	●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE	8-97018-368-0	01	1	9505-	●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE	8-97018-367-2	01	1	9112-9506				●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE	8-97109-841-0	01	1	9507-				●
153	03.162 HOSE; RUBBER,PIPE TO ACL EUROPE EQUIPMENT(EK4)	8-97043-966-2	01	1	9112-9308	●
153	03.162 HOSE; RUBBER,PIPE TO ACL EUROPE EQUIPMENT(EK4)	8-97043-966-2	01	1	9309-9504	●
153	03.162 HOSE; RUBBER,PIPE TO ACL EUROPE EQUIPMENT(EK4)	8-97043-966-2	01	1	9505-9604	●
153	03.162 HOSE; RUBBER,PIPE TO ACL EUROPE EQUIPMENT(EK4)	8-97146-258-0	01	1	9605-9607	●
153	03.162 HOSE; RUBBER,PIPE TO ACL EUROPE EQUIPMENT(EK4)	8-97161-054-0	01	1	9608-	●
157	03.163 HOSE; FUEL FILTER TO FEED PIPE L=440	8-94133-604-2	01	1	9112-9504	●	●
157	03.163 HOSE; FUEL FILTER TO FEED PIPE L=440	8-94133-604-2	01	1	9505-9607	●
157	03.163 HOSE; FUEL FILTER TO FEED PIPE	8-97132-542-0	01	1	9608-	●
167	03.162 BRACKET EUROPE EQUIPMENT(EK4) 03.164	8-97038-829-0	01	1	9309-	●
167	03.162 BRACKET	8-97062-831-0	01	1	9112-9607				●
167	03.162 BRACKET EXC. AIR BAG DRIVER<AJ3>	8-97062-831-0	01	1	9608-				●
167	03.162 BRACKET AIR BAG DRIVER<AJ3>	8-97135-657-0	01	1	9608-				●
180	03.162 CLIP; DELIVERY & RETURN 01.166 ID=14	8-94238-572-0	02	1	9112-9504	●	●	●
180	03.162 CLIP; DELIVERY & RETURN 01.166 ID=14	8-94238-572-0	02	1	9505-9704	●		●
180	03.162 CLIP; DELIVERY & RETURN ID=14	8-97173-221-0	02	1	9705-	●		●
180	03.162 CLIP; DELIVERY & RETURN 01.166 ID=14	8-94238-572-0	04	1	9112-9704			●
180	03.162 CLIP; DELIVERY & RETURN ID=14	8-97173-221-0	04	1	9705-			●
180	03.162 CLIP; DELIVERY & RETURN 00.034 ID=12 WO/PVC COATING	8-94123-526-0	06	1	9112-9704				●
180	03.162 CLIP; DELIVERY & RETURN ID=12	8-97148-892-0	06	1	9705-				●
210	03.162 CLIP; FEED PIPE	8-97069-378-0	01	1	9112-9504	●	●	●	●
210	03.162 CLIP; FEED PIPE	8-97069-378-0	01	1	9505-	●		●	●
210	03.162 CLIP; FEED PIPE	8-97069-378-0	01	1	9505-	●
241	03.163 PIPE; EVAP SHORT(UB***C) EUROPE EQUIPMENT(EK4)	8-94374-842-2	01	1	9112-9607	●
241	03.163 PIPE; EVAP SHORT(UB***C) EUROPE EQUIPMENT(EK4)	8-97133-269-1	01	1	9608-	●
241	03.163 PIPE; EVAP LONG(UB***F) EUROPE EQUIPMENT(EK4)	8-94374-843-2	01	1	9112-9410	●
241	03.163 PIPE; EVAP LONG(UB***F) EUROPE EQUIPMENT(EK4)	8-97114-238-0	01	1	9411-9607	●
241	03.163 PIPE; EVAP LONG(UB***F) EUROPE EQUIPMENT(EK4)	8-97133-270-1	01	1	9608-	●
241	03.163 PIPE; EVAP (A)	8-94374-844-2	01	1	9112-9207				●
241	03.163 PIPE; EVAP (A)	8-97084-571-2	01	1	9208-				●
241	03.163 PIPE; EVAP SHORT(UB***C) (B)	8-94374-840-1	01	1	9112-9203				●
241	03.163 PIPE; EVAP SHORT(UB***C) (B)	8-97077-508-1	01	1	9204-9607				●
241	03.163 PIPE; EVAP SHORT(UB***C) (B)	8-97122-281-2	01	1	9608-				●
241	03.163 PIPE; EVAP LONG(UB***F) (B)	8-94374-841-2	01	1	9112-9203				●
241	03.163 PIPE; EVAP LONG(UB***F) (B)	8-97077-509-0	01	1	9204-9607				●
241	03.163 PIPE; EVAP LONG(UB***F) (B)	8-97122-282-2	01	1	9608-				●
249	03.120 VALVE; CONT,EVAP EUROPE EQUIPMENT(EK4)	8-94367-933-0	01	1	9112-9308	●
249	03.120 VALVE; CONT,EVAP EUROPE EQUIPMENT(EK4)	8-94367-933-0	01	1	9309-	●
249	03.120 VALVE; CONT,EVAP 03.164	8-94151-559-1	01	1	9112-9308				●
249	03.120 VALVE; CONT,EVAP 03.162	8-97076-391-0	01	1	9309-				●
303	03.130 BOLT; BRKT EUROPE EQUIPMENT(EK4) 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9410-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97038-475-3	01	1	9112-9504	●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97038-475-3	01	1	9505-9603	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97135-570-0	01	1	9604-9607	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN EXC. AIR BAG DRIVER<AJ3>	8-97135-570-0	01	1	9608-9706	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN EXC. AIR BAG DRIVER<AJ3>	8-97182-160-0	01	1	9707-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN AIR BAG DRIVER<AJ3>	8-97134-374-0	01	1	9608-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-94328-120-0	01	1	9112-			●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97038-474-3	01	1	9112-9301				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97089-451-0	01	1	9302-9607				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN AIR BAG DRIVER<AJ3>	8-97134-373-4	01	1	9608-				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN EXC. AIR BAG DRIVER<AJ3>	8-97134-785-4	01	1	9608-				●

24 307 24 24 166 166 166 113 142 24 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	02	1	9112-9504	●	●	●
24	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	02	1	9505-9607	●		●
24	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	02	1	9608-9704			●
24	03.162 CLIP; FUEL HOSE (A) ID=14	8-97173-221-0	02	1	9705-			●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	04	1	9112-9504	●	●		●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	04	1	9505-9607	●			●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	02	1	9608-9704	●			●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	02	1	9608-9704	●
24	03.162 CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> 01.219 (B) ID=13	8-94238-571-0	02	1	9608-9704				●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	02	1	9705-	●			●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	02	1	9705-	●
24	03.162 CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> (B) ID=13	8-97173-220-0	02	1	9705-				●
24	03.162 CLIP; FUEL HOSE (B) ID=14.2	8-97087-056-0	02	1	9608-	●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	01	1	9112-9704			●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	01	1	9705-			●
24	03.162 CLIP; FUEL HOSE 03.163 (D) ID=11	8-94238-570-0	03	1	9112-9704			●
24	03.162 CLIP; FUEL HOSE 03.163 (D) ID=11	8-97173-219-0	03	1	9705-			●
24	03.162 CLIP; FUEL HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-0	02	1	9112-9704				●
24	03.162 CLIP; FUEL HOSE (C) ID=12	8-97148-892-0	02	1	9705-				●
24	03.162 CLIP; FUEL HOSE (D)	8-97063-401-0	02	1	9112-9501				●
24	03.162 CLIP; FUEL HOSE (D)	8-97019-746-0	02	1	9502-9607				●
24	03.162 CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (D)	8-97019-746-0	01	1	9608-				●
24	03.162 CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> 02.559 (E) L=212	8-94107-652-0	01	1	9608-				●
24	03.162 CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (F) ID=11.5	8-97138-011-0	02	1	9608-				●
24	03.162 CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> (D)	8-97019-746-0	02	1	9608-				●
113	03.162 BOLT; PROTECTOR AIR BAG DRIVER<AJ3> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9608-				●
142	03.162 CLIP; BAND,FUEL HOSE 02.559 L=250	5-09707-030-0	01	1	9112-9504	●	●
142	03.162 CLIP; BAND,FUEL HOSE 02.559 L=250	5-09707-030-0	01	1	9505-	●
142	03.162 CLIP; BAND,FUEL HOSE L=170	5-09707-054-0	01	1	9303-9508				●
166	03.162 PROTECTOR; FUEL HOSE (A) L=88	8-97069-335-0	01	1	9112-9607				●
166	03.162 PROTECTOR; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> (A) L=88	8-97069-335-0	01	1	9608-				●
166	03.162 PROTECTOR; FUEL HOSE AIR BAG DRIVER<AJ3> (C)	8-97121-035-4	01	1	9608-				●
166	03.162 PROTECTOR; FUEL HOSE AIR BAG DRIVER<AJ3> (B)	8-97122-303-0	01	1	9608-				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97038-475-3	01	1	9112-9504	●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97038-475-3	01	1	9505-9603	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97135-570-0	01	1	9604-9607	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN EXC. AIR BAG DRIVER<AJ3>	8-97135-570-0	01	1	9608-9706	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN EXC. AIR BAG DRIVER<AJ3>	8-97182-160-0	01	1	9707-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN AIR BAG DRIVER<AJ3>	8-97134-374-0	01	1	9608-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-94328-120-0	01	1	9112-			●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97038-474-3	01	1	9112-9301				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97089-451-0	01	1	9302-9607				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN AIR BAG DRIVER<AJ3>	8-97134-373-4	01	1	9608-				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN EXC. AIR BAG DRIVER<AJ3>	8-97134-785-4	01	1	9608-				●

210 100 100 100 100 115 45 180 65 180 143 180 180 45 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C)	8-94374-815-2	01	1	9112-9504		●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F)	8-97012-433-1	01	1	9112-9504		●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C)	8-94374-834-1	01	1	9112-9607	●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C)	8-97133-265-1	01	1	9608-	●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F)	8-94374-835-1	01	1	9112-9410	●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F)	8-97114-237-0	01	1	9411-9607	●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F)	8-97133-266-1	01	1	9608-	●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-94316-813-0	01	1	9112-9504			●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97012-435-1	01	1	9112-9504			●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97109-522-1	01	1	9505-			●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97018-366-1	01	1	9112-9504			●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97109-520-1	01	1	9505-			●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-94374-833-1	01	1	9112-9504				●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-94374-833-1	01	1	9505-9506			●	●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-97109-897-1	01	1	9507-			●	●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-94374-831-0	01	1	9112-9206				●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97083-096-0	01	1	9207-9607				●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97122-277-2	01	1	9608-				●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-94374-832-1	01	1	9112-9505				●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97113-024-0	01	1	9506-9607				●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97122-278-2	01	1	9608-				●
65	03.163 HOSE; FUEL,DELIVERY PIPE 08.962 (B) L=210 SERVICED BY L=3000	0-01258-300-0	01	1	9112-9504			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 08.962 (B) L=100 SERVICED BY L=3000	0-01258-300-0	01	1	9505-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 08.962 (A) L=440 SERVICED BY L=3000	0-01258-300-0	01	1	9112-9504			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.901 L=100 SERVICED BY L=3000	0-01458-300-0	01	1	9112-				●
68	03.163 HOSE; FUEL,FILTER TO PIPE SHORT(UB***C) 08.962 L=110 SERVICED BY L=3000	0-01258-300-0	01	1	9112-9504			●
68	03.163 HOSE; FUEL,FILTER TO PIPE SHORT(UB***C) 08.962 L=100 SERVICED BY L=3000	0-01258-300-0	01	1	9505-			●
68	03.163 HOSE; FUEL,FILTER TO PIPE LONG(UB***F) 08.962 L=150 SERVICED BY L=3000	0-01258-300-0	01	1	9112-9504			●
68	03.163 HOSE; FUEL,FILTER TO PIPE LONG(UB***F) 08.962 L=170 SERVICED BY L=3000	0-01258-300-0	01	1	9505-			●
68	03.163 HOSE; FUEL,FILTER TO PIPE SHORT(UB***C) 03.901 L=110 SERVICED BY L=3000	0-01458-300-0	01	1	9112-9206				●
68	03.163 HOSE; FUEL,FILTER TO PIPE SHORT(UB***C) 03.901 L=100 SERVICED BY L=3000	0-01458-300-0	01	1	9207-				●
68	03.163 HOSE; FUEL,FILTER TO PIPE LONG(UB***F) 03.901 L=170 SERVICED BY L=3000	0-01458-300-0	01	1	9112-9505				●
68	03.163 HOSE; FUEL,FILTER TO PIPE LONG(UB***F) 03.901 L=150 SERVICED BY L=3000	0-01458-300-0	01	1	9506-				●
100	03.162 CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	07	1	9112-9504		●		●
100	03.162 CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	07	1	9505-9607	●		●	●
100	03.162 CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	07	1	9608-	●		●
100	03.162 CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	07	1	9608-				●
100	03.162 CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	09	1	9112-9504		●		●
100	03.162 CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	09	1	9608-	●		●
100	03.162 CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	08	1	9112-9504	●
100	03.162 CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	08	1	9112-9504			●
100	03.162 CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	10	1	9112-9504	●
100	03.162 CLIP; FUEL PIPE (C)	8-97073-935-0	01	1	9505-	●		●	●
100	03.162 CLIP; FUEL PIPE (B) L=7.4	8-94435-550-0	01	1	9112-	●		●	●
100	03.162 CLIP; FUEL PIPE (C)	8-97073-935-0	01	1	9201-9504	●			●
100	03.162 CLIP; FUEL PIPE (C)	8-97073-935-0	02	1	9505-9510	●
100	03.162 CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	06	1	9112-9504			●
100	03.162 CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	09	1	9505-9607	●		●	●
100	03.162 CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	05	1	9608-				●
100	03.162 CLIP; FUEL PIPE (D) L=8.9	8-97137-467-0	02	1	9608-				●
115	03.162 WASHER; PL,CLIP 02.334 ID=6.4 OD=22	9-09164-806-0	01	1	9705-				●
143	03.162 CLAMP; FUEL FILTER	8-97049-810-1	01	1	9112-				●
180	03.162 CLIP; DELIVERY & RETURN 01.166 ID=14	8-94238-572-0	02	1	9112-9504	●	●	●
180	03.162 CLIP; DELIVERY & RETURN 01.166 ID=14	8-94238-572-0	02	1	9505-9704	●		●
180	03.162 CLIP; DELIVERY & RETURN ID=14	8-97173-221-0	02	1	9705-	●		●
180	03.162 CLIP; DELIVERY & RETURN 01.166 ID=14	8-94238-572-0	04	1	9112-9704			●
180	03.162 CLIP; DELIVERY & RETURN ID=14	8-97173-221-0	04	1	9705-			●
180	03.162 CLIP; DELIVERY & RETURN 00.034 ID=12 WO/PVC COATING	8-94123-526-0	06	1	9112-9704				●
180	03.162 CLIP; DELIVERY & RETURN ID=12	8-97148-892-0	06	1	9705-				●
210	03.162 CLIP; FEED PIPE	8-97069-378-0	01	1	9112-9504	●	●	●	●
210	03.162 CLIP; FEED PIPE	8-97069-378-0	01	1	9505-	●		●	●
210	03.162 CLIP; FEED PIPE	8-97069-378-0	01	1	9505-	●

24 24 307 24 24 45 66 180 24 47 24 145 65 180 12 407 3 225 45 180 68 180 24 65 24 45 100 210 15 231 232 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	03.162 WASHER; LK,BRKT 00.002 ID=8.2	9-09150-608-0	01	1	9608-			●
12	03.163 DAMPER ASM; FUEL	8-94407-633-0	01	1	9112-			●
15	03.162 CLIP; FUEL PIPE (A) BLUE	8-94455-380-1	02	1	9112-9504		●
15	03.162 CLIP; FUEL PIPE SHORT(UB***C) (B)	8-97012-498-1	03	1	9112-	●
15	03.162 CLIP; FUEL PIPE LONG(UB***F) (B)	8-97012-498-1	04	1	9112-	●
15	03.162 CLIP; FUEL PIPE	8-94182-922-0	01	1	9112-9512			●
15	03.162 CLIP; FUEL PIPE	8-94182-922-0	01	1	9209-9308			●
24	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	02	1	9112-9504	●	●	●
24	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	02	1	9505-9607	●		●
24	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	02	1	9608-9704			●
24	03.162 CLIP; FUEL HOSE (A) ID=14	8-97173-221-0	02	1	9705-			●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	04	1	9112-9504	●	●		●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	04	1	9505-9607	●			●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	02	1	9608-9704	●			●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	02	1	9608-9704	●
24	03.162 CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> 01.219 (B) ID=13	8-94238-571-0	02	1	9608-9704				●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	02	1	9705-	●			●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	02	1	9705-	●
24	03.162 CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> (B) ID=13	8-97173-220-0	02	1	9705-				●
24	03.162 CLIP; FUEL HOSE (B) ID=14.2	8-97087-056-0	02	1	9608-	●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	01	1	9112-9704			●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	01	1	9705-			●
24	03.162 CLIP; FUEL HOSE 03.163 (D) ID=11	8-94238-570-0	03	1	9112-9704			●
24	03.162 CLIP; FUEL HOSE 03.163 (D) ID=11	8-97173-219-0	03	1	9705-			●
24	03.162 CLIP; FUEL HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-0	02	1	9112-9704				●
24	03.162 CLIP; FUEL HOSE (C) ID=12	8-97148-892-0	02	1	9705-				●
24	03.162 CLIP; FUEL HOSE (D)	8-97063-401-0	02	1	9112-9501				●
24	03.162 CLIP; FUEL HOSE (D)	8-97019-746-0	02	1	9502-9607				●
24	03.162 CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (D)	8-97019-746-0	01	1	9608-				●
24	03.162 CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> 02.559 (E) L=212	8-94107-652-0	01	1	9608-				●
24	03.162 CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (F) ID=11.5	8-97138-011-0	02	1	9608-				●
24	03.162 CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> (D)	8-97019-746-0	02	1	9608-				●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C)	8-94374-815-2	01	1	9112-9504		●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F)	8-97012-433-1	01	1	9112-9504		●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C)	8-94374-834-1	01	1	9112-9607	●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C)	8-97133-265-1	01	1	9608-	●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F)	8-94374-835-1	01	1	9112-9410	●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F)	8-97114-237-0	01	1	9411-9607	●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F)	8-97133-266-1	01	1	9608-	●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-94316-813-0	01	1	9112-9504			●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97012-435-1	01	1	9112-9504			●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97109-522-1	01	1	9505-			●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97018-366-1	01	1	9112-9504			●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97109-520-1	01	1	9505-			●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-94374-833-1	01	1	9112-9504				●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-94374-833-1	01	1	9505-9506			●	●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-97109-897-1	01	1	9507-			●	●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-94374-831-0	01	1	9112-9206				●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97083-096-0	01	1	9207-9607				●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97122-277-2	01	1	9608-				●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-94374-832-1	01	1	9112-9505				●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97113-024-0	01	1	9506-9607				●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97122-278-2	01	1	9608-				●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-94374-816-2	01	1	9112-9504		●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-97012-434-1	01	1	9112-9504		●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-94374-838-2	01	1	9112-9607	●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-97133-267-1	01	1	9608-	●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-94374-839-2	01	1	9112-9410	●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-97113-028-0	01	1	9411-9607	●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-97133-268-1	01	1	9608-	●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-94374-836-1	01	1	9112-9504			●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-97109-524-2	01	1	9505-			●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-94374-837-1	01	1	9112-9504			●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-97109-523-2	01	1	9505-			●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-94375-529-1	01	1	9112-9506				●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-97113-030-0	01	1	9507-9607				●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-97122-279-2	01	1	9608-				●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-94375-530-2	01	1	9112-9506				●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-97113-031-0	01	1	9507-9607				●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-97122-280-2	01	1	9608-				●
54	03.162 SPACER; CLIP,FUEL PIPE 03.163	8-94182-925-0	01	1	9112-9512			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 08.962 (B) L=210 SERVICED BY L=3000	0-01258-300-0	01	1	9112-9504			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 08.962 (B) L=100 SERVICED BY L=3000	0-01258-300-0	01	1	9505-			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 08.962 (A) L=440 SERVICED BY L=3000	0-01258-300-0	01	1	9112-9504			●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.901 L=100 SERVICED BY L=3000	0-01458-300-0	01	1	9112-				●
66	03.163 HOSE; FUEL,RETURN PIPE L=780	8-94363-220-0	01	1	9112-9504			●
68	03.163 HOSE; FUEL,FILTER TO PIPE SHORT(UB***C) 08.962 L=110 SERVICED BY L=3000	0-01258-300-0	01	1	9112-9504			●
68	03.163 HOSE; FUEL,FILTER TO PIPE SHORT(UB***C) 08.962 L=100 SERVICED BY L=3000	0-01258-300-0	01	1	9505-			●
68	03.163 HOSE; FUEL,FILTER TO PIPE LONG(UB***F) 08.962 L=150 SERVICED BY L=3000	0-01258-300-0	01	1	9112-9504			●
68	03.163 HOSE; FUEL,FILTER TO PIPE LONG(UB***F) 08.962 L=170 SERVICED BY L=3000	0-01258-300-0	01	1	9505-			●
68	03.163 HOSE; FUEL,FILTER TO PIPE SHORT(UB***C) 03.901 L=110 SERVICED BY L=3000	0-01458-300-0	01	1	9112-9206				●
68	03.163 HOSE; FUEL,FILTER TO PIPE SHORT(UB***C) 03.901 L=100 SERVICED BY L=3000	0-01458-300-0	01	1	9207-				●
68	03.163 HOSE; FUEL,FILTER TO PIPE LONG(UB***F) 03.901 L=170 SERVICED BY L=3000	0-01458-300-0	01	1	9112-9505				●
68	03.163 HOSE; FUEL,FILTER TO PIPE LONG(UB***F) 03.901 L=150 SERVICED BY L=3000	0-01458-300-0	01	1	9506-				●
100	03.162 CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	07	1	9112-9504		●		●
100	03.162 CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	07	1	9505-9607	●		●	●
100	03.162 CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	07	1	9608-	●		●
100	03.162 CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	07	1	9608-				●
100	03.162 CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	09	1	9112-9504		●		●
100	03.162 CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	09	1	9608-	●		●
100	03.162 CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	08	1	9112-9504	●
100	03.162 CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	08	1	9112-9504			●
100	03.162 CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	10	1	9112-9504	●
100	03.162 CLIP; FUEL PIPE (C)	8-97073-935-0	01	1	9505-	●		●	●
100	03.162 CLIP; FUEL PIPE (B) L=7.4	8-94435-550-0	01	1	9112-	●		●	●
100	03.162 CLIP; FUEL PIPE (C)	8-97073-935-0	01	1	9201-9504	●			●
100	03.162 CLIP; FUEL PIPE (C)	8-97073-935-0	02	1	9505-9510	●
100	03.162 CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	06	1	9112-9504			●
100	03.162 CLIP; FUEL PIPE LONG(UB***F) (A) L=8.9	8-94435-551-1	09	1	9505-9607	●		●	●
100	03.162 CLIP; FUEL PIPE SHORT(UB***C) (A) L=8.9	8-94435-551-1	05	1	9608-				●
100	03.162 CLIP; FUEL PIPE (D) L=8.9	8-97137-467-0	02	1	9608-				●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE	8-97807-123-0	01	1	9112-9504		●	●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE	8-97109-644-1	01	1	9505-			●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE RR COIL & LINK SUSPENSION<6SV>	8-97018-368-0	01	1	9112-9504	●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE	8-97018-368-0	01	1	9505-	●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE	8-97018-367-2	01	1	9112-9506				●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE	8-97109-841-0	01	1	9507-				●
180	03.162 CLIP; DELIVERY & RETURN 01.166 ID=14	8-94238-572-0	02	1	9112-9504	●	●	●
180	03.162 CLIP; DELIVERY & RETURN 01.166 ID=14	8-94238-572-0	02	1	9505-9704	●		●
180	03.162 CLIP; DELIVERY & RETURN ID=14	8-97173-221-0	02	1	9705-	●		●
180	03.162 CLIP; DELIVERY & RETURN 01.166 ID=14	8-94238-572-0	04	1	9112-9704			●
180	03.162 CLIP; DELIVERY & RETURN ID=14	8-97173-221-0	04	1	9705-			●
180	03.162 CLIP; DELIVERY & RETURN 00.034 ID=12 WO/PVC COATING	8-94123-526-0	06	1	9112-9704				●
180	03.162 CLIP; DELIVERY & RETURN ID=12	8-97148-892-0	06	1	9705-				●
210	03.162 CLIP; FEED PIPE	8-97069-378-0	01	1	9112-9504	●	●	●	●
210	03.162 CLIP; FEED PIPE	8-97069-378-0	01	1	9505-	●		●	●
210	03.162 CLIP; FEED PIPE	8-97069-378-0	01	1	9505-	●
225	03.162 NUT; FUEL DAMPER 00.002 M8	9-09110-508-0	01	1	9608-			●
231	03.162 RUBBER; SUPPORT,FUEL PIPE	8-94321-253-0	01	1	9112-9512			●
232	03.162 BOLT; CLIP,PIPE 03.454 M6X25	9-02040-625-0	01	1	9112-9204			●
232	03.162 BOLT; CLIP,PIPE 01.166 M6X25	0-20800-625-0	01	1	9205-9512			●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97038-475-3	01	1	9112-9504	●	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97038-475-3	01	1	9505-9603	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97135-570-0	01	1	9604-9607	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN EXC. AIR BAG DRIVER<AJ3>	8-97135-570-0	01	1	9608-9706	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN EXC. AIR BAG DRIVER<AJ3>	8-97182-160-0	01	1	9707-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN AIR BAG DRIVER<AJ3>	8-97134-374-0	01	1	9608-	●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-94328-120-0	01	1	9112-			●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97038-474-3	01	1	9112-9301				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN	8-97089-451-0	01	1	9302-9607				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN AIR BAG DRIVER<AJ3>	8-97134-373-4	01	1	9608-				●
307	03.163 HOSE ASM; FUEL,DELIVERY & RETURN EXC. AIR BAG DRIVER<AJ3>	8-97134-785-4	01	1	9608-				●
407	03.162 BRACKET; FUEL DAMPER 03.163	8-94407-343-0	01	1	9608-			●

241 45 47 24 145 180 180 24 148 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	02	1	9112-9504	●	●	●
24	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	02	1	9505-9607	●		●
24	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	02	1	9608-9704			●
24	03.162 CLIP; FUEL HOSE (A) ID=14	8-97173-221-0	02	1	9705-			●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	04	1	9112-9504	●	●		●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	04	1	9505-9607	●			●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	02	1	9608-9704	●			●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	02	1	9608-9704	●
24	03.162 CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> 01.219 (B) ID=13	8-94238-571-0	02	1	9608-9704				●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	02	1	9705-	●			●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	02	1	9705-	●
24	03.162 CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> (B) ID=13	8-97173-220-0	02	1	9705-				●
24	03.162 CLIP; FUEL HOSE (B) ID=14.2	8-97087-056-0	02	1	9608-	●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	01	1	9112-9704			●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	01	1	9705-			●
24	03.162 CLIP; FUEL HOSE 03.163 (D) ID=11	8-94238-570-0	03	1	9112-9704			●
24	03.162 CLIP; FUEL HOSE 03.163 (D) ID=11	8-97173-219-0	03	1	9705-			●
24	03.162 CLIP; FUEL HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-0	02	1	9112-9704				●
24	03.162 CLIP; FUEL HOSE (C) ID=12	8-97148-892-0	02	1	9705-				●
24	03.162 CLIP; FUEL HOSE (D)	8-97063-401-0	02	1	9112-9501				●
24	03.162 CLIP; FUEL HOSE (D)	8-97019-746-0	02	1	9502-9607				●
24	03.162 CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (D)	8-97019-746-0	01	1	9608-				●
24	03.162 CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> 02.559 (E) L=212	8-94107-652-0	01	1	9608-				●
24	03.162 CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (F) ID=11.5	8-97138-011-0	02	1	9608-				●
24	03.162 CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> (D)	8-97019-746-0	02	1	9608-				●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C)	8-94374-815-2	01	1	9112-9504		●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F)	8-97012-433-1	01	1	9112-9504		●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C)	8-94374-834-1	01	1	9112-9607	●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C)	8-97133-265-1	01	1	9608-	●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F)	8-94374-835-1	01	1	9112-9410	●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F)	8-97114-237-0	01	1	9411-9607	●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F)	8-97133-266-1	01	1	9608-	●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-94316-813-0	01	1	9112-9504			●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97012-435-1	01	1	9112-9504			●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97109-522-1	01	1	9505-			●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97018-366-1	01	1	9112-9504			●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97109-520-1	01	1	9505-			●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-94374-833-1	01	1	9112-9504				●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-94374-833-1	01	1	9505-9506			●	●
45	03.163 PIPE; FUEL,DELIVERY (A)	8-97109-897-1	01	1	9507-			●	●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-94374-831-0	01	1	9112-9206				●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97083-096-0	01	1	9207-9607				●
45	03.163 PIPE; FUEL,DELIVERY SHORT(UB***C) (B)	8-97122-277-2	01	1	9608-				●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-94374-832-1	01	1	9112-9505				●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97113-024-0	01	1	9506-9607				●
45	03.163 PIPE; FUEL,DELIVERY LONG(UB***F) (B)	8-97122-278-2	01	1	9608-				●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-94374-816-2	01	1	9112-9504		●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-97012-434-1	01	1	9112-9504		●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-94374-838-2	01	1	9112-9607	●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-97133-267-1	01	1	9608-	●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-94374-839-2	01	1	9112-9410	●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-97113-028-0	01	1	9411-9607	●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-97133-268-1	01	1	9608-	●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-94374-836-1	01	1	9112-9504			●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-97109-524-2	01	1	9505-			●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-94374-837-1	01	1	9112-9504			●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-97109-523-2	01	1	9505-			●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-94375-529-1	01	1	9112-9506				●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-97113-030-0	01	1	9507-9607				●
47	03.163 PIPE; FUEL,RETURN SHORT(UB***C)	8-97122-279-2	01	1	9608-				●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-94375-530-2	01	1	9112-9506				●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-97113-031-0	01	1	9507-9607				●
47	03.163 PIPE; FUEL,RETURN LONG(UB***F)	8-97122-280-2	01	1	9608-				●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE	8-97807-123-0	01	1	9112-9504		●	●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE	8-97109-644-1	01	1	9505-			●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE RR COIL & LINK SUSPENSION<6SV>	8-97018-368-0	01	1	9112-9504	●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE	8-97018-368-0	01	1	9505-	●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE	8-97018-367-2	01	1	9112-9506				●
145	03.163 HOSE; FUEL TANK TO RETURN PIPE	8-97109-841-0	01	1	9507-				●
148	03.162 CLIP; HOSE,FUEL	8-97019-746-0	01	1	9112-				●
167	03.162 BRACKET EUROPE EQUIPMENT(EK4) 03.164	8-97038-829-0	01	1	9309-	●
167	03.162 BRACKET	8-97062-831-0	01	1	9112-9607				●
167	03.162 BRACKET EXC. AIR BAG DRIVER<AJ3>	8-97062-831-0	01	1	9608-				●
167	03.162 BRACKET AIR BAG DRIVER<AJ3>	8-97135-657-0	01	1	9608-				●
180	03.162 CLIP; DELIVERY & RETURN 01.166 ID=14	8-94238-572-0	02	1	9112-9504	●	●	●
180	03.162 CLIP; DELIVERY & RETURN 01.166 ID=14	8-94238-572-0	02	1	9505-9704	●		●
180	03.162 CLIP; DELIVERY & RETURN ID=14	8-97173-221-0	02	1	9705-	●		●
180	03.162 CLIP; DELIVERY & RETURN 01.166 ID=14	8-94238-572-0	04	1	9112-9704			●
180	03.162 CLIP; DELIVERY & RETURN ID=14	8-97173-221-0	04	1	9705-			●
180	03.162 CLIP; DELIVERY & RETURN 00.034 ID=12 WO/PVC COATING	8-94123-526-0	06	1	9112-9704				●
180	03.162 CLIP; DELIVERY & RETURN ID=12	8-97148-892-0	06	1	9705-				●
241	03.163 PIPE; EVAP SHORT(UB***C) EUROPE EQUIPMENT(EK4)	8-94374-842-2	01	1	9112-9607	●
241	03.163 PIPE; EVAP SHORT(UB***C) EUROPE EQUIPMENT(EK4)	8-97133-269-1	01	1	9608-	●
241	03.163 PIPE; EVAP LONG(UB***F) EUROPE EQUIPMENT(EK4)	8-94374-843-2	01	1	9112-9410	●
241	03.163 PIPE; EVAP LONG(UB***F) EUROPE EQUIPMENT(EK4)	8-97114-238-0	01	1	9411-9607	●
241	03.163 PIPE; EVAP LONG(UB***F) EUROPE EQUIPMENT(EK4)	8-97133-270-1	01	1	9608-	●
241	03.163 PIPE; EVAP (A)	8-94374-844-2	01	1	9112-9207				●
241	03.163 PIPE; EVAP (A)	8-97084-571-2	01	1	9208-				●
241	03.163 PIPE; EVAP SHORT(UB***C) (B)	8-94374-840-1	01	1	9112-9203				●
241	03.163 PIPE; EVAP SHORT(UB***C) (B)	8-97077-508-1	01	1	9204-9607				●
241	03.163 PIPE; EVAP SHORT(UB***C) (B)	8-97122-281-2	01	1	9608-				●
241	03.163 PIPE; EVAP LONG(UB***F) (B)	8-94374-841-2	01	1	9112-9203				●
241	03.163 PIPE; EVAP LONG(UB***F) (B)	8-97077-509-0	01	1	9204-9607				●
241	03.163 PIPE; EVAP LONG(UB***F) (B)	8-97122-282-2	01	1	9608-				●

1 247 241 245 245 245 249 238 245 247 246 246 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.130 CANISTER; FUEL	8-17087-023-0	01	1	9112-				●
24	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	02	1	9112-9504	●	●	●
24	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	02	1	9505-9607	●		●
24	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	02	1	9608-9704			●
24	03.162 CLIP; FUEL HOSE (A) ID=14	8-97173-221-0	02	1	9705-			●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	04	1	9112-9504	●	●		●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	04	1	9505-9607	●			●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	02	1	9608-9704	●			●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	02	1	9608-9704	●
24	03.162 CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> 01.219 (B) ID=13	8-94238-571-0	02	1	9608-9704				●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	02	1	9705-	●			●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	02	1	9705-	●
24	03.162 CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> (B) ID=13	8-97173-220-0	02	1	9705-				●
24	03.162 CLIP; FUEL HOSE (B) ID=14.2	8-97087-056-0	02	1	9608-	●
24	03.162 CLIP; FUEL HOSE 01.219 (B) ID=13	8-94238-571-0	01	1	9112-9704			●
24	03.162 CLIP; FUEL HOSE (B) ID=13	8-97173-220-0	01	1	9705-			●
24	03.162 CLIP; FUEL HOSE 03.163 (D) ID=11	8-94238-570-0	03	1	9112-9704			●
24	03.162 CLIP; FUEL HOSE 03.163 (D) ID=11	8-97173-219-0	03	1	9705-			●
24	03.162 CLIP; FUEL HOSE 00.034 (C) ID=12 WO/PVC COATING	8-94123-526-0	02	1	9112-9704				●
24	03.162 CLIP; FUEL HOSE (C) ID=12	8-97148-892-0	02	1	9705-				●
24	03.162 CLIP; FUEL HOSE (D)	8-97063-401-0	02	1	9112-9501				●
24	03.162 CLIP; FUEL HOSE (D)	8-97019-746-0	02	1	9502-9607				●
24	03.162 CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (D)	8-97019-746-0	01	1	9608-				●
24	03.162 CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> 02.559 (E) L=212	8-94107-652-0	01	1	9608-				●
24	03.162 CLIP; FUEL HOSE AIR BAG DRIVER<AJ3> (F) ID=11.5	8-97138-011-0	02	1	9608-				●
24	03.162 CLIP; FUEL HOSE EXC. AIR BAG DRIVER<AJ3> (D)	8-97019-746-0	02	1	9608-				●
238	03.145 CLIP; FUEL EVAP PIPE	8-97016-559-0	01	1	9112-				●
241	03.163 PIPE; EVAP SHORT(UB***C) EUROPE EQUIPMENT(EK4)	8-94374-842-2	01	1	9112-9607	●
241	03.163 PIPE; EVAP SHORT(UB***C) EUROPE EQUIPMENT(EK4)	8-97133-269-1	01	1	9608-	●
241	03.163 PIPE; EVAP LONG(UB***F) EUROPE EQUIPMENT(EK4)	8-94374-843-2	01	1	9112-9410	●
241	03.163 PIPE; EVAP LONG(UB***F) EUROPE EQUIPMENT(EK4)	8-97114-238-0	01	1	9411-9607	●
241	03.163 PIPE; EVAP LONG(UB***F) EUROPE EQUIPMENT(EK4)	8-97133-270-1	01	1	9608-	●
241	03.163 PIPE; EVAP (A)	8-94374-844-2	01	1	9112-9207				●
241	03.163 PIPE; EVAP (A)	8-97084-571-2	01	1	9208-				●
241	03.163 PIPE; EVAP SHORT(UB***C) (B)	8-94374-840-1	01	1	9112-9203				●
241	03.163 PIPE; EVAP SHORT(UB***C) (B)	8-97077-508-1	01	1	9204-9607				●
241	03.163 PIPE; EVAP SHORT(UB***C) (B)	8-97122-281-2	01	1	9608-				●
241	03.163 PIPE; EVAP LONG(UB***F) (B)	8-94374-841-2	01	1	9112-9203				●
241	03.163 PIPE; EVAP LONG(UB***F) (B)	8-97077-509-0	01	1	9204-9607				●
241	03.163 PIPE; EVAP LONG(UB***F) (B)	8-97122-282-2	01	1	9608-				●
245	03.162 CLIP; EVAP HOSE 03.163 (A) ID=11	8-94238-570-0	02	1	9112-9504				●
245	03.162 CLIP; EVAP HOSE 03.163 (A) ID=11	8-94238-570-0	03	1	9505-				●
245	03.162 CLIP; EVAP HOSE 01.219 (B) ID=12	8-94238-610-0	01	1	9112-				●
245	03.162 CLIP; EVAP HOSE (C) ID=6.4 & 4.8 & 4.8 & 4.8	8-97035-565-2	01	1	9112-				●
246	03.130 BRACKET; CANISTER (A)	8-94375-329-2	01	1	9112-9203				●
246	03.130 BRACKET; CANISTER (A)	8-97077-358-0	01	1	9204-9308				●
246	03.130 BRACKET; CANISTER (A)	8-97089-947-0	01	1	9309-				●
246	03.130 BRACKET; CANISTER (B)	8-97049-112-0	01	1	9112-9203				●
246	03.130 BRACKET; CANISTER (B)	8-97077-359-0	01	1	9204-				●
247	03.130 BOLT; CANISTER BRKT 00.738 M6X16 FLANGE	0-28080-616-0	02	1	9112-9203				●
247	03.130 BOLT; CANISTER BRKT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9112-9203				●
247	03.130 BOLT; CANISTER BRKT 00.738 M6X16 FLANGE	0-28080-616-0	06	1	9204-9208				●
247	03.130 BOLT; CANISTER BRKT 00.738 M6X16 FLANGE	0-28080-616-0	04	1	9209-				●
247	03.130 BOLT; CANISTER BRKT 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9209-				●
249	03.120 VALVE; CONT,EVAP EUROPE EQUIPMENT(EK4)	8-94367-933-0	01	1	9112-9308	●
249	03.120 VALVE; CONT,EVAP EUROPE EQUIPMENT(EK4)	8-94367-933-0	01	1	9309-	●
249	03.120 VALVE; CONT,EVAP 03.164	8-94151-559-1	01	1	9112-9308				●
249	03.120 VALVE; CONT,EVAP 03.162	8-97076-391-0	01	1	9309-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
