Sayfa 1-40 - Isuzu EPC

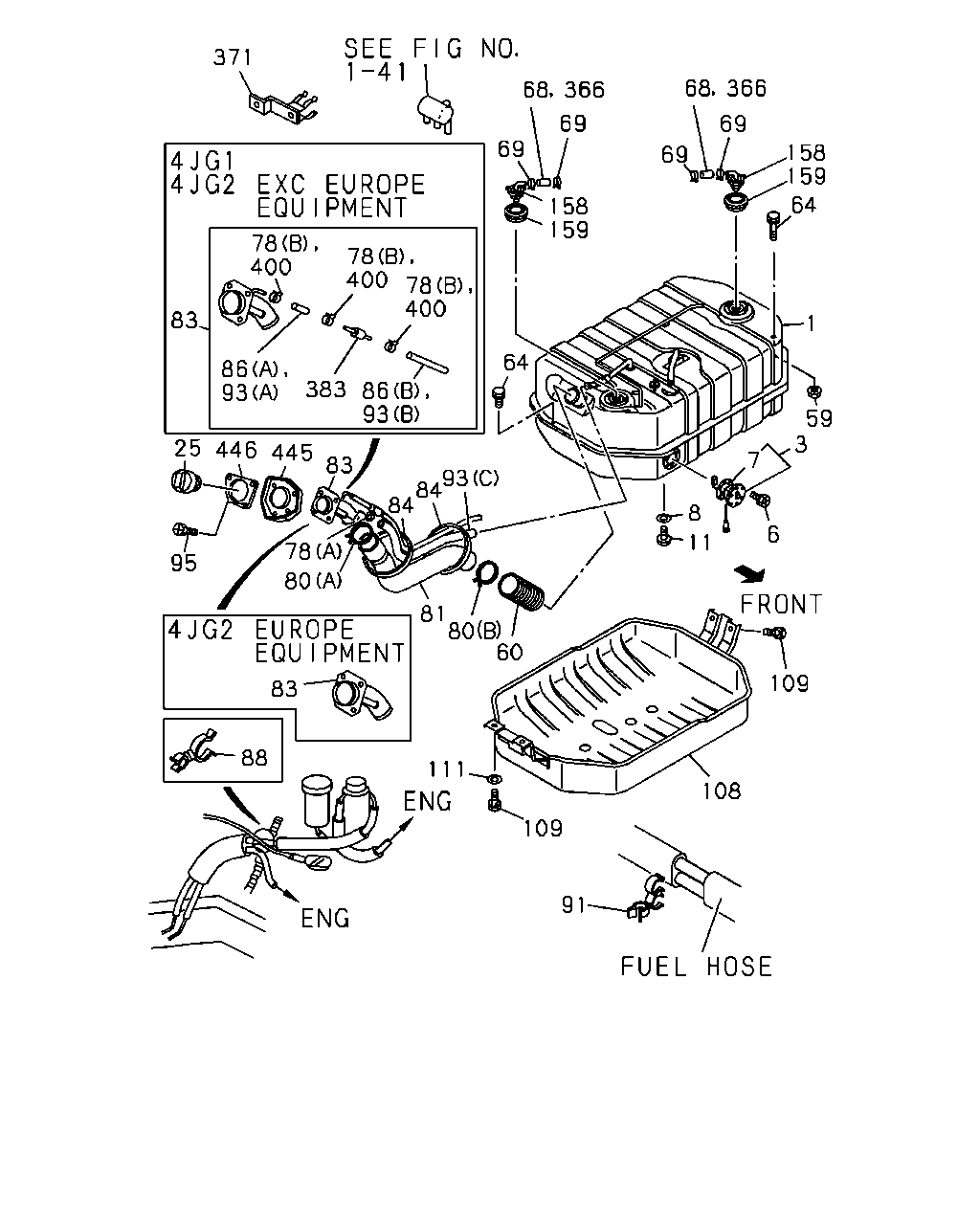

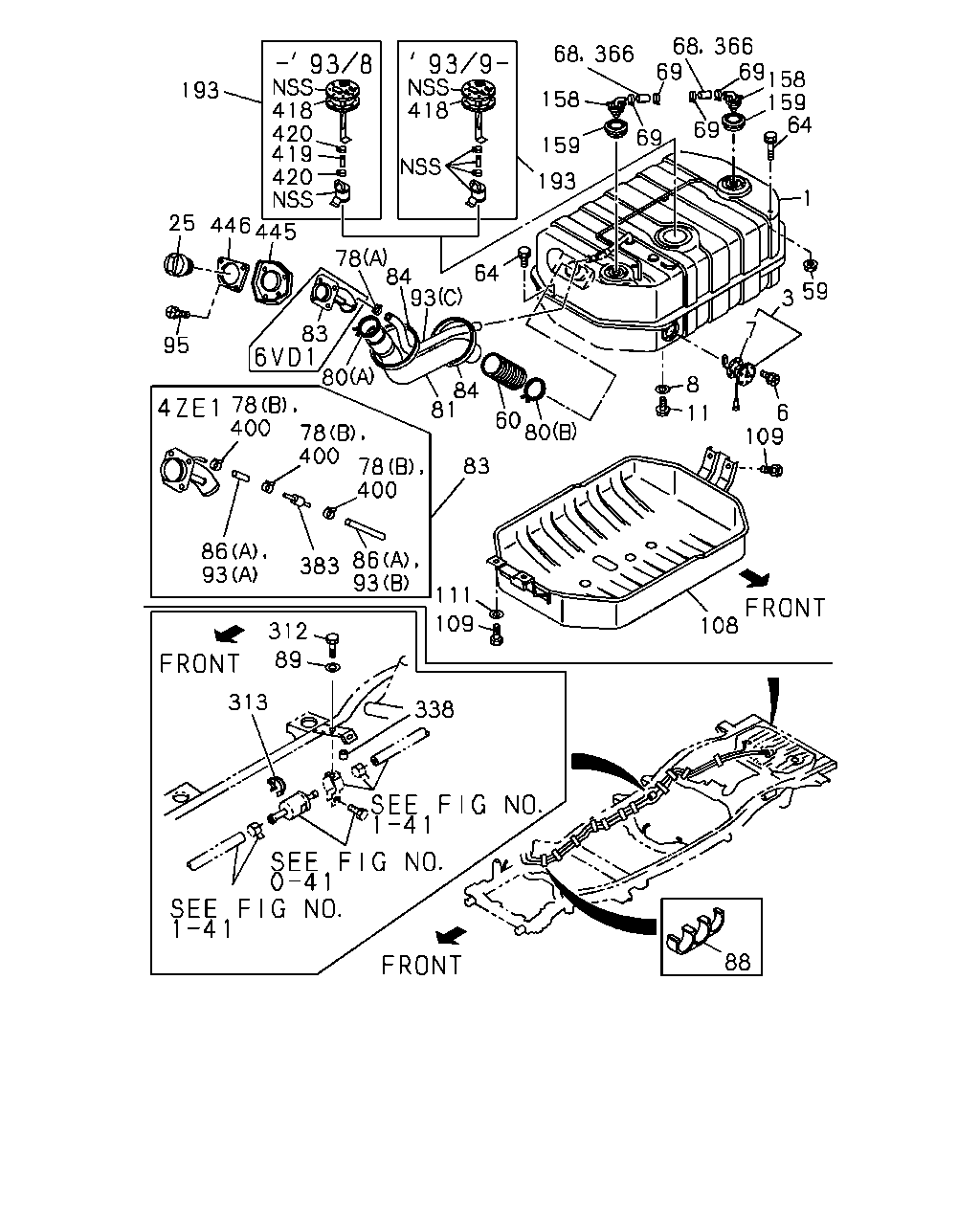

1-40 — FUEL TANK (#43341) — 283 parça

338 313 312 89 88 108 109 111 93 86 383 93 86 400 78 400 78 400 78 83 81 84 80 60 11 8 109 6 7 3 59 1 64 159 158 69 366 68 69 69 69 366 68 158 193 159 64 93 84 78 83 80 95 445 446 25 420 419 420 418 193 418

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL EUROPE EQUIPMENT(EK4)	8-97049-717-5	01	1	9112-9504	●	●
1	03.001 TANK; FUEL EUROPE EQUIPMENT(EK4)	8-97049-717-5	01	1	9505-9509	●
1	03.001 TANK; FUEL EUROPE EQUIPMENT(EK4)	8-97137-762-0	01	1	9510-9607	●
1	03.001 TANK; FUEL EUROPE EQUIPMENT(EK4)	8-97176-263-1	01	1	9608-	●
1	03.001 TANK; FUEL EXC. EUROPE EQUIPMENT(EK4)	8-94381-077-7	01	1	9112-9504	●	●	●
1	03.001 TANK; FUEL EXC. EUROPE EQUIPMENT(EK4)	8-94381-077-7	01	1	9505-9509	●		●
1	03.001 TANK; FUEL EXC. EUROPE EQUIPMENT(EK4)	8-97137-761-0	01	1	9510-9607	●		●
1	03.001 TANK; FUEL EXC. EUROPE EQUIPMENT(EK4)	8-97176-264-1	01	1	9608-	●		●
1	03.001 TANK; FUEL	8-97049-716-5	01	1	9112-9407				●
1	03.001 TANK; FUEL	8-97116-011-0	01	1	9408-9504				●
1	03.001 TANK; FUEL	8-97049-716-6	01	1	9505-9602				●
1	03.001 TANK; FUEL	8-97146-442-0	01	1	9603-9607				●
1	03.001 TANK; FUEL	8-97176-265-1	01	1	9608-				●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-97064-895-0	01	1	9112-9210	●	●		●
3	03.107 UNIT; FUEL TANK,SUB EXC. EUROPE EQUIPMENT(EK4) 03.001	8-97064-895-0	01	1	9112-9210			●
3	03.107 UNIT; FUEL TANK,SUB	8-97087-076-0	01	1	9211-9504	●	●		●
3	03.107 UNIT; FUEL TANK,SUB EXC. EUROPE EQUIPMENT(EK4)	8-97087-076-0	01	1	9211-9504			●
3	03.107 UNIT; FUEL TANK,SUB	8-97087-076-0	01	1	9505-9509	●
3	03.107 UNIT; FUEL TANK,SUB EXC. EUROPE EQUIPMENT(EK4)	8-97087-076-0	01	1	9505-9509			●
3	03.107 UNIT; FUEL TANK,SUB	8-97129-725-0	01	1	9505-9509				●
3	03.107 UNIT; FUEL TANK,SUB	8-97129-725-0	01	1	9510-	●		●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 08.913 M5X12 W/LK WASHER	9-03910-512-0	05	1	9112-9504	●	●		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN EXC. EUROPE EQUIPMENT(EK4) 08.913 M5X12 W/LK WASHER	9-03910-512-0	05	1	9112-9504			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 08.913 M5X12 W/LK WASHER	9-03910-512-0	05	1	9505-	●		●	●
7	03.112 GASKET; TANK UNIT,SUB TANK	5-83148-001-0	01	1	9112-9504	●	●		●
7	03.112 GASKET; TANK UNIT,SUB TANK EXC. EUROPE EQUIPMENT(EK4)	5-83148-001-0	01	1	9112-9504			●
7	03.112 GASKET; TANK UNIT,SUB TANK	5-83148-001-0	01	1	9505-	●		●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.001	9-09920-624-0	01	1	9112-9407	●	●		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. EUROPE EQUIPMENT(EK4) 03.001	9-09920-624-0	01	1	9112-9407			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.001	9-09920-624-0	01	1	9408-9408	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9408-9408				●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9409-9504	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9505-	●		●	●
11	03.890 PLUG; DRAIN,FUEL TANK 03.001 M14X14	8-94152-613-0	01	1	9112-9407	●	●		●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. EUROPE EQUIPMENT(EK4) 03.001 M14X14	8-94152-613-0	01	1	9112-9407			●
11	03.890 PLUG; DRAIN,FUEL TANK 03.001 M14X14	8-94152-613-0	01	1	9408-9408	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9408-9408				●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9409-9504	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9505-	●		●	●
25	03.028 CAP; FILLER,FUEL TANK	8-94310-199-4	01	1	9112-9504	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK	8-94310-199-4	01	1	9505-	●		●	●
59	03.023 NUT; FUEL TANK M8 FLANGE	8-94328-243-0	03	1	9112-9504	●	●	●	●
59	03.023 NUT; FUEL TANK M8 FLANGE	8-94328-243-0	03	1	9505-	●		●	●
60	03.008 PROTECTOR; FUEL FILLER	8-94318-424-0	01	1	9112-9504	●	●	●	●
60	03.008 PROTECTOR; FUEL FILLER	8-94318-424-0	01	1	9505-9612	●		●	●
60	03.008 PROTECTOR; FUEL FILLER	8-97114-063-0	01	1	9701-	●		●	●
64	03.023 BOLT; FUEL TANK 01.276 M8X24	8-97034-130-0	06	1	9112-9504	●	●	●	●
64	03.023 BOLT; FUEL TANK 01.276 M8X24	8-97034-130-0	06	1	9505-	●		●	●
68	03.145 HOSE; RUBBER,FUEL TANK TO EVAP P EUROPE EQUIPMENT(EK4) 03.163 L=80 SERVICED BY L=3000	8-94128-826-0	02	1	9112-9504	●	●
68	03.145 HOSE; RUBBER,FUEL TANK TO EVAP P 03.163 L=80 SERVICED BY L=3000	8-94128-826-0	02	1	9112-9504				●
68	03.145 HOSE; RUBBER,FUEL TANK TO EVAP P 03.163 L=80 SERVICED BY L=3000	8-94128-826-0	02	1	9505-9505				●
68	03.145 HOSE; RUBBER,FUEL TANK TO EVAP P EUROPE EQUIPMENT(EK4) 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9505-9505	●	●
68	03.145 HOSE; RUBBER,FUEL TANK TO EVAP P EUROPE EQUIPMENT(EK4) 03.163 950515- L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9505-9608	●
68	03.145 HOSE; RUBBER,FUEL TANK TO EVAP P 03.163 950515- L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9505-9608				●
69	03.145 CLIP; FUEL TANK TO EVAP PIPE EUROPE EQUIPMENT(EK4) 03.162 ID=8.5	8-94166-071-0	04	1	9112-9504	●	●
69	03.145 CLIP; FUEL TANK TO EVAP PIPE 03.162 ID=8.5	8-94166-071-0	04	1	9112-9504				●
69	03.145 CLIP; FUEL TANK TO EVAP PIPE EUROPE EQUIPMENT(EK4) 03.162 ID=8.5	8-94166-071-0	04	1	9505-	●
69	03.145 CLIP; FUEL TANK TO EVAP PIPE 03.162 ID=8.5	8-94166-071-0	04	1	9505-				●
78	03.003 CLIP; BREATHER HOSE EXC. EUROPE EQUIPMENT(EK4) 03.162 (B) ID=8.5	8-94166-071-0	03	1	9112-9209	●	●
78	03.003 CLIP; BREATHER HOSE 03.162 (B) ID=8.5	8-94166-071-0	03	1	9112-9209			●
78	03.003 CLIP; BREATHER HOSE EXC. EUROPE EQUIPMENT(EK4) 03.163 (B) ID=11	8-94238-570-0	03	1	9210-9504	●	●
78	03.003 CLIP; BREATHER HOSE 03.163 (B) ID=11	8-94238-570-0	03	1	9210-9504			●
78	03.003 CLIP; BREATHER HOSE EXC. EUROPE EQUIPMENT(EK4) 03.163 (B) ID=11	8-94238-570-0	03	1	9505-9612	●		●
78	03.003 CLIP; BREATHER HOSE 06.672 (A) ID=21	8-94242-034-0	02	1	9112-9504	●	●	●	●
78	03.003 CLIP; BREATHER HOSE 06.672 (A) ID=21	8-94242-034-0	01	1	9505-	●		●	●
78	03.003 CLIP; BREATHER HOSE 06.672 (A) ID=21	8-94242-034-0	01	1	9505-	●		●
80	03.008 CLIP; FILLER HOSE 03.003 (A) ID=59	8-94435-876-0	01	1	9112-9501	●	●	●	●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=60	9-09915-265-1	01	1	9502-9504	●	●	●	●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=60	9-09915-265-1	01	1	9505-	●		●	●
80	03.008 CLIP; FILLER HOSE 01.166 (B) ID=54	9-09915-412-1	01	1	9112-9504	●	●	●	●
80	03.008 CLIP; FILLER HOSE 01.166 (B) ID=54	9-09915-412-1	01	1	9505-	●		●	●
81	03.003 HOSE; FUEL FILLER	8-97012-158-0	01	1	9112-9504	●	●	●	●
81	03.003 HOSE; FUEL FILLER	8-97012-158-0	01	1	9505-	●		●	●
83	03.003 NECK; FUEL FILLER EXC. EUROPE EQUIPMENT(EK4)	8-97017-772-0	01	1	9112-9206	●	●
83	03.003 NECK; FUEL FILLER	8-97017-772-0	01	1	9112-9206			●
83	03.003 NECK; FUEL FILLER EXC. EUROPE EQUIPMENT(EK4)	8-97081-009-1	01	1	9207-9504	●	●
83	03.003 NECK; FUEL FILLER	8-97081-009-1	01	1	9207-9504			●
83	03.003 NECK; FUEL FILLER EXC. EUROPE EQUIPMENT(EK4)	8-97081-009-2	01	1	9505-	●		●
83	03.003 NECK; FUEL FILLER EUROPE EQUIPMENT(EK4)	8-97017-771-1	01	1	9112-	●
83	03.003 NECK; FUEL FILLER EXC. CATALYSIS CONTROL(6MZ)	8-97017-771-1	01	1	9112-				●
83	03.003 NECK; FUEL FILLER CATALYSIS CONTROL(6MZ)	8-97017-699-2	01	1	9112-				●
84	03.003 CLIP; BAND,FILLER PIPE 03.008 L=330	5-09709-118-0	02	1	9112-9504	●	●	●	●
84	03.003 CLIP; BAND,FILLER PIPE 03.008 L=330	5-09709-118-0	02	1	9505-9612	●		●	●
86	03.163 HOSE; EVAP EXC. EUROPE EQUIPMENT(EK4) 08.962 (A) L=130 SERVICED BY L=3000	0-04750-300-0	01	1	9701-	●		●
86	03.163 HOSE; EVAP EXC. EUROPE EQUIPMENT(EK4) 08.962 (B) L=310 SERVICED BY L=3000	0-04750-300-0	01	1	9701-	●		●
88	03.162 CLIP; FUEL HOSE 04.128 ID=14.5 & 7.5	8-94315-424-0	01	1	9112-9304	●	●
88	03.162 CLIP; FUEL HOSE ID=6.8 & 22.5	8-97081-816-0	01	1	9305-9402	●	●
88	03.162 CLIP; FUEL HOSE 03.680 ID=25.5 & 8.0	8-94363-538-0	01	1	9403-9504	●	●
88	03.162 CLIP; FUEL HOSE 03.680 ID=25.5 & 8.0	8-94363-538-0	01	1	9505-	●
88	03.162 CLIP; FUEL HOSE	8-97131-033-0	01	1	9505-				●
89	03.028 WASHER; PL,FILLER NECK 02.334 ID=6.4 OD=22	9-09164-806-0	01	1	9112-9505				●
93	03.003 HOSE; BREATHER,FUEL TANK EXC. EUROPE EQUIPMENT(EK4) 08.962 (C) SERVICED BY L=1400 SERVICED BY L=3000	0-04750-300-0	01	1	9112-9312	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 08.962 (C) SERVICED BY L=1400 SERVICED BY L=3000	0-04750-300-0	01	1	9112-9312			●
93	03.003 HOSE; BREATHER,FUEL TANK 08.962 (C) SERVICED BY L=1400 SERVICED BY L=3000	0-01258-300-0	01	1	9401-9504	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK (C) L=560 SERVICED BY L=1400	8-94152-003-0	01	1	9505-	●		●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXC. EUROPE EQUIPMENT(EK4) 03.163 (A) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	9112-9209	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 03.163 (A) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	9112-9209			●
93	03.003 HOSE; BREATHER,FUEL TANK EXC. EUROPE EQUIPMENT(EK4) 08.962 (A) L=130 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9504	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 08.962 (A) L=130 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9504			●
93	03.003 HOSE; BREATHER,FUEL TANK EXC. EUROPE EQUIPMENT(EK4) 08.962 (A) L=130 SERVICED BY L=3000	0-04750-300-0	01	1	9505-9612	●		●
93	03.003 HOSE; BREATHER,FUEL TANK EXC. EUROPE EQUIPMENT(EK4) 03.163 (B) L=430 SERVICED BY L=3000	8-94128-826-0	01	1	9112-9209	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 03.163 (B) L=430 SERVICED BY L=3000	8-94128-826-0	01	1	9112-9209			●
93	03.003 HOSE; BREATHER,FUEL TANK EXC. EUROPE EQUIPMENT(EK4) 08.962 (B) L=310 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9504	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 08.962 (B) L=310 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9504			●
93	03.003 HOSE; BREATHER,FUEL TANK EXC. EUROPE EQUIPMENT(EK4) 08.962 (B) L=310 SERVICED BY L=3000	0-04750-300-0	01	1	9505-9612	●		●
95	03.028 SCREW; FILLER NECK M6X16	8-97039-204-0	03	1	9112-9210	●	●	●	●
95	03.028 SCREW; FILLER NECK 12.182 M6X16	8-94381-646-0	03	1	9211-9504	●	●	●	●
95	03.028 SCREW; FILLER NECK 12.182 M6X16	8-94381-646-0	03	1	9505-	●		●	●
108	03.015 PROTECTOR; FUEL TANK	8-97018-490-4	01	1	9112-9504	●	●	●	●
108	03.015 PROTECTOR; FUEL TANK	8-97018-490-4	01	1	9505-	●		●	●
109	03.015 BOLT; HEAT PROTECTOR 01.276 M8X24	8-97034-130-0	04	1	9112-9504	●	●	●	●
109	03.015 BOLT; HEAT PROTECTOR 01.276 M8X24	8-97034-130-0	04	1	9505-	●		●	●
111	03.015 WASHER; PL,HEAT PROTECTOR 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9112-9504	●	●	●	●
111	03.015 WASHER; PL,HEAT PROTECTOR 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9505-	●		●	●
158	03.164 VALVE; ROLL OVER & FLOAT EUROPE EQUIPMENT(EK4) 03.130	8-94173-276-0	02	1	9112-9504	●	●
158	03.164 VALVE; ROLL OVER & FLOAT 03.130	8-94173-276-0	02	1	9112-9504				●
158	03.164 VALVE; ROLL OVER & FLOAT EUROPE EQUIPMENT(EK4) 03.130	8-94173-276-0	02	1	9505-	●
158	03.164 VALVE; ROLL OVER & FLOAT 03.130	8-94173-276-0	02	1	9505-				●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE EUROPE EQUIPMENT(EK4) 03.163	8-94246-338-2	02	1	9112-9504	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE 03.163	8-94246-338-2	02	1	9112-9504				●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE EUROPE EQUIPMENT(EK4) 03.163	8-94246-338-2	02	1	9505-	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE 03.163	8-94246-338-2	02	1	9505-				●
193	03.107 PUMP; FUEL	8-97016-142-1	01	1	9112-9308				●
193	03.107 PUMP; FUEL	8-97041-876-3	01	1	9309-9407				●
193	03.107 PUMP; FUEL	8-97118-512-0	01	1	9408-				●
312	03.704 BOLT; FUEL FILTER CLAMP 01.073 M6X14 W/LK WASHER	9-01900-614-0	01	1	9112-9204				●
312	03.704 BOLT; FUEL FILTER CLAMP 00.206 M6X14 W/LK WASHER	0-50040-614-0	01	1	9205-9212				●
312	03.704 BOLT; FUEL FILTER CLAMP 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9301-9505				●
312	03.704 BOLT; FUEL FILTER CLAMP 08.143 M6X14 W/PL WASHER	8-94174-953-0	01	1	9506-9704				●
312	03.704 BOLT; FUEL FILTER CLAMP 04.439 M6X16 FLANGE	0-28680-616-0	01	1	9705-				●
313	03.890 CLIP; FUEL FILTER ID=40 NYLON	8-94223-523-0	01	1	9112-			●
338	03.162 SPACER; FUEL PIPE CLIP 03.163	8-94182-925-0	01	1	9112-9208			●
366	03.145 HOSE; EVAP EUROPE EQUIPMENT(EK4) 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9609-	●
366	03.145 HOSE; EVAP 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9609-				●
383	03.162 VALVE; 2 WAY EXC. EUROPE EQUIPMENT(EK4) 03.164	8-94151-559-1	01	1	9112-9207	●	●
383	03.162 VALVE; 2 WAY 03.164	8-94151-559-1	01	1	9112-9207			●
383	03.162 VALVE; 2 WAY EXC. EUROPE EQUIPMENT(EK4)	8-97076-391-0	01	1	9208-9504	●	●
383	03.162 VALVE; 2 WAY	8-97076-391-0	01	1	9208-9504			●
383	03.162 VALVE; 2 WAY EXC. EUROPE EQUIPMENT(EK4)	8-97076-391-0	01	1	9505-	●		●
400	03.162 CLIP; HOSE,EVAP EXC. EUROPE EQUIPMENT(EK4) 03.163 ID=11	8-94238-570-0	03	1	9701-	●		●
418	03.107 GASKET; FUEL PUMP	8-94382-906-0	01	1	9112-9308				●
418	03.107 GASKET; FUEL PUMP	8-94386-449-0	01	1	9309-				●
419	03.107 HOSE; FUEL PUMP	8-97028-981-0	01	1	9112-9308				●
420	03.107 CLIP; FUEL PUMP 01.097 ID=12 PLATED	8-94121-566-0	02	1	9112-9308				●
445	03.001 RUBBER; RECEIVER	8-97022-669-2	01	1	9112-9504	●	●	●	●
445	03.001 RUBBER; RECEIVER	8-97022-669-2	01	1	9505-	●		●	●
446	03.001 PLATE; FIXING	8-94340-181-0	01	1	9112-9504	●	●	●	●
446	03.001 PLATE; FIXING	8-94340-181-0	01	1	9505-	●		●	●

366 68 69 64 159 158 69 1 366 68 69 69 158 159 59 3 7 8 11 6 109 108 91 109 111 60 80 81 83 88 80 78 95 84 84 93 83 445 446 25 83 93 86 86 383 93 400 64 78 78 400 400 78 371

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL EUROPE EQUIPMENT(EK4)	8-97049-717-5	01	1	9112-9504	●	●
1	03.001 TANK; FUEL EUROPE EQUIPMENT(EK4)	8-97049-717-5	01	1	9505-9509	●
1	03.001 TANK; FUEL EUROPE EQUIPMENT(EK4)	8-97137-762-0	01	1	9510-9607	●
1	03.001 TANK; FUEL EUROPE EQUIPMENT(EK4)	8-97176-263-1	01	1	9608-	●
1	03.001 TANK; FUEL EXC. EUROPE EQUIPMENT(EK4)	8-94381-077-7	01	1	9112-9504	●	●	●
1	03.001 TANK; FUEL EXC. EUROPE EQUIPMENT(EK4)	8-94381-077-7	01	1	9505-9509	●		●
1	03.001 TANK; FUEL EXC. EUROPE EQUIPMENT(EK4)	8-97137-761-0	01	1	9510-9607	●		●
1	03.001 TANK; FUEL EXC. EUROPE EQUIPMENT(EK4)	8-97176-264-1	01	1	9608-	●		●
1	03.001 TANK; FUEL	8-97049-716-5	01	1	9112-9407				●
1	03.001 TANK; FUEL	8-97116-011-0	01	1	9408-9504				●
1	03.001 TANK; FUEL	8-97049-716-6	01	1	9505-9602				●
1	03.001 TANK; FUEL	8-97146-442-0	01	1	9603-9607				●
1	03.001 TANK; FUEL	8-97176-265-1	01	1	9608-				●
3	03.107 UNIT; FUEL TANK,SUB 03.001	8-97064-895-0	01	1	9112-9210	●	●		●
3	03.107 UNIT; FUEL TANK,SUB EXC. EUROPE EQUIPMENT(EK4) 03.001	8-97064-895-0	01	1	9112-9210			●
3	03.107 UNIT; FUEL TANK,SUB	8-97087-076-0	01	1	9211-9504	●	●		●
3	03.107 UNIT; FUEL TANK,SUB EXC. EUROPE EQUIPMENT(EK4)	8-97087-076-0	01	1	9211-9504			●
3	03.107 UNIT; FUEL TANK,SUB	8-97087-076-0	01	1	9505-9509	●
3	03.107 UNIT; FUEL TANK,SUB EXC. EUROPE EQUIPMENT(EK4)	8-97087-076-0	01	1	9505-9509			●
3	03.107 UNIT; FUEL TANK,SUB	8-97129-725-0	01	1	9505-9509				●
3	03.107 UNIT; FUEL TANK,SUB	8-97129-725-0	01	1	9510-	●		●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 08.913 M5X12 W/LK WASHER	9-03910-512-0	05	1	9112-9504	●	●		●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN EXC. EUROPE EQUIPMENT(EK4) 08.913 M5X12 W/LK WASHER	9-03910-512-0	05	1	9112-9504			●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 08.913 M5X12 W/LK WASHER	9-03910-512-0	05	1	9505-	●		●	●
7	03.112 GASKET; TANK UNIT,SUB TANK	5-83148-001-0	01	1	9112-9504	●	●		●
7	03.112 GASKET; TANK UNIT,SUB TANK EXC. EUROPE EQUIPMENT(EK4)	5-83148-001-0	01	1	9112-9504			●
7	03.112 GASKET; TANK UNIT,SUB TANK	5-83148-001-0	01	1	9505-	●		●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.001	9-09920-624-0	01	1	9112-9407	●	●		●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EXC. EUROPE EQUIPMENT(EK4) 03.001	9-09920-624-0	01	1	9112-9407			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.001	9-09920-624-0	01	1	9408-9408	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9408-9408				●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9409-9504	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9505-	●		●	●
11	03.890 PLUG; DRAIN,FUEL TANK 03.001 M14X14	8-94152-613-0	01	1	9112-9407	●	●		●
11	03.890 PLUG; DRAIN,FUEL TANK EXC. EUROPE EQUIPMENT(EK4) 03.001 M14X14	8-94152-613-0	01	1	9112-9407			●
11	03.890 PLUG; DRAIN,FUEL TANK 03.001 M14X14	8-94152-613-0	01	1	9408-9408	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9408-9408				●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9409-9504	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9505-	●		●	●
25	03.028 CAP; FILLER,FUEL TANK	8-94310-199-4	01	1	9112-9504	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK	8-94310-199-4	01	1	9505-	●		●	●
59	03.023 NUT; FUEL TANK M8 FLANGE	8-94328-243-0	03	1	9112-9504	●	●	●	●
59	03.023 NUT; FUEL TANK M8 FLANGE	8-94328-243-0	03	1	9505-	●		●	●
60	03.008 PROTECTOR; FUEL FILLER	8-94318-424-0	01	1	9112-9504	●	●	●	●
60	03.008 PROTECTOR; FUEL FILLER	8-94318-424-0	01	1	9505-9612	●		●	●
60	03.008 PROTECTOR; FUEL FILLER	8-97114-063-0	01	1	9701-	●		●	●
64	03.023 BOLT; FUEL TANK 01.276 M8X24	8-97034-130-0	06	1	9112-9504	●	●	●	●
64	03.023 BOLT; FUEL TANK 01.276 M8X24	8-97034-130-0	06	1	9505-	●		●	●
68	03.145 HOSE; RUBBER,FUEL TANK TO EVAP P EUROPE EQUIPMENT(EK4) 03.163 L=80 SERVICED BY L=3000	8-94128-826-0	02	1	9112-9504	●	●
68	03.145 HOSE; RUBBER,FUEL TANK TO EVAP P 03.163 L=80 SERVICED BY L=3000	8-94128-826-0	02	1	9112-9504				●
68	03.145 HOSE; RUBBER,FUEL TANK TO EVAP P 03.163 L=80 SERVICED BY L=3000	8-94128-826-0	02	1	9505-9505				●
68	03.145 HOSE; RUBBER,FUEL TANK TO EVAP P EUROPE EQUIPMENT(EK4) 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9505-9505	●	●
68	03.145 HOSE; RUBBER,FUEL TANK TO EVAP P EUROPE EQUIPMENT(EK4) 03.163 950515- L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9505-9608	●
68	03.145 HOSE; RUBBER,FUEL TANK TO EVAP P 03.163 950515- L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9505-9608				●
69	03.145 CLIP; FUEL TANK TO EVAP PIPE EUROPE EQUIPMENT(EK4) 03.162 ID=8.5	8-94166-071-0	04	1	9112-9504	●	●
69	03.145 CLIP; FUEL TANK TO EVAP PIPE 03.162 ID=8.5	8-94166-071-0	04	1	9112-9504				●
69	03.145 CLIP; FUEL TANK TO EVAP PIPE EUROPE EQUIPMENT(EK4) 03.162 ID=8.5	8-94166-071-0	04	1	9505-	●
69	03.145 CLIP; FUEL TANK TO EVAP PIPE 03.162 ID=8.5	8-94166-071-0	04	1	9505-				●
78	03.003 CLIP; BREATHER HOSE EXC. EUROPE EQUIPMENT(EK4) 03.162 (B) ID=8.5	8-94166-071-0	03	1	9112-9209	●	●
78	03.003 CLIP; BREATHER HOSE 03.162 (B) ID=8.5	8-94166-071-0	03	1	9112-9209			●
78	03.003 CLIP; BREATHER HOSE EXC. EUROPE EQUIPMENT(EK4) 03.163 (B) ID=11	8-94238-570-0	03	1	9210-9504	●	●
78	03.003 CLIP; BREATHER HOSE 03.163 (B) ID=11	8-94238-570-0	03	1	9210-9504			●
78	03.003 CLIP; BREATHER HOSE EXC. EUROPE EQUIPMENT(EK4) 03.163 (B) ID=11	8-94238-570-0	03	1	9505-9612	●		●
78	03.003 CLIP; BREATHER HOSE 06.672 (A) ID=21	8-94242-034-0	02	1	9112-9504	●	●	●	●
78	03.003 CLIP; BREATHER HOSE 06.672 (A) ID=21	8-94242-034-0	01	1	9505-	●		●	●
78	03.003 CLIP; BREATHER HOSE 06.672 (A) ID=21	8-94242-034-0	01	1	9505-	●		●
80	03.008 CLIP; FILLER HOSE 03.003 (A) ID=59	8-94435-876-0	01	1	9112-9501	●	●	●	●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=60	9-09915-265-1	01	1	9502-9504	●	●	●	●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=60	9-09915-265-1	01	1	9505-	●		●	●
80	03.008 CLIP; FILLER HOSE 01.166 (B) ID=54	9-09915-412-1	01	1	9112-9504	●	●	●	●
80	03.008 CLIP; FILLER HOSE 01.166 (B) ID=54	9-09915-412-1	01	1	9505-	●		●	●
81	03.003 HOSE; FUEL FILLER	8-97012-158-0	01	1	9112-9504	●	●	●	●
81	03.003 HOSE; FUEL FILLER	8-97012-158-0	01	1	9505-	●		●	●
83	03.003 NECK; FUEL FILLER EXC. EUROPE EQUIPMENT(EK4)	8-97017-772-0	01	1	9112-9206	●	●
83	03.003 NECK; FUEL FILLER	8-97017-772-0	01	1	9112-9206			●
83	03.003 NECK; FUEL FILLER EXC. EUROPE EQUIPMENT(EK4)	8-97081-009-1	01	1	9207-9504	●	●
83	03.003 NECK; FUEL FILLER	8-97081-009-1	01	1	9207-9504			●
83	03.003 NECK; FUEL FILLER EXC. EUROPE EQUIPMENT(EK4)	8-97081-009-2	01	1	9505-	●		●
83	03.003 NECK; FUEL FILLER EUROPE EQUIPMENT(EK4)	8-97017-771-1	01	1	9112-	●
83	03.003 NECK; FUEL FILLER EXC. CATALYSIS CONTROL(6MZ)	8-97017-771-1	01	1	9112-				●
83	03.003 NECK; FUEL FILLER CATALYSIS CONTROL(6MZ)	8-97017-699-2	01	1	9112-				●
84	03.003 CLIP; BAND,FILLER PIPE 03.008 L=330	5-09709-118-0	02	1	9112-9504	●	●	●	●
84	03.003 CLIP; BAND,FILLER PIPE 03.008 L=330	5-09709-118-0	02	1	9505-9612	●		●	●
86	03.163 HOSE; EVAP EXC. EUROPE EQUIPMENT(EK4) 08.962 (A) L=130 SERVICED BY L=3000	0-04750-300-0	01	1	9701-	●		●
86	03.163 HOSE; EVAP EXC. EUROPE EQUIPMENT(EK4) 08.962 (B) L=310 SERVICED BY L=3000	0-04750-300-0	01	1	9701-	●		●
88	03.162 CLIP; FUEL HOSE 04.128 ID=14.5 & 7.5	8-94315-424-0	01	1	9112-9304	●	●
88	03.162 CLIP; FUEL HOSE ID=6.8 & 22.5	8-97081-816-0	01	1	9305-9402	●	●
88	03.162 CLIP; FUEL HOSE 03.680 ID=25.5 & 8.0	8-94363-538-0	01	1	9403-9504	●	●
88	03.162 CLIP; FUEL HOSE 03.680 ID=25.5 & 8.0	8-94363-538-0	01	1	9505-	●
88	03.162 CLIP; FUEL HOSE	8-97131-033-0	01	1	9505-				●
91	03.145 CLAMP; FUEL HOSE	8-94480-513-0	01	1	9112-9310	●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXC. EUROPE EQUIPMENT(EK4) 08.962 (C) SERVICED BY L=1400 SERVICED BY L=3000	0-04750-300-0	01	1	9112-9312	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 08.962 (C) SERVICED BY L=1400 SERVICED BY L=3000	0-04750-300-0	01	1	9112-9312			●
93	03.003 HOSE; BREATHER,FUEL TANK 08.962 (C) SERVICED BY L=1400 SERVICED BY L=3000	0-01258-300-0	01	1	9401-9504	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK (C) L=560 SERVICED BY L=1400	8-94152-003-0	01	1	9505-	●		●	●
93	03.003 HOSE; BREATHER,FUEL TANK EXC. EUROPE EQUIPMENT(EK4) 03.163 (A) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	9112-9209	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 03.163 (A) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	9112-9209			●
93	03.003 HOSE; BREATHER,FUEL TANK EXC. EUROPE EQUIPMENT(EK4) 08.962 (A) L=130 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9504	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 08.962 (A) L=130 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9504			●
93	03.003 HOSE; BREATHER,FUEL TANK EXC. EUROPE EQUIPMENT(EK4) 08.962 (A) L=130 SERVICED BY L=3000	0-04750-300-0	01	1	9505-9612	●		●
93	03.003 HOSE; BREATHER,FUEL TANK EXC. EUROPE EQUIPMENT(EK4) 03.163 (B) L=430 SERVICED BY L=3000	8-94128-826-0	01	1	9112-9209	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 03.163 (B) L=430 SERVICED BY L=3000	8-94128-826-0	01	1	9112-9209			●
93	03.003 HOSE; BREATHER,FUEL TANK EXC. EUROPE EQUIPMENT(EK4) 08.962 (B) L=310 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9504	●	●
93	03.003 HOSE; BREATHER,FUEL TANK 08.962 (B) L=310 SERVICED BY L=3000	0-04750-300-0	01	1	9210-9504			●
93	03.003 HOSE; BREATHER,FUEL TANK EXC. EUROPE EQUIPMENT(EK4) 08.962 (B) L=310 SERVICED BY L=3000	0-04750-300-0	01	1	9505-9612	●		●
95	03.028 SCREW; FILLER NECK M6X16	8-97039-204-0	03	1	9112-9210	●	●	●	●
95	03.028 SCREW; FILLER NECK 12.182 M6X16	8-94381-646-0	03	1	9211-9504	●	●	●	●
95	03.028 SCREW; FILLER NECK 12.182 M6X16	8-94381-646-0	03	1	9505-	●		●	●
108	03.015 PROTECTOR; FUEL TANK	8-97018-490-4	01	1	9112-9504	●	●	●	●
108	03.015 PROTECTOR; FUEL TANK	8-97018-490-4	01	1	9505-	●		●	●
109	03.015 BOLT; HEAT PROTECTOR 01.276 M8X24	8-97034-130-0	04	1	9112-9504	●	●	●	●
109	03.015 BOLT; HEAT PROTECTOR 01.276 M8X24	8-97034-130-0	04	1	9505-	●		●	●
111	03.015 WASHER; PL,HEAT PROTECTOR 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9112-9504	●	●	●	●
111	03.015 WASHER; PL,HEAT PROTECTOR 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9505-	●		●	●
158	03.164 VALVE; ROLL OVER & FLOAT EUROPE EQUIPMENT(EK4) 03.130	8-94173-276-0	02	1	9112-9504	●	●
158	03.164 VALVE; ROLL OVER & FLOAT 03.130	8-94173-276-0	02	1	9112-9504				●
158	03.164 VALVE; ROLL OVER & FLOAT EUROPE EQUIPMENT(EK4) 03.130	8-94173-276-0	02	1	9505-	●
158	03.164 VALVE; ROLL OVER & FLOAT 03.130	8-94173-276-0	02	1	9505-				●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE EUROPE EQUIPMENT(EK4) 03.163	8-94246-338-2	02	1	9112-9504	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE 03.163	8-94246-338-2	02	1	9112-9504				●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE EUROPE EQUIPMENT(EK4) 03.163	8-94246-338-2	02	1	9505-	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE 03.163	8-94246-338-2	02	1	9505-				●
366	03.145 HOSE; EVAP EUROPE EQUIPMENT(EK4) 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9609-	●
366	03.145 HOSE; EVAP 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9609-				●
371	03.164 BRACKET; EVAP CONT VALVE EUROPE EQUIPMENT(EK4)	8-97038-829-0	01	1	9112-9308	●
383	03.162 VALVE; 2 WAY EXC. EUROPE EQUIPMENT(EK4) 03.164	8-94151-559-1	01	1	9112-9207	●	●
383	03.162 VALVE; 2 WAY 03.164	8-94151-559-1	01	1	9112-9207			●
383	03.162 VALVE; 2 WAY EXC. EUROPE EQUIPMENT(EK4)	8-97076-391-0	01	1	9208-9504	●	●
383	03.162 VALVE; 2 WAY	8-97076-391-0	01	1	9208-9504			●
383	03.162 VALVE; 2 WAY EXC. EUROPE EQUIPMENT(EK4)	8-97076-391-0	01	1	9505-	●		●
400	03.162 CLIP; HOSE,EVAP EXC. EUROPE EQUIPMENT(EK4) 03.163 ID=11	8-94238-570-0	03	1	9701-	●		●
445	03.001 RUBBER; RECEIVER	8-97022-669-2	01	1	9112-9504	●	●	●	●
445	03.001 RUBBER; RECEIVER	8-97022-669-2	01	1	9505-	●		●	●
446	03.001 PLATE; FIXING	8-94340-181-0	01	1	9112-9504	●	●	●	●
446	03.001 PLATE; FIXING	8-94340-181-0	01	1	9505-	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
