◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-35 - CHARGE AIR COOLER ▶
1-35 — CHARGE AIR COOLER (#43340) — 64 parça

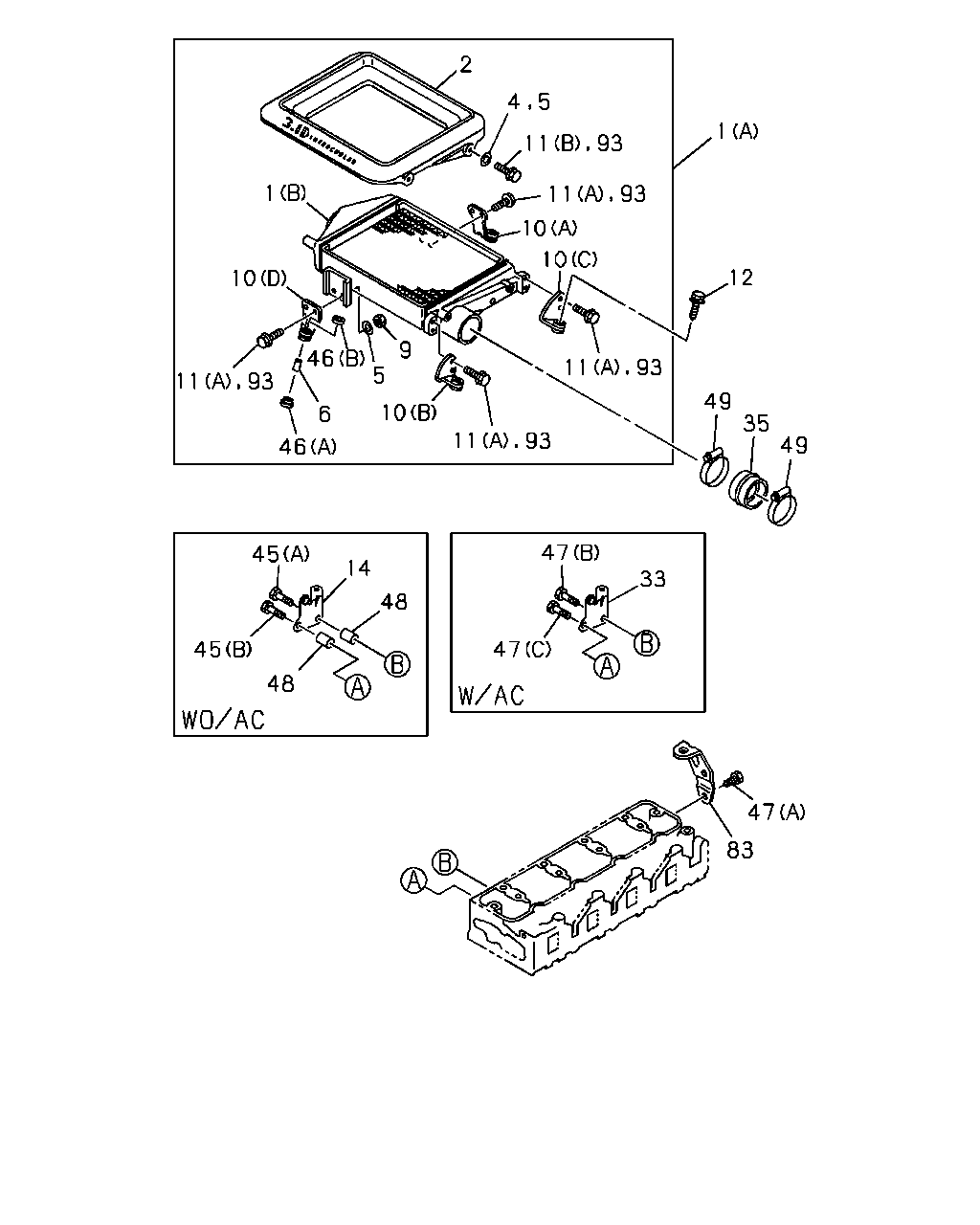

çizim 18690
83 47 47 47 33 48 14 45 45 48 49 35 49 93 11 93 11 10 9 5 46 6 46 93 11 10 1 2 11 4 5 93 1 12 10 10 11 93
BalonParca AdiParca NoAdetTipApplied Date
1 03.374 COOLER; CHARGE AIR
01.540 (B) 		8-97060-045-0 01 1 9112-9210
1 03.374 COOLER; CHARGE AIR
(B) 		8-97085-705-0 01 1 9211-9304
1 03.374 COOLER; CHARGE AIR
01.540 (A) 		8-97060-044-3 01 1 9112-9308
1 03.374 COOLER; CHARGE AIR
(A) 		8-97089-943-4 01 1 9309-
2 01.540 COVER; CHARGE AIR COOLER 8-97038-741-0 01 1 9112-9308
2 01.540 COVER; CHARGE AIR COOLER 8-97089-944-3 01 1 9309-
4 01.540 COLLAR; CHARGE AIR COOLER
OD=26 T=1.6 		8-97089-945-0 04 1 9309-
5 01.540 WASHER; PL,CHARGE AIR COOLER
OD=26 T=2.6 		8-97074-007-0 04 1 9112-9505
5 01.540 WASHER; PL,CHARGE AIR COOLER
16.674 ID=8.4 		9-09160-508-0 04 1 9112-9308
6 01.540 COLLAR; MTG,CHARGE AIR COOLER
03.374 OD=15 		8-94370-684-0 04 1 9112-9311
6 01.540 COLLAR; MTG,CHARGE AIR COOLER 8-97107-898-0 04 1 9312-
9 01.540 NUT; CHARGE AIR COOLER
00.002 M8 		9-09110-508-0 04 1 9112-9308
9 01.540 NUT; CHARGE AIR COOLER
07.633 M8 FLANGE 		0-91150-108-0 04 1 9309-
10 01.540 BRACKET; STAY,CHARGE AIR COOLER
(A) 		8-94369-169-3 01 1 9112-9507
10 01.540 BRACKET; STAY,CHARGE AIR COOLER
(A) 		8-97118-765-0 01 1 9508-9512
10 01.540 BRACKET; STAY,CHARGE AIR COOLER
(A) 		8-97142-556-0 01 1 9601-
10 01.540 BRACKET; STAY,CHARGE AIR COOLER
(B) 		8-94369-170-3 01 1 9112-9507
10 01.540 BRACKET; STAY,CHARGE AIR COOLER
(B) 		8-97118-764-0 01 1 9508-9512
10 01.540 BRACKET; STAY,CHARGE AIR COOLER
(B) 		8-97142-557-0 01 1 9601-
10 01.540 BRACKET; STAY,CHARGE AIR COOLER
(C) 		8-94369-171-3 01 1 9112-9507
10 01.540 BRACKET; STAY,CHARGE AIR COOLER
(C) 		8-97118-763-0 01 1 9508-9512
10 01.540 BRACKET; STAY,CHARGE AIR COOLER
(C) 		8-97142-558-0 01 1 9601-
10 01.540 BRACKET; STAY,CHARGE AIR COOLER
(D) 		8-97060-046-0 01 1 9112-9210
10 01.540 BRACKET; STAY,CHARGE AIR COOLER
(D) 		8-97085-706-1 01 1 9211-9507
10 01.540 BRACKET; STAY,CHARGE AIR COOLER
(D) 		8-97118-762-0 01 1 9508-9512
10 01.540 BRACKET; STAY,CHARGE AIR COOLER
(D) 		8-97142-559-0 01 1 9601-
11 01.540 BOLT; STAY,CHARGE AIR COOLER
08.900 (A) M8X20 W/LK WASHER 		0-50040-820-0 08 1 9112-9308
11 01.540 BOLT; STAY,CHARGE AIR COOLER
03.374 (B) M8X14 		8-94366-146-0 04 1 9112-9308
12 01.540 BOLT; CHARGE AIR COOLER
M8X50 		8-94377-216-0 01 1 9112-9212
12 01.540 BOLT; CHARGE AIR COOLER
M8X40 		8-94369-183-1 03 1 9112-9212
12 01.540 BOLT; CHARGE AIR COOLER
M8X40 		8-94369-183-1 04 1 9301-
14 01.540 BRACKET; CHARGE AIR COOLER
EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 		8-94340-612-3 01 1 9112-9504
14 01.540 BRACKET; CHARGE AIR COOLER
TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94340-612-3 01 1 9505-
33 01.540 BRACKET; CHARGE AIR COOLER,FRT
AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 		8-94340-612-3 01 1 9112-9308
33 01.540 BRACKET; CHARGE AIR COOLER,FRT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-94340-612-3 01 1 9309-
35 01.540 HOSE; CONNECTING 8-94328-130-1 01 1 9112-9412
35 01.540 HOSE; CONNECTING 8-97120-725-0 01 1 9501-
45 01.540 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 01.252 (A) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9112-9504
45 01.540 BOLT; BRKT
TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.252 (A) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9505-
45 01.540 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 09.171 (B) M10X50 		5-09000-243-1 01 1 9112-9207
45 01.540 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) 00.386 (B) M10X50 W/LK WASHER 		0-50041-050-0 01 1 9208-9504
45 01.540 BOLT; BRKT
TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.386 (B) M10X50 W/LK WASHER 		0-50041-050-0 01 1 9505-
46 01.540 RUBBER; MTG,CHARGE AIR COOLER
(A) 		8-97118-759-0 04 1 9508-
46 01.540 RUBBER; MTG,CHARGE AIR COOLER
(B) 		8-97135-366-0 04 1 9508-
47 01.540 BOLT; CHARGE AIR COOLER BRKT
04.785 (A) M8X18 W/LK WASHER 		0-50040-818-0 02 1 9112-9504
47 01.540 BOLT; CHARGE AIR COOLER BRKT
TURBOCHARGER<K51> 04.785 (A) M8X18 W/LK WASHER 		0-50040-818-0 02 1 9505-
47 01.540 BOLT; CHARGE AIR COOLER BRKT
AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 01.252 (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9112-9308
47 01.540 BOLT; CHARGE AIR COOLER BRKT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.252 (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9309-9504
47 01.540 BOLT; CHARGE AIR COOLER BRKT
TURBOCHARGER<K51> AIR CONDITIONER MANUAL CONT(C60) 01.252 (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9505-9607
47 01.540 BOLT; CHARGE AIR COOLER BRKT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 01.252 (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9608-
47 01.540 BOLT; CHARGE AIR COOLER BRKT
AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 09.171 (C) M10X50 		5-09000-243-1 01 1 9112-9206
47 01.540 BOLT; CHARGE AIR COOLER BRKT
AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 00.386 (C) M10X50 W/LK WASHER 		0-50041-050-0 01 1 9207-9308
47 01.540 BOLT; CHARGE AIR COOLER BRKT
TURBOCHARGER<K51> AIR CONDITIONER MANUAL CONT(C60) 00.386 (C) M10X50 W/LK WASHER 		0-50041-050-0 01 1 9309-9411
47 01.540 BOLT; CHARGE AIR COOLER BRKT
TURBOCHARGER<K51> AIR CONDITIONER MANUAL CONT(C60) 00.004 (C) M10X45 W/LK WASHER 		0-50041-045-0 01 1 9412-9607
47 01.540 BOLT; CHARGE AIR COOLER BRKT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 00.004 (C) M10X45 W/LK WASHER 		0-50041-045-0 01 1 9608-
48 01.540 SPACER; BRKT TO COOLER
EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) OD=17.3 		8-94328-221-1 01 1 9112-9504
48 01.540 SPACER; BRKT TO COOLER
TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60) OD=17.3 		8-94328-221-1 01 1 9505-
48 01.540 SPACER; BRKT TO COOLER
EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(YL1) OD=20 		8-94369-182-0 01 1 9112-9504
48 01.540 SPACER; BRKT TO COOLER
TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60) OD=20 		8-94369-182-0 01 1 9505-
49 01.540 CLIP; CONN HOSE
03.407 ID=68-85 		8-94320-428-0 02 1 9112-9508
49 01.540 CLIP; CONN HOSE
03.273 ID=65-82 		8-97131-942-0 02 1 9509-
83 01.540 BRACKET; CHARGE AIR COOLER,RR 8-97044-045-0 01 1 9112-9504
83 01.540 BRACKET; CHARGE AIR COOLER,RR
TURBOCHARGER<K51> 		8-97044-045-0 01 1 9505-
93 01.540 BOLT; COVER
01.062 M8X16 FLANGE 		0-28080-816-0 12 1 9309-
