◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#43339) — 161 parça

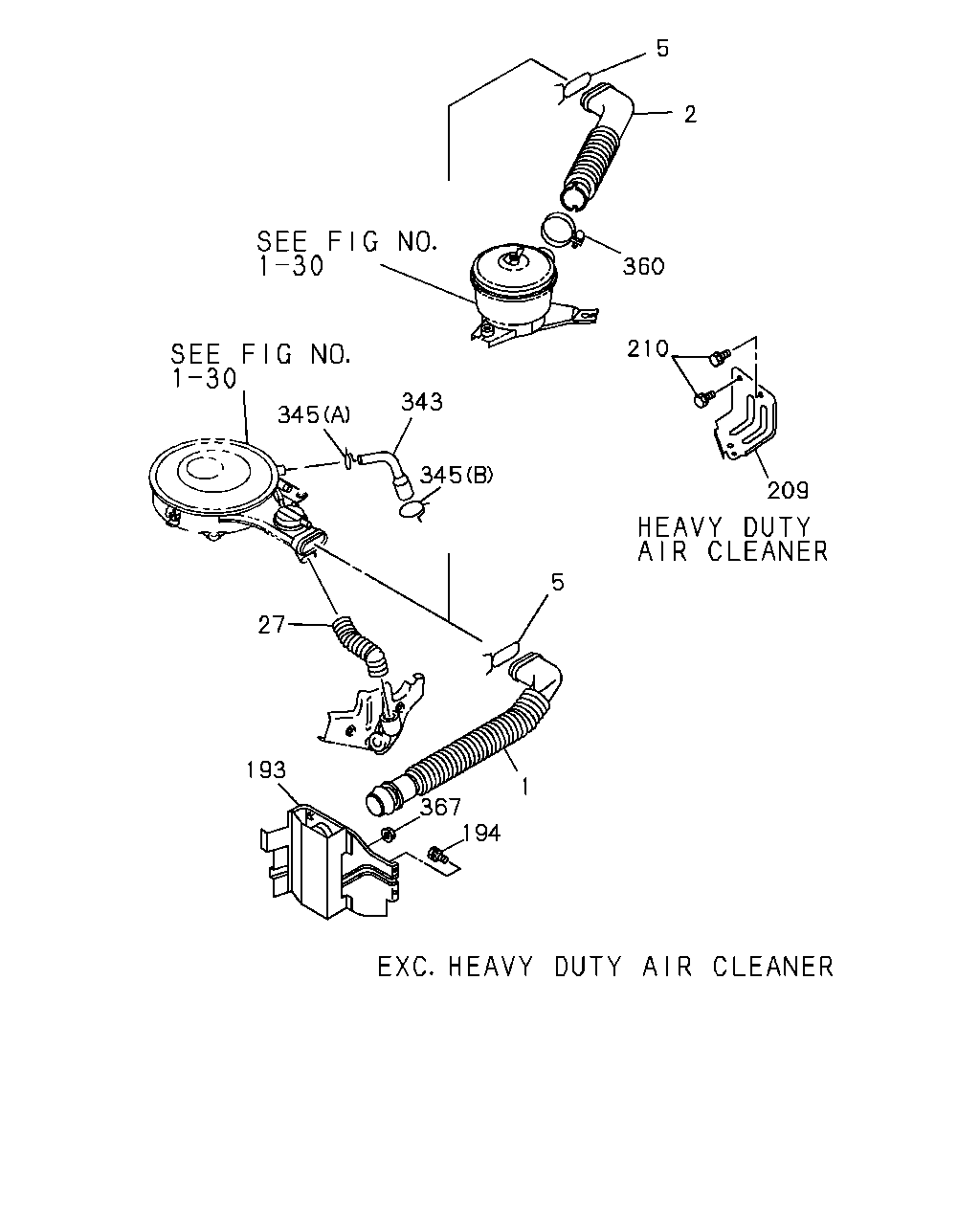

çizim 65458
5 2 360 210 209 5 1 194 367 193 27 345 343 345
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.417 DUCT; AIR,INL
EXC. HEAVY DUTY AIR CLEANER(K46) 		8-94156-238-1 01 1 9112- ●
2 03.417 HOSE; ACL
(C) 		8-97038-180-2 01 1 9112-9408 ●
2 03.417 HOSE; ACL
(C) 		8-97120-089-0 01 1 9409-9504 ●
2 03.417 HOSE; ACL
(A) 		8-94386-835-2 01 1 9112-9503 ●
2 03.417 HOSE; ACL
(A) 		8-97132-799-0 01 1 9504-9504 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (A) 		8-97132-799-0 01 1 9505- ●
2 03.417 HOSE; ACL
EXC. TURBOCHARGER<K51> (C) 		8-97120-089-1 01 1 9505- ●
2 03.417 HOSE; ACL
(B) 		8-97047-061-0 01 1 9112-9504 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (B) 		8-97117-272-0 01 1 9505- ●
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-94321-187-2 01 1 9112- ●
5 03.407 CLIP; AIR DUCT
(A) ID=75 		8-94158-977-0 01 1 9112-9208 ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) ID=58-79 		8-94126-771-0 01 1 9209-9504 ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) ID=58-79 		8-94126-771-0 01 1 9505- ●
5 03.407 CLIP; AIR DUCT
(B) ID=100 		8-94158-979-0 01 1 9112-9208 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9209-9504 ● ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (B) ID=77-95 		1-09707-114-0 01 1 9505-9602 ●
5 03.407 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9603- ●
5 03.407 CLIP; AIR DUCT
03.003 (E) D6X11 POP RIVET 		8-94298-119-0 01 1 9112-9504 ● ●
5 03.407 CLIP; AIR DUCT
03.003 (E) D6X11 POP RIVET 		8-94298-119-0 01 1 9505- ●
5 03.407 CLIP; AIR DUCT
(D) ID=82 		8-97014-301-0 01 1 9112-9208 ●
5 03.407 CLIP; AIR DUCT
(D) ID=68-85 		8-94320-428-0 01 1 9209- ●
5 03.407 CLIP; AIR DUCT
03.417 (C) ID=48-68 		8-94158-976-0 01 1 9112-9208 ●
5 03.407 CLIP; AIR DUCT
(C) ID=50-69 		8-94316-991-0 01 1 9209-9504 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9505- ●
5 03.407 CLIP; AIR DUCT
EXC. EUROPE EQUIPMENT(EK4) 03.163 (F) ID=11 		8-94238-570-0 01 1 9112-9504 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) 03.163 (F) ID=11 		8-94238-570-0 01 1 9505- ●
5 03.407 CLIP; AIR DUCT
03.417 		8-94216-977-0 01 1 9112- ●
5 03.407 CLIP; AIR DUCT
ID=75 		8-94101-706-0 01 1 9112- ●
27 03.417 HOSE; HOT AIR,ACL
HOT AIR INTAKE(RN4) 		8-94324-193-1 01 1 9112- ●
193 03.417 COVER; DUCT,AIR INT
EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 		8-97043-855-1 01 1 9112-9410 ● ●
193 03.417 COVER; DUCT,AIR INT
EXC. HEAVY DUTY AIR CLEANER(K46) 		8-97044-027-0 01 1 9112- ●
194 03.417 BOLT; DUCT COVER
EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 03.671 M6X12 		0-28010-612-0 01 1 9112-9204 ● ●
194 03.417 BOLT; DUCT COVER
EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9205-9410 ● ●
194 03.417 BOLT; DUCT COVER
EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 07.831 M8X12 		0-28010-812-0 01 1 9112-9204 ● ●
194 03.417 BOLT; DUCT COVER
EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9205-9410 ● ●
194 03.417 BOLT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER(K46) 09.211 M6X16 W/LK WASHER 		9-01900-616-0 03 1 9112-9204 ●
194 03.417 BOLT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER(K46) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9205- ●
209 03.405 BRACKET; ACL 8-94386-831-1 01 1 9112-9504 ● ●
209 03.405 BRACKET; ACL 8-94386-831-1 01 1 9505- ●
209 03.405 BRACKET; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-94480-336-2 01 1 9112- ●
210 03.405 BOLT; ACL BRKT
HEAVY DUTY AIR CLEANER(K46) 08.077 M6X18 		8-94408-386-1 03 1 9112- ●
343 03.417 HOSE; ACL TO CYL HD COVER 8-94175-084-2 01 1 9112- ●
345 03.417 CLIP; PCV HOSE
01.166 (A) ID=14 		8-94238-572-0 01 1 9112- ●
345 03.417 CLIP; PCV HOSE
06.672 (B) ID=21 		8-94242-034-0 01 1 9112- ●
345 03.417 CLIP; PCV HOSE
04.930 ID=16 		8-94238-568-0 01 1 9112- ●
360 03.403 CLIP; DUCT TO SUB ACL
HEAVY DUTY AIR CLEANER(K46) 03.417 		8-94244-886-1 01 1 9112-9208 ●
360 03.403 CLIP; DUCT TO SUB ACL
HEAVY DUTY AIR CLEANER(K46) 03.407 D=101.6 		9-09915-502-1 01 1 9209- ●
367 03.417 NUT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER(K46) 07.829 M6 FLANGE 		5-09440-004-0 01 1 9112- ●

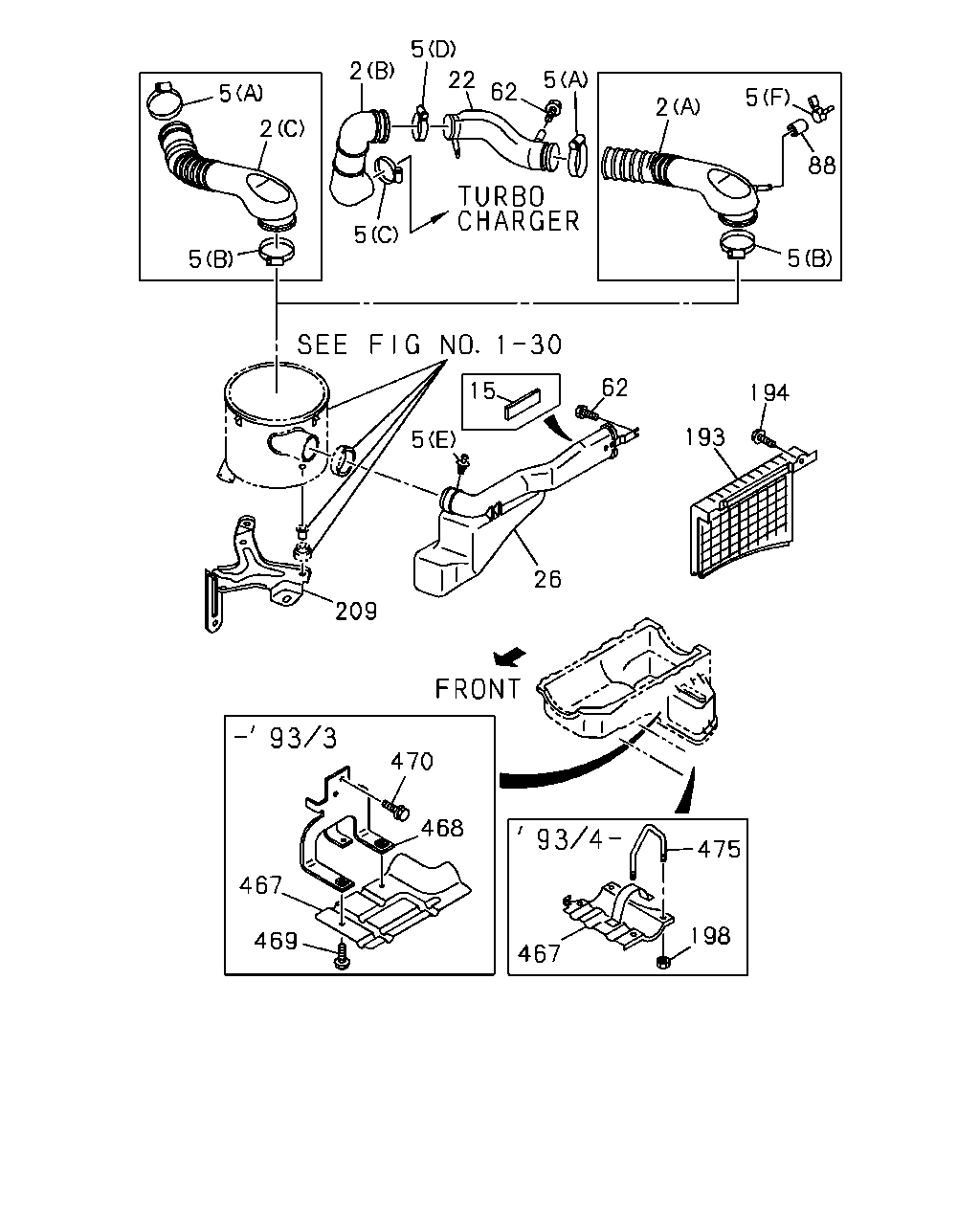

çizim 68406
5 5 2 2 5 5 22 62 5 2 5 88 5 62 194 193 15 5 209 26 475 198 467 468 470 467 469
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 03.417 HOSE; ACL
(C) 		8-97038-180-2 01 1 9112-9408 ●
2 03.417 HOSE; ACL
(C) 		8-97120-089-0 01 1 9409-9504 ●
2 03.417 HOSE; ACL
(A) 		8-94386-835-2 01 1 9112-9503 ●
2 03.417 HOSE; ACL
(A) 		8-97132-799-0 01 1 9504-9504 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (A) 		8-97132-799-0 01 1 9505- ●
2 03.417 HOSE; ACL
EXC. TURBOCHARGER<K51> (C) 		8-97120-089-1 01 1 9505- ●
2 03.417 HOSE; ACL
(B) 		8-97047-061-0 01 1 9112-9504 ●
2 03.417 HOSE; ACL
TURBOCHARGER<K51> (B) 		8-97117-272-0 01 1 9505- ●
2 03.417 HOSE; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-94321-187-2 01 1 9112- ●
5 03.407 CLIP; AIR DUCT
(A) ID=75 		8-94158-977-0 01 1 9112-9208 ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) ID=58-79 		8-94126-771-0 01 1 9209-9504 ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) ID=58-79 		8-94126-771-0 01 1 9505- ●
5 03.407 CLIP; AIR DUCT
(B) ID=100 		8-94158-979-0 01 1 9112-9208 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9209-9504 ● ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (B) ID=77-95 		1-09707-114-0 01 1 9505-9602 ●
5 03.407 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9603- ●
5 03.407 CLIP; AIR DUCT
03.003 (E) D6X11 POP RIVET 		8-94298-119-0 01 1 9112-9504 ● ●
5 03.407 CLIP; AIR DUCT
03.003 (E) D6X11 POP RIVET 		8-94298-119-0 01 1 9505- ●
5 03.407 CLIP; AIR DUCT
(D) ID=82 		8-97014-301-0 01 1 9112-9208 ●
5 03.407 CLIP; AIR DUCT
(D) ID=68-85 		8-94320-428-0 01 1 9209- ●
5 03.407 CLIP; AIR DUCT
03.417 (C) ID=48-68 		8-94158-976-0 01 1 9112-9208 ●
5 03.407 CLIP; AIR DUCT
(C) ID=50-69 		8-94316-991-0 01 1 9209-9504 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9505- ●
5 03.407 CLIP; AIR DUCT
EXC. EUROPE EQUIPMENT(EK4) 03.163 (F) ID=11 		8-94238-570-0 01 1 9112-9504 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) 03.163 (F) ID=11 		8-94238-570-0 01 1 9505- ●
5 03.407 CLIP; AIR DUCT
03.417 		8-94216-977-0 01 1 9112- ●
5 03.407 CLIP; AIR DUCT
ID=75 		8-94101-706-0 01 1 9112- ●
15 03.417 INSULATOR
EUROPE EQUIPMENT(EK4) 		8-97105-329-0 01 1 9312-9504 ● ●
15 03.417 INSULATOR
EUROPE EQUIPMENT(EK4) 		8-97105-329-0 01 1 9505-9506 ●
15 03.417 INSULATOR
FRIGID ZONE<YL3> 		8-97105-329-0 01 1 9507- ●
22 03.417 HOSE; CONNECTOR,ENG TO PIPE 8-94340-601-2 01 1 9112-9308 ●
22 03.417 HOSE; CONNECTOR,ENG TO PIPE
EXC. VAUXHALL EQUIPMENT<EK3> 		8-94340-601-2 01 1 9309-9503 ●
22 03.417 HOSE; CONNECTOR,ENG TO PIPE
EXC. VAUXHALL EQUIPMENT<EK3> 		8-97128-957-0 01 1 9504- ●
22 03.417 HOSE; CONNECTOR,ENG TO PIPE
VAUXHALL EQUIPMENT<EK3> 		8-97094-131-0 01 1 9309-9503 ●
22 03.417 HOSE; CONNECTOR,ENG TO PIPE
VAUXHALL EQUIPMENT<EK3> 		8-97128-958-0 01 1 9504- ●
26 03.417 DUCT; AIR INT 8-97038-179-3 01 1 9112-9504 ● ●
26 03.417 DUCT; AIR INT 8-97038-179-3 01 1 9505-9601 ●
26 03.417 DUCT; AIR INT
EXC. EUROPE EQUIPMENT(EK4) 		8-97038-179-3 01 1 9602-9607 ●
26 03.417 DUCT; AIR INT
EUROPE EQUIPMENT(EK4) 		8-97133-651-1 01 1 9602-9607 ●
26 03.417 DUCT; AIR INT 8-97133-651-1 01 1 9608- ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER(K46) (A) 		8-97022-769-1 01 1 9112- ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER(K46) (B) 		8-97039-001-1 01 1 9112- ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9112-9504 ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9505- ●
62 03.417 BOLT; AIR INT DUCT
08.155 M8X16 FLANGE 		0-28480-816-0 01 1 9502-9504 ● ●
62 03.417 BOLT; AIR INT DUCT
08.155 M8X16 FLANGE 		0-28480-816-0 01 1 9505- ●
62 03.417 BOLT; AIR INT DUCT
07.832 M6X16 		8-97020-619-0 02 1 9112- ●
88 03.407 CAP; RUBBER,AIR DUCT
EXC. EUROPE EQUIPMENT(EK4) 03.672 ID=5.4 		8-94156-209-0 01 1 9112-9504 ●
88 03.407 CAP; RUBBER,AIR DUCT
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) 03.672 ID=5.4 		8-94156-209-0 01 1 9505- ●
193 03.417 COVER; DUCT,AIR INT
EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 		8-97043-855-1 01 1 9112-9410 ● ●
193 03.417 COVER; DUCT,AIR INT
EXC. HEAVY DUTY AIR CLEANER(K46) 		8-97044-027-0 01 1 9112- ●
194 03.417 BOLT; DUCT COVER
EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 03.671 M6X12 		0-28010-612-0 01 1 9112-9204 ● ●
194 03.417 BOLT; DUCT COVER
EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9205-9410 ● ●
194 03.417 BOLT; DUCT COVER
EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 07.831 M8X12 		0-28010-812-0 01 1 9112-9204 ● ●
194 03.417 BOLT; DUCT COVER
EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9205-9410 ● ●
194 03.417 BOLT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER(K46) 09.211 M6X16 W/LK WASHER 		9-01900-616-0 03 1 9112-9204 ●
194 03.417 BOLT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER(K46) 04.686 M6X16 W/LK WASHER 		0-50040-616-0 03 1 9205- ●
198 03.417 NUT; CLAMP
EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9304-9504 ● ●
198 03.417 NUT; CLAMP
EXC. EUROPE EQUIPMENT(EK4),SHIFT ON THEFLY(7EX) 07.633 M8 FLANGE 		0-91150-108-0 04 1 9505- ●
209 03.405 BRACKET; ACL 8-94386-831-1 01 1 9112-9504 ● ●
209 03.405 BRACKET; ACL 8-94386-831-1 01 1 9505- ●
209 03.405 BRACKET; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-94480-336-2 01 1 9112- ●
467 03.417 COVER; UNDER,ENGINE
EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 		8-97065-620-1 01 1 9112-9303 ● ●
467 03.417 COVER; UNDER,ENGINE
EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 		8-97086-982-1 01 1 9304-9504 ● ●
467 03.417 COVER; UNDER,ENGINE
EXC. EUROPE EQUIPMENT(EK4),SHIFT ON THEFLY(7EX) 		8-97086-982-1 01 1 9505- ●
468 03.417 BRACKET; UNDER COVER
EXC. EUROPE EQUIPMENT(EK4) 		8-97065-668-1 01 1 9112-9203 ● ●
468 03.417 BRACKET; UNDER COVER
EXC. EUROPE EQUIPMENT(EK4) 		8-97080-599-0 01 1 9204-9303 ● ●
469 03.417 BOLT; UNDER COVER
EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9112-9303 ● ●
470 03.417 BOLT; BRKT
EXC. EUROPE EQUIPMENT(EK4) 08.900 M6X16 		0-28010-616-0 01 1 9112-9204 ● ●
470 03.417 BOLT; BRKT
EXC. EUROPE EQUIPMENT(EK4) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 9205-9303 ● ●
475 03.417 U-BOLT; UNDER COVER
EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 		8-97087-000-0 02 1 9304-9504 ● ●
475 03.417 U-BOLT; UNDER COVER
EXC. EUROPE EQUIPMENT(EK4),SHIFT ON THEFLY(7EX) 		8-97087-000-0 02 1 9505- ●

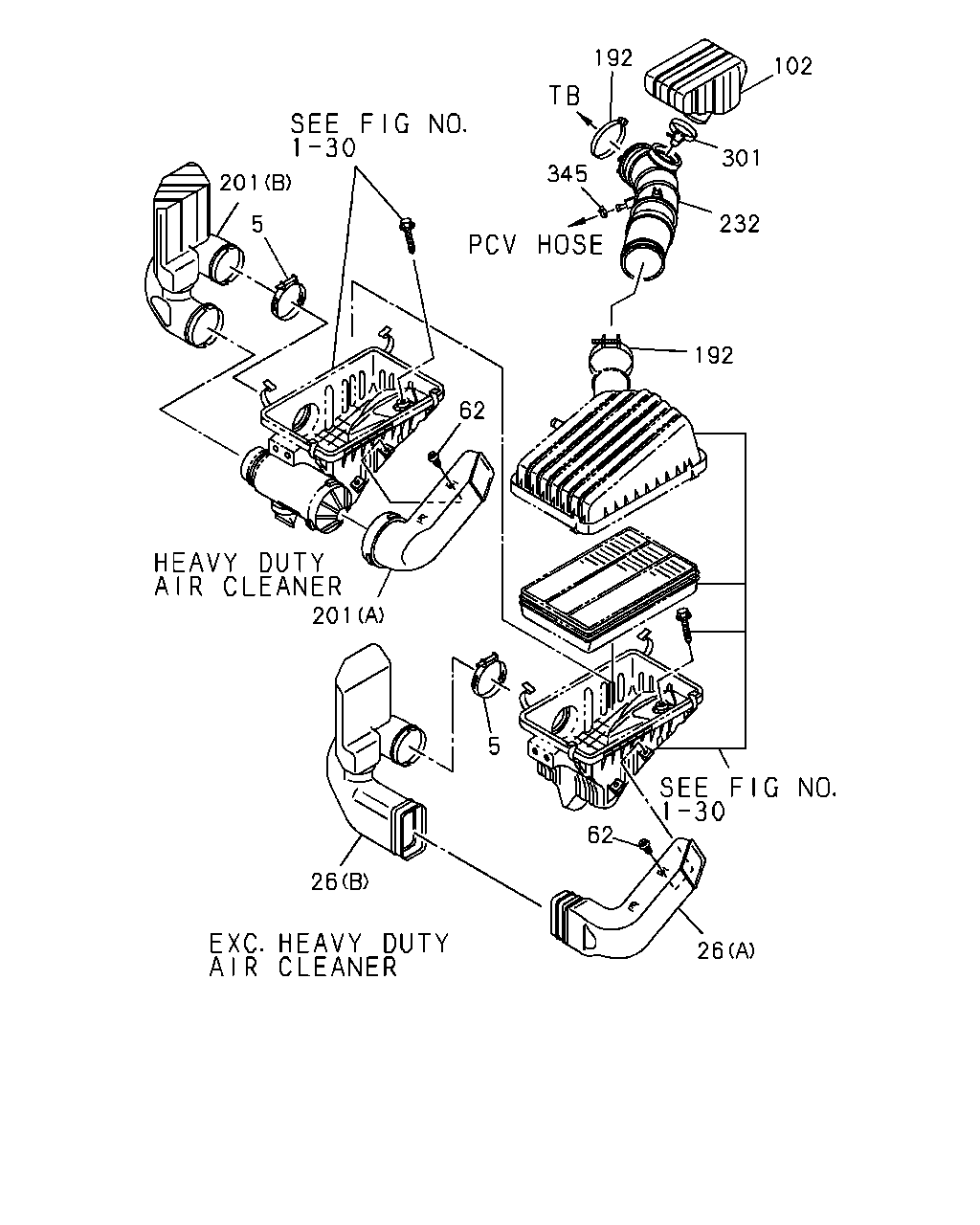

çizim 68678
26 62 5 26 201 62 192 232 301 102 192 345 5 201
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
(A) ID=75 		8-94158-977-0 01 1 9112-9208 ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) ID=58-79 		8-94126-771-0 01 1 9209-9504 ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) ID=58-79 		8-94126-771-0 01 1 9505- ●
5 03.407 CLIP; AIR DUCT
(B) ID=100 		8-94158-979-0 01 1 9112-9208 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9209-9504 ● ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (B) ID=77-95 		1-09707-114-0 01 1 9505-9602 ●
5 03.407 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9603- ●
5 03.407 CLIP; AIR DUCT
03.003 (E) D6X11 POP RIVET 		8-94298-119-0 01 1 9112-9504 ● ●
5 03.407 CLIP; AIR DUCT
03.003 (E) D6X11 POP RIVET 		8-94298-119-0 01 1 9505- ●
5 03.407 CLIP; AIR DUCT
(D) ID=82 		8-97014-301-0 01 1 9112-9208 ●
5 03.407 CLIP; AIR DUCT
(D) ID=68-85 		8-94320-428-0 01 1 9209- ●
5 03.407 CLIP; AIR DUCT
03.417 (C) ID=48-68 		8-94158-976-0 01 1 9112-9208 ●
5 03.407 CLIP; AIR DUCT
(C) ID=50-69 		8-94316-991-0 01 1 9209-9504 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9505- ●
5 03.407 CLIP; AIR DUCT
EXC. EUROPE EQUIPMENT(EK4) 03.163 (F) ID=11 		8-94238-570-0 01 1 9112-9504 ●
5 03.407 CLIP; AIR DUCT
TURBOCHARGER<K51> EXC. EUROPE EQUIPMENT(EK4) 03.163 (F) ID=11 		8-94238-570-0 01 1 9505- ●
5 03.407 CLIP; AIR DUCT
03.417 		8-94216-977-0 01 1 9112- ●
5 03.407 CLIP; AIR DUCT
ID=75 		8-94101-706-0 01 1 9112- ●
26 03.417 DUCT; AIR INT 8-97038-179-3 01 1 9112-9504 ● ●
26 03.417 DUCT; AIR INT 8-97038-179-3 01 1 9505-9601 ●
26 03.417 DUCT; AIR INT
EXC. EUROPE EQUIPMENT(EK4) 		8-97038-179-3 01 1 9602-9607 ●
26 03.417 DUCT; AIR INT
EUROPE EQUIPMENT(EK4) 		8-97133-651-1 01 1 9602-9607 ●
26 03.417 DUCT; AIR INT 8-97133-651-1 01 1 9608- ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER(K46) (A) 		8-97022-769-1 01 1 9112- ●
26 03.417 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER(K46) (B) 		8-97039-001-1 01 1 9112- ●
62 03.417 BOLT; AIR INT DUCT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9112-9504 ●
62 03.417 BOLT; AIR INT DUCT
TURBOCHARGER<K51> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 9505- ●
62 03.417 BOLT; AIR INT DUCT
08.155 M8X16 FLANGE 		0-28480-816-0 01 1 9502-9504 ● ●
62 03.417 BOLT; AIR INT DUCT
08.155 M8X16 FLANGE 		0-28480-816-0 01 1 9505- ●
62 03.417 BOLT; AIR INT DUCT
07.832 M6X16 		8-97020-619-0 02 1 9112- ●
102 03.402 RESONATOR; AIR INT 8-97039-003-2 01 1 9112- ●
192 03.407 CLIP; HOSE
ID=65-70 		8-94126-769-0 02 1 9112-9407 ●
192 03.407 CLIP; HOSE
ID=65-70 		8-94126-769-0 01 1 9408- ●
201 03.407 DUCT; SUB ACL
HEAVY DUTY AIR CLEANER(K46) (B) 		8-97018-433-1 01 1 9112- ●
201 03.407 DUCT; SUB ACL
HEAVY DUTY AIR CLEANER(K46) (A) 		8-97018-434-0 01 1 9112- ●
232 03.417 HOSE; CONN 8-97039-004-2 01 1 9112-9407 ●
232 03.417 HOSE; CONN 8-97115-954-0 01 1 9408- ●
301 03.417 CLIP; HOSE,RESONATOR
ID=58-79 		8-94126-771-0 01 1 9112- ●
345 03.417 CLIP; PCV HOSE
01.166 (A) ID=14 		8-94238-572-0 01 1 9112- ●
345 03.417 CLIP; PCV HOSE
06.672 (B) ID=21 		8-94242-034-0 01 1 9112- ●
345 03.417 CLIP; PCV HOSE
04.930 ID=16 		8-94238-568-0 01 1 9112- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
