◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#43338) — 128 parça

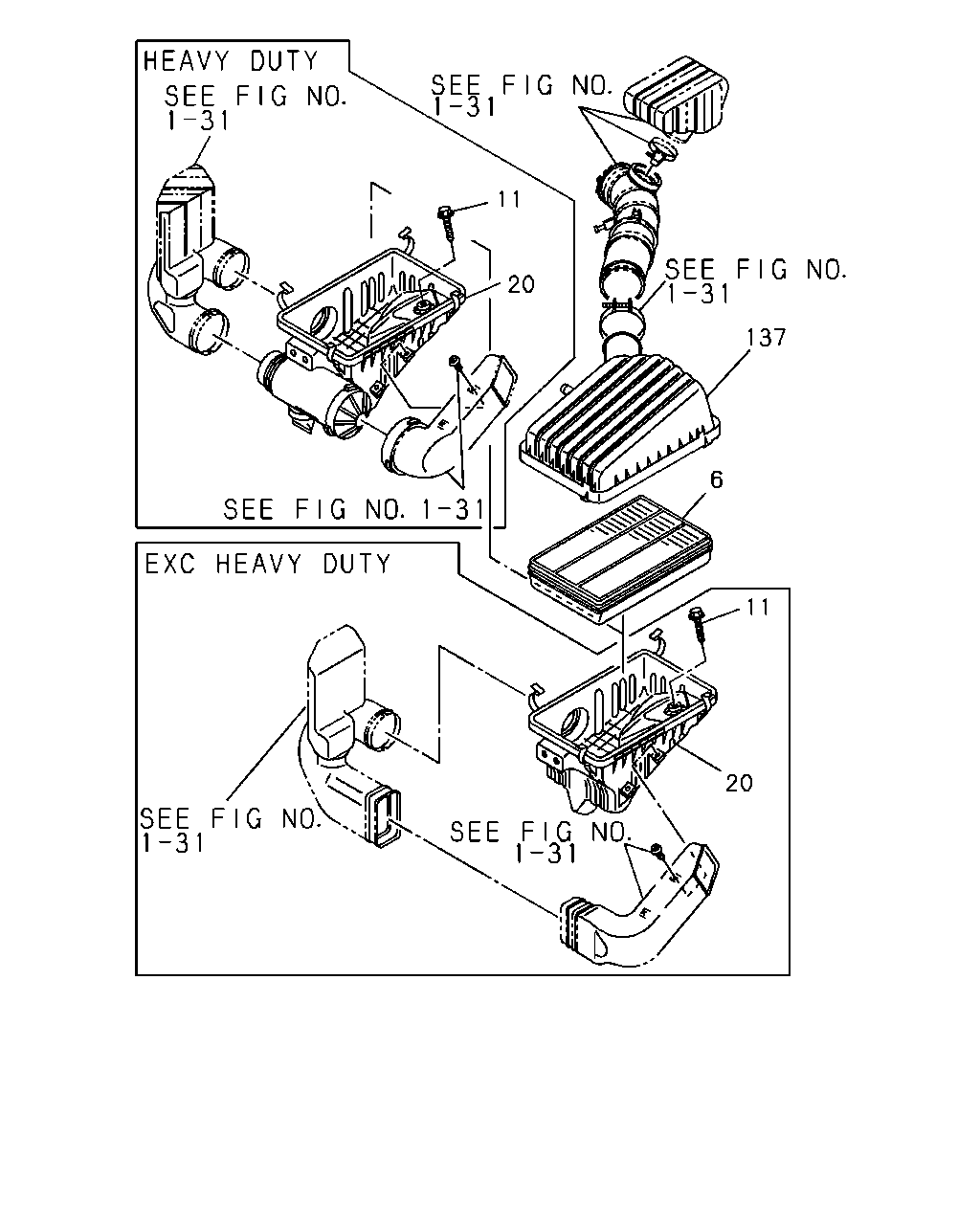

çizim 17218
11 20 137 6 11 20
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 03.410 FILTER; ACL 8-97044-227-0 01 1 9112-9504 ●
6 03.410 FILTER; ACL
EXC. EUROPE EQUIPMENT(EK4) 		8-97044-227-0 01 1 9112-9504 ●
6 03.410 FILTER; ACL
EXC. EUROPE EQUIPMENT(EK4) 		8-97044-227-0 01 1 9505- ●
6 03.410 FILTER; ACL
EUROPE EQUIPMENT(EK4) 		8-97044-226-1 01 1 9112- ●
6 03.410 FILTER; ACL 8-94459-945-0 01 1 9112- ●
6 03.410 FILTER; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-97039-002-0 01 1 9112- ●
6 03.410 FILTER; ACL
EXC. HEAVY DUTY AIR CLEANER(K46) 		8-97035-303-0 01 1 9112- ●
11 03.403 BOLT; ACL
M8X32 W/PL WASHER 		8-97035-378-0 02 1 9112- ●
20 03.406 CASE ASM; ACL
HOT AIR INTAKE(RN4) 		8-94360-356-0 01 1 9112-9504 ●
20 03.406 CASE ASM; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-97041-111-0 01 1 9112- ●
20 03.406 CASE ASM; ACL
EXC. HEAVY DUTY AIR CLEANER(K46) 		8-97035-302-0 01 1 9112- ●
137 03.402 CAP; ACL 8-94374-738-0 01 1 9112- ●
çizim 65446
29 13 19 24 23 141 5 6 5 8 1 81 13 15 31 19 24 23 20 5 6 5 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.402 CLEANER ASM; AIR 8-97038-178-0 01 1 9112-9308 ●
1 03.402 CLEANER ASM; AIR
EXC. EUROPE EQUIPMENT(EK4) 		8-97038-178-0 01 1 9112-9308 ●
1 03.402 CLEANER ASM; AIR 8-97086-805-0 01 1 9309-9504 ●
1 03.402 CLEANER ASM; AIR
EXC. EUROPE EQUIPMENT(EK4) 		8-97086-805-0 01 1 9309-9504 ●
1 03.402 CLEANER ASM; AIR
EXC. EUROPE EQUIPMENT(EK4) 		8-97116-626-0 01 1 9505-9506 ●
1 03.402 CLEANER ASM; AIR
EXC. EUROPE EQUIPMENT(EK4) 		8-97086-805-2 01 1 9507- ●
1 03.402 CLEANER ASM; AIR
EUROPE EQUIPMENT(EK4) 		8-97038-177-0 01 1 9112-9308 ●
1 03.402 CLEANER ASM; AIR
EUROPE EQUIPMENT(EK4) 		8-97086-804-2 01 1 9309- ●
1 03.402 CLEANER ASM; AIR
HOT AIR INTAKE(RN4) 		8-94475-047-2 01 1 9112- ●
1 03.402 CLEANER ASM; AIR
EXC. HOT AIR INTAKE(RN4) 		8-97039-442-0 01 1 9112- ●
5 03.403 GASKET; ELEMENT 8-94334-910-0 01 1 9112-9504 ● ●
5 03.403 GASKET; ELEMENT 8-94334-910-0 01 1 9505- ●
5 03.403 GASKET; ELEMENT 8-94141-431-0 02 1 9112- ●
6 03.410 FILTER; ACL 8-97044-227-0 01 1 9112-9504 ●
6 03.410 FILTER; ACL
EXC. EUROPE EQUIPMENT(EK4) 		8-97044-227-0 01 1 9112-9504 ●
6 03.410 FILTER; ACL
EXC. EUROPE EQUIPMENT(EK4) 		8-97044-227-0 01 1 9505- ●
6 03.410 FILTER; ACL
EUROPE EQUIPMENT(EK4) 		8-97044-226-1 01 1 9112- ●
6 03.410 FILTER; ACL 8-94459-945-0 01 1 9112- ●
6 03.410 FILTER; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-97039-002-0 01 1 9112- ●
6 03.410 FILTER; ACL
EXC. HEAVY DUTY AIR CLEANER(K46) 		8-97035-303-0 01 1 9112- ●
8 03.410 COVER ASM; ACL 8-97046-901-0 01 1 9112-9504 ●
8 03.410 COVER ASM; ACL
EXC. EUROPE EQUIPMENT(EK4) 		8-97046-901-0 01 1 9112-9504 ●
8 03.410 COVER ASM; ACL
EXC. EUROPE EQUIPMENT(EK4) 		8-97046-901-0 01 1 9505- ●
8 03.410 COVER ASM; ACL
EUROPE EQUIPMENT(EK4) 		8-97046-902-0 01 1 9112-9308 ●
8 03.410 COVER ASM; ACL
EUROPE EQUIPMENT(EK4) 		8-97107-558-0 01 1 9309- ●
8 03.410 COVER ASM; ACL 8-94407-304-0 01 1 9112- ●
13 03.415 VALVE; THERMO,ACL 8-94237-155-0 01 1 9112- ●
15 03.415 DIAPHRAGM; VAC,ACL
HOT AIR INTAKE(RN4) 		8-94402-439-0 01 1 9112- ●
19 03.403 GASKET; ACL TO CARB 8-94237-154-0 01 1 9112- ●
20 03.406 CASE ASM; ACL
HOT AIR INTAKE(RN4) 		8-94360-356-0 01 1 9112-9504 ●
20 03.406 CASE ASM; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-97041-111-0 01 1 9112- ●
20 03.406 CASE ASM; ACL
EXC. HEAVY DUTY AIR CLEANER(K46) 		8-97035-302-0 01 1 9112- ●
23 03.405 COLLAR; ACL STAY
03.417 		8-94407-303-0 02 1 9112- ●
24 03.406 GROMMET; ACL STAY
03.403 		8-94407-302-0 02 1 9112- ●
29 03.403 SCREW; WASHER,ACL
EXC. HOT AIR INTAKE(RN4) 02.820 M5X16 W/LK&PL WASHER 		9-03920-516-0 02 1 9112- ●
31 03.406 SCREW; ACL
HOT AIR INTAKE(RN4) 		1-81229-488-0 02 1 9112- ●
81 03.415 SCREW; ACL
HOT AIR INTAKE(RN4) 02.820 M5X16 W/LK&PL WASHER 		9-03920-516-0 02 1 9112- ●
141 03.417 CAP; RUBBER,ACL
EXC. HOT AIR INTAKE(RN4) 01.780 ID=4 		8-94217-809-0 01 1 9112- ●

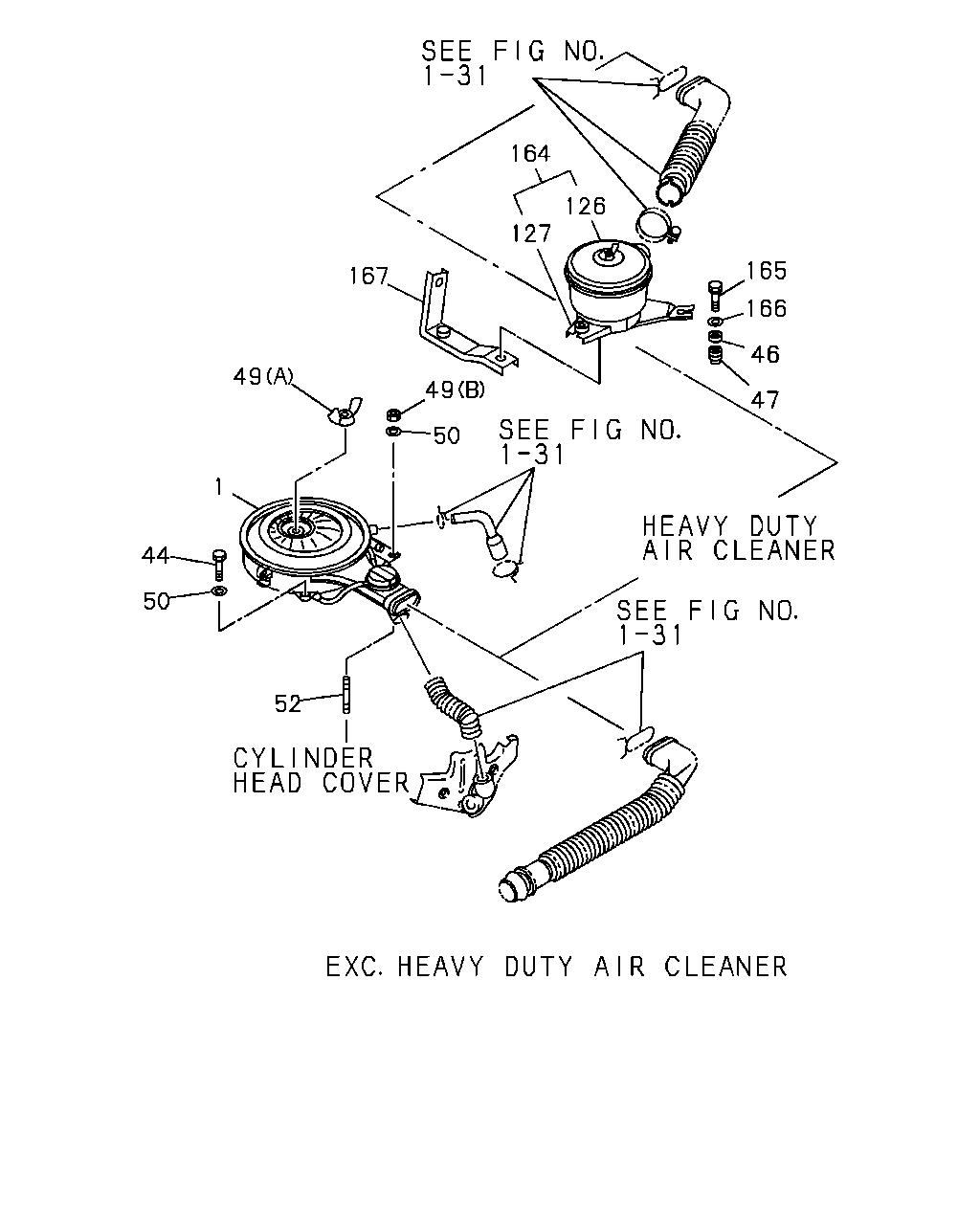

çizim 66193
52 50 44 1 49 50 49 167 127 164 126 165 46 166 47
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.402 CLEANER ASM; AIR 8-97038-178-0 01 1 9112-9308 ●
1 03.402 CLEANER ASM; AIR
EXC. EUROPE EQUIPMENT(EK4) 		8-97038-178-0 01 1 9112-9308 ●
1 03.402 CLEANER ASM; AIR 8-97086-805-0 01 1 9309-9504 ●
1 03.402 CLEANER ASM; AIR
EXC. EUROPE EQUIPMENT(EK4) 		8-97086-805-0 01 1 9309-9504 ●
1 03.402 CLEANER ASM; AIR
EXC. EUROPE EQUIPMENT(EK4) 		8-97116-626-0 01 1 9505-9506 ●
1 03.402 CLEANER ASM; AIR
EXC. EUROPE EQUIPMENT(EK4) 		8-97086-805-2 01 1 9507- ●
1 03.402 CLEANER ASM; AIR
EUROPE EQUIPMENT(EK4) 		8-97038-177-0 01 1 9112-9308 ●
1 03.402 CLEANER ASM; AIR
EUROPE EQUIPMENT(EK4) 		8-97086-804-2 01 1 9309- ●
1 03.402 CLEANER ASM; AIR
HOT AIR INTAKE(RN4) 		8-94475-047-2 01 1 9112- ●
1 03.402 CLEANER ASM; AIR
EXC. HOT AIR INTAKE(RN4) 		8-97039-442-0 01 1 9112- ●
44 03.403 BOLT; ACL
M6X30 		8-97032-128-0 03 1 9112-9504 ● ●
44 03.403 BOLT; ACL
M6X30 		8-97032-128-0 03 1 9505- ●
44 03.403 BOLT; ACL
06.655 M8X25 FLANGE 		0-28010-825-0 01 1 9112-9204 ●
44 03.403 BOLT; ACL
01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9205- ●
46 03.417 COLLAR; MTG RUBBER,ACL
HEAVY DUTY AIR CLEANER(K46) 03.405 		8-94209-014-0 01 1 9112- ●
47 03.417 CUSHION; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-94319-428-0 01 1 9112- ●
49 03.403 NUT; ACL
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9112- ●
49 03.403 NUT; ACL
(A) M8 WING 		8-94111-617-0 01 1 9112- ●
50 03.403 WASHER; PL,ACL
02.334 ID=8.4 OD=26 		9-09164-808-0 02 1 9112- ●
52 03.403 STUD; ACL
03.275 M8X28 L=40 		9-04110-828-0 01 1 9112- ●
126 03.417 CYCLONE; PRE ACL
HEAVY DUTY AIR CLEANER(K46) 		8-94341-804-0 01 1 9112- ●
127 03.417 BRACKET; PRE ACL
HEAVY DUTY AIR CLEANER(K46) 		8-94341-805-0 01 1 9112- ●
164 03.402 CLEANER ASM; AIR,SUB
HEAVY DUTY AIR CLEANER(K46) 		8-94475-016-2 01 1 9112- ●
165 03.417 BOLT; SUB ACL
HEAVY DUTY AIR CLEANER(K46) 03.405 M6X35 W/LK WASHER 		9-01900-635-0 02 1 9112-9204 ●
165 03.417 BOLT; SUB ACL
HEAVY DUTY AIR CLEANER(K46) 02.559 M6X35 W/LK WASHER 		0-50040-635-0 02 1 9205- ●
165 03.417 BOLT; SUB ACL
HEAVY DUTY AIR CLEANER(K46) 02.559 M8X14 W/LK WASHER 		9-01900-814-0 02 1 9112-9204 ●
165 03.417 BOLT; SUB ACL
HEAVY DUTY AIR CLEANER(K46) 00.206 M8X14 W/LK WASHER 		0-50040-814-0 02 1 9205- ●
165 03.417 BOLT; SUB ACL
HEAVY DUTY AIR CLEANER(K46) 04.642 M8X35 W/LK WASHER 		9-01900-835-0 01 1 9112-9204 ●
165 03.417 BOLT; SUB ACL
HEAVY DUTY AIR CLEANER(K46) 01.540 M8X35 W/LK WASHER 		0-50040-835-0 01 1 9205- ●
166 03.403 WASHER; LK,SUB ACL
HEAVY DUTY AIR CLEANER(K46) 02.334 ID=8.4 OD=26 		9-09164-808-0 03 1 9112- ●
167 03.405 BRACKET; SUB ACL
HEAVY DUTY AIR CLEANER(K46) 		8-94340-458-0 01 1 9112- ●
çizim 67087
8 4 6 5 94 37 25 44 1 145 71
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.402 CLEANER ASM; AIR 8-97038-178-0 01 1 9112-9308 ●
1 03.402 CLEANER ASM; AIR
EXC. EUROPE EQUIPMENT(EK4) 		8-97038-178-0 01 1 9112-9308 ●
1 03.402 CLEANER ASM; AIR 8-97086-805-0 01 1 9309-9504 ●
1 03.402 CLEANER ASM; AIR
EXC. EUROPE EQUIPMENT(EK4) 		8-97086-805-0 01 1 9309-9504 ●
1 03.402 CLEANER ASM; AIR
EXC. EUROPE EQUIPMENT(EK4) 		8-97116-626-0 01 1 9505-9506 ●
1 03.402 CLEANER ASM; AIR
EXC. EUROPE EQUIPMENT(EK4) 		8-97086-805-2 01 1 9507- ●
1 03.402 CLEANER ASM; AIR
EUROPE EQUIPMENT(EK4) 		8-97038-177-0 01 1 9112-9308 ●
1 03.402 CLEANER ASM; AIR
EUROPE EQUIPMENT(EK4) 		8-97086-804-2 01 1 9309- ●
1 03.402 CLEANER ASM; AIR
HOT AIR INTAKE(RN4) 		8-94475-047-2 01 1 9112- ●
1 03.402 CLEANER ASM; AIR
EXC. HOT AIR INTAKE(RN4) 		8-97039-442-0 01 1 9112- ●
4 03.403 GASKET; COVER TO BODY 8-94334-908-0 01 1 9112-9504 ● ●
4 03.403 GASKET; COVER TO BODY 8-94334-908-0 01 1 9505- ●
5 03.403 GASKET; ELEMENT 8-94334-910-0 01 1 9112-9504 ● ●
5 03.403 GASKET; ELEMENT 8-94334-910-0 01 1 9505- ●
5 03.403 GASKET; ELEMENT 8-94141-431-0 02 1 9112- ●
6 03.410 FILTER; ACL 8-97044-227-0 01 1 9112-9504 ●
6 03.410 FILTER; ACL
EXC. EUROPE EQUIPMENT(EK4) 		8-97044-227-0 01 1 9112-9504 ●
6 03.410 FILTER; ACL
EXC. EUROPE EQUIPMENT(EK4) 		8-97044-227-0 01 1 9505- ●
6 03.410 FILTER; ACL
EUROPE EQUIPMENT(EK4) 		8-97044-226-1 01 1 9112- ●
6 03.410 FILTER; ACL 8-94459-945-0 01 1 9112- ●
6 03.410 FILTER; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-97039-002-0 01 1 9112- ●
6 03.410 FILTER; ACL
EXC. HEAVY DUTY AIR CLEANER(K46) 		8-97035-303-0 01 1 9112- ●
8 03.410 COVER ASM; ACL 8-97046-901-0 01 1 9112-9504 ●
8 03.410 COVER ASM; ACL
EXC. EUROPE EQUIPMENT(EK4) 		8-97046-901-0 01 1 9112-9504 ●
8 03.410 COVER ASM; ACL
EXC. EUROPE EQUIPMENT(EK4) 		8-97046-901-0 01 1 9505- ●
8 03.410 COVER ASM; ACL
EUROPE EQUIPMENT(EK4) 		8-97046-902-0 01 1 9112-9308 ●
8 03.410 COVER ASM; ACL
EUROPE EQUIPMENT(EK4) 		8-97107-558-0 01 1 9309- ●
8 03.410 COVER ASM; ACL 8-94407-304-0 01 1 9112- ●
25 03.403 GASKET; CASE,ACL 8-94334-909-0 01 1 9112-9504 ● ●
25 03.403 GASKET; CASE,ACL 8-94334-909-0 01 1 9505- ●
37 03.406 RUBBER; MTG,ACL
03.403 		8-94334-912-0 03 1 9112-9504 ● ●
37 03.406 RUBBER; MTG,ACL
EUROPE EQUIPMENT(EK4) 03.403 		8-94334-912-0 03 1 9505-9506 ●
37 03.406 RUBBER; MTG,ACL
EXC. EUROPE EQUIPMENT(EK4) 		8-97112-955-0 03 1 9505-9506 ●
37 03.406 RUBBER; MTG,ACL 8-97112-955-0 03 1 9507-9604 ●
37 03.406 RUBBER; MTG,ACL 8-97146-135-0 03 1 9605- ●
44 03.403 BOLT; ACL
M6X30 		8-97032-128-0 03 1 9112-9504 ● ●
44 03.403 BOLT; ACL
M6X30 		8-97032-128-0 03 1 9505- ●
44 03.403 BOLT; ACL
06.655 M8X25 FLANGE 		0-28010-825-0 01 1 9112-9204 ●
44 03.403 BOLT; ACL
01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9205- ●
71 03.417 WASHER; PL,BRKT
16.716 ID=8.4 OD=18 		9-09160-608-0 02 1 9112-9504 ● ●
71 03.417 WASHER; PL,BRKT
16.716 ID=8.4 OD=18 		9-09160-608-0 02 1 9505- ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 9112-9308 ● ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 9309-9504 ● ●
94 03.415 VALVE; VACUATOR 8-94447-157-0 01 1 9505- ●
145 03.405 BOLT; BRKT TO FRAME
00.662 M8X14 FLANGE 		0-28080-814-0 03 1 9112-9302 ● ●
145 03.405 BOLT; BRKT TO FRAME
08.155 M8X16 FLANGE 		0-28480-816-0 03 1 9303-9504 ● ●
145 03.405 BOLT; BRKT TO FRAME
08.155 M8X16 FLANGE 		0-28480-816-0 03 1 9505- ●
