1-11 — RADIATOR HOSE AND SUB TANK (#43337) — 56 parça

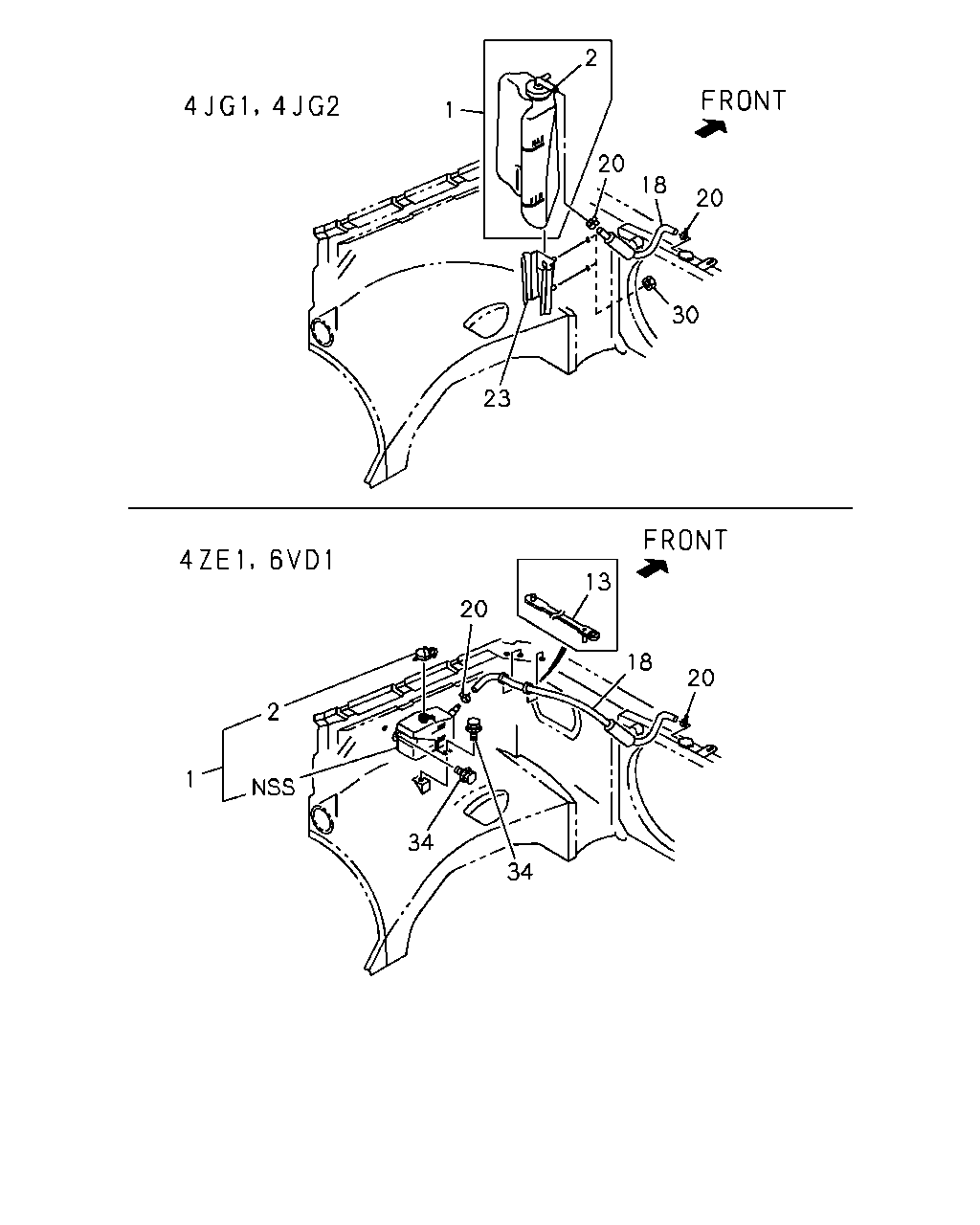

1 2 20 18 20 30 23 13 20 18 20 34 34 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.219 TANK; SURGE,RAD	8-97039-036-4	01	1	9112-9504	●	●
1	01.219 TANK; SURGE,RAD	8-97039-036-5	01	1	9505-	●
1	01.219 TANK; SURGE,RAD	8-97032-681-1	01	1	9112-9208			●	●
1	01.219 TANK; SURGE,RAD	8-97079-229-1	01	1	9209-9307			●	●
1	01.219 TANK; SURGE,RAD	8-97101-189-0	01	1	9308-9410			●	●
1	01.219 TANK; SURGE,RAD	8-97101-191-1	01	1	9411-			●	●
2	01.203 CAP; SURGE TANK	8-97064-897-0	01	1	9112-9504	●	●
2	01.203 CAP; SURGE TANK	8-97064-897-0	01	1	9505-	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9112-9307			●	●
2	01.203 CAP; SURGE TANK	8-97100-665-0	01	1	9308-9506			●	●
2	01.203 CAP; SURGE TANK	8-97130-964-0	01	1	9507-			●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	01	1	9112-9209			●	●
13	01.240 CLIP; HOSE,SURGE TANK 02.559 L=103	8-94239-339-0	02	1	9210-			●	●
18	01.240 HOSE; RAD TO SURGE TANK L=350 W/INSULATOR	8-97039-297-1	01	1	9112-9504	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=350 W/INSULATOR	8-97039-297-2	01	1	9505-	●
18	01.240 HOSE; RAD TO SURGE TANK L=970 W/INSULATOR	8-97031-889-2	01	1	9112-9308			●	●
18	01.240 HOSE; RAD TO SURGE TANK L=970 W/INSULATOR	8-97031-889-2	01	1	9508-9705			●	●
18	01.240 HOSE; RAD TO SURGE TANK EUROPE EQUIPMENT(EK4) L=970 W/INSULATOR	8-97031-889-2	01	1	9706-9708			●	●
18	01.240 HOSE; RAD TO SURGE TANK L=970 W/INSULATOR	8-97031-889-2	01	1	9709-			●
18	01.240 HOSE; RAD TO SURGE TANK EUROPE EQUIPMENT(EK4) L=970 W/INSULATOR	8-97031-889-2	01	1	9709-				●
18	01.240 HOSE; RAD TO SURGE TANK EXC. EUROPE EQUIPMENT(EK4) L=990 W/INSULATOR	8-97174-766-0	01	1	9706-				●
20	01.166 CLIP; HOSE,RAD 01.219 ID=12	8-94238-610-0	02	1	9112-9504	●	●	●	●
20	01.166 CLIP; HOSE,RAD 01.219 ID=12	8-94238-610-0	02	1	9505-	●		●	●
23	01.219 BRACKET; RESERVE TANK	8-97043-993-1	01	1	9112-9504	●	●
23	01.219 BRACKET; RESERVE TANK	8-97043-993-1	01	1	9505-	●
30	01.203 NUT 07.633 M8 FLANGE	0-91150-108-0	02	1	9112-9504	●	●
30	01.203 NUT 07.633 M8 FLANGE	0-91150-108-0	02	1	9505-	●
34	01.203 BOLT; RESERVE TANK M8X25	8-97017-390-0	02	1	9112-9301			●	●
34	01.203 BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	9302-			●	●

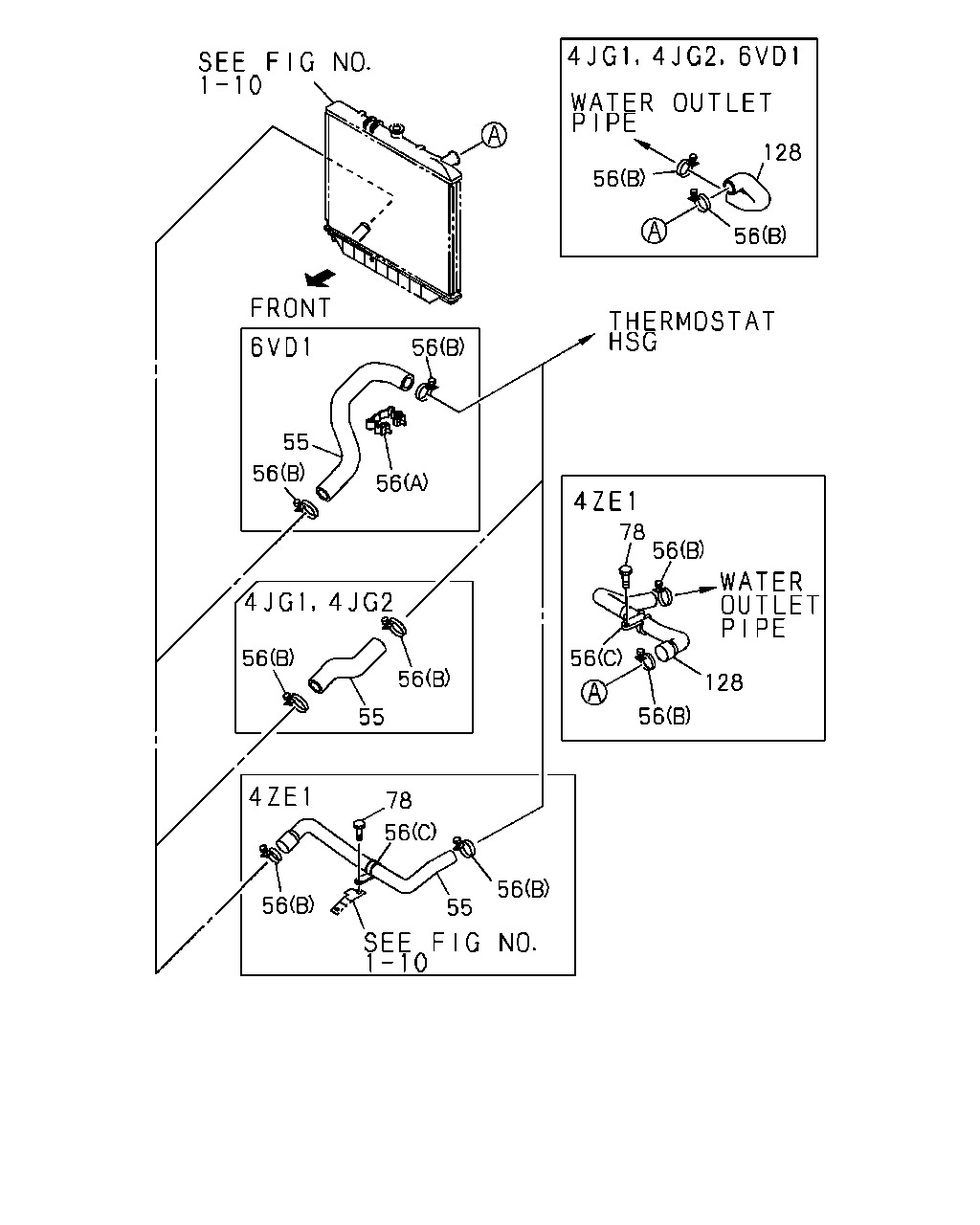

56 128 56 78 56 128 56 56 56 55 56 78 56 56 55 56 56 55 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	9112-9504	●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	9505-	●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-169-0	01	1	9112-			●
55	01.173 HOSE; WATER,RAD OUTLET	8-94375-171-1	01	1	9112-				●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	5-09704-049-0	03	1	9112-9206	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	03	1	9207-9504	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	03	1	9505-	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	9-09915-042-1	01	1	9112-9504	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	9-09915-042-1	01	1	9505-	●		●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	5-09704-049-0	02	1	9112-9206			●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	02	1	9207-			●
56	01.166 CLIP; WATER HOSE,RAD (C)	8-97021-824-1	02	1	9112-			●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=45	9-09915-281-1	01	1	9112-9208			●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=44	1-09704-077-0	01	1	9209-			●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=46	8-97023-235-1	01	1	9112-				●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	04	1	9112-				●
78	01.159 BOLT; CLIP,HOSE 16.341 M6X12 W/LK WASHER	9-01900-612-0	02	1	9112-9204			●
78	01.159 BOLT; CLIP,HOSE 00.685 M6X12 W/LK WASHER	0-50040-612-0	02	1	9205-			●
128	01.159 HOSE; WATER,RAD INL	8-94375-167-1	01	1	9112-9504	●	●
128	01.159 HOSE; WATER,RAD INL	8-94375-167-1	01	1	9505-9611	●
128	01.159 HOSE; WATER,RAD INL EUROPE EQUIPMENT(EK4)	8-94375-167-1	01	1	9612-	●
128	01.159 HOSE; WATER,RAD INL EXC. EUROPE EQUIPMENT(EK4)	8-97170-822-0	01	1	9612-	●
128	01.159 HOSE; WATER,RAD INL	8-94375-166-1	01	1	9112-			●
128	01.159 HOSE; WATER,RAD INL	8-94375-168-2	01	1	9112-9611				●
128	01.159 HOSE; WATER,RAD INL EUROPE EQUIPMENT(EK4)	8-94375-168-2	01	1	9612-				●
128	01.159 HOSE; WATER,RAD INL EXC. EUROPE EQUIPMENT(EK4)	8-97164-267-0	01	1	9612-9612				●
128	01.159 HOSE; WATER,RAD INL EXC. EUROPE EQUIPMENT(EK4)	8-97174-843-0	01	1	9701-				●
