◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#43336) — 102 parça

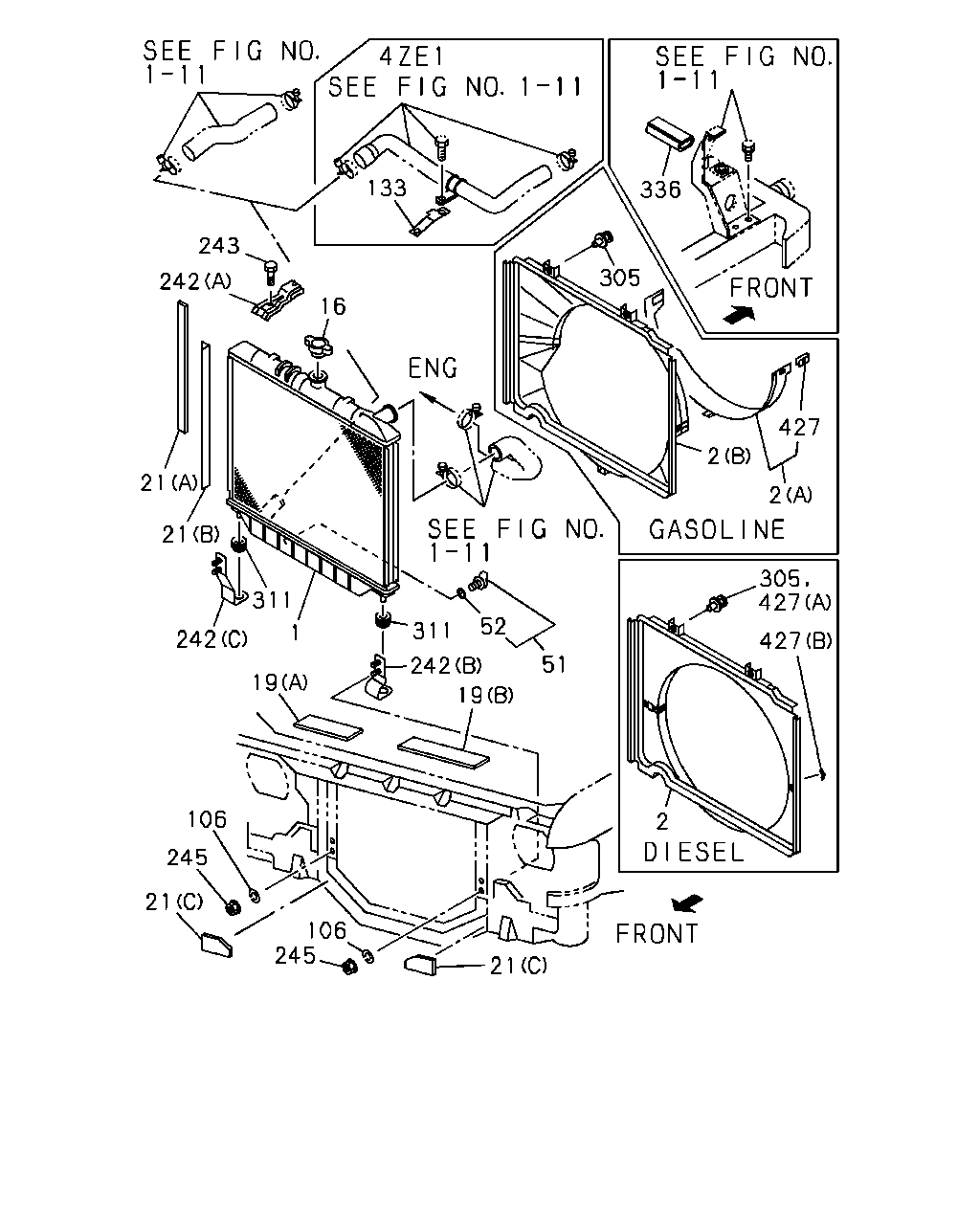

çizim 65176
16 242 243 133 336 305 2 2 427 51 52 311 242 19 19 311 1 242 21 21 106 245 21 245 106 21 2 427 427 305
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.219 RADIATOR ASM 8-97036-935-1 01 1 9112-9409 ● ●
1 01.219 RADIATOR ASM
EXC. EUROPE EQUIPMENT(EK4) 		8-97036-935-1 01 1 9410-9504 ● ●
1 01.219 RADIATOR ASM
EXC. EUROPE EQUIPMENT(EK4) 		8-97036-935-1 01 1 9505-9611 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4) 		8-97169-024-0 01 1 9612- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97036-932-1 01 1 9112-9309 ● ●
1 01.219 RADIATOR ASM 8-97036-932-1 01 1 9310-9409 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97036-932-1 01 1 9310-9409 ●
1 01.219 RADIATOR ASM
EUROPE EQUIPMENT(EK4) 		8-97036-932-1 01 1 9410-9504 ● ●
1 01.219 RADIATOR ASM 8-97036-932-1 01 1 9410-9504 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97036-932-1 01 1 9410-9504 ●
1 01.219 RADIATOR ASM
EUROPE EQUIPMENT(EK4) 		8-97036-932-1 01 1 9505-9611 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97036-932-1 01 1 9505-9611 ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) EUROPE EQUIPMENT(EK4) 		8-97036-932-1 01 1 9612-9706 ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97036-932-1 01 1 9612-9706 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) 		8-97036-932-1 01 1 9707- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) EUROPE EQUIPMENT(EK4) 		8-97036-932-1 01 1 9707- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) EUROPE EQUIPMENT(EK4) 		8-97036-935-1 01 1 9707- ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) 		8-97036-933-3 01 1 9112-9611 ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 		8-97036-933-3 01 1 9612- ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4) 		8-97164-187-0 01 1 9612- ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4) 		8-97164-188-0 01 1 9612- ●
2 01.277 GUIDE; FAN 8-94375-339-2 01 1 9112-9504 ● ●
2 01.277 GUIDE; FAN 8-94375-339-2 01 1 9505-9611 ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED(RMN) EUROPE EQUIPMENT(EK4) 		8-94375-339-2 01 1 9612- ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4) 		8-97168-424-0 01 1 9612- ●
2 01.277 GUIDE; FAN
(A) 		8-94375-338-0 01 1 9112- ●
2 01.277 GUIDE; FAN
(B) 		8-97048-379-0 01 1 9112- ●
2 01.277 GUIDE; FAN
(B) 		8-94375-337-5 01 1 9112-9611 ●
2 01.277 GUIDE; FAN
EUROPE EQUIPMENT(EK4) (B) 		8-94375-337-5 01 1 9612- ●
2 01.277 GUIDE; FAN
EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97166-239-0 01 1 9612- ●
2 01.277 GUIDE; FAN
(A) 		8-97033-101-2 01 1 9112- ●
16 01.203 CAP; RAD 8-94116-916-1 01 1 9112-9309 ● ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9310-9504 ● ● ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9505-9611 ● ● ●
16 01.203 CAP; RAD
EUROPE EQUIPMENT(EK4) 		8-97104-194-0 01 1 9612- ● ●
16 01.203 CAP; RAD 8-97104-194-0 01 1 9612- ●
16 01.203 CAP; RAD
EXC. EUROPE EQUIPMENT(EK4) 		8-97171-436-0 01 1 9612- ● ●
19 01.270 SEAL; RAD UPR
(A) L=380 		8-97018-493-2 01 1 9112-9302 ● ● ● ●
19 01.270 SEAL; RAD UPR
(A) L=200 		8-97081-956-2 01 1 9303-9504 ● ● ● ●
19 01.270 SEAL; RAD UPR
(A) 		8-97110-821-0 01 1 9505-9611 ● ● ● ●
19 01.270 SEAL; RAD UPR
EUROPE EQUIPMENT(EK4) (A) L=300 		8-97110-821-0 01 1 9612- ● ●
19 01.270 SEAL; RAD UPR
(A) L=300 		8-97110-821-0 01 1 9612- ●
19 01.270 SEAL; RAD UPR
EXC. EUROPE EQUIPMENT(EK4) (A) L=300 		8-97164-207-1 01 1 9612- ● ●
19 01.270 SEAL; RAD UPR
(B) L=200 		8-97030-275-2 01 1 9112-9302 ● ● ● ●
19 01.270 SEAL; RAD UPR
(B) L=380 		8-97081-957-2 01 1 9303-9504 ● ● ● ●
19 01.270 SEAL; RAD UPR
(B) 		8-97110-822-0 01 1 9505-9611 ● ● ● ●
19 01.270 SEAL; RAD UPR
EUROPE EQUIPMENT(EK4) (B) L=380 		8-97110-822-0 01 1 9612- ● ●
19 01.270 SEAL; RAD UPR
(B) L=380 		8-97110-822-0 01 1 9612- ●
19 01.270 SEAL; RAD UPR
EXC. EUROPE EQUIPMENT(EK4) (B) L=360 		8-97164-208-0 01 1 9612- ● ●
21 01.276 SEAL; RAD
(B) 		8-97036-937-0 02 1 9112-9401 ● ● ● ●
21 01.276 SEAL; RAD
(B) 		8-97036-937-0 02 1 9402-9409 ● ●
21 01.276 SEAL; RAD
A/T THM(RMQ) (B) 		8-97036-937-0 02 1 9402-9409 ●
21 01.276 SEAL; RAD
M/T MUA 5 SPEED(RMN) EXC. VAUXHALL EQUIPMENT<EK3>,EUROPE EQUIPMENT(EK4) (B) 		8-97036-937-0 02 1 9410-9504 ● ●
21 01.276 SEAL; RAD
A/T THM(RMQ) (B) 		8-97036-937-0 02 1 9410-9504 ●
21 01.276 SEAL; RAD
EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97036-937-0 02 1 9505-9611 ●
21 01.276 SEAL; RAD
A/T THM(RMQ) (B) 		8-97036-937-0 02 1 9505-9611 ●
21 01.276 SEAL; RAD
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) (B) 		8-97036-937-0 02 1 9612-9706 ●
21 01.276 SEAL; RAD
M/T MUA 5 SPEED(RMN) EUROPE EQUIPMENT(EK4) (B) 		8-97036-937-0 02 1 9707- ●
21 01.276 SEAL; RAD
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) (B) 		8-97036-937-0 02 1 9707- ●
21 01.276 SEAL; RAD
M/T MUA 5 SPEED(RMN) (A) 		8-97044-210-0 02 1 9112-9309 ● ●
21 01.276 SEAL; RAD
(C) 		8-97033-102-1 01 1 9112-9403 ●
21 01.276 SEAL; RAD
A/T THM(RMQ) (C) 		8-97033-102-3 01 1 9404- ●
21 01.276 SEAL; RAD
(C) 		8-97047-002-1 01 1 9112-9403 ●
21 01.276 SEAL; RAD
A/T THM(RMQ) (C) 		8-97047-002-3 01 1 9404- ●
51 08.951 PLUG; DRAIN 8-97036-939-0 01 1 9112-9504 ● ● ● ●
51 08.951 PLUG; DRAIN 8-97036-939-0 01 1 9505-9611 ● ● ●
51 08.951 PLUG; DRAIN
EUROPE EQUIPMENT(EK4) 		8-97036-939-0 01 1 9612- ● ●
51 08.951 PLUG; DRAIN 8-97036-939-0 01 1 9612- ●
51 08.951 PLUG; DRAIN
EXC. EUROPE EQUIPMENT(EK4) W/GASKET 		8-97171-437-0 01 1 9612- ● ●
52 08.951 GASKET; DRAIN PLUG
04.133 ID=9.8 		9-09561-110-0 01 1 9112-9504 ● ● ● ●
52 08.951 GASKET; DRAIN PLUG
04.133 ID=9.8 		9-09561-110-0 01 1 9505-9611 ● ● ●
52 08.951 GASKET; DRAIN PLUG
EUROPE EQUIPMENT(EK4) 04.133 ID=9.8 		9-09561-110-0 01 1 9612- ● ●
52 08.951 GASKET; DRAIN PLUG
04.133 ID=9.8 		9-09561-110-0 01 1 9612- ●
106 01.277 WASHER; LK,BRKT
11.561 		8-94159-029-0 04 1 9204-9402 ● ● ● ●
133 01.166 BRACKET; WATER HOSE 8-97013-821-0 01 1 9112- ●
242 01.219 BRACKET; RAD
(A) 		8-94375-182-1 01 1 9112-9503 ● ● ● ●
242 01.219 BRACKET; RAD
(A) 		8-97123-089-0 01 1 9504-9504 ● ● ● ●
242 01.219 BRACKET; RAD
(A) 		8-97123-089-1 01 1 9505- ● ● ●
242 01.219 BRACKET; RAD
(B) 		8-97021-802-4 01 1 9112-9301 ● ● ● ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9302-9504 ● ● ● ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9505- ● ● ●
242 01.219 BRACKET; RAD
(C) 		8-97022-230-4 01 1 9112-9301 ● ● ● ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9302-9504 ● ● ● ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9505- ● ● ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9112-9504 ● ● ● ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9505- ● ● ●
245 01.219 NUT; BRKT
03.023 M8 FLANGE 		8-94328-243-0 04 1 9112-9402 ● ● ● ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9403-9504 ● ● ● ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9505- ● ● ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE 8-97043-862-0 02 1 9112-9504 ● ● ● ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE 8-97043-862-0 02 1 9505- ● ● ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9112-9504 ● ● ● ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9505- ● ● ●
336 01.270 SEAL; LWR,RAD 8-97018-492-2 02 1 9112-9310 ● ● ● ●
336 01.270 SEAL; LWR,RAD 8-97105-979-0 02 1 9311-9502 ● ● ● ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9503-9504 ● ● ● ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9505- ● ● ●
427 01.240 CLIP; FAN GUIDE
01.277 (A) 		8-97043-862-0 02 1 9112-9206 ● ●
427 01.240 CLIP; FAN GUIDE
(B) 		8-97064-896-0 02 1 9112-9206 ● ●
427 01.240 CLIP; FAN GUIDE 8-97043-199-0 02 1 9112-9410 ● ●
427 01.240 CLIP; FAN GUIDE 8-97043-199-0 02 1 9411- ●
427 01.240 CLIP; FAN GUIDE
A/T THM(RMQ) 		8-97043-199-0 02 1 9411- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
