◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-05 - AUTO CRUISE ACTUATOR ▶
1-05 — AUTO CRUISE ACTUATOR (#43335) — 24 parça
çizim 17943
20 20 20 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
19 03.483 CLIP; CABLE & ACCEL
AUTO CRUISE CONT<K30> 03.162 		8-94357-499-0 01 1 9112- ● ● ● ●
20 03.440 CLIP; CRUISE CABLE
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) AUTO CRUISE CONT<K30> 16.065 (C) ID=20 		1-09709-068-0 01 1 9112-9504 ● ● ● ●
20 03.440 CLIP; CRUISE CABLE
AIR CONDITIONER MANUAL CONT(C60) AUTO CRUISE CONT<K30> 16.065 (C) ID=20 		1-09709-068-0 01 1 9505- ● ● ●
20 03.440 CLIP; CRUISE CABLE
AUTO CRUISE CONT<K30> 03.430 (B) ID=6 & 16.5 		8-94165-402-0 01 1 9112- ● ● ● ●
20 03.440 CLIP; CRUISE CABLE
AUTO CRUISE CONT<K30> 03.145 (A) ID=7 L=16 		9-09524-622-0 01 1 9112- ● ● ● ●

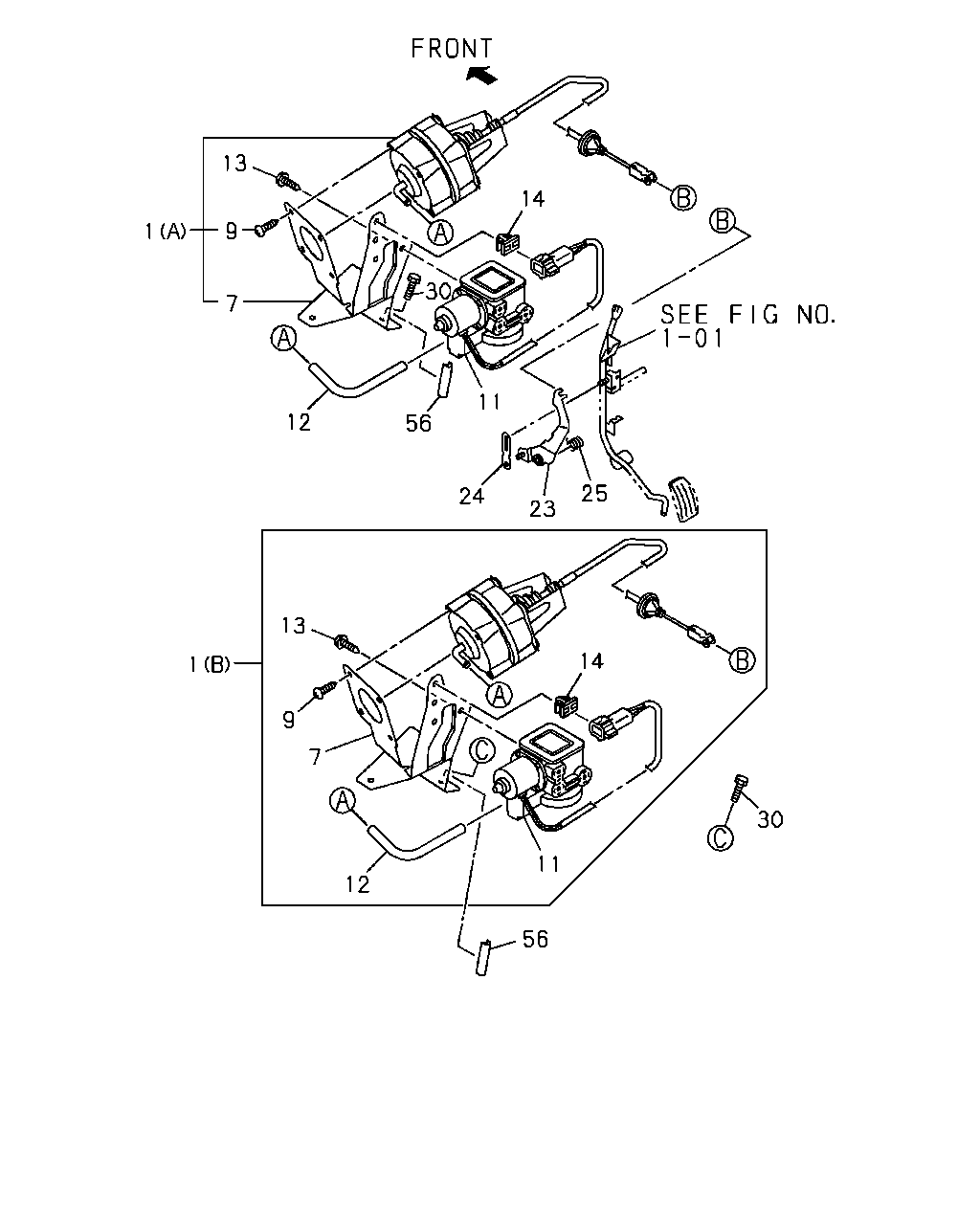

çizim 68407
56 30 11 14 12 7 9 1 13 25 23 24 56 11 14 30 12 7 1 9 13
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.885 ACTUATOR UNIT; CRUISE
AUTO CRUISE CONT<K30> (A) 		8-97064-959-0 01 1 9112-9112 ● ● ● ●
1 03.885 ACTUATOR UNIT; CRUISE
AUTO CRUISE CONT<K30> (A) 		8-97074-726-0 01 1 9201-9208 ● ● ● ●
1 03.885 ACTUATOR UNIT; CRUISE
AUTO CRUISE CONT<K30> (B) 		8-97074-725-1 01 1 9209- ● ● ● ●
7 03.885 BRACKET; C ACTUATOR
AUTO CRUISE CONT<K30> 		8-97064-958-0 01 1 9112- ● ● ● ●
9 03.885 SCREW; RR BRKT ACTUATOR
AUTO CRUISE CONT<K30> 		8-94376-368-0 07 1 9112-9311 ● ● ● ●
9 03.885 SCREW; RR BRKT ACTUATOR
AUTO CRUISE CONT<K30> 		8-97100-134-0 07 1 9312- ● ● ● ●
11 03.885 PUMP; ACTUATOR
AUTO CRUISE CONT<K30> 03.887 		8-97013-983-0 01 1 9112- ● ● ● ●
12 03.886 HOSE; VAC,ACTUATOR
AUTO CRUISE CONT<K30> 		8-97064-960-0 01 1 9112- ● ● ● ●
13 03.885 SCREW; PUMP TO BRKT
AUTO CRUISE CONT<K30> 		8-94389-392-0 03 1 9112-9311 ● ● ● ●
13 03.885 SCREW; PUMP TO BRKT
AUTO CRUISE CONT<K30> 		8-97100-131-0 03 1 9312- ● ● ● ●
14 03.885 CLIP; HOSE
AUTO CRUISE CONT<K30> 01.166 		8-94456-949-0 01 1 9112- ● ● ● ●
23 03.454 LEVER; CRUISE
AUTO CRUISE CONT<K30> 		8-97061-865-1 01 1 9112-9502 ●
23 03.454 LEVER; CRUISE
AUTO CRUISE CONT<K30> 		8-97117-101-0 01 1 9503- ●
24 03.463 LINK; CRUISE
AUTO CRUISE CONT<K30> 		8-94476-217-1 01 1 9112- ●
25 03.459 SPRING; RETURN,CRUISE LEVER
AUTO CRUISE CONT<K30> 		8-94478-007-1 01 1 9112- ●
30 03.440 BOLT; ACTUATOR
AUTO CRUISE CONT<K30> 06.672 M6X16 		0-28410-616-0 03 1 9112-9204 ● ● ● ●
30 03.440 BOLT; ACTUATOR
AUTO CRUISE CONT<K30> 06.635 M6X16 FLANGE 		0-28480-616-0 03 1 9205-9504 ● ● ● ●
30 03.440 BOLT; ACTUATOR
AUTO CRUISE CONT<K30> 06.635 M6X16 FLANGE 		0-28480-616-0 03 1 9505- ● ● ●
56 03.885 PROTECTOR
ANTI LOCK BRAKE SYSTEM(JE5) AUTO CRUISE CONT<K30> 02.530 L=30 L=65 		8-94235-856-0 01 1 9309-9607 ● ● ● ●
