1-01 — ACCELERATOR PEDAL AND CONTROL (#43334) — 86 parça

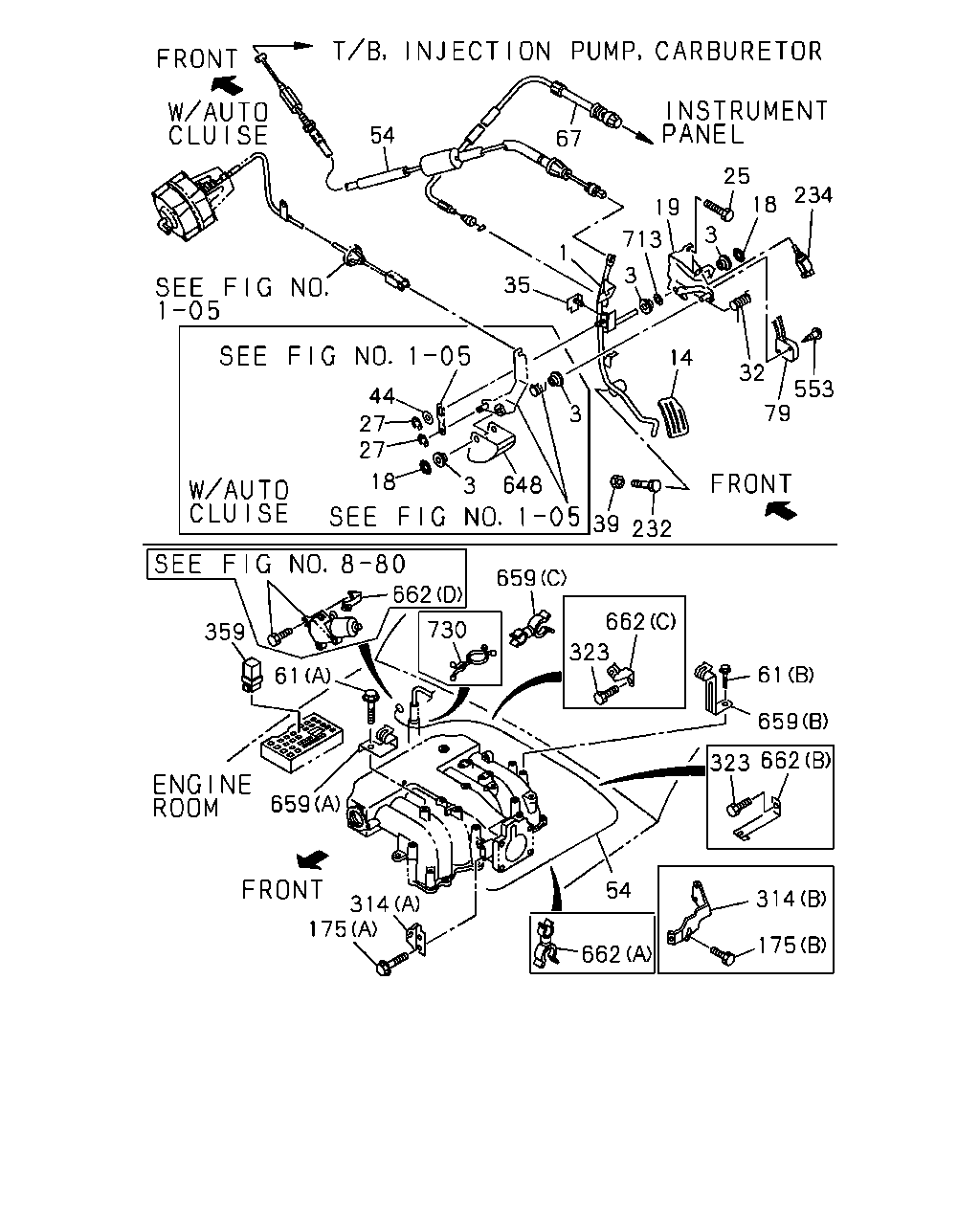

çizim 17446
54 67 1 35 713 3 19 25 234 18 3 14 3 32 553 79 232 39 648 3 44 27 27 18 659 662 730 323 662 61 659 662 323 314 175 54 662 175 314 659 61 359
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.451 LEVER; PEDAL SIDE
EXC. AUTO CRUISE CONT<K30> 		8-97070-474-1 01 1 9112-9504 ● ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97070-474-1 01 1 9505- ● ●
1 03.451 LEVER; PEDAL SIDE
EXC. AUTO CRUISE CONT<K30> 		8-97070-474-1 01 1 9505- ●
1 03.451 LEVER; PEDAL SIDE
AUTO CRUISE CONT<K30> 		8-97070-475-1 01 1 9112- ●
3 03.454 BUSHING; PEDAL
EXC. AUTO CRUISE CONT<K30> 16.585 OD=9.9 		8-94279-701-3 02 1 9112-9504 ● ● ● ●
3 03.454 BUSHING; PEDAL
AUTO CRUISE CONT<K30> 16.585 OD=9.9 		8-94279-701-3 04 1 9112-9504 ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-0 01 1 9112-9304 ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-97044-894-1 01 1 9305-9504 ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 9505- ● ● ●
18 03.459 NUT; JOINT LK
EXC. AUTO CRUISE CONT<K30> 03.452 D=17.5 		8-94368-617-0 01 1 9112-9504 ● ● ● ●
18 03.459 NUT; JOINT LK
AUTO CRUISE CONT<K30> 03.452 D=17.5 		8-94368-617-0 02 1 9112- ●
18 03.459 NUT; JOINT LK
03.452 D=17.5 		8-94368-617-0 01 1 9505- ● ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. AUTO CRUISE CONT<K30> 		8-97066-120-0 01 1 9112-9302 ● ● ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. AUTO CRUISE CONT<K30> 		8-97063-839-2 01 1 9303-9502 ● ● ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. AUTO CRUISE CONT<K30> 		8-97117-115-0 01 1 9503-9504 ● ● ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. EUROPE EQUIPMENT(EK4),AUTO CRUISE CONT<K30> 		8-97117-115-1 01 1 9505- ● ● ●
19 03.452 BRACKET; ACCEL PEDAL
EUROPE EQUIPMENT(EK4) EXC. AUTO CRUISE CONT<K30> 		8-97131-826-1 01 1 9505- ●
19 03.452 BRACKET; ACCEL PEDAL
EUROPE EQUIPMENT(EK4) 		8-97131-826-1 01 1 9505- ●
19 03.452 BRACKET; ACCEL PEDAL
AUTO CRUISE CONT<K30> 		8-97066-121-0 01 1 9112-9302 ●
19 03.452 BRACKET; ACCEL PEDAL
AUTO CRUISE CONT<K30> 		8-97064-882-2 01 1 9303-9502 ●
19 03.452 BRACKET; ACCEL PEDAL
AUTO CRUISE CONT<K30> 		8-97117-116-0 01 1 9503-9504 ●
19 03.452 BRACKET; ACCEL PEDAL
AUTO CRUISE CONT<K30> EXC. EUROPE EQUIPMENT(EK4) 		8-97117-116-1 01 1 9505- ●
25 03.452 BOLT; SHAFT SIDE
16.341 M6X12 W/LK WASHER 		9-01900-612-0 02 1 9112-9204 ● ● ● ●
25 03.452 BOLT; SHAFT SIDE
00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9205-9504 ● ● ● ●
25 03.452 BOLT; SHAFT SIDE
00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9505-9710 ● ● ●
25 03.452 BOLT; SHAFT SIDE
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9711- ● ● ●
27 04.040 RETAINER; ACCEL PEDAL
AUTO CRUISE CONT<K30> ID=4 		9-09185-404-0 02 1 9112- ●
27 04.040 RETAINER; ACCEL PEDAL
AUTO CRUISE CONT<K30> ID=6 		9-09185-406-0 01 1 9112- ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97035-035-0 01 1 9112-9310 ● ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97107-141-0 01 1 9311-9504 ● ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97107-141-0 01 1 9505- ● ● ●
35 03.459 STOPPER; ACCEL PEDAL 8-97036-050-0 02 1 9112-9504 ● ● ● ●
35 03.459 STOPPER; ACCEL PEDAL 8-97036-050-0 02 1 9505- ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
M/T MUA 5 SPEED(RMN) 06.822 M10 		9-09111-410-0 01 1 9112-9504 ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
M/T MUA 5 SPEED(RMN) 06.822 M10 		9-09111-410-0 01 1 9505- ● ● ●
44 03.463 WASHER; ACCEL CONT PEDAL
AUTO CRUISE CONT<K30> 03.452 ID=5.3 		9-09160-505-0 01 1 9112- ●
54 03.430 CABLE; ENG CONT 8-94374-767-2 01 1 9112-9112 ● ●
54 03.430 CABLE; ENG CONT 8-94374-767-5 01 1 9201-9504 ●
54 03.430 CABLE; ENG CONT 8-97072-436-0 01 1 9201-9202 ●
54 03.430 CABLE; ENG CONT 8-97078-146-1 01 1 9203-9504 ●
54 03.430 CABLE; ENG CONT 8-97115-592-0 01 1 9505- ●
54 03.430 CABLE; ENG CONT 8-97069-427-3 01 1 9112- ●
54 03.430 CABLE; ENG CONT 8-94374-766-6 01 1 9112- ●
61 03.483 BOLT; BRKT TO FRAME ENG CONT CAB
08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 9112- ●
61 03.483 BOLT; BRKT TO FRAME ENG CONT CAB
01.428 (B) M6X12 FLANGE 		0-28080-612-0 01 1 9606- ●
67 03.480 CABLE ASM; IDLE CONT 8-94374-771-3 01 1 9112-9310 ● ●
67 03.480 CABLE ASM; IDLE CONT 8-97100-933-1 01 1 9310-9504 ● ●
67 03.480 CABLE ASM; IDLE CONT
L=450 DARK GRAY 		8-97153-187-1 01 1 9505- ●
79 03.451 SWITCH; ACCEL PEDAL 8-94104-602-1 01 1 9112-9205 ●
175 03.483 BOLT; BRKT,ACCEL CABLE
03.444 (B) M8X14 W/LK WASHERT 		8-94208-228-0 01 1 9112-9504 ●
175 03.483 BOLT; BRKT,ACCEL CABLE
M/T MUA 5 SPEED(RMN) 03.444 (B) M8X14 W/LK WASHERT 		8-94208-228-0 01 1 9505-9508 ●
175 03.483 BOLT; BRKT,ACCEL CABLE
M/T MUA 5 SPEED(RMN) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9509- ●
175 03.483 BOLT; BRKT,ACCEL CABLE
04.686 (A) M6X14 FLANGE 		0-28080-614-0 02 1 9112-9112 ●
175 03.483 BOLT; BRKT,ACCEL CABLE
01.428 (A) M6X12 FLANGE 		0-28080-612-0 02 1 9201- ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
M/T MUA 5 SPEED(RMN) 04.085 M10X30 		9-02041-030-0 01 1 9112-9204 ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
M/T MUA 5 SPEED(RMN) 03.704 M10X30 		0-20801-030-0 01 1 9205-9206 ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
M/T MUA 5 SPEED(RMN) 00.805 M10X35 		0-20801-035-0 01 1 9207-9504 ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
M/T MUA 5 SPEED(RMN) 00.805 M10X35 		0-20801-035-0 01 1 9505- ● ● ●
234 03.452 SWITCH; ACCEL
A/T THM(RMQ) 04.054 		8-94368-343-0 01 1 9112-9504 ● ● ● ●
234 03.452 SWITCH; ACCEL
A/T THM(RMQ) 04.054 		8-94368-343-0 01 1 9505- ●
314 03.481 BRACKET; ACCEL CABLE
(B) 		8-94167-322-2 01 1 9112- ●
314 03.481 BRACKET; ACCEL CABLE
(A) 		8-94376-255-0 01 1 9112- ●
323 03.483 BOLT; CLIP
13.090 M6X14 		8-94153-946-0 02 1 9112-9308 ● ●
323 03.483 BOLT; CLIP
02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9309-9504 ● ●
323 03.483 BOLT; CLIP
02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9505- ●
359 03.755 RELAY; AUTO CHOKE
01.055 12V 20A 		8-97048-665-0 01 1 9112-9303 ●
359 03.755 RELAY; AUTO CHOKE
02.515 12V 20A 		8-97093-910-1 01 1 9304-9504 ●
359 03.755 RELAY; AUTO CHOKE
02.510 12V 20A BLUE 		8-94235-627-0 01 1 9505- ●
553 03.451 SCREW; TAP,PEDAL TO SW
M3X16 TAPPING 		0-71280-316-0 02 1 9112-9205 ●
648 03.483 PROTECTOR
EUROPE EQUIPMENT(EK4) EXC. AUTO CRUISE CONT<K30> 		8-97131-825-0 01 1 9505- ●
648 03.483 PROTECTOR
EUROPE EQUIPMENT(EK4) 		8-97131-825-0 01 1 9505- ●
659 03.483 CLIP; ACCEL CONT CABLE
04.128 (C) ID=14.5 & 7.5 		8-94315-424-0 01 1 9209-9607 ●
659 03.483 CLIP; ACCEL CONT CABLE
(A) 		8-97018-544-0 01 1 9112-9405 ●
659 03.483 CLIP; ACCEL CONT CABLE
(A) ID=9.5 		8-97115-784-0 01 1 9406- ●
659 03.483 CLIP; ACCEL CONT CABLE
(B) 		8-97138-482-0 01 1 9606- ●
662 03.430 CLIP; ACCEL CONT CABLE
(A) ID=6 & 16.5 		8-94165-402-0 01 1 9112-9504 ● ●
662 03.430 CLIP; ACCEL CONT CABLE
(A) ID=6 & 16.5 		8-94165-402-0 01 1 9505- ●
662 03.430 CLIP; ACCEL CONT CABLE
(B) 		8-97038-935-2 01 1 9112-9504 ● ●
662 03.430 CLIP; ACCEL CONT CABLE
(B) 		8-97038-935-2 01 1 9505- ●
662 03.430 CLIP; ACCEL CONT CABLE
(C) 		8-97038-936-2 01 1 9112-9504 ● ●
662 03.430 CLIP; ACCEL CONT CABLE
(C) 		8-97038-936-2 01 1 9505- ●
662 03.430 CLIP; ACCEL CONT CABLE
(D) 		8-97070-472-2 01 1 9112-9504 ● ●
662 03.430 CLIP; ACCEL CONT CABLE
(D) 		8-97070-472-2 01 1 9505- ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 9503-9504 ● ● ● ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 9505- ● ● ●
730 03.880 CLIP
02.559 ID=8 & 18.5 		8-94132-792-0 01 1 9608- ●
