Sayfa 0-80B - Isuzu EPC

0-80B — INJECTION PUMP (#43314) — 184 parça

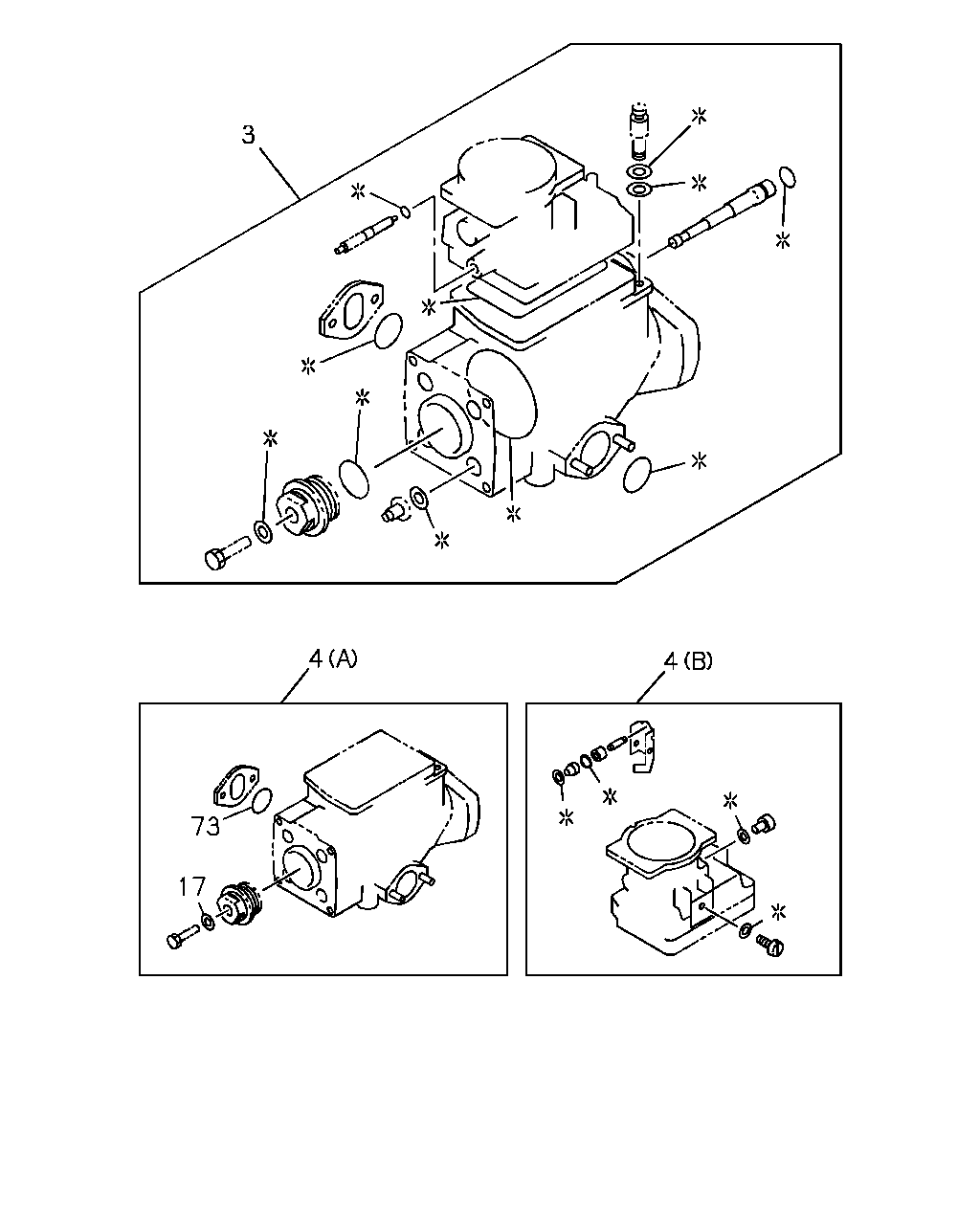

17 73 4 4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.304 REPAIR KIT; FUEL INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94228-545-0	01	1	-
4	03.306 GASKET KIT; INJ PUMP (B) ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94111-675-0	01	1	-
4	03.306 GASKET KIT; INJ PUMP (A) ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94450-995-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-602-0	01	1	-
60	03.320 SPRING; DRIVE DISC,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-647-0	01	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-491-0	01	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562	8-97144-333-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP 03.318 ASM PART: D = 8-97110-563-0, 97110563	8-97119-187-0	02	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562	8-97249-545-0	02	1	-
226	03.330 BRACKET; DISTR HEAD 03.314 ASM PART: C = 8-97110-562-0, 97110562	8-97126-370-0	01	1	-

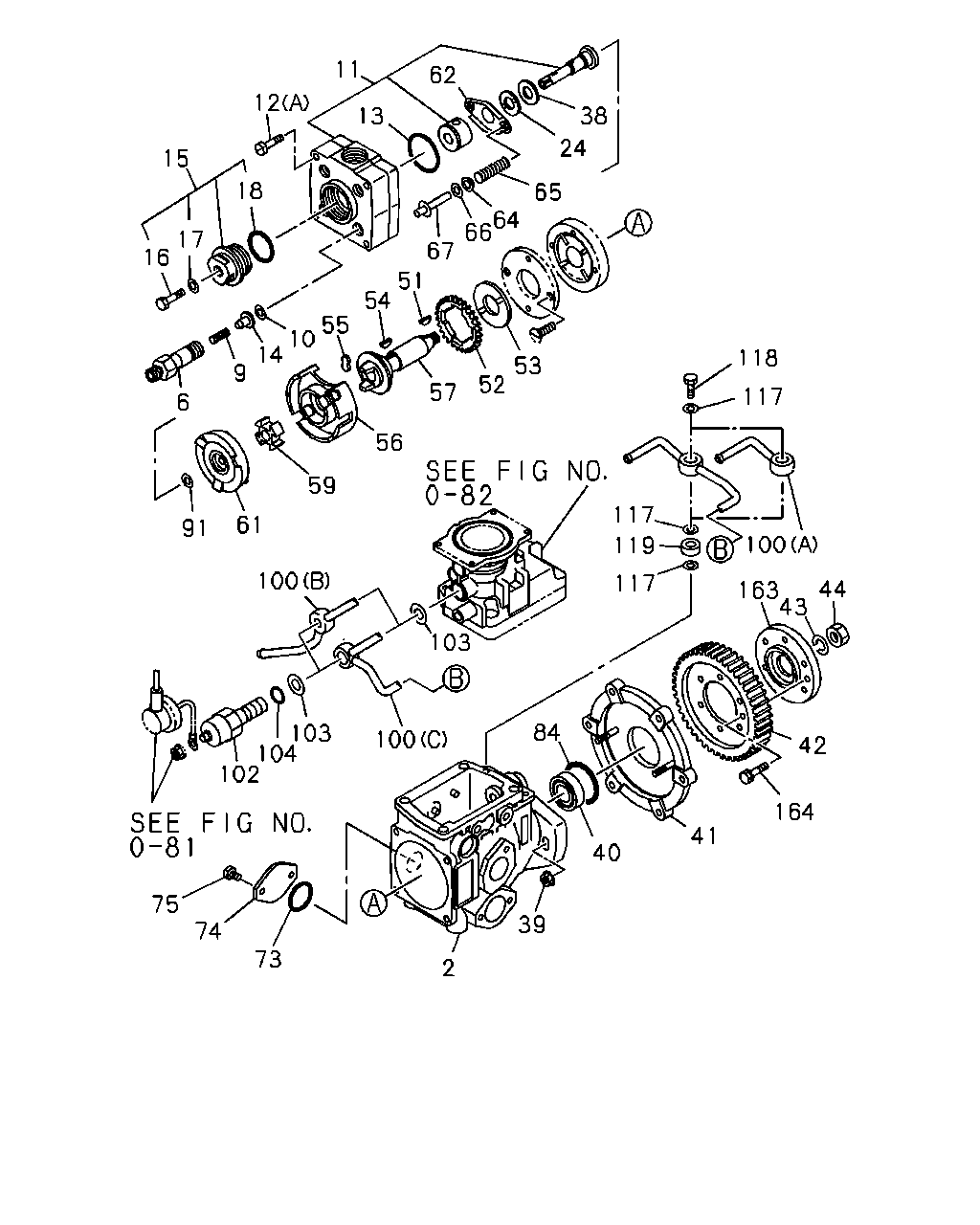

75 74 73 2 39 40 41 164 42 84 100 103 104 102 103 44 163 43 100 117 118 117 119 117 100 91 61 56 59 57 52 53 6 9 14 10 55 54 51 67 66 64 65 24 38 62 13 11 12 18 15 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94177-921-0	01	1	-
2	03.300 HOUSING ASM; PUMP,FUEL INJ ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-97126-377-0	01	1	-
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP 03.335 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-582-0	04	1	-
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94367-330-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94174-803-0	04	1	-
9	03.302 SPRING; DELIVERY VLV 03.335 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-581-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94247-716-0	04	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-97032-166-0	01	1	-
11	03.330 HEAD ASM; DISTR,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-97102-536-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP (B) ASM PART: C = 8-97110-562-0, 97110562	8-94242-278-0	01	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP (A) ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94257-670-0	04	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP (A) ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94257-670-0	03	1	-
12	03.330 SCREW; DISTR HD,INJ PUMP 03.308 ASM PART: C = 8-97110-562-0, 97110562	8-94313-264-0	01	1	-
13	03.330 GASKET; DISTR HD,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-527-0	01	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94174-802-0	04	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94460-298-0	04	1	-
15	03.330 PLUG ASM; DISTR,INJ PUMP 03.300 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94174-817-0	01	1	-
16	03.330 BOLT; DISTR PLUG,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94174-818-0	01	1	-
17	03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-602-0	01	1	-
18	03.306 GASKET; DISTR PLUG,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-637-0	01	1	-
24	03.318 WASHER; PLUNGER,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-515-0	01	1	-
38	03.318 SHIM; PLUNGER BARREL,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-514-0	01	1	-
39	03.340 NUT; MTG BRKT FIX M8 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94224-829-0	02	1	-
39	03.340 NUT; MTG BRKT FIX ASM PART: D = 8-97110-563-0, 97110563	8-94244-829-0	02	1	-
39	03.340 NUT; MTG BRKT FIX ASM PART: C = 8-97110-562-0, 97110562	8-97119-344-0	02	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP 03.306 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, D = 8-97110-563-0, 97110563	8-94227-475-0	01	1	-
40	03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562	8-97147-034-0	01	1	-
41	03.306 BRACKET; INJ PUMP HSG ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94174-843-0	01	1	-
42	03.330 GEAR; DRIVE,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94458-257-0	01	1	-
43	03.340 WASHER; LK,DRIVE GEAR,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562	8-94226-554-0	01	1	-
43	03.340 WASHER; LK,DRIVE GEAR,INJ PUMP 03.330 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, D = 8-97110-563-0, 97110563	8-94227-648-0	01	1	-
44	03.330 NUT; DRIVE GEAR FIX,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, D = 8-97110-563-0, 97110563	1-15629-006-0	01	1	-
44	03.330 NUT; DRIVE GEAR FIX,INJ PUMP 03.340, M14 ASM PART: C = 8-97110-562-0, 97110562	8-94226-565-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP 03.330 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	5-83539-024-0	01	1	-
52	03.340 GEAR; GOV DRIVE,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-483-0	01	1	-
53	03.330 WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-484-0	01	1	-
54	03.340 KEY; FEED PUMP,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-481-0	01	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94169-528-0	02	1	-
55	03.340 DAMPER; CAM DRIVE,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94227-482-1	02	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94433-760-0	01	1	-
56	03.340 ROLLER ASM; TIMER,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-97105-391-1	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-480-0	01	1	-
57	03.340 SHAFT; DRIVE,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94433-759-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-489-0	01	1	-
59	03.340 DISC; DRIVE,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94433-761-0	01	1	-
60	03.320 SPRING; DRIVE DISC,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-647-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-97032-165-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: D = 8-97110-563-0, 97110563	8-97094-103-0	01	1	-
61	03.300 CAM; DISC,PLUNGER,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562	8-97215-872-0	01	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-516-1	01	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-517-0	02	1	-
65	03.308 SPRING KIT; PLUNGER,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94228-404-0	01	1	-
65	03.308 SPRING KIT; PLUNGER,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94433-816-0	01	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.50 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-518-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.80 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-519-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.00 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-520-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.20 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-521-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.50 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-522-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.80 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-523-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=2.00 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-524-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=0.90 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94433-204-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.10 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94433-205-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.30 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94433-206-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.40 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94433-207-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.60 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94433-208-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP 03.320, T=1.70 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94433-209-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: C = 8-97110-562-0, 97110562	8-97146-139-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: C = 8-97110-562-0, 97110562	8-97146-140-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: C = 8-97110-562-0, 97110562	8-97146-141-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=1.90 ASM PART: C = 8-97110-562-0, 97110562	8-97146-142-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.10 ASM PART: C = 8-97110-562-0, 97110562	8-97189-360-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.20 ASM PART: C = 8-97110-562-0, 97110562	8-97189-361-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.30 ASM PART: C = 8-97110-562-0, 97110562	8-97189-362-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.40 ASM PART: C = 8-97110-562-0, 97110562	8-97189-363-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.50 ASM PART: C = 8-97110-562-0, 97110562	8-97189-364-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.60 ASM PART: C = 8-97110-562-0, 97110562	8-97189-365-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.70 ASM PART: C = 8-97110-562-0, 97110562	8-97189-366-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.80 ASM PART: C = 8-97110-562-0, 97110562	8-97189-367-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=2.90 ASM PART: C = 8-97110-562-0, 97110562	8-97189-368-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.00 ASM PART: C = 8-97110-562-0, 97110562	8-97189-369-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.10 ASM PART: C = 8-97110-562-0, 97110562	8-97189-370-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.20 ASM PART: C = 8-97110-562-0, 97110562	8-97189-371-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.30 ASM PART: C = 8-97110-562-0, 97110562	8-97189-372-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=3.40 ASM PART: C = 8-97110-562-0, 97110562	8-97189-373-0	AR	1	-
66	03.302 SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: C = 8-97110-562-0, 97110562	8-97189-374-0	AR	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: D = 8-97110-563-0, 97110563	8-94227-525-0	02	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94433-776-0	02	1	-
67	03.330 PIN; GUIDE,PLUNGER SPRING ASM PART: C = 8-97110-562-0, 97110562	8-97214-365-0	02	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-491-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94242-967-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94433-769-1	01	1	-
75	03.330 SCREW; COVER TO HSG ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94313-276-0	02	1	-
84	03.306 GASKET; BRKT TO HSG ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, D = 8-97110-563-0, 97110563	8-94247-722-0	01	1	-
84	03.306 GASKET; BRKT TO HSG 06.061, ID=52.6 ASM PART: C = 8-97110-562-0, 97110562	9-09561-353-0	01	1	-
90	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562	8-97144-333-0	01	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.74 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94111-658-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.76 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94111-659-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.78 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94111-660-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.80 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94111-661-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.82 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94111-662-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.84 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94111-663-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.86 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94111-664-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.320, T=1.88 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94111-665-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.90 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-528-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.92 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-529-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.94 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-530-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.96 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-531-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=1.98 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-532-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.00 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-533-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.02 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-534-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.04 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-535-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.06 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-536-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.08 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-537-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.10 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-538-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.12 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-539-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.14 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-540-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.16 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-541-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.18 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-542-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.20 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-543-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.22 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-544-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.24 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-545-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.26 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-546-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.28 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-547-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.30 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-548-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.32 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-549-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.34 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-550-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.36 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-551-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.38 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-552-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.40 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-553-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.42 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-554-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.44 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-555-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.46 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-556-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.48 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-557-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.50 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-558-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.52 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-559-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.54 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-560-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.56 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-561-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.58 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-562-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.60 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-563-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.62 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-564-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.64 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-565-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.66 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-566-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.68 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-567-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.70 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-568-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.72 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-569-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.74 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-570-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.76 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-571-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.78 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-572-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.80 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-573-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.82 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-574-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.84 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-575-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.86 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-576-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.88 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-577-0	AR	1	-
91	03.306 SHIM; PLUNGER,INJ PUMP 03.330, T=2.90 ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94227-578-0	AR	1	-
100	03.330 PIPE; FUEL INJ PUMP 03.304, (C) ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-97028-887-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (A) ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-97119-194-0	01	1	-
100	03.330 PIPE; FUEL INJ PUMP (B) ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-97126-384-0	01	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP 03.318 ASM PART: D = 8-97110-563-0, 97110563	8-97119-187-0	02	1	-
101	03.162 GASKET; OVERFLOW VLV,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562	8-97249-545-0	02	1	-
102	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-97032-392-0	01	1	-
102	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: D = 8-97110-563-0, 97110563	8-97119-183-0	01	1	-
103	03.332 GASKET; OVERFLOW VLV,INJ PUMP 03.162 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94169-527-0	02	1	-
104	03.318 GASKET; OVERFLOW VLV 03.332 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, D = 8-97110-563-0, 97110563	8-94413-737-0	01	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP 03.318 ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94227-645-0	03	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP 03.318 ASM PART: D = 8-97110-563-0, 97110563	8-97119-187-0	02	1	-
117	03.162 GASKET; EYE BOLT,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562	8-97249-545-0	02	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94174-824-0	01	1	-
118	03.162 BOLT; EYE,FUEL INL,INJ PUMP ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-94379-688-0	01	1	-
119	03.162 SPACER; FUEL INL,INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94227-662-0	01	1	-
163	03.330 COUPLING; INJ PUMP ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033	8-94227-337-1	01	1	-
163	03.330 COUPLING; INJ PUMP ASM PART: C = 8-97110-562-0, 97110562, D = 8-97110-563-0, 97110563	8-97102-606-0	01	1	-
164	03.306 BOLT; GEAR TO COUPLING ASM PART: A = 8-97039-032-2, 97039032, B = 8-97039-033-2, 97039033, D = 8-97110-563-0, 97110563	5-15619-112-0	06	1	-
164	03.306 BOLT; GEAR TO COUPLING 01.531, M6X18 ASM PART: C = 8-97110-562-0, 97110562	9-01910-618-0	06	1	-
226	03.330 BRACKET; DISTR HEAD 03.314 ASM PART: C = 8-97110-562-0, 97110562	8-97126-370-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
