2 |

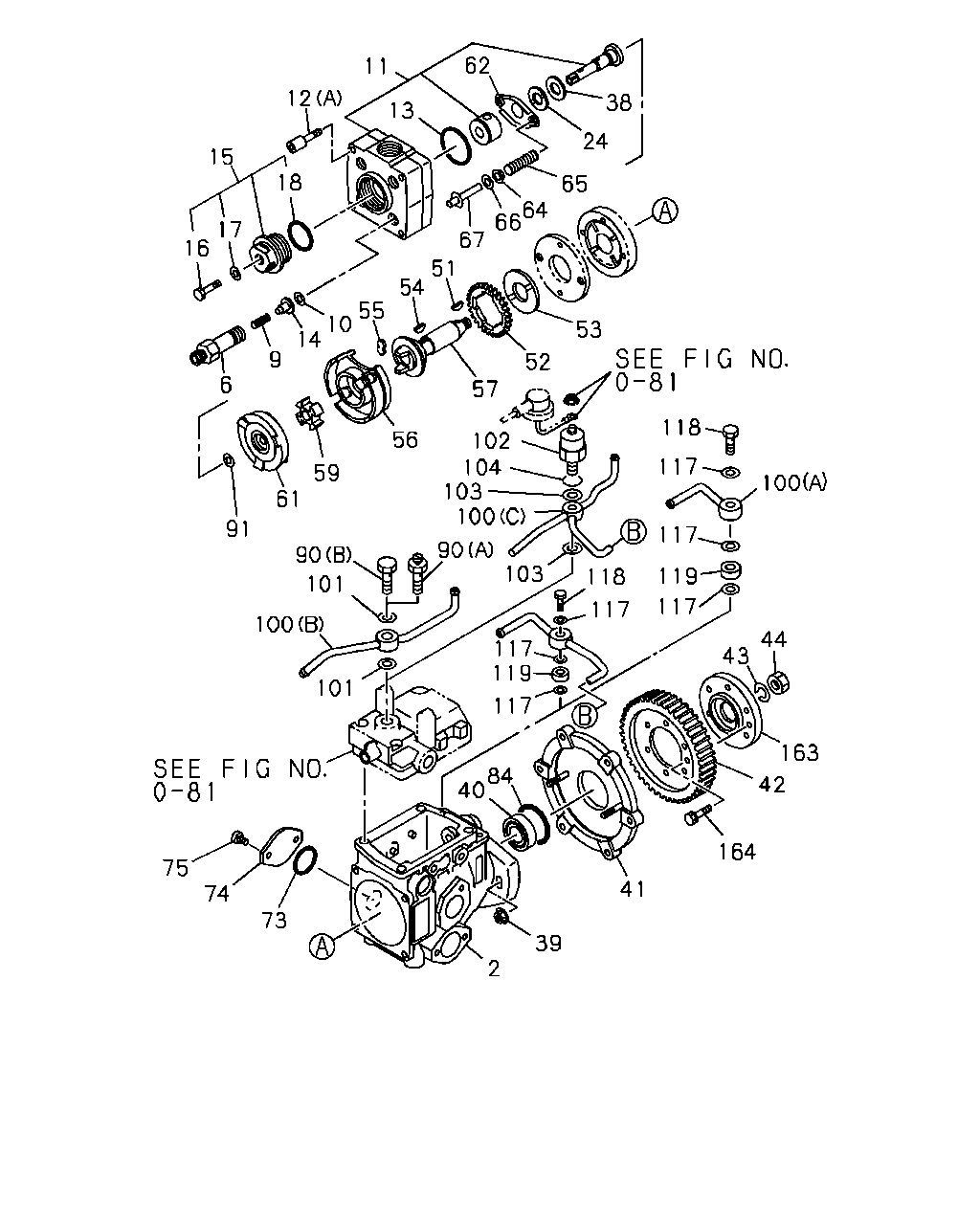

03.300 HOUSING ASM; PUMP,FUEL INJ
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-94445-579-0 |
01 |
1 |
- |
| |
2 |
03.300 HOUSING ASM; PUMP,FUEL INJ
ASM PART: E = 8-97110-559-0, 97110559
|
8-97126-375-0 |
01 |
1 |
- |
| |
2 |
03.300 HOUSING ASM; PUMP,FUEL INJ
ASM PART: F = 8-97110-560-0, 97110560, G = 8-97110-561-0, 97110561
|
8-97126-376-0 |
01 |
1 |
- |
| |
6 |
03.306 HOLDER; DELIVERY VLV,INJ PUMP
03.335
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-582-0 |
04 |
1 |
- |
| |
6 |
03.306 HOLDER; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-94367-330-0 |
04 |
1 |
- |
| |
9 |
03.302 SPRING; DELIVERY VLV
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-94174-803-0 |
04 |
1 |
- |
| |
9 |
03.302 SPRING; DELIVERY VLV
03.335
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-581-0 |
04 |
1 |
- |
| |
10 |
03.340 GASKET; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94247-716-0 |
04 |
1 |
- |
| |
11 |
03.330 HEAD ASM; DISTR,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-97032-166-0 |
01 |
1 |
- |
| |
11 |
03.330 HEAD ASM; DISTR,INJ PUMP
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-97102-536-0 |
01 |
1 |
- |
| |
12 |
03.330 SCREW; DISTR HD,INJ PUMP
(A) ASM PART: B = 8-97038-748-2, 97038748, C = 8-97038-749-2, 97038749,
D = 8-97038-750-2, 97038750, E = 8-97110-559-0, 97110559,
F = 8-97110-560-0, 97110560
|
8-94257-670-0 |
04 |
1 |
- |
| |
12 |
03.330 SCREW; DISTR HD,INJ PUMP
(A) ASM PART: A = 8-97038-747-2, 97038747, G = 8-97110-561-0, 97110561
|
8-94257-670-0 |
03 |
1 |
- |
| |
13 |
03.330 GASKET; DISTR HD,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-527-0 |
01 |
1 |
- |
| |
14 |
03.302 VALVE; DELIVERY,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-94174-802-0 |
04 |
1 |
- |
| |
14 |
03.302 VALVE; DELIVERY,INJ PUMP
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94460-298-0 |
04 |
1 |
- |
| |
15 |
03.330 PLUG ASM; DISTR,INJ PUMP
03.300
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94174-817-0 |
01 |
1 |
- |
| |
16 |
03.330 BOLT; DISTR PLUG,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94174-818-0 |
01 |
1 |
- |
| |
17 |
03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-602-0 |
01 |
1 |
- |
| |
18 |
03.306 GASKET; DISTR PLUG,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-637-0 |
01 |
1 |
- |
| |
24 |
03.318 WASHER; PLUNGER,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-515-0 |
01 |
1 |
- |
| |
38 |
03.318 SHIM; PLUNGER BARREL,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-514-0 |
01 |
1 |
- |
| |
39 |
03.340 NUT; MTG BRKT FIX
M8 ASM PART: C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-94224-829-0 |
02 |
1 |
- |
| |
39 |
03.340 NUT; MTG BRKT FIX
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94244-829-0 |
02 |
1 |
- |
| |
40 |
03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP
03.306
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-475-0 |
01 |
1 |
- |
| |
41 |
03.306 BRACKET; INJ PUMP HSG
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94174-843-0 |
01 |
1 |
- |
| |
42 |
03.330 GEAR; DRIVE,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94458-257-0 |
01 |
1 |
- |
| |
43 |
03.340 WASHER; LK,DRIVE GEAR,INJ PUMP
03.330
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-648-0 |
01 |
1 |
- |
| |
44 |
03.330 NUT; DRIVE GEAR FIX,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
1-15629-006-0 |
01 |
1 |
- |
| |
51 |
03.340 KEY; DRIVE GEAR,INJ PUMP
03.330
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
5-83539-024-0 |
01 |
1 |
- |
| |
52 |
03.340 GEAR; GOV DRIVE,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-483-0 |
01 |
1 |
- |
| |
53 |
03.330 WASHER; GOV DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-484-0 |
01 |
1 |
- |
| |
54 |
03.340 KEY; FEED PUMP,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-481-0 |
01 |
1 |
- |
| |
55 |
03.340 DAMPER; CAM DRIVE,INJ PUMP
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94169-528-0 |
02 |
1 |
- |
| |
55 |
03.340 DAMPER; CAM DRIVE,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-94227-482-1 |
02 |
1 |
- |
| |
56 |
03.340 ROLLER ASM; TIMER,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-94433-760-0 |
01 |
1 |
- |
| |
56 |
03.340 ROLLER ASM; TIMER,INJ PUMP
ASM PART: F = 8-97110-560-0, 97110560, G = 8-97110-561-0, 97110561
|
8-97105-391-1 |
01 |
1 |
- |
| |
56 |
03.340 ROLLER ASM; TIMER,INJ PUMP
ASM PART: E = 8-97110-559-0, 97110559
|
8-97126-368-0 |
01 |
1 |
- |
| |
57 |
03.340 SHAFT; DRIVE,INJ PUMP
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-480-0 |
01 |
1 |
- |
| |
57 |
03.340 SHAFT; DRIVE,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-94433-759-0 |
01 |
1 |
- |
| |
59 |
03.340 DISC; DRIVE,INJ PUMP
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-489-0 |
01 |
1 |
- |
| |
59 |
03.340 DISC; DRIVE,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-94433-761-0 |
01 |
1 |
- |
| |
60 |
03.320 SPRING; DRIVE DISC,INJ PUMP
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-647-0 |
01 |
1 |
- |
| |
61 |
03.300 CAM; DISC,PLUNGER,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-97032-165-0 |
01 |
1 |
- |
| |
61 |
03.300 CAM; DISC,PLUNGER,INJ PUMP
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-97094-103-0 |
01 |
1 |
- |
| |
62 |
03.320 SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-516-1 |
01 |
1 |
- |
| |
64 |
03.320 SEAT; PLUNGER SPRING LWR,INJ PUM
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-517-0 |
02 |
1 |
- |
| |
65 |
03.308 SPRING KIT; PLUNGER,INJ PUMP
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94228-404-0 |
01 |
1 |
- |
| |
65 |
03.308 SPRING KIT; PLUNGER,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-94433-816-0 |
01 |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=0.50
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-518-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=0.80
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-519-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=1.00
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-520-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=1.20
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-521-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=1.50
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-522-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=1.80
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-523-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=2.00
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-524-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=0.90
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94433-204-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=1.10
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94433-205-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=1.30
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94433-206-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=1.40
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94433-207-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=1.60
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94433-208-0 |
AR |
1 |
- |
| |
66 |
03.302 SHIM; PLUNGER SPRING,INJ PUMP
03.320, T=1.70
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94433-209-0 |
AR |
1 |
- |
| |
67 |
03.330 PIN; GUIDE,PLUNGER SPRING
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-525-0 |
02 |
1 |
- |
| |
67 |
03.330 PIN; GUIDE,PLUNGER SPRING
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-94433-776-0 |
02 |
1 |
- |
| |

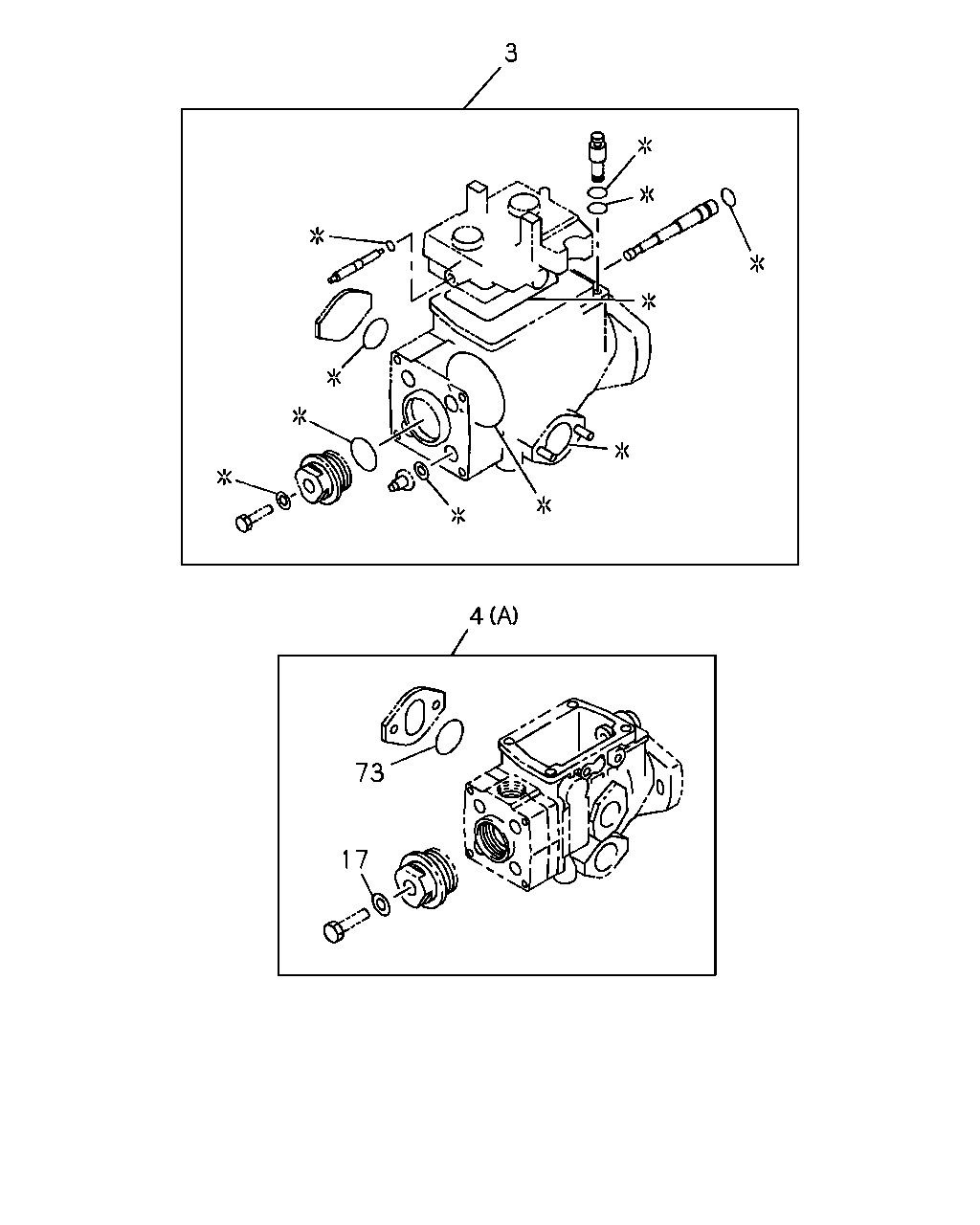

73 |
03.306 GASKET; COVER TO HSG
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-491-0 |
01 |
1 |
- |
| |
74 |
03.300 COVER; HSG,INJ PUMP
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94242-967-0 |
01 |
1 |
- |
| |
74 |
03.300 COVER; HSG,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-94433-769-1 |
01 |
1 |
- |
| |
75 |
03.330 SCREW; COVER TO HSG
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94313-276-0 |
02 |
1 |
- |
| |
84 |
03.306 GASKET; BRKT TO HSG
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94247-722-0 |
01 |
1 |
- |
| |
90 |
03.318 VALVE; OVERFLOW,INJ PUMP
(A) ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748
|
8-94227-644-0 |
01 |
1 |
- |
| |
90 |
03.318 VALVE; OVERFLOW,INJ PUMP
(B) ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-97119-183-0 |
01 |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.320, T=1.74
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94111-658-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.320, T=1.76
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94111-659-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.320, T=1.78
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94111-660-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.320, T=1.80
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94111-661-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.320, T=1.82
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94111-662-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.320, T=1.84
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94111-663-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.320, T=1.86
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94111-664-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.320, T=1.88
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94111-665-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=1.90
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-528-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=1.92
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-529-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=1.94
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-530-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=1.96
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-531-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=1.98
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-532-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.00
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-533-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.02
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-534-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.04
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-535-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.06
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-536-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.08
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-537-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.10
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-538-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.12
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-539-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.14
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-540-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.16
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-541-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.18
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-542-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.20
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-543-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.22
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-544-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.24
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-545-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.26
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-546-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.28
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-547-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.30
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-548-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.32
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-549-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.34
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-550-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.36
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-551-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.38
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-552-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.40
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-553-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.42
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-554-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.44
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-555-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.46
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-556-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.48
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-557-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.50
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-558-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.52
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-559-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.54
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-560-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.56
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-561-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.58
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-562-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.60
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-563-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.62
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-564-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.64
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-565-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.66
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-566-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.68
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-567-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.70
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-568-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.72
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-569-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.74
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-570-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.76
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-571-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.78
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-572-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.80
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-573-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.82
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-574-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.84
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-575-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.86
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-576-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.88
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-577-0 |
AR |
1 |
- |
| |
91 |
03.306 SHIM; PLUNGER,INJ PUMP
03.330, T=2.90
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94227-578-0 |
AR |
1 |
- |
| |
100 |
03.330 PIPE; FUEL INJ PUMP
(A) ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748
|
8-94445-578-0 |
01 |
1 |
- |
| |
100 |
03.330 PIPE; FUEL INJ PUMP
03.304, (B)
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-97032-390-0 |
01 |
1 |
- |
| |
100 |
03.330 PIPE; FUEL INJ PUMP
03.304, (C)
ASM PART: C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-97032-393-0 |
01 |
1 |
- |
| |
100 |
03.330 PIPE; FUEL INJ PUMP
(A) ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-97119-194-0 |
01 |
1 |
- |
| |
101 |
03.162 GASKET; OVERFLOW VLV,INJ PUMP
03.318
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748
|
8-94227-645-0 |
02 |
1 |
- |
| |
101 |
03.162 GASKET; OVERFLOW VLV,INJ PUMP
03.318
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-97119-187-0 |
02 |
1 |
- |
| |
102 |
03.318 VALVE; OVERFLOW,INJ PUMP
ASM PART: C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-97032-392-0 |
01 |
1 |
- |
| |
103 |
03.332 GASKET; OVERFLOW VLV,INJ PUMP
03.162
ASM PART: C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-94169-527-0 |
02 |
1 |
- |
| |
104 |
03.318 GASKET; OVERFLOW VLV
03.332
ASM PART: C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-94413-737-0 |
01 |
1 |
- |
| |
117 |
03.162 GASKET; EYE BOLT,INJ PUMP
03.318
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-94227-645-0 |
03 |
1 |
- |
| |
117 |
03.162 GASKET; EYE BOLT,INJ PUMP
03.318
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-97119-187-0 |
02 |
1 |
- |
| |
118 |
03.162 BOLT; EYE,FUEL INL,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-94174-824-0 |
01 |
1 |
- |
| |
118 |
03.162 BOLT; EYE,FUEL INL,INJ PUMP
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-94379-688-0 |
01 |
1 |
- |
| |
119 |
03.162 SPACER; FUEL INL,INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-94227-662-0 |
01 |
1 |
- |
| |
163 |
03.330 COUPLING; INJ PUMP
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750
|
8-94227-337-1 |
01 |
1 |
- |
| |
163 |
03.330 COUPLING; INJ PUMP
ASM PART: E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
8-97102-606-0 |
01 |
1 |
- |
| |
164 |
03.306 BOLT; GEAR TO COUPLING
ASM PART: A = 8-97038-747-2, 97038747, B = 8-97038-748-2, 97038748,
C = 8-97038-749-2, 97038749, D = 8-97038-750-2, 97038750,
E = 8-97110-559-0, 97110559, F = 8-97110-560-0, 97110560,
G = 8-97110-561-0, 97110561
|
5-15619-112-0 |
06 |
1 |
- |
