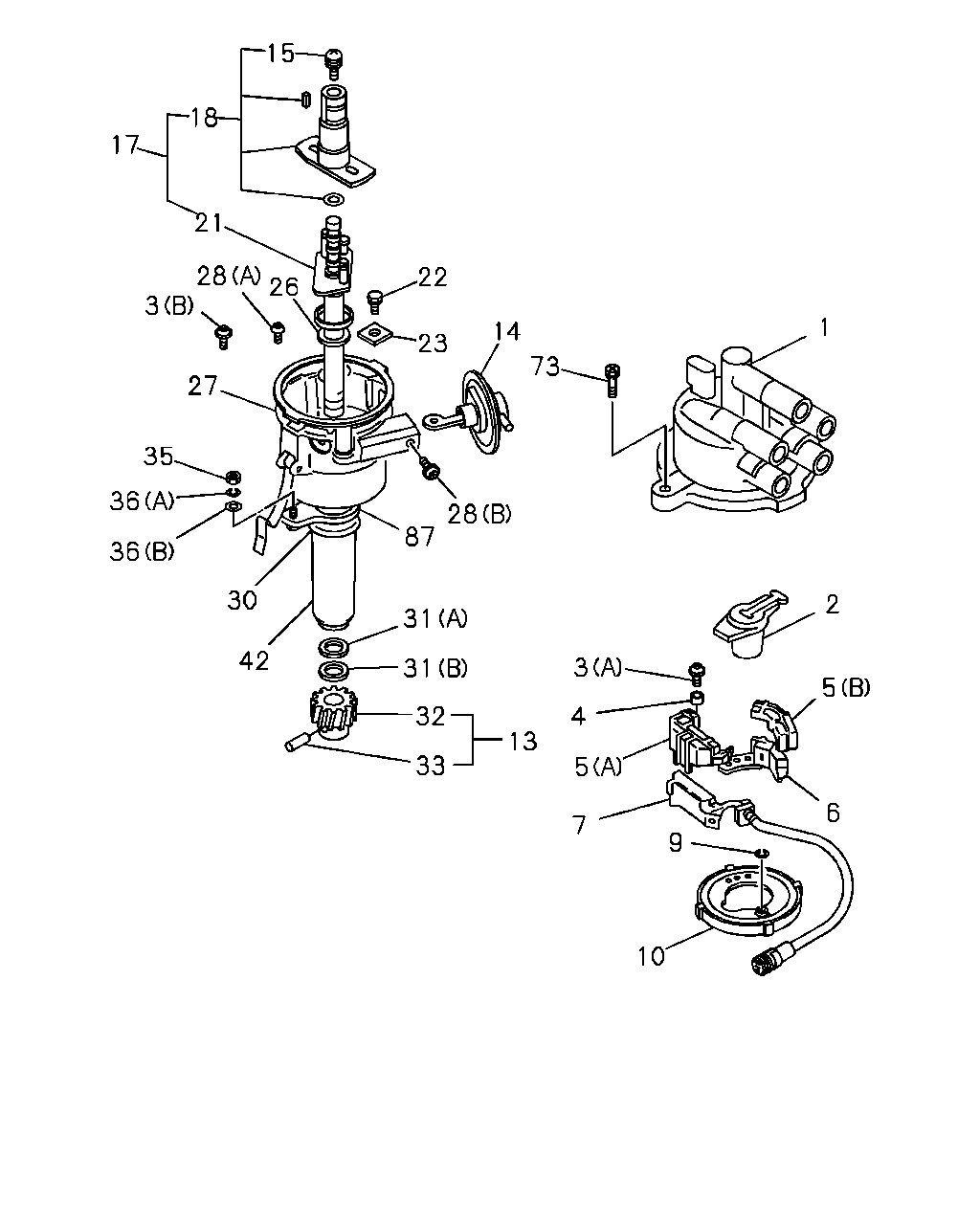

1 |
02.367 CAP; DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-94321-537-0 |
01 |
1 |
- |
| |
2 |
02.382 ROTOR; DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-94338-910-0 |
01 |
1 |
- |
| |
3 |
02.385 SCREW; BREAKER,DISTR
02.387, (A)
ASM PART: A = 8-94476-142-1, 94476142
|
8-94206-155-0 |
02 |
1 |
- |
| |
3 |
02.385 SCREW; BREAKER,DISTR
(B) ASM PART: A = 8-94476-142-1, 94476142
|
8-94212-645-0 |
02 |
1 |
- |
| |
4 |
02.387 NUT; SPACER
ASM PART: A = 8-94476-142-1, 94476142
|
8-94147-857-0 |
01 |
1 |
- |
| |
5 |
02.385 COVER; DUST,BREAKER,DISTR
(A) ASM PART: A = 8-94476-142-1, 94476142
|
8-94129-193-0 |
01 |
1 |
- |
| |
5 |
02.385 COVER; DUST,BREAKER,DISTR
(B) ASM PART: A = 8-94476-142-1, 94476142
|
8-94129-194-0 |
01 |
1 |
- |
| |
6 |
02.383 GENERATOR; DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-94321-533-0 |
01 |
1 |
-9209 |
| |
6 |
02.383 GENERATOR; DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-97080-226-0 |
01 |
1 |
9210- |
| |
7 |
02.170 IGNITER; DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-94321-528-0 |
01 |
1 |
- |
| |
9 |
02.385 WASHER; SNAP,BREAKER,DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-94207-822-0 |
01 |
1 |
- |
| |
10 |
02.381 PLATE; BREAKER,DIST
ASM PART: A = 8-94476-142-1, 94476142
|
8-94129-198-0 |
01 |
1 |
- |
| |
13 |
02.379 COUPLING; DISTR
02.374
ASM PART: A = 8-94476-142-1, 94476142
|
8-94237-156-0 |
01 |
1 |
- |
| |
14 |
02.410 CONTROL; VAC,DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-94321-532-0 |
01 |
1 |
- |
| |
15 |
02.387 SCREW; CAM,DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-94206-155-0 |
01 |
1 |
- |
| |
17 |
02.381 GOVERNOR; DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-94321-534-0 |
01 |
1 |
- |
| |
18 |
02.382 CAM; DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-94129-218-0 |
01 |
1 |
- |
| |
21 |
02.372 SHAFT; DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-94480-330-0 |
01 |
1 |
- |
| |
22 |
02.368 SCREW; CLAMP,DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-94480-331-0 |
02 |
1 |
- |
| |
23 |
02.385 WASHER; CLAMP SCREW,DISTR
02.368
ASM PART: A = 8-94476-142-1, 94476142
|
8-94216-700-0 |
02 |
1 |
- |
| |
26 |
02.379 WASHER; SHAFT,DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-94480-332-0 |
01 |
1 |
- |
| |
27 |
02.367 GASKET; HSG,DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-94321-530-0 |
01 |
1 |
- |
| |
28 |
02.368 SCREW; VAC CONT
02.393, (A)
ASM PART: A = 8-94476-142-1, 94476142
|
8-94108-473-0 |
02 |
1 |
- |
| |
28 |
02.368 SCREW; VAC CONT
02.414, (B)
ASM PART: A = 8-94476-142-1, 94476142
|
8-94237-241-0 |
01 |
1 |
- |
| |
30 |
02.363 GASKET; HSG,DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-94206-165-0 |
01 |
1 |
- |
| |
31 |
02.379 WASHER; THRUST,DISTR
02.385, (A)
ASM PART: A = 8-94476-142-1, 94476142
|
8-94206-157-0 |
01 |
1 |
- |
| |
31 |
02.379 WASHER; THRUST,DISTR
02.385, (B)
ASM PART: A = 8-94476-142-1, 94476142
|
8-94207-823-0 |
01 |
1 |
- |
| |
32 |
02.374 GEAR; DRIVE,DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-94237-176-0 |
01 |
1 |
- |
| |
33 |
02.379 PIN; STRAIGHT,DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-94237-157-0 |
01 |
1 |
- |
| |
35 |
02.379 NUT; PLATE,DISTR
00.002, M8
ASM PART: A = 8-94476-142-1, 94476142
|
9-09110-508-0 |
01 |
1 |
- |
| |
36 |
02.379 WASHER; PLATE,DISTR
00.002, (A)
ASM PART: A = 8-94476-142-1, 94476142
|
9-09150-508-0 |
01 |
1 |
- |
| |
36 |
02.379 WASHER; PLATE,DISTR
16.716, (B)
ASM PART: A = 8-94476-142-1, 94476142
|
9-09160-608-0 |
01 |
1 |
- |
| |
42 |
02.362 HOUSING; DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-94321-531-0 |
01 |
1 |
- |
| |
73 |
02.381 BOLT; PLATE,DISTR
02.393
ASM PART: A = 8-94476-142-1, 94476142
|
8-94405-199-0 |
03 |
1 |
- |
| |
87 |
02.362 PLATE; DISTR
ASM PART: A = 8-94476-142-1, 94476142
|
8-94321-527-0 |
01 |
1 |
- |
