0-70 — CARBURETOR (#43310) — 86 parça

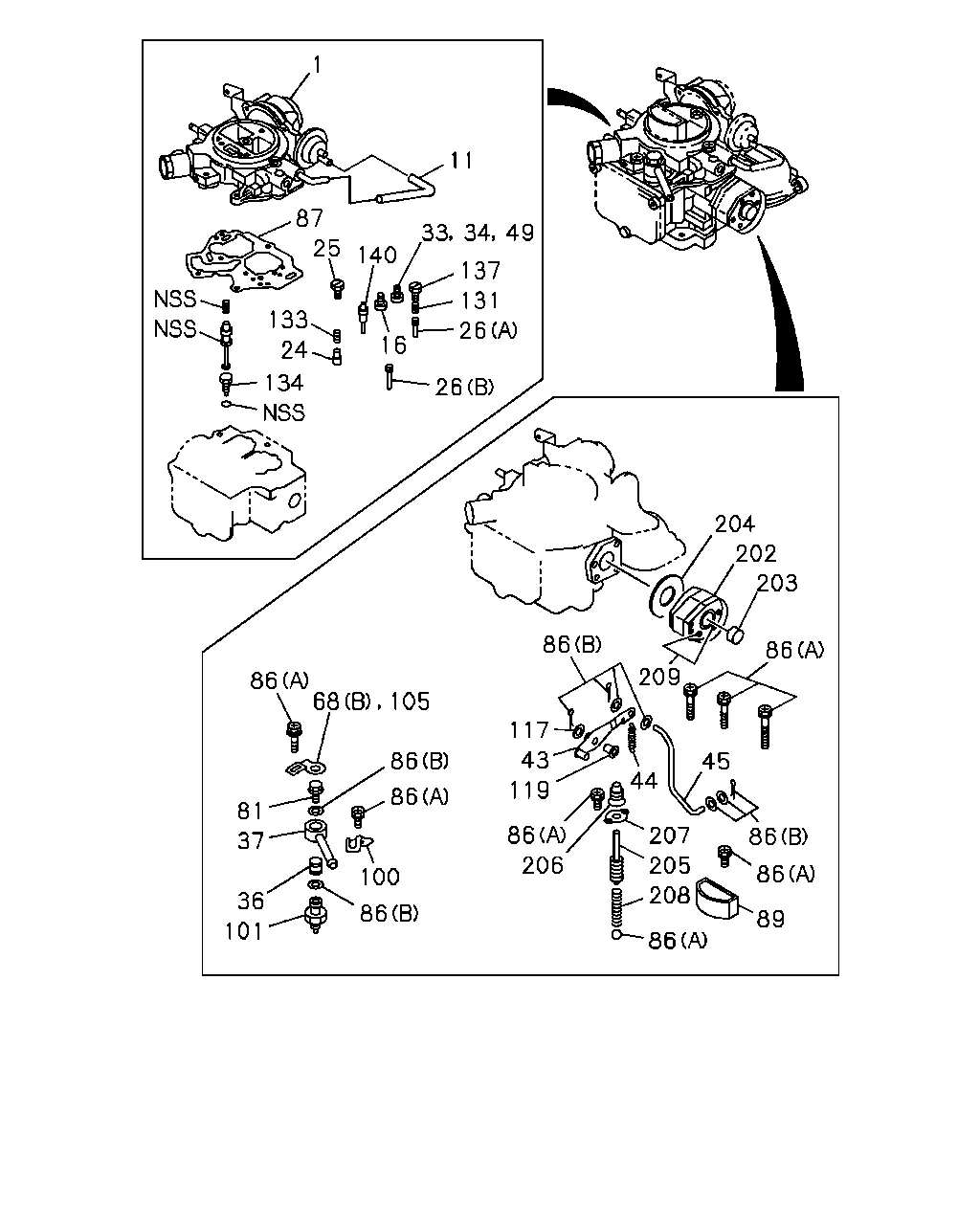

1 11 87 33 49 34 137 26 131 140 25 133 134 24 16 26 204 202 203 86 209 86 105 68 86 81 37 36 101 86 100 86 86 206 86 43 119 117 44 45 86 86 89 86 207 205 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.730 AIR HORN COMPL; CARB ASM PART: A = 8-97042-803-1, 97042803	8-97048-993-0	01	1	-9312
1	03.730 AIR HORN COMPL; CARB ASM PART: A = 8-97042-803-1, 97042803	8-97102-559-0	01	1	9401-
11	03.775 HOSE; VAC,CARB 03.730 ASM PART: A = 8-97042-803-1, 97042803	8-94401-372-0	01	1	-
16	03.792 JET; COASTING,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94467-482-0	01	1	-
24	03.825 WEIGHT; PUMP,CARB 03.798 ASM PART: A = 8-97042-803-1, 97042803	8-94248-489-0	01	1	-
25	03.825 PLUG; OUTLET VLV,CARB 03.775 ASM PART: A = 8-97042-803-1, 97042803	8-94215-716-0	01	1	-
26	03.798 JET ASM; SLOW,CARB (A) ASM PART: A = 8-97042-803-1, 97042803	8-94237-506-0	01	1	-
26	03.798 JET ASM; SLOW,CARB (B) ASM PART: A = 8-97042-803-1, 97042803	8-94401-386-0	01	1	-
33	03.792 JET ASM; 2ND MAIN AIR BLEED,CARB 03.790 ASM PART: A = 8-97042-803-1, 97042803	8-94401-385-0	01	1	-
34	03.792 JET ASM; 1ST MAIN AIR BLEED,CARB 03.790 ASM PART: A = 8-97042-803-1, 97042803	8-94401-384-0	01	1	-
36	03.740 STRAINER ASM; CARB ASM PART: A = 8-97042-803-1, 97042803	8-94237-492-0	01	1	-
37	03.740 UNION; FUEL,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94250-233-0	01	1	-
43	03.842 ARM; PUMP,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94434-214-0	01	1	-
44	03.763 SPRING; SUB RETURN,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94434-216-0	01	1	-
45	03.838 ROD; PUMP CONNECTOR,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94337-411-0	01	1	-
49	03.792 JET; AIR BLEED,2ND,CARB 03.790 ASM PART: A = 8-97042-803-1, 97042803	8-94401-387-0	01	1	-
68	03.766 LEVER ASM; FAST IDLE,CARB (B) ASM PART: A = 8-97042-803-1, 97042803	8-94401-357-0	01	1	-
68	03.766 LEVER ASM; FAST IDLE,CARB (A) ASM PART: A = 8-97042-803-1, 97042803	8-94467-486-0	01	1	-
81	03.740 BOLT; UNION,FUEL RETURN,CARB ASM PART: A = 8-97042-803-1, 97042803	9-81115-072-0	01	1	-
86	03.724 SCREW SET; CARB (A) ASM PART: A = 8-97042-803-1, 97042803	8-94178-636-0	01	1	-
86	03.724 SCREW SET; CARB (B) ASM PART: A = 8-97042-803-1, 97042803	8-94447-230-0	01	1	-
87	03.724 GASKET SET; CARB ASM PART: A = 8-97042-803-1, 97042803	8-94447-229-0	01	1	-
89	03.724 COVER; VENT,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94407-976-0	01	1	-
100	03.740 PLATE; STOPPING,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94401-374-0	01	1	-
101	03.814 VALVE; NEEDLE,CARB 03.858 ASM PART: A = 8-97042-803-1, 97042803	8-94401-363-0	01	1	-
105	03.762 HOLDER; CHOKE WIRE,CARB 03.814 ASM PART: A = 8-97042-803-1, 97042803	8-94401-375-0	01	1	-9312
117	03.767 WASHER; ARM PUMP,CARB 03.768 ASM PART: A = 8-97042-803-1, 97042803	8-94401-361-0	01	1	-
119	03.767 COLLAR; ARM,PUMP ASM PART: A = 8-97042-803-1, 97042803	8-94401-360-0	01	1	-
131	03.798 SPRING; PUMP,CARB 03.792 ASM PART: A = 8-97042-803-1, 97042803	8-94215-710-0	01	1	-
133	03.825 SPRING; INJECTOR,CARB 03.798 ASM PART: A = 8-97042-803-1, 97042803	8-94248-488-0	01	1	-
134	03.858 VALVE; POWER,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94401-388-0	01	1	-
137	03.775 PLUG; SLOW PASSAGE,CARB 03.792 ASM PART: A = 8-97042-803-1, 97042803	8-94215-711-0	01	1	-
140	03.792 JET; COASTING AIR BLEED,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94467-483-0	01	1	-
202	03.724 DEVICE; BOOST CONT ASM PART: A = 8-97042-803-1, 97042803	8-94467-473-0	01	1	-
203	03.724 CAP; BOOST CONT DEVICE ASM PART: A = 8-97042-803-1, 97042803	8-94467-474-0	01	1	-
204	03.724 GASKET; BOOST CONT DEVICE ASM PART: A = 8-97042-803-1, 97042803	8-94467-475-0	01	1	-
205	03.858 PISTON; CARB ASM PART: A = 8-97042-803-1, 97042803	8-94440-975-0	01	1	-
206	03.838 COVER; PUMP,CARB 03.842 ASM PART: A = 8-97042-803-1, 97042803	8-94401-365-0	01	1	-
207	03.724 PLATE; CYL,CARB 03.841 ASM PART: A = 8-97042-803-1, 97042803	8-94401-367-0	01	1	-
208	03.841 SPRING; PISTON,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94252-518-0	01	1	-
209	03.724 SCREW; BOOST CONT DEVICE ASM PART: A = 8-97042-803-1, 97042803	8-94467-476-0	03	1	-

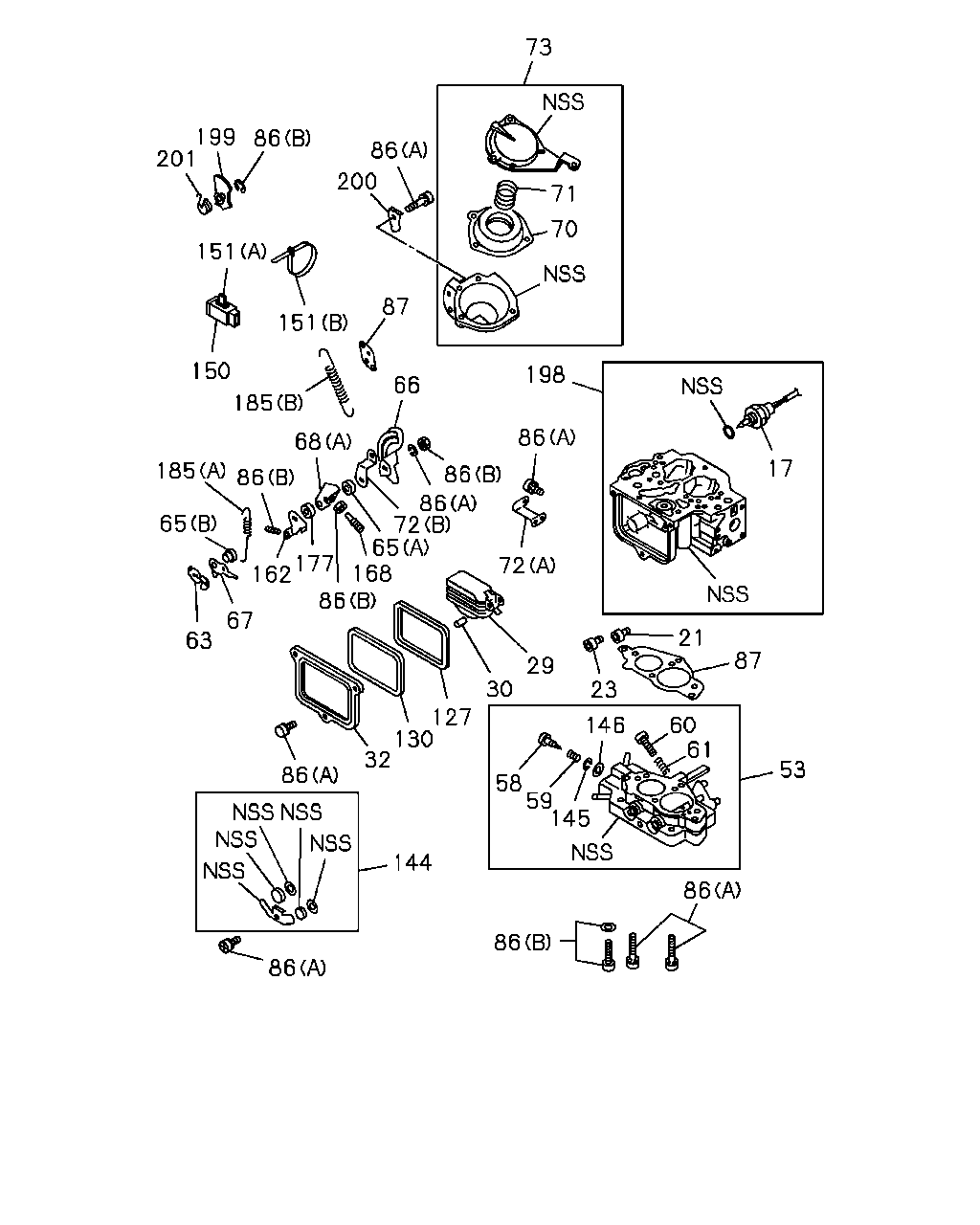

73 71 70 86 200 86 199 201 151 150 151 87 66 185 185 86 68 198 86 86 86 72 65 168 86 177 162 65 67 63 86 32 144 86 86 86 53 61 60 146 145 59 58 130 127 29 30 23 87 21 72 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	03.440 VALVE ASM; SOLENOID,CARB ASM PART: A = 8-97042-803-1, 97042803	8-97048-995-0	01	1	-
21	03.792 JET; 2ND MAIN,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94467-481-0	01	1	-
23	03.792 JET; 1ST MAIN,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94467-480-0	01	1	-
29	03.745 FLOAT; CARB ASM PART: A = 8-97042-803-1, 97042803	8-94401-362-0	01	1	-
30	03.747 COLLAR; FLOAT PIN,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94215-713-0	01	1	-
32	03.737 COVER; FUEL LEVEL GLASS,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94215-682-1	01	1	-
53	03.729 BODY; THROTTLE,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94467-477-0	01	1	-
58	03.822 SCREW; IDLE ADJ,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94122-179-0	01	1	-9312
58	03.822 SCREW; IDLE ADJ,CARB ASM PART: A = 8-97042-803-1, 97042803	8-97102-586-0	01	1	9401-
59	03.823 SPRING; IDLE ADJ,SCREW,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94237-481-0	01	1	-
60	03.761 SCREW; THROTTLE ADJ,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94178-631-0	01	1	-
61	03.761 SPRING; THROTTLE ADJ,SCREW,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94178-632-0	01	1	-
63	03.762 ARM; THROTTLE SHAFT,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94215-679-0	01	1	-
65	03.766 COLLAR; THROTTLE SHAFT "A",CARB 03.747, (B) ASM PART: A = 8-97042-803-1, 97042803	8-94248-439-0	01	1	9401-
65	03.766 COLLAR; THROTTLE SHAFT "A",CARB 03.747, (B) ASM PART: A = 8-97042-803-1, 97042803	8-94248-439-0	02	1	-9312
65	03.766 COLLAR; THROTTLE SHAFT "A",CARB 03.762, (A) ASM PART: A = 8-97042-803-1, 97042803	8-94467-488-0	01	1	-
66	03.762 LEVER ASM; THROTTLE,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94467-485-0	01	1	-
67	03.766 ARM ASM; FAST IDLE CAM ADJ,CARB 03.763 ASM PART: A = 8-97042-803-1, 97042803	8-94252-516-0	01	1	-
68	03.766 LEVER ASM; FAST IDLE,CARB (B) ASM PART: A = 8-97042-803-1, 97042803	8-94401-357-0	01	1	-
68	03.766 LEVER ASM; FAST IDLE,CARB (A) ASM PART: A = 8-97042-803-1, 97042803	8-94467-486-0	01	1	-
70	03.758 DIAPHRAGM ASM; CARB ASM PART: A = 8-97042-803-1, 97042803	8-94402-185-0	01	1	-
71	03.758 SPRING; DIAPH,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94467-479-0	01	1	-
72	03.755 HANGER; SPRING,CARB 03.724, (A) ASM PART: A = 8-97042-803-1, 97042803	8-94401-382-0	01	1	-
72	03.755 HANGER; SPRING,CARB 03.763, (B) ASM PART: A = 8-97042-803-1, 97042803	8-94467-487-0	01	1	-
73	03.758 CHAMBER ASM; CARB ASM PART: A = 8-97042-803-1, 97042803	8-94467-484-0	01	1	-
86	03.724 SCREW SET; CARB (A) ASM PART: A = 8-97042-803-1, 97042803	8-94178-636-0	01	1	-
86	03.724 SCREW SET; CARB (B) ASM PART: A = 8-97042-803-1, 97042803	8-94447-230-0	01	1	-
87	03.724 GASKET SET; CARB ASM PART: A = 8-97042-803-1, 97042803	8-94447-229-0	01	1	-
127	03.738 SEAL; RUBBER,GLASS,CARB ASM PART: A = 8-97042-803-1, 97042803	9-81113-913-0	01	1	-
130	03.737 COVER; FLOAT,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94360-703-0	01	1	-
144	03.858 COVER SET; DUST,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94401-364-0	01	1	-
145	03.823 WASHER; IDLE,ADJ SCREW ASM PART: A = 8-97042-803-1, 97042803	8-94237-480-0	01	1	-
146	03.823 SEAL; IDLE,ADJ SCREW ASM PART: A = 8-97042-803-1, 97042803	8-94237-479-0	01	1	-
150	03.755 CONNECTOR; CABLE,CARB 4P MALE GRAY ASM PART: A = 8-97042-803-1, 97042803	8-94447-519-0	01	1	-
151	03.758 CLAMP; CABLE CONNECTOR,CARB 02.559, (A) ASM PART: A = 8-97042-803-1, 97042803	8-94315-436-1	01	1	-
151	03.758 CLAMP; CABLE CONNECTOR,CARB 03.842, (B) ASM PART: A = 8-97042-803-1, 97042803	8-94407-977-0	01	1	-
162	03.762 LEVER ASM; DOWN SHIFT,CARB 03.766 ASM PART: A = 8-97042-803-1, 97042803	8-94248-447-0	01	1	-
168	03.766 SCREW; FAST IDLE ADJ,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94215-720-0	01	1	-
177	03.762 COLLAR; ROLLING,CARB 03.768 ASM PART: A = 8-97042-803-1, 97042803	8-94252-515-0	01	1	-
185	03.763 SPRING COMPL; THROTTLE RETURN,CA 03.841, (A) ASM PART: A = 8-97042-803-1, 97042803	8-94401-355-0	01	1	-
185	03.763 SPRING COMPL; THROTTLE RETURN,CA (B) ASM PART: A = 8-97042-803-1, 97042803	8-94401-383-0	01	1	-
198	03.734 CHAMBER ASM; FLOAT,CARB ASM PART: A = 8-97042-803-1, 97042803	8-97048-994-0	01	1	-
199	03.766 CAM; IDLE,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94401-373-0	01	1	-
200	03.766 STOPPER; CAM,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94401-366-0	01	1	-
201	03.766 SPRING; CAM,CARB ASM PART: A = 8-97042-803-1, 97042803	8-94401-358-0	01	1	-
