◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND BATTERY CABLE ▶
0-61 — BATTERY AND BATTERY CABLE (#43307) — 380 parça

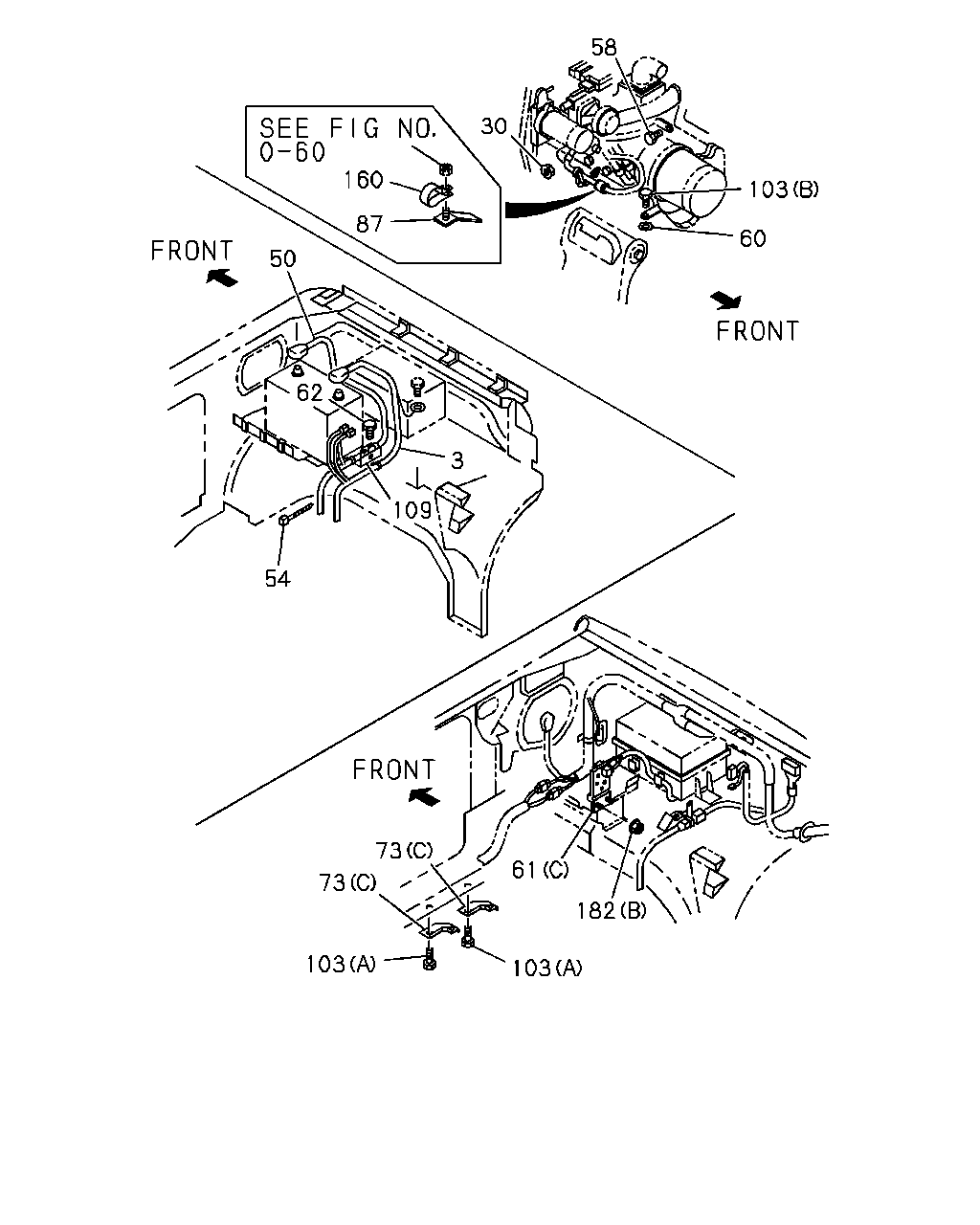

çizim 66165
58 30 103 60 160 50 87 62 3 109 54 73 103 103 182 61 73
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. EUROPE EQUIPMENT(EK4) 		8-94358-872-2 01 1 9112-9208 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. EUROPE EQUIPMENT(EK4) 		8-97808-819-1 01 1 9209-9504 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3>,SHIFT ON THE FLY(7EX) 		8-97808-819-1 01 1 9505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EUROPE EQUIPMENT(EK4) 		8-97805-958-3 01 1 9112-9504 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> EXC. SHIFT ON THE FLY(7EX) 		8-97805-958-3 01 1 9505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EUROPE EQUIPMENT(EK4) EXC. FRIGID ZONE<YL3>,SHIFT ON THE FLY(7EX) 		8-97808-818-1 01 1 9505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX) EXC. FRIGID ZONE<YL3> 		8-97129-908-2 01 1 9505-9704 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX) EXC. FRIGID ZONE<YL3> 		8-97176-977-0 01 1 9705- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> SHIFT ON THE FLY(7EX) 		8-97129-905-2 01 1 9505-9703 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> SHIFT ON THE FLY(7EX) 		8-97176-974-0 01 1 9704- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 		8-97129-909-2 01 1 9505-9703 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 		8-97176-978-0 01 1 9704- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-94358-873-1 01 1 9112- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-94358-874-2 01 1 9112-9308 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97810-051-1 01 1 9309-9504 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97117-673-1 01 1 9505- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9309-9504 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9505- ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97808-110-0 01 1 9112-9208 ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97808-511-0 01 1 9209-9308 ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97810-576-0 01 1 9309-9504 ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97124-755-0 01 1 9505-9506 ●
50 02.341 CABLE; BATTERY TO BODY (-)
SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97124-755-0 01 1 9507-9607 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) EXC. CERAMIC HEATER<6YX> (A) 		8-97124-755-0 01 1 9507-9607 ●
50 02.341 CABLE; BATTERY TO BODY (-)
LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97124-755-0 01 1 9507-9607 ●
50 02.341 CABLE; BATTERY TO BODY (-)
SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97124-755-0 01 1 9608- ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) EXC. CERAMIC HEATER<6YX> (A) 		8-97124-755-0 01 1 9608- ●
50 02.341 CABLE; BATTERY TO BODY (-)
LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMEN T(S3D) (A) 		8-97124-755-0 01 1 9608- ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) (B) 		8-97805-969-1 01 1 9112-9308 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) (B) 		8-97810-574-0 01 1 9309-9504 ●
50 02.341 CABLE; BATTERY TO BODY (-)
FRIGID ZONE<YL3> (B) 		8-97810-574-0 01 1 9505- ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> (A) 		8-97808-109-0 01 1 9112-9208 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> (A) 		8-97808-510-0 01 1 9209-9308 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> (A) 		8-97810-575-0 01 1 9309-9504 ●
50 02.341 CABLE; BATTERY TO BODY (-)
CERAMIC HEATER<6YX> (A) 		8-97124-754-0 01 1 9505-9506 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> (A) 		8-97124-754-0 01 1 9507-9607 ●
50 02.341 CABLE; BATTERY TO BODY (-)
LONG(UB***F) WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97124-754-0 01 1 9507-9607 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> (A) 		8-97124-754-0 01 1 9608- ●
50 02.341 CABLE; BATTERY TO BODY (-)
LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97124-754-0 01 1 9608- ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-94358-877-2 01 1 9112-9308 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97810-573-0 01 1 9309-9504 ●
50 02.341 CABLE; BATTERY TO BODY (-)
SHIFT ON THE FLY(7EX) 		8-97130-384-0 01 1 9505-9703 ●
50 02.341 CABLE; BATTERY TO BODY (-)
SHIFT ON THE FLY(7EX) 		8-97176-972-0 01 1 9704- ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. SHIFT ON THE FLY(7EX) 		8-97124-252-1 01 1 9505- ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-94358-875-2 01 1 9112-9308 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97809-858-1 01 1 9309-9504 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97119-706-0 01 1 9505- ●
54 02.587 CLIP; BAND,BATTERY CABLE
03.162 L=140 		5-09707-031-0 01 1 9112- ●
58 02.343 BOLT; CABLE,BATTERY
M10X16 		8-97807-251-0 01 1 9112-9204 ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. EUROPE EQUIPMENT(EK4) M10X16 		8-97807-251-0 01 1 9112-9204 ●
58 02.343 BOLT; CABLE,BATTERY
M10X16 		8-97807-251-0 01 1 9209-9308 ● ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> M10X16 		8-97807-251-0 01 1 9209-9308 ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) M10X16 		8-97807-251-0 01 1 9209-9308 ●
58 02.343 BOLT; CABLE,BATTERY
EUROPE EQUIPMENT(EK4) M10X16 		8-97807-251-0 02 1 9112-9204 ●
58 02.343 BOLT; CABLE,BATTERY
M10X16 		8-97807-251-0 01 1 9205-9207 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> M10X16 		8-97807-251-0 01 1 9205-9207 ●
58 02.343 BOLT; CABLE,BATTERY
M10X16 		8-97807-251-0 01 1 9208-9208 ● ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> M10X16 		8-97807-251-0 01 1 9208-9208 ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) M10X16 		8-97807-251-0 01 1 9208-9208 ●
58 02.343 BOLT; CABLE,BATTERY
M10X16 		8-97807-251-0 01 1 9309-9504 ● ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> M10X16 		8-97807-251-0 01 1 9309-9504 ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) M10X16 		8-97807-251-0 01 1 9309-9504 ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9505- ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9505- ●
58 02.343 BOLT; CABLE,BATTERY
02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9505- ●
58 02.343 BOLT; CABLE,BATTERY
06.672 M8X16 FLANGE 		0-28010-816-0 01 1 9112-9204 ●
58 02.343 BOLT; CABLE,BATTERY
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9205- ●
60 00.002 WASHER; LK,BATTERY CABLE
ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 9112-9209 ● ● ● ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97805-896-0 01 1 9112-9208 ● ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97808-512-0 01 1 9209-9504 ● ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97808-512-0 01 1 9505- ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97807-570-2 01 1 9112-9504 ● ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97807-570-2 01 1 9505- ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97805-956-0 01 1 9112-9504 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X22 		8-94122-771-0 01 1 9112-9209 ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9210-9504 ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9505- ● ● ●
73 02.333 BRACKET; BATTERY CABLE
02.343 (A) 		8-94315-286-0 02 1 9304-9504 ● ●
73 02.333 BRACKET; BATTERY CABLE
EXC. EUROPE EQUIPMENT(EK4) 02.343 (B) 		8-94315-286-0 01 1 9112-9303 ● ●
73 02.333 BRACKET; BATTERY CABLE
(C) 		8-97803-052-0 02 1 9112-9504 ● ● ●
73 02.333 BRACKET; BATTERY CABLE
02.343 (A) 		8-94315-286-0 02 1 9505- ●
73 02.333 BRACKET; BATTERY CABLE
EUROPE EQUIPMENT(EK4) 02.343 (A) 		8-94315-286-0 02 1 9112-9303 ●
73 02.333 BRACKET; BATTERY CABLE
EUROPE EQUIPMENT(EK4) (B) 		8-97805-900-0 01 1 9112-9208 ●
73 02.333 BRACKET; BATTERY CABLE
FRIGID ZONE<YL3> (B) 		8-97805-900-0 01 1 9209- ●
73 02.333 BRACKET; BATTERY CABLE
(C) 		8-97803-052-0 02 1 9505- ● ●
73 02.333 BRACKET; BATTERY CABLE
SHIFT ON THE FLY(7EX) (C) 		8-97803-052-0 02 1 9505- ●
73 02.333 BRACKET; BATTERY CABLE
(C) 		8-97130-428-0 01 1 9505- ●
73 02.333 BRACKET; BATTERY CABLE
(C) 		8-97805-956-0 01 1 9505- ●
73 02.333 BRACKET; BATTERY CABLE
(A) 		8-97803-308-0 01 1 9112- ●
73 02.333 BRACKET; BATTERY CABLE
(B) 		8-97803-330-2 01 1 9112- ●
73 02.333 BRACKET; BATTERY CABLE
(D) 		8-97804-787-0 01 1 9112- ●
87 02.343 BRACKET; HARNESS
02.333 		8-94328-119-1 01 1 9112-9307 ●
87 02.343 BRACKET; HARNESS
02.333 		8-94389-953-1 01 1 9308-9504 ●
87 02.343 BRACKET; HARNESS
02.333 		8-94389-953-1 01 1 9505- ●
87 02.343 BRACKET; HARNESS
02.333 		8-97803-051-1 01 1 9112-9504 ●
87 02.343 BRACKET; HARNESS 8-97130-483-1 01 1 9505- ●
103 02.343 BOLT; BATTERY CABLE
13.090 (B) M6X14 		8-94153-946-0 01 1 9112-9203 ● ● ● ●
103 02.343 BOLT; BATTERY CABLE
13.090 (B) M6X22 W/LK&PL WASHER 		8-94122-769-0 01 1 9204-9209 ● ● ● ●
103 02.343 BOLT; BATTERY CABLE
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9210-9504 ● ● ● ●
103 02.343 BOLT; BATTERY CABLE
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9505- ● ● ●
103 02.343 BOLT; BATTERY CABLE
00.206 (A) M6X16 W/LK&PL WASHER 		9-01960-616-0 02 1 9112-9204 ● ● ●
103 02.343 BOLT; BATTERY CABLE
12.187 (A) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9205-9504 ● ● ●
103 02.343 BOLT; BATTERY CABLE
12.187 (A) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9505-9711 ● ●
103 02.343 BOLT; BATTERY CABLE
SHIFT ON THE FLY(7EX) 12.187 (A) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9505-9711 ●
103 02.343 BOLT; BATTERY CABLE
04.439 (A) M6X16 FLANGE 		0-28680-616-0 02 1 9712- ● ●
103 02.343 BOLT; BATTERY CABLE
SHIFT ON THE FLY(7EX) 04.439 (A) M6X16 FLANGE 		0-28680-616-0 02 1 9712- ●
109 02.343 WASHER; LK,EARTH BATTERY CABLE
02.812 ID=8.4 TOOTH LK INT-EXT 		9-09152-208-0 01 1 9112-9209 ● ● ● ●
160 02.343 CLIP; BATTERY CABLE
04.594 (B) L=100 		5-09707-036-0 01 1 9112-9504 ● ●
160 02.343 CLIP; BATTERY CABLE
04.594 (B) L=100 		5-09707-036-0 01 1 9505- ●
160 02.343 CLIP; BATTERY CABLE
(A) ID=20 		8-94410-200-0 01 1 9112-9504 ● ●
160 02.343 CLIP; BATTERY CABLE
(A) ID=20 		8-94410-200-0 01 1 9505- ●
160 02.343 CLIP; BATTERY CABLE
02.559 ID=21 L=26 		8-94126-979-1 01 1 9112- ●
182 02.343 NUT; CLIP
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 9112-9303 ● ●
182 02.343 NUT; CLIP
04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 9304-9504 ● ●
182 02.343 NUT; CLIP
04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 9505- ●
182 02.343 NUT; CLIP
EUROPE EQUIPMENT(EK4) 04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 9112-9504 ●
182 02.343 NUT; CLIP
FRIGID ZONE<YL3> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9505- ●
182 02.343 NUT; CLIP
04.594 (B) M6 FLANGE 		0-91150-106-0 03 1 9505- ●
182 02.343 NUT; CLIP
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9112-9504 ● ●

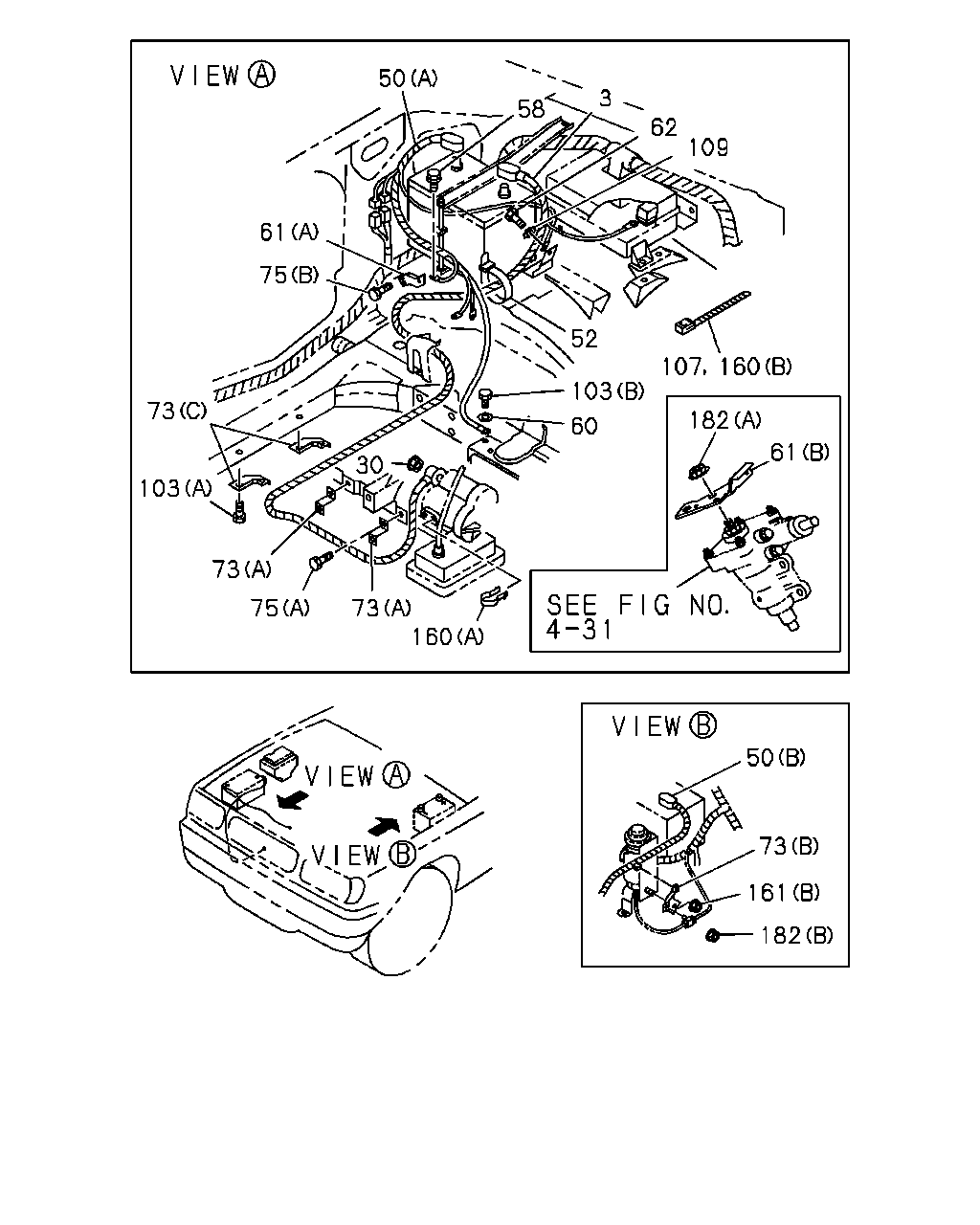

çizim 66245
50 58 3 109 62 52 160 107 103 60 61 75 73 103 73 75 73 160 30 182 61 50 73 161 182
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. EUROPE EQUIPMENT(EK4) 		8-94358-872-2 01 1 9112-9208 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. EUROPE EQUIPMENT(EK4) 		8-97808-819-1 01 1 9209-9504 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3>,SHIFT ON THE FLY(7EX) 		8-97808-819-1 01 1 9505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EUROPE EQUIPMENT(EK4) 		8-97805-958-3 01 1 9112-9504 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> EXC. SHIFT ON THE FLY(7EX) 		8-97805-958-3 01 1 9505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EUROPE EQUIPMENT(EK4) EXC. FRIGID ZONE<YL3>,SHIFT ON THE FLY(7EX) 		8-97808-818-1 01 1 9505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX) EXC. FRIGID ZONE<YL3> 		8-97129-908-2 01 1 9505-9704 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX) EXC. FRIGID ZONE<YL3> 		8-97176-977-0 01 1 9705- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> SHIFT ON THE FLY(7EX) 		8-97129-905-2 01 1 9505-9703 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> SHIFT ON THE FLY(7EX) 		8-97176-974-0 01 1 9704- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 		8-97129-909-2 01 1 9505-9703 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 		8-97176-978-0 01 1 9704- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-94358-873-1 01 1 9112- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-94358-874-2 01 1 9112-9308 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97810-051-1 01 1 9309-9504 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97117-673-1 01 1 9505- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9309-9504 ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9505- ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97808-110-0 01 1 9112-9208 ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97808-511-0 01 1 9209-9308 ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97810-576-0 01 1 9309-9504 ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97124-755-0 01 1 9505-9506 ●
50 02.341 CABLE; BATTERY TO BODY (-)
SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97124-755-0 01 1 9507-9607 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) EXC. CERAMIC HEATER<6YX> (A) 		8-97124-755-0 01 1 9507-9607 ●
50 02.341 CABLE; BATTERY TO BODY (-)
LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97124-755-0 01 1 9507-9607 ●
50 02.341 CABLE; BATTERY TO BODY (-)
SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97124-755-0 01 1 9608- ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) EXC. CERAMIC HEATER<6YX> (A) 		8-97124-755-0 01 1 9608- ●
50 02.341 CABLE; BATTERY TO BODY (-)
LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMEN T(S3D) (A) 		8-97124-755-0 01 1 9608- ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) (B) 		8-97805-969-1 01 1 9112-9308 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) (B) 		8-97810-574-0 01 1 9309-9504 ●
50 02.341 CABLE; BATTERY TO BODY (-)
FRIGID ZONE<YL3> (B) 		8-97810-574-0 01 1 9505- ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> (A) 		8-97808-109-0 01 1 9112-9208 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> (A) 		8-97808-510-0 01 1 9209-9308 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> (A) 		8-97810-575-0 01 1 9309-9504 ●
50 02.341 CABLE; BATTERY TO BODY (-)
CERAMIC HEATER<6YX> (A) 		8-97124-754-0 01 1 9505-9506 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> (A) 		8-97124-754-0 01 1 9507-9607 ●
50 02.341 CABLE; BATTERY TO BODY (-)
LONG(UB***F) WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97124-754-0 01 1 9507-9607 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> (A) 		8-97124-754-0 01 1 9608- ●
50 02.341 CABLE; BATTERY TO BODY (-)
LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97124-754-0 01 1 9608- ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-94358-877-2 01 1 9112-9308 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97810-573-0 01 1 9309-9504 ●
50 02.341 CABLE; BATTERY TO BODY (-)
SHIFT ON THE FLY(7EX) 		8-97130-384-0 01 1 9505-9703 ●
50 02.341 CABLE; BATTERY TO BODY (-)
SHIFT ON THE FLY(7EX) 		8-97176-972-0 01 1 9704- ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. SHIFT ON THE FLY(7EX) 		8-97124-252-1 01 1 9505- ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-94358-875-2 01 1 9112-9308 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97809-858-1 01 1 9309-9504 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97119-706-0 01 1 9505- ●
52 02.343 CLIP; BATTERY CABLE TO BODY
EUROPE EQUIPMENT(EK4) 03.162 L=140 		5-09707-031-0 01 1 9204-9504 ●
52 02.343 CLIP; BATTERY CABLE TO BODY
FRIGID ZONE<YL3> 03.162 L=140 		5-09707-031-0 01 1 9505- ●
58 02.343 BOLT; CABLE,BATTERY
M10X16 		8-97807-251-0 01 1 9112-9204 ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. EUROPE EQUIPMENT(EK4) M10X16 		8-97807-251-0 01 1 9112-9204 ●
58 02.343 BOLT; CABLE,BATTERY
M10X16 		8-97807-251-0 01 1 9209-9308 ● ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> M10X16 		8-97807-251-0 01 1 9209-9308 ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) M10X16 		8-97807-251-0 01 1 9209-9308 ●
58 02.343 BOLT; CABLE,BATTERY
EUROPE EQUIPMENT(EK4) M10X16 		8-97807-251-0 02 1 9112-9204 ●
58 02.343 BOLT; CABLE,BATTERY
M10X16 		8-97807-251-0 01 1 9205-9207 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> M10X16 		8-97807-251-0 01 1 9205-9207 ●
58 02.343 BOLT; CABLE,BATTERY
M10X16 		8-97807-251-0 01 1 9208-9208 ● ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> M10X16 		8-97807-251-0 01 1 9208-9208 ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) M10X16 		8-97807-251-0 01 1 9208-9208 ●
58 02.343 BOLT; CABLE,BATTERY
M10X16 		8-97807-251-0 01 1 9309-9504 ● ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> M10X16 		8-97807-251-0 01 1 9309-9504 ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) M10X16 		8-97807-251-0 01 1 9309-9504 ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9505- ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9505- ●
58 02.343 BOLT; CABLE,BATTERY
02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9505- ●
58 02.343 BOLT; CABLE,BATTERY
06.672 M8X16 FLANGE 		0-28010-816-0 01 1 9112-9204 ●
58 02.343 BOLT; CABLE,BATTERY
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9205- ●
60 00.002 WASHER; LK,BATTERY CABLE
ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 9112-9209 ● ● ● ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97805-896-0 01 1 9112-9208 ● ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97808-512-0 01 1 9209-9504 ● ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97808-512-0 01 1 9505- ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97807-570-2 01 1 9112-9504 ● ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97807-570-2 01 1 9505- ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97805-956-0 01 1 9112-9504 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X22 		8-94122-771-0 01 1 9112-9209 ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9210-9504 ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9505- ● ● ●
73 02.333 BRACKET; BATTERY CABLE
02.343 (A) 		8-94315-286-0 02 1 9304-9504 ● ●
73 02.333 BRACKET; BATTERY CABLE
EXC. EUROPE EQUIPMENT(EK4) 02.343 (B) 		8-94315-286-0 01 1 9112-9303 ● ●
73 02.333 BRACKET; BATTERY CABLE
(C) 		8-97803-052-0 02 1 9112-9504 ● ● ●
73 02.333 BRACKET; BATTERY CABLE
02.343 (A) 		8-94315-286-0 02 1 9505- ●
73 02.333 BRACKET; BATTERY CABLE
EUROPE EQUIPMENT(EK4) 02.343 (A) 		8-94315-286-0 02 1 9112-9303 ●
73 02.333 BRACKET; BATTERY CABLE
EUROPE EQUIPMENT(EK4) (B) 		8-97805-900-0 01 1 9112-9208 ●
73 02.333 BRACKET; BATTERY CABLE
FRIGID ZONE<YL3> (B) 		8-97805-900-0 01 1 9209- ●
73 02.333 BRACKET; BATTERY CABLE
(C) 		8-97803-052-0 02 1 9505- ● ●
73 02.333 BRACKET; BATTERY CABLE
SHIFT ON THE FLY(7EX) (C) 		8-97803-052-0 02 1 9505- ●
73 02.333 BRACKET; BATTERY CABLE
(C) 		8-97130-428-0 01 1 9505- ●
73 02.333 BRACKET; BATTERY CABLE
(C) 		8-97805-956-0 01 1 9505- ●
73 02.333 BRACKET; BATTERY CABLE
(A) 		8-97803-308-0 01 1 9112- ●
73 02.333 BRACKET; BATTERY CABLE
(B) 		8-97803-330-2 01 1 9112- ●
73 02.333 BRACKET; BATTERY CABLE
(D) 		8-97804-787-0 01 1 9112- ●
75 02.333 BOLT; BRKT
01.073 (A) M6X14 W/LK WASHER 		9-01900-614-0 02 1 9112-9204 ● ●
75 02.333 BOLT; BRKT
00.206 (A) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9205-9208 ● ●
75 02.333 BOLT; BRKT
FRIGID ZONE<YL3> 00.206 (A) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9209-9303 ●
75 02.333 BOLT; BRKT
00.206 (A) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9304-9504 ● ●
75 02.333 BOLT; BRKT
00.206 (A) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9505- ●
75 02.333 BOLT; BRKT
EXC. FRIGID ZONE<YL3> 00.206 (A) M6X14 W/LK WASHER 		0-50040-614-0 01 1 9209-9303 ● ●
75 02.333 BOLT; BRKT
00.206 (B) M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9112-9204 ● ●
75 02.333 BOLT; BRKT
12.187 (B) M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205-9208 ● ●
75 02.333 BOLT; BRKT
06.635 (B) M6X16 FLANGE 		0-28480-616-0 01 1 9209-9504 ● ●
75 02.333 BOLT; BRKT
06.635 (B) M6X16 FLANGE 		0-28480-616-0 01 1 9505- ●
75 02.333 BOLT; BRKT
01.073 (C) M6X14 W/LK WASHER 		9-01900-614-0 01 1 9112-9204 ●
75 02.333 BOLT; BRKT
04.037 (A) M6X12 		9-02040-612-0 01 1 9112-9204 ●
75 02.333 BOLT; BRKT
00.669 (A) M6X12 		0-20800-612-0 01 1 9205- ●
75 02.333 BOLT; BRKT
04.439 (B) M10X16 		9-02341-016-0 01 1 9112-9204 ●
75 02.333 BOLT; BRKT
04.435 (B) M10X16 		0-23801-016-0 01 1 9205- ●
75 02.333 BOLT; BRKT
00.206 (C) M6X14 W/LK WASHER 		0-50040-614-0 01 1 9205- ●
103 02.343 BOLT; BATTERY CABLE
13.090 (B) M6X14 		8-94153-946-0 01 1 9112-9203 ● ● ● ●
103 02.343 BOLT; BATTERY CABLE
13.090 (B) M6X22 W/LK&PL WASHER 		8-94122-769-0 01 1 9204-9209 ● ● ● ●
103 02.343 BOLT; BATTERY CABLE
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9210-9504 ● ● ● ●
103 02.343 BOLT; BATTERY CABLE
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9505- ● ● ●
103 02.343 BOLT; BATTERY CABLE
00.206 (A) M6X16 W/LK&PL WASHER 		9-01960-616-0 02 1 9112-9204 ● ● ●
103 02.343 BOLT; BATTERY CABLE
12.187 (A) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9205-9504 ● ● ●
103 02.343 BOLT; BATTERY CABLE
12.187 (A) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9505-9711 ● ●
103 02.343 BOLT; BATTERY CABLE
SHIFT ON THE FLY(7EX) 12.187 (A) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9505-9711 ●
103 02.343 BOLT; BATTERY CABLE
04.439 (A) M6X16 FLANGE 		0-28680-616-0 02 1 9712- ● ●
103 02.343 BOLT; BATTERY CABLE
SHIFT ON THE FLY(7EX) 04.439 (A) M6X16 FLANGE 		0-28680-616-0 02 1 9712- ●
107 02.343 CLIP; BAND
SHIFT ON THE FLY(7EX) 02.559 L=250 		5-09707-030-0 01 1 9506- ●
109 02.343 WASHER; LK,EARTH BATTERY CABLE
02.812 ID=8.4 TOOTH LK INT-EXT 		9-09152-208-0 01 1 9112-9209 ● ● ● ●
160 02.343 CLIP; BATTERY CABLE
04.594 (B) L=100 		5-09707-036-0 01 1 9112-9504 ● ●
160 02.343 CLIP; BATTERY CABLE
04.594 (B) L=100 		5-09707-036-0 01 1 9505- ●
160 02.343 CLIP; BATTERY CABLE
(A) ID=20 		8-94410-200-0 01 1 9112-9504 ● ●
160 02.343 CLIP; BATTERY CABLE
(A) ID=20 		8-94410-200-0 01 1 9505- ●
160 02.343 CLIP; BATTERY CABLE
02.559 ID=21 L=26 		8-94126-979-1 01 1 9112- ●
161 02.343 NUT; BATTERY CABLE
CERAMIC HEATER<6YX> (B) M6 W/LK WASHER 		8-94424-179-0 01 1 9505- ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 9505- ●
161 02.343 NUT; BATTERY CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 9505- ●
182 02.343 NUT; CLIP
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 9112-9303 ● ●
182 02.343 NUT; CLIP
04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 9304-9504 ● ●
182 02.343 NUT; CLIP
04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 9505- ●
182 02.343 NUT; CLIP
EUROPE EQUIPMENT(EK4) 04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 9112-9504 ●
182 02.343 NUT; CLIP
FRIGID ZONE<YL3> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9505- ●
182 02.343 NUT; CLIP
04.594 (B) M6 FLANGE 		0-91150-106-0 03 1 9505- ●
182 02.343 NUT; CLIP
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9112-9504 ● ●

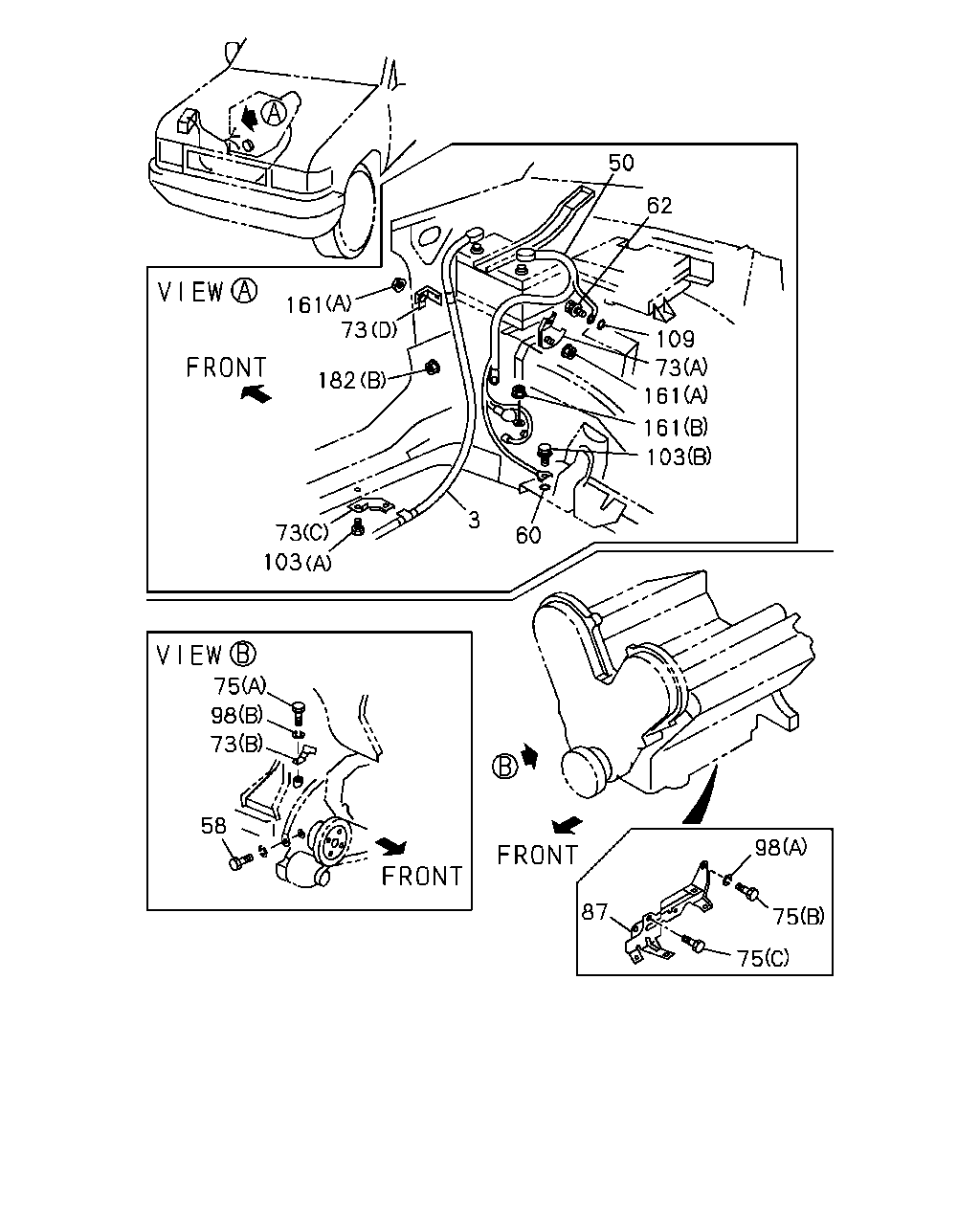

çizim 67091
161 182 73 73 103 3 60 50 62 109 73 161 161 103 75 98 73 58 98 75 75 87
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. EUROPE EQUIPMENT(EK4) 		8-94358-872-2 01 1 9112-9208 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. EUROPE EQUIPMENT(EK4) 		8-97808-819-1 01 1 9209-9504 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3>,SHIFT ON THE FLY(7EX) 		8-97808-819-1 01 1 9505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EUROPE EQUIPMENT(EK4) 		8-97805-958-3 01 1 9112-9504 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> EXC. SHIFT ON THE FLY(7EX) 		8-97805-958-3 01 1 9505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EUROPE EQUIPMENT(EK4) EXC. FRIGID ZONE<YL3>,SHIFT ON THE FLY(7EX) 		8-97808-818-1 01 1 9505- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX) EXC. FRIGID ZONE<YL3> 		8-97129-908-2 01 1 9505-9704 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX) EXC. FRIGID ZONE<YL3> 		8-97176-977-0 01 1 9705- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> SHIFT ON THE FLY(7EX) 		8-97129-905-2 01 1 9505-9703 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> SHIFT ON THE FLY(7EX) 		8-97176-974-0 01 1 9704- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 		8-97129-909-2 01 1 9505-9703 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4),FRIGID ZONE<YL3> 		8-97176-978-0 01 1 9704- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-94358-873-1 01 1 9112- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-94358-874-2 01 1 9112-9308 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97810-051-1 01 1 9309-9504 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97117-673-1 01 1 9505- ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97808-110-0 01 1 9112-9208 ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97808-511-0 01 1 9209-9308 ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97810-576-0 01 1 9309-9504 ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. CERAMIC HEATER<6YX> (A) 		8-97124-755-0 01 1 9505-9506 ●
50 02.341 CABLE; BATTERY TO BODY (-)
SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97124-755-0 01 1 9507-9607 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) EXC. CERAMIC HEATER<6YX> (A) 		8-97124-755-0 01 1 9507-9607 ●
50 02.341 CABLE; BATTERY TO BODY (-)
LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97124-755-0 01 1 9507-9607 ●
50 02.341 CABLE; BATTERY TO BODY (-)
SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97124-755-0 01 1 9608- ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) EXC. CERAMIC HEATER<6YX> (A) 		8-97124-755-0 01 1 9608- ●
50 02.341 CABLE; BATTERY TO BODY (-)
LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMEN T(S3D) (A) 		8-97124-755-0 01 1 9608- ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) (B) 		8-97805-969-1 01 1 9112-9308 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) (B) 		8-97810-574-0 01 1 9309-9504 ●
50 02.341 CABLE; BATTERY TO BODY (-)
FRIGID ZONE<YL3> (B) 		8-97810-574-0 01 1 9505- ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> (A) 		8-97808-109-0 01 1 9112-9208 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> (A) 		8-97808-510-0 01 1 9209-9308 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> (A) 		8-97810-575-0 01 1 9309-9504 ●
50 02.341 CABLE; BATTERY TO BODY (-)
CERAMIC HEATER<6YX> (A) 		8-97124-754-0 01 1 9505-9506 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> (A) 		8-97124-754-0 01 1 9507-9607 ●
50 02.341 CABLE; BATTERY TO BODY (-)
LONG(UB***F) WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97124-754-0 01 1 9507-9607 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> (A) 		8-97124-754-0 01 1 9608- ●
50 02.341 CABLE; BATTERY TO BODY (-)
LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97124-754-0 01 1 9608- ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-94358-877-2 01 1 9112-9308 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97810-573-0 01 1 9309-9504 ●
50 02.341 CABLE; BATTERY TO BODY (-)
SHIFT ON THE FLY(7EX) 		8-97130-384-0 01 1 9505-9703 ●
50 02.341 CABLE; BATTERY TO BODY (-)
SHIFT ON THE FLY(7EX) 		8-97176-972-0 01 1 9704- ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. SHIFT ON THE FLY(7EX) 		8-97124-252-1 01 1 9505- ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-94358-875-2 01 1 9112-9308 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97809-858-1 01 1 9309-9504 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97119-706-0 01 1 9505- ●
58 02.343 BOLT; CABLE,BATTERY
M10X16 		8-97807-251-0 01 1 9112-9204 ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. EUROPE EQUIPMENT(EK4) M10X16 		8-97807-251-0 01 1 9112-9204 ●
58 02.343 BOLT; CABLE,BATTERY
M10X16 		8-97807-251-0 01 1 9209-9308 ● ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> M10X16 		8-97807-251-0 01 1 9209-9308 ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) M10X16 		8-97807-251-0 01 1 9209-9308 ●
58 02.343 BOLT; CABLE,BATTERY
EUROPE EQUIPMENT(EK4) M10X16 		8-97807-251-0 02 1 9112-9204 ●
58 02.343 BOLT; CABLE,BATTERY
M10X16 		8-97807-251-0 01 1 9205-9207 ● ● ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> M10X16 		8-97807-251-0 01 1 9205-9207 ●
58 02.343 BOLT; CABLE,BATTERY
M10X16 		8-97807-251-0 01 1 9208-9208 ● ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> M10X16 		8-97807-251-0 01 1 9208-9208 ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) M10X16 		8-97807-251-0 01 1 9208-9208 ●
58 02.343 BOLT; CABLE,BATTERY
M10X16 		8-97807-251-0 01 1 9309-9504 ● ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> M10X16 		8-97807-251-0 01 1 9309-9504 ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) M10X16 		8-97807-251-0 01 1 9309-9504 ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9505- ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9505- ●
58 02.343 BOLT; CABLE,BATTERY
02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9505- ●
58 02.343 BOLT; CABLE,BATTERY
06.672 M8X16 FLANGE 		0-28010-816-0 01 1 9112-9204 ●
58 02.343 BOLT; CABLE,BATTERY
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9205- ●
60 00.002 WASHER; LK,BATTERY CABLE
ID=6.4 TOOTH LK INT-EXT 		9-09152-206-0 01 1 9112-9209 ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X22 		8-94122-771-0 01 1 9112-9209 ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9210-9504 ● ● ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9505- ● ● ●
73 02.333 BRACKET; BATTERY CABLE
02.343 (A) 		8-94315-286-0 02 1 9304-9504 ● ●
73 02.333 BRACKET; BATTERY CABLE
EXC. EUROPE EQUIPMENT(EK4) 02.343 (B) 		8-94315-286-0 01 1 9112-9303 ● ●
73 02.333 BRACKET; BATTERY CABLE
(C) 		8-97803-052-0 02 1 9112-9504 ● ● ●
73 02.333 BRACKET; BATTERY CABLE
02.343 (A) 		8-94315-286-0 02 1 9505- ●
73 02.333 BRACKET; BATTERY CABLE
EUROPE EQUIPMENT(EK4) 02.343 (A) 		8-94315-286-0 02 1 9112-9303 ●
73 02.333 BRACKET; BATTERY CABLE
EUROPE EQUIPMENT(EK4) (B) 		8-97805-900-0 01 1 9112-9208 ●
73 02.333 BRACKET; BATTERY CABLE
FRIGID ZONE<YL3> (B) 		8-97805-900-0 01 1 9209- ●
73 02.333 BRACKET; BATTERY CABLE
(C) 		8-97803-052-0 02 1 9505- ● ●
73 02.333 BRACKET; BATTERY CABLE
SHIFT ON THE FLY(7EX) (C) 		8-97803-052-0 02 1 9505- ●
73 02.333 BRACKET; BATTERY CABLE
(C) 		8-97130-428-0 01 1 9505- ●
73 02.333 BRACKET; BATTERY CABLE
(C) 		8-97805-956-0 01 1 9505- ●
73 02.333 BRACKET; BATTERY CABLE
(A) 		8-97803-308-0 01 1 9112- ●
73 02.333 BRACKET; BATTERY CABLE
(B) 		8-97803-330-2 01 1 9112- ●
73 02.333 BRACKET; BATTERY CABLE
(D) 		8-97804-787-0 01 1 9112- ●
75 02.333 BOLT; BRKT
01.073 (A) M6X14 W/LK WASHER 		9-01900-614-0 02 1 9112-9204 ● ●
75 02.333 BOLT; BRKT
00.206 (A) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9205-9208 ● ●
75 02.333 BOLT; BRKT
FRIGID ZONE<YL3> 00.206 (A) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9209-9303 ●
75 02.333 BOLT; BRKT
00.206 (A) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9304-9504 ● ●
75 02.333 BOLT; BRKT
00.206 (A) M6X14 W/LK WASHER 		0-50040-614-0 02 1 9505- ●
75 02.333 BOLT; BRKT
EXC. FRIGID ZONE<YL3> 00.206 (A) M6X14 W/LK WASHER 		0-50040-614-0 01 1 9209-9303 ● ●
75 02.333 BOLT; BRKT
00.206 (B) M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9112-9204 ● ●
75 02.333 BOLT; BRKT
12.187 (B) M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205-9208 ● ●
75 02.333 BOLT; BRKT
06.635 (B) M6X16 FLANGE 		0-28480-616-0 01 1 9209-9504 ● ●
75 02.333 BOLT; BRKT
06.635 (B) M6X16 FLANGE 		0-28480-616-0 01 1 9505- ●
75 02.333 BOLT; BRKT
01.073 (C) M6X14 W/LK WASHER 		9-01900-614-0 01 1 9112-9204 ●
75 02.333 BOLT; BRKT
04.037 (A) M6X12 		9-02040-612-0 01 1 9112-9204 ●
75 02.333 BOLT; BRKT
00.669 (A) M6X12 		0-20800-612-0 01 1 9205- ●
75 02.333 BOLT; BRKT
04.439 (B) M10X16 		9-02341-016-0 01 1 9112-9204 ●
75 02.333 BOLT; BRKT
04.435 (B) M10X16 		0-23801-016-0 01 1 9205- ●
75 02.333 BOLT; BRKT
00.206 (C) M6X14 W/LK WASHER 		0-50040-614-0 01 1 9205- ●
87 02.343 BRACKET; HARNESS
02.333 		8-94328-119-1 01 1 9112-9307 ●
87 02.343 BRACKET; HARNESS
02.333 		8-94389-953-1 01 1 9308-9504 ●
87 02.343 BRACKET; HARNESS
02.333 		8-94389-953-1 01 1 9505- ●
87 02.343 BRACKET; HARNESS
02.333 		8-97803-051-1 01 1 9112-9504 ●
87 02.343 BRACKET; HARNESS 8-97130-483-1 01 1 9505- ●
98 02.343 WASHER; LK,BRKT
00.206 (B) ID=6.1 		9-09150-506-0 01 1 9112- ●
98 02.343 WASHER; LK,BRKT
00.002 (A) ID=10.2 		9-09150-510-0 01 1 9112- ●
103 02.343 BOLT; BATTERY CABLE
13.090 (B) M6X14 		8-94153-946-0 01 1 9112-9203 ● ● ● ●
103 02.343 BOLT; BATTERY CABLE
13.090 (B) M6X22 W/LK&PL WASHER 		8-94122-769-0 01 1 9204-9209 ● ● ● ●
103 02.343 BOLT; BATTERY CABLE
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9210-9504 ● ● ● ●
103 02.343 BOLT; BATTERY CABLE
(B) M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9505- ● ● ●
103 02.343 BOLT; BATTERY CABLE
00.206 (A) M6X16 W/LK&PL WASHER 		9-01960-616-0 02 1 9112-9204 ● ● ●
103 02.343 BOLT; BATTERY CABLE
12.187 (A) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9205-9504 ● ● ●
103 02.343 BOLT; BATTERY CABLE
12.187 (A) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9505-9711 ● ●
103 02.343 BOLT; BATTERY CABLE
SHIFT ON THE FLY(7EX) 12.187 (A) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9505-9711 ●
103 02.343 BOLT; BATTERY CABLE
04.439 (A) M6X16 FLANGE 		0-28680-616-0 02 1 9712- ● ●
103 02.343 BOLT; BATTERY CABLE
SHIFT ON THE FLY(7EX) 04.439 (A) M6X16 FLANGE 		0-28680-616-0 02 1 9712- ●
109 02.343 WASHER; LK,EARTH BATTERY CABLE
02.812 ID=8.4 TOOTH LK INT-EXT 		9-09152-208-0 01 1 9112-9209 ● ● ● ●
161 02.343 NUT; BATTERY CABLE
CERAMIC HEATER<6YX> (B) M6 W/LK WASHER 		8-94424-179-0 01 1 9505- ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 9505- ●
161 02.343 NUT; BATTERY CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 02 1 9505- ●
182 02.343 NUT; CLIP
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 9112-9303 ● ●
182 02.343 NUT; CLIP
04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 9304-9504 ● ●
182 02.343 NUT; CLIP
04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 9505- ●
182 02.343 NUT; CLIP
EUROPE EQUIPMENT(EK4) 04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 9112-9504 ●
182 02.343 NUT; CLIP
FRIGID ZONE<YL3> 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9505- ●
182 02.343 NUT; CLIP
04.594 (B) M6 FLANGE 		0-91150-106-0 03 1 9505- ●
182 02.343 NUT; CLIP
04.594 (B) M6 FLANGE 		0-91150-106-0 02 1 9112-9504 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
