Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#43306) — 377 parça

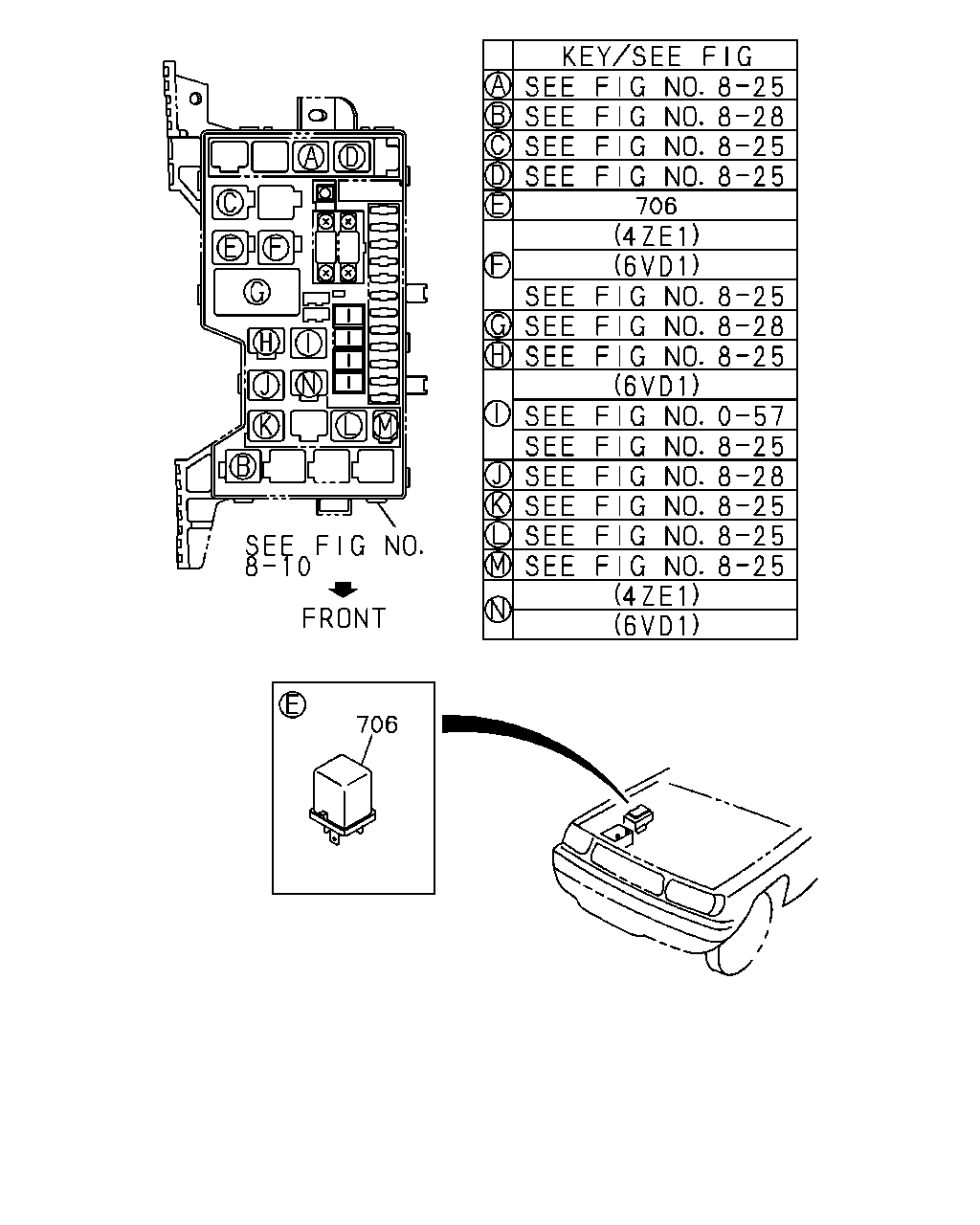

706 706

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	706	02.510 RELAY; QWS EUROPE EQUIPMENT(EK4) 03.910 12V 20A	8-94218-497-0	01	1	9112-	●

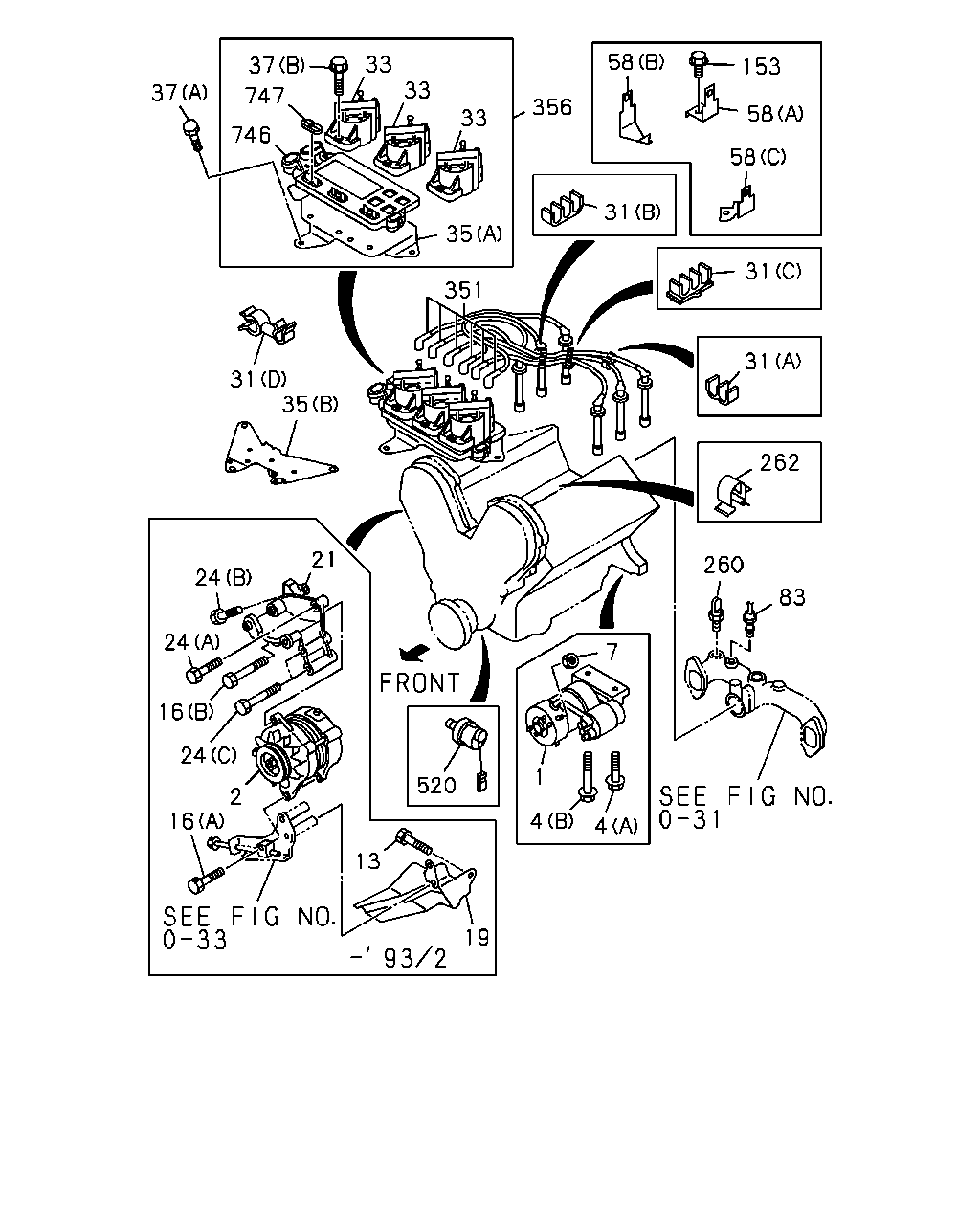

37 37 747 746 33 33 33 35 356 58 153 58 58 31 31 31 262 260 83 4 4 7 1 520 13 19 16 24 2 16 24 24 21 35 31 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

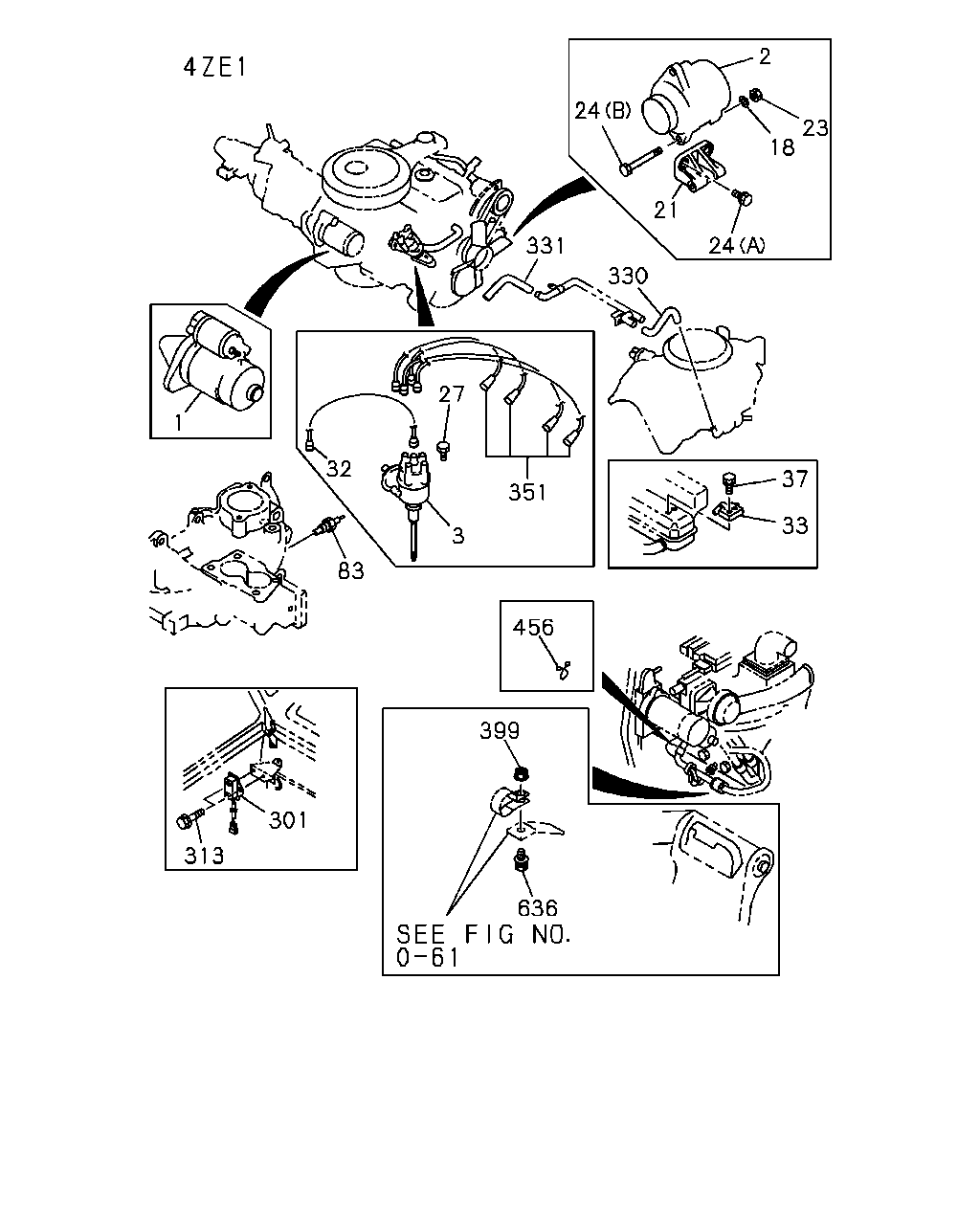

1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-94133-758-4	01	1	9112-9306		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE EQUIPMENT(EK4) 12V 2.2KW DENSO	8-94133-758-4	01	1	9112-9306	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-97042-997-0	01	1	9307-9504		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE EQUIPMENT(EK4) 12V 2.2KW DENSO	8-97042-997-0	01	1	9307-9504	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE EQUIPMENT(EK4) 12V 2.2KW DENSO	8-97042-997-0	01	1	9505-9603	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE EQUIPMENT(EK4) 12V 2.0KW	8-97120-356-1	01	1	9604-	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EUROPE EQUIPMENT(EK4) 12V 2.8KW	8-94387-653-0	01	1	9112-9410	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EUROPE EQUIPMENT(EK4) 12V 2.8KW	8-97112-549-0	01	1	9411-9606	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EUROPE EQUIPMENT(EK4) 12V 2.3KW	8-97136-688-0	01	1	9607-	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW	8-94371-833-1	01	1	9112-			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW	8-94384-314-1	01	1	9112-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT.	8-97037-724-1	01	1	9112-9202		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97037-724-1	01	1	9112-9202	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT.	8-97074-611-0	01	1	9203-9406		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97074-611-0	01	1	9203-9406	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT.	8-97113-770-0	01	1	9407-9504		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97113-770-0	01	1	9407-9504	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97113-770-0	01	1	9505-9508	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97134-762-0	01	1	9509-9607	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 60A	8-97147-851-0	01	1	9608-	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97062-641-0	01	1	9112-9202	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97074-612-0	01	1	9203-9508	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97134-866-0	01	1	9509-9603	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97133-854-0	01	1	9604-	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) GENERATOR 55A(S9S) 12V 55A	8-94156-672-1	01	1	9112-9504			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 55A	8-94472-817-4	01	1	9505-			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60), GENERATOR 55A(S9S),COOLER WO/HEATER(YL1) 12V 45A	8-94454-188-1	01	1	9112-9504			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 75A(6WN) 12V 75A	8-97034-899-2	01	1	9112-9410				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 75A(6WN) 12V 75A	8-97121-180-1	01	1	9411-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 75A(6WN) 12V 60A	8-97042-852-2	01	1	9112-9410				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 75A(6WN) 12V 60A	8-97121-193-0	01	1	9411-				●
4	02.042 BOLT; STARTER 09.008 M12X35	9-92041-235-0	02	1	9112-9204	●	●
4	02.042 BOLT; STARTER M12X35	0-20801-235-0	02	1	9205-9402	●	●
4	02.042 BOLT; STARTER 04.898 M12X50	0-10806-250-0	02	1	9403-9504	●	●
4	02.042 BOLT; STARTER 04.898 M12X50	0-10806-250-0	02	1	9505-	●
4	02.042 BOLT; STARTER 08.900 (A) M10X50 FLANGE	0-28181-050-0	01	1	9112-				●
4	02.042 BOLT; STARTER (B) M10X75 FLANGE	8-94399-669-1	01	1	9112-				●
7	02.042 NUT; STARTER 08.915	9-09111-508-0	01	1	9112-9207	●	●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9112-9504	●	●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9505-	●
7	02.042 NUT; STARTER 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	9112-				●
13	02.100 BOLT; BRKT 01.153 M10X20 W/LK&PL WASHER	0-50151-020-0	01	1	9112-9302				●
16	02.277 BOLT; GEN M10X125	9-09801-325-0	01	1	9112-9202	●	●
16	02.277 BOLT; GEN M10X130	8-94402-322-1	01	1	9203-9304	●	●
16	02.277 BOLT; GEN M10X133	5-09000-169-1	01	1	9305-9504	●	●
16	02.277 BOLT; GEN M10X133	5-09000-169-1	01	1	9505-9612	●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	9701-	●
16	02.277 BOLT; GEN 03.415 (A) M8X35 FLANGE	0-28080-835-0	01	1	9112-				●
16	02.277 BOLT; GEN 09.008 (B) M10X90 W/LK WASHER	0-50041-090-0	01	1	9112-				●
19	02.277 BRACKET; GEN	8-97041-830-3	01	1	9112-9302				●
21	02.277 BRACKET; GEN	8-94437-276-2	01	1	9112-9504	●	●
21	02.277 BRACKET; GEN	8-94437-276-2	01	1	9505-	●
21	02.277 BRACKET; GEN	8-94436-180-3	01	1	9112-9205			●
21	02.277 BRACKET; GEN	8-97071-652-1	01	1	9206-			●
21	02.277 BRACKET; GEN	8-94379-094-5	01	1	9112-				●
24	02.277 BOLT; GEN BRKT 09.171 (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-9504	●	●
24	02.277 BOLT; GEN BRKT 09.171 (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9505-	●
24	02.277 BOLT; GEN BRKT (B) M10X70 W/LK WASHER	0-50041-070-0	02	1	9112-9504	●	●
24	02.277 BOLT; GEN BRKT (B) M10X70 W/LK WASHER	0-50041-070-0	02	1	9505-	●
24	02.277 BOLT; GEN BRKT 03.417 (B) M10X100	0-10806-000-0	01	1	9112-			●
24	02.277 BOLT; GEN BRKT 01.652 (A) M10X25 W/LK WASHER	0-50041-025-0	02	1	9112-			●
24	02.277 BOLT; GEN BRKT 03.275 (A) M8X30 FLANGE	0-28080-830-0	01	1	9112-				●
24	02.277 BOLT; GEN BRKT 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	9112-				●
24	02.277 BOLT; GEN BRKT 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	9112-				●
31	02.251 CLIP; HIGH TENSION CABLE 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9112-				●
31	02.251 CLIP; HIGH TENSION CABLE 03.680 (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9112-				●
31	02.251 CLIP; HIGH TENSION CABLE 03.417 (D) ID=10 & 8	8-94470-684-0	01	1	9112-				●
31	02.251 CLIP; HIGH TENSION CABLE 02.240 (C) ID=6.8 (X3)	8-97032-586-0	03	1	9112-				●
33	02.170 COIL ASM; IGN	8-94136-766-0	01	1	9112-			●
33	02.170 COIL ASM; IGN	8-10468-391-0	03	1	9112-9309				●
33	02.170 COIL ASM; IGN	8-10472-401-0	03	1	9310-				●
35	02.183 BRACKET; IGN COIL (A)	8-10496-145-0	01	1	9112-				●
35	02.183 BRACKET; IGN COIL (B)	8-97020-690-1	01	1	9112-9206				●
35	02.183 BRACKET; IGN COIL (B)	8-97080-059-1	01	1	9207-				●
37	02.559 BOLT; IGN COIL M6X35 W/LK WASHER	0-50040-635-0	02	1	9112-			●
37	02.559 BOLT; IGN COIL 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	9112-9206				●
37	02.559 BOLT; IGN COIL 02.343 (A) M8X22	8-94122-771-0	03	1	9207-9307				●
37	02.559 BOLT; IGN COIL (A) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	9308-				●
37	02.559 BOLT; IGN COIL (B) W/LK WASHER	8-10498-731-0	06	1	9112-				●
58	02.343 BRACKET; CLIP (A)	8-97027-400-1	01	1	9112-				●
58	02.343 BRACKET; CLIP (B)	8-97027-401-2	01	1	9112-				●
58	02.343 BRACKET; CLIP (C)	8-97060-081-1	01	1	9112-				●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9112-9504	●	●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9505-	●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9112-9504	●	●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9505-	●
83	01.150 THERMOMETER UNIT DENSO	8-94247-437-1	01	1	9112-			●	●
153	02.510 BOLT; BRKT FIX 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9112-9302				●
153	02.510 BOLT; BRKT FIX 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9112-9302				●
153	02.510 BOLT; BRKT FIX 01.428 M6X12 FLANGE	0-28080-612-0	03	1	9303-				●
260	01.150 SENSOR; WATER TEMP	8-25036-979-0	01	1	9112-				●
262	02.559 CLIP; HARNESS	8-94386-489-0	02	1	9112-				●
351	02.239 CABLE KIT; HIGH TENSION	8-94433-364-1	01	1	9112-			●
351	02.239 CABLE KIT; HIGH TENSION	8-94377-271-0	01	1	9112-				●
356	02.170 COIL ASM; IGNITION	8-01103-759-0	01	1	9112-9309				●
356	02.170 COIL ASM; IGNITION GM DELCO REMY	8-01103-962-0	01	1	9310-9504				●
520	01.800 SENSOR; PRESSURE	8-97033-290-0	01	1	9112-9504				●
520	01.800 SENSOR; PRESSURE	8-97106-478-2	01	1	9505-				●
746	02.173 MODULE; IGN C0NTROL	8-10467-202-0	01	1	9112-				●
747	02.183 SEAL; IGN COIL	8-01989-579-0	03	1	9112-				●

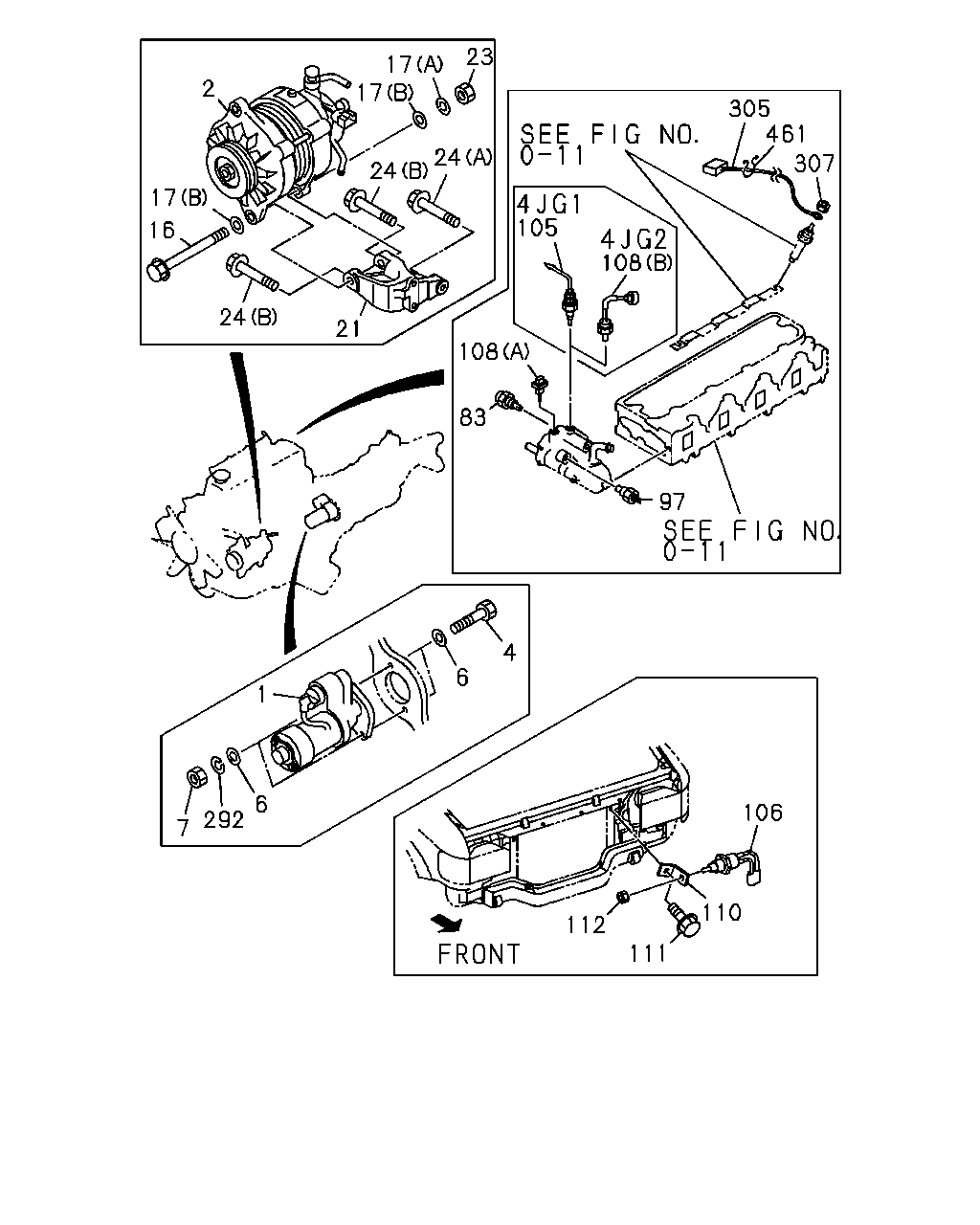

2 17 17 23 24 24 17 16 24 21 105 305 307 461 108 108 83 97 106 110 111 112 6 292 7 1 6 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-94133-758-4	01	1	9112-9306		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE EQUIPMENT(EK4) 12V 2.2KW DENSO	8-94133-758-4	01	1	9112-9306	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-97042-997-0	01	1	9307-9504		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE EQUIPMENT(EK4) 12V 2.2KW DENSO	8-97042-997-0	01	1	9307-9504	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE EQUIPMENT(EK4) 12V 2.2KW DENSO	8-97042-997-0	01	1	9505-9603	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE EQUIPMENT(EK4) 12V 2.0KW	8-97120-356-1	01	1	9604-	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EUROPE EQUIPMENT(EK4) 12V 2.8KW	8-94387-653-0	01	1	9112-9410	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EUROPE EQUIPMENT(EK4) 12V 2.8KW	8-97112-549-0	01	1	9411-9606	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EUROPE EQUIPMENT(EK4) 12V 2.3KW	8-97136-688-0	01	1	9607-	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW	8-94371-833-1	01	1	9112-			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW	8-94384-314-1	01	1	9112-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT.	8-97037-724-1	01	1	9112-9202		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97037-724-1	01	1	9112-9202	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT.	8-97074-611-0	01	1	9203-9406		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97074-611-0	01	1	9203-9406	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT.	8-97113-770-0	01	1	9407-9504		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97113-770-0	01	1	9407-9504	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97113-770-0	01	1	9505-9508	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97134-762-0	01	1	9509-9607	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 60A	8-97147-851-0	01	1	9608-	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97062-641-0	01	1	9112-9202	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97074-612-0	01	1	9203-9508	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97134-866-0	01	1	9509-9603	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97133-854-0	01	1	9604-	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) GENERATOR 55A(S9S) 12V 55A	8-94156-672-1	01	1	9112-9504			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 55A	8-94472-817-4	01	1	9505-			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60), GENERATOR 55A(S9S),COOLER WO/HEATER(YL1) 12V 45A	8-94454-188-1	01	1	9112-9504			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 75A(6WN) 12V 75A	8-97034-899-2	01	1	9112-9410				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 75A(6WN) 12V 75A	8-97121-180-1	01	1	9411-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 75A(6WN) 12V 60A	8-97042-852-2	01	1	9112-9410				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 75A(6WN) 12V 60A	8-97121-193-0	01	1	9411-				●
4	02.042 BOLT; STARTER 09.008 M12X35	9-92041-235-0	02	1	9112-9204	●	●
4	02.042 BOLT; STARTER M12X35	0-20801-235-0	02	1	9205-9402	●	●
4	02.042 BOLT; STARTER 04.898 M12X50	0-10806-250-0	02	1	9403-9504	●	●
4	02.042 BOLT; STARTER 04.898 M12X50	0-10806-250-0	02	1	9505-	●
4	02.042 BOLT; STARTER 08.900 (A) M10X50 FLANGE	0-28181-050-0	01	1	9112-				●
4	02.042 BOLT; STARTER (B) M10X75 FLANGE	8-94399-669-1	01	1	9112-				●
6	02.042 WASHER; PL,STARTER 03.430 ID=12.5	9-09160-512-0	04	1	9112-9502	●	●
7	02.042 NUT; STARTER 08.915	9-09111-508-0	01	1	9112-9207	●	●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9112-9504	●	●
7	02.042 NUT; STARTER 05.816 M12	9-99110-412-0	02	1	9505-	●
7	02.042 NUT; STARTER 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	9112-				●
16	02.277 BOLT; GEN M10X125	9-09801-325-0	01	1	9112-9202	●	●
16	02.277 BOLT; GEN M10X130	8-94402-322-1	01	1	9203-9304	●	●
16	02.277 BOLT; GEN M10X133	5-09000-169-1	01	1	9305-9504	●	●
16	02.277 BOLT; GEN M10X133	5-09000-169-1	01	1	9505-9612	●
16	02.277 BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	9701-	●
16	02.277 BOLT; GEN 03.415 (A) M8X35 FLANGE	0-28080-835-0	01	1	9112-				●
16	02.277 BOLT; GEN 09.008 (B) M10X90 W/LK WASHER	0-50041-090-0	01	1	9112-				●
17	02.277 WASHER; PL,GEN 00.002 (A) ID=10.2	9-09150-510-0	01	1	9112-9504	●	●
17	02.277 WASHER; PL,GEN 00.002 (A) ID=10.2	9-09150-510-0	01	1	9505-9612	●
17	02.277 WASHER; PL,GEN 16.682 (B) ID=10.5 OD=22	9-09160-610-0	02	1	9112-9504	●	●
17	02.277 WASHER; PL,GEN 16.682 (B) ID=10.5 OD=22	9-09160-610-0	02	1	9505-9612	●
21	02.277 BRACKET; GEN	8-94437-276-2	01	1	9112-9504	●	●
21	02.277 BRACKET; GEN	8-94437-276-2	01	1	9505-	●
21	02.277 BRACKET; GEN	8-94436-180-3	01	1	9112-9205			●
21	02.277 BRACKET; GEN	8-97071-652-1	01	1	9206-			●
21	02.277 BRACKET; GEN	8-94379-094-5	01	1	9112-				●
23	02.277 NUT; GEN 08.917 M10 FLANGE	0-91150-210-0	01	1	9701-9703	●
23	02.277 NUT; GEN 08.917 M10 FLANGE	0-91150-210-0	01	1	9704-	●		●
23	02.277 NUT; GEN 00.002 M10	9-09110-510-0	01	1	9112-9504	●	●	●
23	02.277 NUT; GEN 00.002 M10	9-09110-510-0	01	1	9505-9612	●		●
23	02.277 NUT; GEN 00.002 M10	9-09110-510-0	01	1	9701-9703			●
24	02.277 BOLT; GEN BRKT 09.171 (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-9504	●	●
24	02.277 BOLT; GEN BRKT 09.171 (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9505-	●
24	02.277 BOLT; GEN BRKT (B) M10X70 W/LK WASHER	0-50041-070-0	02	1	9112-9504	●	●
24	02.277 BOLT; GEN BRKT (B) M10X70 W/LK WASHER	0-50041-070-0	02	1	9505-	●
24	02.277 BOLT; GEN BRKT 03.417 (B) M10X100	0-10806-000-0	01	1	9112-			●
24	02.277 BOLT; GEN BRKT 01.652 (A) M10X25 W/LK WASHER	0-50041-025-0	02	1	9112-			●
24	02.277 BOLT; GEN BRKT 03.275 (A) M8X30 FLANGE	0-28080-830-0	01	1	9112-				●
24	02.277 BOLT; GEN BRKT 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	9112-				●
24	02.277 BOLT; GEN BRKT 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	9112-				●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9112-9504	●	●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9505-	●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9112-9504	●	●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9505-	●
83	01.150 THERMOMETER UNIT DENSO	8-94247-437-1	01	1	9112-			●	●
97	01.150 SWITCH; THERMO,EGR CONT EUROPE EQUIPMENT(EK4)	8-94368-591-0	01	1	9112-9504	●
105	01.150 SWITCH; THERMO,QOS	8-97038-957-0	01	1	9112-9504		●
106	01.150 SWITCH; THERMO,AIR EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97043-749-0	01	1	9112-9308	●
106	01.150 SWITCH; THERMO,AIR EUROPE EQUIPMENT(EK4)	8-97043-749-0	01	1	9309-9505	●
106	01.150 SWITCH; THERMO,AIR EUROPE EQUIPMENT(EK4),WEST MALAYSIA EQUIPMENT(S3D)	8-97043-749-0	01	1	9506-9607	●
106	01.150 SWITCH; THERMO,AIR EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97043-749-0	01	1	9608-	●
108	01.150 SWITCH; THERMO (A)	8-97036-606-0	01	1	9112-9307	●
108	01.150 SWITCH; THERMO EUROPE EQUIPMENT(EK4) (A)	8-97036-606-0	01	1	9308-9308	●
108	01.150 SWITCH; THERMO (A)	8-97069-786-1	01	1	9309-	●
108	01.150 SWITCH; THERMO EUROPE EQUIPMENT(EK4) (B)	8-97038-956-0	01	1	9309-	●
108	01.150 SWITCH; THERMO EXC. EUROPE EQUIPMENT(EK4) (A)	8-97069-786-1	01	1	9308-9308	●
108	01.150 SWITCH; THERMO EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B)	8-97038-956-0	01	1	9112-9308	●
110	01.251 BRACKET; THERMO SW CONNECTOR EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-97043-565-0	01	1	9112-9308	●
110	01.251 BRACKET; THERMO SW CONNECTOR EUROPE EQUIPMENT(EK4)	8-97043-565-0	01	1	9309-9504	●
110	01.251 BRACKET; THERMO SW CONNECTOR EUROPE EQUIPMENT(EK4)	8-97043-565-0	01	1	9505-9505	●
110	01.251 BRACKET; THERMO SW CONNECTOR EUROPE EQUIPMENT(EK4),WEST MALAYSIA EQUIPMENT(S3D)	8-97043-565-0	01	1	9506-9506	●
110	01.251 BRACKET; THERMO SW CONNECTOR EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97043-565-0	01	1	9507-9607	●
110	01.251 BRACKET; THERMO SW CONNECTOR EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D)	8-97043-565-0	01	1	9608-	●
111	01.251 BOLT; SWITCH BRKT EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9112-9308	●
111	01.251 BOLT; SWITCH BRKT EUROPE EQUIPMENT(EK4) EXC. AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9309-9505	●
111	01.251 BOLT; SWITCH BRKT EUROPE EQUIPMENT(EK4),WEST MALAYSIA EQUIPMENT(S3D) EXC. AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9506-9607	●
111	01.251 BOLT; SWITCH BRKT EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) EXC. AIR CONDITIONER MANUAL CONT(C60) 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	9608-	●
112	01.251 NUT; SWITCH BRKT EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 04.681 M16	9-99111-416-0	01	1	9112-9308	●
112	01.251 NUT; SWITCH BRKT EUROPE EQUIPMENT(EK4) 04.681 M16	9-99111-416-0	01	1	9309-9504	●
112	01.251 NUT; SWITCH BRKT EUROPE EQUIPMENT(EK4) 04.681 M16	9-99111-416-0	01	1	9505-9505	●
112	01.251 NUT; SWITCH BRKT EUROPE EQUIPMENT(EK4),WEST MALAYSIA EQUIPMENT(S3D) 04.681 M16	9-99111-416-0	01	1	9506-9506	●
112	01.251 NUT; SWITCH BRKT EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 04.681 M16	9-99111-416-0	01	1	9507-9607	●
112	01.251 NUT; SWITCH BRKT EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 04.681 M16	9-99111-416-0	01	1	9608-	●
292	02.042 WASHER; LK,STARTER 00.002 ID=8.2	9-09150-508-0	01	1	9112-9207	●	●
292	02.042 WASHER; LK,STARTER 04.634 ID=12.2	9-09150-512-0	02	1	9112-9502	●	●
305	02.480 HARNESS; EXT,GLOW PLUG	8-97038-742-0	01	1	9112-9504	●	●
305	02.480 HARNESS; EXT,GLOW PLUG	8-97038-742-3	01	1	9505-	●
307	02.483 NUT; EXT HARNESS M4 FLANGE	8-94178-698-0	01	1	9112-9504	●	●
307	02.483 NUT; EXT HARNESS M4 FLANGE	8-94178-698-0	01	1	9505-9511	●
461	02.559 CLIP; PURSE LOCK AIR CONDITIONER MANUAL CONT(C60) 01.540 ID=30	8-94315-423-0	02	1	9112-9504	●	●
461	02.559 CLIP; PURSE LOCK AIR CONDITIONER MANUAL CONT(C60) 01.540 ID=30	8-94315-423-0	02	1	9505-	●
461	02.559 CLIP; PURSE LOCK EXC. AIR CONDITIONER MANUAL CONT(C60) 16.065 ID=20	1-09709-068-0	02	1	9112-9504	●	●
461	02.559 CLIP; PURSE LOCK EXC. AIR CONDITIONER MANUAL CONT(C60) 16.065 ID=20	1-09709-068-0	02	1	9505-	●

124 797 301 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
124	01.150 SENSOR; OXYGEN EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D)	8-97024-256-0	01	1	9309-9607				●
124	01.150 SENSOR; OXYGEN EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D)	8-97024-256-0	01	1	9608-				●
301	02.510 RESISTOR; DROPPING EUROPE EQUIPMENT(EK4) EXC. IRISH EQUIPMENT(6CU)	8-97012-586-1	01	1	9112-9212	●	●	●	●
301	02.510 RESISTOR; DROPPING EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2),IRISH EQUIPMENT(6CU)	8-97012-586-1	01	1	9301-9308	●	●	●	●
301	02.510 RESISTOR; DROPPING	8-94389-802-1	01	1	9309-	●
313	02.500 BOLT; RESISTOR TO BRKT EUROPE EQUIPMENT(EK4) EXC. IRISH EQUIPMENT(6CU) 04.785 M6X14 W/LK&PL WASHER	9-01960-614-0	02	1	9112-9204	●	●	●	●
313	02.500 BOLT; RESISTOR TO BRKT EUROPE EQUIPMENT(EK4) EXC. IRISH EQUIPMENT(6CU) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9205-9212	●	●	●	●
313	02.500 BOLT; RESISTOR TO BRKT EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2),IRISH EQUIPMENT(6CU) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9301-9308	●	●	●	●
313	02.500 BOLT; RESISTOR TO BRKT 00.206 M6X14 W/LK WASHER	0-50040-614-0	02	1	9309-	●
797	01.150 SENSOR; MAT 03.682	8-25037-334-0	01	1	9309-				●

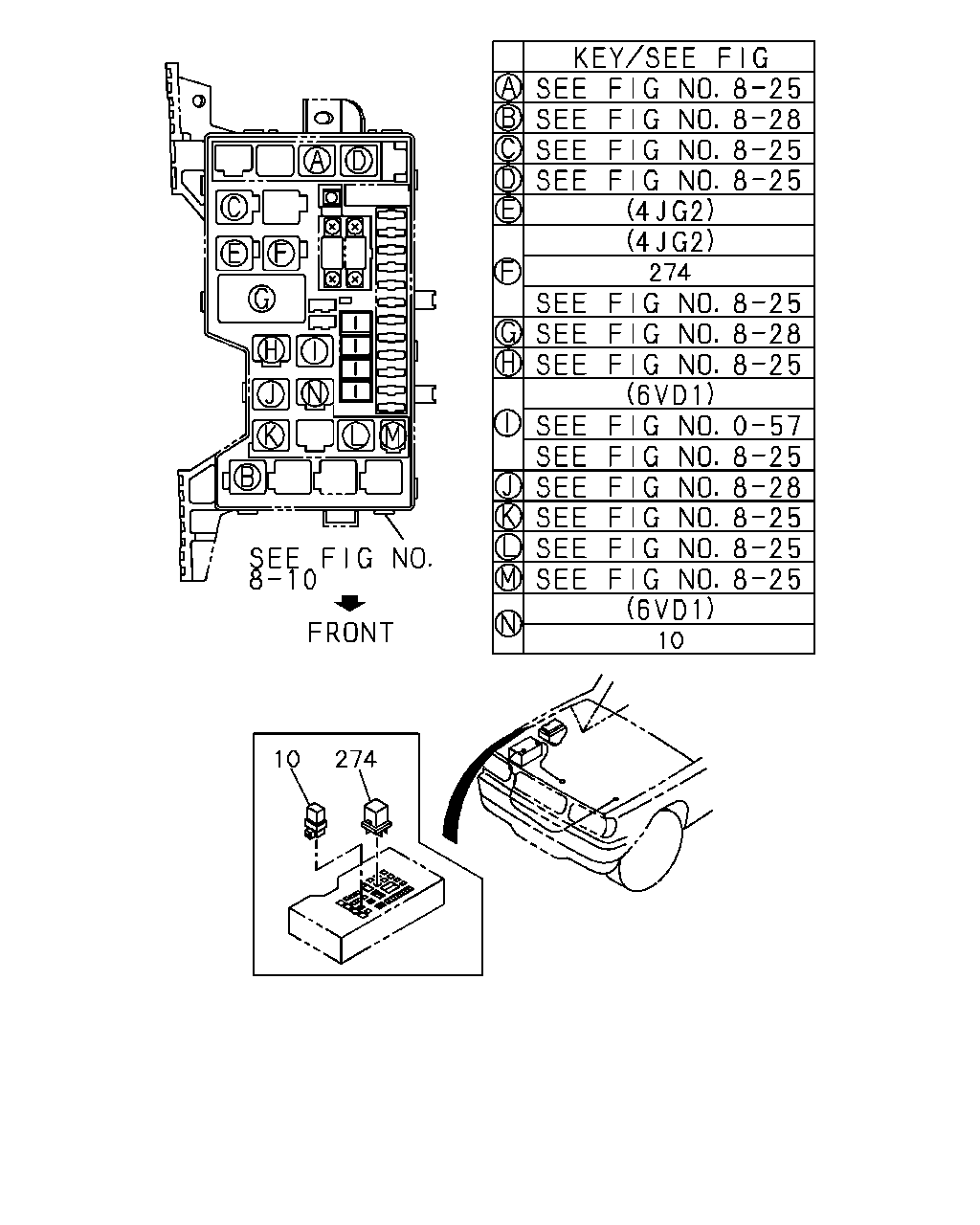

10 274 10 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
10	02.100 RELAY; STARTER 01.055 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
10	02.100 RELAY; STARTER 02.515 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
10	02.100 RELAY; STARTER 02.515 12V 20A	8-97093-910-1	01	1	9505-	●
10	02.100 RELAY; STARTER 02.510 12V 15A	8-94147-095-0	01	1	9505-		●
274	02.510 RELAY; ENG RESTART 03.910 12V 20A	8-94218-497-0	01	1	9112-9504	●	●

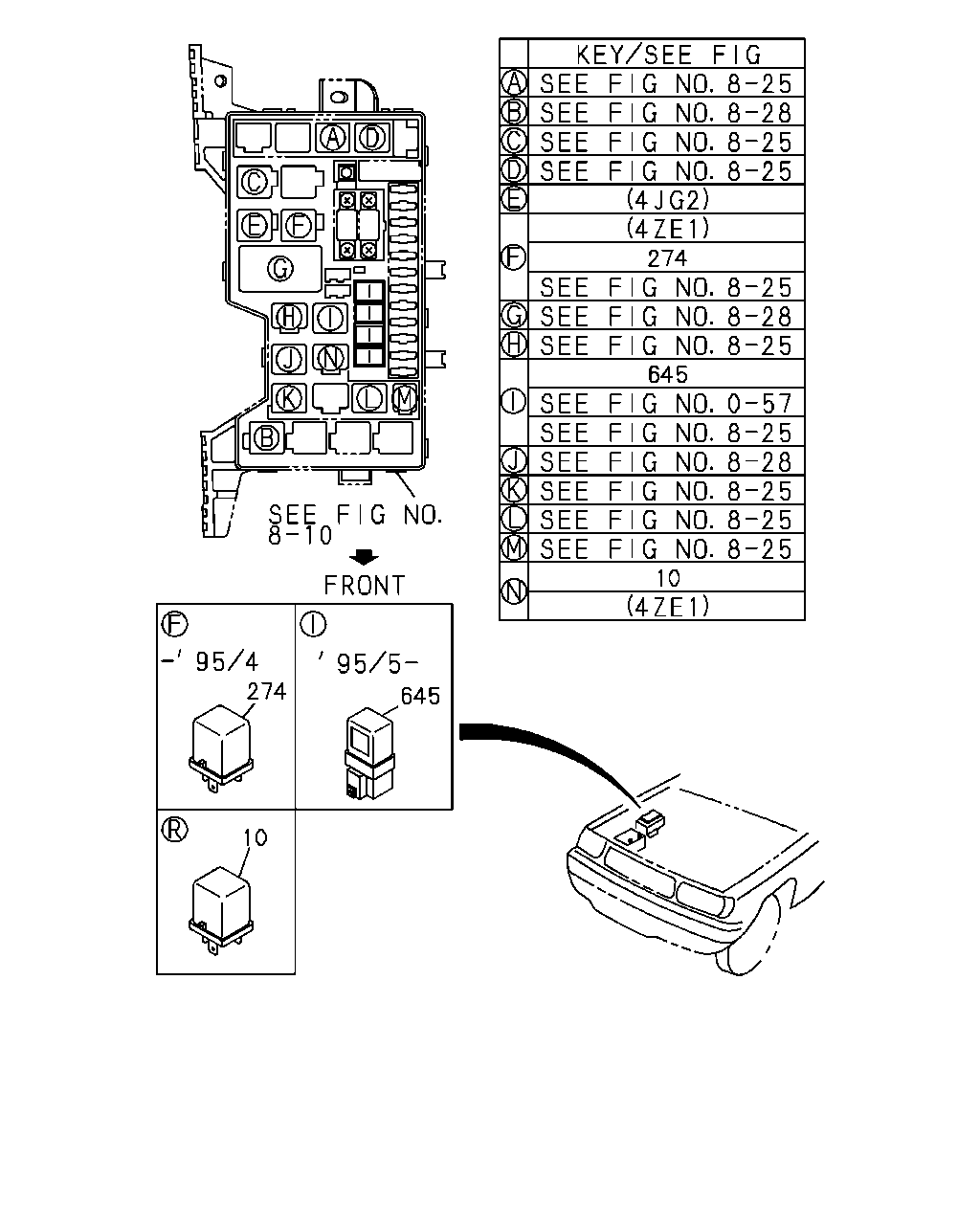

274 645 10 10 645 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
10	02.100 RELAY; STARTER 01.055 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
10	02.100 RELAY; STARTER 02.515 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
10	02.100 RELAY; STARTER 02.515 12V 20A	8-97093-910-1	01	1	9505-	●
10	02.100 RELAY; STARTER 02.510 12V 15A	8-94147-095-0	01	1	9505-		●
274	02.510 RELAY; ENG RESTART 03.910 12V 20A	8-94218-497-0	01	1	9112-9504	●	●
645	02.510 RELAY; ENG CONT 02.515 12V 20A	8-97093-910-1	01	1	9505-		●

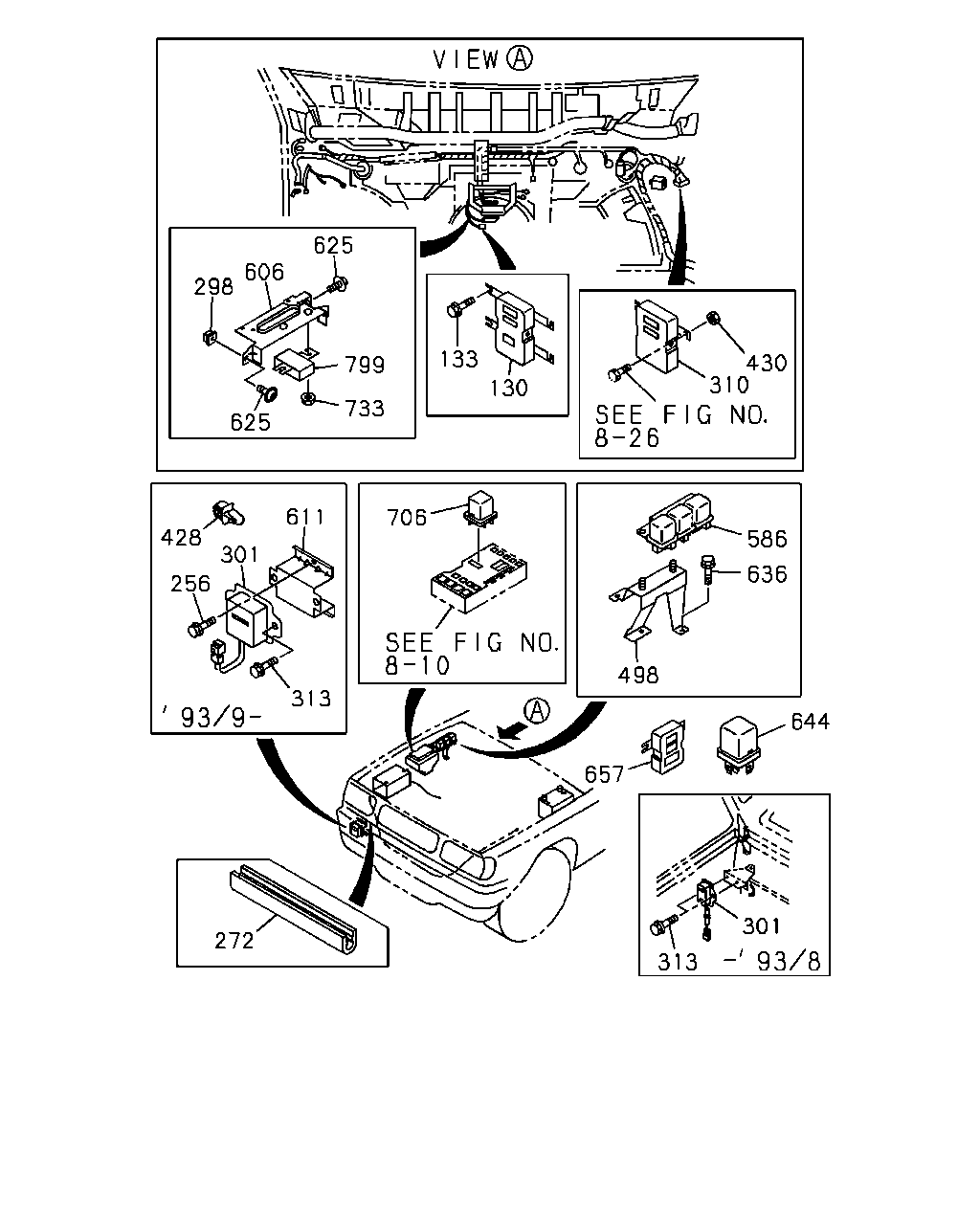

272 313 301 657 644 498 636 586 706 313 256 428 301 611 310 430 130 133 799 733 625 298 606 625

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
130	02.510 CONTROLLER; EGR EUROPE EQUIPMENT(EK4)	8-97038-187-4	01	1	9112-9308	●
130	02.510 CONTROLLER; EGR EUROPE EQUIPMENT(EK4)	8-97086-801-3	01	1	9309-9504	●
133	02.500 BOLT; EGR CONTROLLER EUROPE EQUIPMENT(EK4) 04.686 M6X14 FLANGE	0-28080-614-0	04	1	9212-9308	●
133	02.500 BOLT; EGR CONTROLLER EUROPE EQUIPMENT(EK4) 04.686 M6X14 FLANGE	0-28080-614-0	04	1	9309-9504	●
256	02.510 BOLT; BRKT,RESISTOR EXC. EUROPE EQUIPMENT(EK4) 04.785 M6X14 W/LK&PL WASHER	9-01960-614-0	02	1	9112-9204	●
256	02.510 BOLT; BRKT,RESISTOR IRISH EQUIPMENT(6CU) 04.785 M6X14 W/LK&PL WASHER	9-01960-614-0	02	1	9112-9204	●
256	02.510 BOLT; BRKT,RESISTOR EXC. EUROPE EQUIPMENT(EK4) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9205-9212	●
256	02.510 BOLT; BRKT,RESISTOR IRISH EQUIPMENT(6CU) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9205-9212	●
256	02.510 BOLT; BRKT,RESISTOR EXC. EUROPE EQUIPMENT(EK4) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9301-9308	●
256	02.510 BOLT; BRKT,RESISTOR SOUTH AFRICA EQUIPMENT(SW2),IRISH EQUIPMENT(6CU) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9301-9308	●
256	02.510 BOLT; BRKT,RESISTOR 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9309-	●
272	02.559 PROTECTOR; EDGE 02.530 L=65	8-94235-856-0	01	1	9201-9504	●
298	02.510 GROMMET; SCREW 09.190 D=9X9 L=8 M6	8-94222-314-0	02	1	9505-	●
301	02.510 RESISTOR; DROPPING EUROPE EQUIPMENT(EK4) EXC. IRISH EQUIPMENT(6CU)	8-97012-586-1	01	1	9112-9212	●	●	●	●
301	02.510 RESISTOR; DROPPING EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2),IRISH EQUIPMENT(6CU)	8-97012-586-1	01	1	9301-9308	●	●	●	●
301	02.510 RESISTOR; DROPPING	8-94389-802-1	01	1	9309-	●
310	02.510 CONTROLLER; QOS	8-94364-590-0	01	1	9112-9208	●
310	02.510 CONTROLLER; QOS	8-97068-787-0	01	1	9209-9504	●
310	02.510 CONTROLLER; QOS EXC. EUROPE EQUIPMENT(EK4)	8-97047-029-0	01	1	9505-9506	●
310	02.510 CONTROLLER; QOS EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97047-029-0	01	1	9507-9608	●
310	02.510 CONTROLLER; QOS EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97047-029-0	01	1	9608-	●
313	02.500 BOLT; RESISTOR TO BRKT EUROPE EQUIPMENT(EK4) EXC. IRISH EQUIPMENT(6CU) 04.785 M6X14 W/LK&PL WASHER	9-01960-614-0	02	1	9112-9204	●	●	●	●
313	02.500 BOLT; RESISTOR TO BRKT EUROPE EQUIPMENT(EK4) EXC. IRISH EQUIPMENT(6CU) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9205-9212	●	●	●	●
313	02.500 BOLT; RESISTOR TO BRKT EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2),IRISH EQUIPMENT(6CU) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9301-9308	●	●	●	●
313	02.500 BOLT; RESISTOR TO BRKT 00.206 M6X14 W/LK WASHER	0-50040-614-0	02	1	9309-	●
428	02.559 CLIP; HARNESS 08.077	8-94225-098-0	01	1	9505-	●
430	02.100 NUT; RELAY FIX 04.594 M6 FLANGE	0-91150-106-0	02	1	9112-9504	●	●
430	02.100 NUT; RELAY FIX 04.594 M6 FLANGE	0-91150-106-0	02	1	9505-	●
498	02.510 BRACKET; RELAY	8-94389-761-4	01	1	9112-9504	●	●
498	02.510 BRACKET; RELAY	8-94389-761-4	01	1	9505-	●
586	02.100 RELAY; QOS	8-94389-801-1	01	1	9112-9504		●
586	02.100 RELAY; QOS	8-94389-760-1	01	1	9112-	●
606	03.680 BRACKET; CONT UNIT EUROPE EQUIPMENT(EK4)	8-97110-327-0	01	1	9505-9506	●
606	03.680 BRACKET; CONT UNIT EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97110-327-0	01	1	9507-9607	●
606	03.680 BRACKET; CONT UNIT EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), WEST MALAYSIA EQUIPMENT(S3D)	8-97110-327-0	01	1	9608-	●
606	03.680 BRACKET; CONT UNIT EXC. EUROPE EQUIPMENT(EK4)	8-97110-369-0	01	1	9505-9506	●
606	03.680 BRACKET; CONT UNIT EXC. EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97110-369-0	01	1	9507-9607	●
606	03.680 BRACKET; CONT UNIT EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97110-369-0	01	1	9608-	●
611	01.150 BRACKET; SENSOR	8-97038-641-0	01	1	9112-	●
625	02.270 SCREW; CONT UNIT 16.585 M6X14 W/PL WASHER	9-03900-614-0	03	1	9505-	●
636	02.510 BOLT; BRKT 10.230 M6X16 FLANGE	8-94380-676-1	03	1	9112-9407	●	●
636	02.510 BOLT; BRKT 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9408-9504	●	●
636	02.510 BOLT; BRKT 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9505-	●
636	02.510 BOLT; BRKT EXC. EUROPE EQUIPMENT(EK4) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9505-	●
636	02.510 BOLT; BRKT 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9505-			●
644	02.510 RELAY; COLD START DEVICE 03.910 12V 20A	8-94218-497-0	01	1	9112-9504		●
657	02.510 TIMER; GLOW PLUG	8-94434-876-0	01	1	9112-9208		●
657	02.510 TIMER; GLOW PLUG	8-97068-786-0	01	1	9209-9504		●
706	02.510 RELAY; QWS EUROPE EQUIPMENT(EK4) 03.910 12V 20A	8-94218-497-0	01	1	9112-	●
733	02.343 NUT; BRKT 03.671 M5 FLANGE	8-94178-699-0	02	1	9505-9607	●
733	02.343 NUT; BRKT 03.671 M5 FLANGE	8-94178-699-0	02	1	9608-	●
799	02.510 CONTROLLER; EGR/QOS EUROPE EQUIPMENT(EK4)	8-97110-340-1	01	1	9505-9506	●
799	02.510 CONTROLLER; EGR/QOS EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97110-340-1	01	1	9507-9607	●
799	02.510 CONTROLLER; EGR/QOS EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), WEST MALAYSIA EQUIPMENT(S3D)	8-97110-340-1	01	1	9608-	●

24 2 23 18 21 24 330 331 1 32 83 3 27 351 37 33 456 399 636 301 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-94133-758-4	01	1	9112-9306		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE EQUIPMENT(EK4) 12V 2.2KW DENSO	8-94133-758-4	01	1	9112-9306	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-97042-997-0	01	1	9307-9504		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE EQUIPMENT(EK4) 12V 2.2KW DENSO	8-97042-997-0	01	1	9307-9504	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE EQUIPMENT(EK4) 12V 2.2KW DENSO	8-97042-997-0	01	1	9505-9603	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE EQUIPMENT(EK4) 12V 2.0KW	8-97120-356-1	01	1	9604-	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EUROPE EQUIPMENT(EK4) 12V 2.8KW	8-94387-653-0	01	1	9112-9410	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EUROPE EQUIPMENT(EK4) 12V 2.8KW	8-97112-549-0	01	1	9411-9606	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EUROPE EQUIPMENT(EK4) 12V 2.3KW	8-97136-688-0	01	1	9607-	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW	8-94371-833-1	01	1	9112-			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW	8-94384-314-1	01	1	9112-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT.	8-97037-724-1	01	1	9112-9202		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97037-724-1	01	1	9112-9202	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT.	8-97074-611-0	01	1	9203-9406		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97074-611-0	01	1	9203-9406	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT.	8-97113-770-0	01	1	9407-9504		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97113-770-0	01	1	9407-9504	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97113-770-0	01	1	9505-9508	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97134-762-0	01	1	9509-9607	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 60A	8-97147-851-0	01	1	9608-	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97062-641-0	01	1	9112-9202	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97074-612-0	01	1	9203-9508	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97134-866-0	01	1	9509-9603	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97133-854-0	01	1	9604-	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(YL1) GENERATOR 55A(S9S) 12V 55A	8-94156-672-1	01	1	9112-9504			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 55A	8-94472-817-4	01	1	9505-			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AIR CONDITIONER MANUAL CONT(C60), GENERATOR 55A(S9S),COOLER WO/HEATER(YL1) 12V 45A	8-94454-188-1	01	1	9112-9504			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 75A(6WN) 12V 75A	8-97034-899-2	01	1	9112-9410				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 75A(6WN) 12V 75A	8-97121-180-1	01	1	9411-				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 75A(6WN) 12V 60A	8-97042-852-2	01	1	9112-9410				●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 75A(6WN) 12V 60A	8-97121-193-0	01	1	9411-				●
3	02.361 DISTRIBUTOR ASM SEE FIG-NO 0-71 FOR COMPONENT.	8-94476-142-1	01	1	9112-			●
18	02.317 WASHER; LK,GEN 00.002 ID=10.2	9-09150-510-0	01	1	9112-9703			●
21	02.277 BRACKET; GEN	8-94437-276-2	01	1	9112-9504	●	●
21	02.277 BRACKET; GEN	8-94437-276-2	01	1	9505-	●
21	02.277 BRACKET; GEN	8-94436-180-3	01	1	9112-9205			●
21	02.277 BRACKET; GEN	8-97071-652-1	01	1	9206-			●
21	02.277 BRACKET; GEN	8-94379-094-5	01	1	9112-				●
23	02.277 NUT; GEN 08.917 M10 FLANGE	0-91150-210-0	01	1	9701-9703	●
23	02.277 NUT; GEN 08.917 M10 FLANGE	0-91150-210-0	01	1	9704-	●		●
23	02.277 NUT; GEN 00.002 M10	9-09110-510-0	01	1	9112-9504	●	●	●
23	02.277 NUT; GEN 00.002 M10	9-09110-510-0	01	1	9505-9612	●		●
23	02.277 NUT; GEN 00.002 M10	9-09110-510-0	01	1	9701-9703			●
24	02.277 BOLT; GEN BRKT 09.171 (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-9504	●	●
24	02.277 BOLT; GEN BRKT 09.171 (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9505-	●
24	02.277 BOLT; GEN BRKT (B) M10X70 W/LK WASHER	0-50041-070-0	02	1	9112-9504	●	●
24	02.277 BOLT; GEN BRKT (B) M10X70 W/LK WASHER	0-50041-070-0	02	1	9505-	●
24	02.277 BOLT; GEN BRKT 03.417 (B) M10X100	0-10806-000-0	01	1	9112-			●
24	02.277 BOLT; GEN BRKT 01.652 (A) M10X25 W/LK WASHER	0-50041-025-0	02	1	9112-			●
24	02.277 BOLT; GEN BRKT 03.275 (A) M8X30 FLANGE	0-28080-830-0	01	1	9112-				●
24	02.277 BOLT; GEN BRKT 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	9112-				●
24	02.277 BOLT; GEN BRKT 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	9112-				●
27	02.363 BOLT; DISTR 02.559 M8X22 W/LK&PL WASHER	0-50140-822-0	01	1	9112-9612			●
27	02.363 BOLT; DISTR 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9701-			●
32	02.525 CABLE; DISTR TO IGN COIL 02.240	8-94136-794-0	01	1	9112-			●
33	02.170 COIL ASM; IGN	8-94136-766-0	01	1	9112-			●
33	02.170 COIL ASM; IGN	8-10468-391-0	03	1	9112-9309				●
33	02.170 COIL ASM; IGN	8-10472-401-0	03	1	9310-				●
37	02.559 BOLT; IGN COIL M6X35 W/LK WASHER	0-50040-635-0	02	1	9112-			●
37	02.559 BOLT; IGN COIL 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	9112-9206				●
37	02.559 BOLT; IGN COIL 02.343 (A) M8X22	8-94122-771-0	03	1	9207-9307				●
37	02.559 BOLT; IGN COIL (A) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	9308-				●
37	02.559 BOLT; IGN COIL (B) W/LK WASHER	8-10498-731-0	06	1	9112-				●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9112-9504	●	●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9505-	●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9112-9504	●	●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9505-	●
83	01.150 THERMOMETER UNIT DENSO	8-94247-437-1	01	1	9112-			●	●
301	02.510 RESISTOR; DROPPING EUROPE EQUIPMENT(EK4) EXC. IRISH EQUIPMENT(6CU)	8-97012-586-1	01	1	9112-9212	●	●	●	●
301	02.510 RESISTOR; DROPPING EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2),IRISH EQUIPMENT(6CU)	8-97012-586-1	01	1	9301-9308	●	●	●	●
301	02.510 RESISTOR; DROPPING	8-94389-802-1	01	1	9309-	●
313	02.500 BOLT; RESISTOR TO BRKT EUROPE EQUIPMENT(EK4) EXC. IRISH EQUIPMENT(6CU) 04.785 M6X14 W/LK&PL WASHER	9-01960-614-0	02	1	9112-9204	●	●	●	●
313	02.500 BOLT; RESISTOR TO BRKT EUROPE EQUIPMENT(EK4) EXC. IRISH EQUIPMENT(6CU) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9205-9212	●	●	●	●
313	02.500 BOLT; RESISTOR TO BRKT EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2),IRISH EQUIPMENT(6CU) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9301-9308	●	●	●	●
313	02.500 BOLT; RESISTOR TO BRKT 00.206 M6X14 W/LK WASHER	0-50040-614-0	02	1	9309-	●
330	03.726 HOSE; CARBURETOR TO DISTR 08.962 L=70 SERVICED BY L=3000	0-04742-300-0	01	1	9112-			●
331	03.726 HOSE; CARB TO 3 WAY 08.962 L=150 SERVICED BY L=3000	0-04742-300-0	01	1	9112-9607			●
351	02.239 CABLE KIT; HIGH TENSION	8-94433-364-1	01	1	9112-			●
351	02.239 CABLE KIT; HIGH TENSION	8-94377-271-0	01	1	9112-				●
399	02.559 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	9112-9504			●
456	02.559 CLIP; OIL PRESSURE SW 16.065 ID=20	1-09709-068-0	01	1	9112-			●
636	02.510 BOLT; BRKT 10.230 M6X16 FLANGE	8-94380-676-1	03	1	9112-9407	●	●
636	02.510 BOLT; BRKT 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9408-9504	●	●
636	02.510 BOLT; BRKT 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9505-	●
636	02.510 BOLT; BRKT EXC. EUROPE EQUIPMENT(EK4) 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9505-	●
636	02.510 BOLT; BRKT 08.900 M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9505-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
