Sayfa 0-56 - Isuzu EPC

0-56 — EMISSION SYSTEM (#43304) — 187 parça

22 114 106 183 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	03.675 PIPE; VAC,AIR SWITCHING VLV 03.665 L=160.5	8-94159-232-1	01	1	9112-	●
106	03.415 COVER; ECM M/T MUA 5 SPEED(RMN) BLACK	8-97805-296-4	01	1	9112-9504	●	●	●	●
106	03.415 COVER; ECM A/T THM(RMQ) BLACK	8-97805-295-4	01	1	9112-9307				●
106	03.415 COVER; ECM A/T THM(RMQ) BLACK	8-97805-297-5	01	1	9308-9504				●
114	03.415 SCREW; ENG CONT 16.085 (A) M5X16 TAPPING	9-09829-323-1	04	1	9112-9112	●	●	●	●
114	03.415 SCREW; ENG CONT 02.688 (A) M5X16	8-94384-690-0	04	1	9201-9504	●	●	●	●
114	03.415 SCREW; ENG CONT 16.585 (B) M6X14 W/PL WASHER	9-03900-614-0	04	1	9112-9504				●
114	03.415 SCREW; ENG CONT 16.585 (B) M6X14 W/PL WASHER	9-03900-614-0	03	1	9505-				●
183	03.415 COVER; HOLE ECM BLACK	8-97805-298-1	01	1	9112-9504	●	●	●	●

76 15 146 145 20 146 114 106 183 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	03.670 VALVE; VAC SW EUROPE EQUIPMENT(EK4)	8-94375-331-1	01	1	9112-9208				●
20	03.415 VALVE; REED EUROPE EQUIPMENT(EK4)	8-94388-863-5	01	1	9112-9208				●
76	03.671 BOLT; VSV EUROPE EQUIPMENT(EK4) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9112-9208				●
106	03.415 COVER; ECM M/T MUA 5 SPEED(RMN) BLACK	8-97805-296-4	01	1	9112-9504	●	●	●	●
106	03.415 COVER; ECM A/T THM(RMQ) BLACK	8-97805-295-4	01	1	9112-9307				●
106	03.415 COVER; ECM A/T THM(RMQ) BLACK	8-97805-297-5	01	1	9308-9504				●
114	03.415 SCREW; ENG CONT 16.085 (A) M5X16 TAPPING	9-09829-323-1	04	1	9112-9112	●	●	●	●
114	03.415 SCREW; ENG CONT 02.688 (A) M5X16	8-94384-690-0	04	1	9201-9504	●	●	●	●
114	03.415 SCREW; ENG CONT 16.585 (B) M6X14 W/PL WASHER	9-03900-614-0	04	1	9112-9504				●
114	03.415 SCREW; ENG CONT 16.585 (B) M6X14 W/PL WASHER	9-03900-614-0	03	1	9505-				●
145	03.417 BRACKET; REED VLV EUROPE EQUIPMENT(EK4)	8-94389-902-1	01	1	9112-9208				●
146	03.417 BOLT; REED VLV EUROPE EQUIPMENT(EK4) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	9112-9208				●
146	03.417 BOLT; REED VLV EUROPE EQUIPMENT(EK4) 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9112-9208				●
183	03.415 COVER; HOLE ECM BLACK	8-97805-298-1	01	1	9112-9504	●	●	●	●

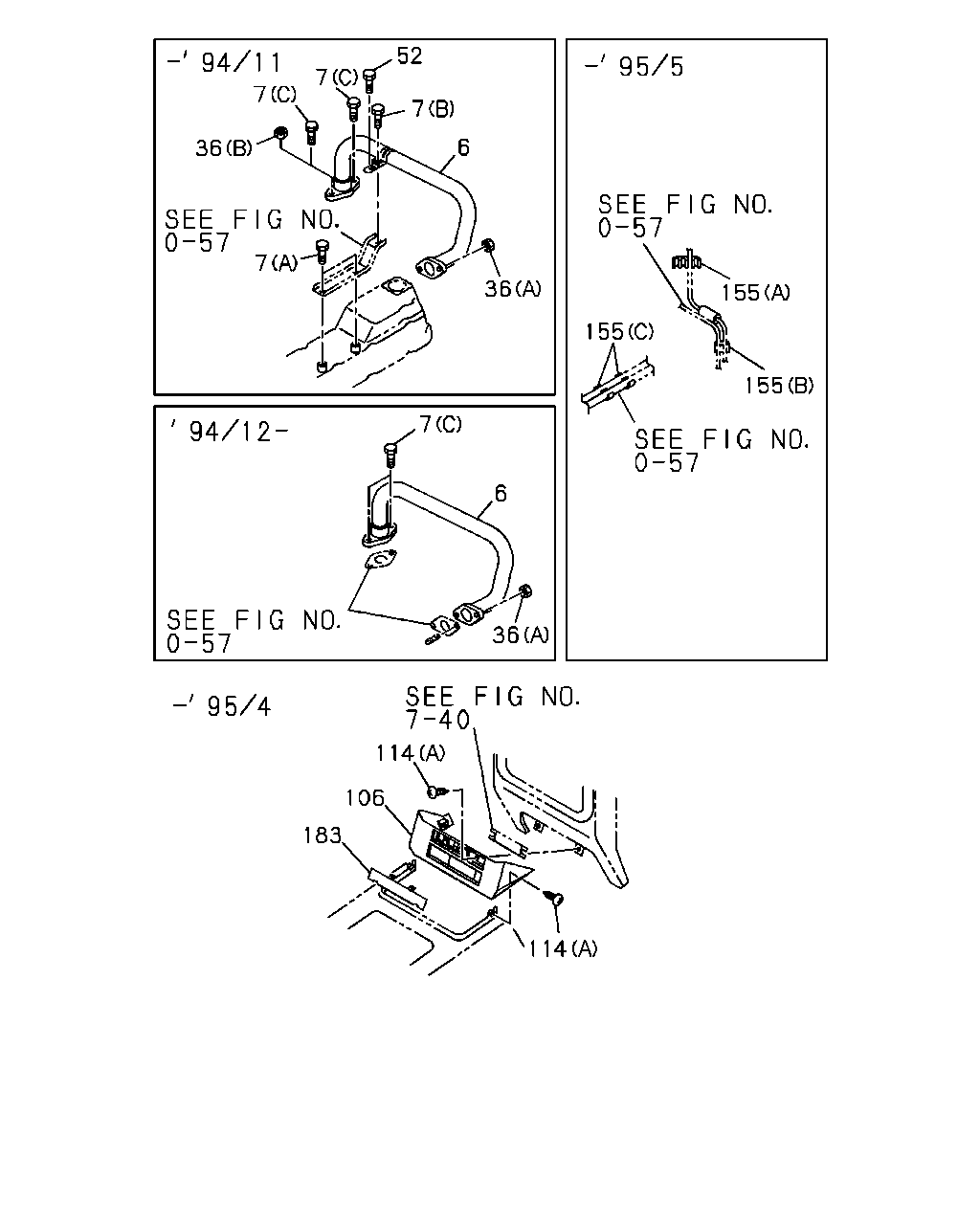

155 155 155 36 6 7 52 7 7 36 7 7 6 36 114 106 183 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	03.675 PIPE; EGR EUROPE EQUIPMENT(EK4)	8-97069-626-1	01	1	9112-9411		●
6	03.675 PIPE; EGR EUROPE EQUIPMENT(EK4)	8-97118-378-1	01	1	9412-9504		●
6	03.675 PIPE; EGR EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51>	8-97118-378-1	01	1	9505-9506		●
6	03.675 PIPE; EGR TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97118-378-1	01	1	9507-9607		●
6	03.675 PIPE; EGR TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WE ST MALAYSIA EQUIPMENT(S3D)	8-97118-378-1	01	1	9608-		●
6	03.675 PIPE; EGR EUROPE EQUIPMENT(EK4)	8-94364-870-3	01	1	9112-9308				●
6	03.675 PIPE; EGR EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9)	8-94364-870-4	01	1	9309-9510				●
6	03.675 PIPE; EGR EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9)	8-97134-870-0	01	1	9511-				●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4) 00.206 (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9112-9411		●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4) 12.187 (B) M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9112-9411		●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4) (C) M8X23 FLANGE	8-94103-629-0	01	1	9112-9311		●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4) (C) M8X23 FLANGE	8-94103-629-0	02	1	9312-9504		●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51> (C) M8X23 FLANGE	8-94103-629-0	02	1	9505-9506		●
7	03.670 BOLT; BRKT,EGR PIPE TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) (C) M8X23 FLANGE	8-94103-629-1	02	1	9507-9607		●
7	03.670 BOLT; BRKT,EGR PIPE TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WE ST MALAYSIA EQUIPMENT(S3D) (C) M8X23 FLANGE	8-94103-629-2	02	1	9608-		●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4) 03.680 (B) M8X18 FLANGE	8-94368-563-0	01	1	9112-9208				●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2) 03.680 (B) M8X18 FLANGE	8-94368-563-0	01	1	9209-9212				●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. SOUTH AFRICA EQUIPMENT(SW2) 03.680 (B) M8X18 FLANGE	8-94368-563-0	01	1	9301-9308				●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 03.680 (B) M8X18 FLANGE	8-94368-563-1	01	1	9309-				●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4) 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	9112-9208				●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. SOUTH AFRICA EQUIPMENT(SW2) 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	9209-9308				●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	9309-				●
36	03.680 NUT; EGR PIPE EUROPE EQUIPMENT(EK4) 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	9112-9504		●
36	03.680 NUT; EGR PIPE EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51> 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	9505-9506		●
36	03.680 NUT; EGR PIPE TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	9507-9606		●
36	03.680 NUT; EGR PIPE TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	02	1	9607-9607		●
36	03.680 NUT; EGR PIPE TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WE ST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	02	1	9608-		●
36	03.680 NUT; EGR PIPE EUROPE EQUIPMENT(EK4) 03.604 (B) M8 FLANGE	8-94170-486-0	01	1	9112-9311		●
36	03.680 NUT; EGR PIPE EUROPE EQUIPMENT(EK4) 03.613 M8 FLANGE	8-97061-401-0	01	1	9112-9208				●
36	03.680 NUT; EGR PIPE EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2) 03.613 M8 FLANGE	8-97061-401-0	01	1	9209-9303				●
36	03.680 NUT; EGR PIPE EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. SOUTH AFRICA EQUIPMENT(SW2) 03.613 M8 FLANGE	8-97061-401-0	01	1	9304-9308				●
36	03.680 NUT; EGR PIPE EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 03.613 M8 FLANGE	8-97061-401-0	01	1	9309-				●
52	03.680 BOLT; EGR PIPE EUROPE EQUIPMENT(EK4) 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9112-9308		●
106	03.415 COVER; ECM M/T MUA 5 SPEED(RMN) BLACK	8-97805-296-4	01	1	9112-9504	●	●	●	●
106	03.415 COVER; ECM A/T THM(RMQ) BLACK	8-97805-295-4	01	1	9112-9307				●
106	03.415 COVER; ECM A/T THM(RMQ) BLACK	8-97805-297-5	01	1	9308-9504				●
114	03.415 SCREW; ENG CONT 16.085 (A) M5X16 TAPPING	9-09829-323-1	04	1	9112-9112	●	●	●	●
114	03.415 SCREW; ENG CONT 02.688 (A) M5X16	8-94384-690-0	04	1	9201-9504	●	●	●	●
114	03.415 SCREW; ENG CONT 16.585 (B) M6X14 W/PL WASHER	9-03900-614-0	04	1	9112-9504				●
114	03.415 SCREW; ENG CONT 16.585 (B) M6X14 W/PL WASHER	9-03900-614-0	03	1	9505-				●
155	03.675 CLIP; RUBBER HOSE,VSV EUROPE EQUIPMENT(EK4) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9112-9504		●
155	03.675 CLIP; RUBBER HOSE,VSV AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 03.162 (B) ID=6.8X2	8-94126-636-0	01	1	9505-9505		●
155	03.675 CLIP; RUBBER HOSE,VSV EUROPE EQUIPMENT(EK4) 03.680 (C)	8-94366-035-0	02	1	9112-9308		●
155	03.675 CLIP; RUBBER HOSE,VSV EUROPE EQUIPMENT(EK4) 03.680 (A) ID=20 & 7X4	8-94368-500-0	01	1	9112-9504		●
155	03.675 CLIP; RUBBER HOSE,VSV AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 03.680 (A) ID=20 & 7X4	8-94368-500-0	01	1	9505-9505		●
155	03.675 CLIP; RUBBER HOSE,VSV EUROPE EQUIPMENT(EK4) 03.680 (C)	8-94366-035-0	02	1	9309-9504		●
155	03.675 CLIP; RUBBER HOSE,VSV EUROPE EQUIPMENT(EK4) 03.680 (C)	8-94366-035-0	02	1	9505-9505		●
183	03.415 COVER; HOLE ECM BLACK	8-97805-298-1	01	1	9112-9504	●	●	●	●

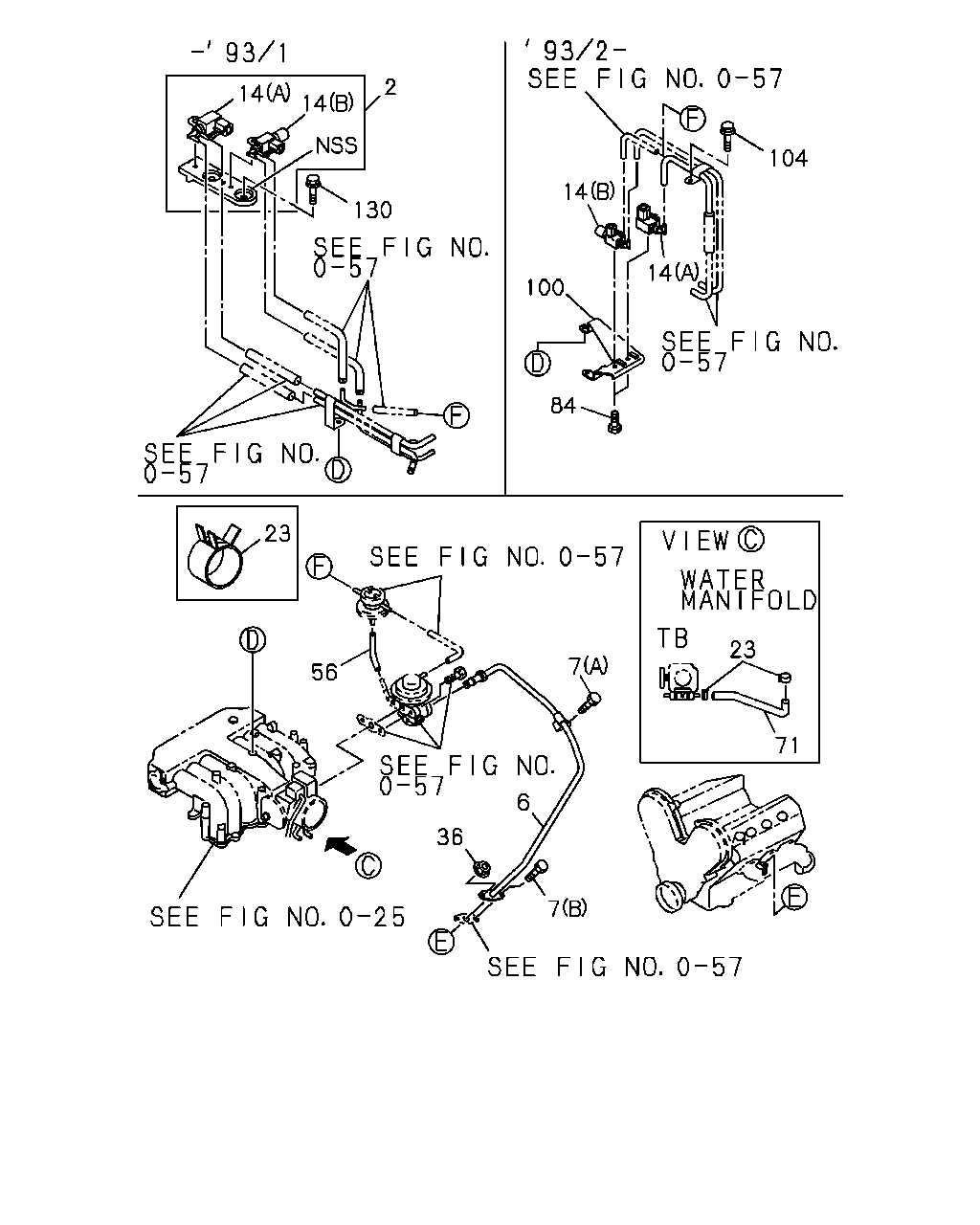

2 14 14 130 14 100 84 14 104 23 56 36 6 7 23 71 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	D
2	03.671 BRACKET; VSV EUROPE EQUIPMENT(EK4)	8-97033-105-2	01	1	9112-9301		●
2	03.671 BRACKET; VSV EXC. EUROPE EQUIPMENT(EK4) 03.670	8-97040-637-2	01	1	9112-9301		●
6	03.675 PIPE; EGR EUROPE EQUIPMENT(EK4)	8-97069-626-1	01	1	9112-9411	●
6	03.675 PIPE; EGR EUROPE EQUIPMENT(EK4)	8-97118-378-1	01	1	9412-9504	●
6	03.675 PIPE; EGR EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51>	8-97118-378-1	01	1	9505-9506	●
6	03.675 PIPE; EGR TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97118-378-1	01	1	9507-9607	●
6	03.675 PIPE; EGR TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WE ST MALAYSIA EQUIPMENT(S3D)	8-97118-378-1	01	1	9608-	●
6	03.675 PIPE; EGR EUROPE EQUIPMENT(EK4)	8-94364-870-3	01	1	9112-9308		●
6	03.675 PIPE; EGR EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9)	8-94364-870-4	01	1	9309-9510		●
6	03.675 PIPE; EGR EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9)	8-97134-870-0	01	1	9511-		●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4) 00.206 (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9112-9411	●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4) 12.187 (B) M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9112-9411	●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4) (C) M8X23 FLANGE	8-94103-629-0	01	1	9112-9311	●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4) (C) M8X23 FLANGE	8-94103-629-0	02	1	9312-9504	●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51> (C) M8X23 FLANGE	8-94103-629-0	02	1	9505-9506	●
7	03.670 BOLT; BRKT,EGR PIPE TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) (C) M8X23 FLANGE	8-94103-629-1	02	1	9507-9607	●
7	03.670 BOLT; BRKT,EGR PIPE TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WE ST MALAYSIA EQUIPMENT(S3D) (C) M8X23 FLANGE	8-94103-629-2	02	1	9608-	●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4) 03.680 (B) M8X18 FLANGE	8-94368-563-0	01	1	9112-9208		●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2) 03.680 (B) M8X18 FLANGE	8-94368-563-0	01	1	9209-9212		●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. SOUTH AFRICA EQUIPMENT(SW2) 03.680 (B) M8X18 FLANGE	8-94368-563-0	01	1	9301-9308		●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 03.680 (B) M8X18 FLANGE	8-94368-563-1	01	1	9309-		●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4) 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	9112-9208		●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. SOUTH AFRICA EQUIPMENT(SW2) 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	9209-9308		●
7	03.670 BOLT; BRKT,EGR PIPE EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 01.428 (A) M6X12 FLANGE	0-28080-612-0	01	1	9309-		●
14	03.670 VALVE; VAC SW (A)	8-97033-107-0	01	1	9112-9301		●
14	03.670 VALVE; VAC SW (A)	8-97086-349-0	01	1	9302-		●
14	03.670 VALVE; VAC SW EUROPE EQUIPMENT(EK4) 06.518 (B)	8-97033-106-0	01	1	9112-9301		●
14	03.670 VALVE; VAC SW EXC. SOUTH AFRICA EQUIPMENT(SW2) (B)	8-97086-348-0	01	1	9302-9607		●
14	03.670 VALVE; VAC SW (B)	8-97086-348-0	01	1	9608-		●
23	03.162 CLIP; RUBBER HOSE,THROTTLE 01.153 ID=12.8	8-94367-943-0	04	1	9112-		●
36	03.680 NUT; EGR PIPE EUROPE EQUIPMENT(EK4) 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	9112-9504	●
36	03.680 NUT; EGR PIPE EUROPE EQUIPMENT(EK4) TURBOCHARGER<K51> 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	9505-9506	●
36	03.680 NUT; EGR PIPE TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 00.854 (A) M8 FLANGE	5-09440-005-0	02	1	9507-9606	●
36	03.680 NUT; EGR PIPE TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	02	1	9607-9607	●
36	03.680 NUT; EGR PIPE TURBOCHARGER<K51> EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WE ST MALAYSIA EQUIPMENT(S3D) 01.540 (A) M8 FLANGE	0-91150-208-0	02	1	9608-	●
36	03.680 NUT; EGR PIPE EUROPE EQUIPMENT(EK4) 03.604 (B) M8 FLANGE	8-94170-486-0	01	1	9112-9311	●
36	03.680 NUT; EGR PIPE EUROPE EQUIPMENT(EK4) 03.613 M8 FLANGE	8-97061-401-0	01	1	9112-9208		●
36	03.680 NUT; EGR PIPE EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2) 03.613 M8 FLANGE	8-97061-401-0	01	1	9209-9303		●
36	03.680 NUT; EGR PIPE EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. SOUTH AFRICA EQUIPMENT(SW2) 03.613 M8 FLANGE	8-97061-401-0	01	1	9304-9308		●
36	03.680 NUT; EGR PIPE EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 03.613 M8 FLANGE	8-97061-401-0	01	1	9309-		●
56	03.675 HOSE; BPT TO SIGNAL PIPE EUROPE EQUIPMENT(EK4)	8-97039-786-1	01	1	9112-9303		●
56	03.675 HOSE; BPT TO SIGNAL PIPE EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. SOUTH AFRICA EQUIPMENT(SW2)	8-97039-786-1	01	1	9304-9308		●
56	03.675 HOSE; BPT TO SIGNAL PIPE EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9)	8-97039-786-1	01	1	9309-		●
71	03.417 HOSE; RUBBER,THROTTLE,WATER INL	8-94379-199-0	01	1	9112-		●
84	03.671 BOLT; VSV EUROPE EQUIPMENT(EK4) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9302-9303		●
84	03.671 BOLT; VSV EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. SOUTH AFRICA EQUIPMENT(SW2) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9304-9308		●
84	03.671 BOLT; VSV EXC. EUROPE EQUIPMENT(EK4) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	9302-9303		●
84	03.671 BOLT; VSV SOUTH AFRICA EQUIPMENT(SW2) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	9304-9308		●
84	03.671 BOLT; VSV EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	9304-9308		●
84	03.671 BOLT; VSV EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9309-		●
84	03.671 BOLT; VSV EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	9309-		●
100	03.675 BRACKET; VLV	8-97086-347-1	01	1	9302-		●
104	03.675 BOLT; CLIP,HOSE 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9302-		●
130	03.671 BOLT; VSV BRKT 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9112-9301		●

115 115 112 114 116 105 114 115 112 115 115 115 115 114 112 116 116 105 116 116 112 114 115 114 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3)	8-16175-849-0	01	1	9112-9206				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3)	8-16184-099-0	01	1	9207-9208				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3)	8-16178-379-0	01	1	9209-9303				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3)	8-16192-749-0	01	1	9304-9306				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3)	8-16195-239-0	01	1	9307-9308				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3)	8-16197-109-0	01	1	9309-9311				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D)	8-16197-109-0	01	1	9312-9607				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D)	8-16197-109-0	01	1	9608-				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE EQUIPMENT(EK4)	8-16175-819-0	01	1	9112-9206				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE EQUIPMENT(EK4)	8-16184-089-0	01	1	9207-9208				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE EQUIPMENT(EK4)	8-16178-359-0	01	1	9209-9211				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2)	8-16185-909-0	01	1	9212-9301				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. SOUTH AFRICA EQUIPMENT(SW2)	8-16178-359-0	01	1	9302-9303				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. SOUTH AFRICA EQUIPMENT(SW2)	8-16192-689-0	01	1	9304-9306				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. SOUTH AFRICA EQUIPMENT(SW2)	8-16195-179-0	01	1	9307-9308				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-16163-339-0	01	1	9112-9208				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-16178-419-0	01	1	9209-9303				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 930425-	8-16185-969-0	01	1	9304-9304				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3) 930426-	8-16192-729-0	01	1	9304-9306				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-16195-219-0	01	1	9307-9308				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9)	8-16197-069-0	01	1	9309-9504				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. IMMOBILIZER SYSTEM<7KC>	8-16197-069-0	01	1	9505-				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3)	8-16197-089-0	01	1	9309-9311				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WE ST MALAYSIA EQUIPMENT(S3D)	8-16197-089-0	01	1	9312-9607				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D)	8-16197-089-0	01	1	9608-				●
105	03.415 CONTROLLER; MODULE,ENGINE A/T THM(RMQ) IMMOBILIZER SYSTEM<7KC>	8-16217-759-0	01	1	9505-				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3)	8-16175-879-0	01	1	9112-9206				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3)	8-16184-109-0	01	1	9207-9208				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D)	8-16178-369-0	01	1	9209-9304				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D)	8-16195-249-0	01	1	9305-9308				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D)	8-16197-119-0	01	1	9309-9607				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D)	8-16197-119-0	01	1	9608-				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EUROPE EQUIPMENT(EK4)	8-16175-799-0	01	1	9112-9206				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EUROPE EQUIPMENT(EK4)	8-16184-059-0	01	1	9207-9208				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EUROPE EQUIPMENT(EK4)	8-16178-339-0	01	1	9209-9211				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EUROPE EQUIPMENT(EK4) EXC. SOUTH AFRICA EQUIPMENT(SW2)	8-16185-889-0	01	1	9212-9301				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. SOUTH AFRICA EQUIPMENT(SW2)	8-16178-339-0	01	1	9302-9304				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. SOUTH AFRICA EQUIPMENT(SW2)	8-16195-189-0	01	1	9305-9308				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3)	8-16163-329-0	01	1	9112-9208				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D)	8-16178-409-0	01	1	9209-9211				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D)	8-16178-409-0	01	1	9212-9304				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) SOUTH AFRICA EQUIPMENT(SW2)	8-16178-409-0	01	1	9212-9304				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WE ST MALAYSIA EQUIPMENT(S3D)	8-16178-409-0	01	1	9305-9305				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) SOUTH AFRICA EQUIPMENT(SW2)	8-16178-409-0	01	1	9305-9305				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WE ST MALAYSIA EQUIPMENT(S3D) 930531-	8-16195-229-0	01	1	9306-9308				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) SOUTH AFRICA EQUIPMENT(SW2) 930531-	8-16195-229-0	01	1	9306-9308				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9)	8-16197-079-0	01	1	9309-9504				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) EXC. IMMOBILIZER SYSTEM<7KC>	8-16197-079-0	01	1	9505-				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WE ST MALAYSIA EQUIPMENT(S3D)	8-16197-099-0	01	1	9309-9607				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EXC. EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQUIPMENT(S3D)	8-16197-099-0	01	1	9608-				●
105	03.415 CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) IMMOBILIZER SYSTEM<7KC>	8-16217-749-0	01	1	9505-				●
112	03.671 BRACKET; ECM 03.415	8-94374-949-0	02	1	9112-9504				●
112	03.671 BRACKET; ECM (A)	8-97083-023-1	01	1	9505-				●
112	03.671 BRACKET; ECM (B)	8-97084-959-1	01	1	9505-				●
114	03.415 SCREW; ENG CONT 16.085 (A) M5X16 TAPPING	9-09829-323-1	04	1	9112-9112	●	●	●	●
114	03.415 SCREW; ENG CONT 02.688 (A) M5X16	8-94384-690-0	04	1	9201-9504	●	●	●	●
114	03.415 SCREW; ENG CONT 16.585 (B) M6X14 W/PL WASHER	9-03900-614-0	04	1	9112-9504				●
114	03.415 SCREW; ENG CONT 16.585 (B) M6X14 W/PL WASHER	9-03900-614-0	03	1	9505-				●
115	03.415 NUT; ENG CONT MODULE 09.744 (A) M5 FLANGE	5-09440-003-0	04	1	9112-				●
115	03.415 NUT; ENG CONT MODULE 09.190 (B) D=9X9 L=8 M6	8-94222-314-0	04	1	9112-9504				●
115	03.415 NUT; ENG CONT MODULE 09.190 (B) D=9X9 L=8 M6	8-94222-314-0	03	1	9505-				●
116	03.415 BOLT; ENG CONT MODULE 03.671 M5X12 W/CLIP	8-94443-197-0	04	1	9112-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
