0-52 — OIL AND VACUUM PIPING; ENGINE (#43302) — 157 parça
çizim 17338
47 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
18 01.519 PIPE; OIL,OIL PUMP 8-94381-146-3 01 1 9112- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 05.398 ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9112-9504 ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 05.398 ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9505- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 03 1 9112-9504 ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 03 1 9505- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) W/PLATE ID=18.2 		8-94329-964-0 02 1 9112- ●

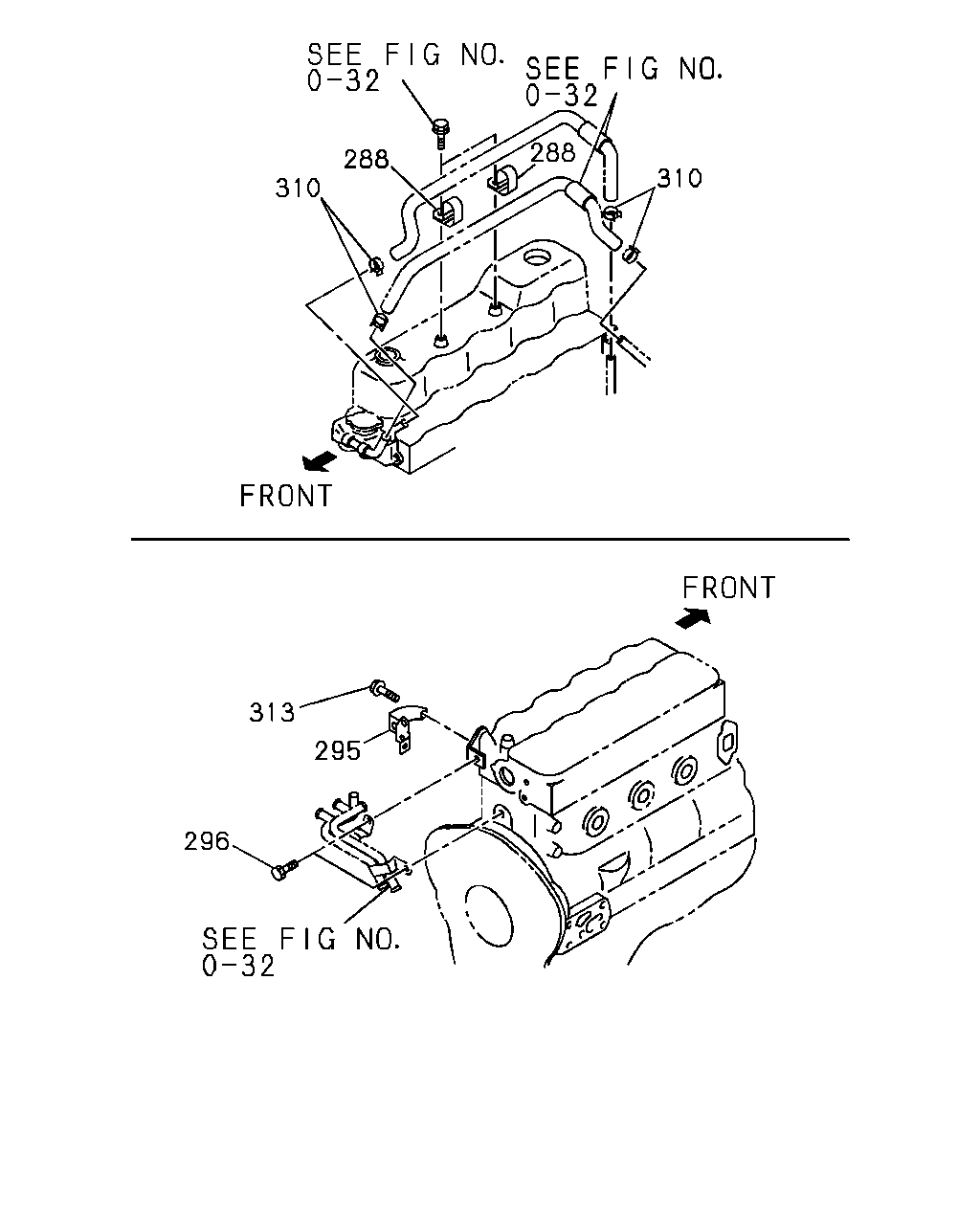

çizim 20619
310 288 288 310 313 295 296
BalonParca AdiParca NoAdetTipApplied Date A B C D
288 01.540 CLIP; HOSE,OIL COOLER
08.846 		5-83574-006-0 02 1 9112-9404 ●
288 01.540 CLIP; HOSE,OIL COOLER
08.846 		5-83574-006-0 01 1 9405-9504 ●
288 01.540 CLIP; HOSE,OIL COOLER
EXC. TURBOCHARGER<K51> 08.846 		5-83574-006-0 01 1 9505- ●
295 01.540 BRACKET; PIPE OIL COOLER 8-97066-330-0 01 1 9112-9504 ●
295 01.540 BRACKET; PIPE OIL COOLER
EXC. TURBOCHARGER<K51> 		8-97123-892-0 01 1 9505- ●
296 01.540 BOLT; RETURN PIPE
00.206 M8X14 W/LK WASHER 		0-50040-814-0 02 1 9112-9504 ●
296 01.540 BOLT; RETURN PIPE
EXC. TURBOCHARGER<K51> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9505- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-0 06 1 9112-9410 ●
310 01.540 CLIP; WATER HOSE FIX
EXC. EUROPE EQUIPMENT(EK4) 01.166 ID=20.8 		8-94125-862-0 06 1 9112-9410 ●
310 01.540 CLIP; WATER HOSE FIX
EUROPE EQUIPMENT(EK4) 01.166 ID=20.8 		8-94125-862-0 08 1 9112-9410 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-0 06 1 9411-9504 ● ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-0 06 1 9505- ●
310 01.540 CLIP; WATER HOSE FIX
01.150 ID=24 		8-97010-605-0 02 1 9112-9504 ●
310 01.540 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> 01.150 ID=24 		8-97010-605-0 02 1 9505- ●
313 01.540 BOLT; PIPE BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9112-9504 ●
313 01.540 BOLT; PIPE BRKT
EXC. TURBOCHARGER<K51> 08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9505- ●

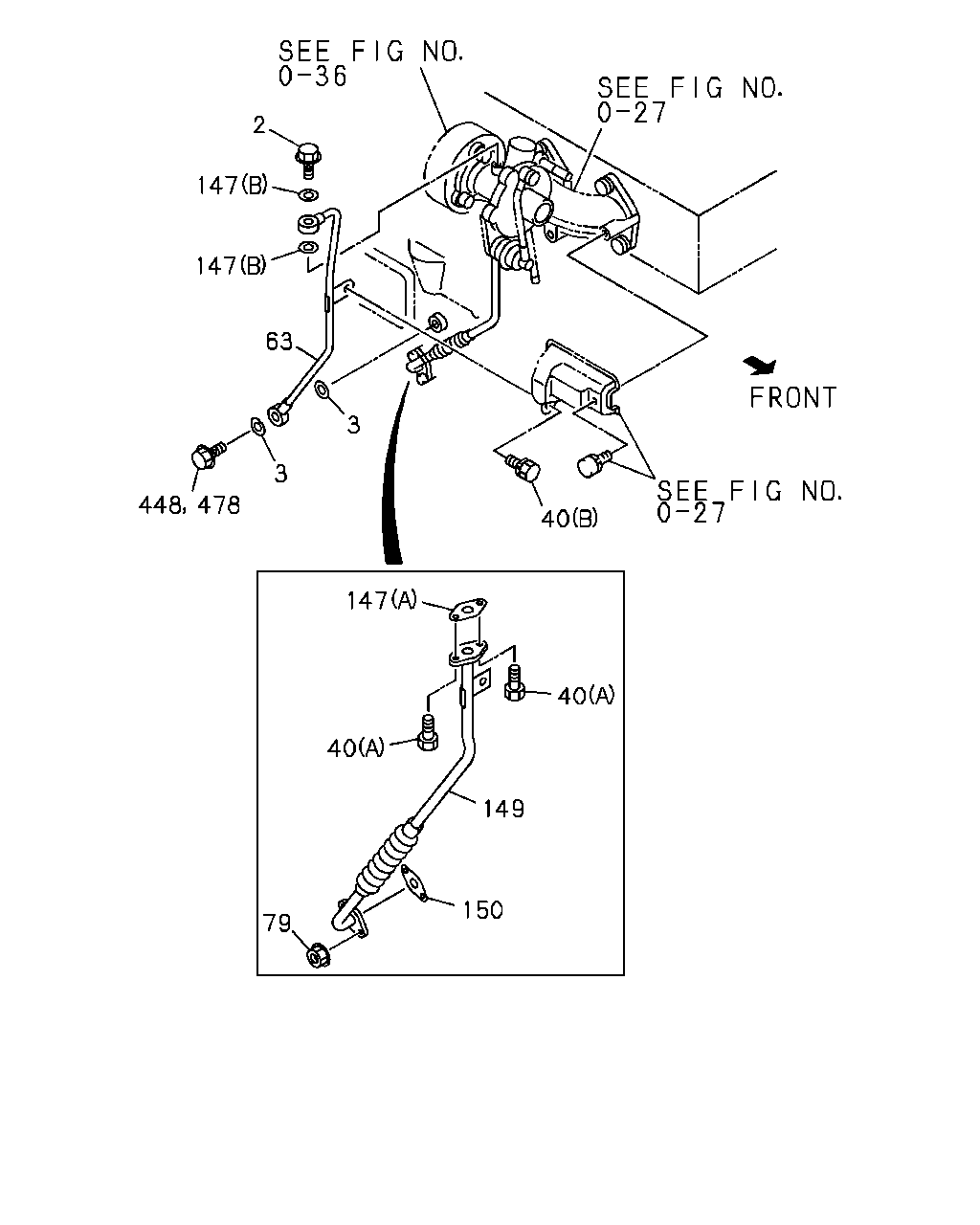

çizim 66112
2 147 147 63 3 3 478 448 40 40 147 40 149 150 79
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 01.531 BOLT; EYE,OIL PIPE
M10X27 		8-94443-535-0 01 1 9112-9504 ●
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER<K51> M10X27 		8-94443-535-0 01 1 9505- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9112-9504 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9505- ●
40 01.531 BOLT; OIL PIPE
02.559 (A) M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9112-9504 ●
40 01.531 BOLT; OIL PIPE
TURBOCHARGER<K51> 02.559 (A) M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9505- ●
40 01.531 BOLT; OIL PIPE
12.187 (B) M8X16 W/LK&PL WASHER 		0-50140-816-0 01 1 9112-9504 ●
40 01.531 BOLT; OIL PIPE
TURBOCHARGER<K51> 12.187 (B) M8X16 W/LK&PL WASHER 		0-50140-816-0 01 1 9505-9611 ●
40 01.531 BOLT; OIL PIPE
TURBOCHARGER<K51> 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 9612- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97038-130-1 01 1 9112-9307 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EUROPE EQUIPMENT(EK4) 		8-97038-130-1 01 1 9308-9308 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. EUROPE EQUIPMENT(EK4) 		8-97086-341-0 01 1 9308-9308 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97086-341-0 01 1 9309-9504 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER<K51> 		8-97086-341-0 01 1 9505- ●
79 01.531 NUT; OIL DRAIN PIPE
00.854 M8 FLANGE 		5-09440-005-0 02 1 9112-9504 ●
79 01.531 NUT; OIL DRAIN PIPE
TURBOCHARGER<K51> 00.854 M8 FLANGE 		5-09440-005-0 02 1 9505- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14 		8-97041-638-0 01 1 9112-9504 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> (A) ID=14 		8-97041-638-0 01 1 9505- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9112-9504 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9505- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97066-501-0 01 1 9112-9307 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
EUROPE EQUIPMENT(EK4) 		8-97066-501-0 01 1 9308-9308 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
EXC. EUROPE EQUIPMENT(EK4) 		8-97086-340-0 01 1 9308-9308 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97086-340-1 01 1 9309-9504 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
TURBOCHARGER<K51> 		8-97086-340-1 01 1 9505-9610 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
TURBOCHARGER<K51> 		8-97162-106-0 01 1 9611- ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97045-326-0 01 1 9112-9504 ●
150 01.531 GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 		8-97045-326-0 01 1 9505- ●
448 01.519 FILLER; OIL
M14X25 		8-94315-336-1 01 1 9112-9504 ●
478 01.531 FILTER
TURBOCHARGER<K51> 01.519 		8-97132-686-0 01 1 9505- ●

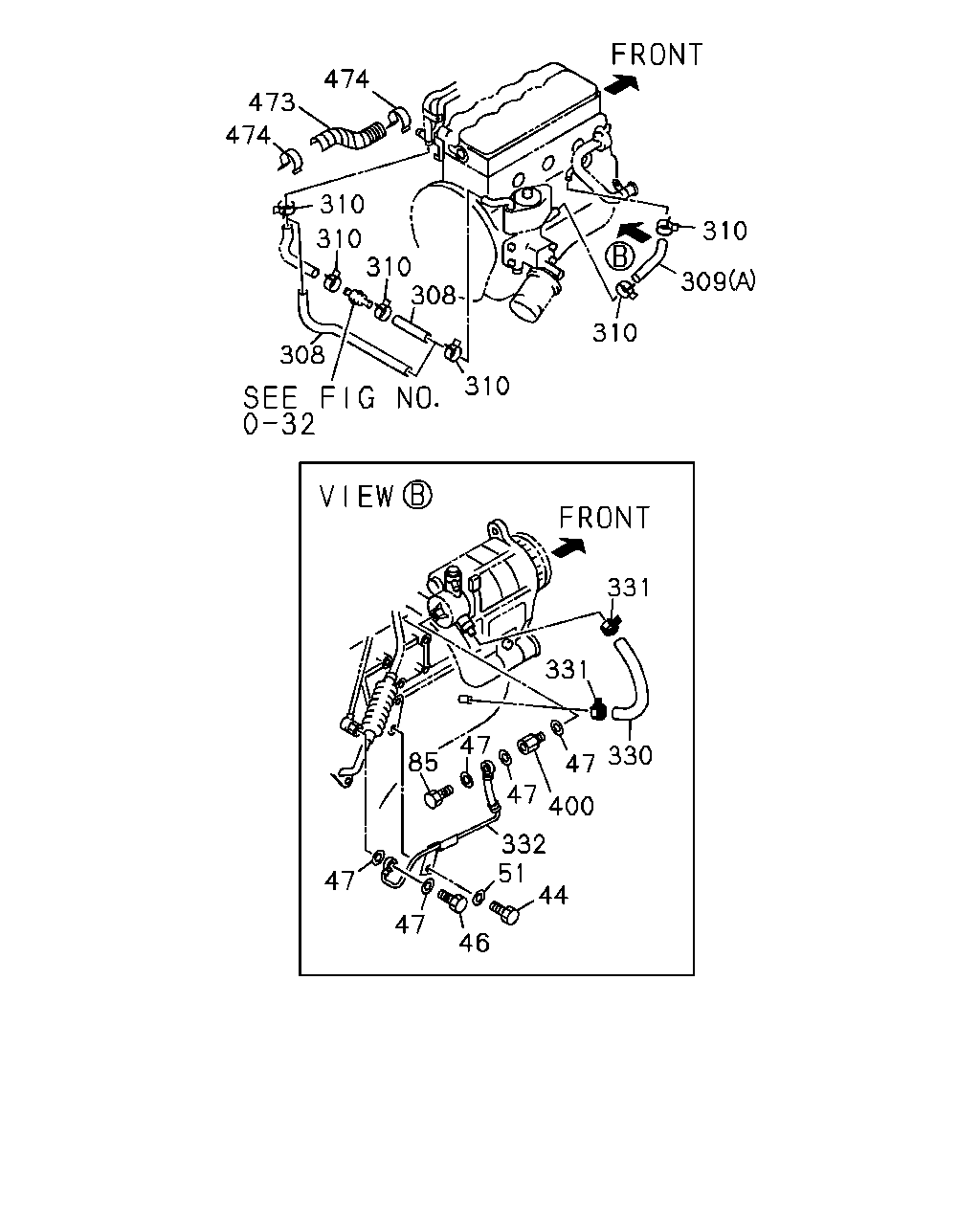

çizim 66328
46 47 47 85 51 47 47 332 44 400 331 47 330 331 310 308 310 310 310 474 473 474 310 309 310
BalonParca AdiParca NoAdetTipApplied Date A B C D
44 01.531 BOLT; CLIP,OIL PIPE
03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9112-9504 ● ●
44 01.531 BOLT; CLIP,OIL PIPE
03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9505- ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
M8X24 		5-09675-024-0 01 1 9112-9404 ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
M8X20 FLANGE 		5-09675-018-1 01 1 9112-9404 ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
M8X20 FLANGE 		5-09675-018-1 01 1 9405-9504 ● ●
46 01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU
M8X20 FLANGE 		5-09675-018-1 01 1 9505- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 05.398 ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9112-9504 ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 05.398 ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9505- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 03 1 9112-9504 ● ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 03 1 9505- ●
47 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) W/PLATE ID=18.2 		8-94329-964-0 02 1 9112- ●
51 01.531 WASHER; PL,OIL PIPE,VAC PUMP
01.276 ID=8.4 OD=18 		9-09164-608-0 01 1 9112-9504 ● ●
51 01.531 WASHER; PL,OIL PIPE,VAC PUMP
01.276 ID=8.4 OD=18 		9-09164-608-0 01 1 9505- ●
85 01.531 BOLT; EYE,OIL PIPE FIX
M10X21 FLANGE 		1-09675-078-0 01 1 9112-9504 ● ●
85 01.531 BOLT; EYE,OIL PIPE FIX
M10X21 FLANGE 		1-09675-078-0 01 1 9505- ●
308 01.540 HOSE; OIL COOLER FEED
08.846 L=220 SERVICED BY L=3000 		0-03266-300-0 01 1 9112-9408 ●
308 01.540 HOSE; OIL COOLER FEED
L=220 		8-97119-575-0 01 1 9409-9504 ●
308 01.540 HOSE; OIL COOLER FEED
EUROPE EQUIPMENT(EK4) 08.846 L=60 SERVICED BY L=3000 		0-03266-300-0 01 1 9112-9410 ●
308 01.540 HOSE; OIL COOLER FEED
EXC. EUROPE EQUIPMENT(EK4) 		8-97039-414-0 01 1 9112-9410 ●
308 01.540 HOSE; OIL COOLER FEED 8-97039-414-0 01 1 9411-9504 ●
308 01.540 HOSE; OIL COOLER FEED
TURBOCHARGER<K51> 		8-97039-414-0 01 1 9505- ●
308 01.540 HOSE; OIL COOLER FEED
EXC. TURBOCHARGER<K51> 		8-97101-601-0 01 1 9505- ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-94442-162-1 01 1 9112-9504 ●
309 01.540 HOSE; OIL COOLER RETURN
EXC. TURBOCHARGER<K51> (A) 		8-97086-463-1 01 1 9505-9709 ●
309 01.540 HOSE; OIL COOLER RETURN
EXC. TURBOCHARGER<K51> (A) 		8-97147-993-0 01 1 9710- ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97039-199-2 01 1 9112-9307 ●
309 01.540 HOSE; OIL COOLER RETURN
EUROPE EQUIPMENT(EK4) (A) 		8-97039-199-2 01 1 9308-9308 ●
309 01.540 HOSE; OIL COOLER RETURN
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97069-793-1 01 1 9308-9308 ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97069-793-1 01 1 9309-9504 ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> (A) 		8-97069-793-1 01 1 9505- ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97049-285-0 01 1 9112-9504 ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> (B) 		8-97049-285-0 01 1 9505- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-0 06 1 9112-9410 ●
310 01.540 CLIP; WATER HOSE FIX
EXC. EUROPE EQUIPMENT(EK4) 01.166 ID=20.8 		8-94125-862-0 06 1 9112-9410 ●
310 01.540 CLIP; WATER HOSE FIX
EUROPE EQUIPMENT(EK4) 01.166 ID=20.8 		8-94125-862-0 08 1 9112-9410 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-0 06 1 9411-9504 ● ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-0 06 1 9505- ●
310 01.540 CLIP; WATER HOSE FIX
01.150 ID=24 		8-97010-605-0 02 1 9112-9504 ●
310 01.540 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> 01.150 ID=24 		8-97010-605-0 02 1 9505- ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97063-052-0 01 1 9112-9504 ● ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97063-052-0 01 1 9505- ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN
01.516 ID=17 		1-09707-158-0 02 1 9112-9402 ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9403-9504 ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9505- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97042-697-0 01 1 9112-9504 ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97042-697-0 01 1 9505- ●
400 01.531 NIPPLE; VAC PUMP,OIL 8-97061-857-0 01 1 9112-9504 ● ●
400 01.531 NIPPLE; VAC PUMP,OIL 8-97061-857-0 01 1 9505- ●
473 01.540 INSULATOR; HOSE
EXC. TURBOCHARGER<K51> 		8-97102-426-0 01 1 9505- ●
474 01.540 CLIP; INSULATOR
EXC. TURBOCHARGER<K51> 		8-97101-337-0 02 1 9505- ●
çizim 66651
9 8 9 10 11 9 9 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 01.656 PIPE; OIL PASSAGE,FRT 8-94475-324-2 01 1 9112- ●
8 01.656 PIPE; OIL PASSAGE,CTR 8-94475-325-2 01 1 9112- ●
9 01.656 BOLT; OIL PASSAGE
(A) M6X14 		8-94479-695-1 02 1 9112- ●
9 01.656 BOLT; OIL PASSAGE
(B) M8X12 FLANGE 		8-94479-696-1 02 1 9112- ●
10 01.656 PLUG; OIL PASSAGE PIPE 8-94474-942-0 01 1 9112- ●
11 01.657 GASKET; PLUG,OIL PIPE
08.955 ID=20.5 OD=28.0 		9-09571-420-0 01 1 9112- ●

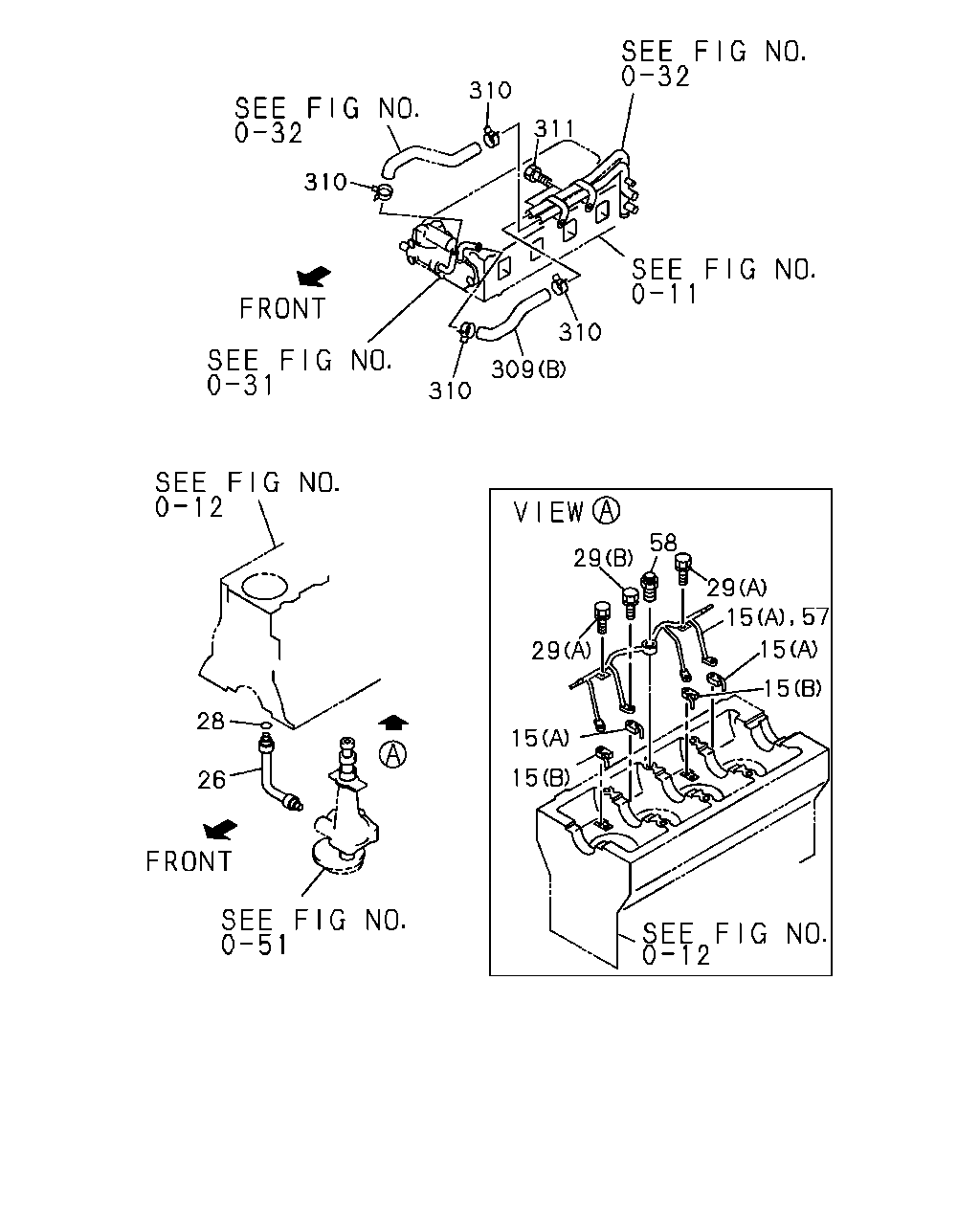

çizim 67072
310 310 311 310 309 310 28 26 15 15 29 29 58 29 15 57 15 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
15 01.519 PIPE; OIL JET,PISTON COOLING
(A) 		8-97062-303-0 02 1 9112-9504 ●
15 01.519 PIPE; OIL JET,PISTON COOLING
(B) 		8-97062-304-0 02 1 9112-9504 ●
15 01.519 PIPE; OIL JET,PISTON COOLING
(C) 		8-97030-784-0 01 1 9112-9504 ● ●
15 01.519 PIPE; OIL JET,PISTON COOLING
TURBOCHARGER<K51> (C) 		8-97030-784-0 01 1 9505-9512 ●
15 01.519 PIPE; OIL JET,PISTON COOLING
(A) 		8-94372-004-1 02 1 9112-9504 ●
15 01.519 PIPE; OIL JET,PISTON COOLING
TURBOCHARGER<K51> (A) 		8-94372-004-1 02 1 9505-9611 ●
15 01.519 PIPE; OIL JET,PISTON COOLING
(B) 		8-94372-005-1 02 1 9112-9504 ●
15 01.519 PIPE; OIL JET,PISTON COOLING
TURBOCHARGER<K51> (B) 		8-94372-005-1 02 1 9505-9611 ●
15 01.519 PIPE; OIL JET,PISTON COOLING
EXC. TURBOCHARGER<K51> (A) 		8-97043-741-0 02 1 9505- ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-94434-828-1 01 1 9112-9504 ● ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-94434-828-2 01 1 9505- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 01 1 9112-9504 ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 01 1 9505- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 9112-9504 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 9505- ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X28 		8-94372-730-1 04 1 9112-9504 ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X28 		8-94372-730-1 04 1 9505-9512 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> (B) M6X28 		8-94372-730-1 04 1 9601-9611 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> (B) M6X20 		8-97117-298-0 04 1 9612- ●
29 01.531 BOLT; OIL PIPE,OIL JET
EXC. TURBOCHARGER<K51> 01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9505- ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (B) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9612- ●
57 01.519 PIPE; OIL,OIL JET
TURBOCHARGER<K51> 		8-97030-784-0 01 1 9601-9611 ●
57 01.519 PIPE; OIL,OIL JET
TURBOCHARGER<K51> 		8-97116-971-0 01 1 9612- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-94177-189-3 01 1 9112-9504 ● ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-94177-189-3 01 1 9505-9603 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97145-612-0 01 1 9604- ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-94442-162-1 01 1 9112-9504 ●
309 01.540 HOSE; OIL COOLER RETURN
EXC. TURBOCHARGER<K51> (A) 		8-97086-463-1 01 1 9505-9709 ●
309 01.540 HOSE; OIL COOLER RETURN
EXC. TURBOCHARGER<K51> (A) 		8-97147-993-0 01 1 9710- ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97039-199-2 01 1 9112-9307 ●
309 01.540 HOSE; OIL COOLER RETURN
EUROPE EQUIPMENT(EK4) (A) 		8-97039-199-2 01 1 9308-9308 ●
309 01.540 HOSE; OIL COOLER RETURN
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97069-793-1 01 1 9308-9308 ●
309 01.540 HOSE; OIL COOLER RETURN
(A) 		8-97069-793-1 01 1 9309-9504 ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> (A) 		8-97069-793-1 01 1 9505- ●
309 01.540 HOSE; OIL COOLER RETURN
(B) 		8-97049-285-0 01 1 9112-9504 ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> (B) 		8-97049-285-0 01 1 9505- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-0 06 1 9112-9410 ●
310 01.540 CLIP; WATER HOSE FIX
EXC. EUROPE EQUIPMENT(EK4) 01.166 ID=20.8 		8-94125-862-0 06 1 9112-9410 ●
310 01.540 CLIP; WATER HOSE FIX
EUROPE EQUIPMENT(EK4) 01.166 ID=20.8 		8-94125-862-0 08 1 9112-9410 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-0 06 1 9411-9504 ● ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-0 06 1 9505- ●
310 01.540 CLIP; WATER HOSE FIX
01.150 ID=24 		8-97010-605-0 02 1 9112-9504 ●
310 01.540 CLIP; WATER HOSE FIX
TURBOCHARGER<K51> 01.150 ID=24 		8-97010-605-0 02 1 9505- ●
311 01.531 BOLT; PIPE FIX
00.206 M8X14 W/LK WASHER 		0-50040-814-0 02 1 9112-9504 ● ●
311 01.531 BOLT; PIPE FIX
TURBOCHARGER<K51> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 02 1 9505-9607 ●
311 01.531 BOLT; PIPE FIX
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9608-9608 ●
311 01.531 BOLT; PIPE FIX
TURBOCHARGER<K51> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 02 1 9609- ●
311 01.531 BOLT; PIPE FIX
EXC. TURBOCHARGER<K51> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9505- ●
311 01.531 BOLT; PIPE FIX
EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9505- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
