0-51 — OIL PUMP AND OIL STRAINER (#43301) — 99 parça

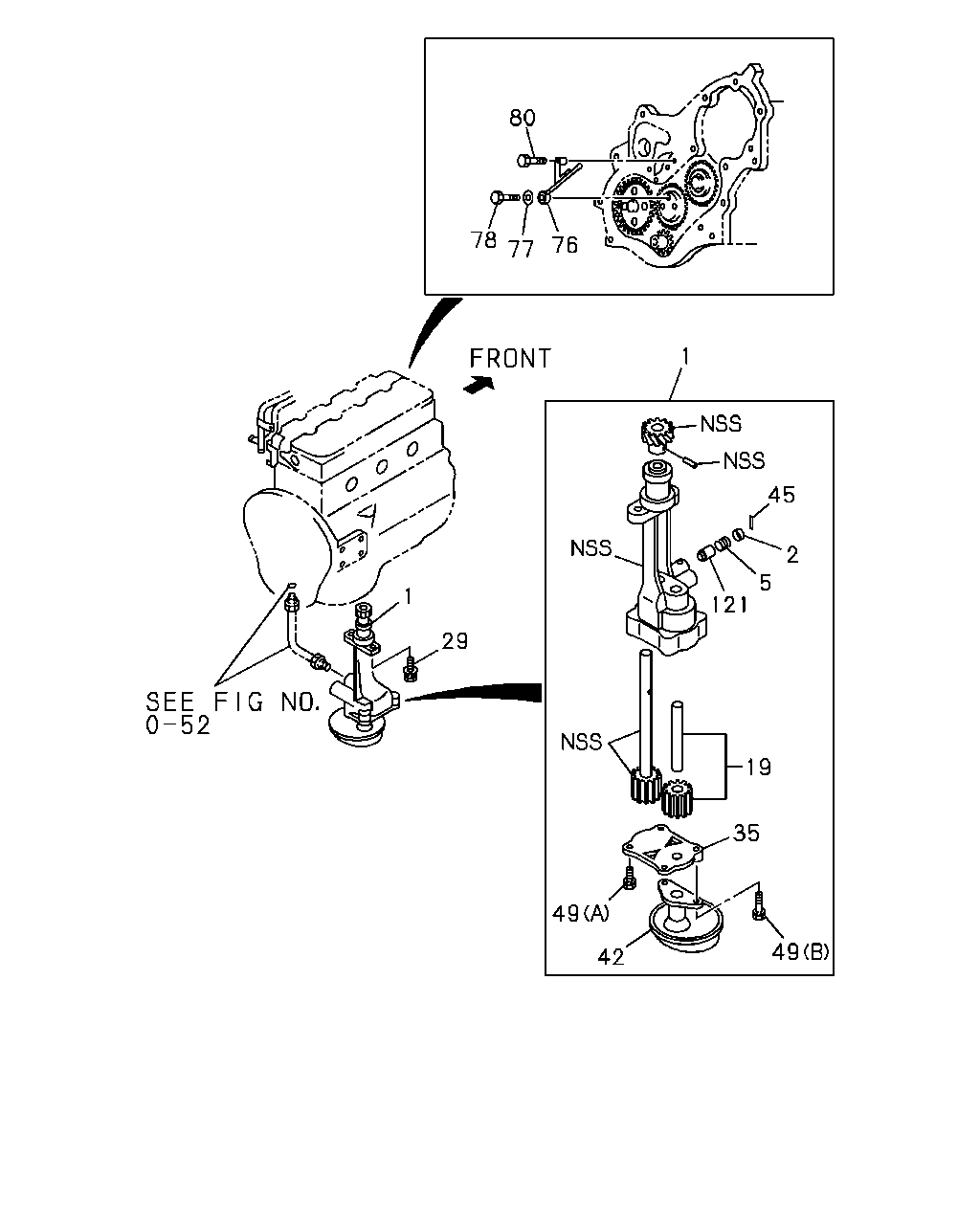

1 29 42 49 49 35 19 121 5 2 45 1 76 77 78 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.652 PUMP ASM; OIL	8-97033-174-2	01	1	9112-9504	●	●
1	01.652 PUMP ASM; OIL	8-97033-174-3	01	1	9505-	●
1	01.652 PUMP ASM; OIL	8-94459-730-1	01	1	9112-			●
1	01.652 PUMP ASM; OIL	8-94374-510-4	01	1	9112-9310				●
1	01.652 PUMP ASM; OIL W/PLUG	8-97103-864-0	01	1	9311-				●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9112-9504	●	●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	9505-	●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9112-9504	●	●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	9505-	●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	9112-9504	●	●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	9505-	●
19	01.639 GEAR SET; OIL PUMP	8-94225-801-0	01	1	9112-			●
29	01.652 BOLT; OIL PUMP 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9112-9504	●	●
29	01.652 BOLT; OIL PUMP 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9505-9612	●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9701-	●
29	01.652 BOLT; OIL PUMP 07.010 M8X20 FLANGE	0-28080-820-0	05	1	9112-9706				●
29	01.652 BOLT; OIL PUMP 02.559 M8X25 FLANGE	0-28680-825-0	05	1	9707-				●
29	01.652 BOLT; OIL PUMP 08.900 M8X28 FLANGE	0-28080-828-0	01	1	9112-9407				●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9408-9706				●
29	01.652 BOLT; OIL PUMP 04.686 M8X30 FLANGE	0-28680-830-0	01	1	9707-				●
35	01.657 COVER; OIL PUMP	8-97036-830-0	01	1	9112-9504	●	●
35	01.657 COVER; OIL PUMP	8-97036-830-0	01	1	9505-	●
42	01.656 STRAINER; OIL,OIL PUMP 01.657	8-97036-839-0	01	1	9112-9504	●	●
42	01.656 STRAINER; OIL,OIL PUMP 01.657	8-97036-839-0	01	1	9505-	●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	9112-9504	●	●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	9505-	●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M8X25 FLANGE	0-28080-825-0	02	1	9112-9504	●	●
49	01.531 BOLT; STRAINER,OIL PUMP (A) M8X25 FLANGE	0-28080-825-0	02	1	9505-	●
49	01.531 BOLT; STRAINER,OIL PUMP 03.415 (B) M8X35 FLANGE	0-28080-835-0	02	1	9112-9504	●	●
49	01.531 BOLT; STRAINER,OIL PUMP 03.415 (B) M8X35 FLANGE	0-28080-835-0	02	1	9505-	●
76	01.519 PIPE ASM; OIL	8-94453-548-0	01	1	9112-9204		●
76	01.519 PIPE ASM; OIL EXC. EUROPE EQUIPMENT(EK4)	8-94453-548-0	01	1	9112-9204	●
76	01.519 PIPE ASM; OIL	8-94139-747-1	01	1	9205-9504		●
76	01.519 PIPE ASM; OIL EXC. EUROPE EQUIPMENT(EK4)	8-94139-747-1	01	1	9205-9504	●
76	01.519 PIPE ASM; OIL EXC. EUROPE EQUIPMENT(EK4)	8-94453-548-1	01	1	9505-9605	●
76	01.519 PIPE ASM; OIL EXC. EUROPE EQUIPMENT(EK4)	8-97160-706-0	01	1	9606-	●
77	01.531 GASKET; JOINT BOLT 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9205-9504		●
77	01.531 GASKET; JOINT BOLT EXC. EUROPE EQUIPMENT(EK4) 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	9205-9504	●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X23 FLANGE	8-94454-199-0	01	1	9112-9204		●
78	01.531 BOLT; EYE JOINT,OIL PIPE EXC. EUROPE EQUIPMENT(EK4) M8X23 FLANGE	8-94454-199-0	01	1	9112-9204	●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X25	8-94146-582-0	01	1	9205-9504		●
78	01.531 BOLT; EYE JOINT,OIL PIPE EXC. EUROPE EQUIPMENT(EK4) M8X25	8-94146-582-0	01	1	9205-9504	●
78	01.531 BOLT; EYE JOINT,OIL PIPE EXC. EUROPE EQUIPMENT(EK4) M8X23 FLANGE	8-94454-199-0	01	1	9505-	●
80	01.531 BOLT; OIL PIPE FIX 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9112-9504		●
80	01.531 BOLT; OIL PIPE FIX EXC. EUROPE EQUIPMENT(EK4) 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9112-9504	●
80	01.531 BOLT; OIL PIPE FIX EXC. EUROPE EQUIPMENT(EK4) 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9505-	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837	8-94235-567-1	01	1	9112-9504	●	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837	8-94235-567-1	01	1	9505-	●

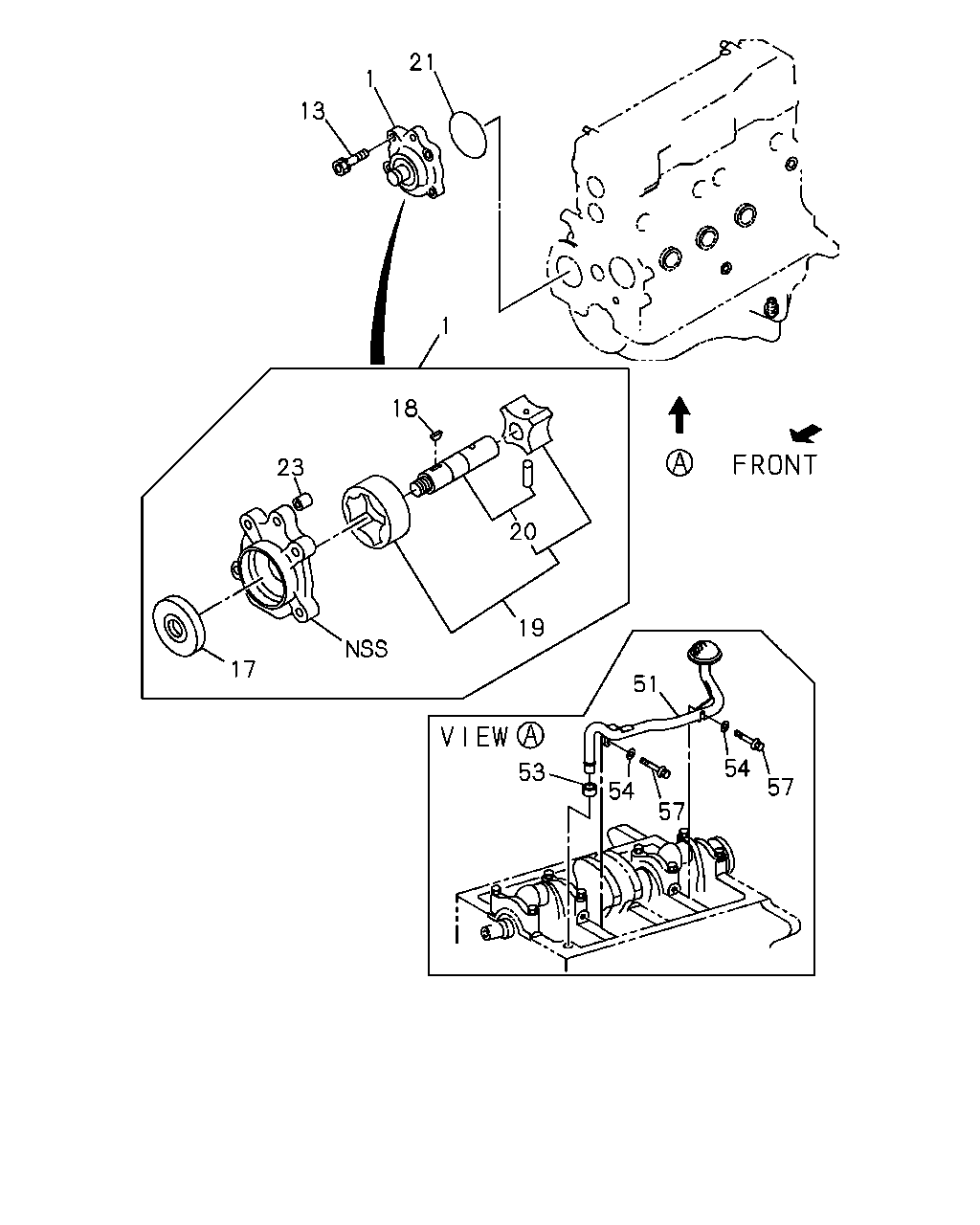

21 1 13 1 18 23 17 20 19 51 53 54 57 57 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.652 PUMP ASM; OIL	8-97033-174-2	01	1	9112-9504	●	●
1	01.652 PUMP ASM; OIL	8-97033-174-3	01	1	9505-	●
1	01.652 PUMP ASM; OIL	8-94459-730-1	01	1	9112-			●
1	01.652 PUMP ASM; OIL	8-94374-510-4	01	1	9112-9310				●
1	01.652 PUMP ASM; OIL W/PLUG	8-97103-864-0	01	1	9311-				●
13	01.652 BOLT; OIL PUMP TO C/BL M8X22 HEX-HOLE-HEAD	8-94225-552-0	04	1	9112-			●
17	01.657 SEAL; OIL,OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-516-0	01	1	9112-			●
18	01.639 KEY; OIL PUMP 08.960	9-08055-313-0	01	1	9112-			●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	9112-9504	●	●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	9505-	●
19	01.639 GEAR SET; OIL PUMP	8-94225-801-0	01	1	9112-			●
20	01.639 GEAR; DRIVE,OIL PUMP	8-94310-892-0	01	1	9309-			●
21	01.655 GASKET; OIL PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-94363-446-0	01	1	9112-			●
23	01.652 PIN; BODY,OIL PUMP 01.639	8-94227-142-0	02	1	9112-			●
51	01.519 STRAINER & PIPE ASM; OIL	8-94174-225-4	01	1	9112-			●
51	01.519 STRAINER & PIPE ASM; OIL	8-94374-516-2	01	1	9112-				●
53	01.657 HOSE; RUBBER,OIL PIPE ID=16.9 OD=23.5 L=9	8-94200-789-1	01	1	9112-			●
54	01.656 WASHER; PL,OIL PIPE 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9112-			●
57	01.531 BOLT; OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9112-			●
57	01.531 BOLT; OIL PIPE 02.274 (A) M6X32	0-28080-632-0	02	1	9112-9407				●
57	01.531 BOLT; OIL PIPE 01.652 (A) M6X30 FLANGE	0-28080-630-0	02	1	9408-9706				●
57	01.531 BOLT; OIL PIPE (A) M6X35 FLANGE	0-28680-635-0	02	1	9707-				●
57	01.531 BOLT; OIL PIPE (B) M6X55 FLANGE	8-97027-257-0	01	1	9112-				●

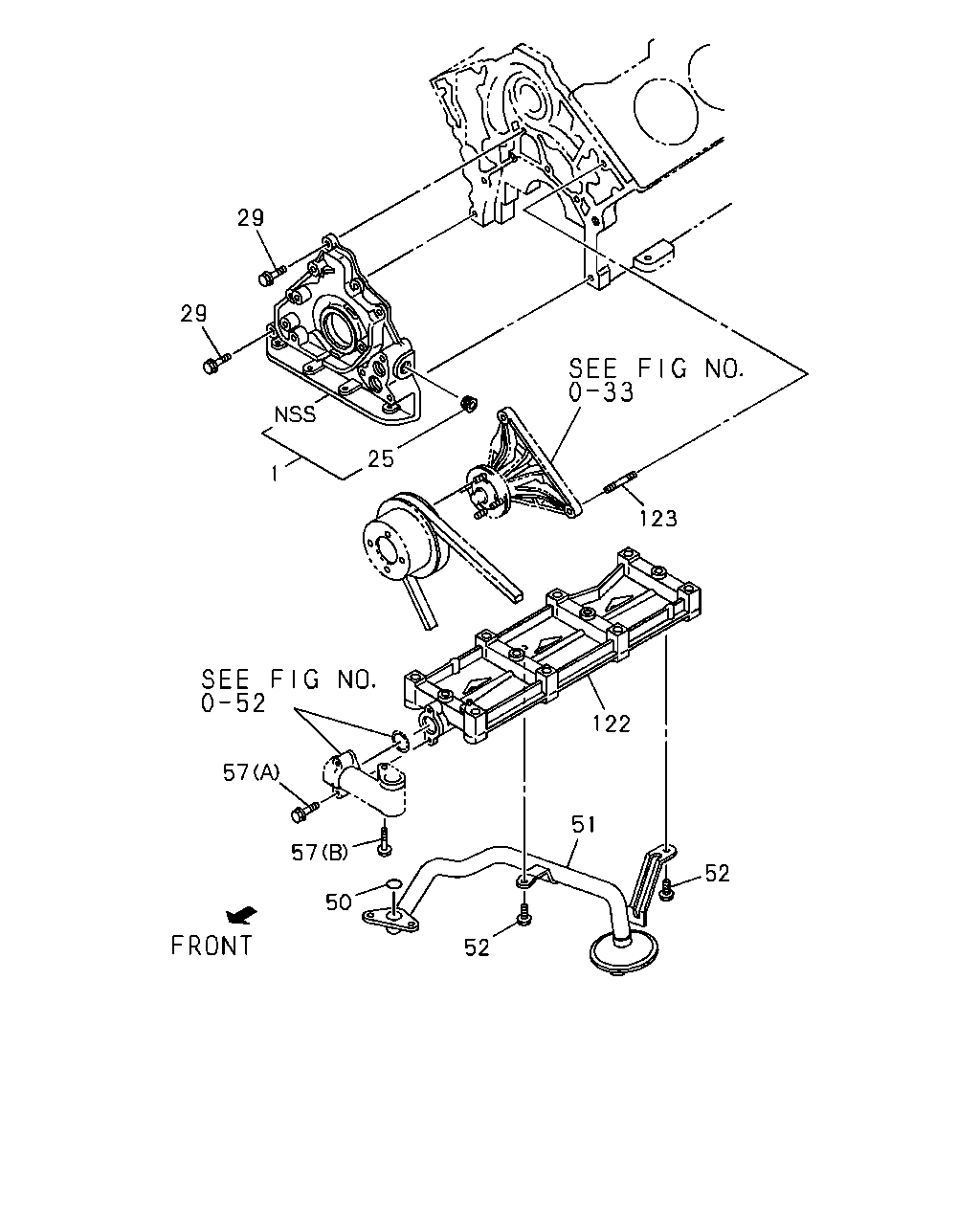

52 52 51 50 57 57 122 123 25 1 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.652 PUMP ASM; OIL	8-97033-174-2	01	1	9112-9504	●	●
1	01.652 PUMP ASM; OIL	8-97033-174-3	01	1	9505-	●
1	01.652 PUMP ASM; OIL	8-94459-730-1	01	1	9112-			●
1	01.652 PUMP ASM; OIL	8-94374-510-4	01	1	9112-9310				●
1	01.652 PUMP ASM; OIL W/PLUG	8-97103-864-0	01	1	9311-				●
25	01.609 PLUG; OIL PUMP	8-97063-612-0	01	1	9112-				●
29	01.652 BOLT; OIL PUMP 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9112-9504	●	●
29	01.652 BOLT; OIL PUMP 01.252 M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9505-9612	●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9701-	●
29	01.652 BOLT; OIL PUMP 07.010 M8X20 FLANGE	0-28080-820-0	05	1	9112-9706				●
29	01.652 BOLT; OIL PUMP 02.559 M8X25 FLANGE	0-28680-825-0	05	1	9707-				●
29	01.652 BOLT; OIL PUMP 08.900 M8X28 FLANGE	0-28080-828-0	01	1	9112-9407				●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9408-9706				●
29	01.652 BOLT; OIL PUMP 04.686 M8X30 FLANGE	0-28680-830-0	01	1	9707-				●
50	01.531 GASKET; OIL PIPE,STRAINER TO PUM ALSO INCLUDED IN GASKET SET(ENGINE). W/PLATE ID=18.2	8-94329-964-0	01	1	9112-				●
51	01.519 STRAINER & PIPE ASM; OIL	8-94174-225-4	01	1	9112-			●
51	01.519 STRAINER & PIPE ASM; OIL	8-94374-516-2	01	1	9112-				●
52	01.656 BOLT; OIL PIPE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9112-				●
52	01.656 BOLT; OIL PIPE 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9112-				●
57	01.531 BOLT; OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9112-			●
57	01.531 BOLT; OIL PIPE 02.274 (A) M6X32	0-28080-632-0	02	1	9112-9407				●
57	01.531 BOLT; OIL PIPE 01.652 (A) M6X30 FLANGE	0-28080-630-0	02	1	9408-9706				●
57	01.531 BOLT; OIL PIPE (A) M6X35 FLANGE	0-28680-635-0	02	1	9707-				●
57	01.531 BOLT; OIL PIPE (B) M6X55 FLANGE	8-97027-257-0	01	1	9112-				●
122	01.519 GALLERY; OIL	8-94374-512-4	01	1	9112-9711				●
122	01.519 GALLERY; OIL	8-97131-865-0	01	1	9712-				●
123	01.060 STUD; FAN BRKT	9-04010-855-0	01	1	9112-9406				●
123	01.060 STUD; FAN BRKT M8X55 L=71	9-04020-855-0	01	1	9407-				●
