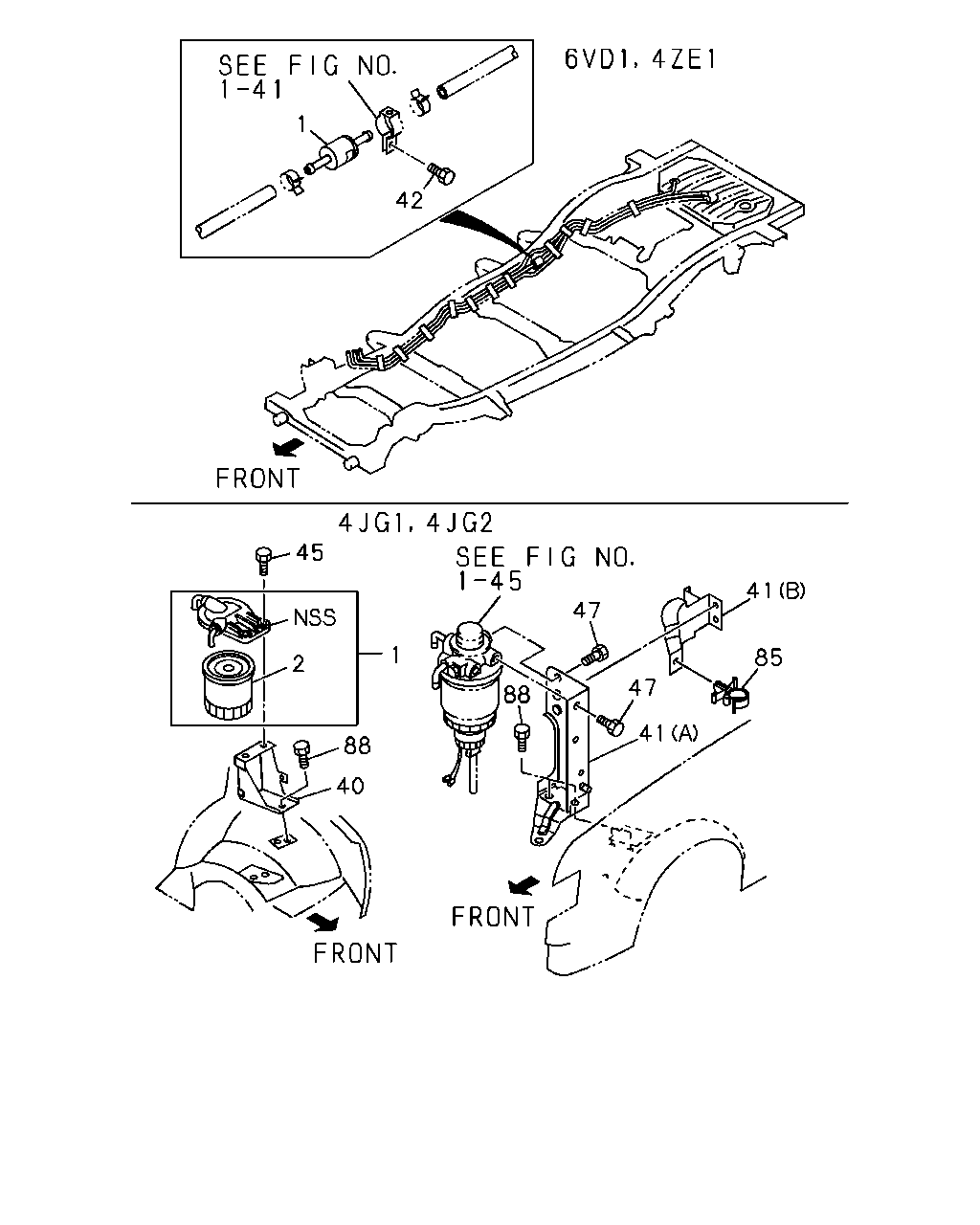

0-41 — FUEL FILTER AND BRACKET (#43297) — 27 parça

1 42 45 2 1 88 40 88 47 47 41 85 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.890 FILTER ASM; FUEL EXC. EUROPE EQUIPMENT(EK4)	8-94420-201-0	01	1	9112-9504	●	●
1	03.890 FILTER ASM; FUEL EXC. EUROPE EQUIPMENT(EK4)	8-94420-201-0	01	1	9505-	●
1	03.890 FILTER ASM; FUEL	5-13200-066-1	01	1	9112-			●
1	03.890 FILTER ASM; FUEL	8-25055-364-0	01	1	9112-				●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. EUROPE EQUIPMENT(EK4) 01.836	8-94144-613-0	01	1	9112-9504	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. EUROPE EQUIPMENT(EK4) 01.836	8-94144-613-0	01	1	9505-	●
40	03.890 BRACKET; FUEL FILTER EXC. EUROPE EQUIPMENT(EK4)	8-97038-181-1	01	1	9112-9504	●	●
40	03.890 BRACKET; FUEL FILTER EXC. EUROPE EQUIPMENT(EK4)	8-97038-181-1	01	1	9505-	●
41	03.890 BRACKET; FUEL FILTER (A)	8-97038-182-3	01	1	9112-9206	●	●
41	03.890 BRACKET; FUEL FILTER EUROPE EQUIPMENT(EK4) (A)	8-97038-182-3	01	1	9207-	●
41	03.890 BRACKET; FUEL FILTER EUROPE EQUIPMENT(EK4) (B)	8-97132-351-1	01	1	9608-	●
42	03.890 BOLT; FUEL FILTER 16.065 M6X20 W/LK WASHER	9-01900-620-0	01	1	9112-9204				●
42	03.890 BOLT; FUEL FILTER 03.704 M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9212				●
42	03.890 BOLT; FUEL FILTER 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	9301-				●
45	03.890 BOLT; FUEL FILTER EXC. EUROPE EQUIPMENT(EK4) M10X32 W/LK WASHER	9-01901-032-0	02	1	9112-9204	●	●
45	03.890 BOLT; FUEL FILTER EXC. EUROPE EQUIPMENT(EK4) 06.525 M10X32 W/LK WASHER	0-50041-032-0	02	1	9205-9504	●	●
45	03.890 BOLT; FUEL FILTER EXC. EUROPE EQUIPMENT(EK4) 06.525 M10X32 W/LK WASHER	0-50041-032-0	02	1	9505-	●
47	03.890 BOLT; BRKT,FUEL FILTER 03.671 M8X18 W/LK WASHER	9-01900-818-0	02	1	9112-9204	●	●
47	03.890 BOLT; BRKT,FUEL FILTER 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9205-9504	●	●
47	03.890 BOLT; BRKT,FUEL FILTER 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9505-	●
85	03.890 CLIP; FUEL EUROPE EQUIPMENT(EK4) 16.065	8-97038-800-0	01	1	9608-	●
88	03.895 BOLT; BRKT,FUEL FILTER 00.662 M8X14 FLANGE	0-28080-814-0	02	1	9112-9206	●	●
88	03.895 BOLT; BRKT,FUEL FILTER EUROPE EQUIPMENT(EK4) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	9207-9302	●
88	03.895 BOLT; BRKT,FUEL FILTER EUROPE EQUIPMENT(EK4) 08.155 M8X16 FLANGE	0-28480-816-0	02	1	9303-	●
88	03.895 BOLT; BRKT,FUEL FILTER EXC. EUROPE EQUIPMENT(EK4) 00.662 M8X14 FLANGE	0-28080-814-0	05	1	9207-9302	●	●
88	03.895 BOLT; BRKT,FUEL FILTER EXC. EUROPE EQUIPMENT(EK4) 08.155 M8X16 FLANGE	0-28480-816-0	05	1	9303-9504	●	●
88	03.895 BOLT; BRKT,FUEL FILTER EXC. EUROPE EQUIPMENT(EK4) 08.155 M8X16 FLANGE	0-28480-816-0	05	1	9505-	●
