◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50658 - UBS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#43293) — 23 parça

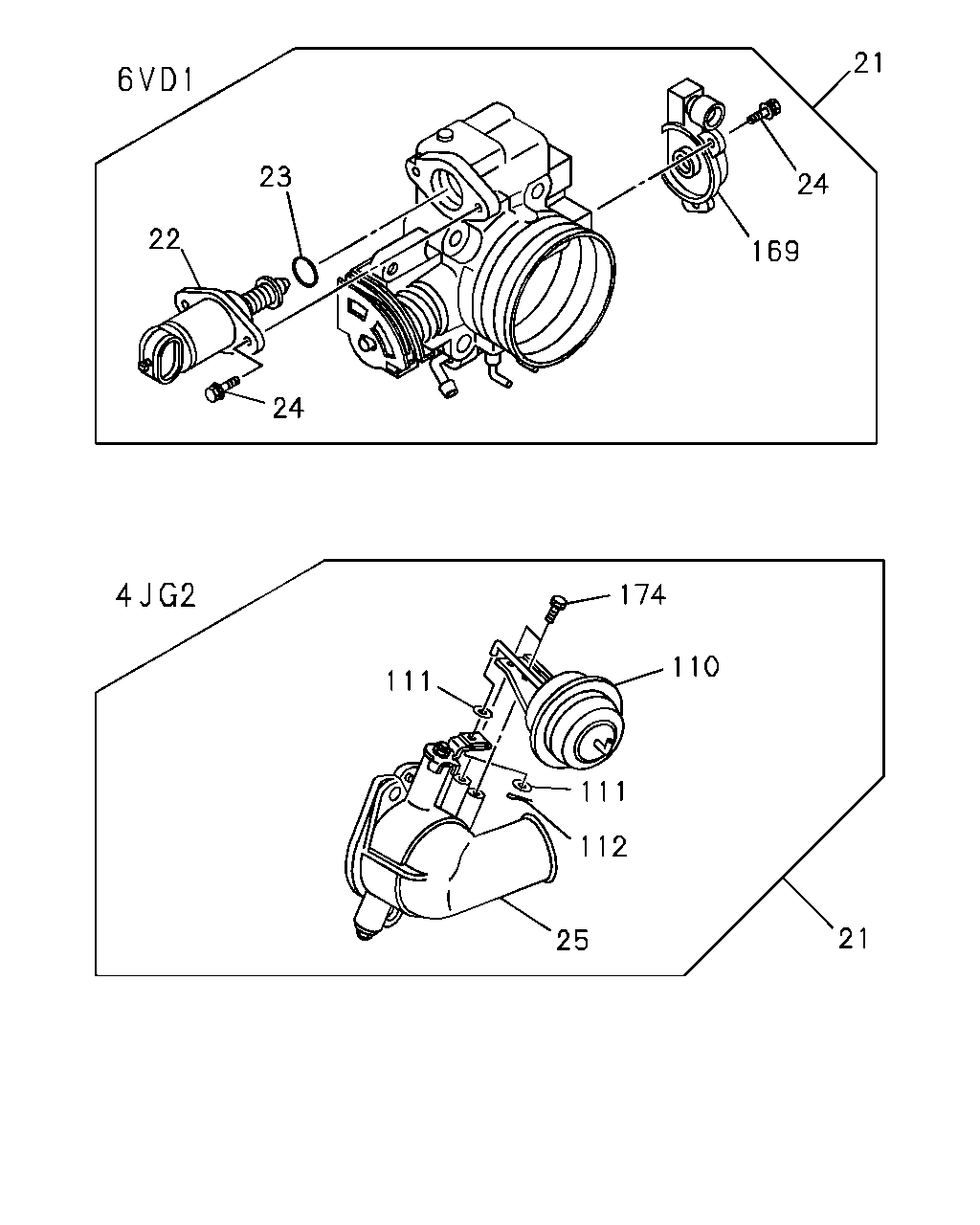

çizim 66218
21 24 169 23 22 24 111 25 112 111 21 110 174
BalonParca AdiParca NoAdetTipApplied Date A B
21 03.440 VALVE ASM; THROTTLE
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97060-047-0 01 1 9112-9308 ●
21 03.440 VALVE ASM; THROTTLE
EUROPE EQUIPMENT(EK4) 		8-97060-047-2 01 1 9309-9504 ●
21 03.440 VALVE ASM; THROTTLE
EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 		8-97060-047-2 01 1 9505-9607 ●
21 03.440 VALVE ASM; THROTTLE 8-17091-096-1 01 1 9112- ●
22 03.440 VALVE ASM; CONT,TB 8-17112-648-0 01 1 9112- ●
23 03.440 GASKET; AIR CONT VLV 8-17082-049-0 01 1 9112- ●
24 03.440 SCREW SET; TB 8-17112-268-0 01 1 9112- ●
25 03.440 BODY ASM; THROTTLE
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97060-048-0 01 1 9112-9308 ●
25 03.440 BODY ASM; THROTTLE
EUROPE EQUIPMENT(EK4) 		8-97060-048-0 01 1 9309-9504 ●
25 03.440 BODY ASM; THROTTLE
EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 		8-97060-048-0 01 1 9505-9607 ●
110 03.440 CHAMBER ASM; DIAPH
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-97046-900-0 01 1 9112-9308 ●
110 03.440 CHAMBER ASM; DIAPH
EUROPE EQUIPMENT(EK4) 		8-97046-900-0 01 1 9309-9504 ●
110 03.440 CHAMBER ASM; DIAPH
EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 		8-97046-900-0 01 1 9505-9607 ●
111 03.440 WASHER; SPLIT PIN
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		8-94467-828-0 02 1 9112-9308 ●
111 03.440 WASHER; SPLIT PIN
EUROPE EQUIPMENT(EK4) 		8-94467-828-0 02 1 9309-9504 ●
111 03.440 WASHER; SPLIT PIN
EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 		8-94467-828-0 02 1 9505-9607 ●
112 03.440 PIN; SPLIT,LEVER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 		9-08112-010-0 01 1 9112-9308 ●
112 03.440 PIN; SPLIT,LEVER
EUROPE EQUIPMENT(EK4) 		9-08112-010-0 01 1 9309-9504 ●
112 03.440 PIN; SPLIT,LEVER
EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 		9-08112-010-0 01 1 9505-9607 ●
169 03.440 SENSOR 8-17087-655-0 01 1 9112- ●
174 03.440 BOLT; CHAMBER
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) 16.341 M6X12 W/LK WASHER 		9-01900-612-0 02 1 9112-9308 ●
174 03.440 BOLT; CHAMBER
EUROPE EQUIPMENT(EK4) 16.341 M6X12 W/LK WASHER 		9-01900-612-0 02 1 9309-9504 ●
174 03.440 BOLT; CHAMBER
EUROPE EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 16.341 M6X12 W/LK WASHER 		9-01900-612-0 02 1 9505-9607 ●
